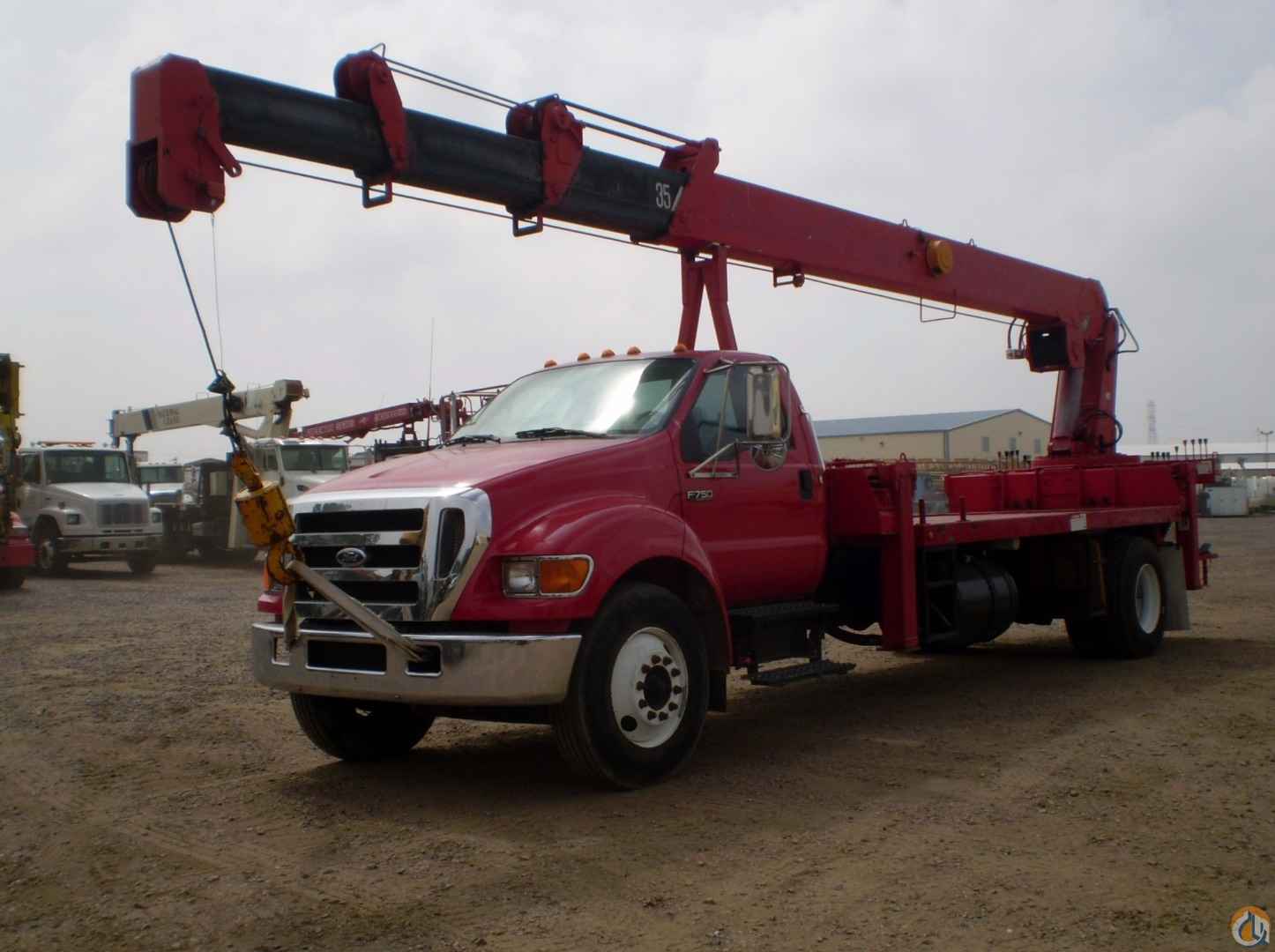

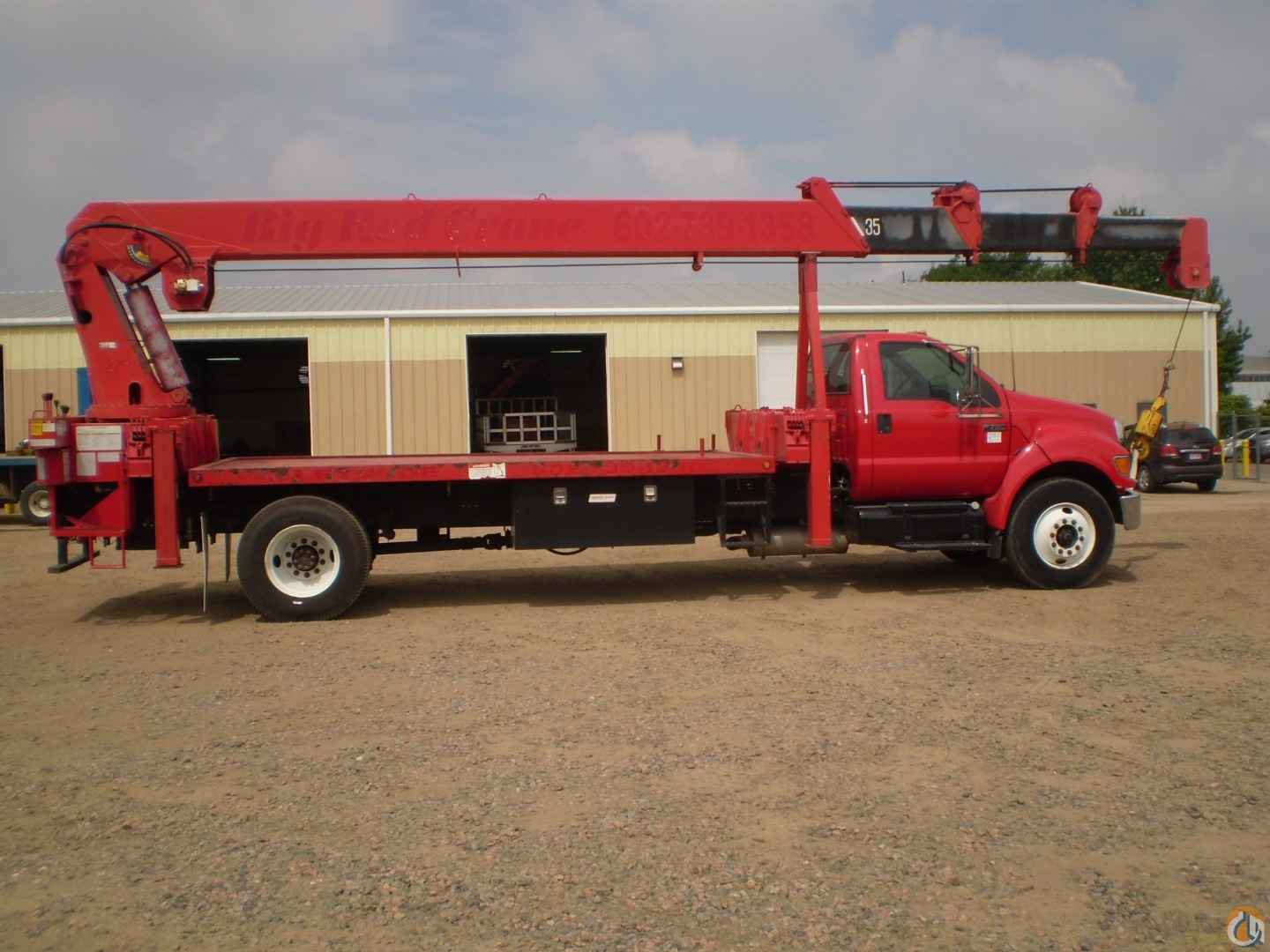

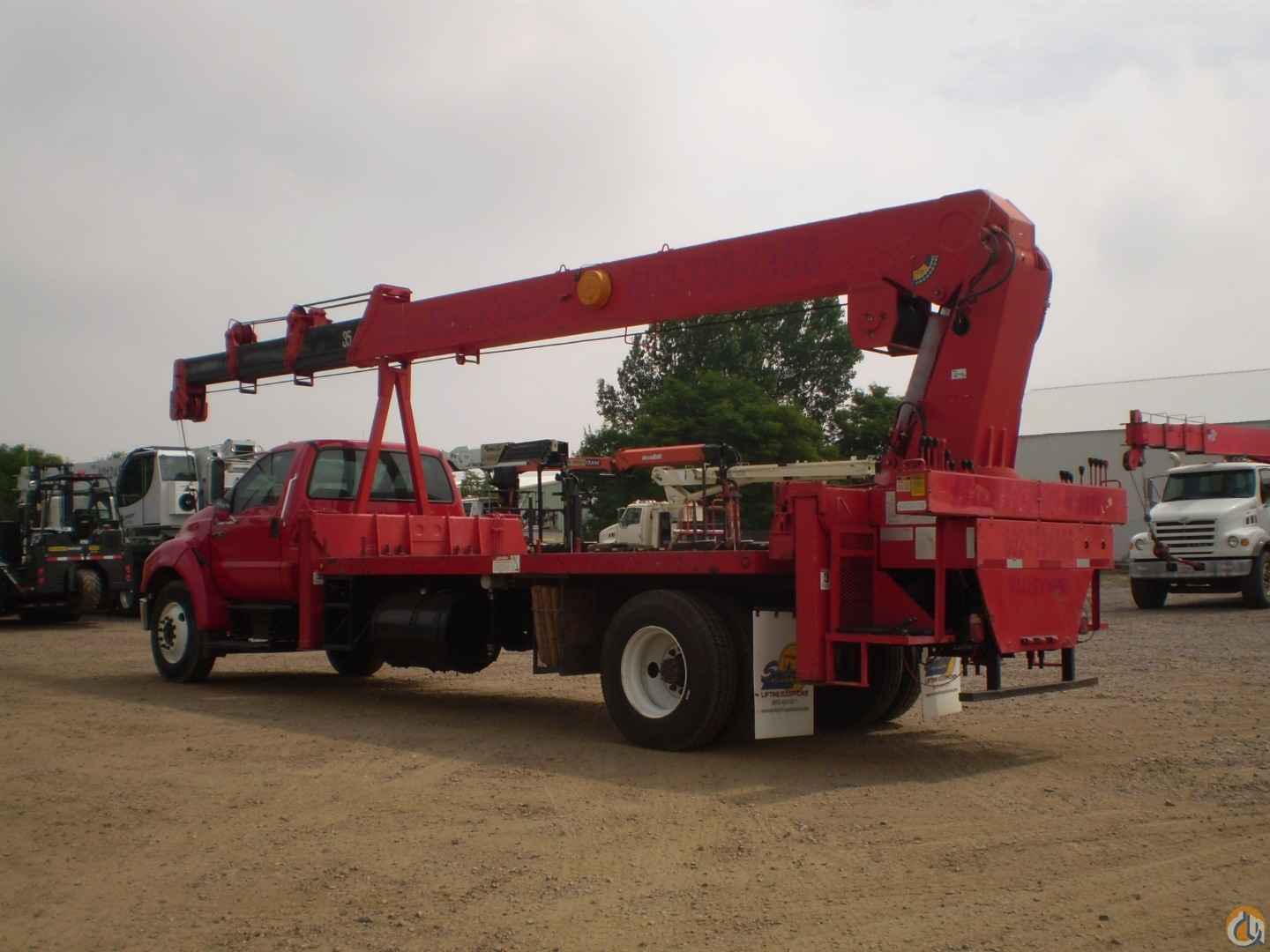

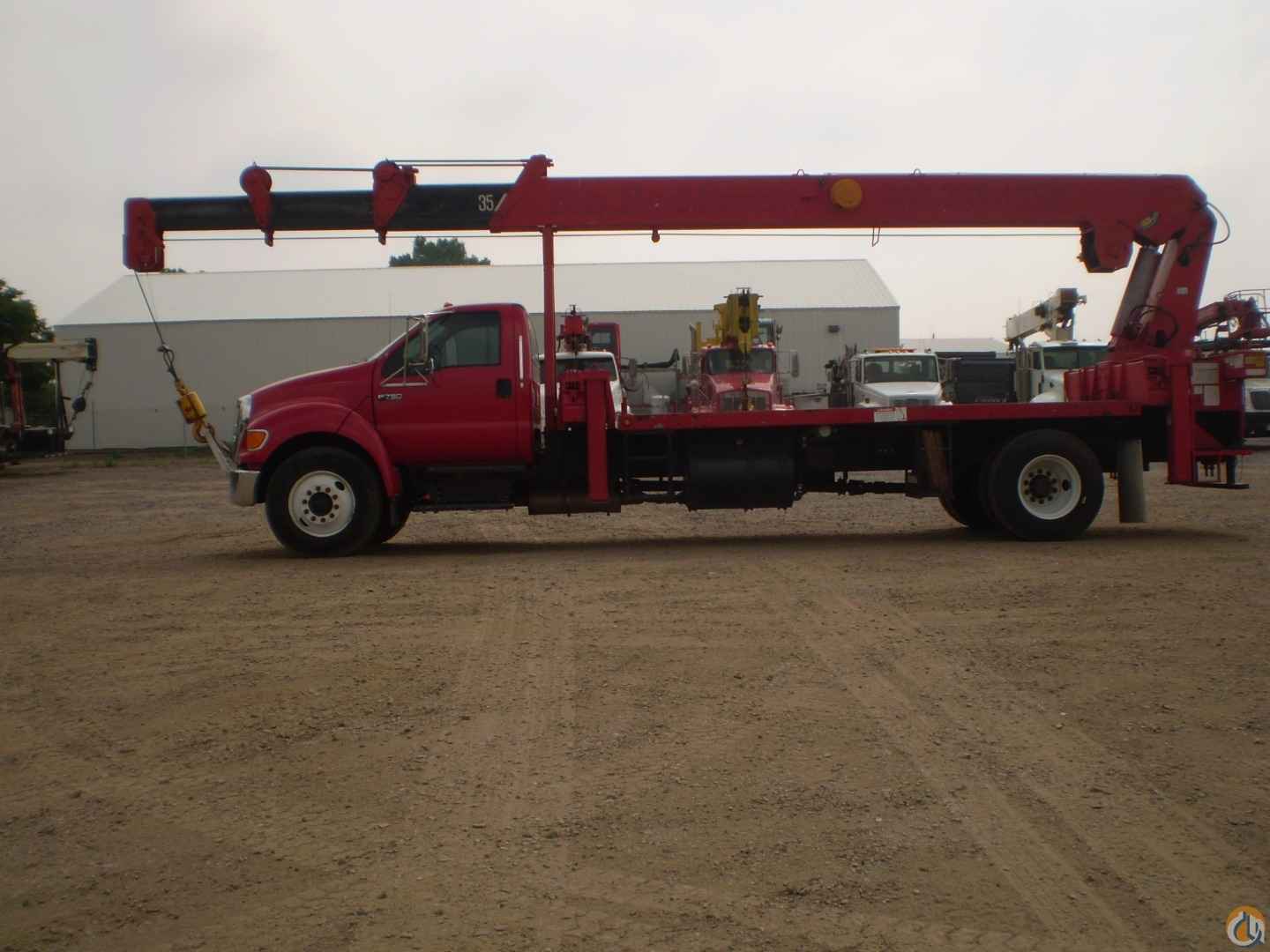

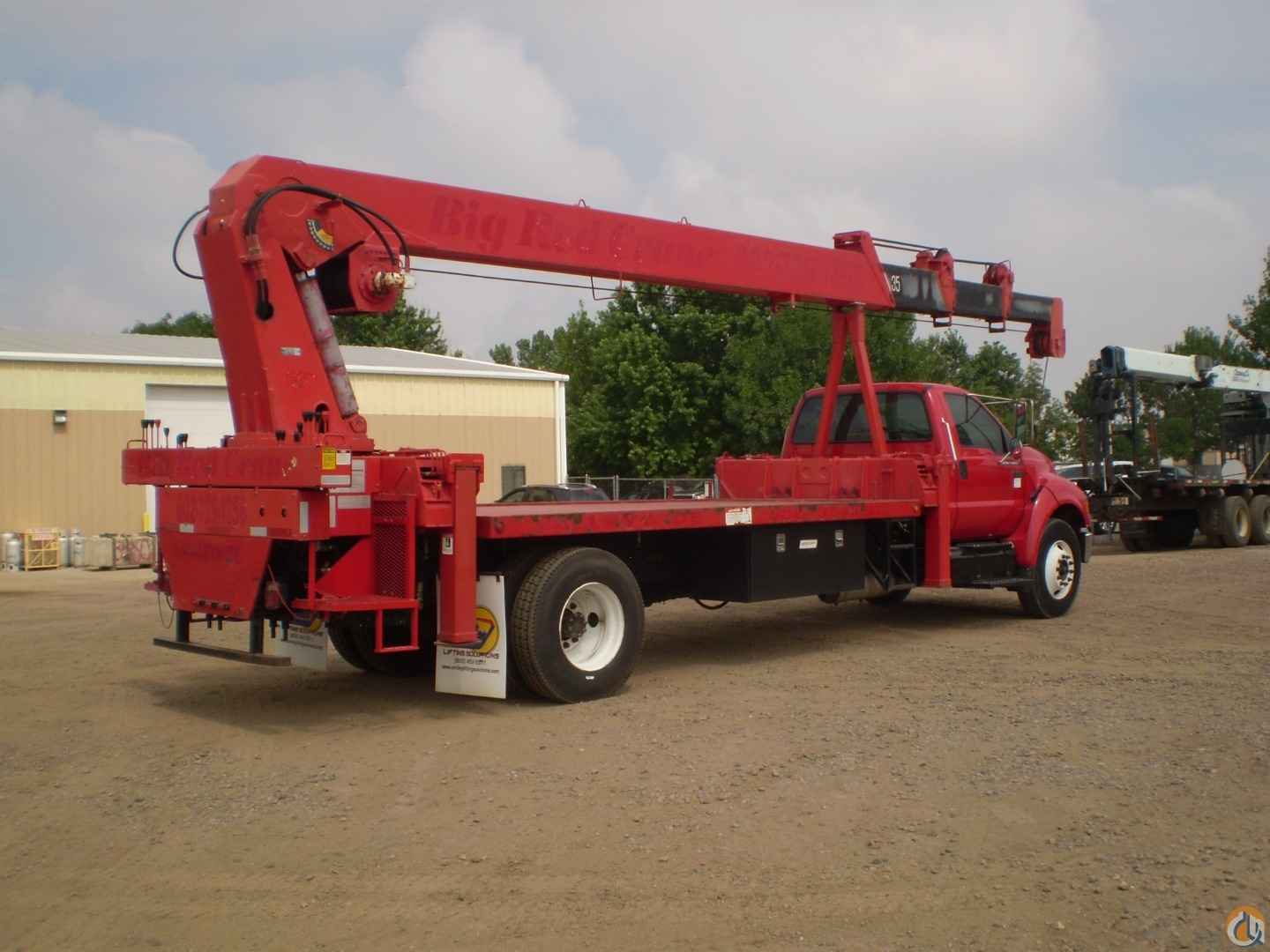

STANDARD FEATURES

Maximum Lifting Capacity:  30,000 lbs @ 4’

Maximum Sheave Height: 91.2 Feet

Main Boom:  4-Section hexagonal box-beam, full hydraulic telescoping

Main Lift Cylinder:  Double acting type with counter balance valve

Winch:  Hydraulic motor driven planetary gear reduction w/ automatic

mechanical brake.

Single Line Pull:  8,700 lbs at 1st layer

Single Line Speed:  112 FPM @ 3rd Layer (Low) / 223 FPM @ 3rd Layer (Hi)

Wire Rope:  6xWS (31) IWRC, 9/16” x 236ft, 33,920 lbs Breaking Strength

Swing Structure:  Hydraulic motor driven, work & spur gear reduction with worm self-

locking brake.

Swing Range:  360° continuous rotation on a ball bearing race

Swing Speed:  1.4 RPM

Main outriggers:  Vertical jacks and horizontal beams w/ double acting hyd. cylinders w/

pilot-operated check valves.

Span:  18.7’

Supplemental Outriggers:  Vertical jacks and horizontal beams w/ double acting hyd.  Span: 11.5’

Control Valve:      Multiple control valve, spring centered, spool-type w/ pressure relief

valve.

System Pressure:  2,850 PSI (all functions)

Pump:  3-section Gear Pump

Flows:  26.4 GPM (winch) / 26.4 GPM (boom) / 12.7 GPM (swing)

Hydraulic Reservoir:  50.2 Gallon

Total Crane Weight:       12,110 Lbs

Safety Devices:  Anti two-block system / Outrigger motion alarm.

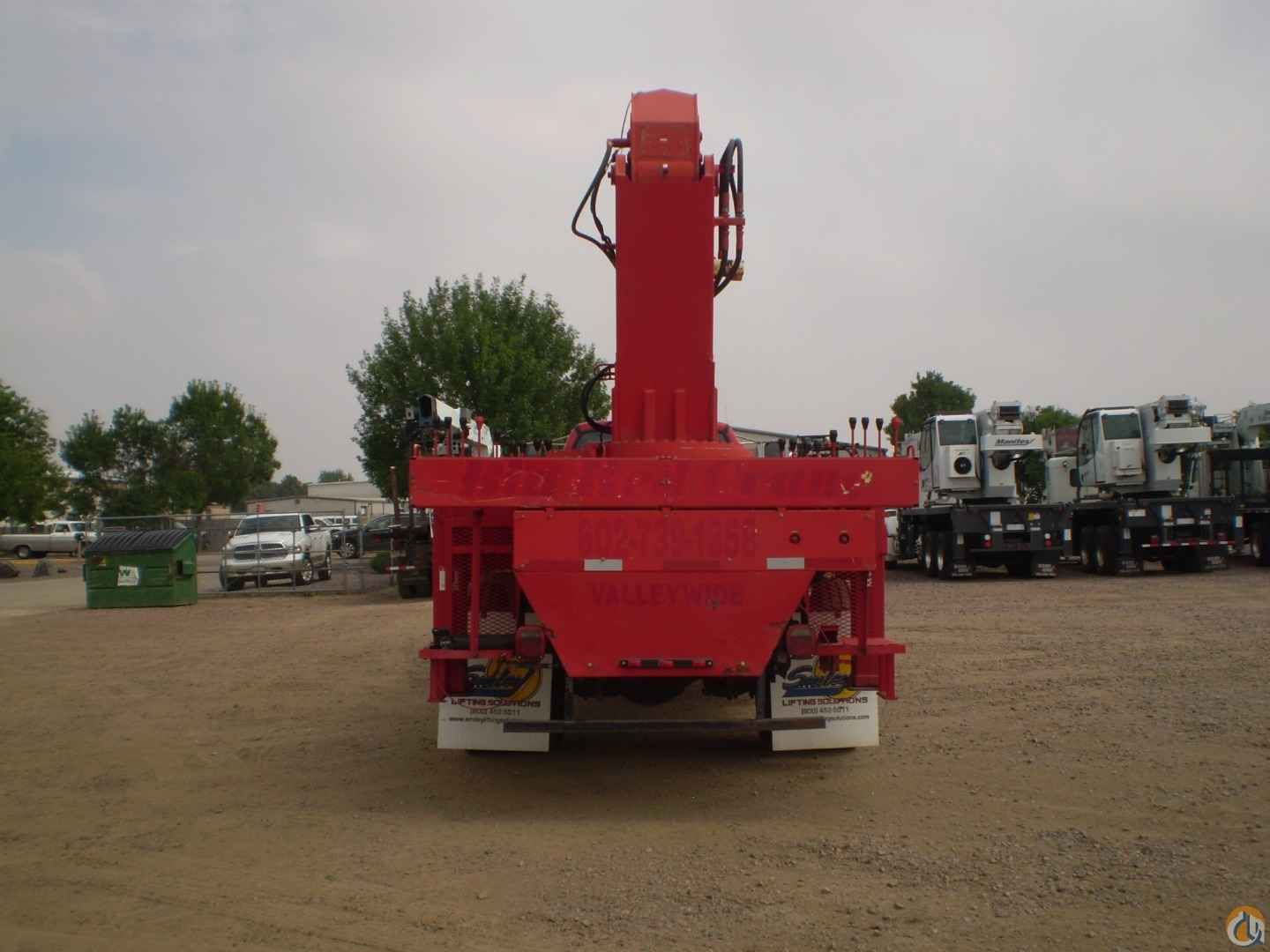

Mounting:  Rear-mount w/ operator’s platform

Hook:  110 lbs downhaul Load Ball w/ hook

INCLUDED ITEMS

Crane Mat holders on left side

Platform body access ladders on LT & RT Front of body

Steel Tool Box mounted underbody on RT side

TRUCK

2004 Ford F750 33,000 GVWR Chassis

Engine:  CAT 3126

Transmission:  5-Speed Manual

Brakes:  Hydraulic

Climate:  A/C & Cab Heat

Power Steering

Front Tires:  295/75R22.5 on steel wheels

Front Axle Weight Rating:  12,000 lbs

Rear Tires:  295/75R22.5 on steel wheels

Rear Axle Weight Rating:  21,000 lbs

Paint:  Red

~68,426 Miles

VIN#: 3FRXF75424V609592
