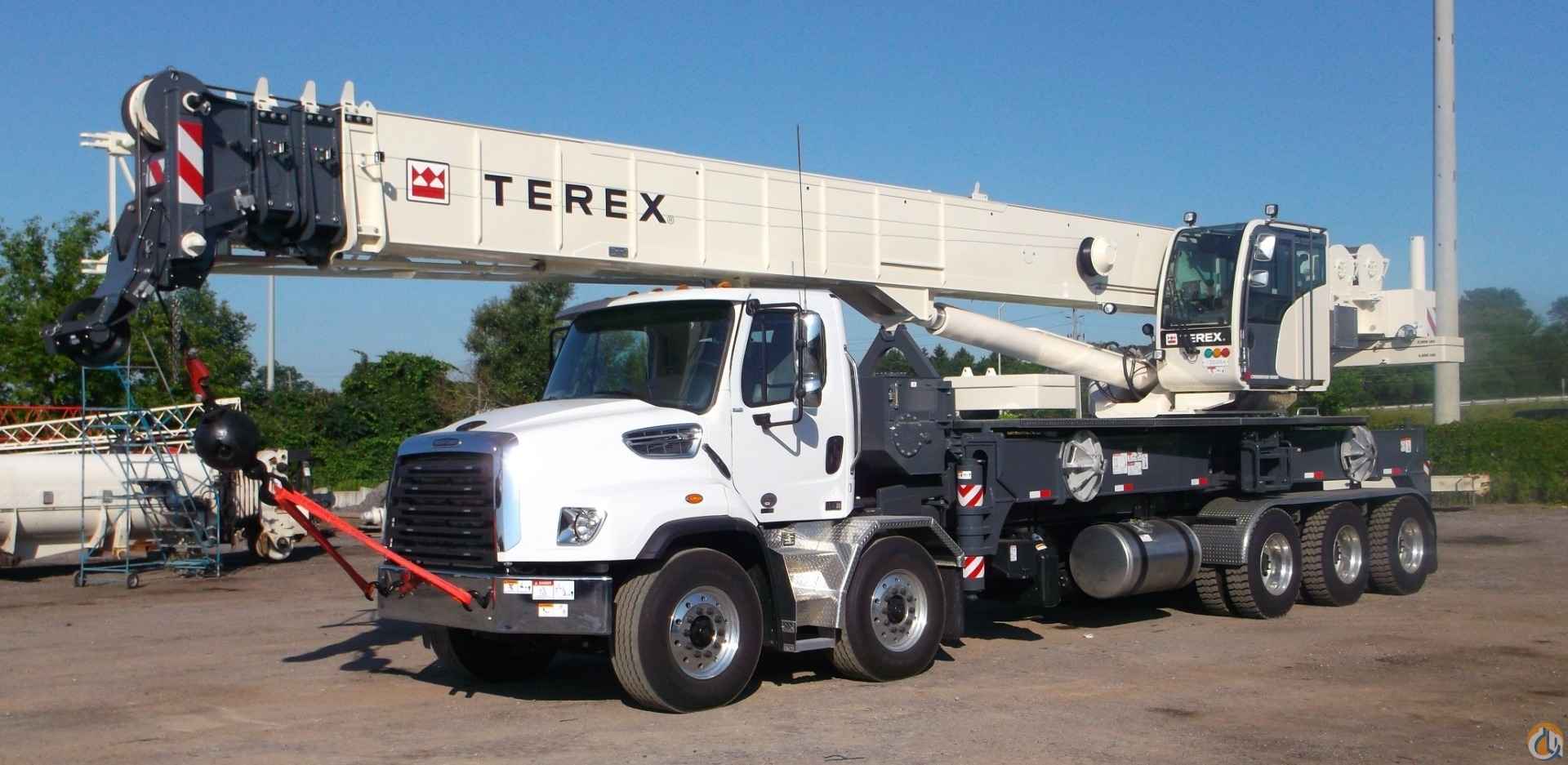

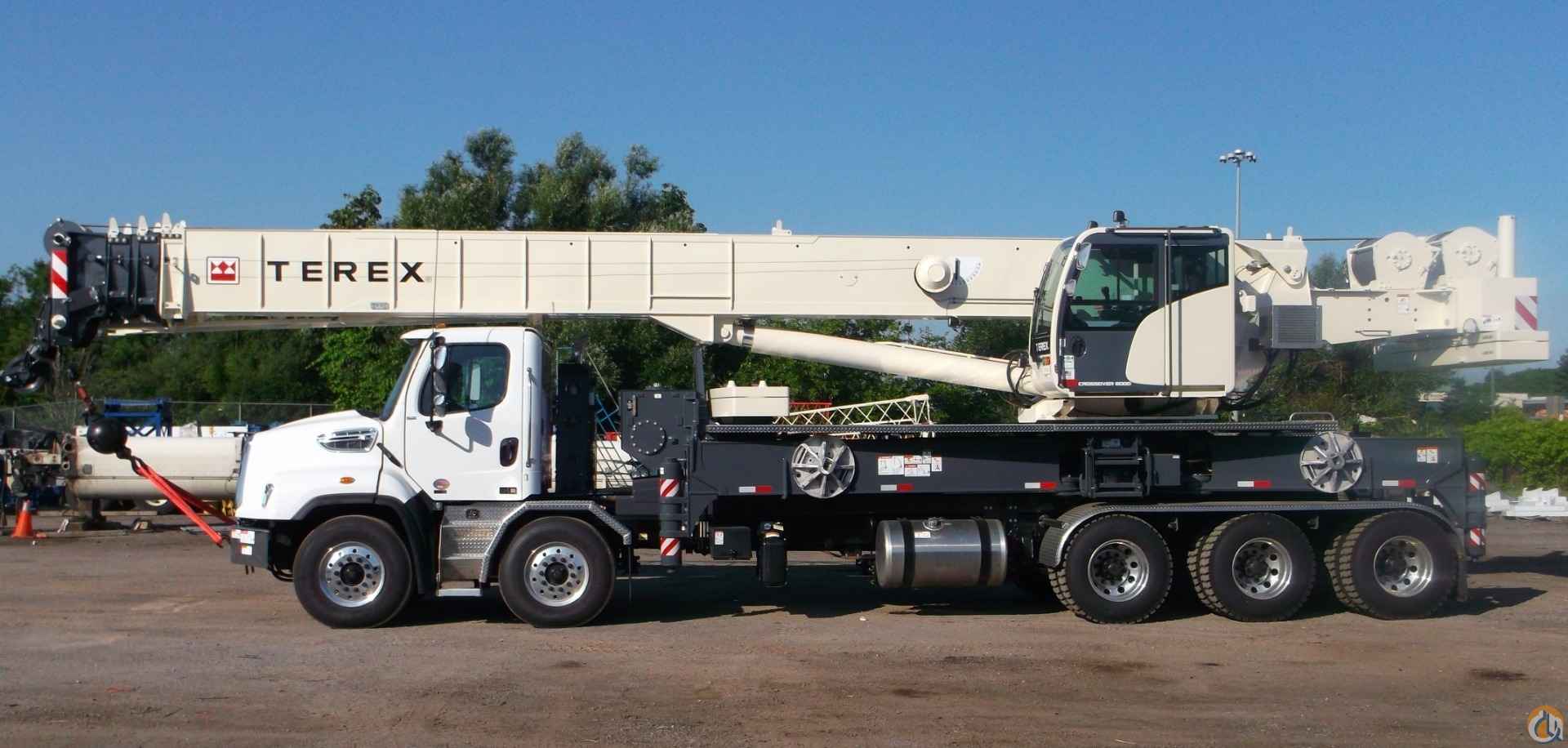

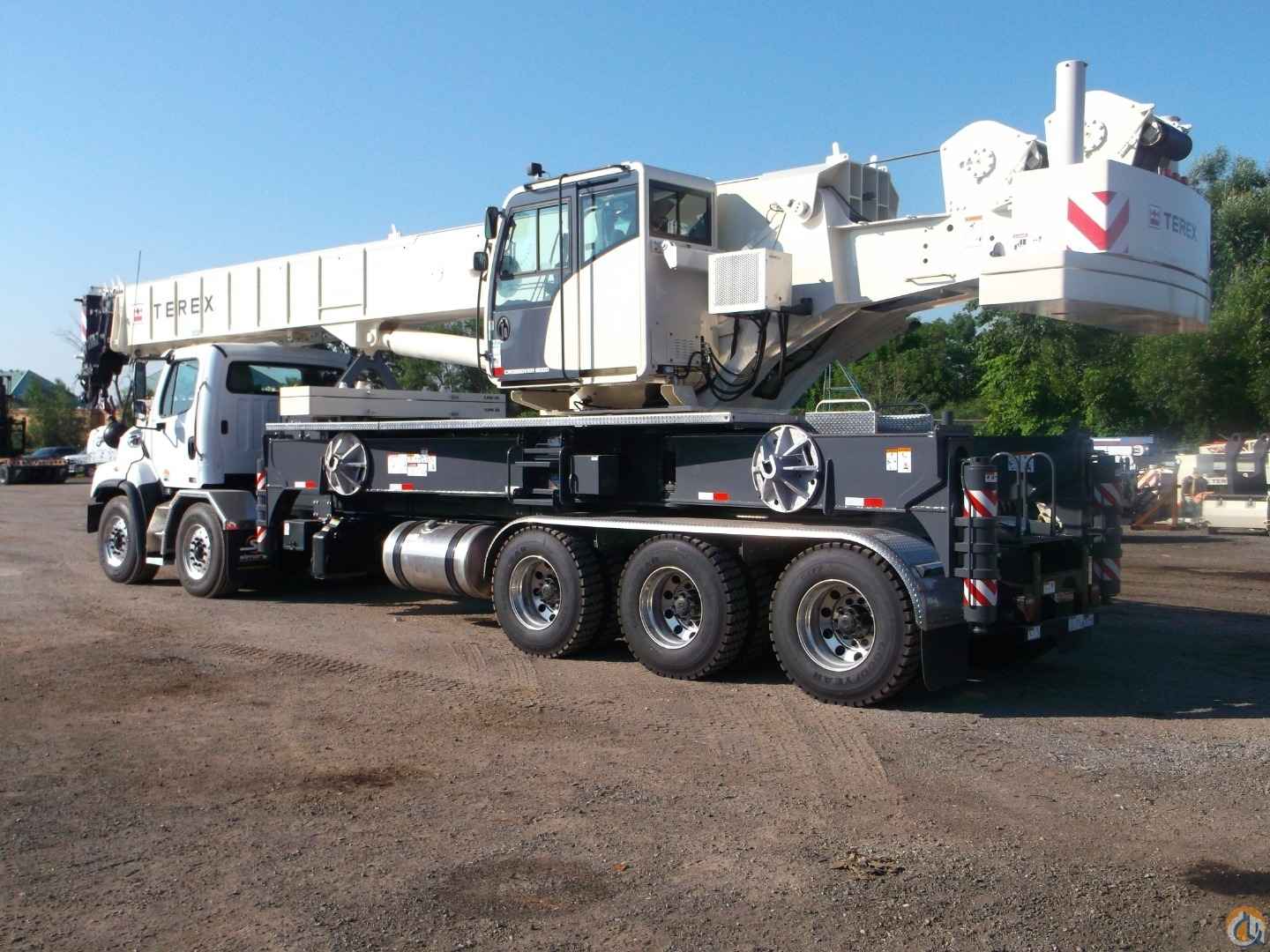

80 ton capacity

126 foot full power boom, four section, with quick reeve boom head

33-57 foot offsetable jib

Main hoist with rotation resistant wire rope and 3rd wrap indicator

Aux hoist with rotation resistant wire rope and 3rd wrap indicactor

Two speed hoists main and aux, with grooved drums

Single PTO driven pump. ( two pump system 1 piston 1 gear)

5 Sheave 80 ton hook block

12 Ton Headache ball

Deluxe operators cab with full hydraulic tilt 0-18 degrees

Rated capacity limiter with anti two block

Joystick controls with electric pulse indicators for winch

Foot control pedals for swing brake and throttle

Engine display

Work light package 3 adjustable

Air conditioning and flameless heater

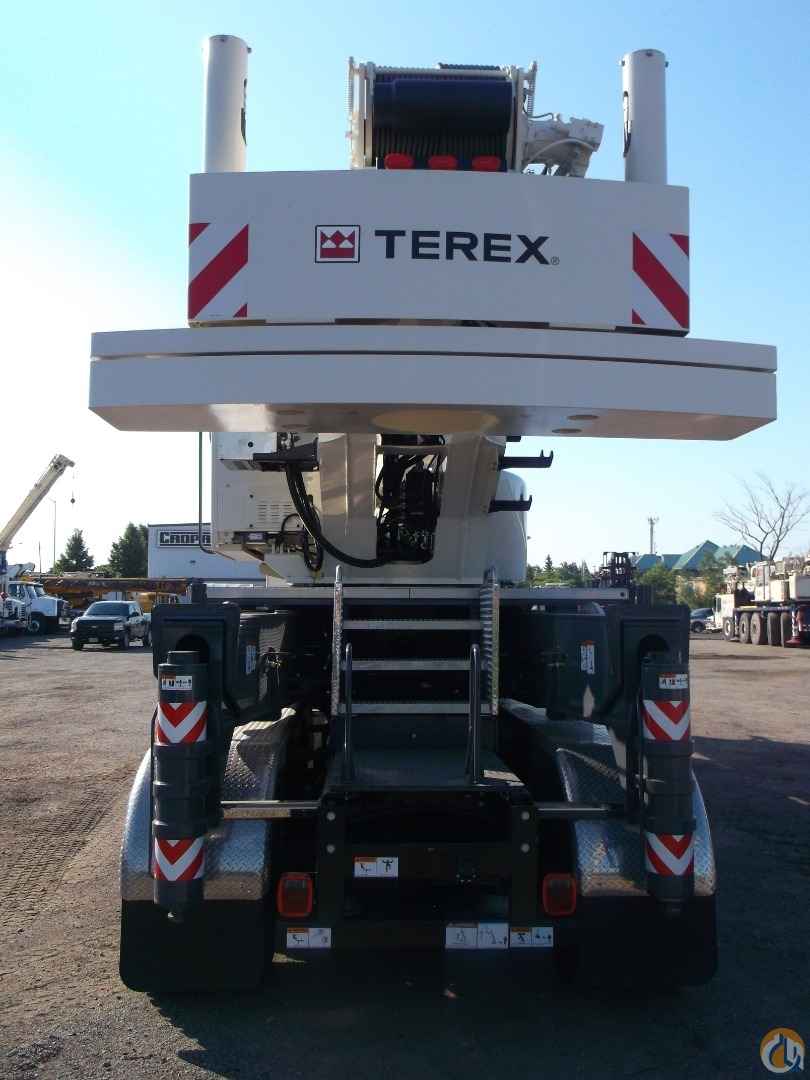

12,000lb full counterweight, including hydraulic counterweight removal system (Plus 3000 lbs. fixed ctw)

X pattern hydraulic swing out and telescope 3 position outriggers

360 degree load chart, Front outrigger not required

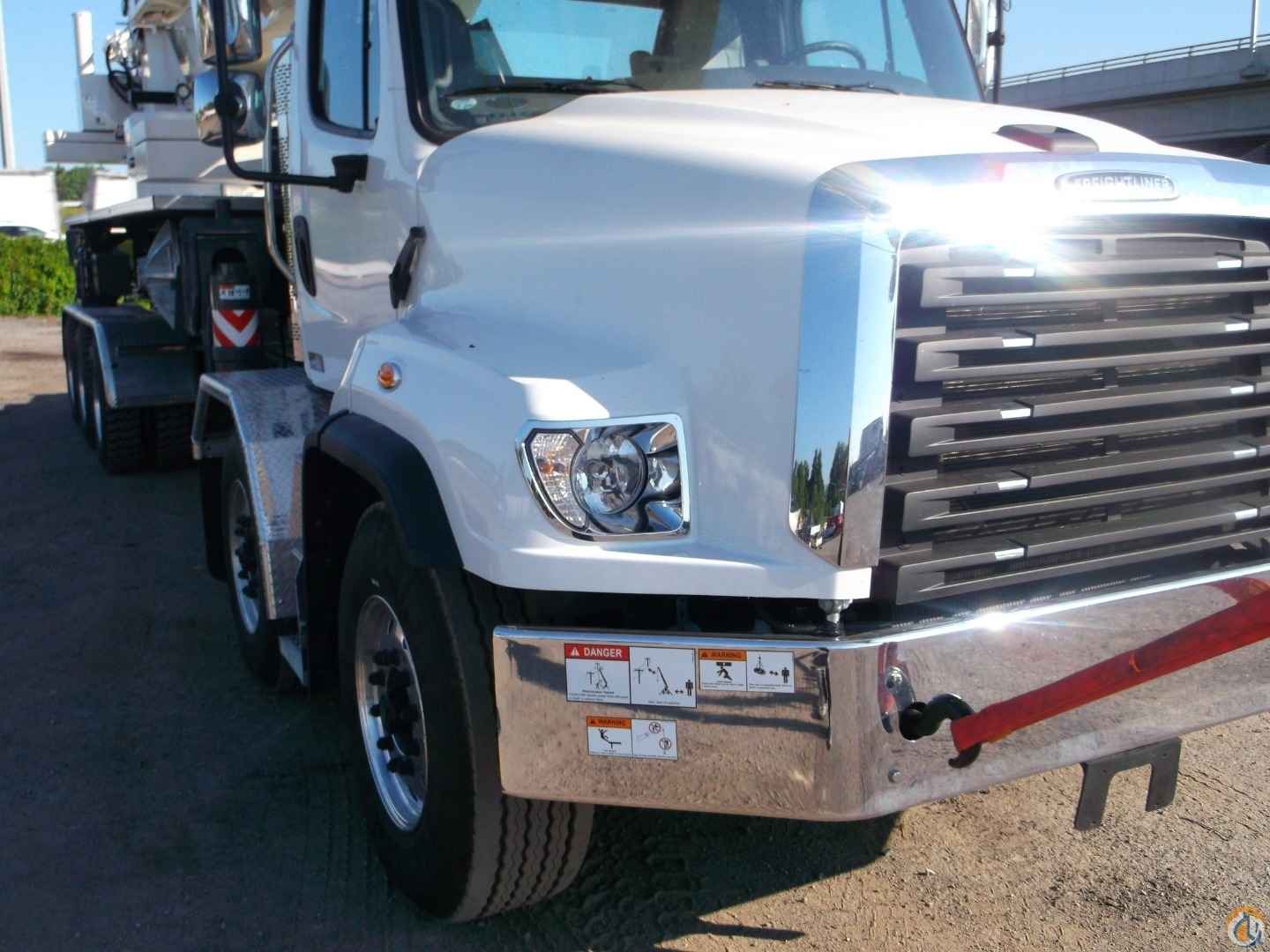

Mounted on a new 2019 Star 4700 Tandem Tridem

40,000lb front tandem axle , 69,000lb rear tri-drive axle with air liner suspension, wide track

Detroit Diesel 13 - 450 HP

Fuller RTLO 18918B 18 Speed Transmission

Front tires 44565R22.5

Rear tire 1200R22.5

Full Specs available
