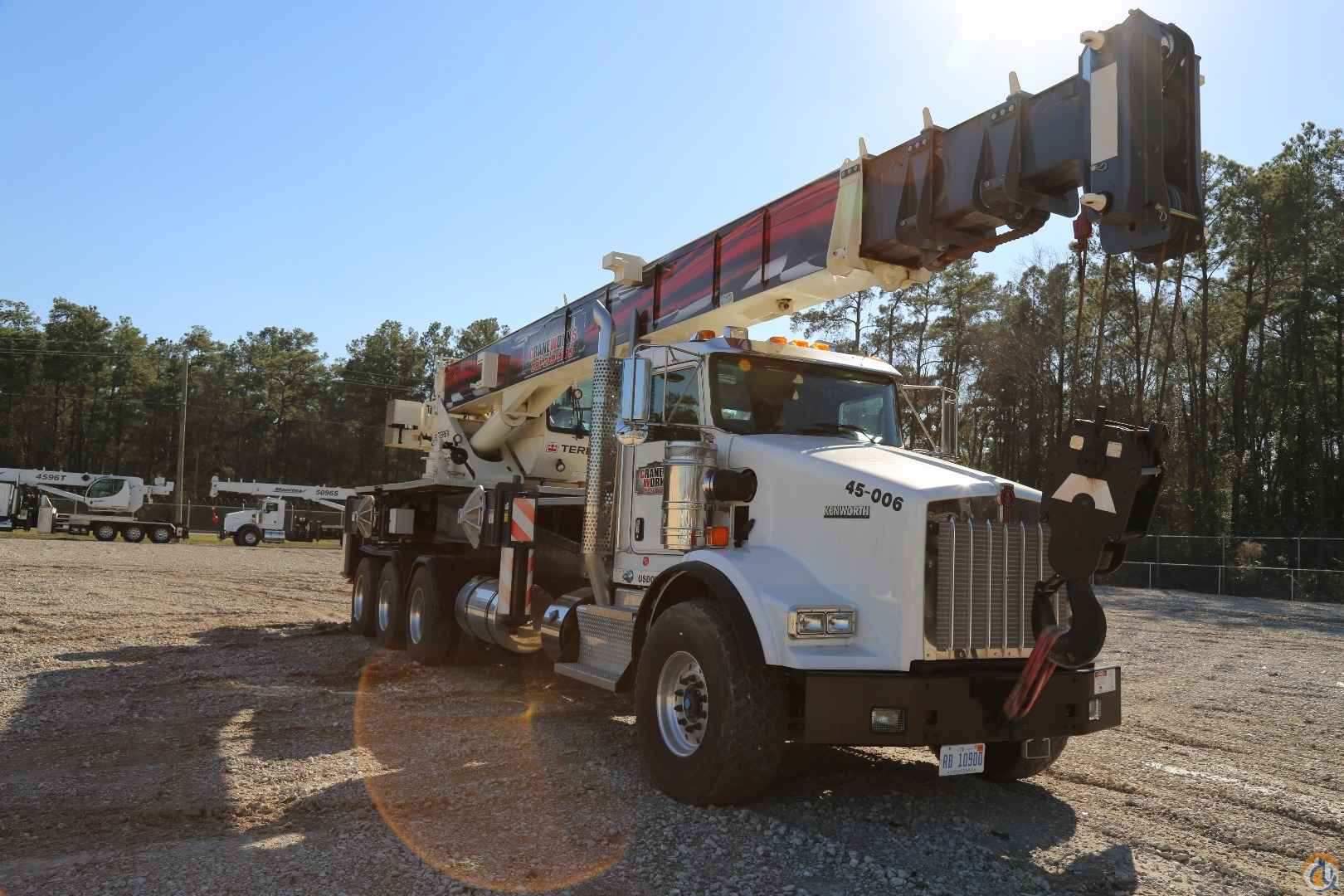

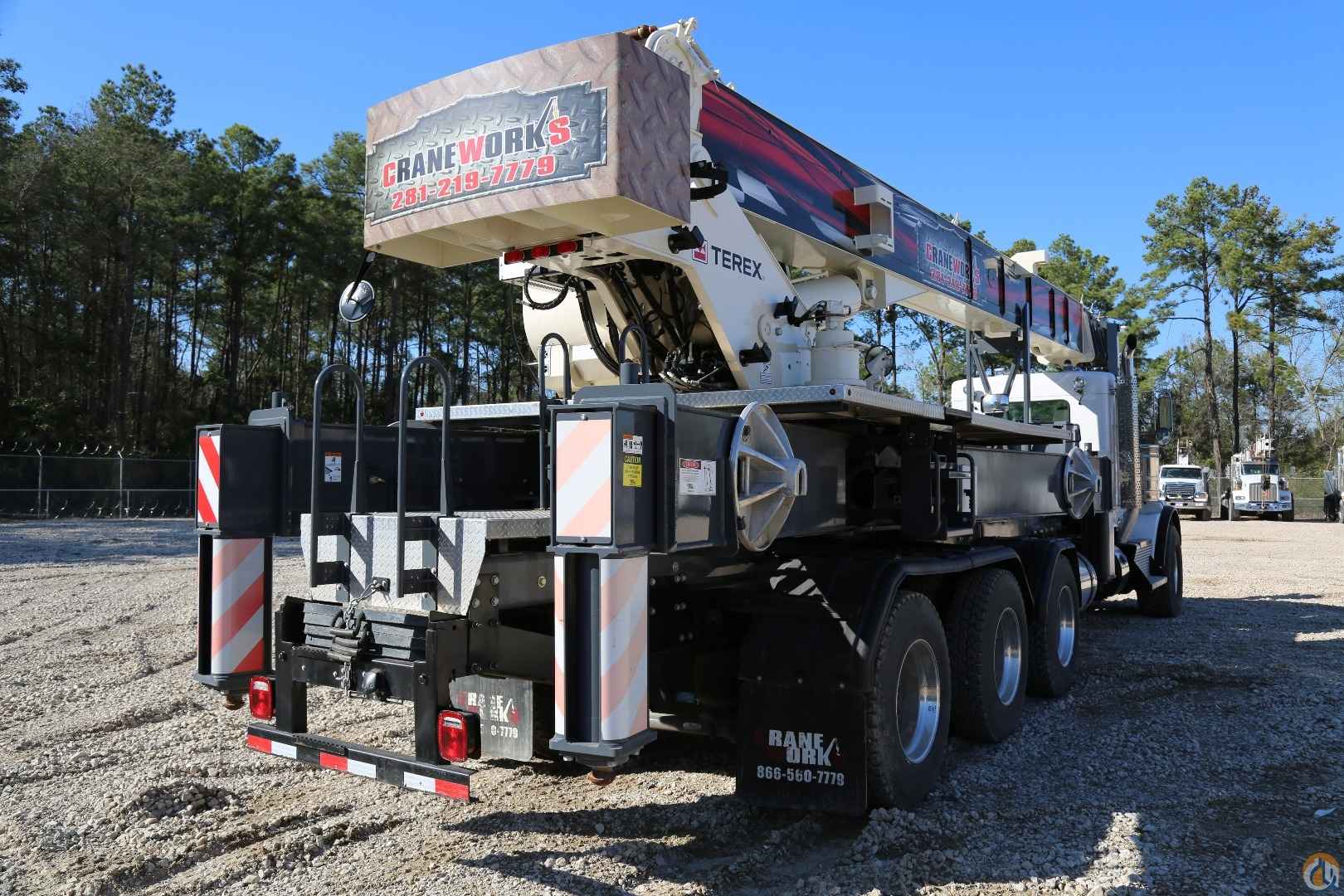

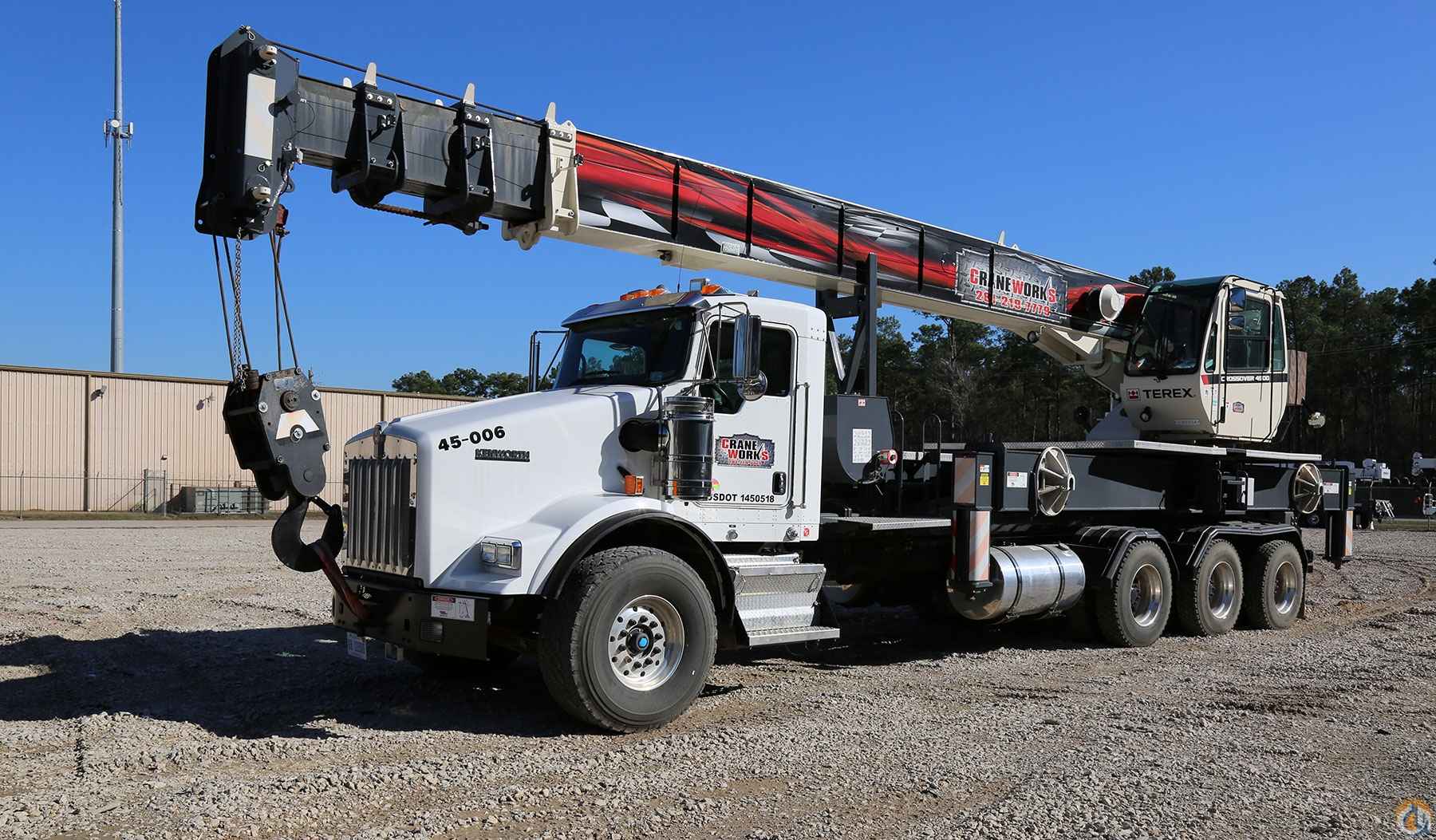

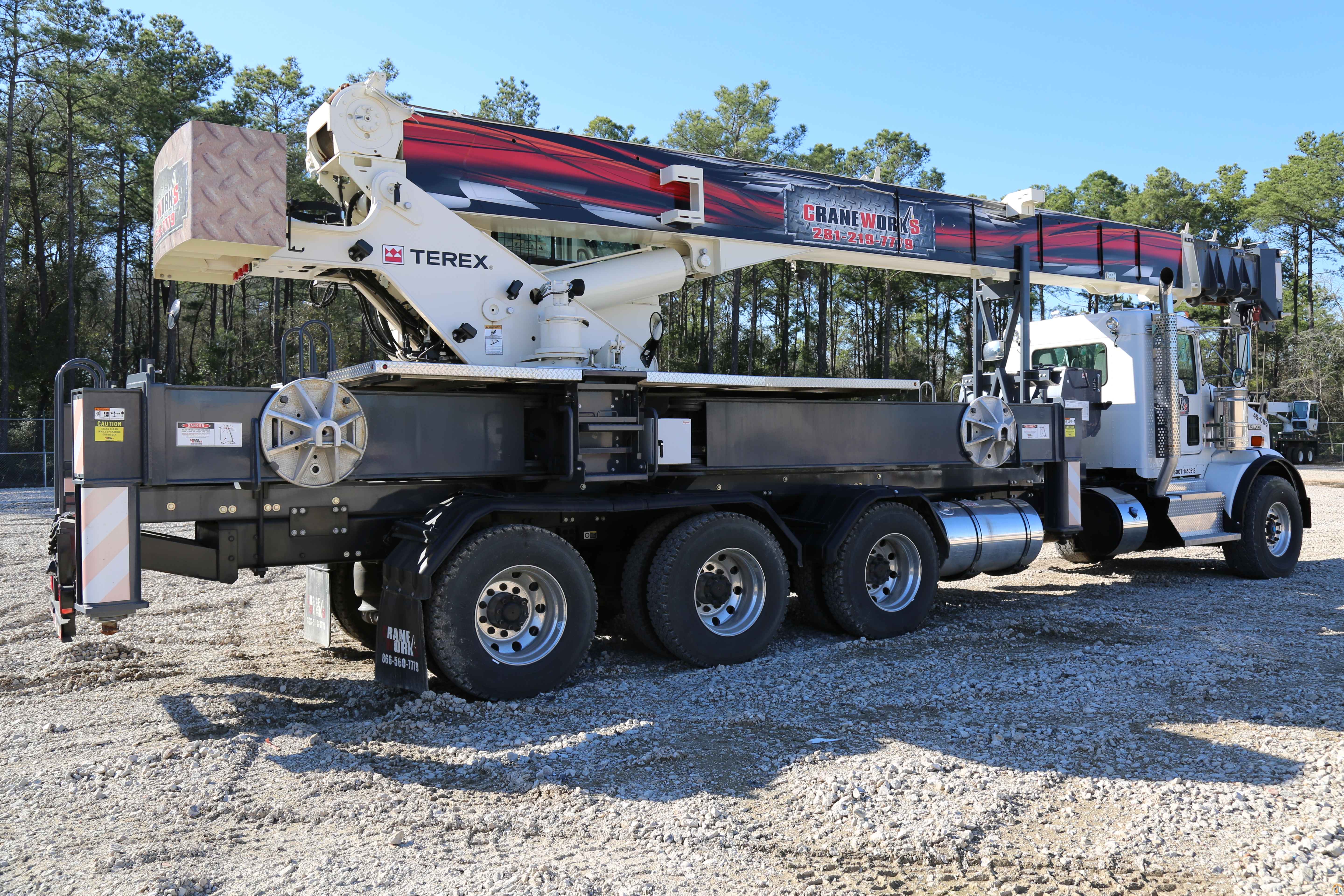

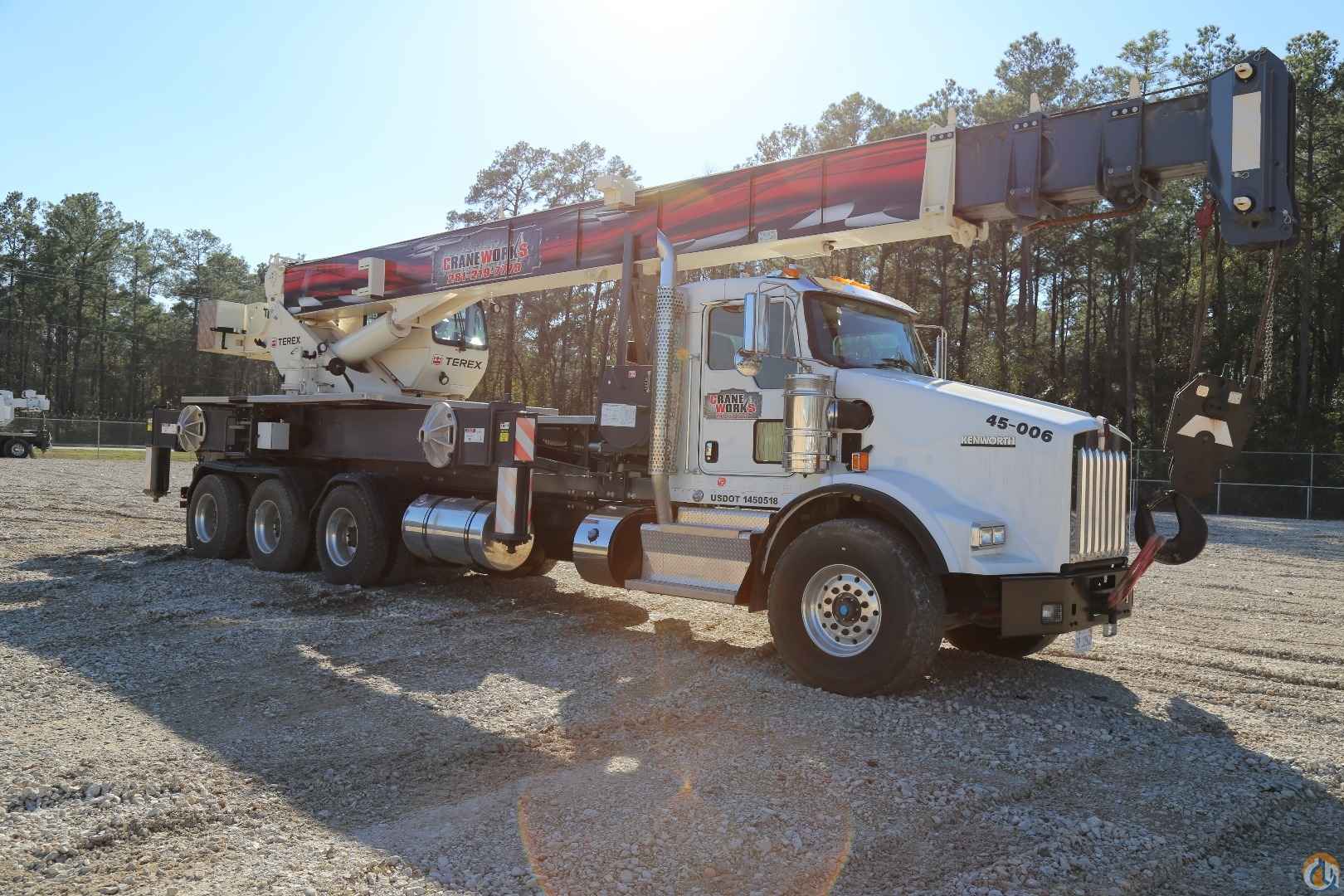

STANDARD FEATURES:

BASIC MACHINE:

45 ton (40.8.4mt) capacity rating @ 9 ft. (2.7 m) radius

Mainframe Outrigger Hub Base and Crane Upper Super Structure consists of all-steel formed construction.

X pattern Hyd. swing out and telescopic 3 position (retracted, mid and full extended) 4 outrigger beam system. Approximate outrigger spread is 24' (7.3m) wide by 25' 10" (7.86 m) long

Outrigger control station in the crane cab

No front bumper outrigger required for 360° load capacity

Deluxe contoured flexible fenders

Aluminum Diamond plate decking

Access ladders and steps

Recessed locking storage box in decking

Continuous rotation (no swing stop) foot peddle swing brake and 360 degree swing lock

Hydraulic Oil cooler

BOOM:

105' (32 m) Four section, full power, mechanically synchronized boom

High strength, four plate construction welded inside and out with embossed side plate holes to reduce weight and increase strength.

Single boom hoist cylinder provides boom elevation of -4° to 76°.

Quick reeving boom head; no need to remove the wedge from socket. 3-4 bottom head sheaves in boom tip depending on hook block selection

ENVIRONMENTAL OPERATORS CAB:

Greer Element VGA Rated Capacity Limiter (RCL) system including anti-two block system with automatic function disconnects.

Deluxe six-way adjustable (heated) operator's seat with air ride & air height adjustment riser and ventilation system at seat base.

Joy Stick Controls in armrests are adjustable fore and aft, pivot up 90° with shutoff controls, mounted controls in armrests for hoist(s), swing and boom elevation

Foot control pedals for swing brake, boom telescope (with integral 2psd extend function) and throttle.

Sound and weather insulated for comfort.

Engine instrumentation in dash

Environmentally sealed rocker switches.  Circuit breakers in cab.

360-degree house lock standard.

Removable front window, hinged tinted glass skylight, and sliding right-hand window.  Tinted safety glass and overhead retractable UV sunscreen.

HYDRAULIC SYSTEM:

High capacity, full flow oil filtration system with a 91 gallon (344 L) capacity reservoir.  (2) PTO DRIVEN Three gear pump system

Combined system output is 127 gpm (482 lpm) and up to 3,500 psi operating pressure

HOIST:

Single Main Planetary 2spd Hoist -484 fpm (147m/min) maximum line speed 15,639 lb. (7093 kg) maximum line pull.

(Optional Choice) of 5/8" wire rope standard lay or rotation resistant

Integral automatic brake

Grooved drum, tapered flanges, and spring loaded cable roller tensioner for improved spooling.

Electronic drum rotation pulse indicators in control handles

COUNTERWEIGHT:

Standard upper counterweight, with (optional) auxiliary hoist 1,300 lb (1,542 kg), without auxiliary hoist, 2,000 lb (2,041 kg).

MANUALS:

Hard Copy Operators Manual

CDROM includes Operators/Parts/Schematics/Greer/Wire Rope (manuals)

CDROM includes AEM Safety Video

INCLUDED ITEMS:

IMPERIAL   (English) - Includes imperial load chart, chip and decals

English Manuals

Installation for Crossover crane on a Dealer-Customer supplied Chassis:  Detailed Chassis specs must be sent for review and approved by Terex in writing.  Includes PTO (option selected), all mounting hardware, hydraulic oil, fluid refills and lubrication.  Engine start/stop wiring, electronic foot throttle, warning horn, electronic backup alarm and Flatbed.  Fully Assembled and Stability Tested prior to shipment with Crane Manuals and ICC Safety Kit.

Rotation Resistant Wire Rope   450 ft. (137 m) (5/8" 34 X 7 Rotation resistant compacted strand)

Hydraulic A/C and LP Heater

45-ton (40.8 mt), 4-sheave, Hook Block With Hook Latch  - Weight 735lbs

(2) Remote Outrigger Ground Controls stations located at each side access ladder

Immersion Heater for Hydraulic Reservoir (cold weather package)

Work Light Package (Contains 3 lights mounted on the base of the boom, front of the cab, and superstructure)

3rd Wrap Indicator Kit - Main Hoist

Terex Standard Point

TRUCK

2013 Kenworth T-800  Single / Tridem

Cummins ISX-485,  1650 Ft. Lb. Torque,  Diesel Engine

Immersion block heater 115V 1500W

Cruise Control

Fuller RTLO16918B 18 Speed Transmission

Power steering gears: Sheppard M110 with M110 Aux. gear

Dana Spicer D-2000 front axle, 20K

Dana Spicer T69-170 Tridem Rear Axle, Wide Track

Neway ADZ369 69K Rear Suspension

4.30 Rear Axle Ratio

Wheel Diff Lock ( 3 axles )

Front Tires:  Bridgestone M844, 445/65R22.5 Tires on Aluminum Wheels

Rear Tires:  Bridgestone M711 11R 22.5 Tires on Aluminum Wheels

(Qty 2) 100 US Gallon 24.5 Aluminum Fuel Tank

18 US Gallon DEF Tank

Full Truck Kit w/ glad hands to end of frame

Heat/Defrost/Air Conditioning

AM/FM/WB/CD radio
