STANDARD FEATURES
30 Ton Capacity
30.5’- 100’ 4 section telescopic boom
110’ Maximum sheave height
30.5’ – 55’ tele jib
2 speed winch motor
3 sheave quick reeve boom point
Anti-two block shut off
Boom hoist cylinder
System pressure gauge
Engine start/stop on operator console
5/8” wire rope
90 gallon hydraulic reservoir with suction strainer
Greer 586 Load Moment Indicator with digital display and audio/visual warning
21’ steel flat bed
Audible outrigger/stabilizer motion alarm
Out and down main stabilizers (24’6”)
Out and down auxiliary stabilizers (17’6”)
3-Section pump
Single fabricated, closed-box style subframe
Suction line ball valve shut off
Function overload shut off
7-ton hook and ball
30 ton, 2-sheave block
Rear Bumper
370 ° Non-Continuous Rotation
Air Shift Power Take-off
TRUCK FEATURES

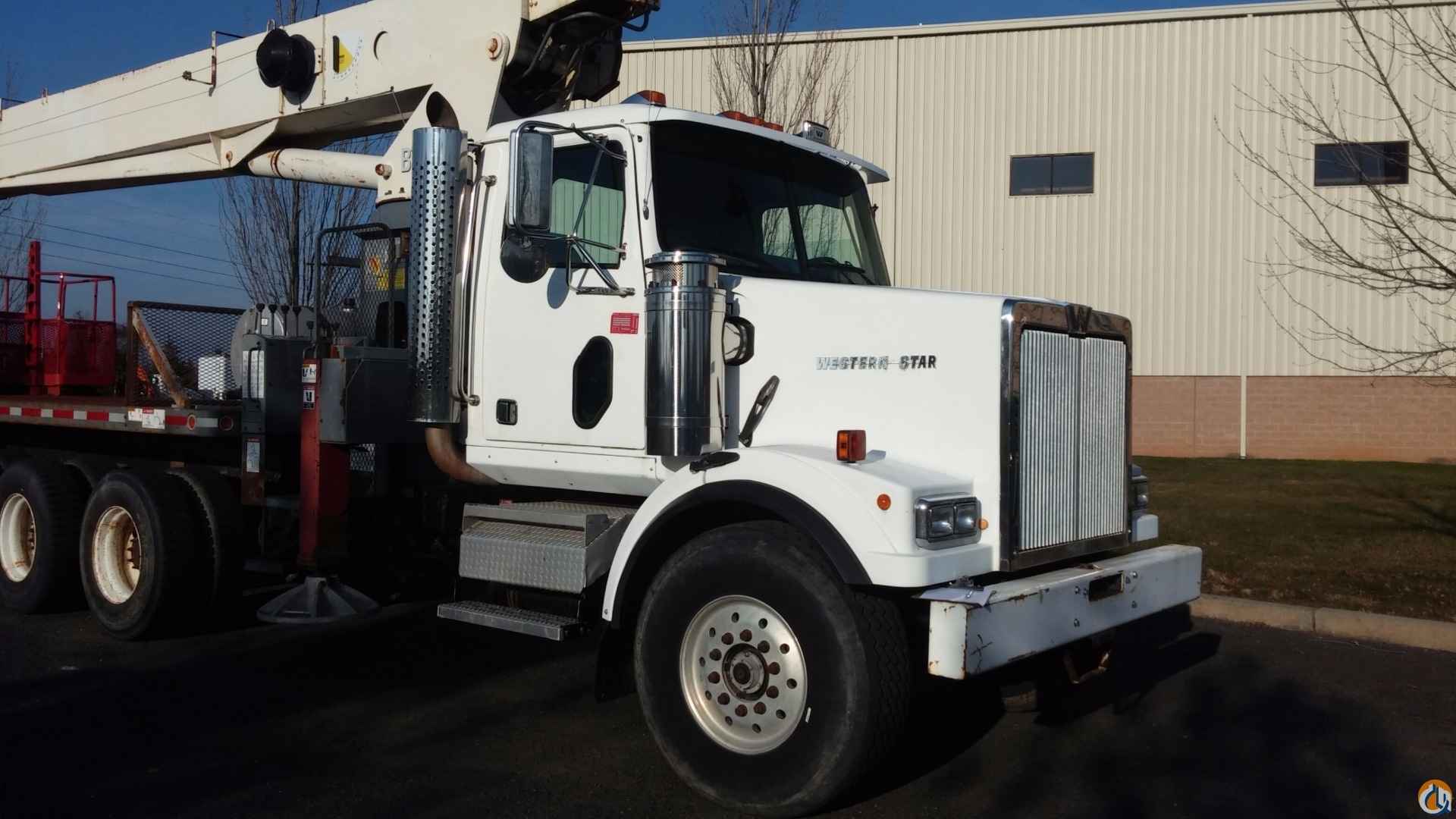

2001 Western Star 4900
Caterpillar C-10 engine, 335 HP
Engine brake
20,000 front axle with flotation tires ( 425/65R 22.5 )
58,000 tridem rear axles ( 11R 22.5 tires )
Freightliner TuffTrac spring suspension
Air conditioning/ heater and defroster
Single 57 gallon aluminum fuel tank
8LL transmission
Air ride driver seat
Fixed suspension passenger seat
