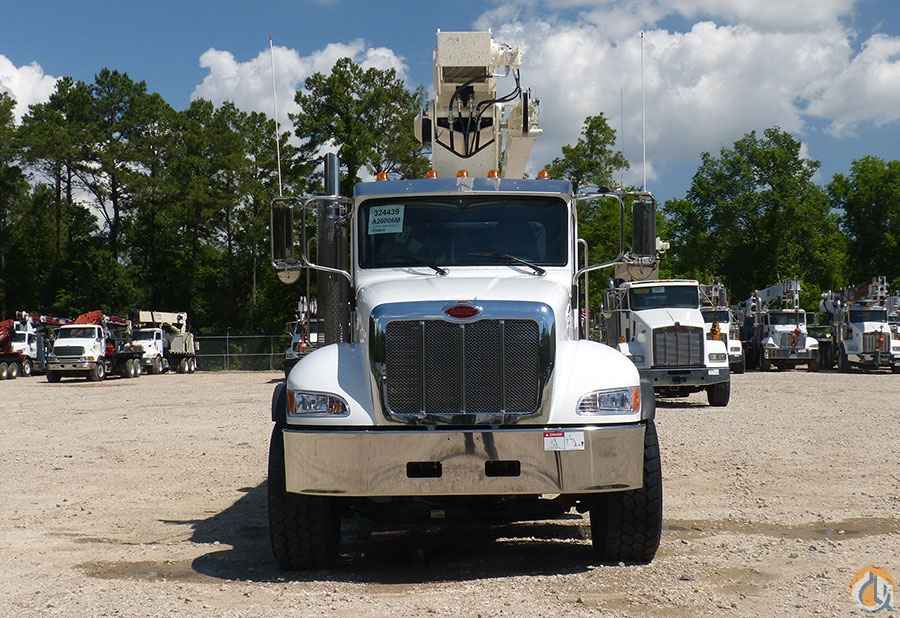

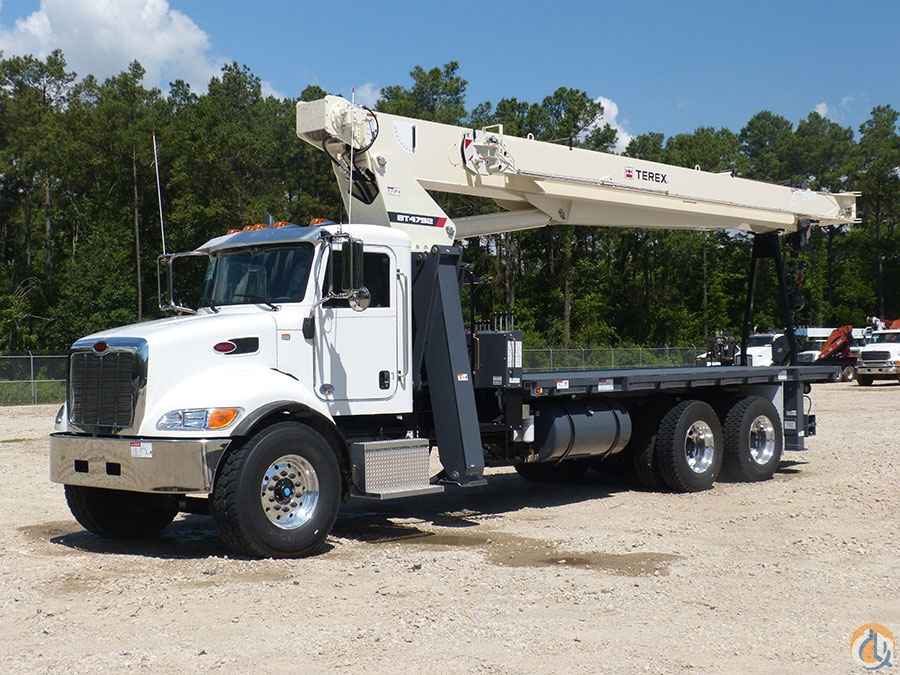

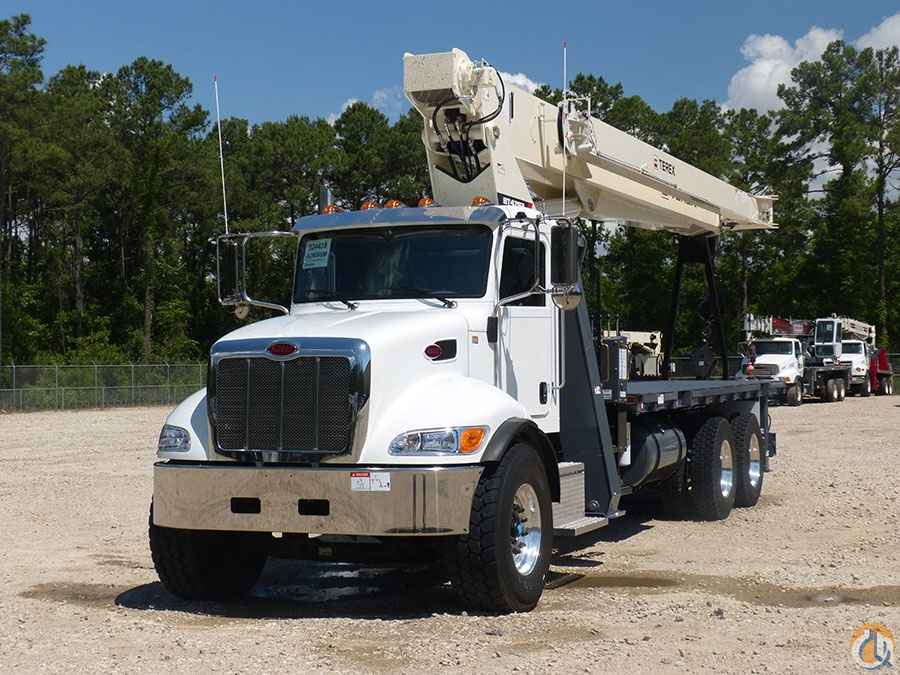

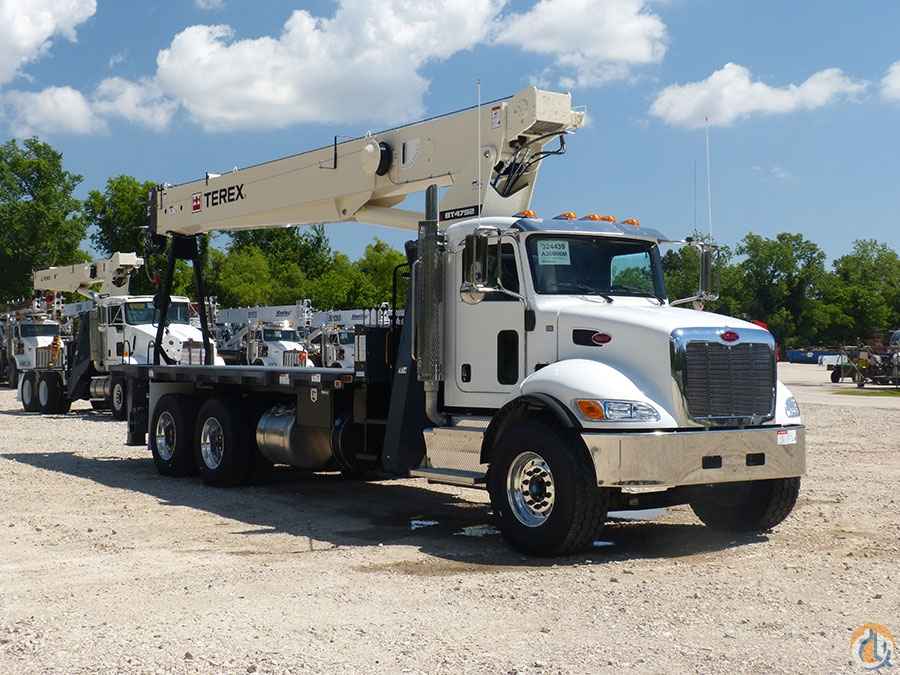

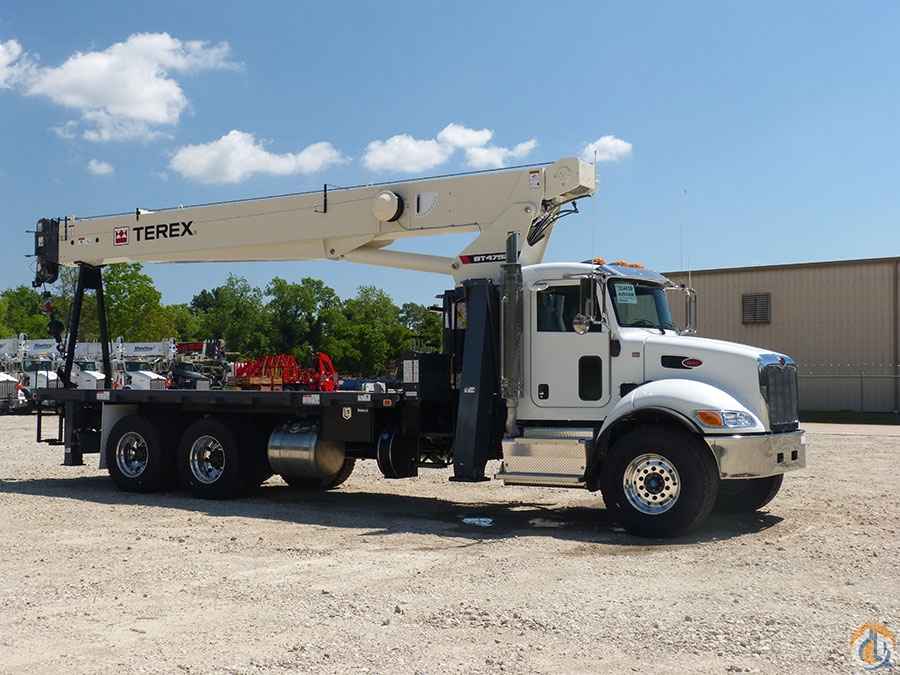

New Terex BT4792 Boom Truck Crane (Sold)

STANDARD FEATURES

BASIC MACHINE:

23.5 tons (21.3mt) capacity rating.

Mainframe consists of all-steel, box construction. Subframe length designed for 21' flatbed.

Dual-side, stand-up controls with foot throttle pedal

Front main "A" frame outriggers independently controlled with an overall extended span of 22' (6.7m) to the outside of the pads.

Rear outriggers are "H" frame, out-and-down type with an overall extended span of 17' 6" to the outside of pads.

Rotation Planetary gearbox - hydraulic motor driven with 370-degrees of non-continuous swing rotation.

Crane consoles include 4 lever crane function control handles - 4 lever outrigger control handles - engine start/stop switches - signal horn - bubble level and warning light for high hydraulic oil temperature.

GREER 510 Rated Capacity Limiter system with digital read out display, integrated work area definition program and ATB anti-two block external boom wiring

Standard Color Scheme: Terex Gray (Mainframe Pedestal, Subframe, Front and Rear Outriggers, Extending Boom Sections, Boom Tip Head, Flatbed)

Terex White (Turret, Base Boom and Jib) - Terex Black (Control Stand, Operators Platform and Guards, Access steps and ladders)

BOOM:

Four section KEEL designed boom, full power, mechanically synchronized with 29' to 92' maximum length (8.8 - 28m) and maximum tip height of 101' (30.8m)

Each KEEL section is high-strength, steel plate construction designed to optimize the strength to weight ratio.

Boom sections are color stripe coded to corresponding load chart.

Boom Tip head is equipped with 2 bottom head sheaves - includes one and two-man steel workbasket attachment point.

HYDRAULIC SYSTEM:

High capacity, full flow oil filtration system with a 90 gallon (342L) capacity reservoir and internal suction filter screen.

Three section vane pump is PTO driven and allows independent functioning of Boom, Winch and Swing operations.

The combined system output is 57 gpm at 2300 rpm pump speed and up to 3000 psi operating pressures.

The return line filter is 10 micron and is externally mounted to the reservoir.

HOIST:

Standard Two-Speed Planetary Hoist - hydraulic motor driven - Maximum Line Pull 11,854lbs / 5,532lbs @ low speed/high speed setting

Optional choice of 315' (96m) of 9/16-in (14mm) Regular Lay or Rotation Resistant wire rope

Maximum line speed of 137 / 209 fpm low speed /high speed.

Standard grooved drum with tapered flanges for improved spooling.

MANUALS:

Hard Copy Operators Manual - (1) CDROM includes Operators/Parts/Schematics/Greer/Wire Rope (manuals)- (1) CDROM includes AEM Safety Video

INCLUDED ITEMS

Black decals

370-degree, non-continuous rotation

Combined flow hoist (standard hoist with hi-speed button on lever)

Hotshift PTO

Regular lay wire rope

Overhaul ball and swivel hook – 7-ton

17.5 US ton 1-sheave block with hook

Swing away jib: 26’ – 44’ two section
