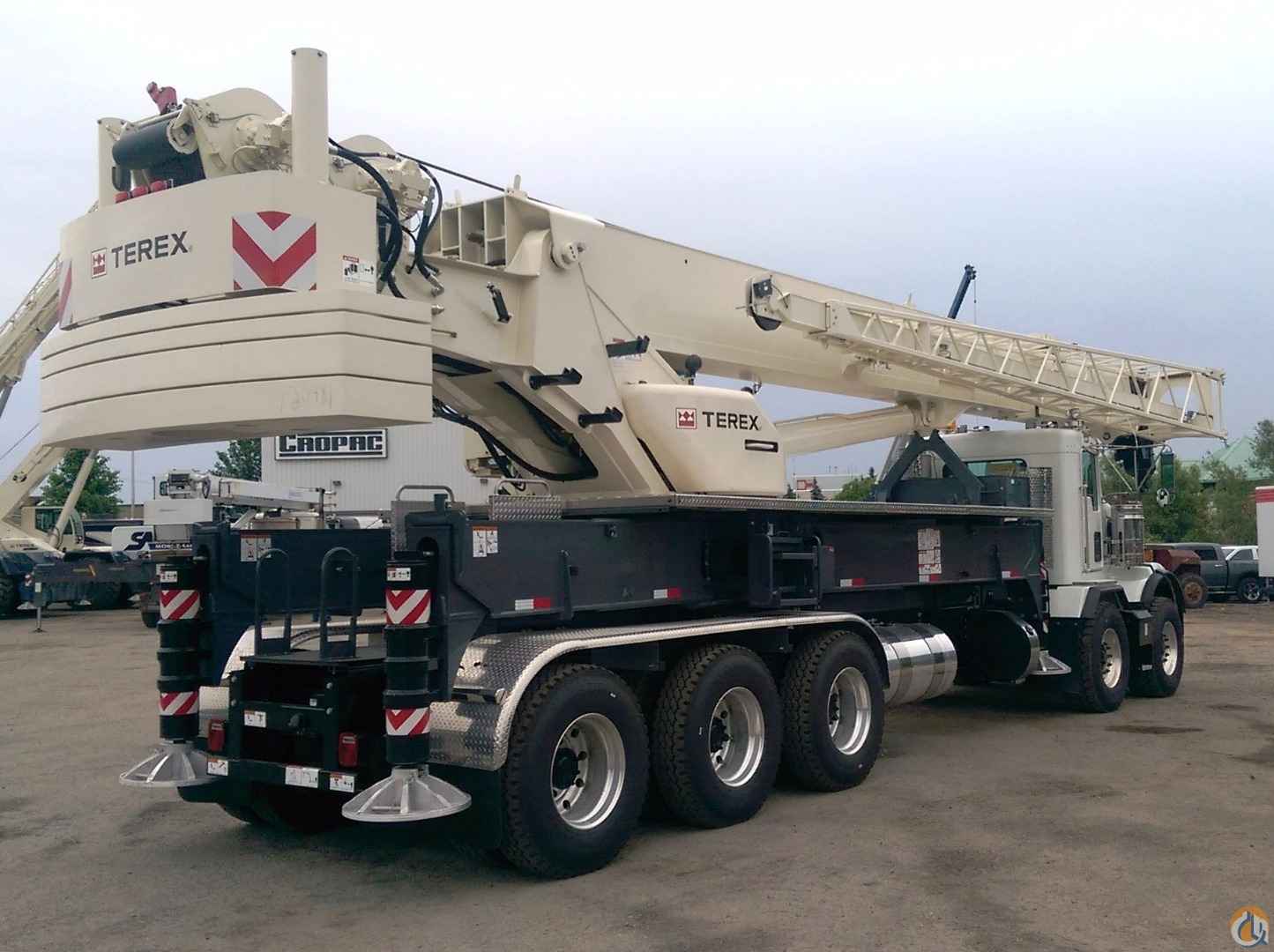

- 80 ton capacity

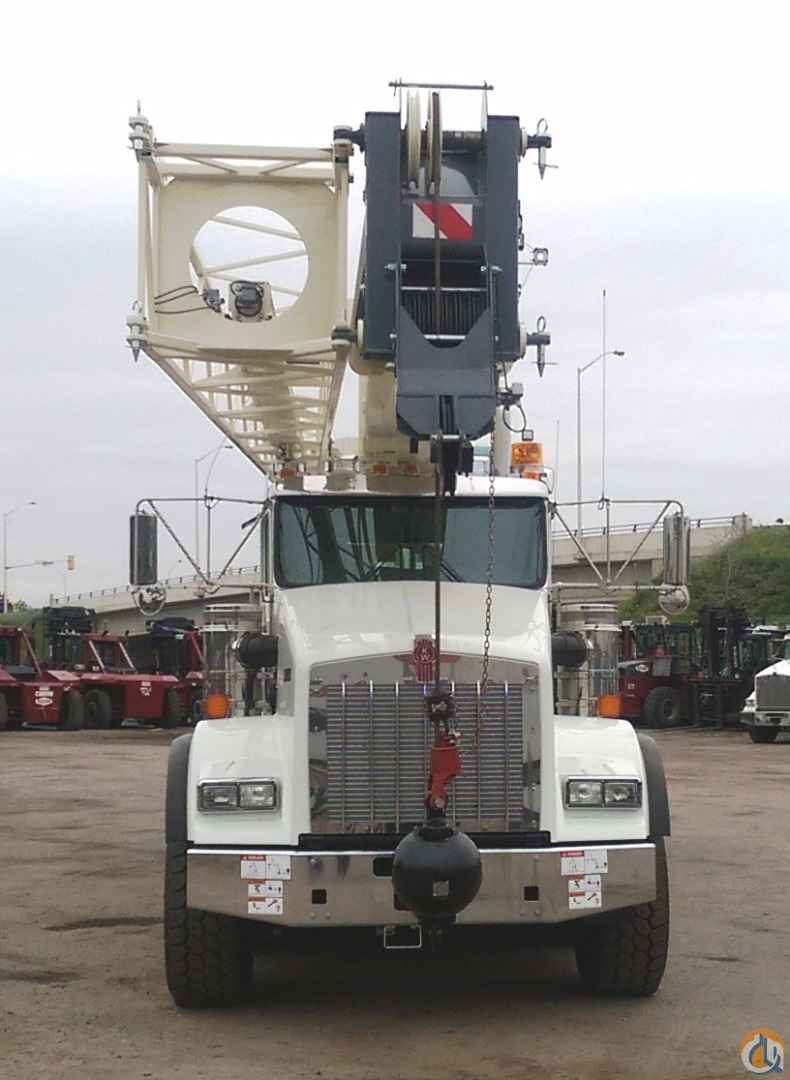

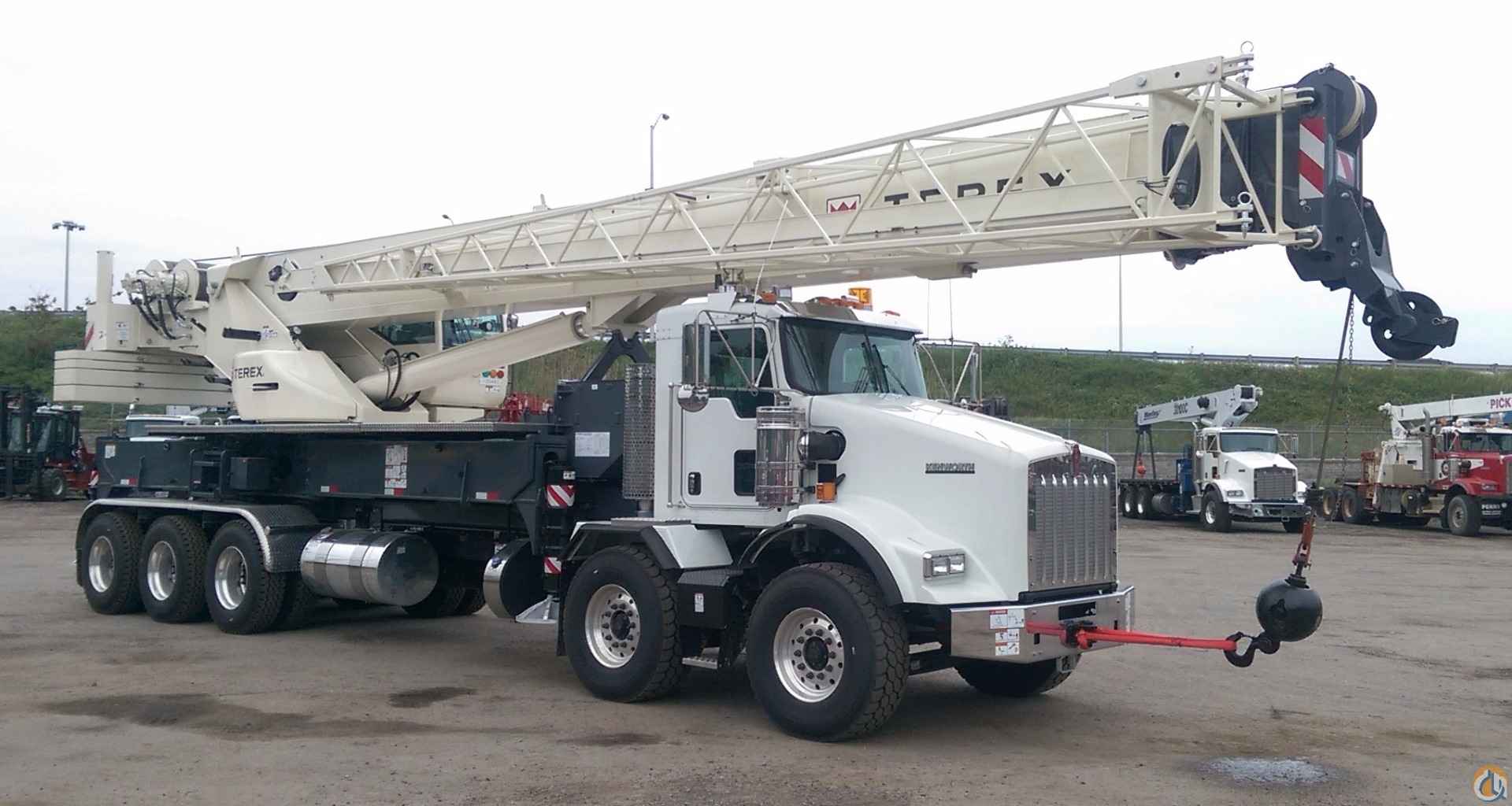

- 126 foot full power boom, four section, with quick reeve boom head
- 33-57 foot offsetable jib
- Main hoist with rotation resistant wire rope and 3rd wrap indicator
- Aux hoist with rotation resistant wire rope and 3rd wrap indicactor
- Two speed hoists main and aux, with grooved drums
- Single PTO driven pump. ( two pump system 1 piston 1 gear)
- 50 Ton hook block
- Headache ball

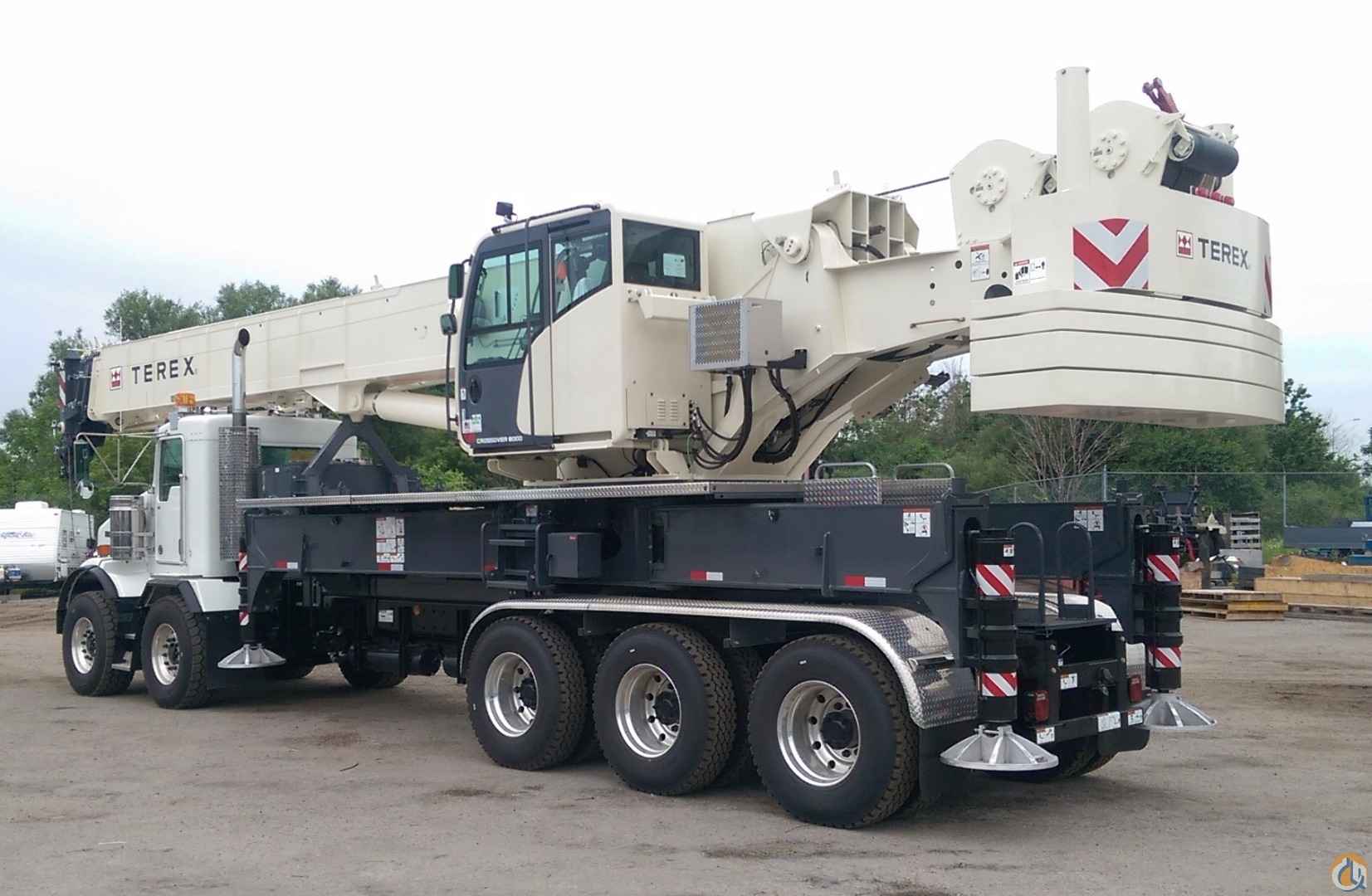

- Deluxe operators cab with full hydraulic tilt 0-18 degrees
- Rated capacity limiter with anti two block
- Joystick controls with electric pulse indicators for winch
- Foot control pedals for swing brake and throttle
- Engine display
- Work light package 3 adjustable
- Air conditioning and flameless heater

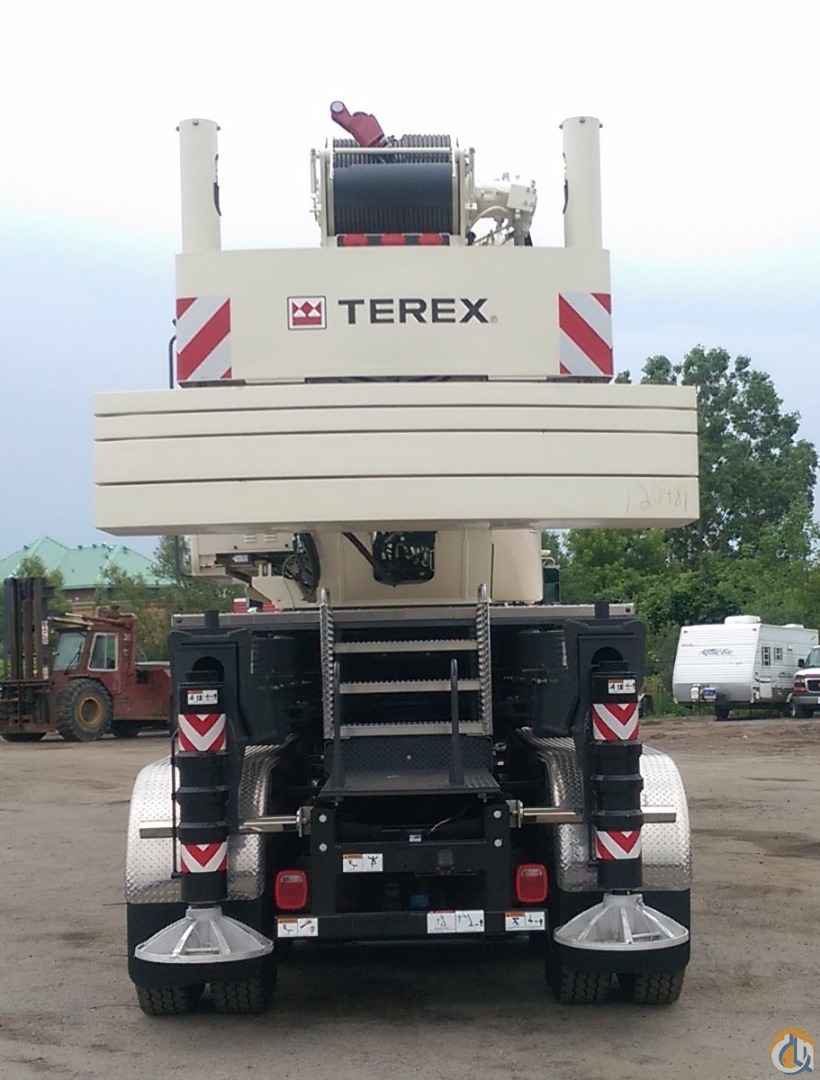

- 12,000lb full counterweight, including hydraulic counterweight removal system (Plus 3000 lbs. fixed ctw)
- X pattern hydraulic swing out and telescope 3 position outriggers
- 360 degree load chart, Front outrigger not required

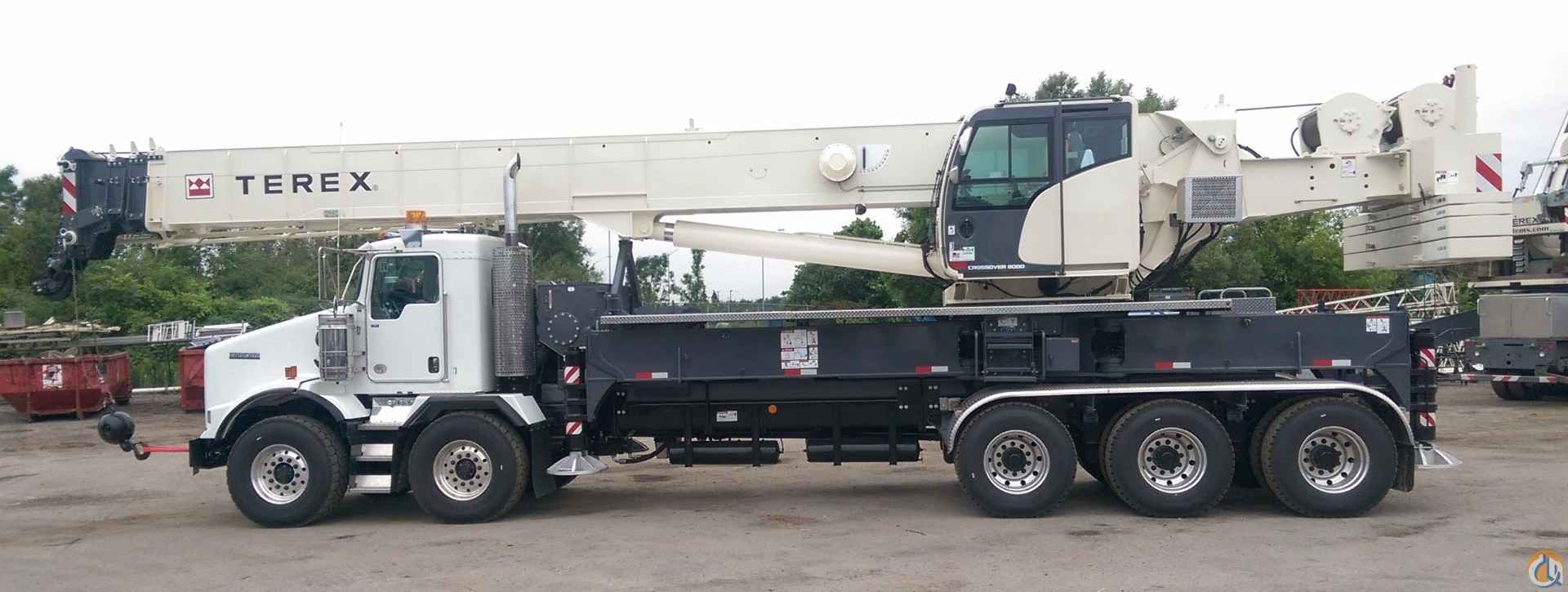

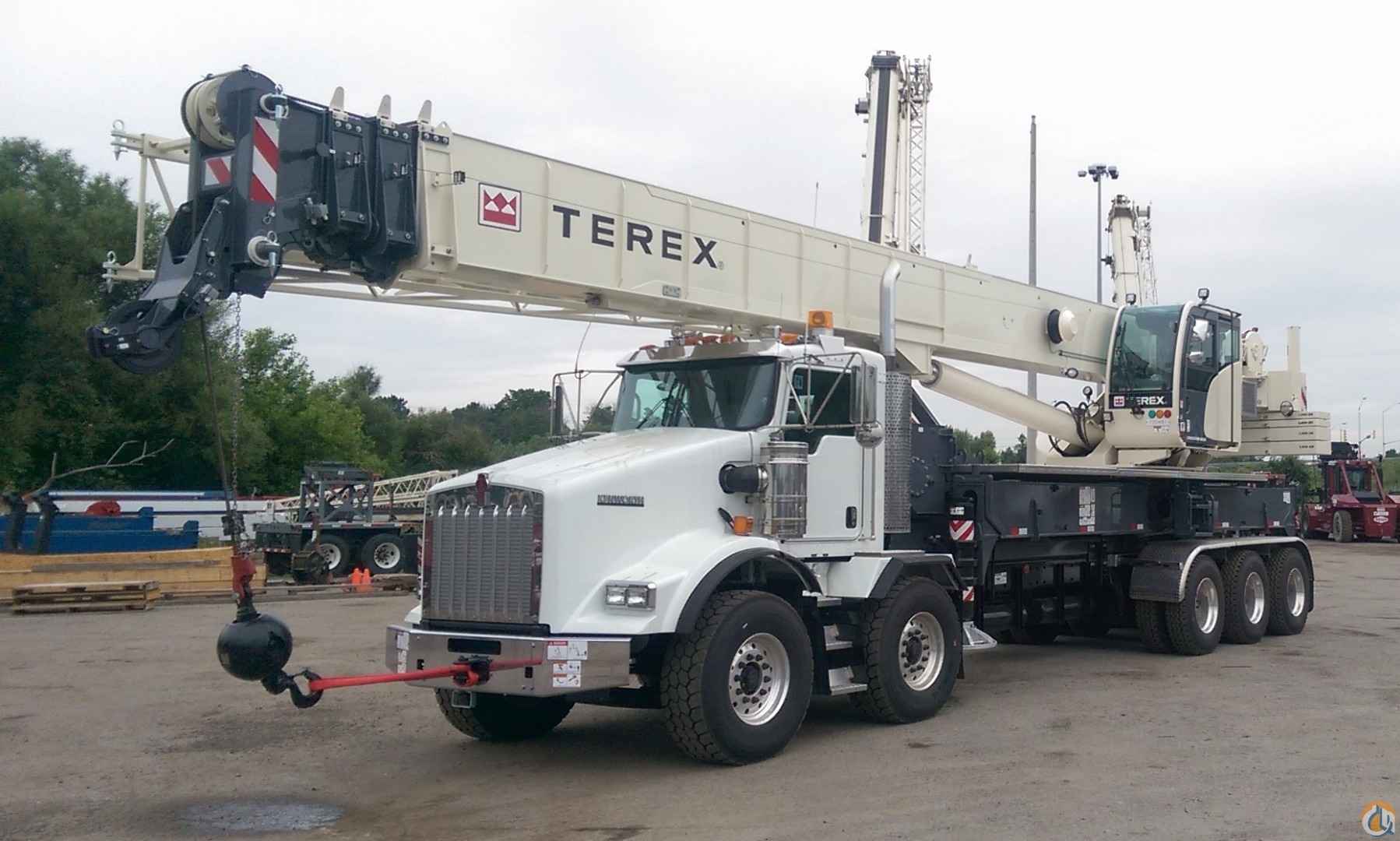

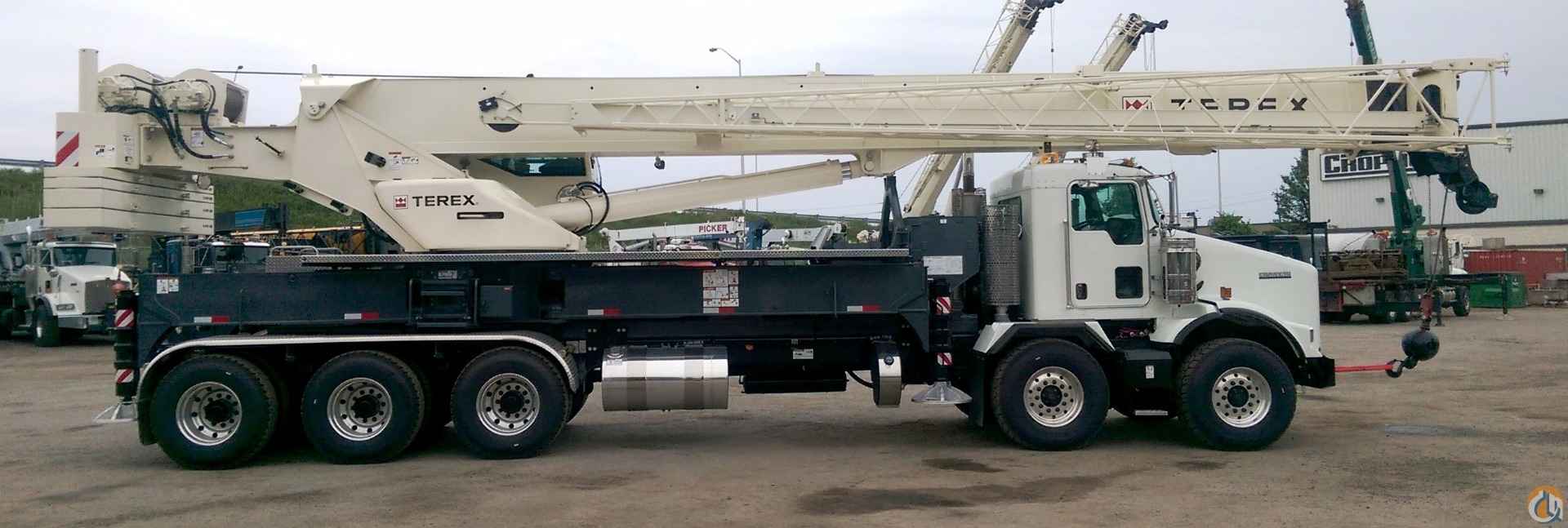

Mounted on a new 2016 Kenworth T800 - Tandem Tridem
- 40,000lb front tandem axle , 69,000lb rear tri-drive axle with air liner suspension, wide track
- Cummins ISX15 550 HP
- Fuller RTLO 18918B 18 Speed Transmission
- Front tires 42565R22.5
- Rear tire 1200R22.5
- Full Specs available
