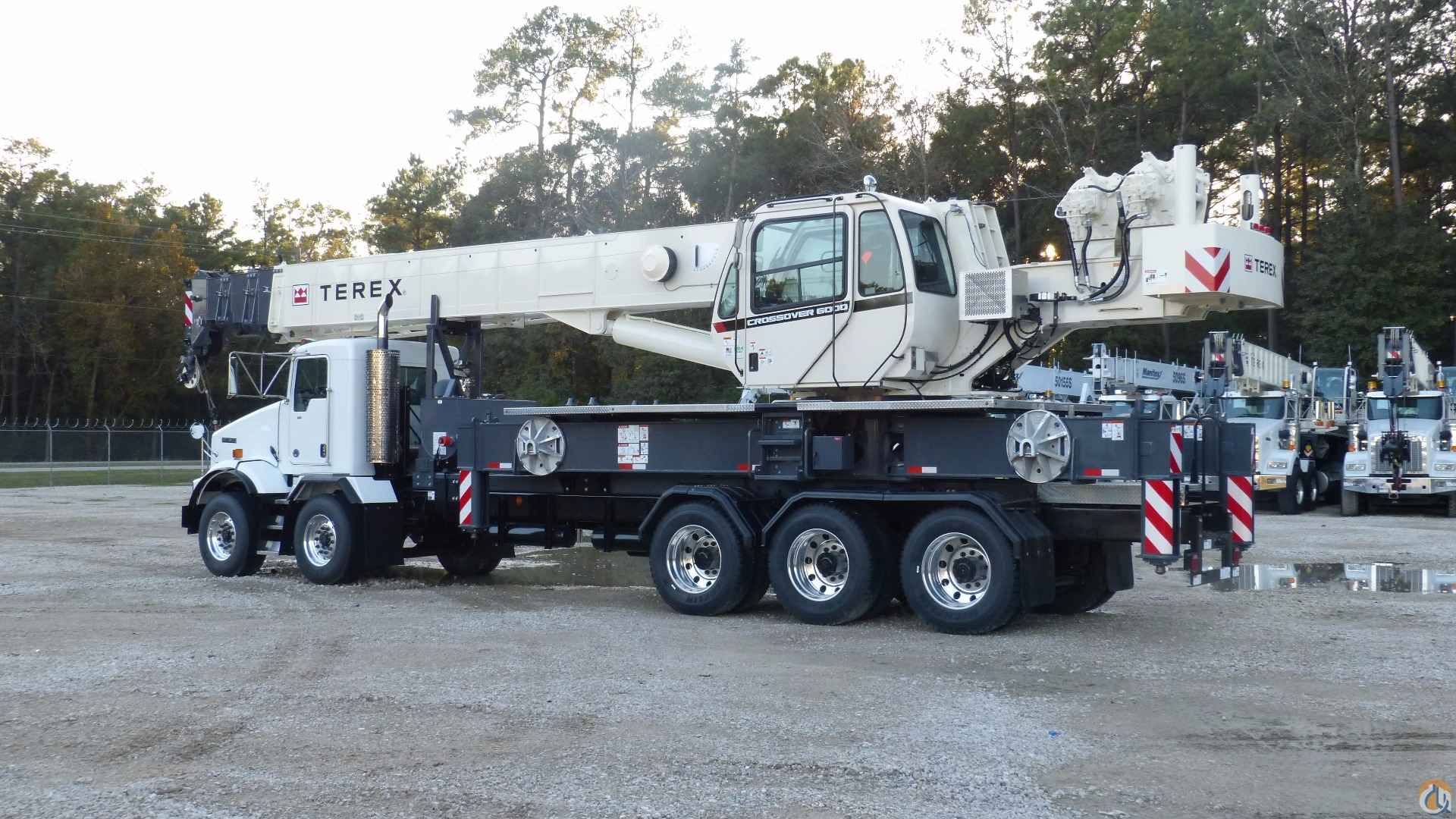

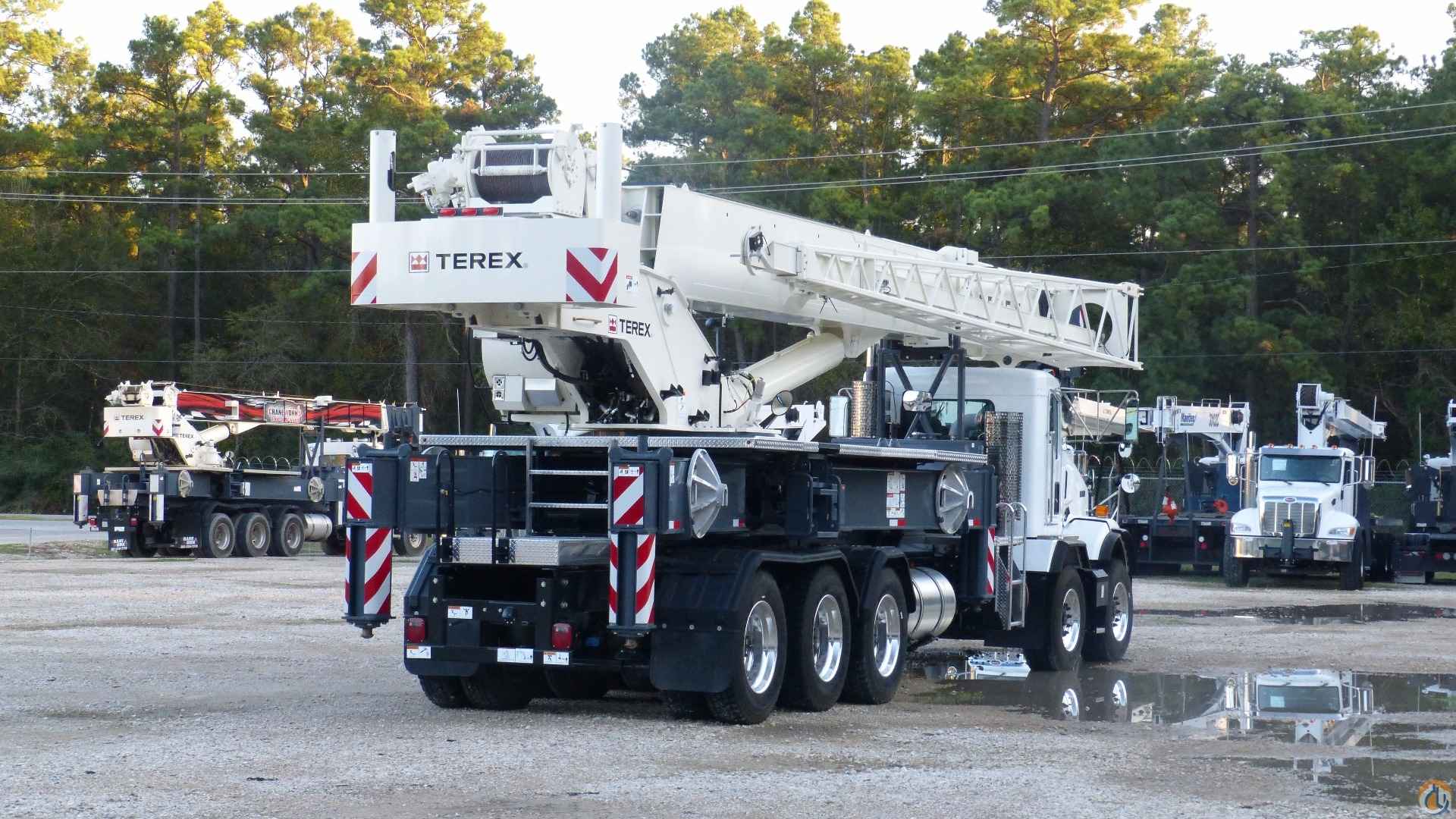

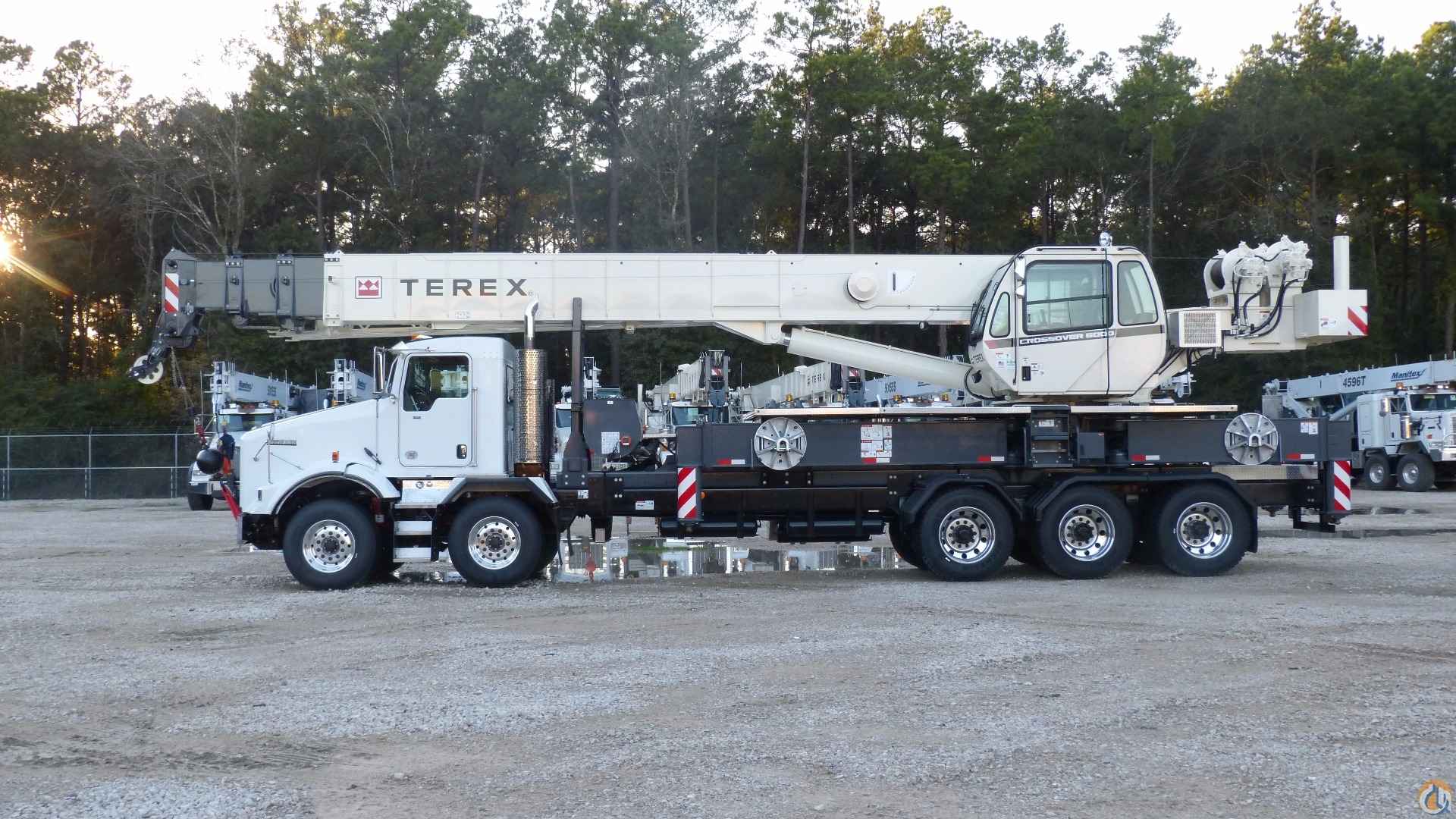

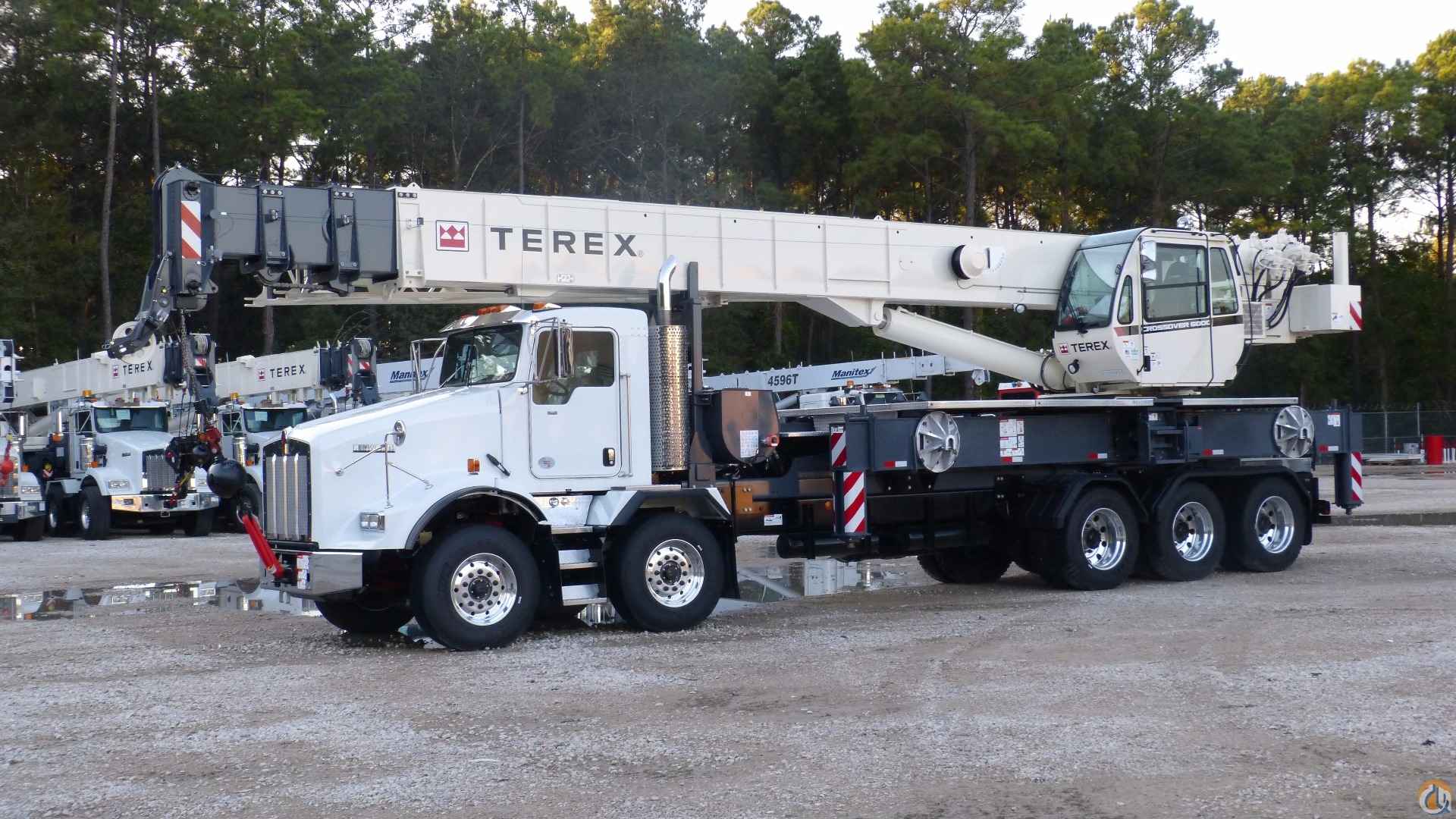

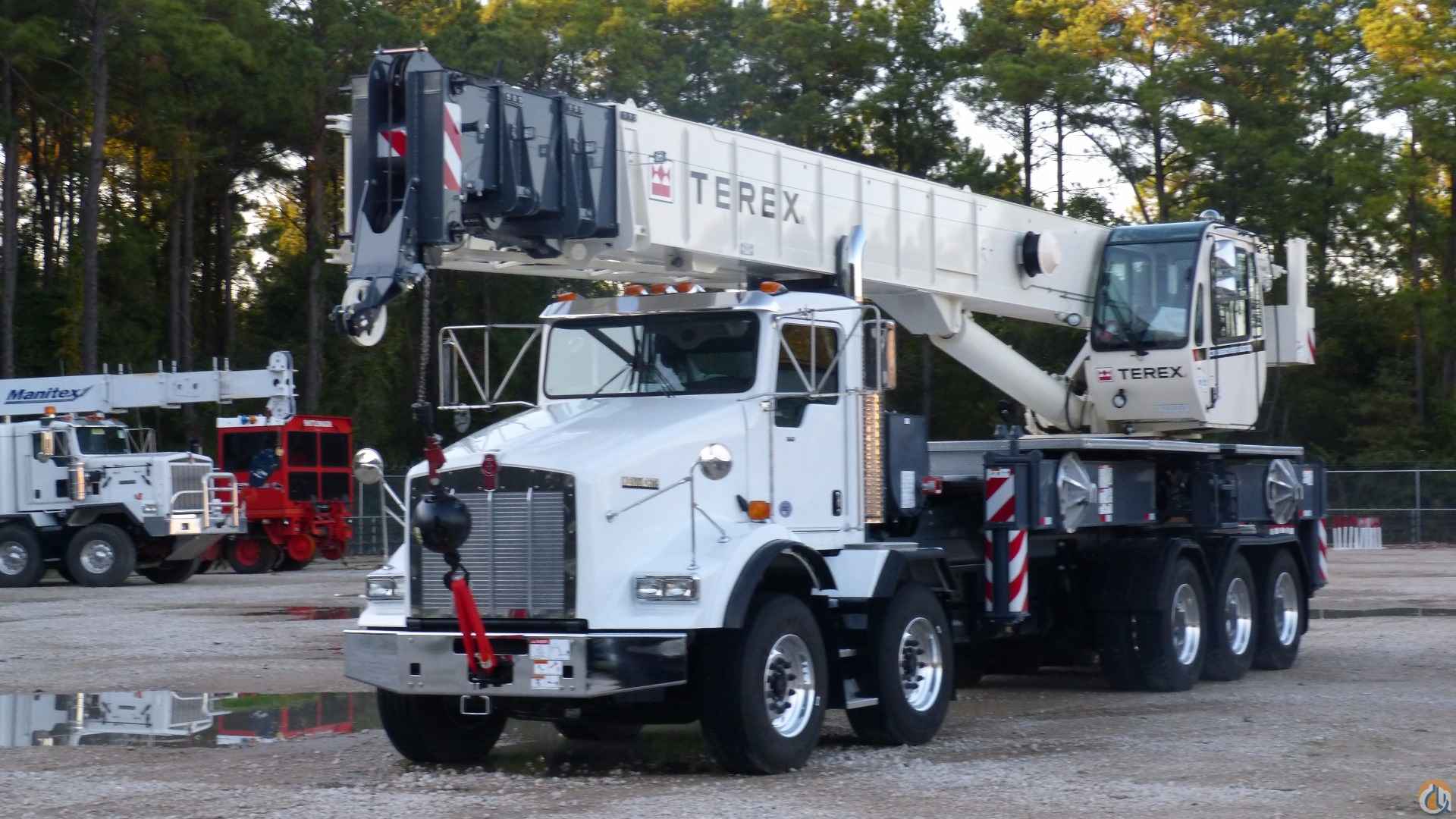

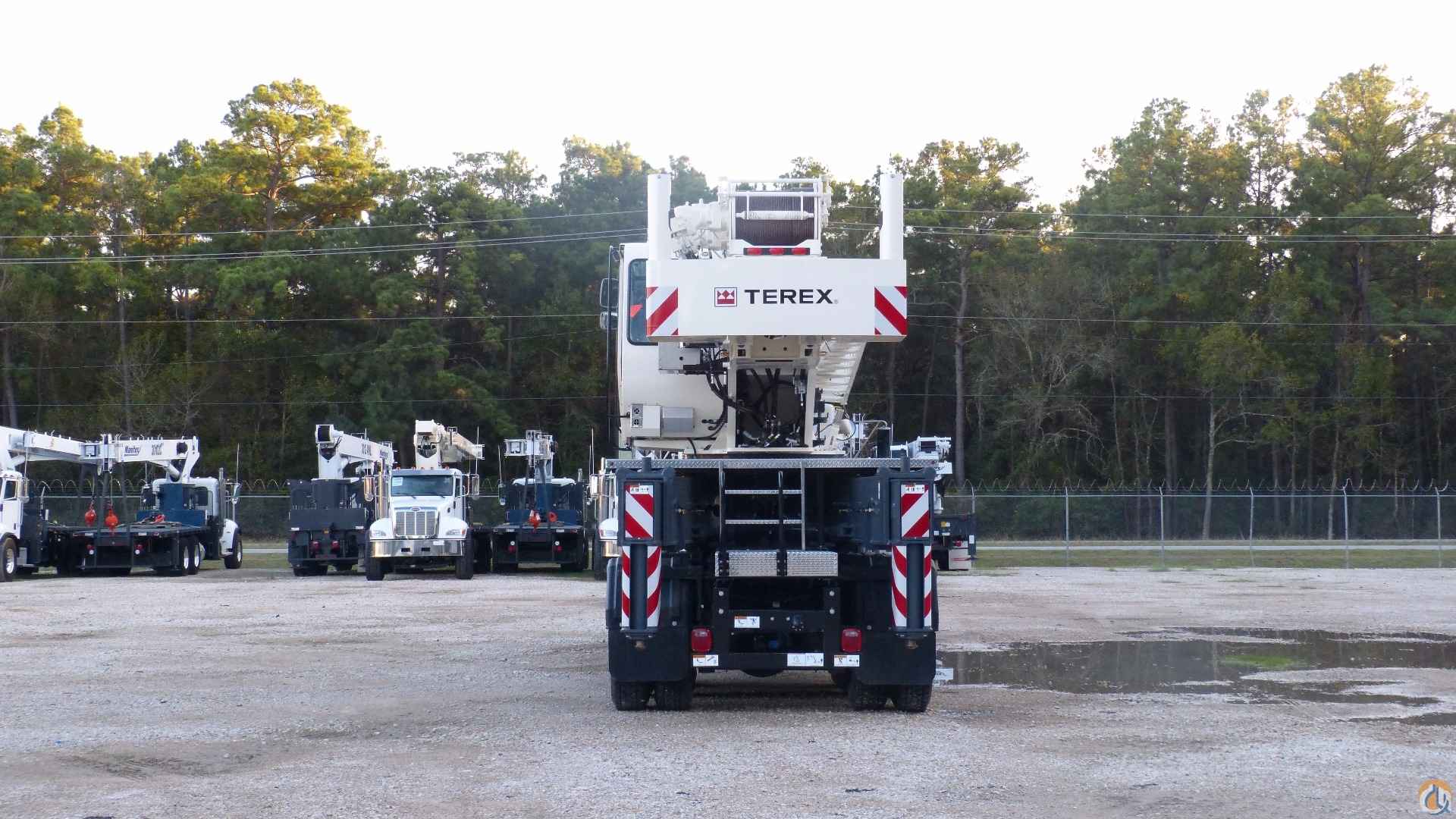

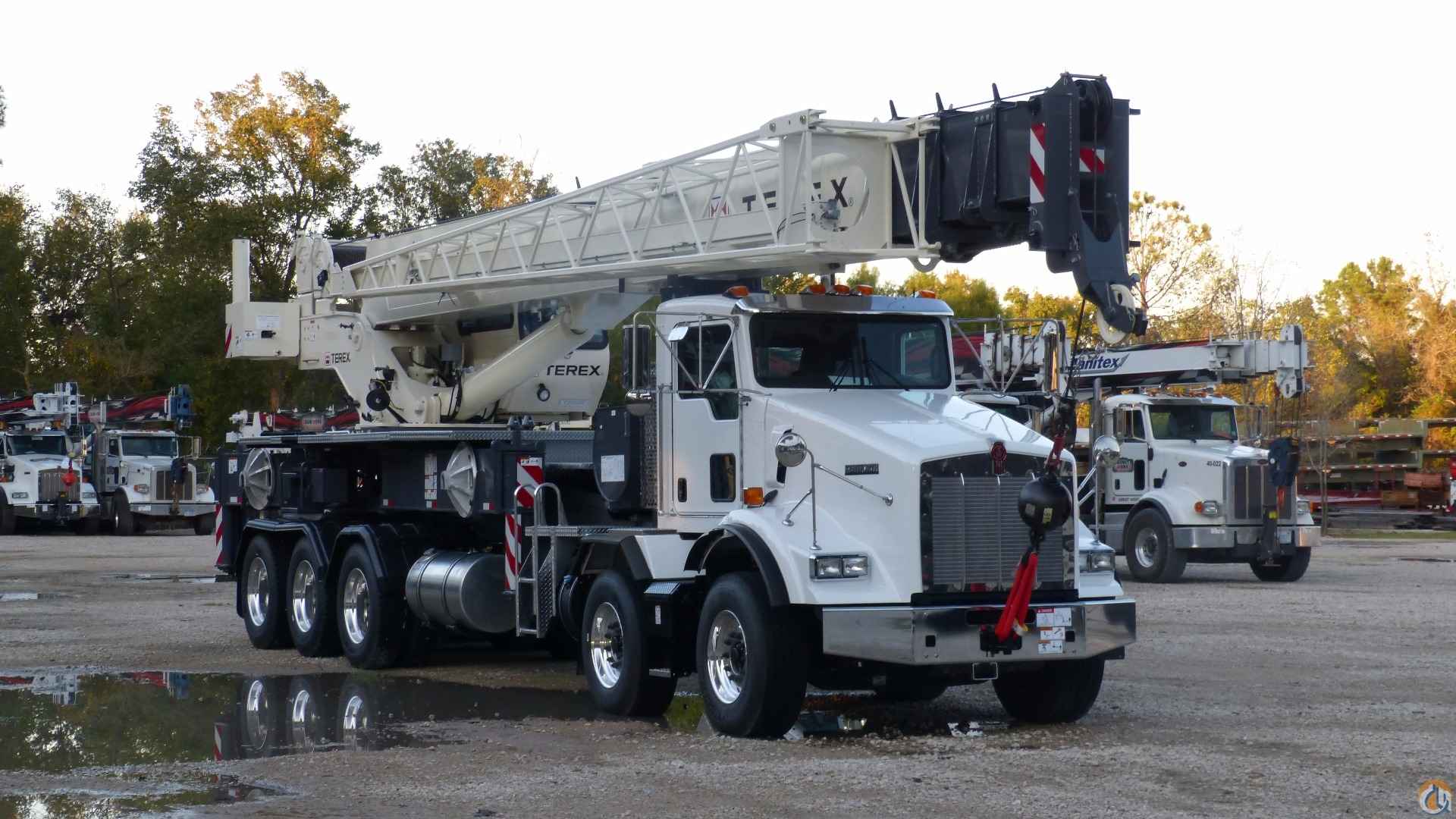

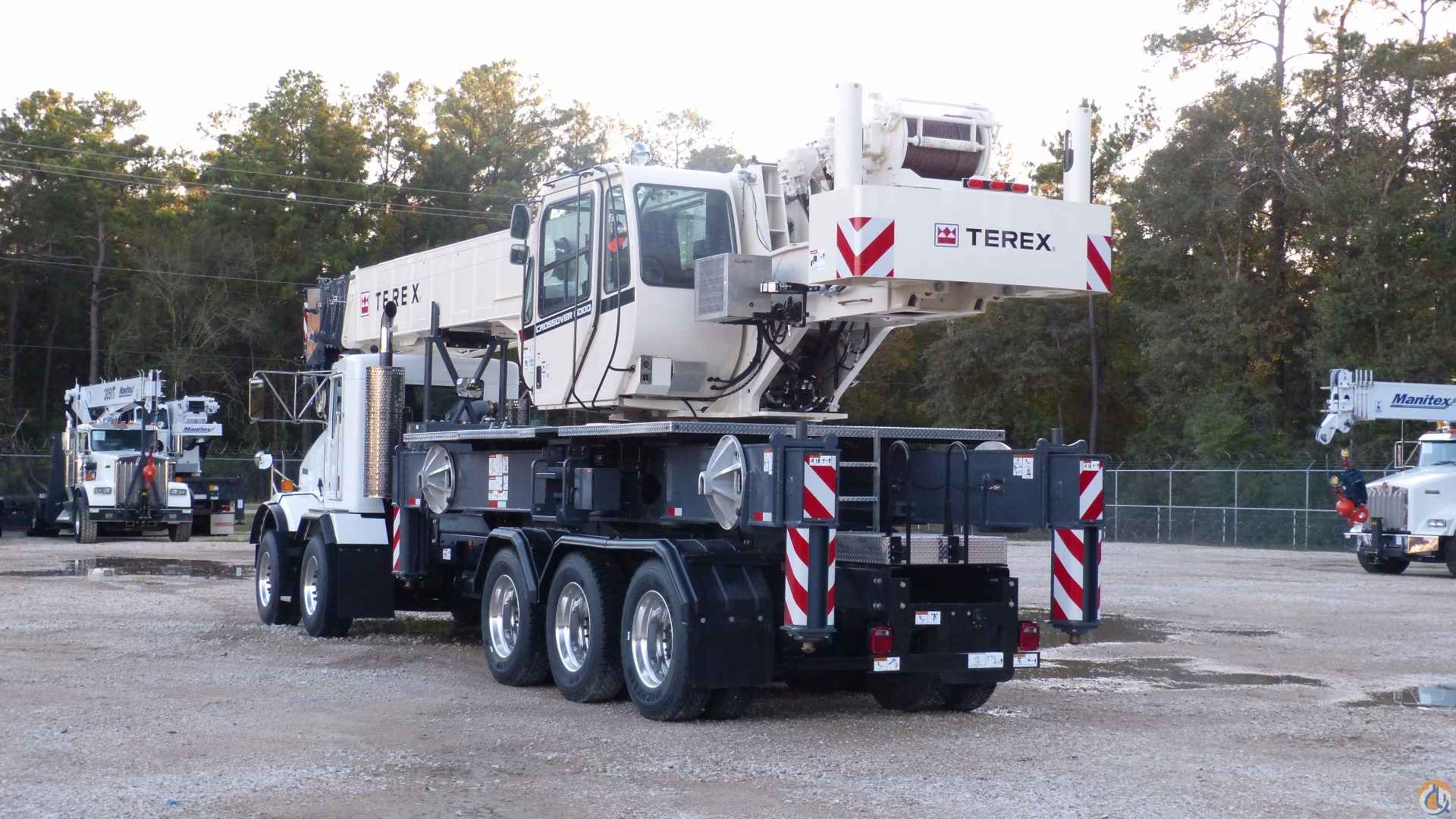

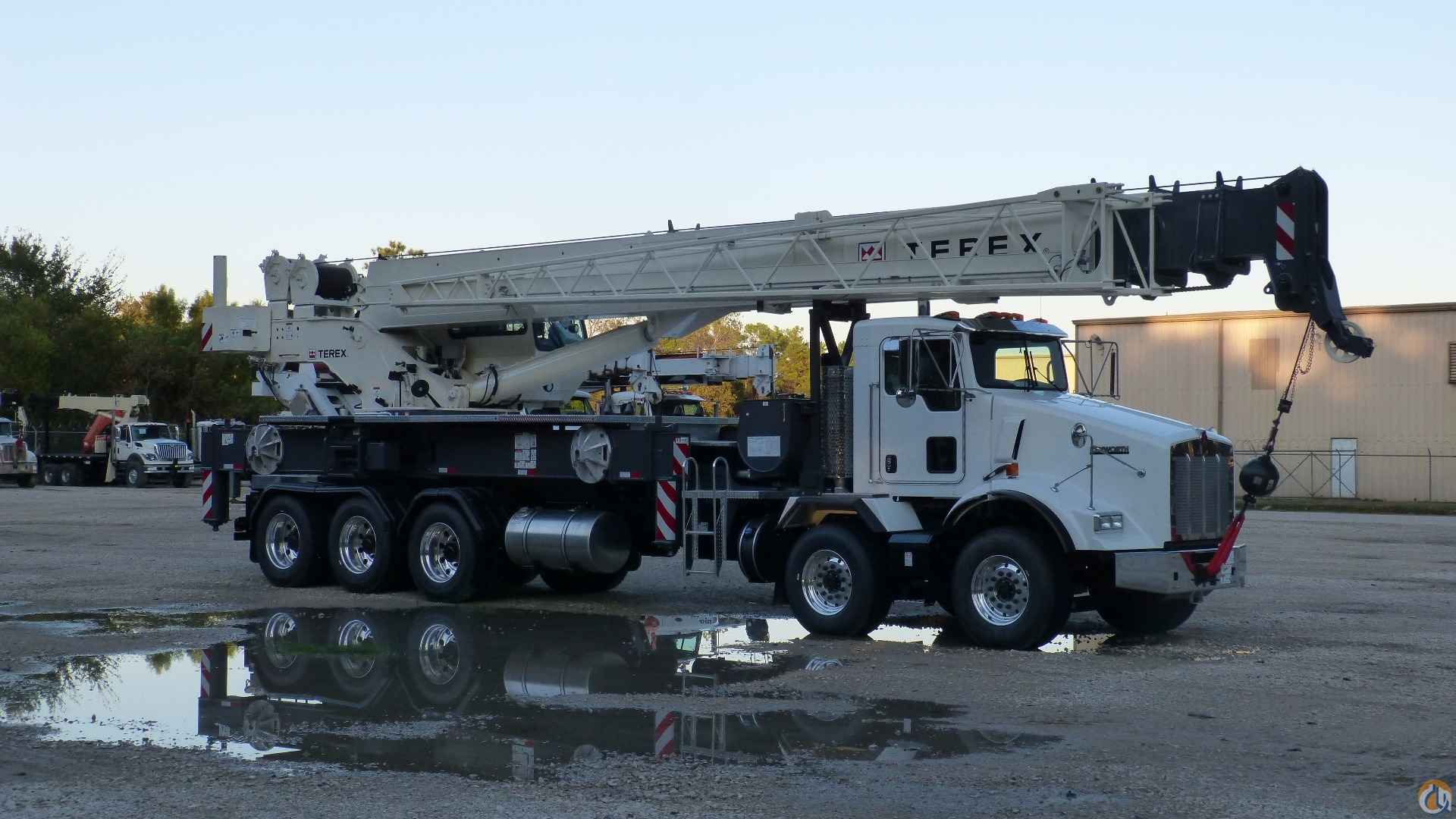

New Terex Crossover 6000 Boom Truck Boom Truck Crane (Sold)

STANDARD FEATURES

BASIC MACHINE:

60 ton (54.4mt) capacity rating @ 10 ft. (3 m) radius

Mainframe Outrigger Hub Base and Crane Upper Super Structure consists of all-steel formed construction.

X pattern Hyd. swing out and telescopic 3 position (retracted, mid and full extended) 4 outrigger beam system. Approximate

outrigger spread is 24' (7.3m) wide by 25' 10" (7.86 m) long

Outrigger control station in the crane cab

No front bumper outrigger required for 360° load capacity

Deluxe contoured flexible fenders

Aluminum Diamond plate decking

Access ladders and steps

Recessed locking storage box in decking

Continuous rotation (no swing stop) foot peddle swing brake and 360 degree swing lock

Hydraulic Oil cooler

BOOM:

110' (33.5 m) Four section, full power, mechanically synchronized boom with 170' (51.8 m) max tip height (with jib).

High strength, four plate construction welded inside and out with embossed side plate holes to reduce weight and increase

strength.

Single boom hoist cylinder provides boom elevation of -4° to 76°.

Quick reeving boom head; no need to remove the wedge from socket. 4-5 bottom head sheaves in boom tip depending on hook

block selection

ENVIRONMENTAL OPERATORS CAB:

Greer Element VGA Rated Capacity Limiter (RCL) system including anti-two block system with automatic function disconnects.

Deluxe six-way adjustable (heated) operator's seat with air ride & air height adjustment riser and ventilation system at seat base.

Joy Stick Controls in armrests are adjustable fore and aft, pivot up 90° with shutoff controls, mounted controls in armrests for

hoist(s), swing and boom elevation

Foot control pedals for swing brake, boom telescope (with integral 2psd extend function) and throttle.

Sound and weather insulated for comfort.

Engine instrumentation in dash

Environmentally sealed rocker switches. Circuit breakers in cab.

360-degree house lock standard.

Removable front window, hinged tinted glass skylight, and sliding right-hand window. Tinted safety glass and overhead retractable

UV sunscreen.

HYDRAULIC SYSTEM:

High capacity, full flow oil filtration system with a 117 gallon (443 L) capacity reservoir. (2) PTO DRIVEN Three gear pump system

Combined system output is 115 gpm (435 lpm) and up to 3,500 psi operating pressure

HOIST:

Single Main Planetary 2spd Hoist -533 fpm (163m/min) maximum line speed 15,639 lb. (7093 kg) maximum line pull.

(Optional Choice) of 5/8" wire rope standard lay or rotation resistant

Integral automatic brake

Grooved drum, tapered flanges, and spring loaded cable roller tensioner for improved spooling.

Electronic drum rotation pulse indicators in control handles

COUNTERWEIGHT:

Standard upper counterweight, with (optional) auxiliary hoist 3,400 lb (1,542 kg), without auxiliary hoist, 4,500 lb (2,041 kg).

Hydraulic counterweight removal system.

MANUALS:

Hard Copy Operators Manual

CDROM includes Operators/Parts/Schematics/Greer/Wire Rope (manuals)

CDROM includes AEM Safety Video

INCLUDED ITEMS:

Model Crossover 6000 (60 U.S. Ton (54.4 mt)) BASIC MACHINE (as described above) - 110-ft boom

English Manuals

Installation for Crossover crane on a Terex-supplied chassis: Includes PTO (option selected), all mounting hardware, hydraulic oil,

fluid refills and lubrication.

Engine start/stop wiring, electronic foot throttle, warning horn, electronic backup alarm and Flatbed. Fully Assembled and Stability

Tested prior to shipment with Crane Manuals and ICC Safety Kit.

Jib Offset 33' (10.2 m) - 57' (17.4 m)

12,000 lb.(5443 kg.) Heavy Counterweight Package - 1- 3,000 lb. (1361 kg.), 1- 4,000 lb. (1814 kg.) & 1- 5,000 lb. (2268 kg.)

weight.

Auxiliary Hoist Included

Standard Lay Wire Rope 500 ft. (286 m) (5/8" 6 X 19 IWRC XIPS right regular lay, preformed)Auxiliary Hoist Included (Includes

Single Sheave Extension)

Standard Lay Wire Rope 500 ft. (286 m) (5/8" 6 X 19 IWRC XIPS right regular lay, preformed)

Hydraulic A/C and LP Heater

7-ton (6.4 mt) Capacity Overhaul Ball with Hook Latch - Weight 250lbs.

40-ton (54.4 mt), 5-sheave, Hook Block With Hook Latch - Weight 1,150lbs.

(2) Remote Outrigger Ground Control stations located at each side access ladders

Immersion Heater for Hydraulic Reservoir (cold weather package)

Work Light Package (Contains 3 lights mounted on the base of the boom, front of the cab, and superstructure)

360-degree Spotlight - Upper Operators Cab Mounted

Terex Standard Paint

TRUCK

New 2015 Kenworth T-800 Tandem / Tridem

Cummins ISX-485, 1650 Ft. Lb. Torque, Diesel Engine

Immersion block heater 120V 1500W

Cruise Control

Allison World 4500 RDS 6-Speed Automatic

Dana Spicer Twin Steer D-2000 front axle, 40K

Power steering gears: Triple TRW TAS 85 for twin steer

Dana Spicer T69-170HP Tridem Rear Axle, Wide Track

Neway ADZ369 Rear Suspension, 69K

Wheel Diff Lock ( 3 axles )

Front Tires: Michelin XFE 385/65R 22.5 Tires on Aluminum Wheels

Rear Tires: Michelin XDE 11R 24.5 22.5 Tires (Qty 12) on Aluminum Wheels

(Qty 1) 100 US Gallon 24.5” Aluminum Fuel Tank

11 US Gallon DEF Tank

Full Truck Kit w/ glad hands to end of frame

Kenworth Splendor Interior

Heat/Defrost/Air Conditioning

AM/FM/WB/CD radio
