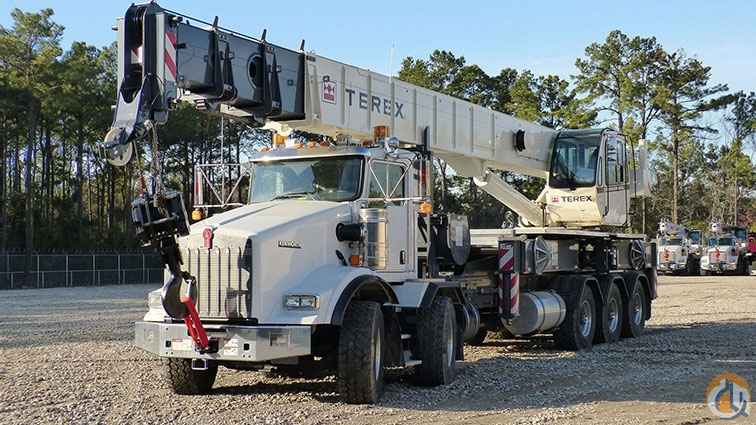

New Terex Crossover 6000 Boom Truck Crane (Sold)

STANDARD FEATURES

BASIC MACHINE:

60 ton (54.4 mt) capacity rating @ 10 ft. (3 m) radius.

Mainframe Outrigger Hub Base and Crane Upper Super Structure consists of all-steel formed construction.

X pattern Hyd. swing out and telescopic 3 position (retracted, mid and full extended) 4 outrigger beam system. Approximate outrigger spread is 24' (7.3m) wide by 25' 10" (7.86 m) long.

Outrigger control station in the crane cab.

No front bumper outrigger required for 360° load capacity.

Deluxe contoured flexible fenders

Aluminum Diamond plate decking

Access ladders and steps

Recessed locking storage box in decking.

Continuous rotation (no swing stop) foot peddle swing brake and 360 degree swing lock

Hydraulic Oil cooler

BOOM:

110' (33.5 m) Four section, full power, mechanically synchronized boom with 170' (51.8 m) max tip height (with jib).

High strength, four plate construction welded inside and out with embossed side plate holes to reduce weight and increase strength.

Single boom hoist cylinder provides boom elevation of -4° to 76°.

Quick reeving boom head; no need to remove the wedge from socket. 4-5 bottom head sheaves in boom tip depending on hook block selection

ENVIRONMENTAL OPERATORS CAB:

Greer Element VGA Rated Capacity Limiter (RCL) system including anti-two block system with automatic function disconnects.

Deluxe six-way adjustable (heated) operator's seat with air ride & air height adjustment riser and ventilation system at seat base.

Joystick Controls in armrests are adjustable fore and aft, pivot up 90° with shutoff controls, mounted controls in armrests for hoist(s), swing and boom elevation;

Foot control pedals for swing brake, boom telescope (with integral 2psd extend function) and throttle.

Sound and weather insulated for comfort.

Engine instrumentation in dash

Environmentally sealed rocker switches. Circuit breakers in cab.

360-degree house lock standard.

Removable front window, hinged tinted glass skylight, and sliding right-hand window. Tinted safety glass and overhead retractable UV sunscreen.

HYDRAULIC SYSTEM:

High capacity, full flow oil filtration system with a 117 gallon (443 L) capacity reservoir.

(2) PTO DRIVEN Three gear pump system

Combined system output is 115 gpm (435 lpm) and up to 3,500 psi operating pressure

HOIST:

Single Main Planetary 2spd Hoist -533 fpm (163m/min) maximum line speed 15,639 lb. (7093 kg) maximum line pull.

(Optional Choice) of 5/8" wire rope standard lay or rotation resistant

Integral automatic brake.

Grooved drum, tapered flanges, and spring loaded cable roller tensioner for improved spooling.

Electronic drum rotation pulse indicators in control handles

COUNTERWEIGHT:

Standard upper counterweight, with (optional) auxiliary hoist 3,400 lb (1,542 kg), without auxiliary hoist, 4,500 lb (2,041 kg).

Hydraulic counterweight removal system.

MANUALS:

Hard Copy Operators Manual - (1) CDROM includes Operators/Parts/Schematics/Greer/Wire Rope (manuals)-(1) CDROM includes AEM Safety Video

INCLUDED ITEMS

Standard Lay Wire Rope 500ft

Auxiliary Hoist Included (Includes Single Sheave Extension)

Hydraulic A/C and LP Heater

7-Ton (6.4mt) Capacity Overhaul Ball with Hook Latch – Weight 250lbs.

60-Ton (54.4 mt), 5-sheave, Hook Block with Hook Latch – Weight 1,150lbs.

(2) Remote Outrigger Ground Control stations located at each side access ladders

Muncie Split Shaft PTO
