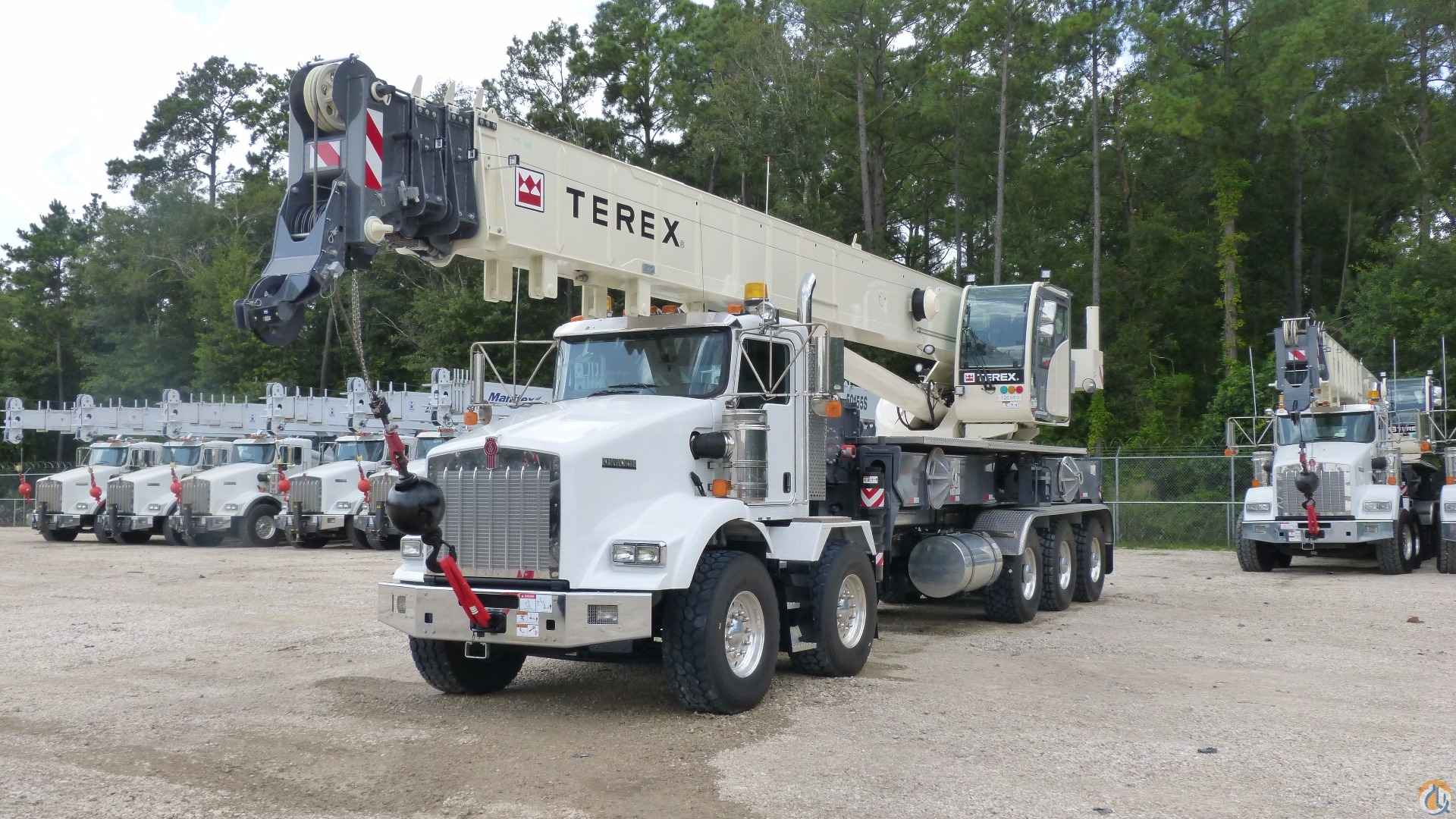

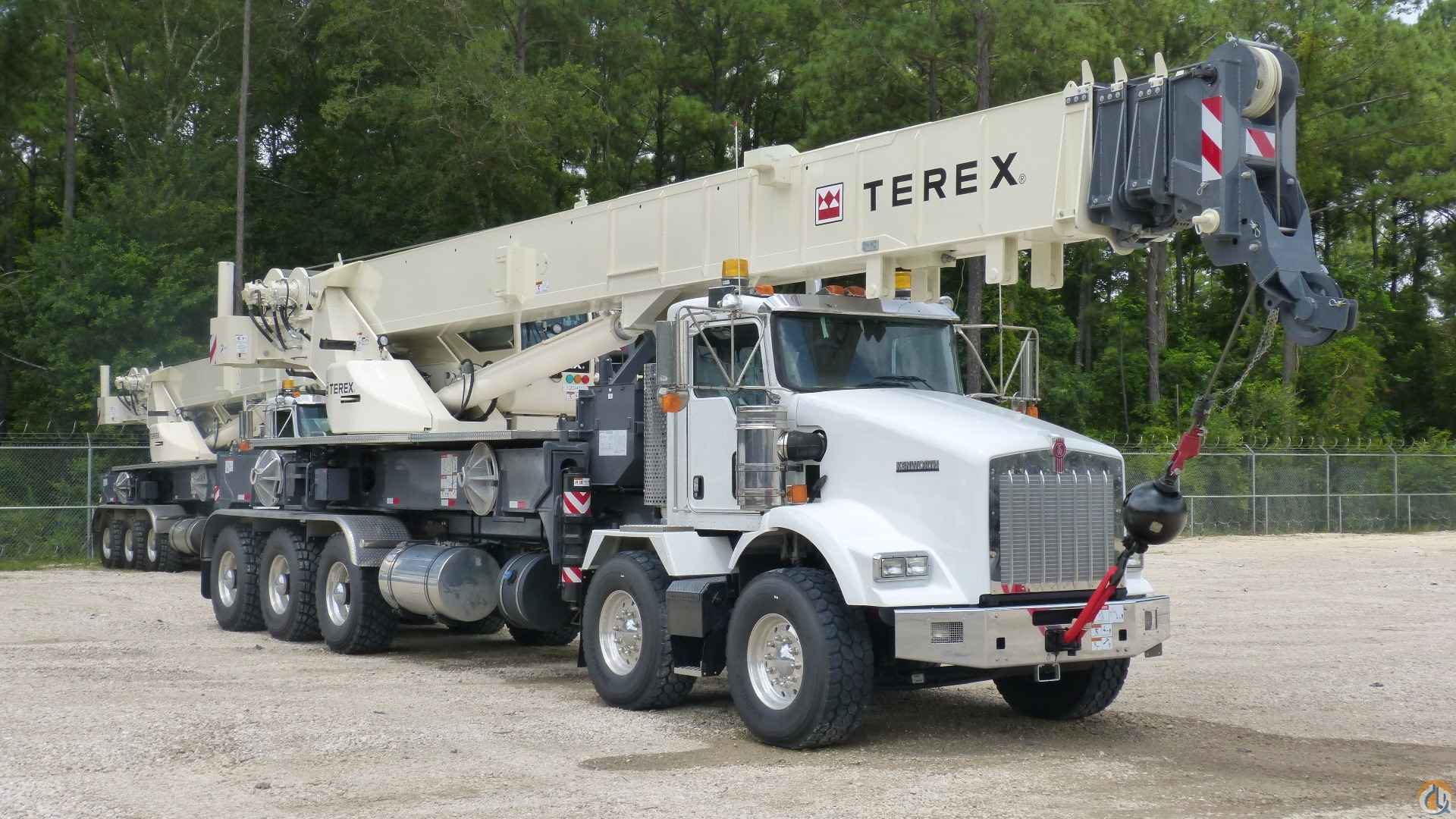

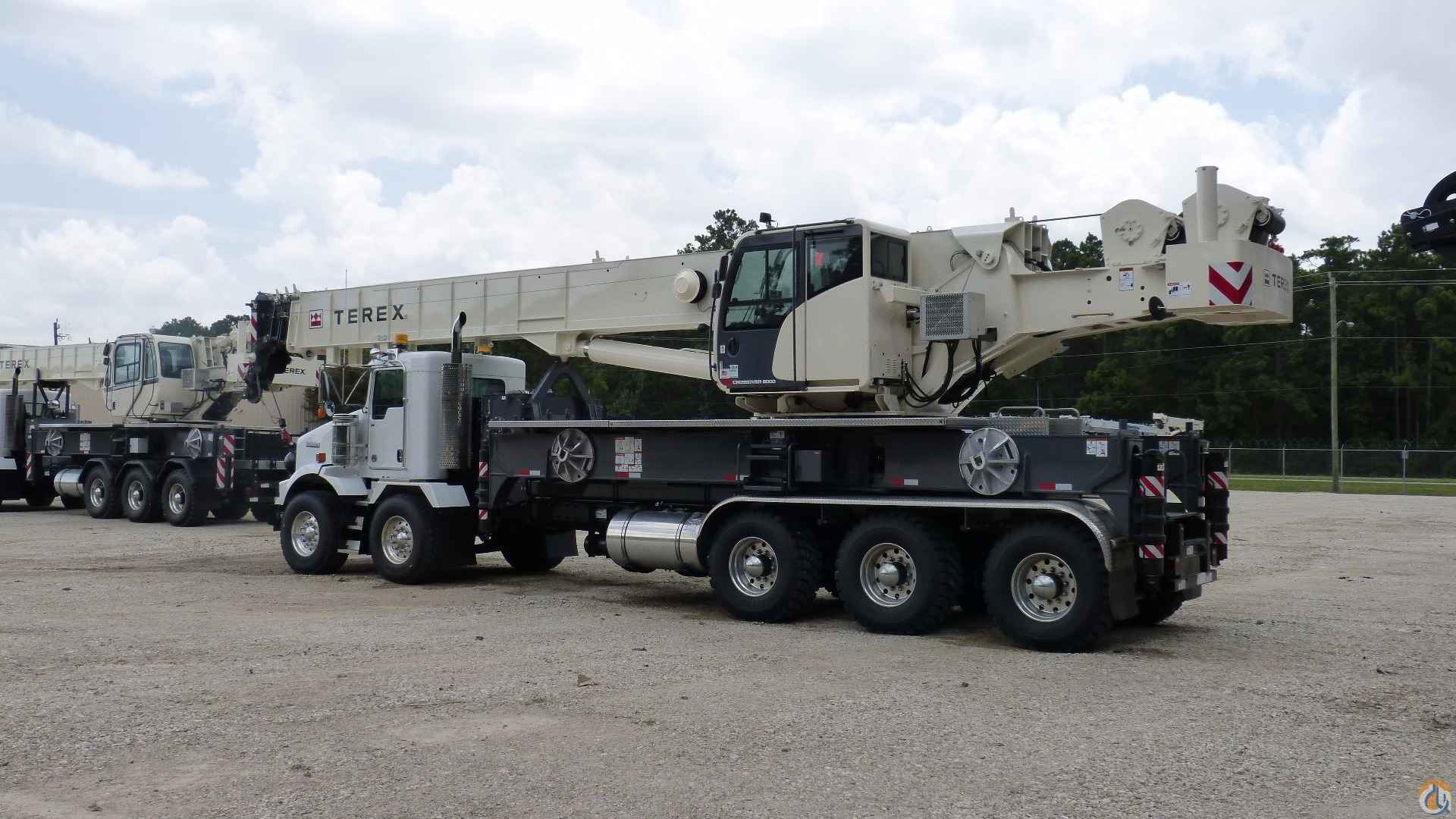

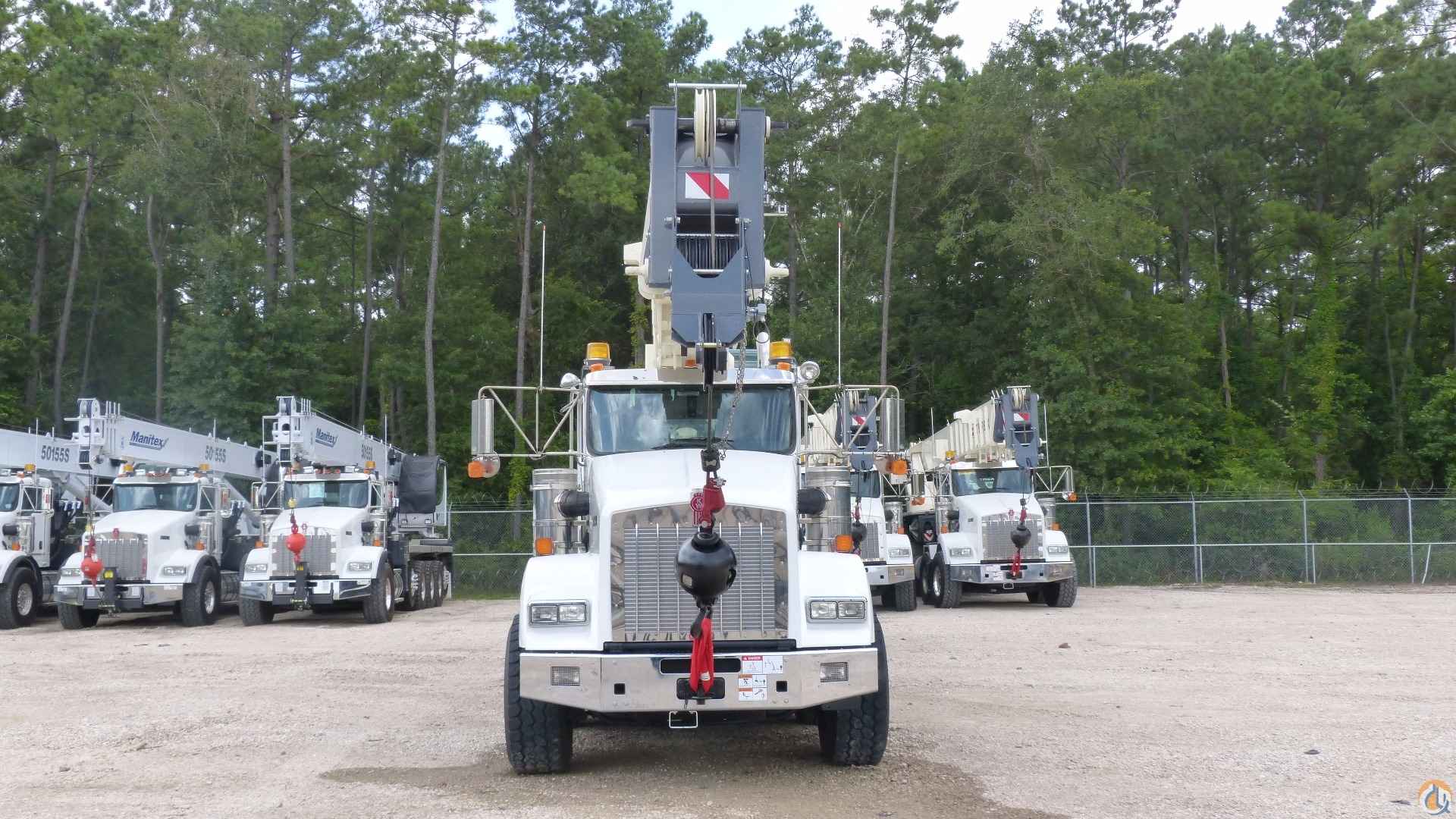

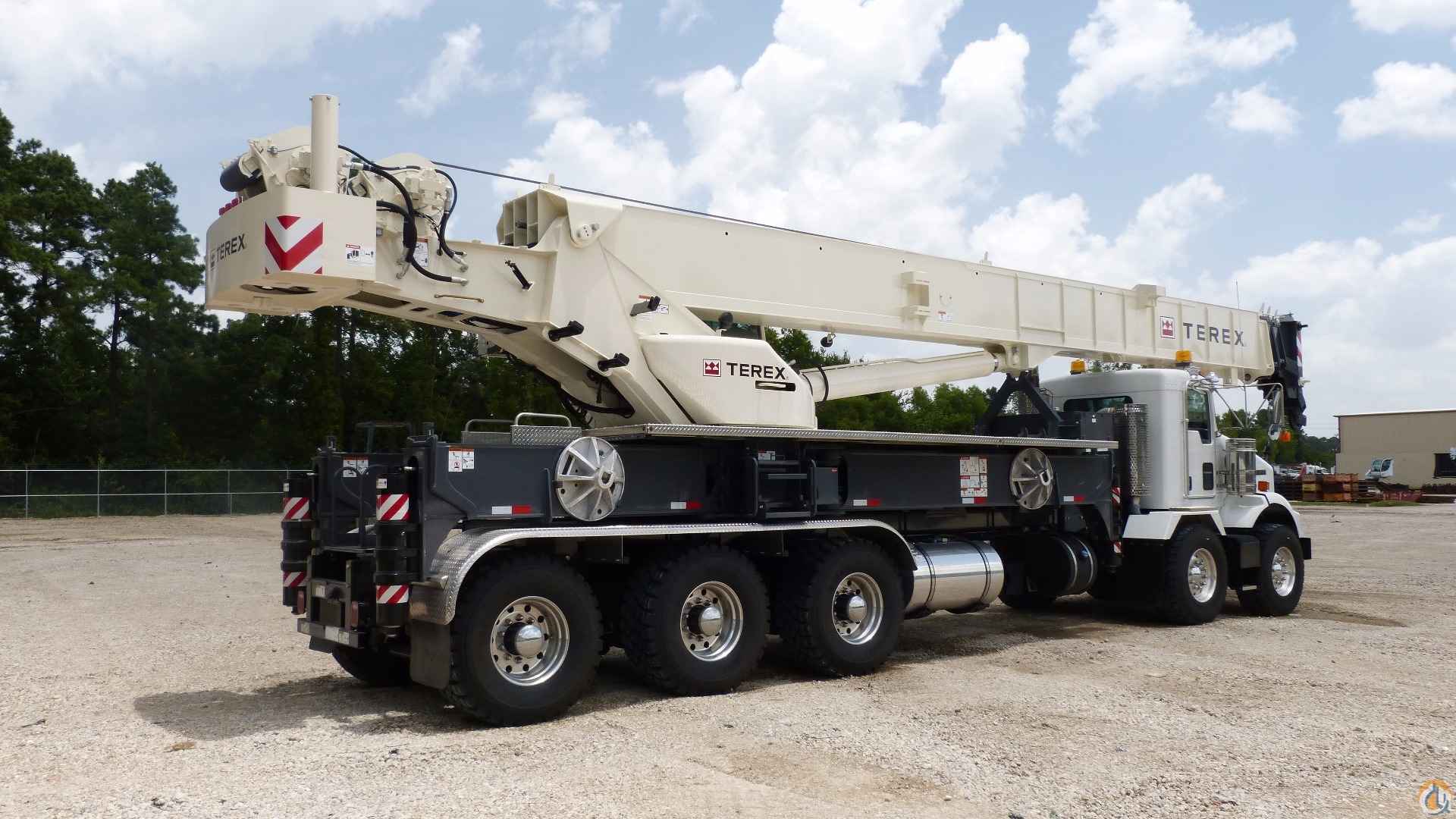

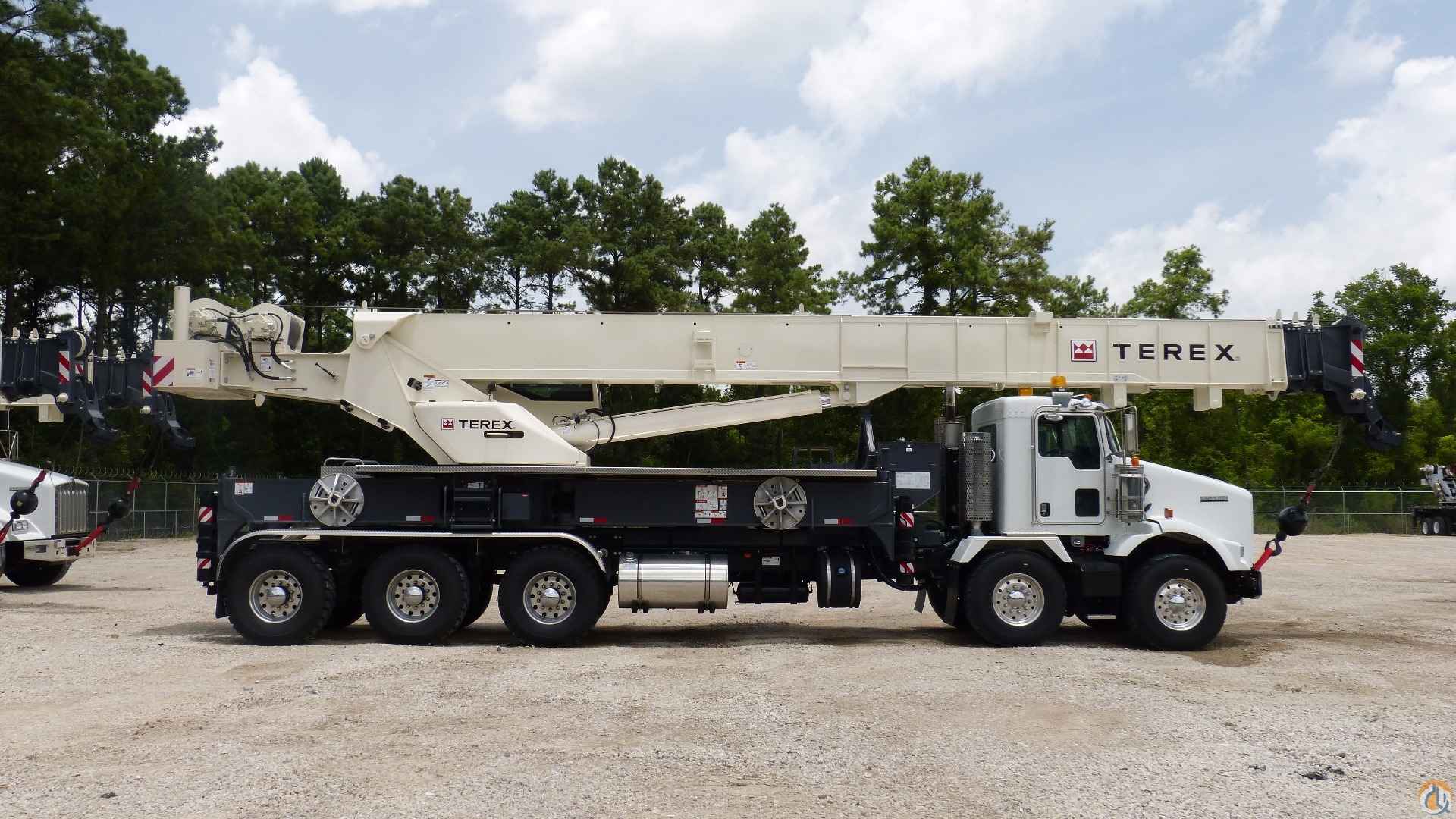

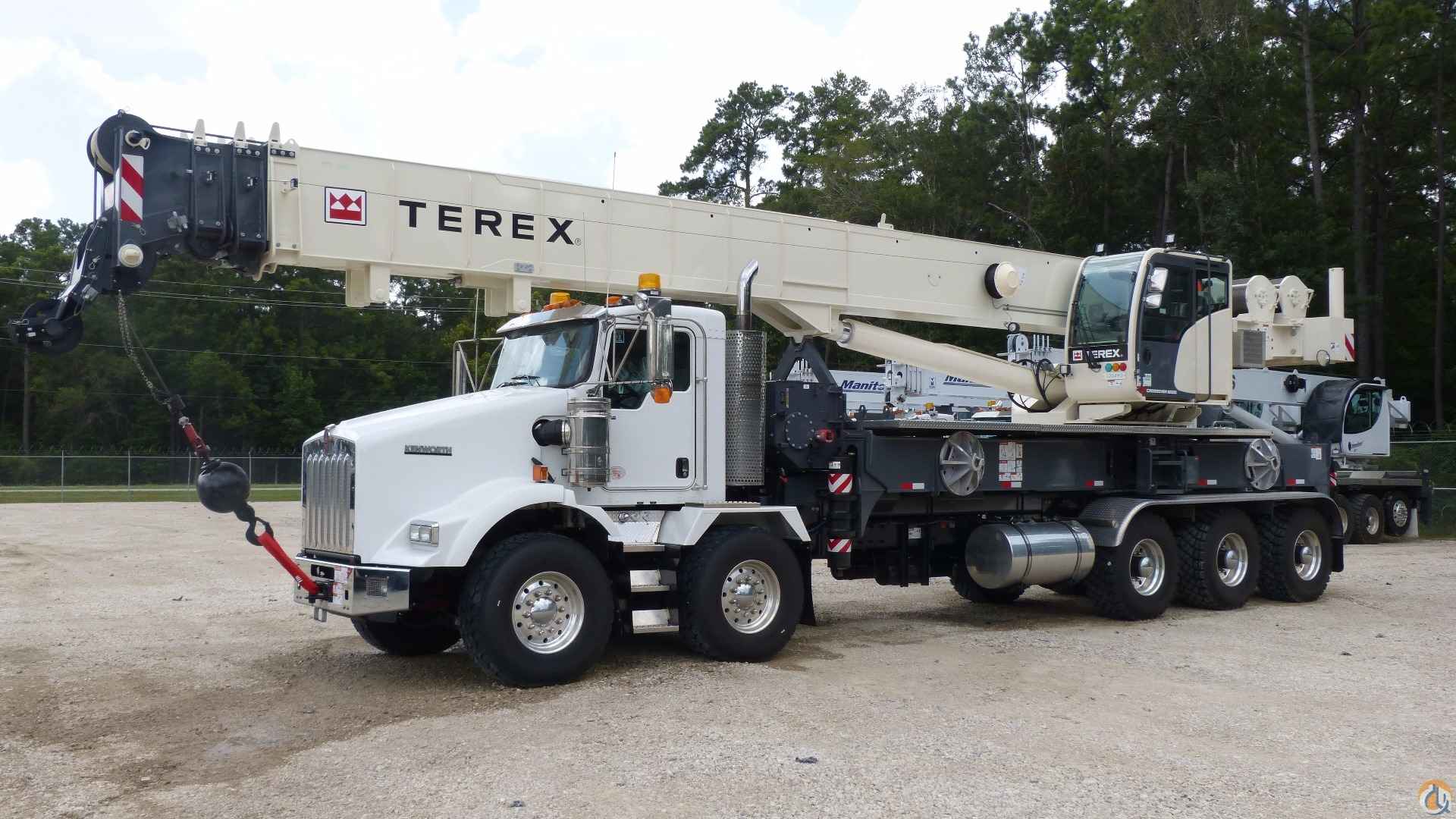

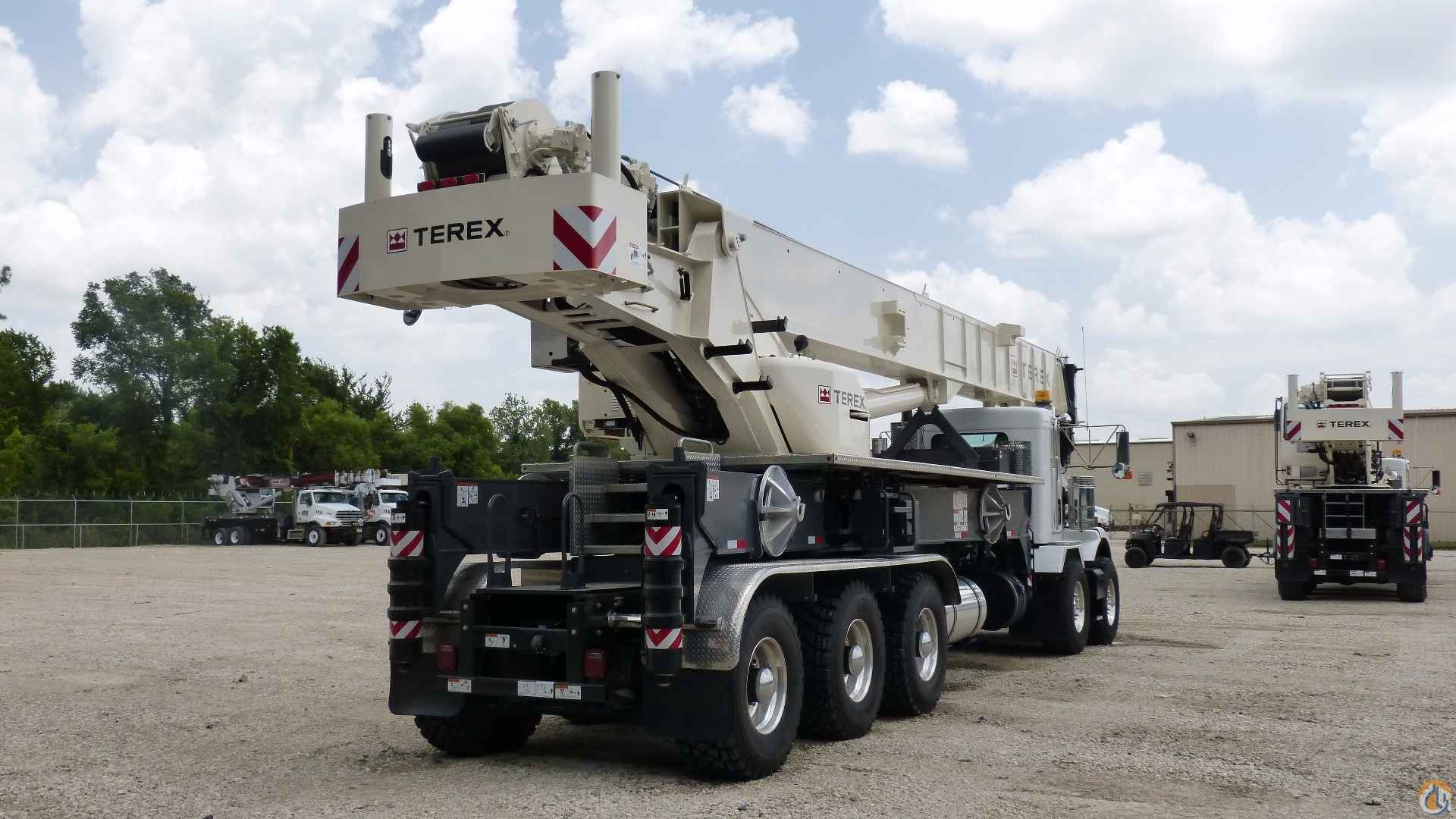

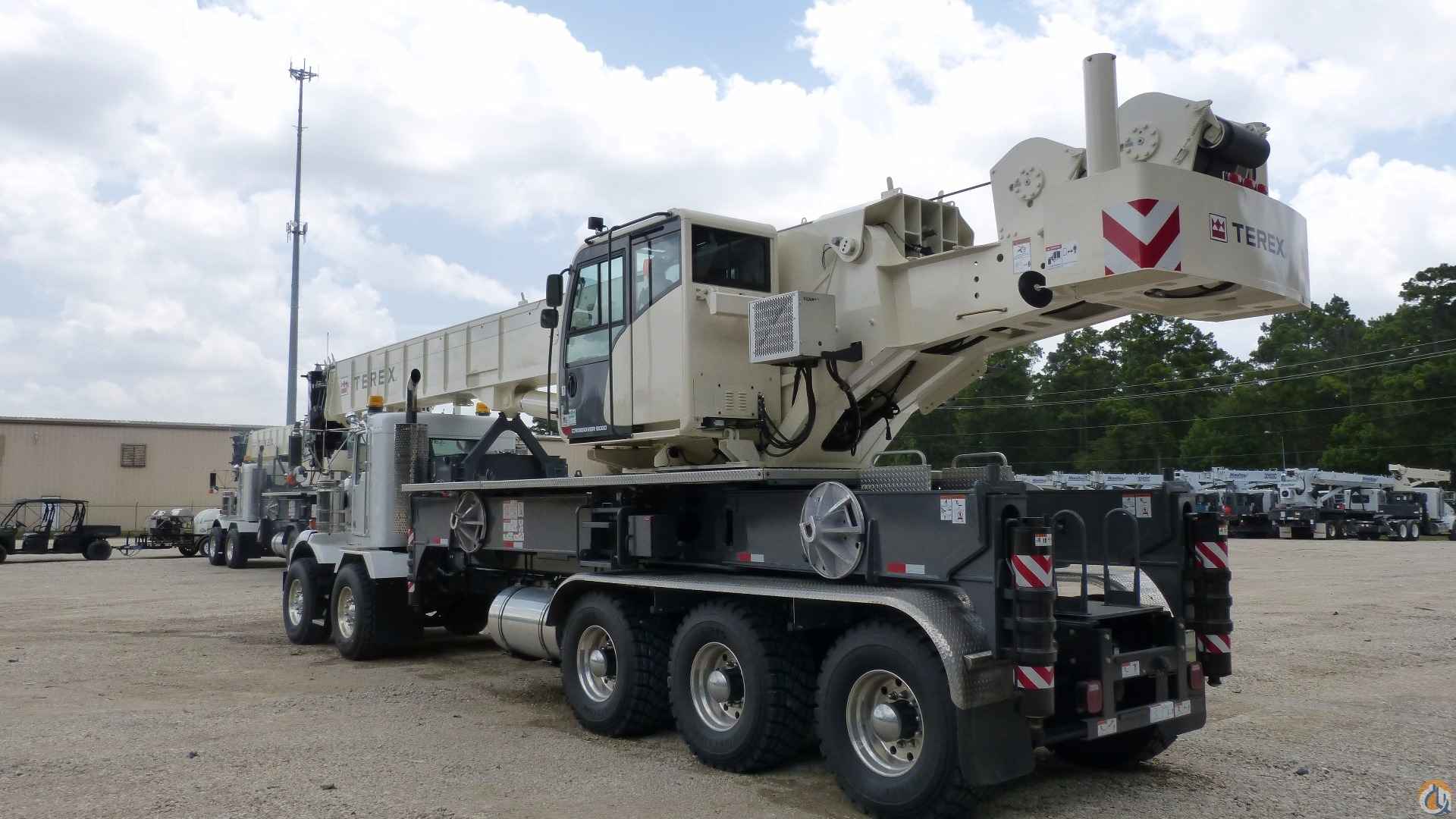

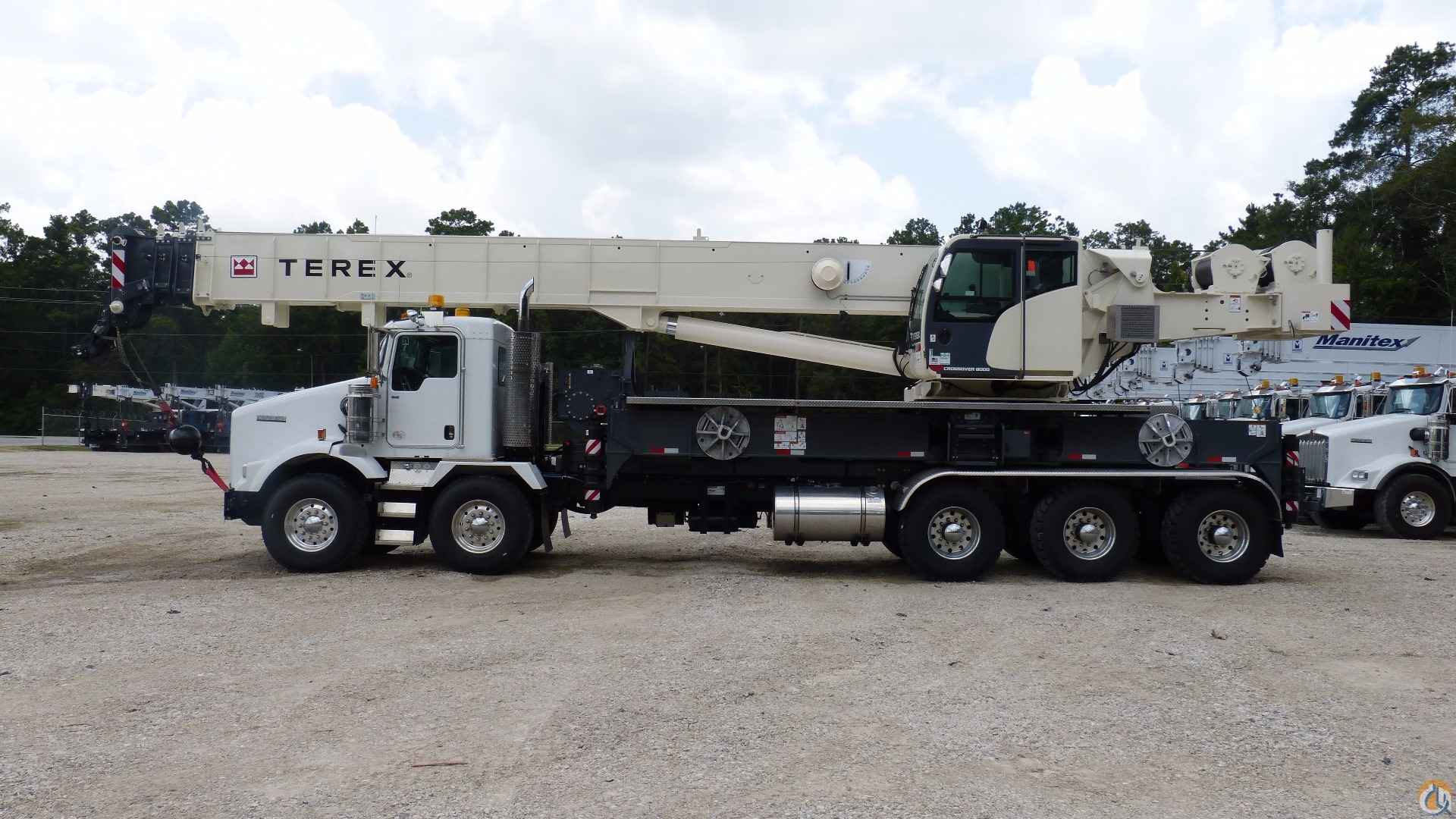

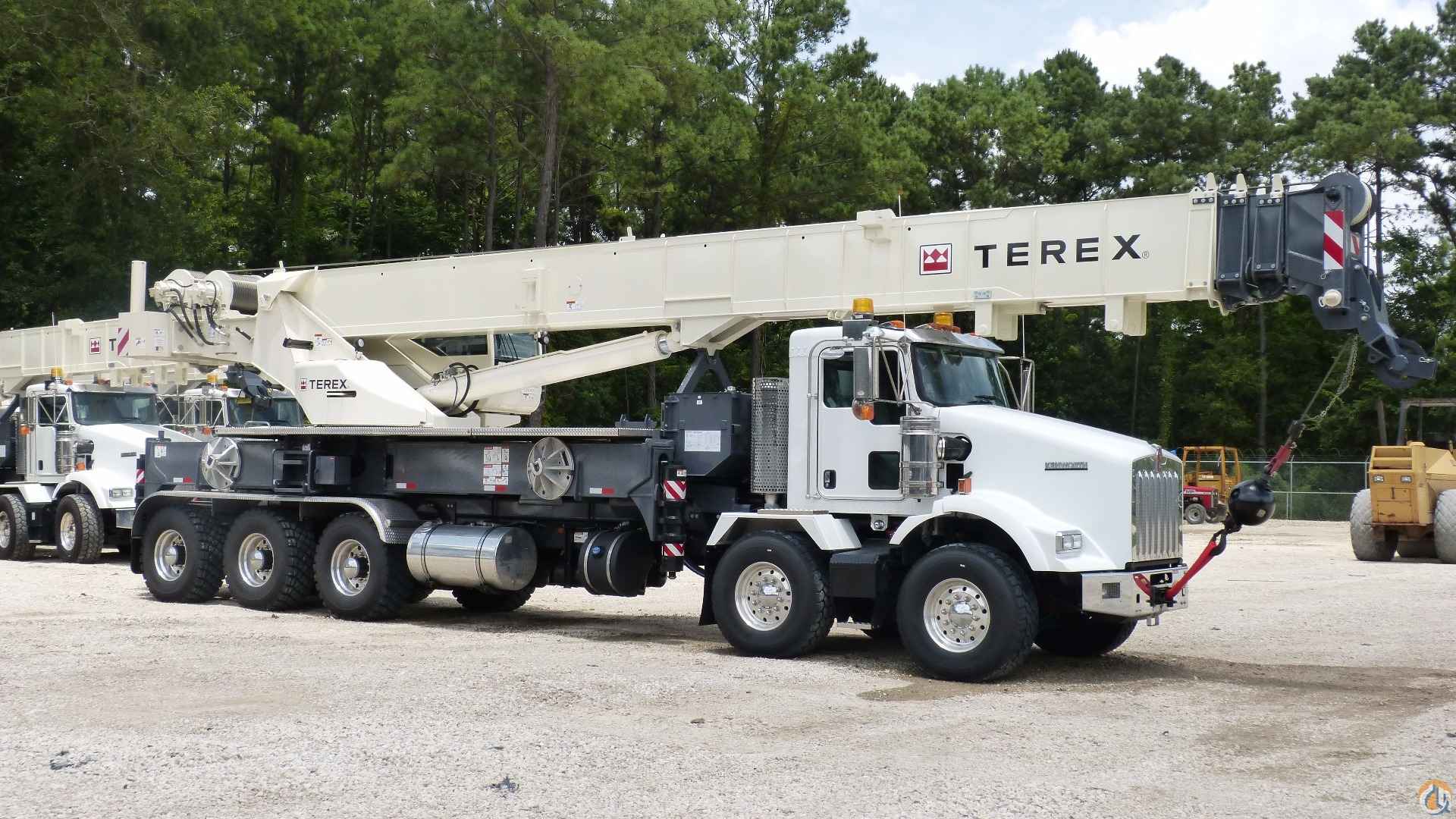

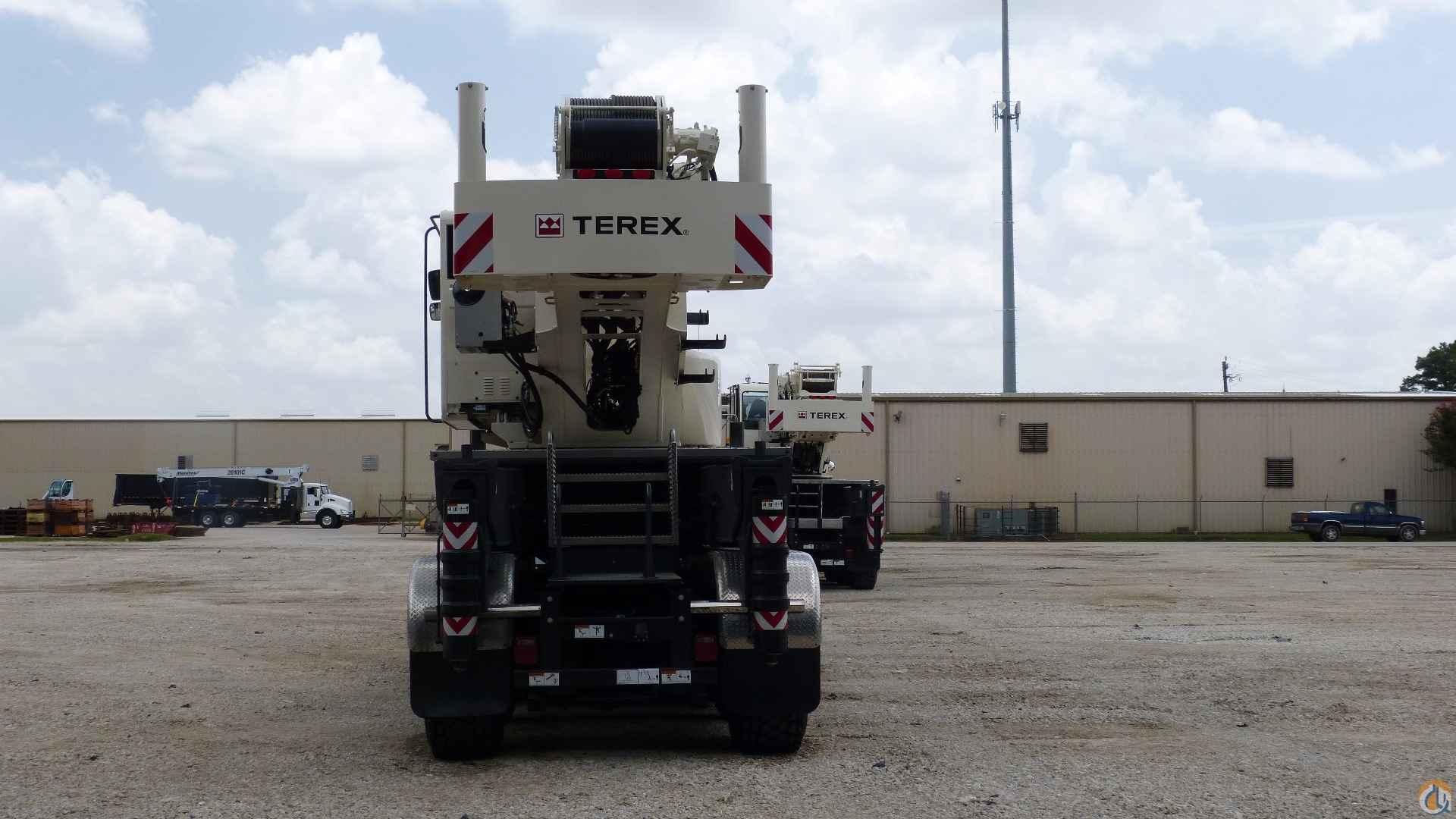

New Terex Crossover 8000 Boom Truck Crane (Sold)

STANDARD FEATURES

BASIC MACHINE

80 ton (72.6 mt) capacity rating @ 10 ft. (3 m) radius.

Mainframe Outrigger Hub Base and Crane Upper Super Structure consists of all-steel formed construction.

X pattern Hyd. swing out and telescopIc 3 position (retracted, mid and full extended) 4 outrigger beam system.

Approximate outrigger spread is 25' 3" (7.7m) wide by 26' (7.9m) long.

Outrigger control station in the crane cab.

No front bumper outrigger required for 360° load capacity.

Deluxe contoured aluminium fenders - Aluminum Diamond plate decking - Access ladders and steps

Continuous rotation (no swing stop) foot peddle swing brake and 360 degree swing lock

Hydraulic Oil cooler

BOOM

126' (38.4 m) Four section, full power, mechanically synchronized boom with 190' (57.9 m) max tip height (with jib).

High strength, four plate construction welded inside and out with embossed side plate holes to reduce weight and

increase strength.

Single boom hoist cylinder provides boom elevation of -4° to 76°.

Quick reeving boom head; no need to remove the wedge from socket. 5 bottom head sheaves in boom tip.

NEW S-PACE TILTING OPERATOR'S CAB

Hydraulically tilting fully adjustable from 0 to 18 degrees

Rated Capacity Limiter (RCL) system including anti-two block system with external cab mounted load indicating lamps (green/yellow/red).

Deluxe six-way adjustable (heated) operator's seat with air ride & air height adjustment riser and ventilation system at

seat base.

JoyStick Controls in armrests are adjustable fore and aft,pivot up 90° with shutoff controls, mounted controls in armrests

for hoist (s), swing and boom elevation;

Foot control pedals for swing brake and throttle.

Sound and weather insulated for comfort.

Digital engine information display

Environmentally sealed rocker switches. Circuit breakers in cab.

360-degree house lock standard.

Removable front window and hinged tinted glass skylight. Tinted safety glass and overhead retractable UV sunscreen.

Front and top glass windshiled wipers/washers.

3 Cab Mounted, manually adjustable work lights.

HYDRAULIC SYSTEM:

High capacity, full flow oil filtration system with a 150 gallon (568 L) capacity reservoir.

Single PTO DRIVEN Two pump system (1 piston, 1 gear)- Combined system output is 78 gpm (295 lpm) and up to 4500 psi

operating pressure

HOIST:

Single Main Planetary 2spd Hoist -489 fpm (149 m/min) maximum line speed 18,450 lb. (8369 kg) maximum line pull.

(Optional Choice) of 3/4" wire rope standard lay or rotation resistant

Integral automatic brake.

Grooved drum, tapered flanges, and spring loaded cable roller tensioner for improved spooling.

Electronic drum rotation pulse indicators in control handles

COUNTERWEIGHT:

Standard upper counterweight with (optional) auxiliary hoist 3,000lbs, without auxiliary hoist 4,500lbs

Hydraulic counterweight removal system.

MANUALS:

Hard Copy Operators Manual - (1) CDROM includes Operators/Parts/Schematics/RCL/Wire Rope (manuals)- (1) CDROM

includes

AEM Safety Video

INCLUDED ITEMS:

Model Crossover 8000 (80 U.S. Ton (72.6 mt)) BASIC MACHINE (as described above) - 126-ft boom

English Manual

Hotshift PTO for automatic transmission

12,000 lb heavy cwt package - 2-2,000 LB, 2 - 4,000 lb.

Rotation resistant wire rope

Auxiliary hoist included – includes single sheave extension

Rotation resistant wire rope on auxiliary hoist

Deluxe A/C and flameless hydraulic heater

12-ton overhaul ball

60-ton 5-sheave hook block

(2) remote outrigger ground control stations

Boom float kit

Immersion heater for hydraulic reservoir (cold weather package)

Work light package

3rd wrap indicator kit – main hoist

3rd wrap indicator kit – auxiliary hoist
