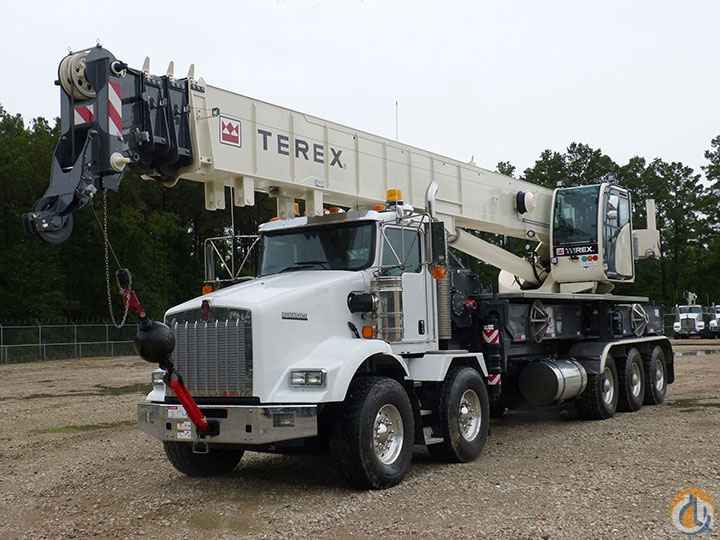

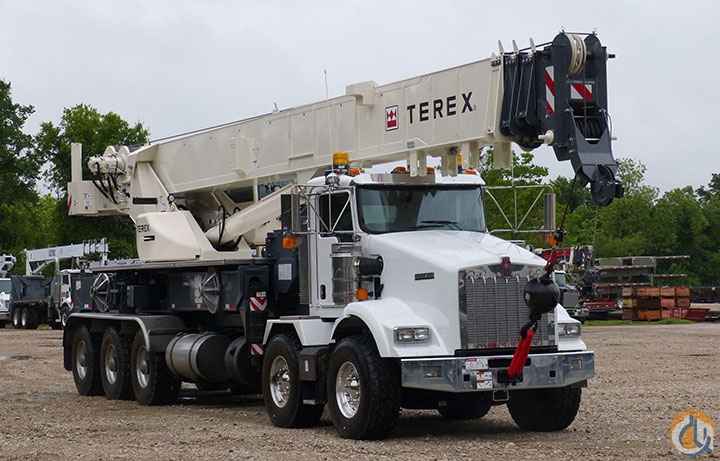

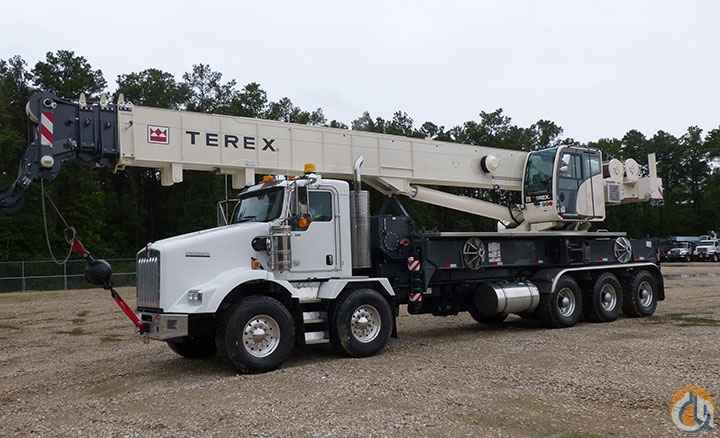

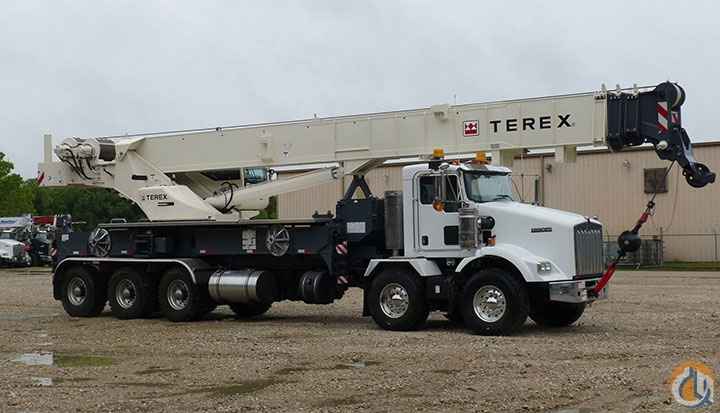

Terex Crossover 8000 on KW T800 Boom Truck Crane (Sold)

BASIC MACHINE

80 ton (72.6 mt) capacity rating @ 10 ft. (3 m) radius.

Mainframe Outrigger Hub Base and Crane Upper Super Structure consists of all-steel formed construction.

X pattern Hyd. swing out and telescopIc 3 position (retracted, mid and full extended) 4 outrigger beam system. Approximate outrigger spread is 25' 3" (7.7m) wide by 26' (7.9m) long.

Outrigger control station in the crane cab.

No front bumper outrigger required for 360° load capacity.

Deluxe contoured aluminium fenders - Aluminum Diamond plate decking - Access ladders and steps

Continuous rotation (no swing stop) foot peddle swing brake and 360 degree swing lock

Hydraulic Oil cooler

BOOM

126' (38.4 m) Four section, full power, mechanically synchronized boom with 190' (57.9 m) max tip height (with jib).

High strength, four plate construction welded inside and out with embossed side plate holes to reduce weight and increase strength.

Single boom hoist cylinder provides boom elevation of -4° to 76°.

Quick reeving boom head; no need to remove the wedge from socket. 5 bottom head sheaves in boom tip.

NEW S-PACE TILTING OPERATOR'S CAB

Hydraulically tilting fully adjustable from 0 to 18 degrees

Rated Capacity Limiter (RCL) system including anti-two block system with external cab mounted load indicating lamps (green/yellow/red).

Deluxe six-way adjustable (heated) operator's seat with air ride & air height adjustment riser and ventilation system at seat base.

JoyStick Controls in armrests are adjustable fore and aft,pivot up 90° with shutoff controls, mounted controls in armrests for hoist(s), swing and boom elevation;

Foot control pedals for swing brake and throttle.

Sound and weather insulated for comfort.

Digital engine information display

Environmentally sealed rocker switches. Circuit breakers in cab.

360-degree house lock standard.

Removable front window and hinged tinted glass skylight. Tinted safety glass and overhead retractable UV sunscreen.

Front and top glass windshiled wipers/washers.

3 Cab Mounted, manually adjustable work lights.

HYDRAULIC SYSTEM:

High capacity, full flow oil filtration system with a 150 gallon (568 L) capacity reservoir.

Single PTO DRIVEN Two pump system (1 piston, 1 gear)- Combined system output is 78 gpm (295 lpm) and up to 4500 psi operating pressure

HOIST:

Single Main Planetary 2spd Hoist -489 fpm (149 m/min) maximum line speed 18,450 lb. (8369 kg) maximum line pull.

(Optional Choice) of 3/4" wire rope standard lay or rotation resistant

Integral automatic brake.

Grooved drum, tapered flanges, and spring loaded cable roller tensioner for improved spooling.

Electronic drum rotation pulse indicators in control handles

COUNTERWEIGHT:

Standard upper counterweight with (optional) auxiliary hoist 3,000lbs, without auxiliary hoist 4,500lbs

Hydraulic counterweight removal system.

MANUALS:

Hard Copy Operators Manual-(1)CDROM includes Operators/Parts/Schematics/RCL/Wire Rope (manuals)-(1)CDROM includes AEM Safety Video

INCLUDED ITEMS

Model Crossover 8000 (80 U.S. Ton (72.6 mt)) BASIC MACHINE (as described above) - 126-ft boom

English Manual

Hotshift PTO for automatic transmission

12,000 lb heavy cwt package - 2-2,000 LB, 2 - 4,000 lb.

Rotation resistant wire rope

Auxiliary hoist included – includes single sheave extension

Rotation resistant wire rope on auxiliary hoist

Deluxe A/C and flameless hydraulic heater

12-ton overhaul ball

80-ton 5-sheave hook block

(2) remote outrigger ground control stations

Boom float kit

Immersion heater for hydraulic reservoir (cold weather package)

Work light package

3^rd wrap indicator kit – main hoist

3^rd wrap indicator kit – auxiliary hoist

TRUCK

New Kenworth T-800 Tandem / Tridem

Cummins ISX-550, 1850 Ft. Lb. Torque, Diesel Engine

Allison 4500RDS 6-Speed Transmission

Immersion block heater 120V 1500W

Phillips engine oil pan heater 120V 300W

Cruise Control

Dana Spicer Twin Steer D-2200 front axle, 40K

Power steering gears: Triple TRW TAS 85 for twin steer

Dana Spicer T69-170HP Tridem Rear Axle, Wide Track

Neway ADZ378 Rear Suspension, 78K

Wheel Diff Lock ( 3 axles )

Front Tires: Bridgestone M854 425/65R 22.5 Tires on Aluminum Wheels

Rear Tires: Bridgestone L-315 445/65R 22.5 Tires (Qty 6) on Aluminum Wheels

(Qty 2) 100 US Gallon 24.5” Aluminum Fuel Tank

20.7 US Gallon DEF Tank

Full Truck Kit w/ glad hands to end of frame

Kenworth Diamond Interior w/ GPS and XM Radio

Heat/Defrost/Air Conditioning

AM/FM/WB/CD radio
