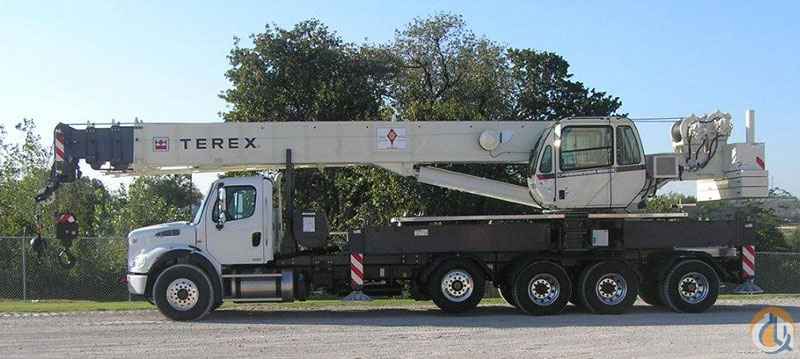

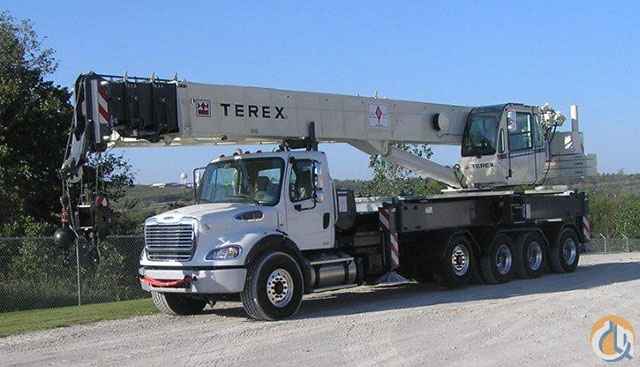

<p class="MsoNormal" style="margin: 0in 0in 0pt;"><span style="font-size: medium;"><strong><em>2012 Terex Boom Truck Crane Crossover 6000, serial number 120096, 60 ton capacity truck mounted hydraulic crane, </em></strong> </span></p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"><span style="font-size: medium;"> </span></p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"><span style="font-size: medium;"><strong>STANDARD EQUIPMENT:</strong></span></p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"> </p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"><span style="font-size: medium;"><strong><span style="text-decoration: underline;">BOOM:</span></strong> 110’ (33.5 m), four section, full power, mechanically synchronized boom. High strength, four plate construction welded inside and out with embossed side plate holes to reduce weight and increase strength. Single boom hoist cylinder provides boom elevation of -4 degrees to 76 degrees for easier reeving changes and close radius operation. Quick-reeving boom head; no need to remove wedge from socket.</span></p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"><span style="font-size: medium;">Side stowed 33’ (10.2 m) -57’ (17.4 m) lattice type jib with offset (0/15/30-degrees), auxiliary hoist, standard wire rope on main and auxiliary hoist, 60-Ton (36.3 mt) five sheave hook block, 7-Ton (6.4 mt) overhaul ball with hook latch,</span></p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"> </p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"><span style="font-size: medium;"><strong><span style="text-decoration: underline;">ENVIRONMENTAL OPERATIORS CAB:</span></strong> Rated Capacity Indicator (RCI) system including anti-two block system with automatic function disconnects. Deluxe six-way adjustable operator’s seat with torsion bar suspension, and adjustable head and arm rests. Sound and weather insulated for comfort. Removable front window, hinged tinted glass skylight, and sliding right-hand window. Tinted safety glass throughout. Armrest mounted controls for hoist (s), swing and boom elevation; foot control pedals for swing brake, boom telescope and throttle. Complete instrumentation. Environmentally sealed rocker switches. Circuit breakers in cab. 360-degree house lock standard.</span></p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"> </p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"><span style="font-size: medium;"><strong><span style="text-decoration: underline;">HYDRAULIC SYSTEM:</span></strong> Three pump system, Main boom hoist and telescope tandem pump 56.8/47.0 gal/min @ 3,500 psi, outrigger and swing</span></p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"><span style="font-size: medium;"> 21 gal/min 2,5000 psi, Simultaneous operation of hydraulic functions, Two-speed hoist, Full flow with bypass protection suction return, with a 117 gallon (443 L) capacity reservoir. </span></p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"><span style="font-size: medium;"><strong><span style="text-decoration: underline;">HOIST SYSTEM:</span></strong> 533 fpm (163 m/min) maximum line speed, 15,639 lb (7,093 kg) maximum line pull. Integral automatic brake. Electronic drum indicators. Grooved drum, tapered flanges, and spring loaded cable roller for improved spooling.</span></p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"> </p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"><span style="font-size: medium;"><strong><span style="text-decoration: underline;">COUNTERWEIGHT:</span></strong> Main Counterweight 4,500 lb with integrated hydraulic removal system is bolted to the upper structure, Hydraulic system allows weights to be removed and attached without additional lifting equipment for placement on carrier deck.</span></p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"><span style="font-size: medium;">Optional additional counterweight, 3000 lb, 4,000 lb, and 5,000 lb.</span></p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"> </p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"><span style="font-size: medium;"><strong><span style="text-decoration: underline;">OUTRIGGERS:</span></strong> X-pattern, Max Front: Swing, Out and Down To outer edge of pad 26ft, Rear: Swing, Out and Down To outer edge of pad 26ft.</span></p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"><span style="font-size: medium;">MID Front: Swing, Out and Down 20ft, Rear: Swing, Out and Down 19.5ft. </span></p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"> </p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"><span style="font-size: medium;"><strong><span style="text-decoration: underline;">MANUALS:</span></strong> 1-set of operators and parts manuals will be shipped with the machine.</span></p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"> </p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"><span style="font-size: medium;"><strong><span style="text-decoration: underline;">CHASSIS SPECIFICATIONS:</span></strong> Freightliner M2-112, </span></p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"> </p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"><span style="font-size: medium;"><strong><span style="text-decoration: underline;">ENGINE:</span></strong> DETROIT Diesel 450 HP (336 kW)</span></p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"> </p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"><span style="font-size: medium;"><strong><span style="text-decoration: underline;">TRANSMISSION:</span></strong> Allison 4500 RDS</span></p> <p class="MsoNormal" style="margin: 0in 0in 0pt;"> </p> <p class="MsoNormal" style="margin: 0in 0in 0pt; text-align: center;"><span style="font-size: xx-large;"><strong>SOLD</strong></span></p>
