BOOM DETAILS

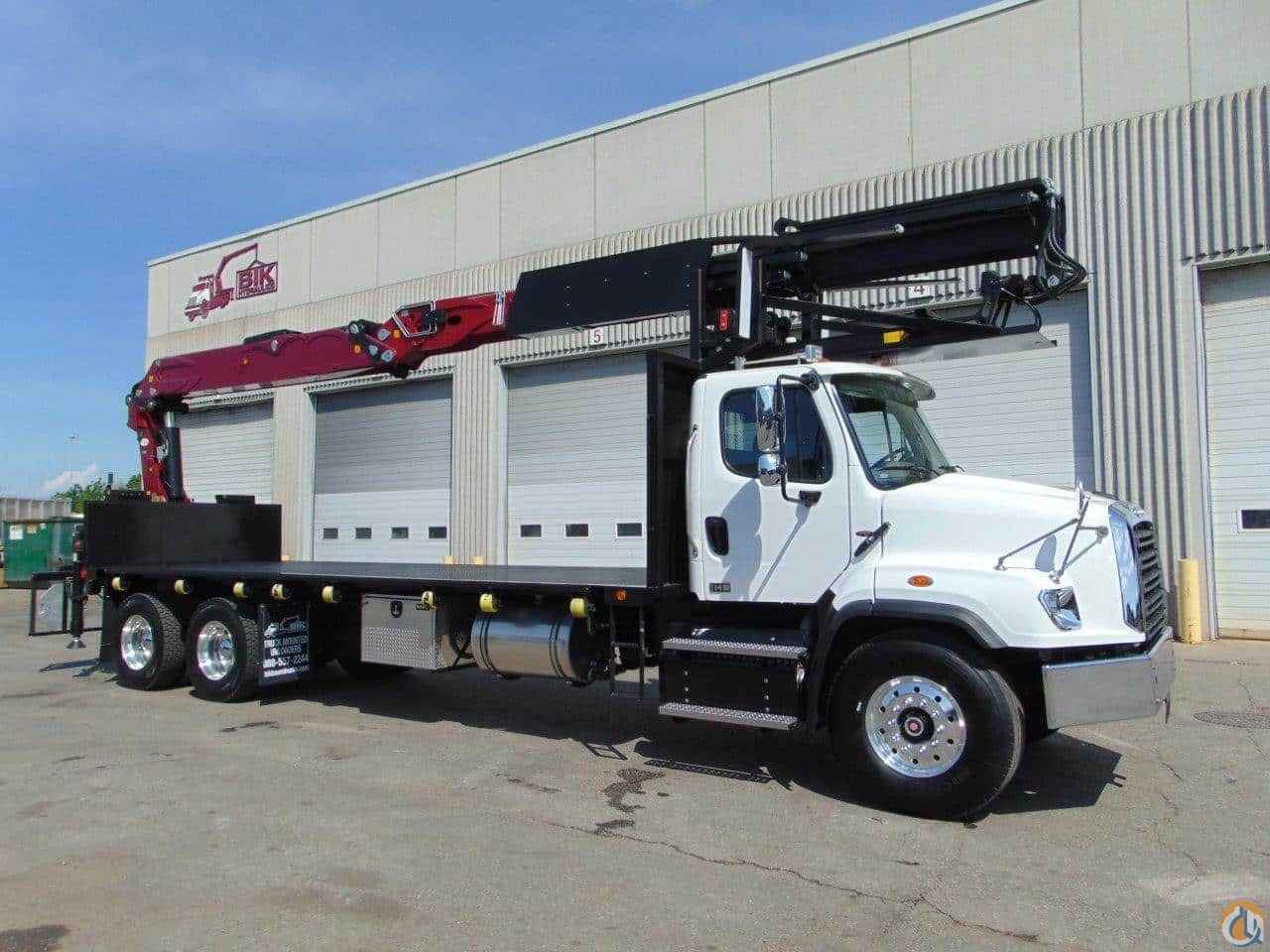

New – PM Powerlift-74 Wallboard Series Boom  8th Floor Lift  Installed at rear  – Best Capacity in its Class

• 4- Hyd Extensions to 62’ horizontal reach  (74’ vertical )
• Vertical Boom Capacity:
  • 7,360 lbs – 70’ up &  23’ out
  • 5,180 lbs – 65’ up & 33’ out
  • 3,930 lbs – 58’ up & 43’ out,
• Internal cylinders on all boom extensions, Outer boom cylinder guard
• Rack & Pinion type 390 degree non-continuous rotation , Mechanical stop between main boom and boom unit
• Power Link Connections at Main and Articulating Cylinders, enhanced lifting power throughout
• Extra Wide Stabilizers – 24’ 3” span, hydraulic out and down type, – Front Aux Stabilizers – Hyd out & down type 16’ span
• Flanged holding valves, double acting check valve for the down movement of the stabilizers
• Hydraulic Oil Cooler, high pressure return filter and min. 40-gallon oil tank for boom
• DANFOSS Valve – At Ground level  &  SCANRECO Proportional  Radio Remote Control

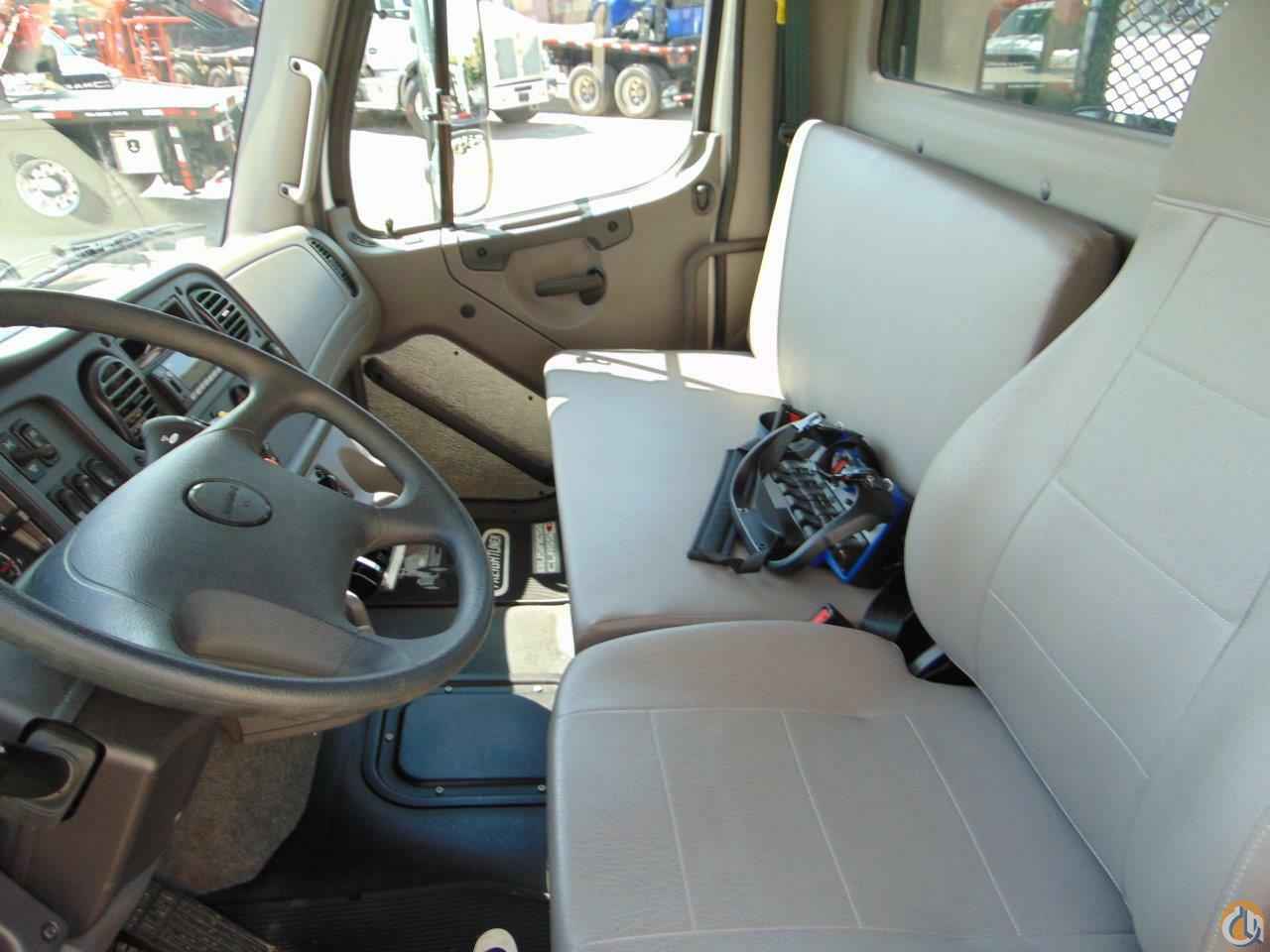

• Radio Remote Control includes: 2-batteries, in-cab charger, and back-up cord, Continuous rotation Drywall Forks

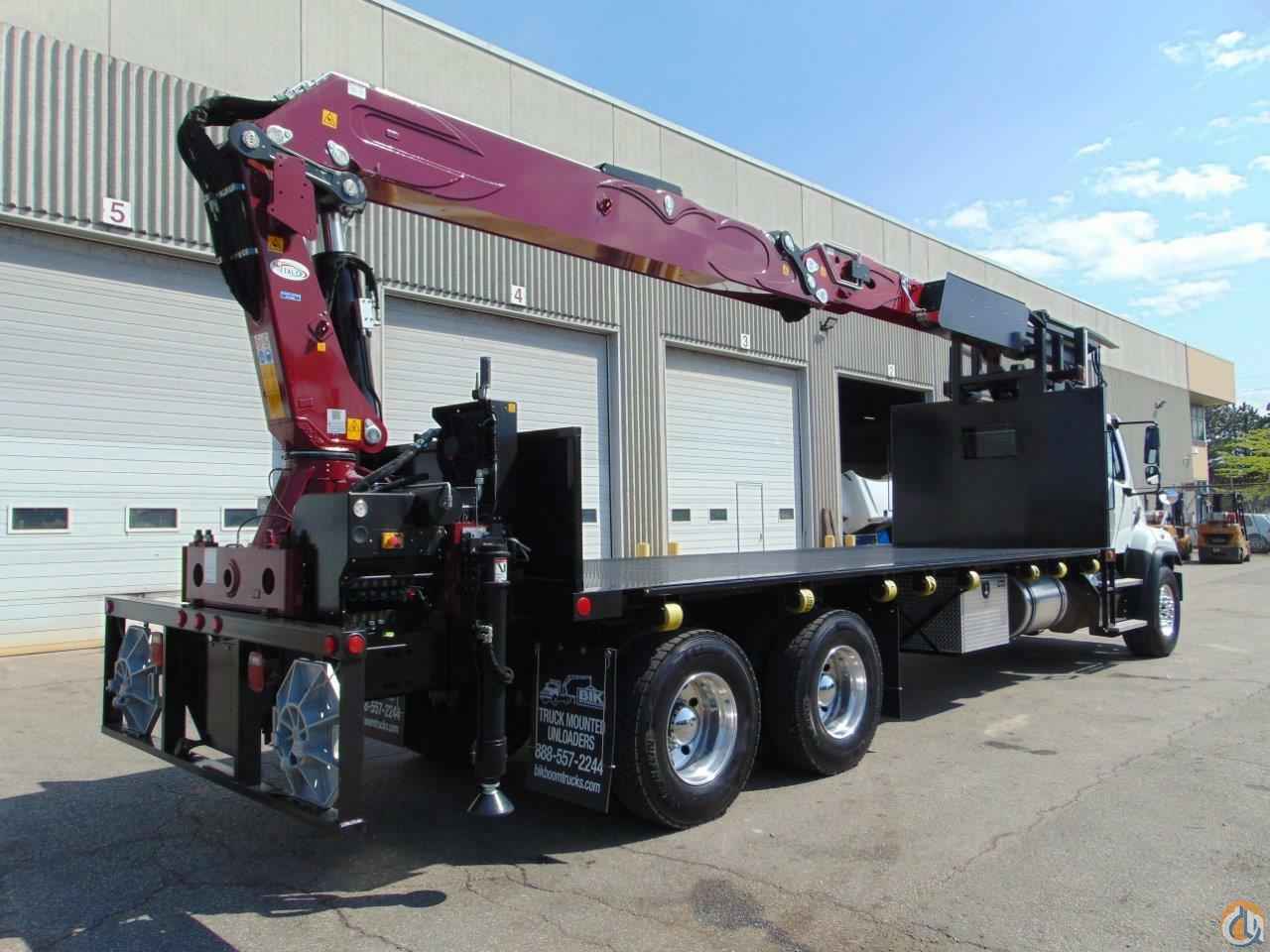

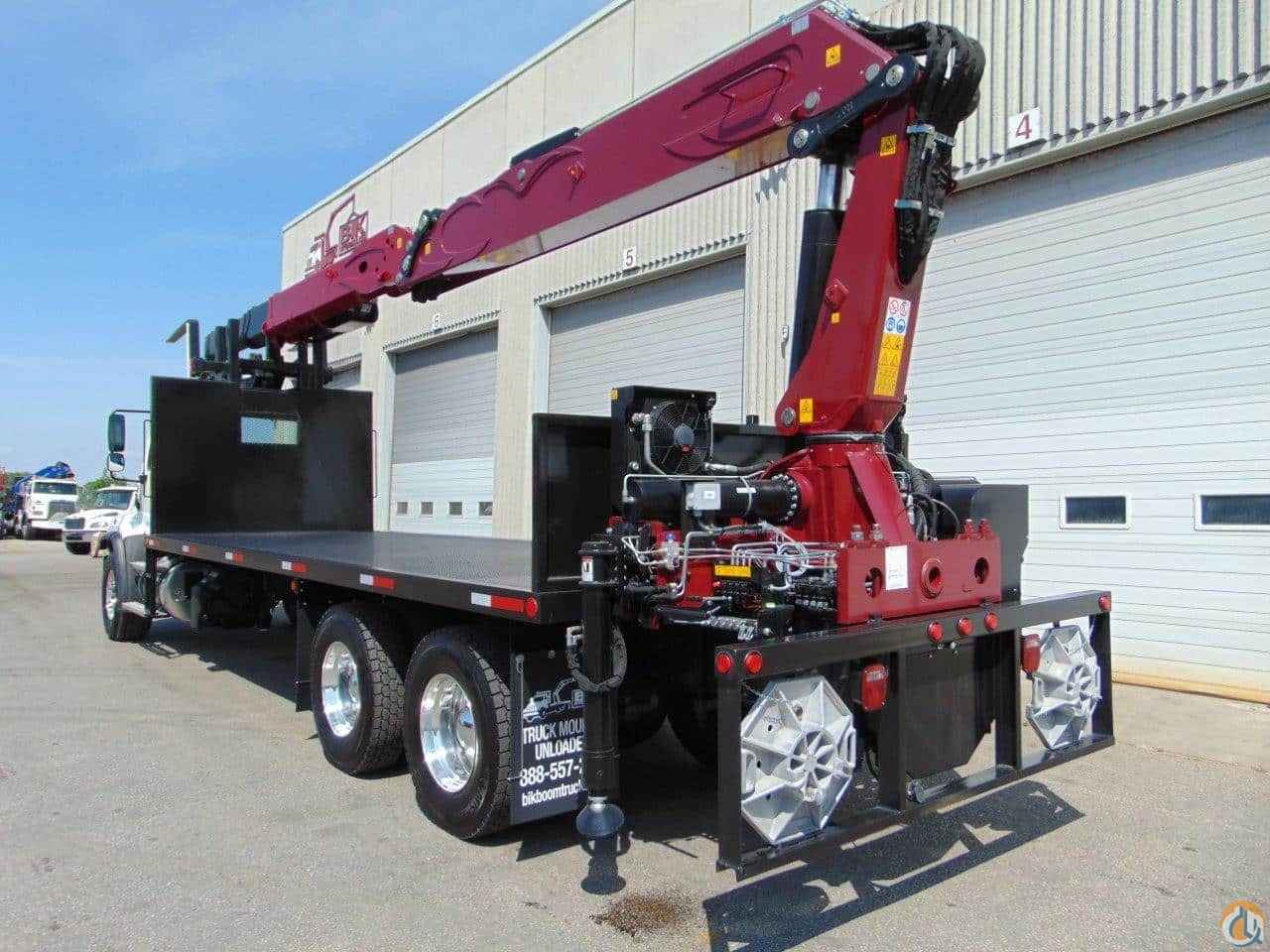

• Installed at rear, with integral pre-engineered sub-frame and specialized torsion bracing, Final Tests Stability Certified by Independent Engineer

DECK DETAILS

NEW– 24.5’  X 102” DECK:

• Installed on truck with 50” of main sill overhang at rear for Sub-Frame of Knuckle Boom
• Your choice of or Steel Checker Plate Deck surface

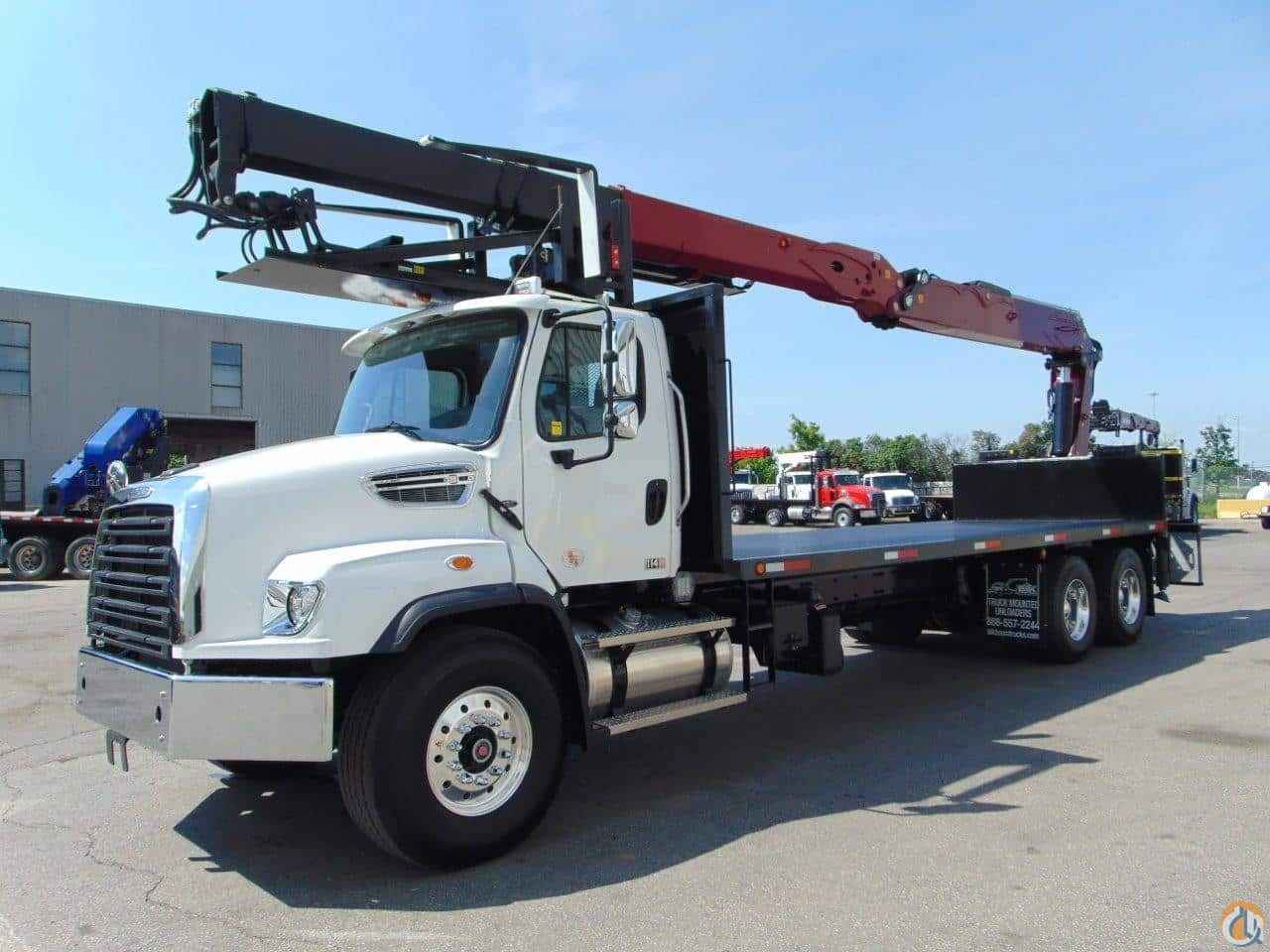

• 60”  Headboard with Drywall Forks rest over cab
• Reverse rail sliding winch track on pass side with 6-winches and straps
• Conspicuity Tape and Reflectors
• Headboard and all other steel painted Gloss Black
