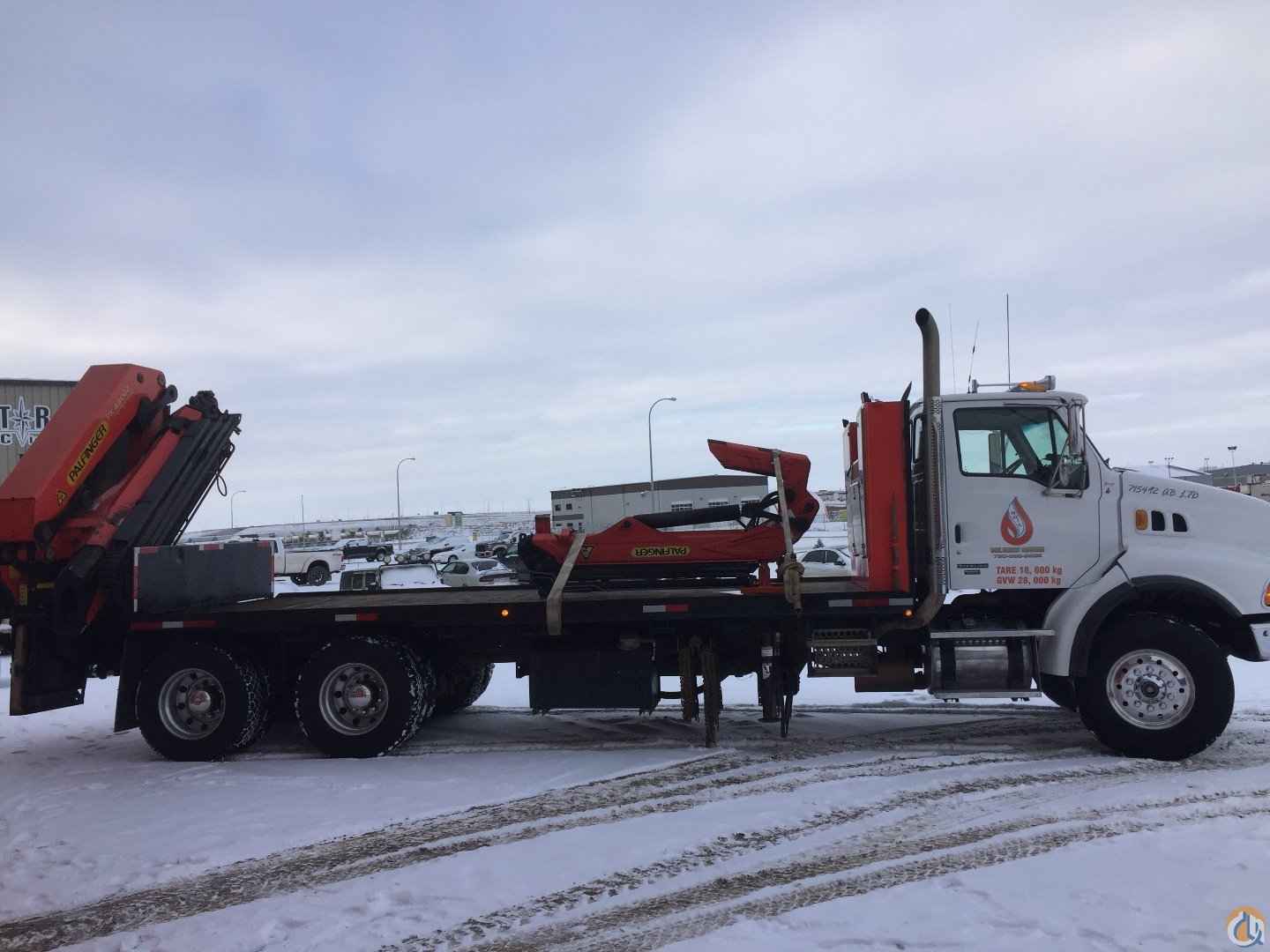

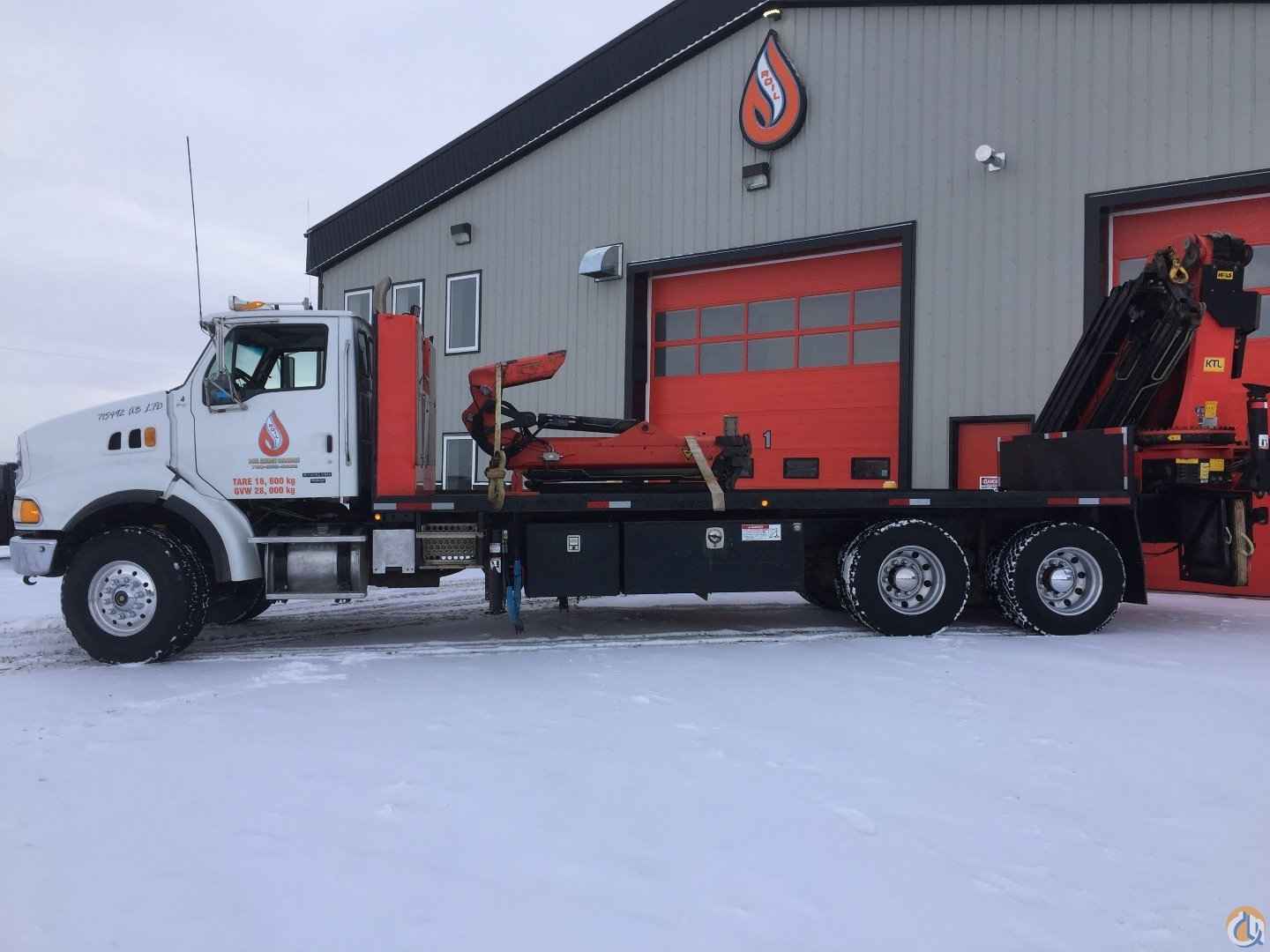

Rear Mount Palfinger PK44002 E on 2006 Sterling LT9/TM Chassis

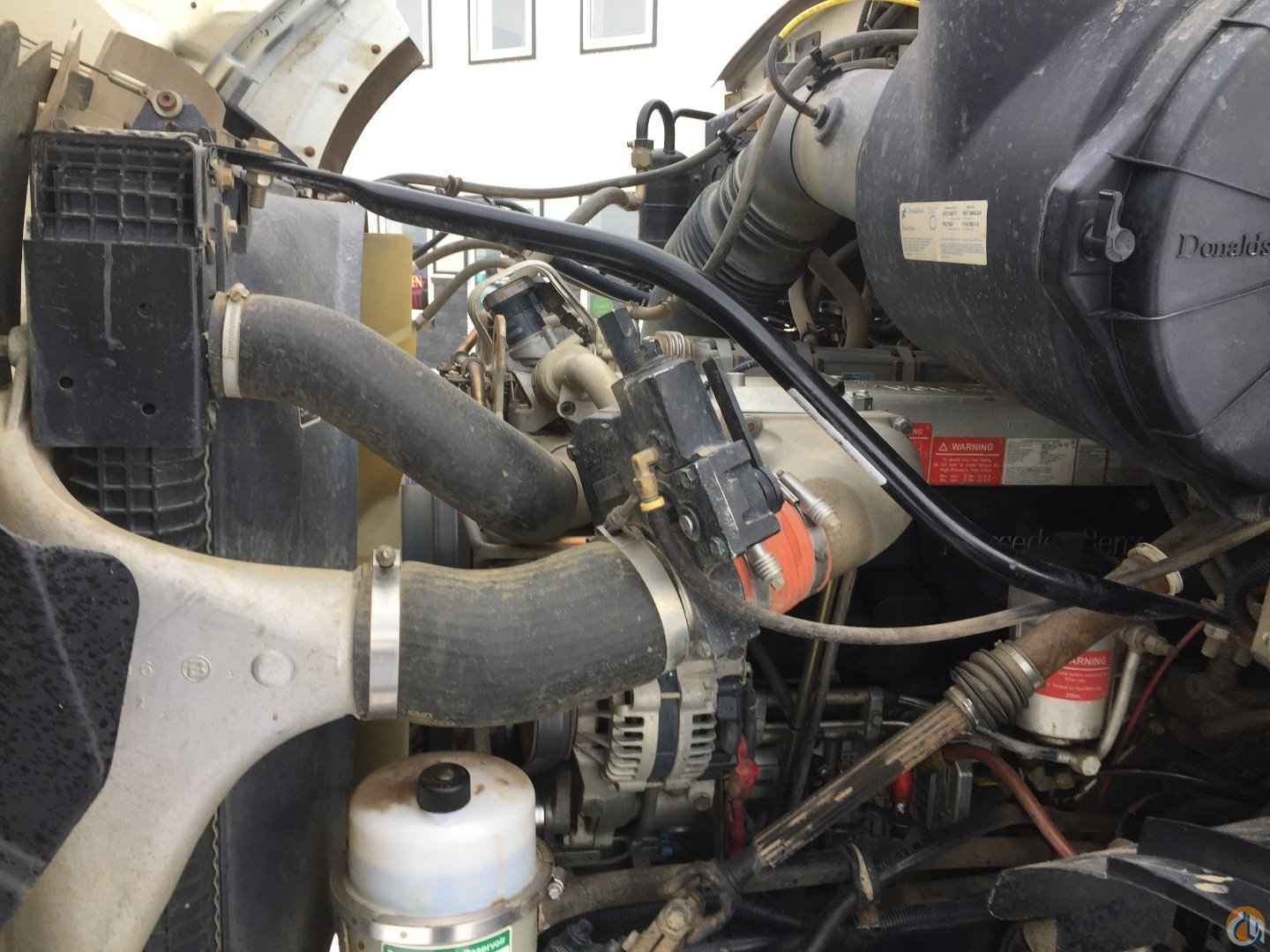

Truck has a 440HP mercedes Engine with 100,500KM (62,000 Miles)
10 Speed Eaton Transmission.
Truck deck is 49" High X 102" wide X 239" long , Steel Deck surface ,

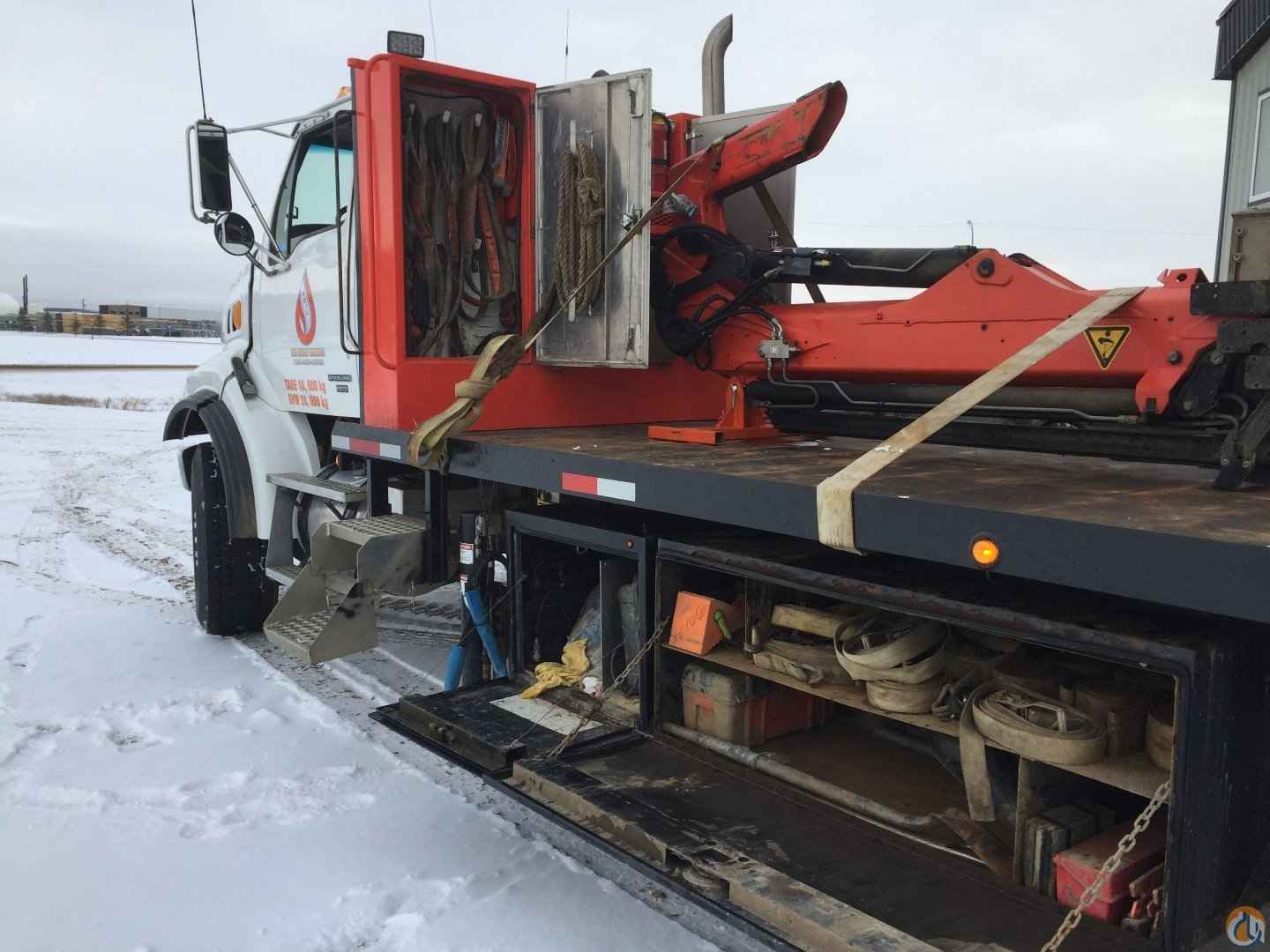

3X Rigging Cabinets behind Cab H60" X W28" X D12" (side cabinets) W36"xH33"XD12" (center cabinet)
Tiedown Box under Deck 60"X24"x24", Powered Remote box also Underslung on Drives side 30"x24"X24".
Aluminum Fold out steps both sides,
Dual 60 Gallon Fuel Tanks,

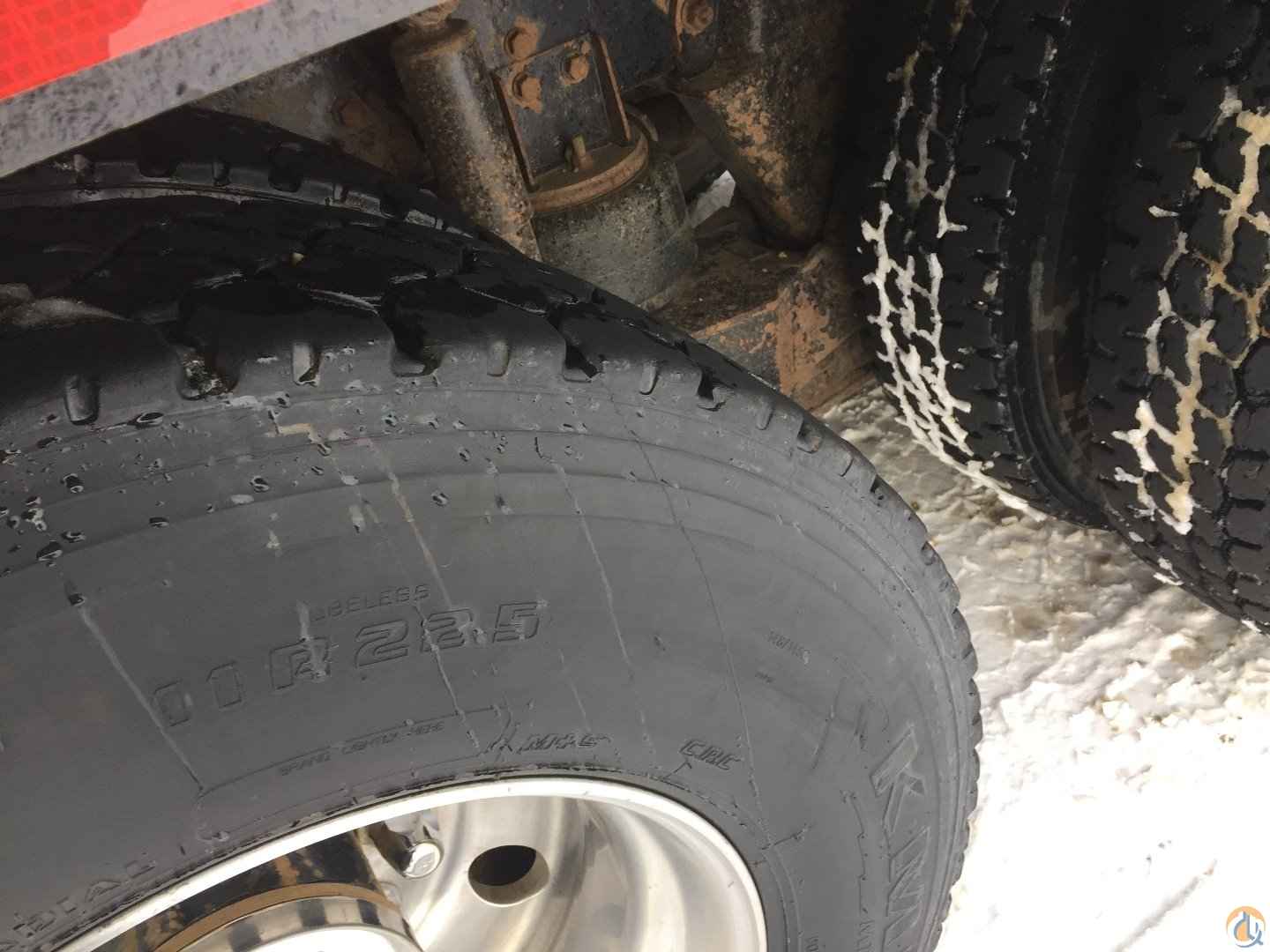

Tire size Front: 425-625/22.5 (20K front axle) - Drives (tandem) 11R22.5 (2X 20K rear axles)
Rear end:4.10 Rockwell gears.
Upgraded to Air suspension

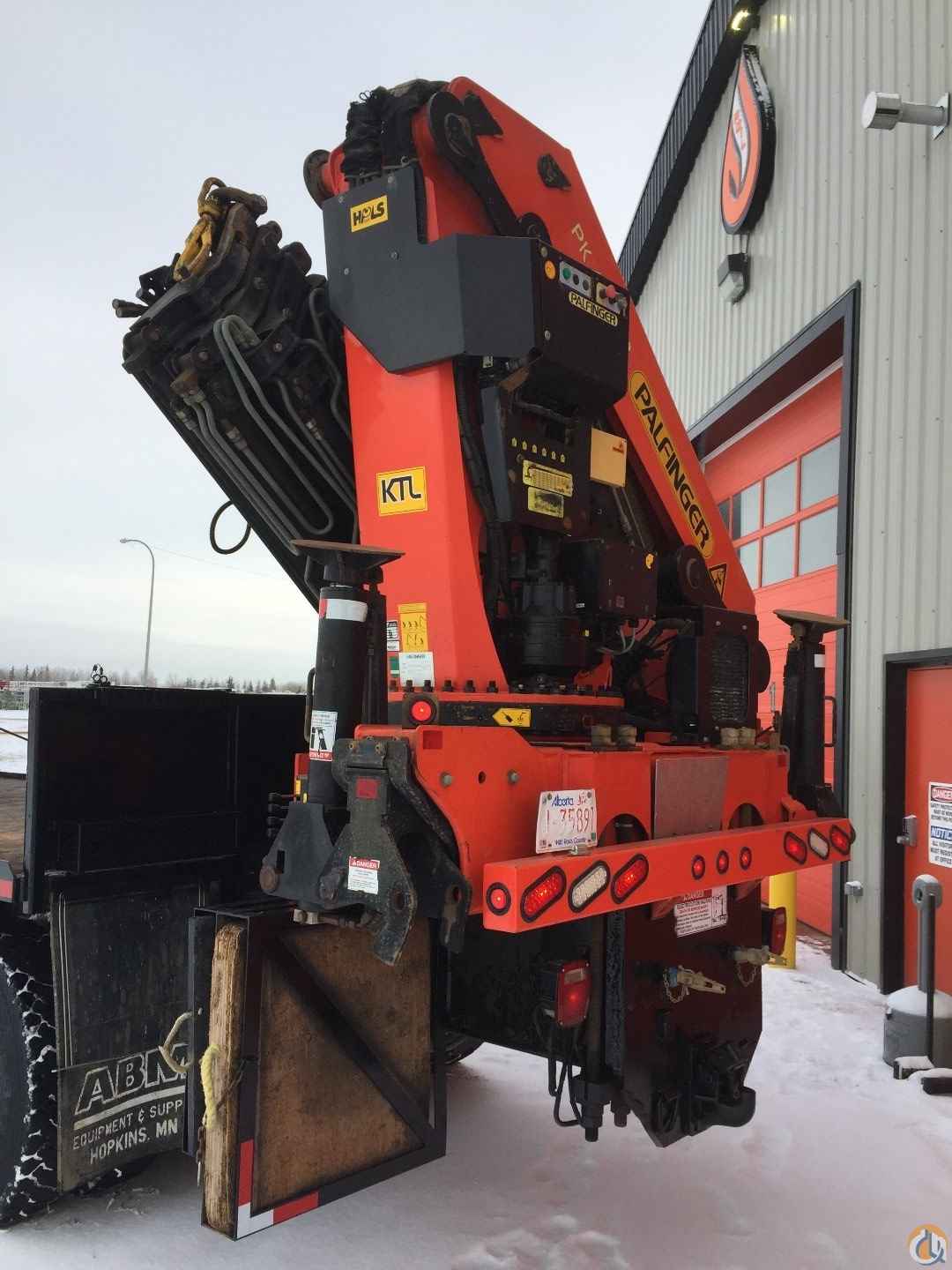

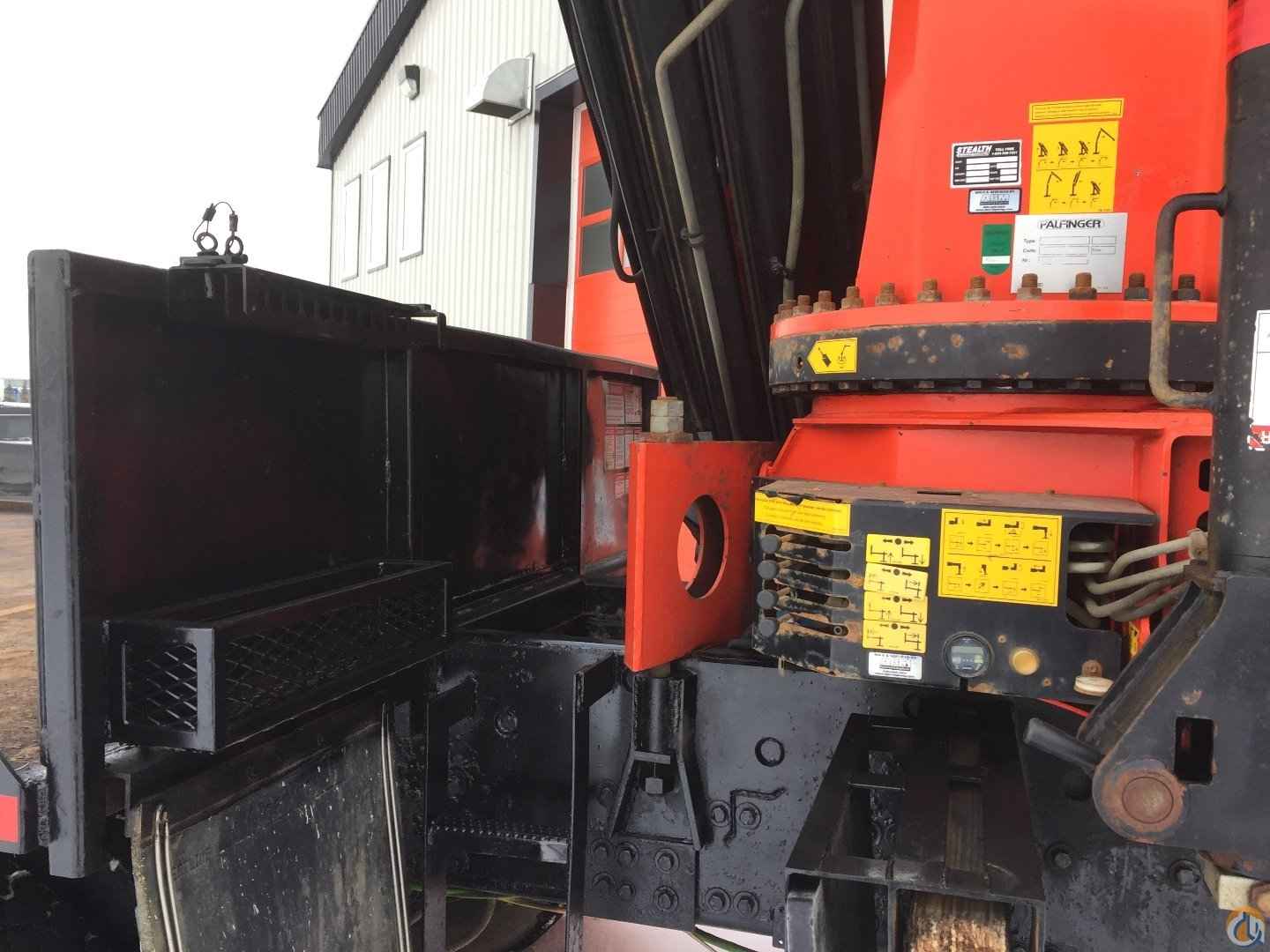

Palfinger PK44002 E picker Rear mounted

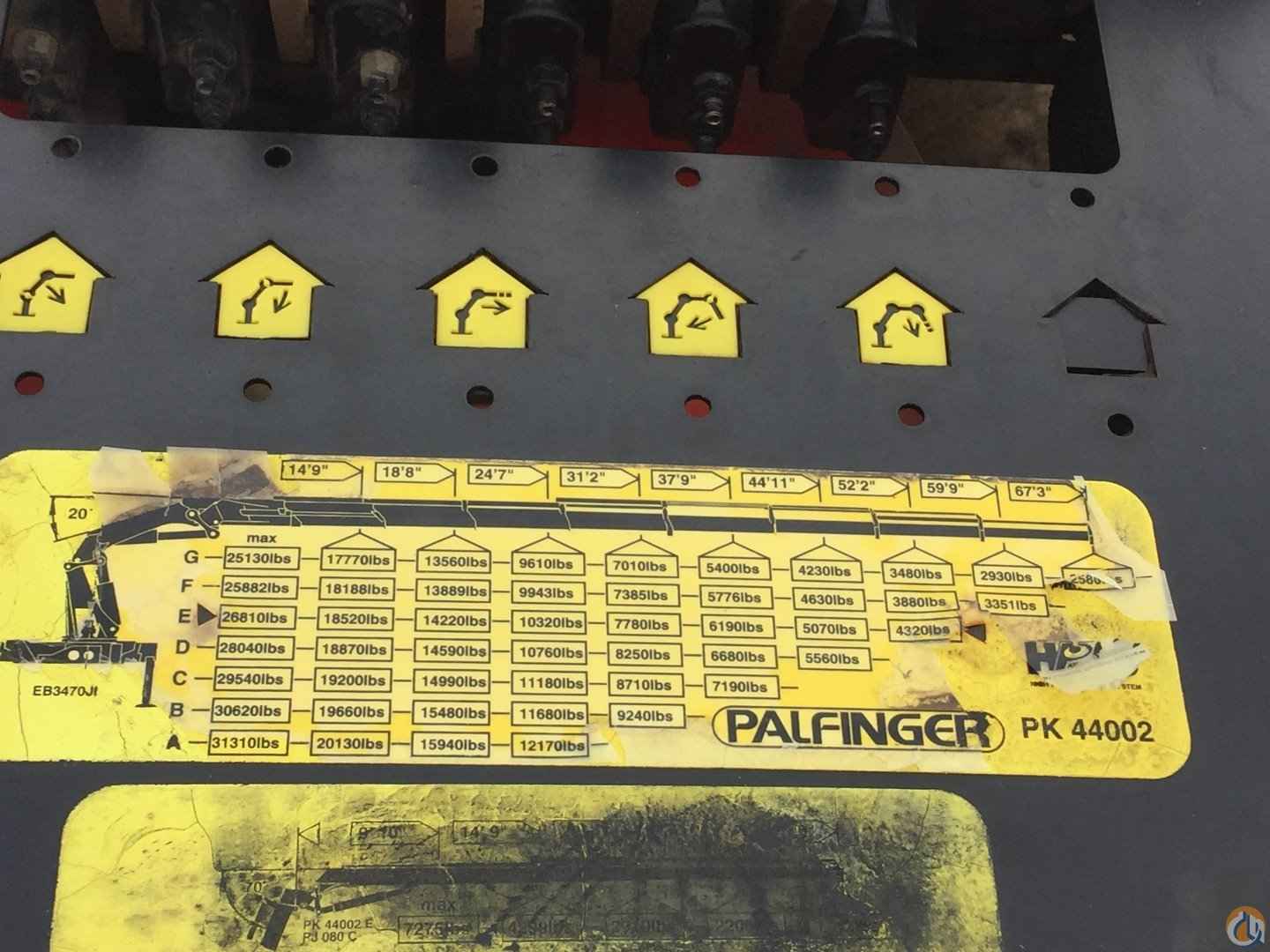

Max Rated Lift:26810lbs (@8') 6 extensions. out to 52'2" 4410Lbs lift at max reach
Continous Turret rotation,
Load holding valves on lift, fold, extend, and outrigger cylinders
Frame mounted Hydraulic reservoir
Air shift PTO w/Direct mount piston pump
Telescopic Outriggers with Hydraulic extension to 19'8"
Auxilary (front ) outriggers

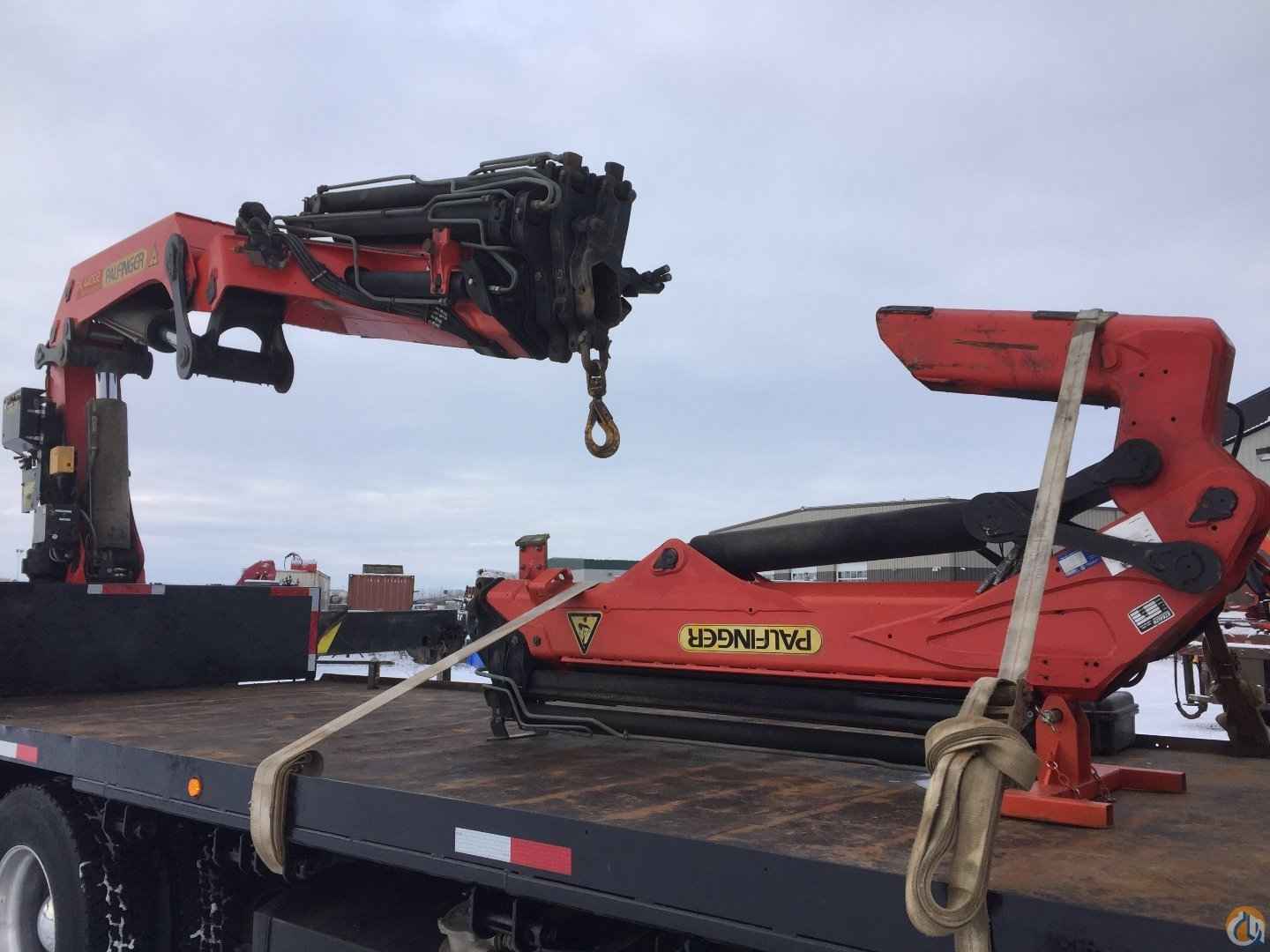

*** the Fly Jib in Pictures is not included, Call for Pricing if interested**
Crane is a 2005 , Has had Yearly Magnetic Particle inspections,
Very well maintained. Currently used everyday just being replaced with truck with sleeper/ tri axle
Truck was originally Sold/registered in the USA Then imported to Canada in 2011
