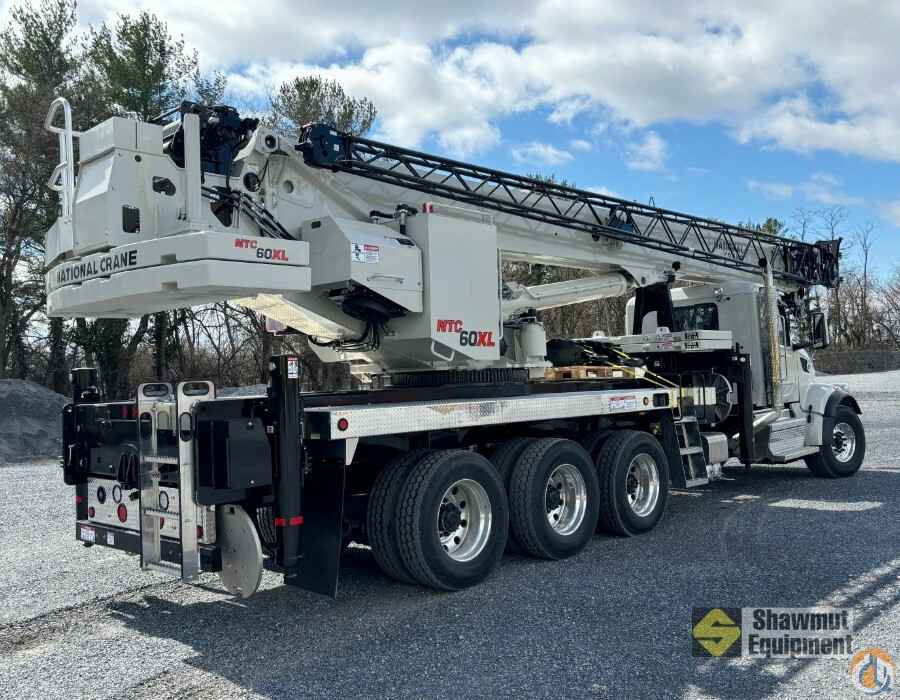

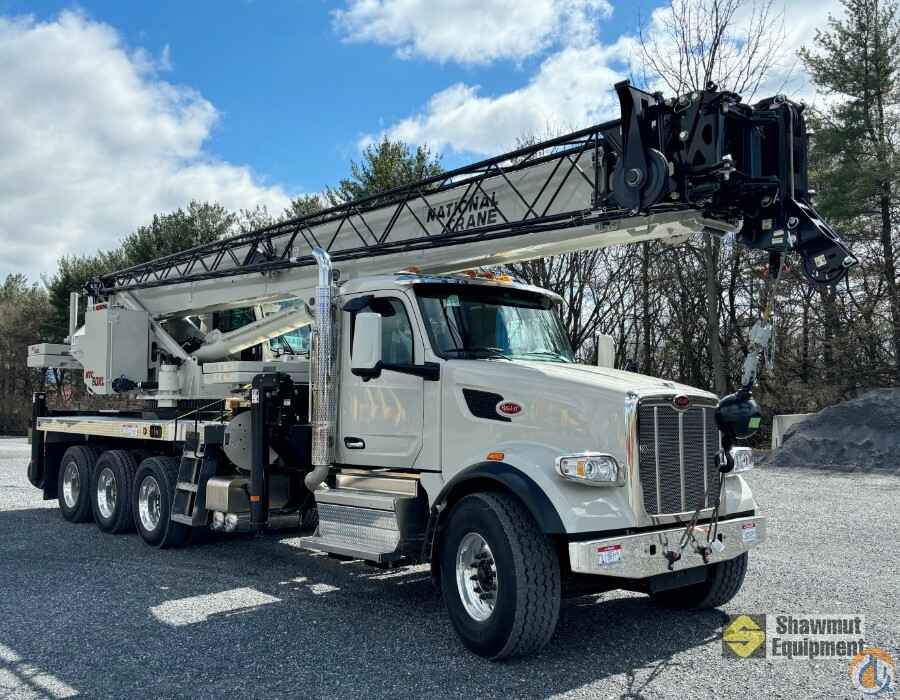

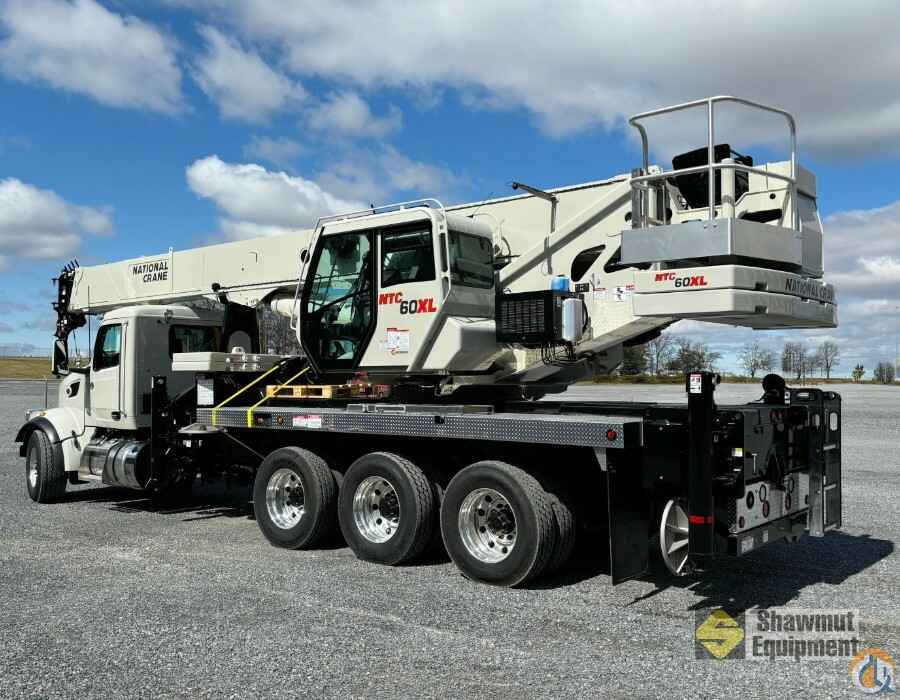

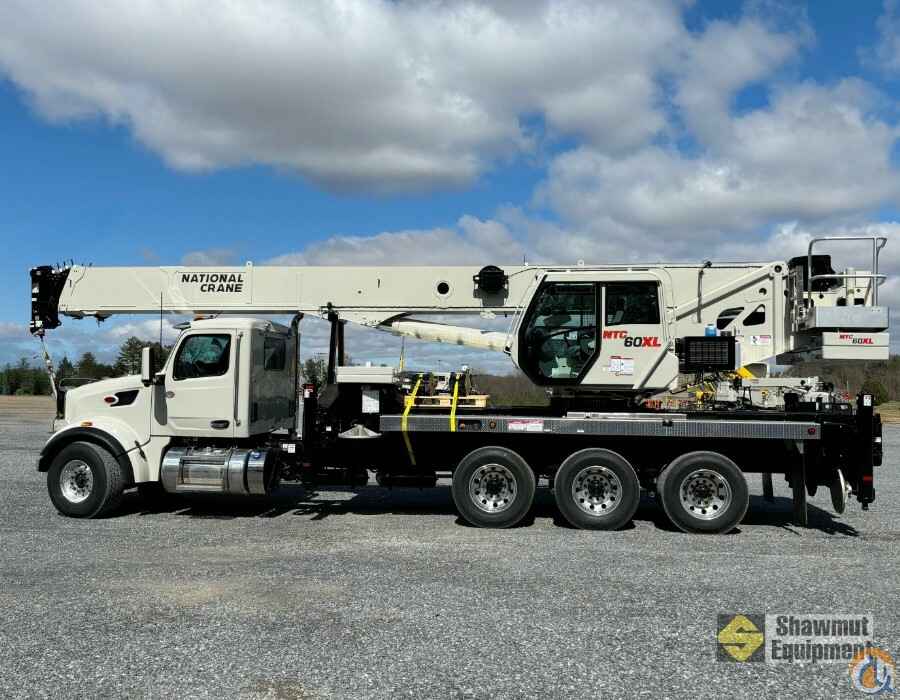

One (1) National NTC60XL, S/N: 303873, 60 Ton Hydraulic Crane Equipped as shown below:
CRANE SPECIFICATIONS:
- 36’ to 151' 5-Section Telescoping Full Power Main Boom
- Four (4) Sheave Quick Reeve Main Boom Nose
- 36’ Fixed Length Lattice Jib Offsettable at 0° & 30°
- Graphical RCL System w/ Work Area Definition System
- Internal Anti-Two Block Wiring
- All Steel Crane Cab Tiltable 0 to 20 Degrees
- Deluxe seat with armrest mounted dual axis electronic controllers
- Hot Water Cab Heater w/ Defroster which is Diesel Fired
- Air Conditioning in Crane Cab
- Signal Horn and Engine Start / Stop Switch
- Fire Extinguisher
- Dual Cab Mounted Work Lights
- Two (2) Camera System – Hoist and Passenger Side of Turntable
- 360 Degree Continuous Rotation w/ “Glide Swing”
- 16,000 lbs. (4 Piece) Hydraulically Removeable Counterweight
- Electronic Drum Rotation Indicator & Drum Cable Follower
- 5/8” 35x7 Class Main Winch Wire Rope
- Four (4) Position Hydraulic Outriggers, 0, 50, 75, & 100%
- Outrigger Position Monitoring System & Motion Alarm
- Wireless Outrigger & Rigging Remote Control
- Outrigger Controls in Crane Cab & Both Sides of Subframe
- Aluminum Outrigger Pads
- Wireless Windspeed Indicator
- Additional Fixed Position Ladder at Front Passenger Side of Decking
- Painted National Crane “Platinum” Gray
- 20 Ton Single Sheave, "Quick Reeve" Hook Block
- 7 Ton Headache Ball
TRUCK SPECIFICATIONS:
- 2025 Peterbilt model 567
- Cummins X15 525 h.p. Diesel Engine
- Allison 4700 RDS Automatic Transmission
- 22,000 lb. Front Axle
- 78,000 lb. Tri-Drive Rear Axle
- SmartNav – Navigation System
- Aluminum Wheels
- Three (3) Camera System Drivers & Passengers Sides and Rear View
