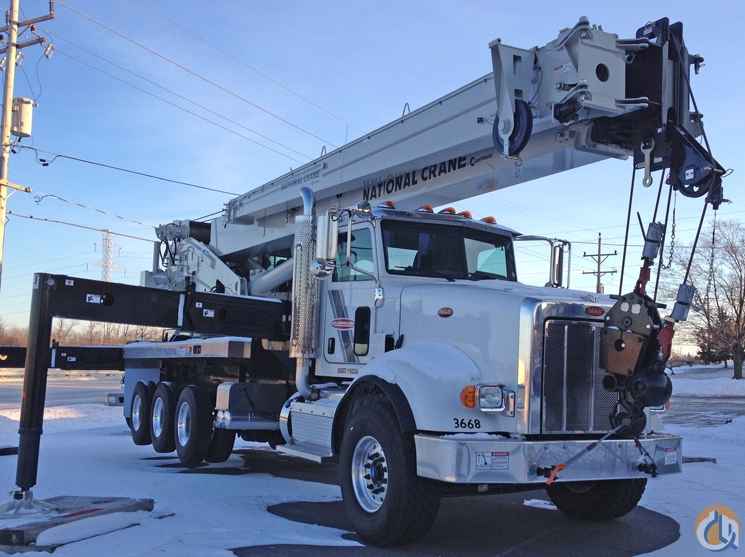

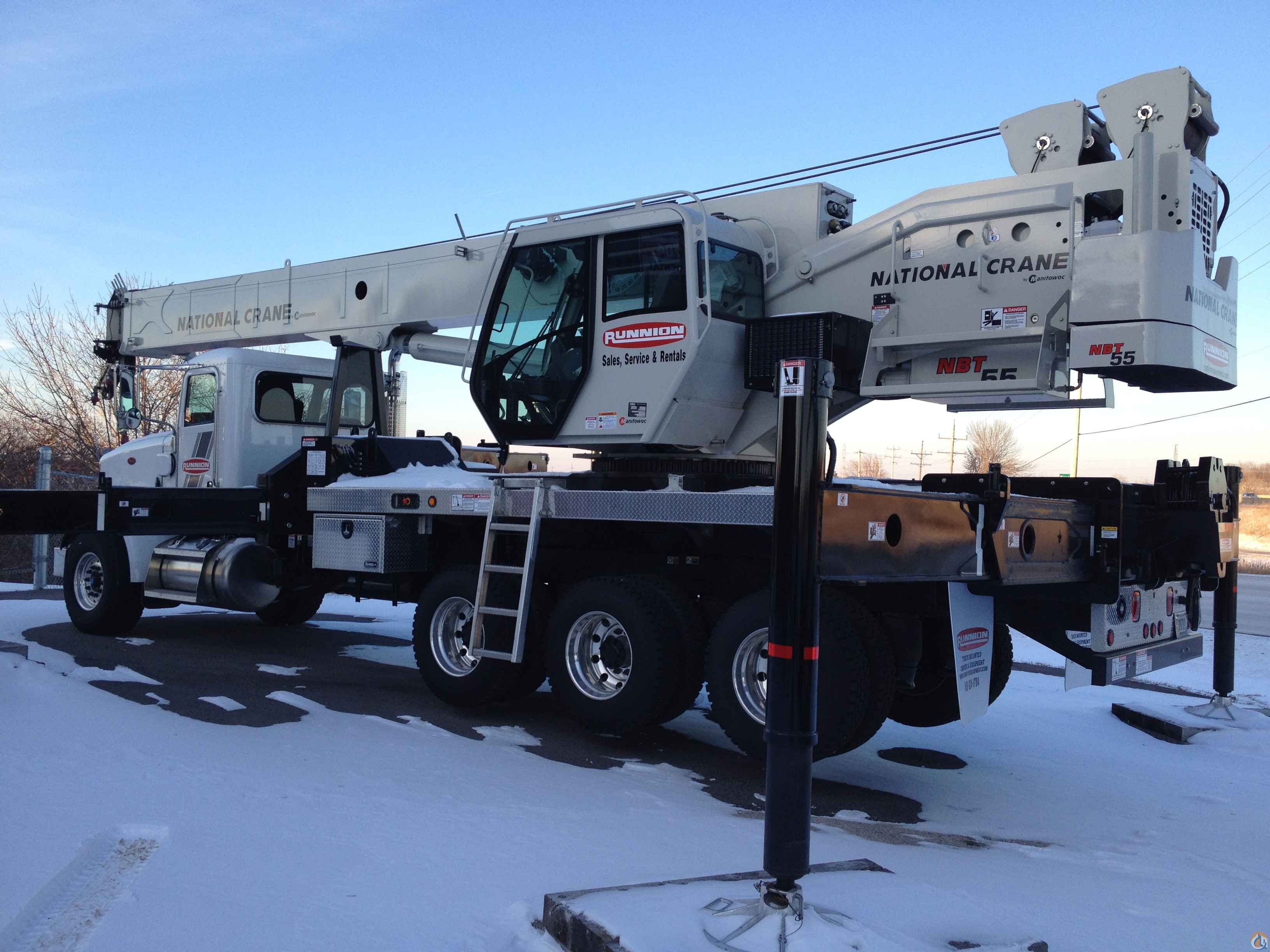

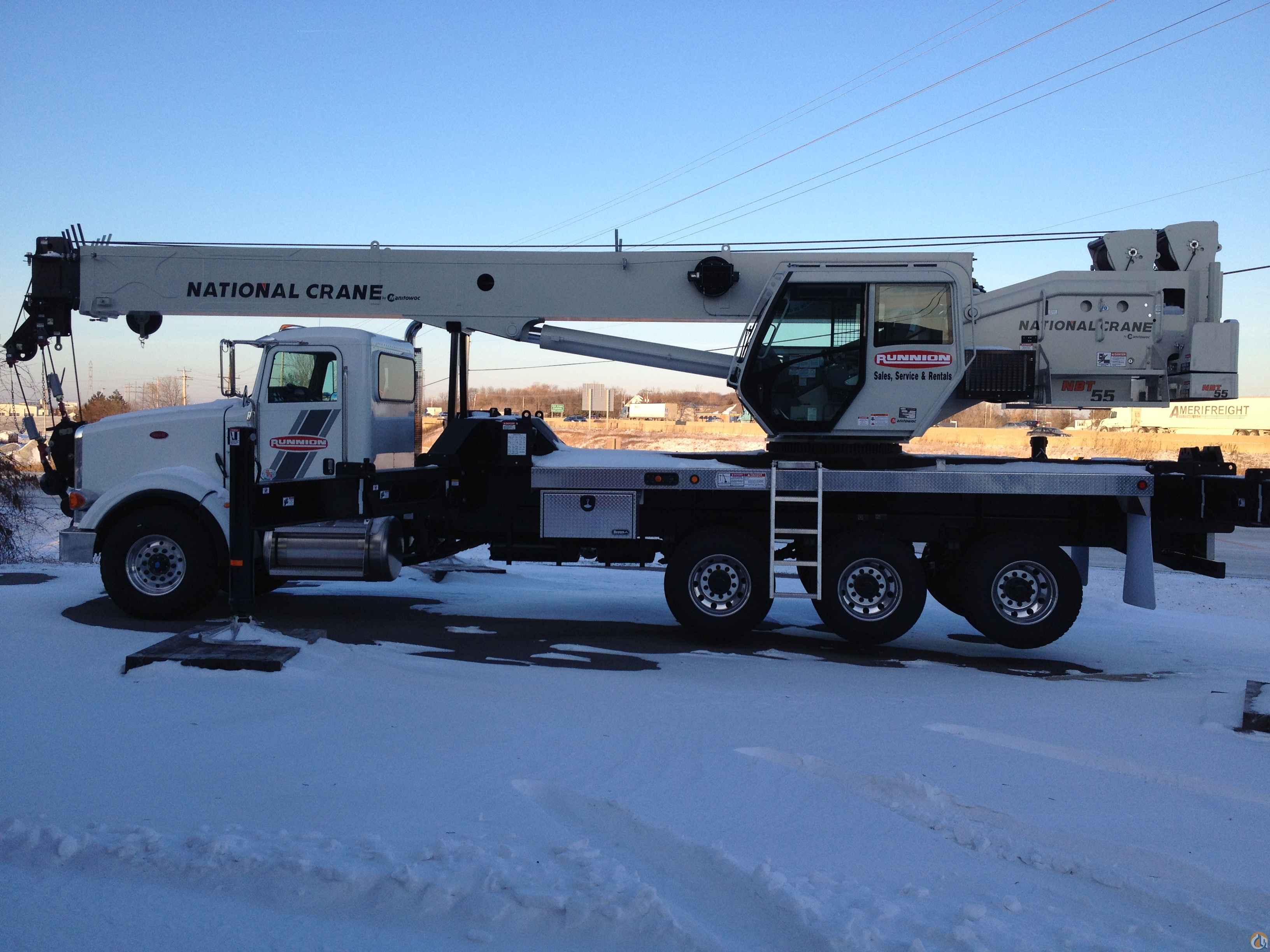

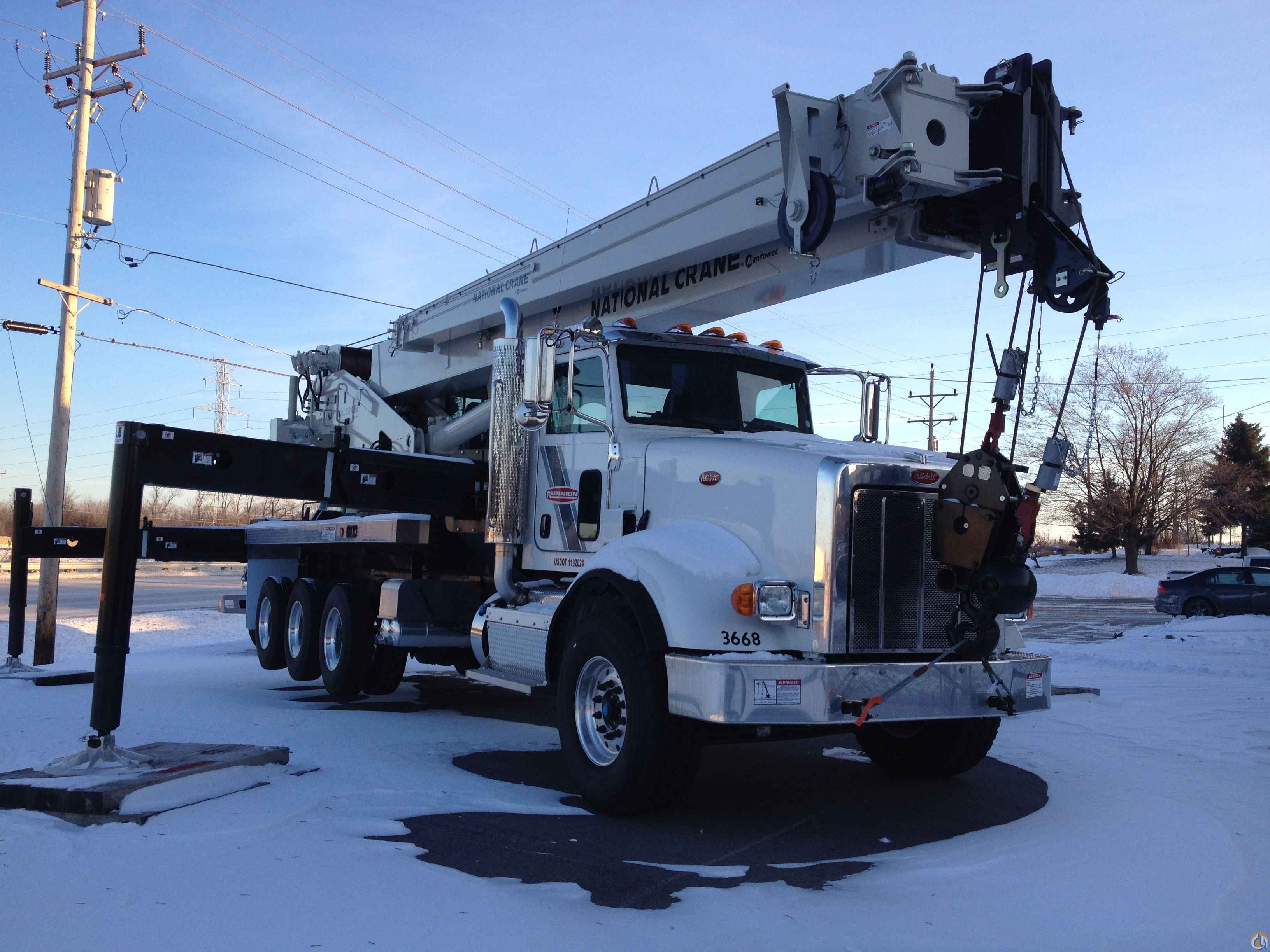

National Crane NBT55 on 2013 Peterbilt 367 truck:
-55 ton capacity
-5-section boom 32’ – 128’ – 138’ tip height
-Three quick reeve cast iron sheaves
-26’ – 45’ jib, two section offsetable, 0 degrees and 30 degrees – 183’ tip height
-Auxillary winch
-Load moment and anti-two block system; graphical, color LMI system with audio/visual warning system and control lever lockout. Electronic display of boom angle, boom length, relative load moment indication, rated load, load, radius and boom tip height. External anti-two block system. Standard work area definition system allows the operator to pre-select and define safe working areas. When crane approaches set limits, audio/visual warnings alert the operator of site obstructions.
2013 Peterbilt 367 equipped as follows:
-20,000# front axle
-Dana Spicer rear axle, 69,000# tri-drive
-Differential lock tri-drive axle
-Seperate dash control trac full lock
-Air trac tri-drive
-Engine ISX15, 500V, 500/2100 1850 @ 1200
Too many goodies! Call for price!
