Features

Description
Proven controls system from the popular NBT50L Series

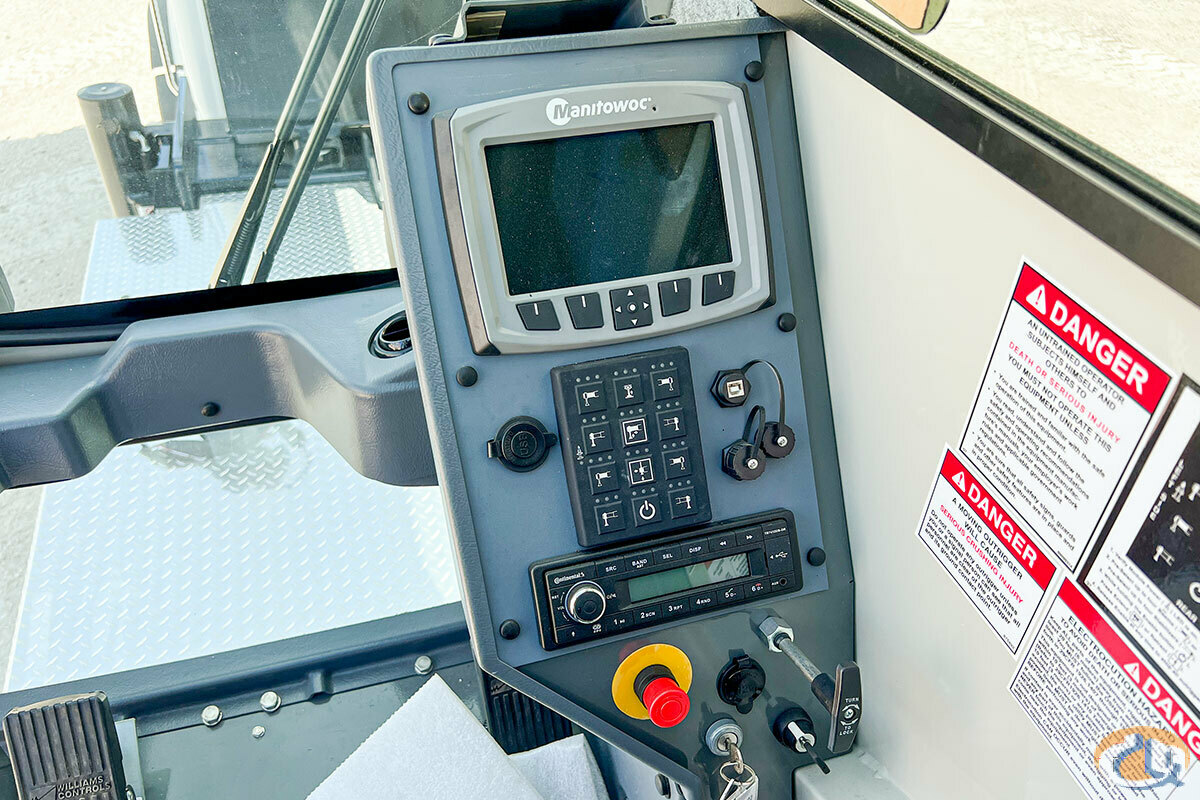

- Real-time color display with integrated control system for truck and crane system monitoring.
- Onboard diagnostic system allows for crane error code reporting to pinpoint exact trouble spot without need of a laptop.
- Real-time J1939 truck diagnostic and monitoring such as engine regen status, fuel level, oil pressure, battery voltage and more.
NTC Performance Package available for the additional jobsite functionality.
- Provides ultimate jobsite versatility with four outrigger spans

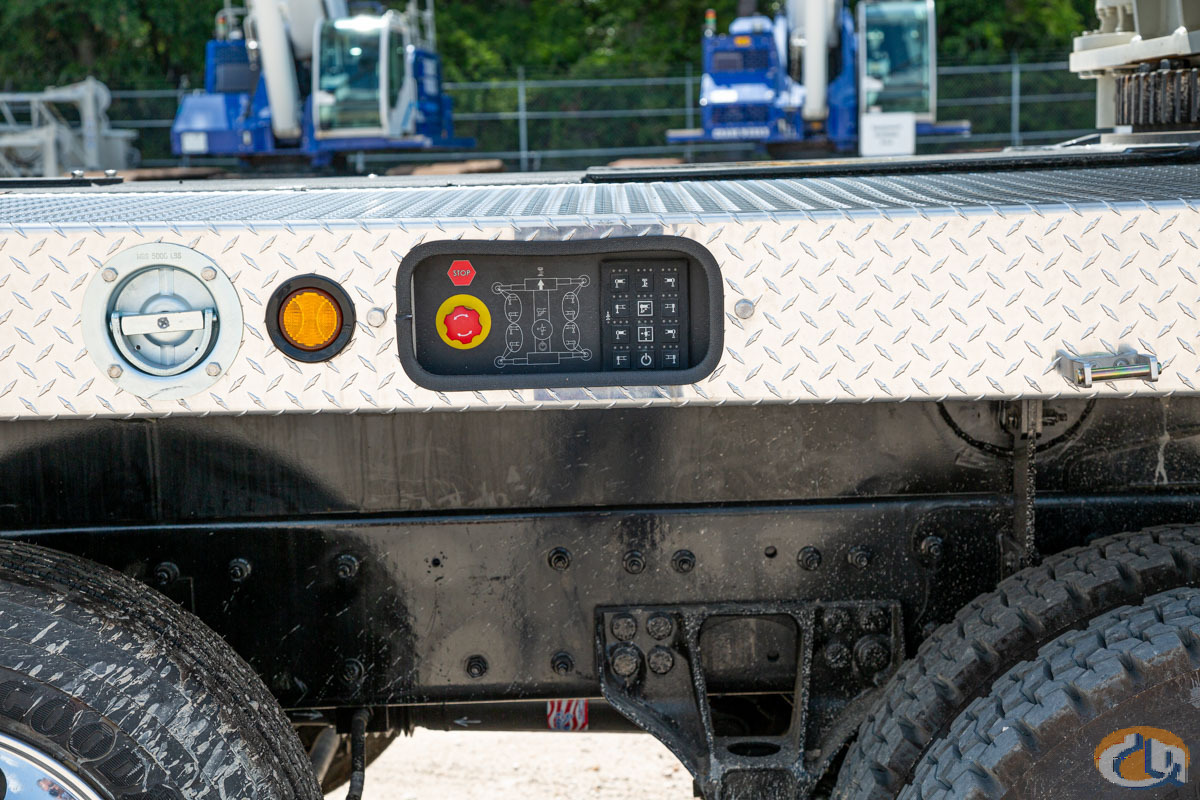

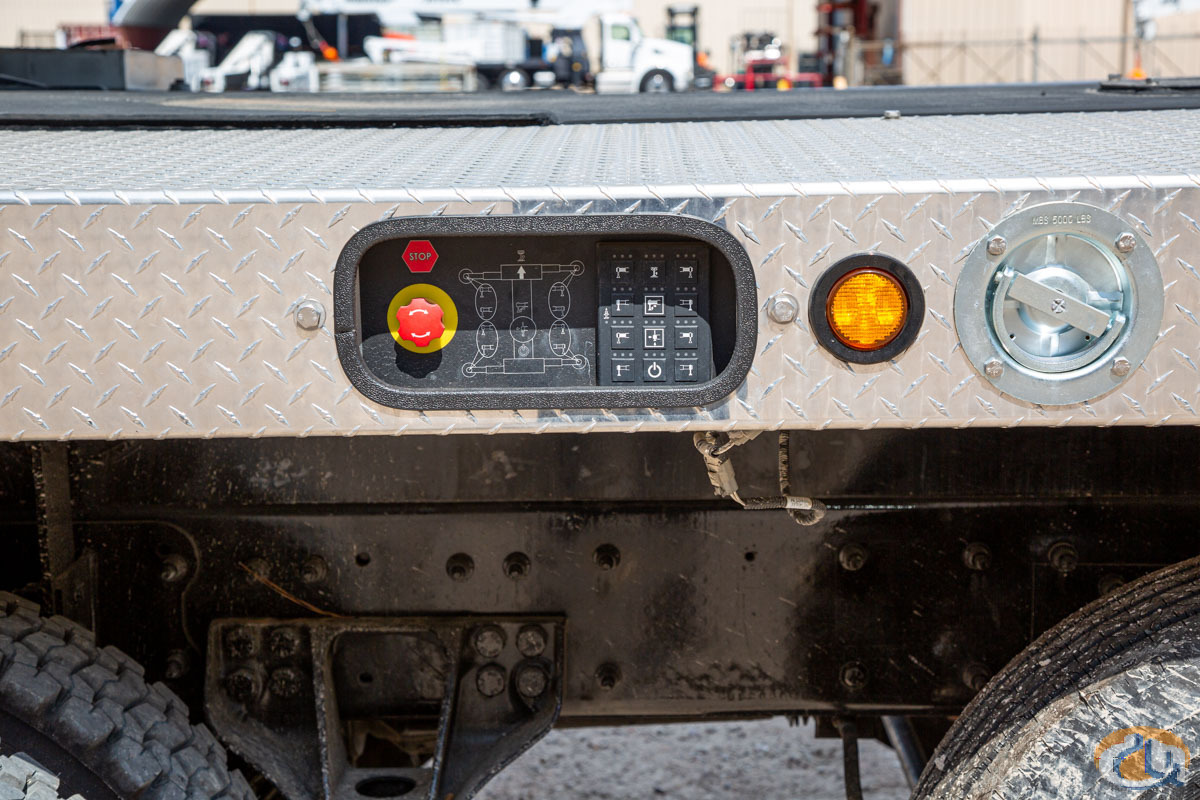

- Fast, efficient setup with wireless outrigger controls to walk around while setting up.
- Two-camera system for hoist and rear viewing for increased jobsite visibility
- Integrated wireless windspeed indication monitored directly on crane cab display

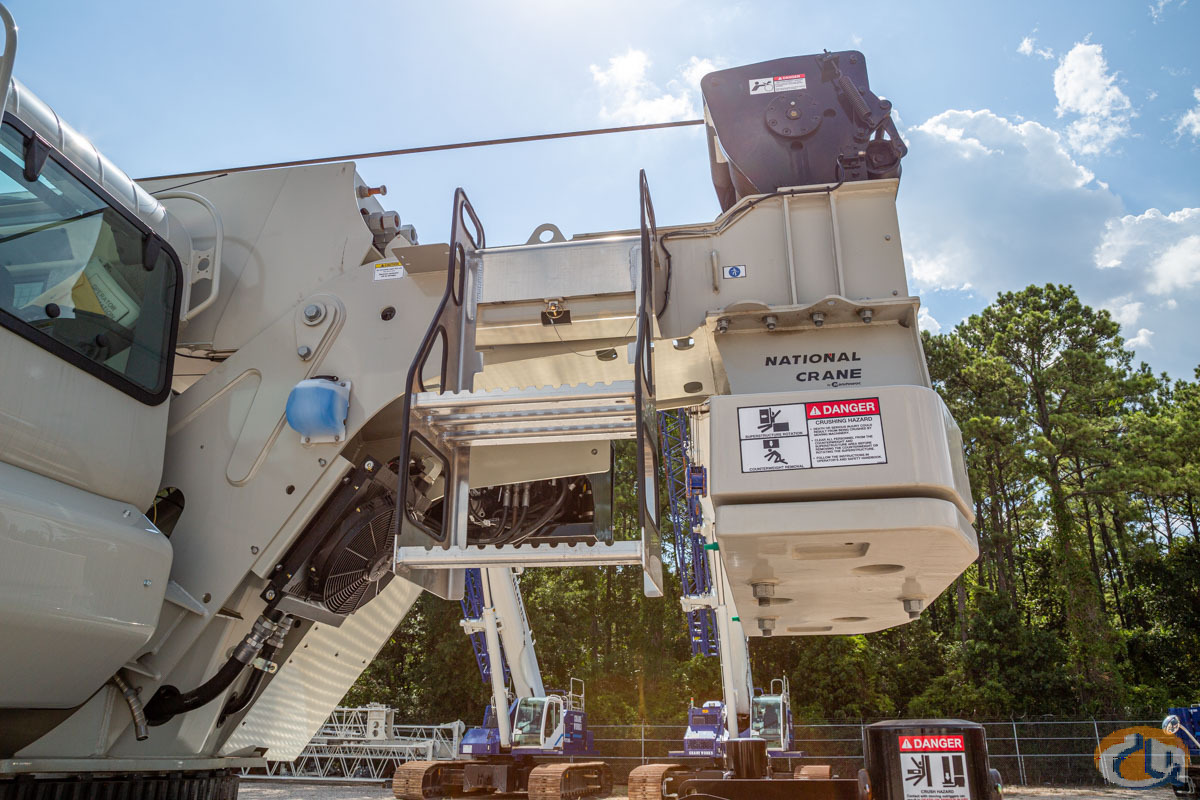

Superstructure
Redesigned Superstructure and boom, same overall weight
- Significantly increased capacity for all machine configurations without the crane weight being increased.
- Roading is as easy as it ever was. No truck configuration changes required from NBT40-1 Series cranes
- Counterweight redesigned into a smaller envelope to reduce the overall tailswing envelope.

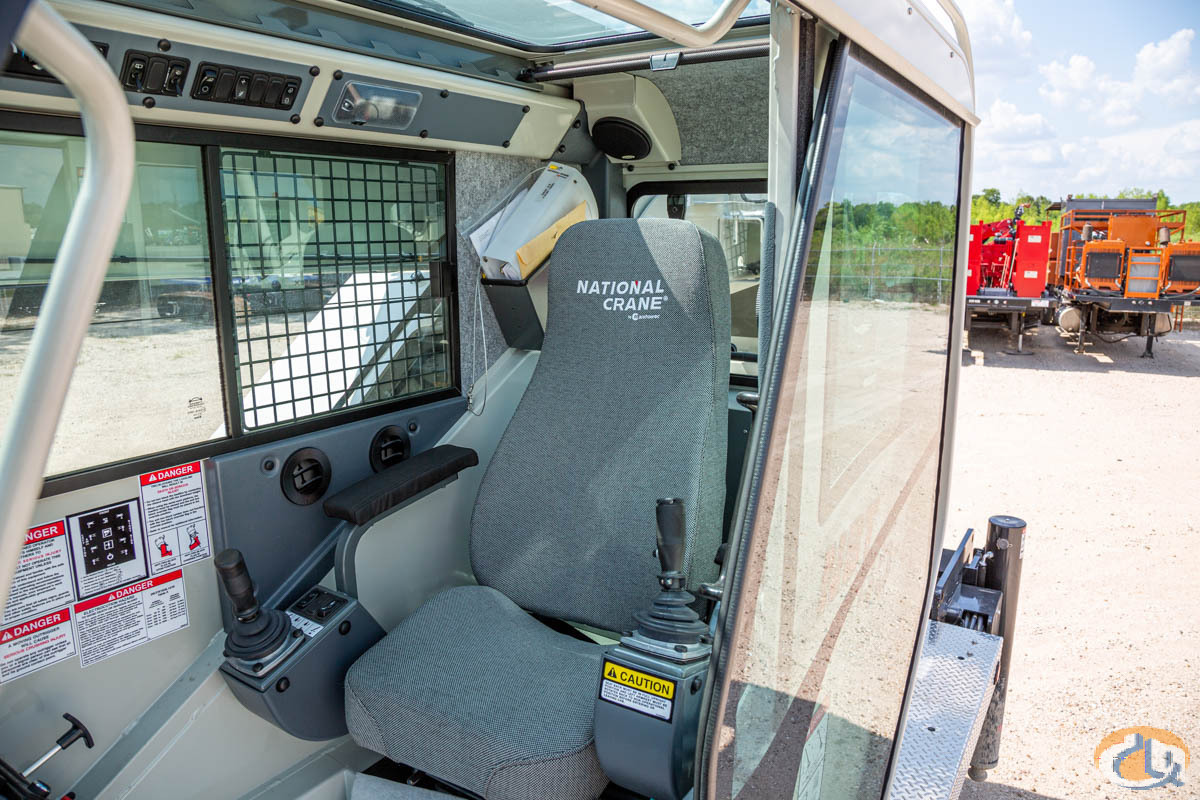

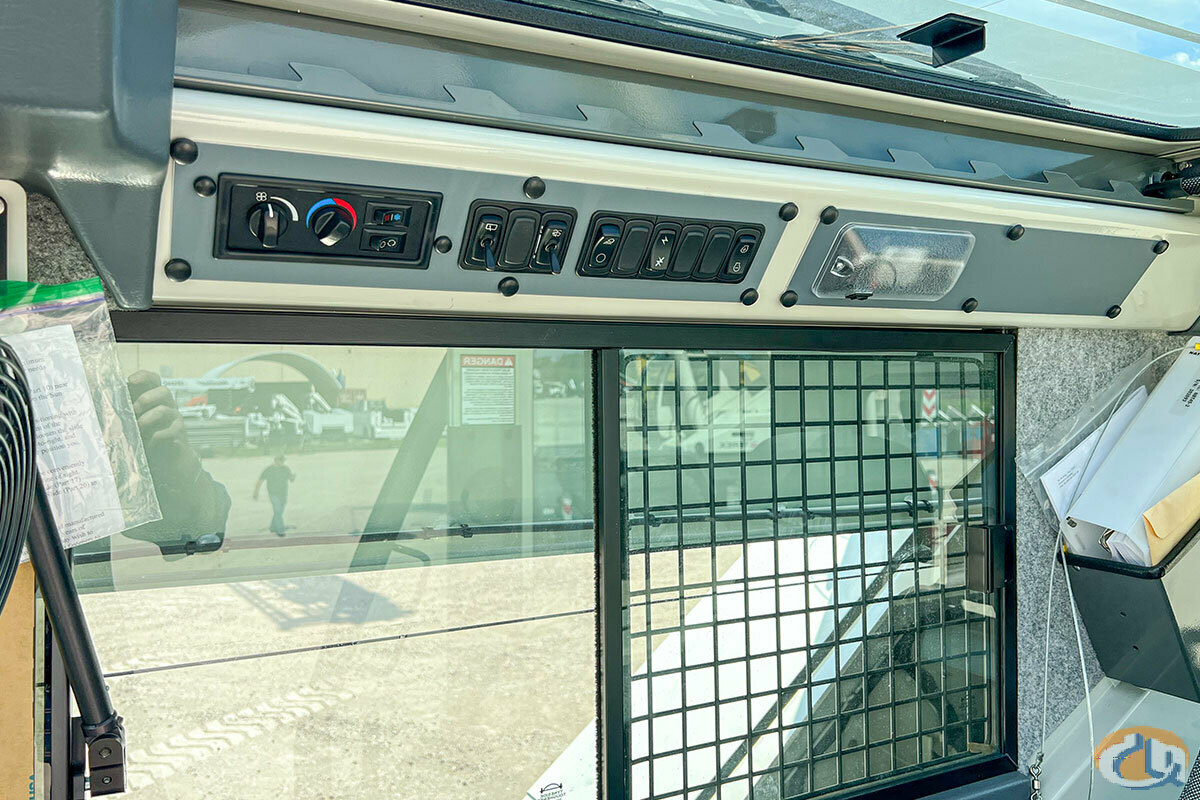

Cab
Increased Operator Centric features enhances the comfort and efficiency
- NEW Standard features include: 20° tilt cab with heated seat, AM/FM/Bluetooth radio and front bumper mounted SFO/Hoist control

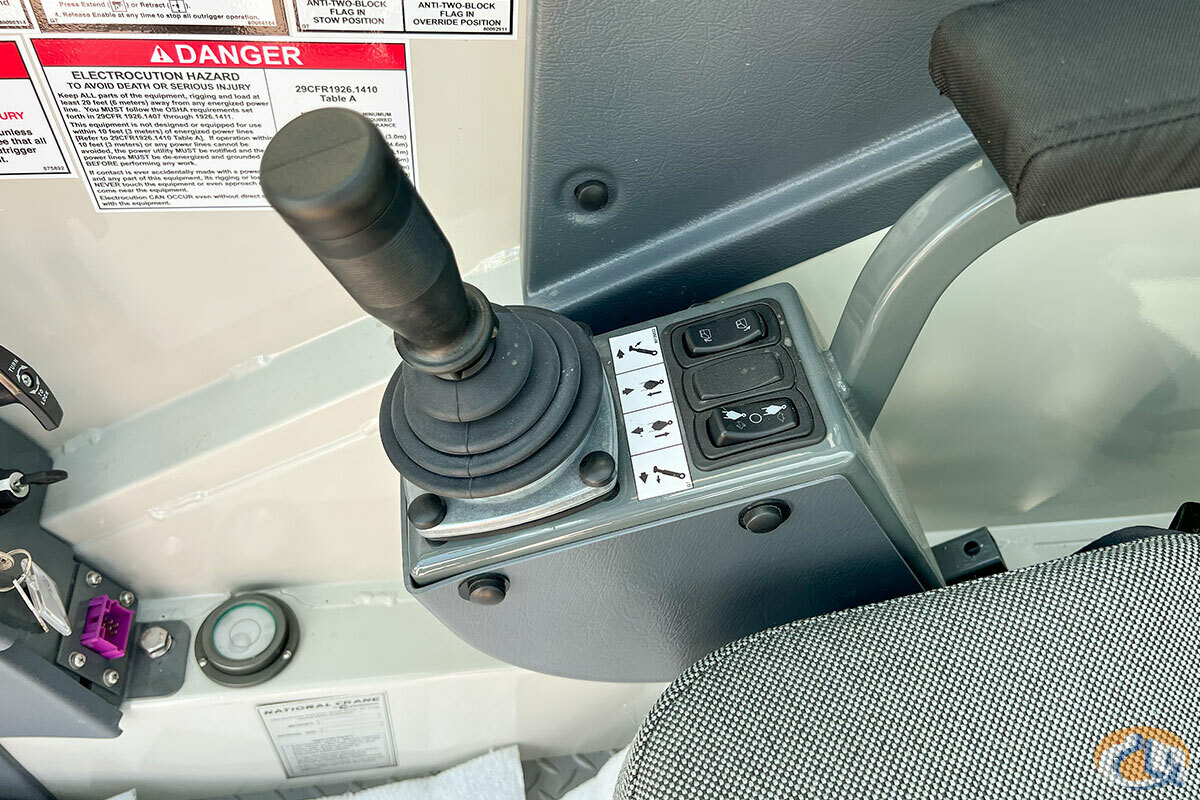

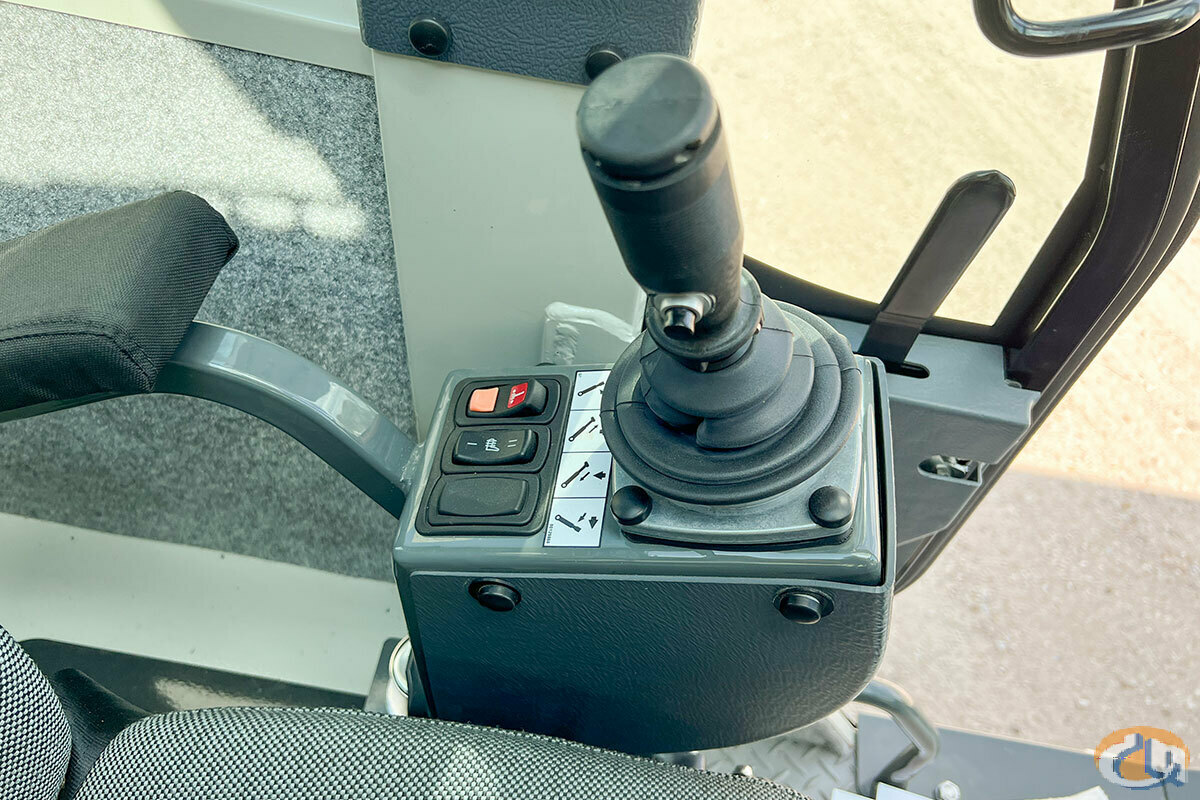

- State of the art electric over hydraulic controls with easy adjustability to suit any operator’s preferences.

Included Options

• 45 Ton (40,8 mT) Capacity, standard unit equipped with a five(5) section, 31 -127 ft
• 31 -55 ft (9,4 -16,7 m) telescoping boom extension includes 24 ft (7,3 m) manual pull out section to 55 ft (16,7 m)
• Round Headache ball with swivel
• Boom mounted auxiliary winch. 15,000 lbs (6.803,8 kg) bare drum pull on low speed. 450 ft (137,1 m) of 5/8 in (16 mm) rotation resistant rope
• Standard Mounting
• Extended Torsion Box
• PTO

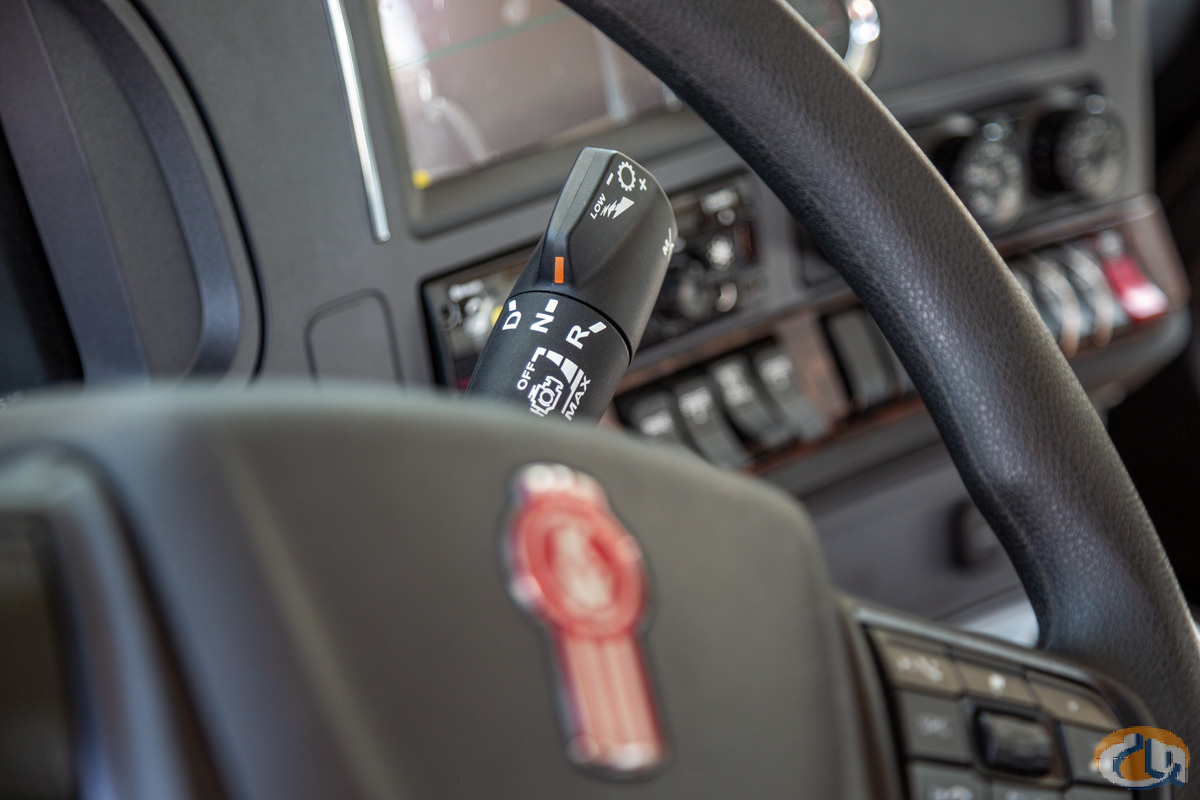

• Counter-clockwise rotation pump (Manual Transmission, Eaton
Ultrashift
