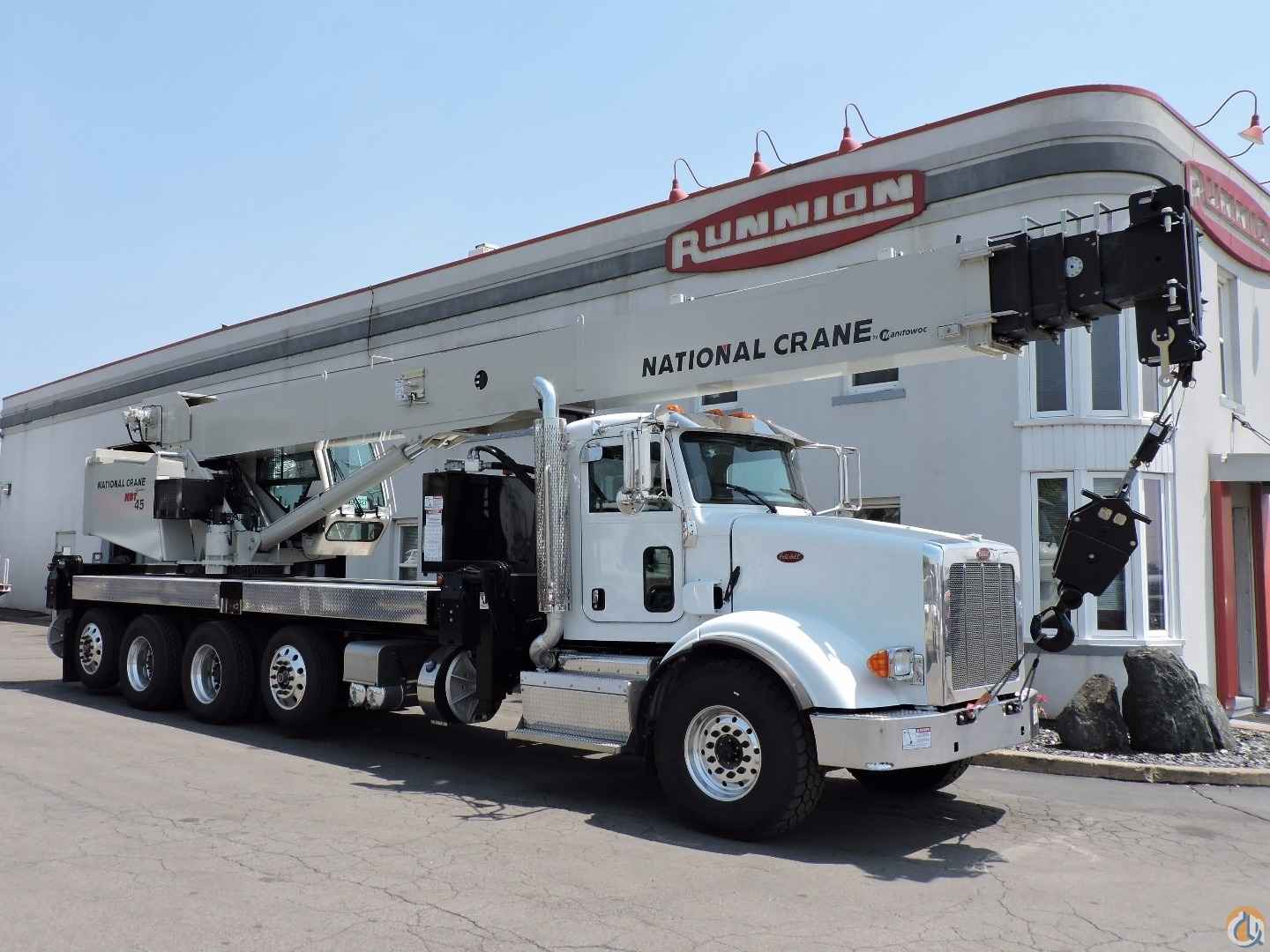

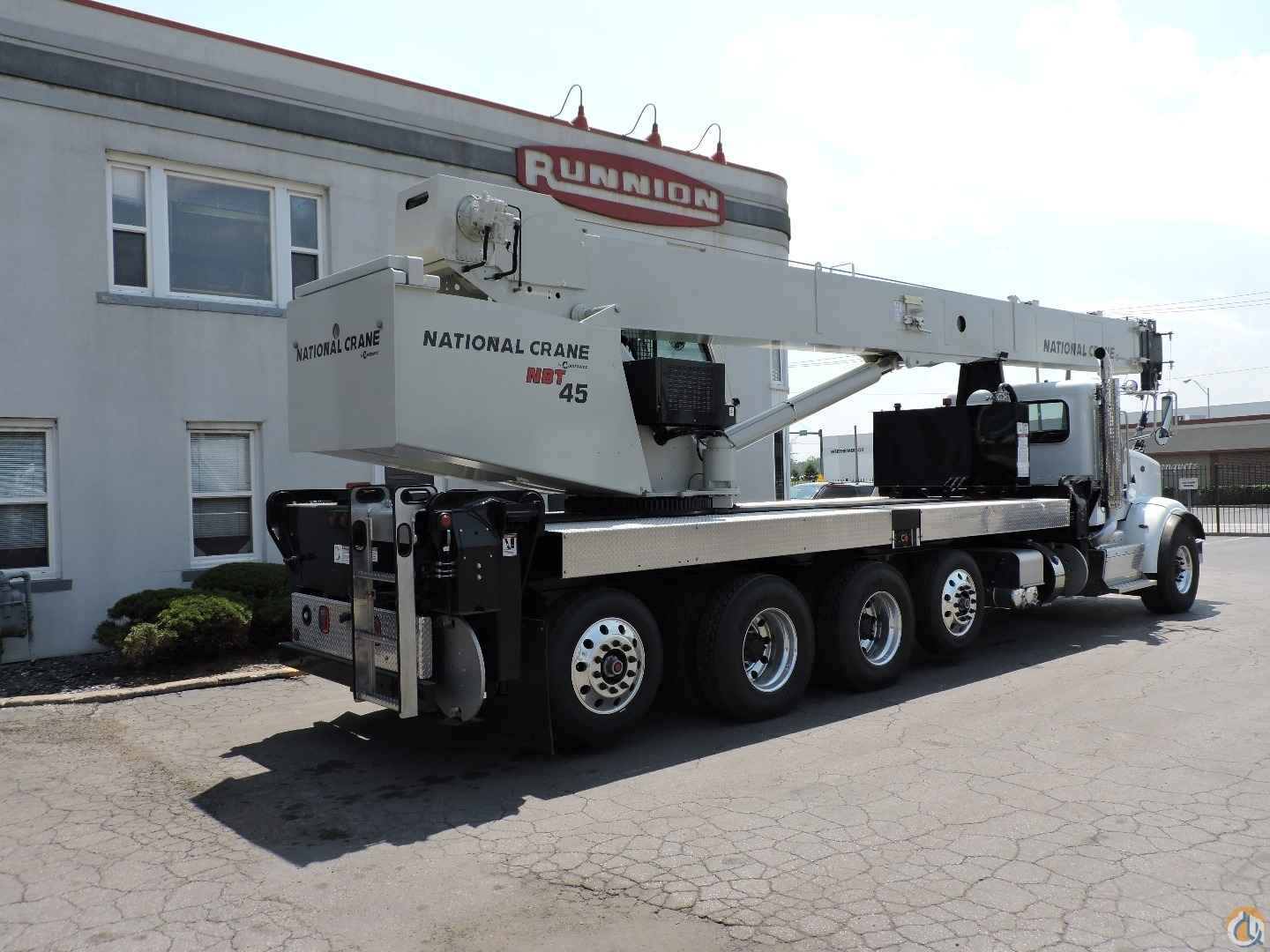

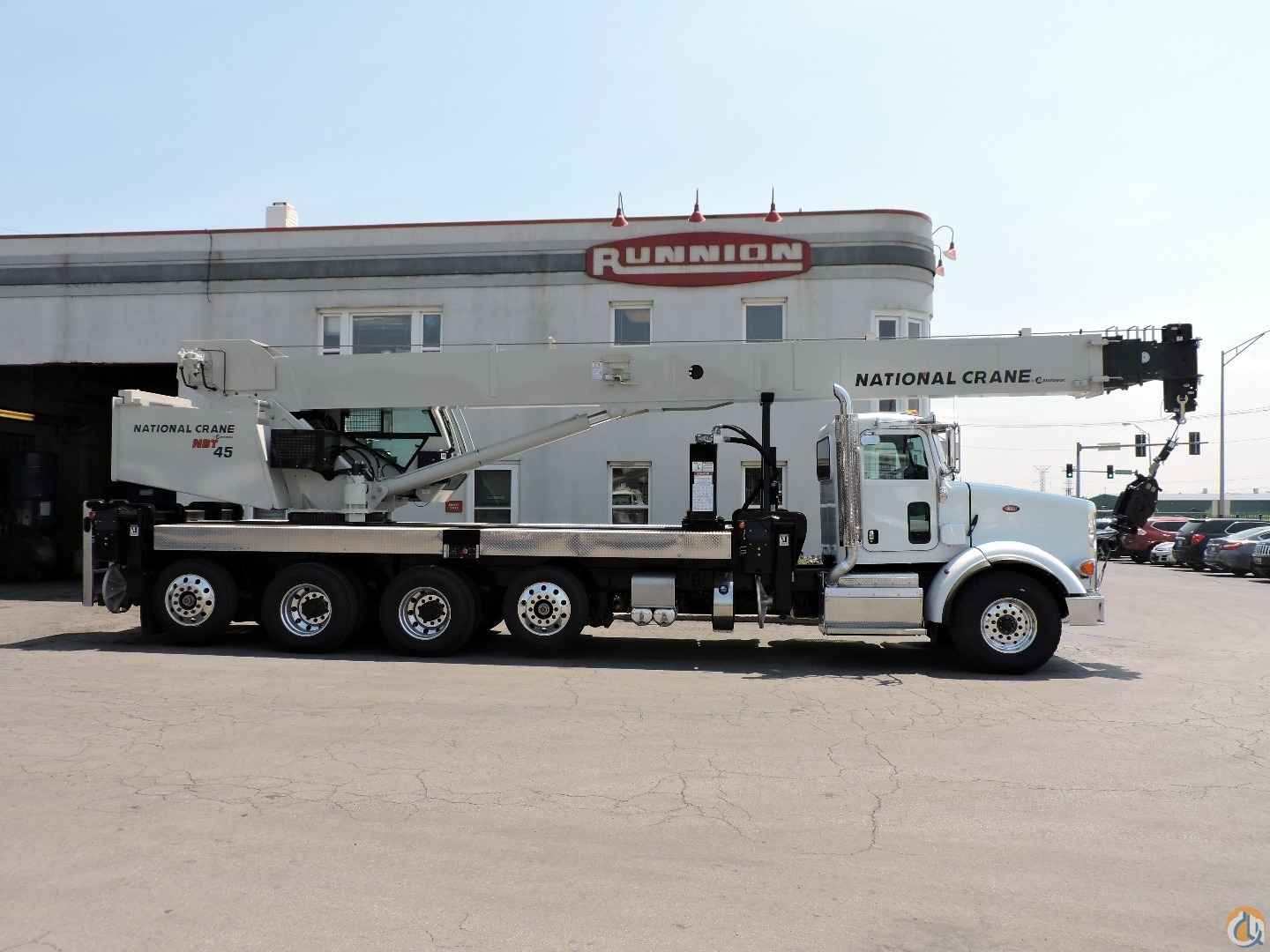

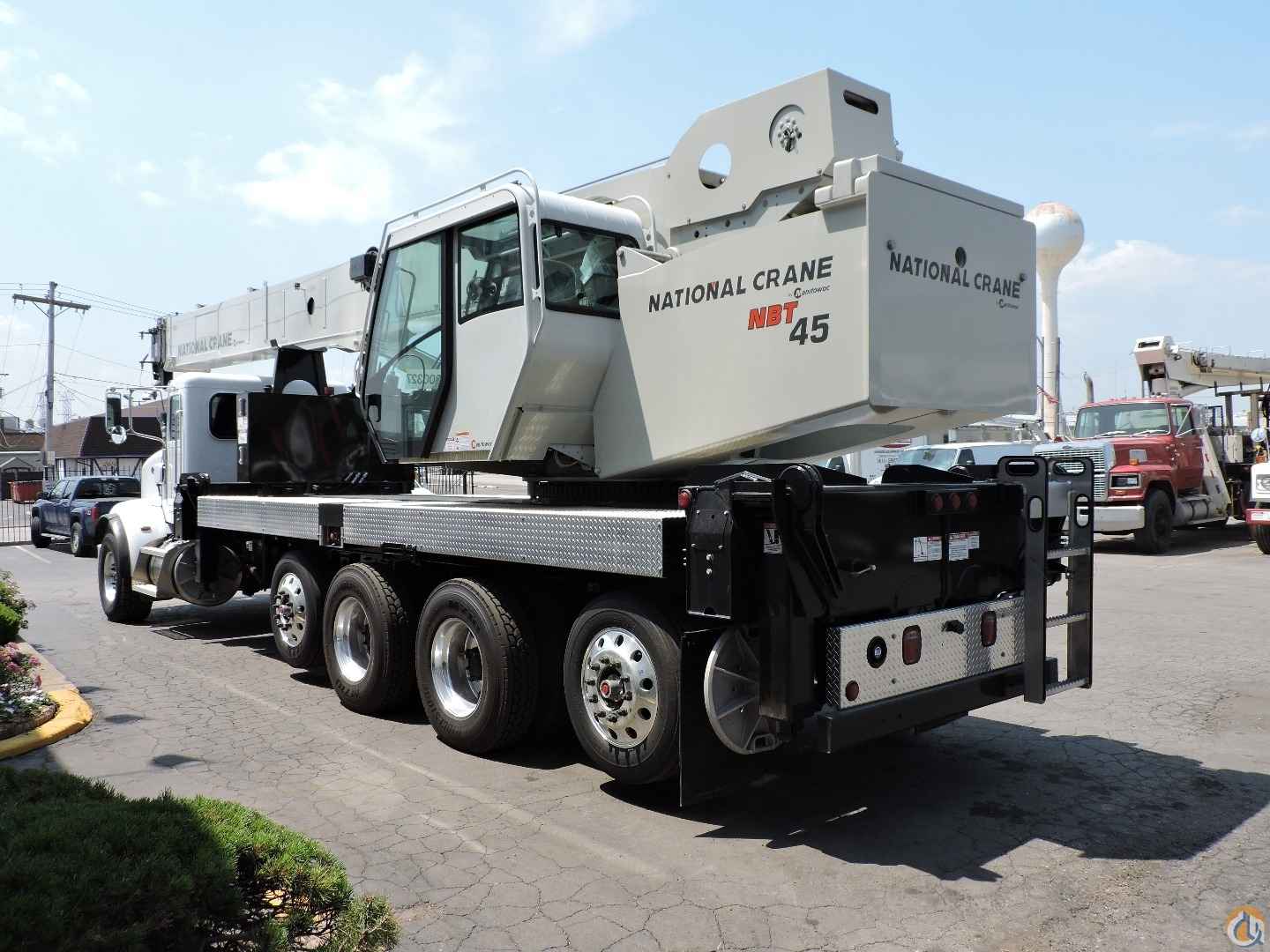

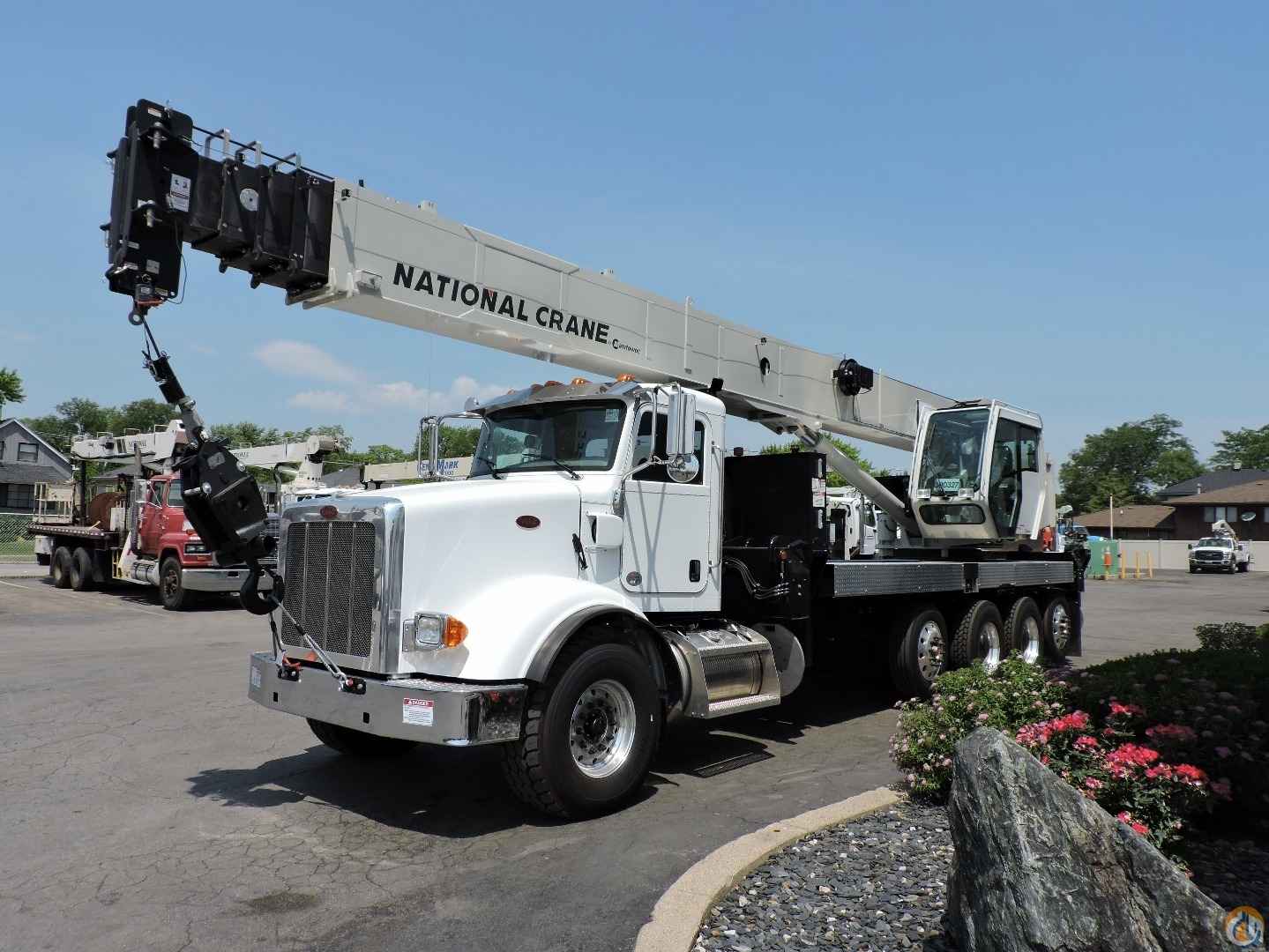

National Crane NBT45
-45 ton capacity
-5-section boom 142' - 152' tip height

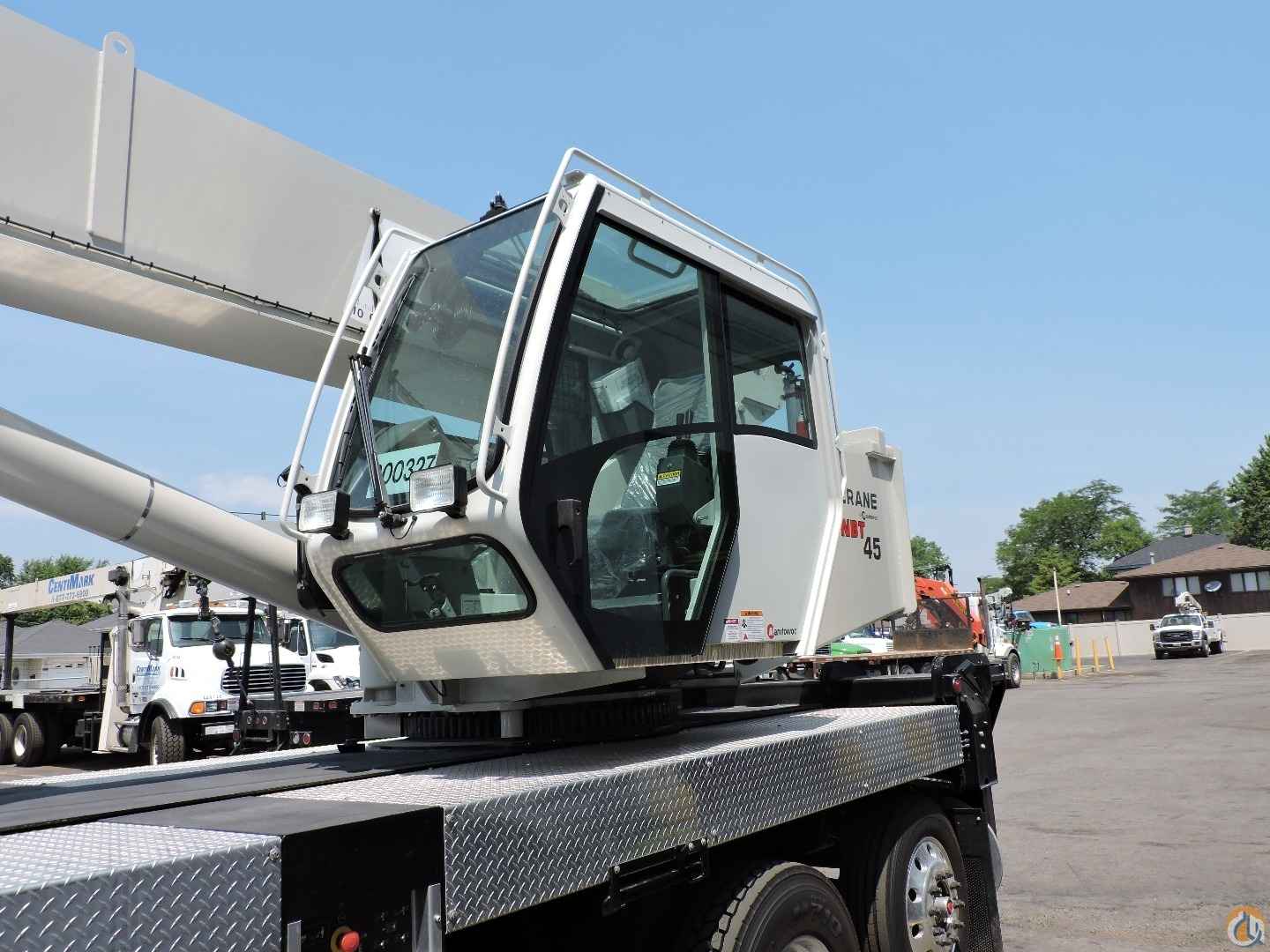

-Deluxe crane cab with acoustical lining and tinted glass
-Cab heater and AC
-Rated Capacity Limiter (RCL) includes graphical color system that displays boom angle, length, rated load, actual load, radius, and boom tip height
-Work Area Definition System (WADS) allows the operator to pre-select and define safe working areas. When crane approches set limits, audio/visual warning alter the operator.
-360 degree continuous rotation
-Hydraulic front and rear outriggers - three position settings
-Outrigger controls located on each side of the crane and in the crane cab
-Single line pull 11,280#
-20 ton single sheave hook block

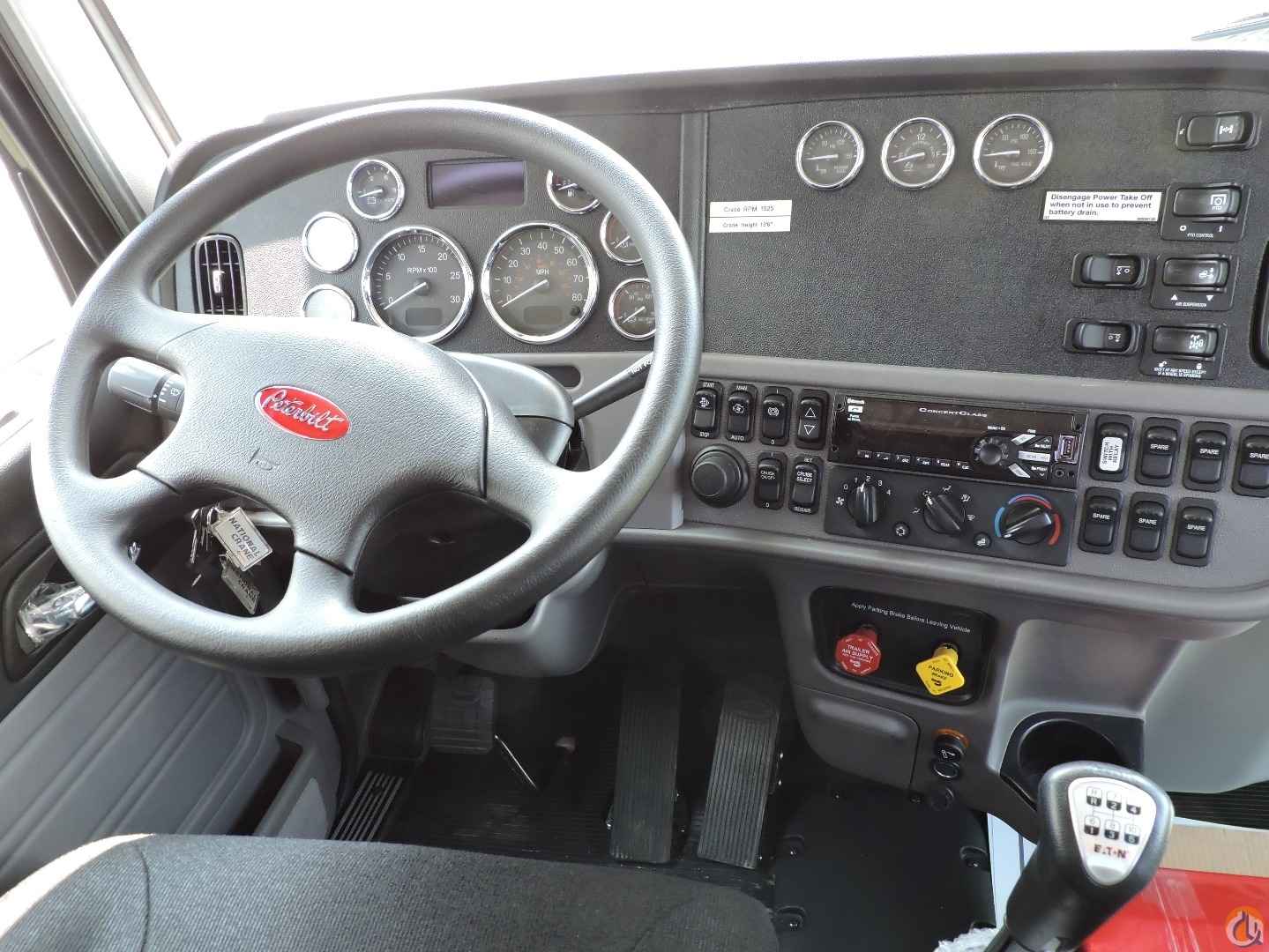

2018 Peterbilt 365
-Cummins ISX12 engine, 425 hp @ 1800 rpm, 1650 ft/lb @ 1100
-C-Brake by Jacobs
-Engine block heater
-20,000# front axle with spring suspension
-46,000# rear axle with Air Trac suspension
-13,500 self-steering tag axle
-13,500 self-steering pusher axle
-Aluminum wheels including Dura-Bright finish on outer wheels
-Prestige Interior package
-Power locks and windows
2,358 miles as of 07/2017
