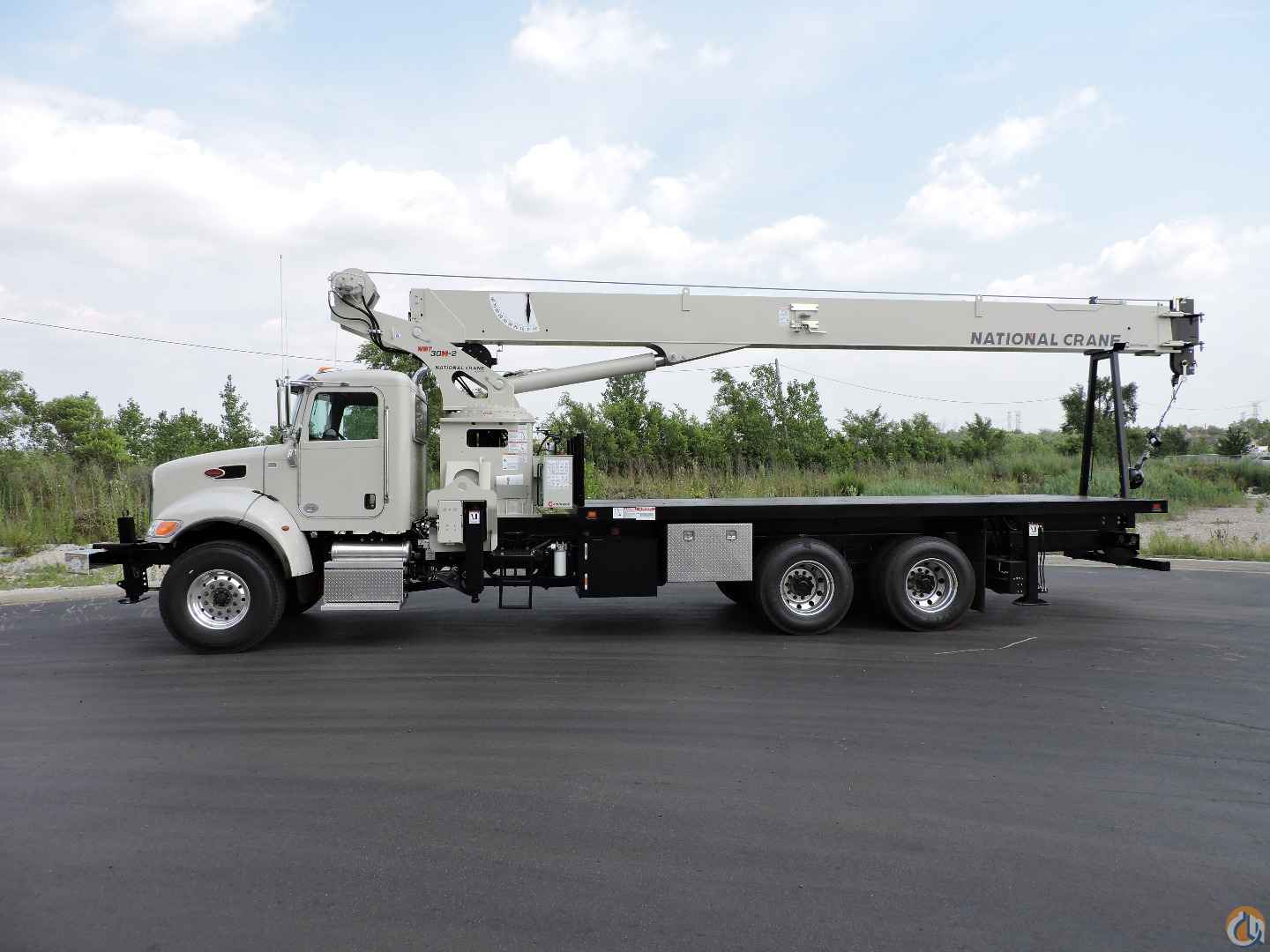

2021 National NBT30H110-2 Boom Truck Crane
SOLD
Runnion Equipment Co.
Dan Runnion: 708-541-1066
Last Updated: 17 Dec 2021
Dan Runnion: 708-541-1066
Last Updated: 17 Dec 2021
Sold Price: Sold
Location: Hodgkins, Illinois, United States
Year: 2021
Capacity: 30.00
Boom/Jib: 110
Condition: New
Unit #: 4671N
Capacity: 30.00
Boom/Jib: 110
Condition: New
Unit #: 4671N
National Crane NBT30H-2 equipped as follows:
- 110' boom
- Rated Capacity Limiter System – displays boom angle and length, working radius, rated load and total weight being lifted. Includes WADS
- Anti-two block system with internal wiring
- Front out-and-down outriggers with 20’ full span, 14’ mid span with manual lock pins. Capacity charts provided for full, mid, and fully retracted span
- Rear out and down stabilizers with 18’6” span
- Two (2) 20” diameter polymeric outrigger pads for main outriggers
- Single front outrigger for 360° stability
- Outrigger motion alarm
- Outrigger monitoring system
- 410° non-continuous rotation with adjustable swing drive
- 9/16” rotation-resistant wire
- Round downhaul weight with top swivel, 7-Ton capacity
- Two-speed winch
- Dual-side manual control levers
- Electric outrigger control pendant for outriggers and stabilizers
- Load sensing piston pump
- Oil cooler
- Painted National Platinum
- 22’ wood bed
- 30” bulkhead
- 36” x 24” x 24” aluminum tool box
2022 Peterbilt 348 equipped as follows:
- Paccar PX-9 engine, 350 hp @ 2000 rpm, 1000 lb/ft @ 1400
- 8LL Manual Transmission
- Front Axle – 20,000# with Taper Leaf springs
- Rear Axle – 40,000# with Haulmaax HMX400 suspension
- Front tires 425/65R22.5
- Front wheels – 22.5x12.25 Alcoa aluminum with Clean Buff finish
- Rear tires – 11R22.5
- Rear wheels – 22.5x8.25 Alcoa aluminum with Clean Buff finish on outside wheels
- Differential locks on both axles
- Aluminum hubs
- Block heater
- Bendix air dryer with heater
- Pull cord drain valves on all air tanks
- Polished aluminum air tanks for tanks on outside of frames
- Trailer hand valve
- 7-way socket connected to end of frame
- 90-gallon aluminum fuel tank
- 11-gallon DEF tank with polished stainless-steel cover

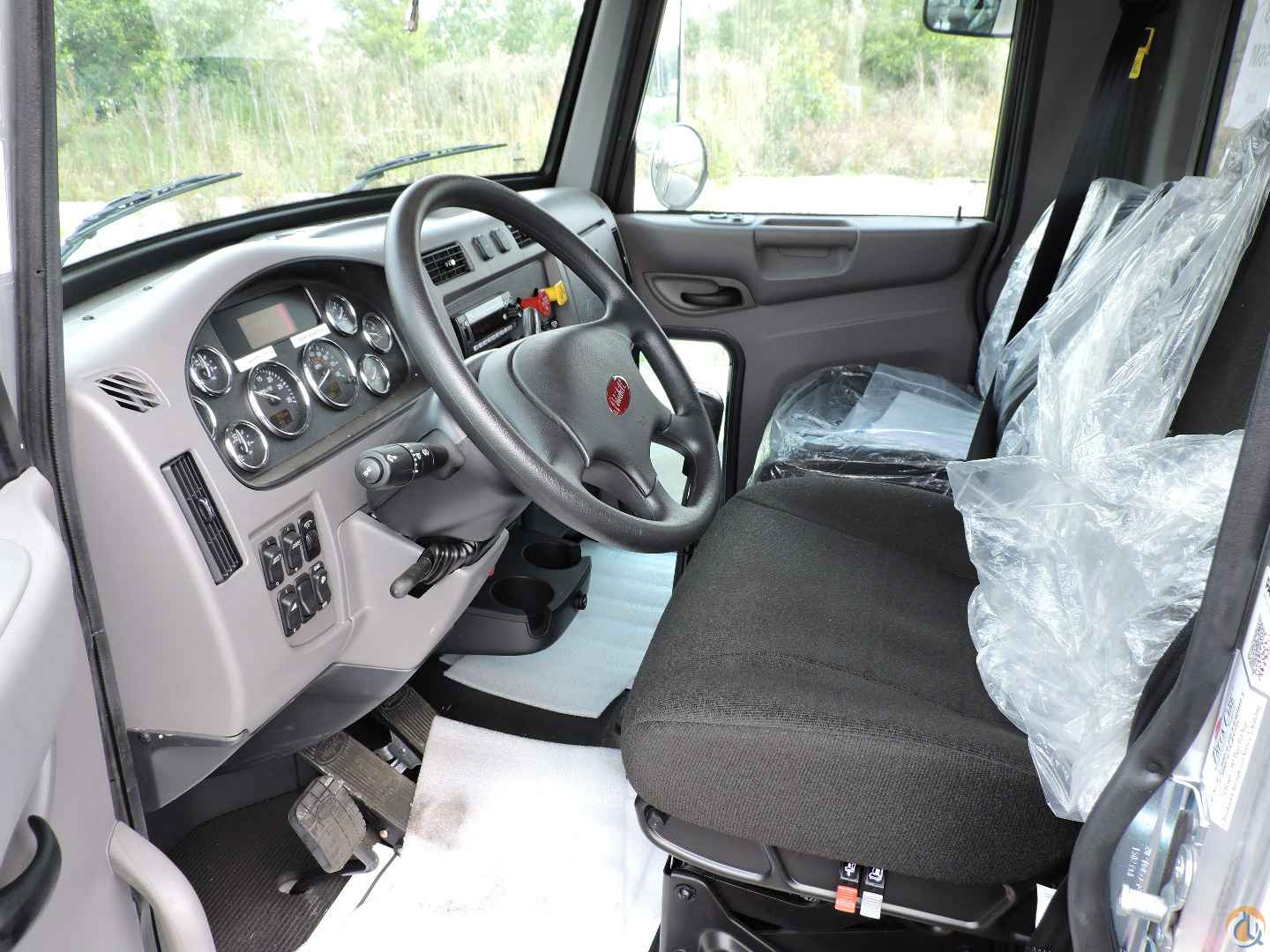

- Driver’s seat – air ride, high back fabric with right armrest
- Passenger’s seat – fixed, low back fabric
- Adjustable steering column – tilt/telescope
- Exterior sun visor – stainless steel
- Stainless steel heated mirrors
- Power windows and doors
- Air horn – 24.5” chrome

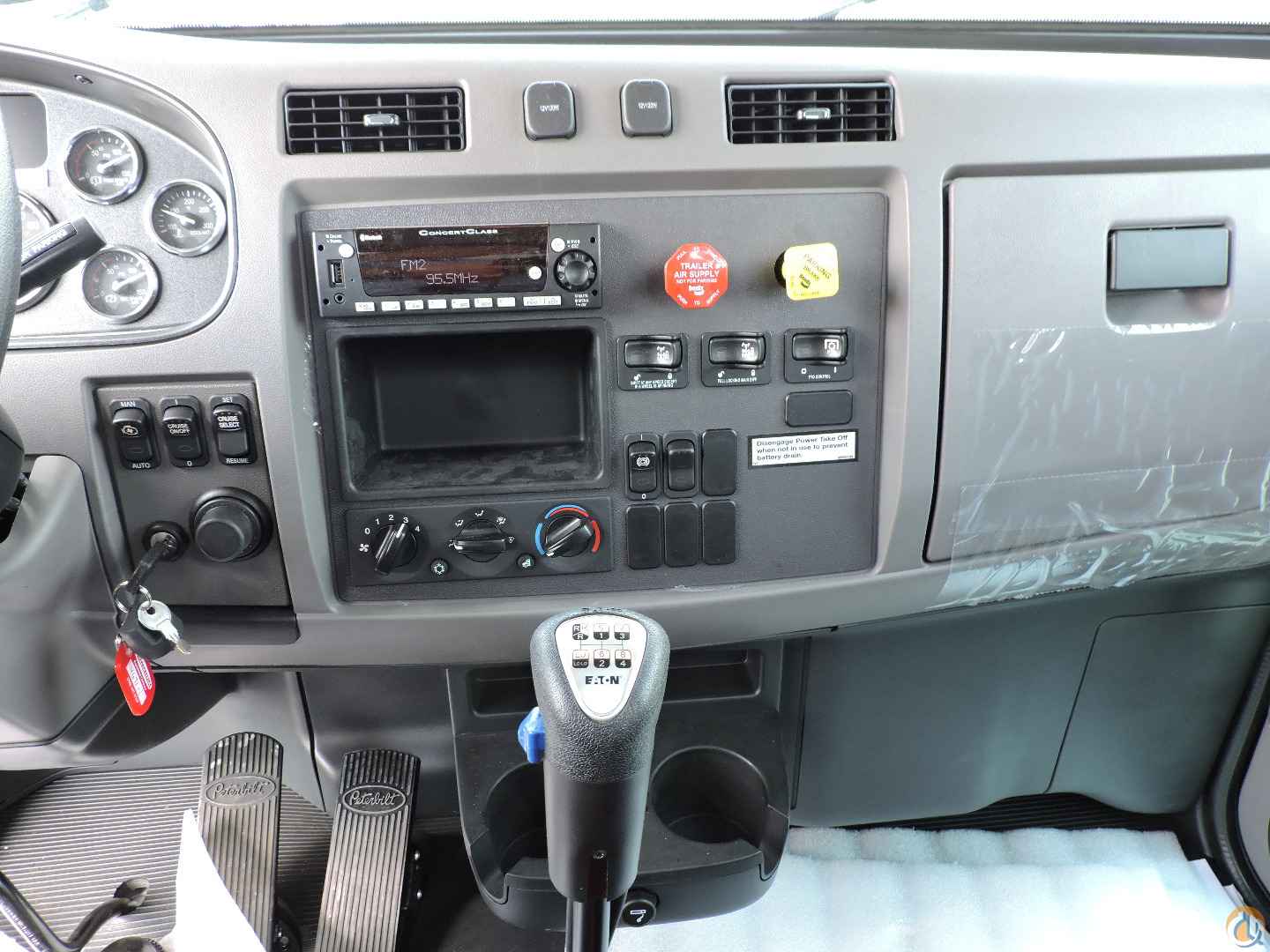

- ConcertClass Stereo – AM/FM, WB, USB, MP3, Bluetooth phone
- Cab air suspension
- Painted National Platinum
This crane was posted by:
Runnion Equipment Co.
www.runnionequipment.comContact: Dan Runnion, Sales
Phone: 708-541-1066
Fax: 708-447-3730
THIS LISTING SOLD FOR $320,000
