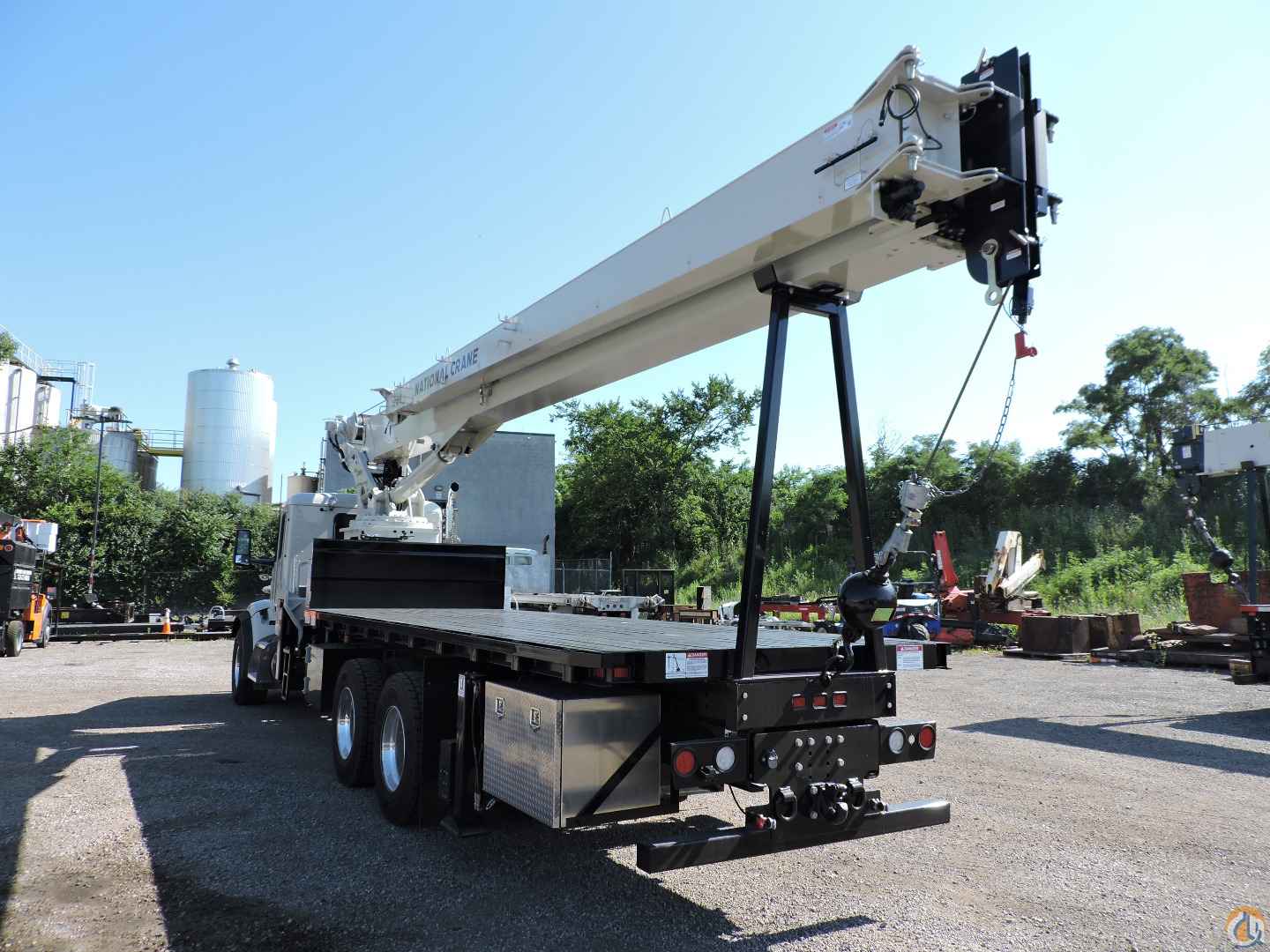

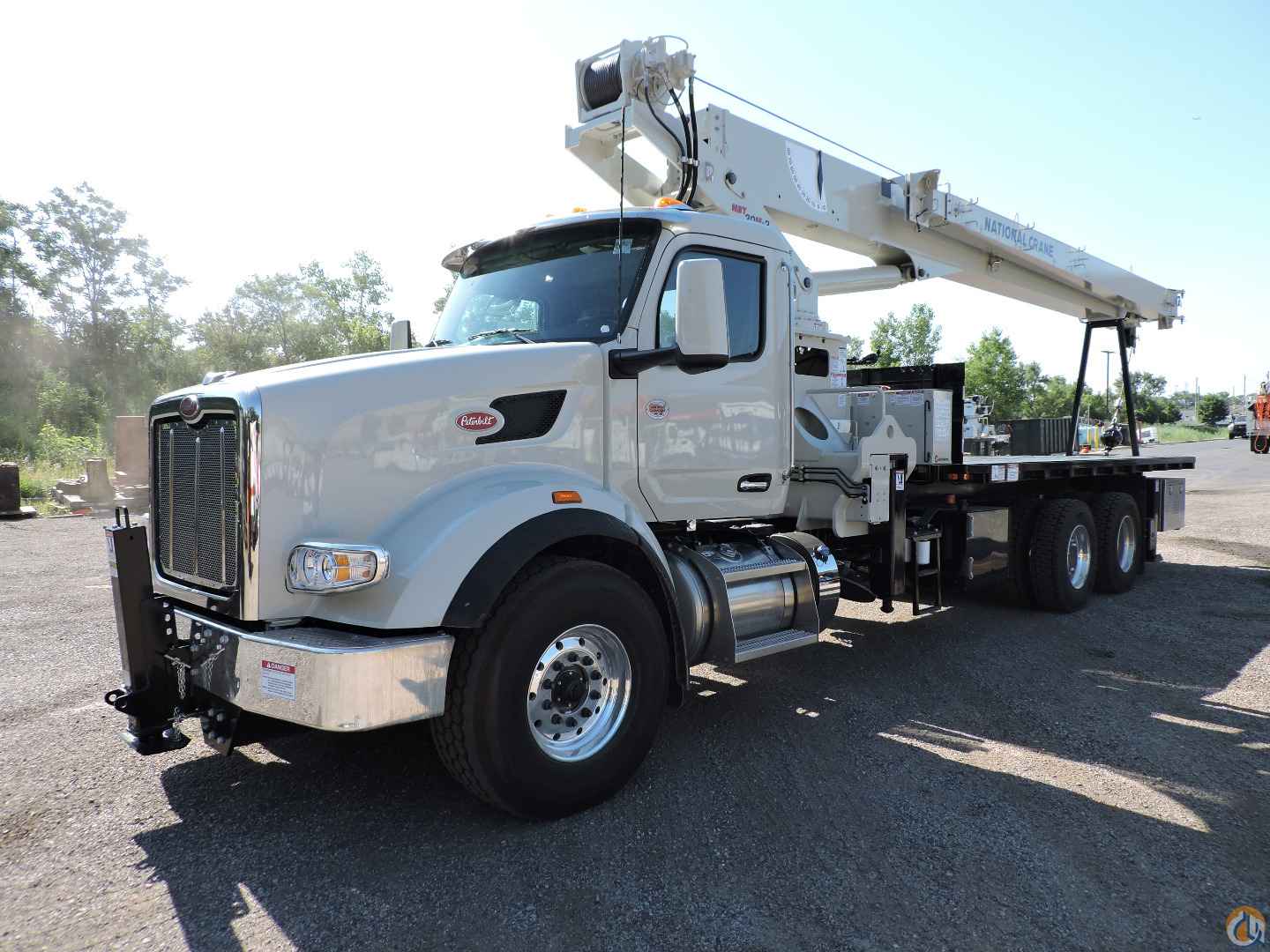

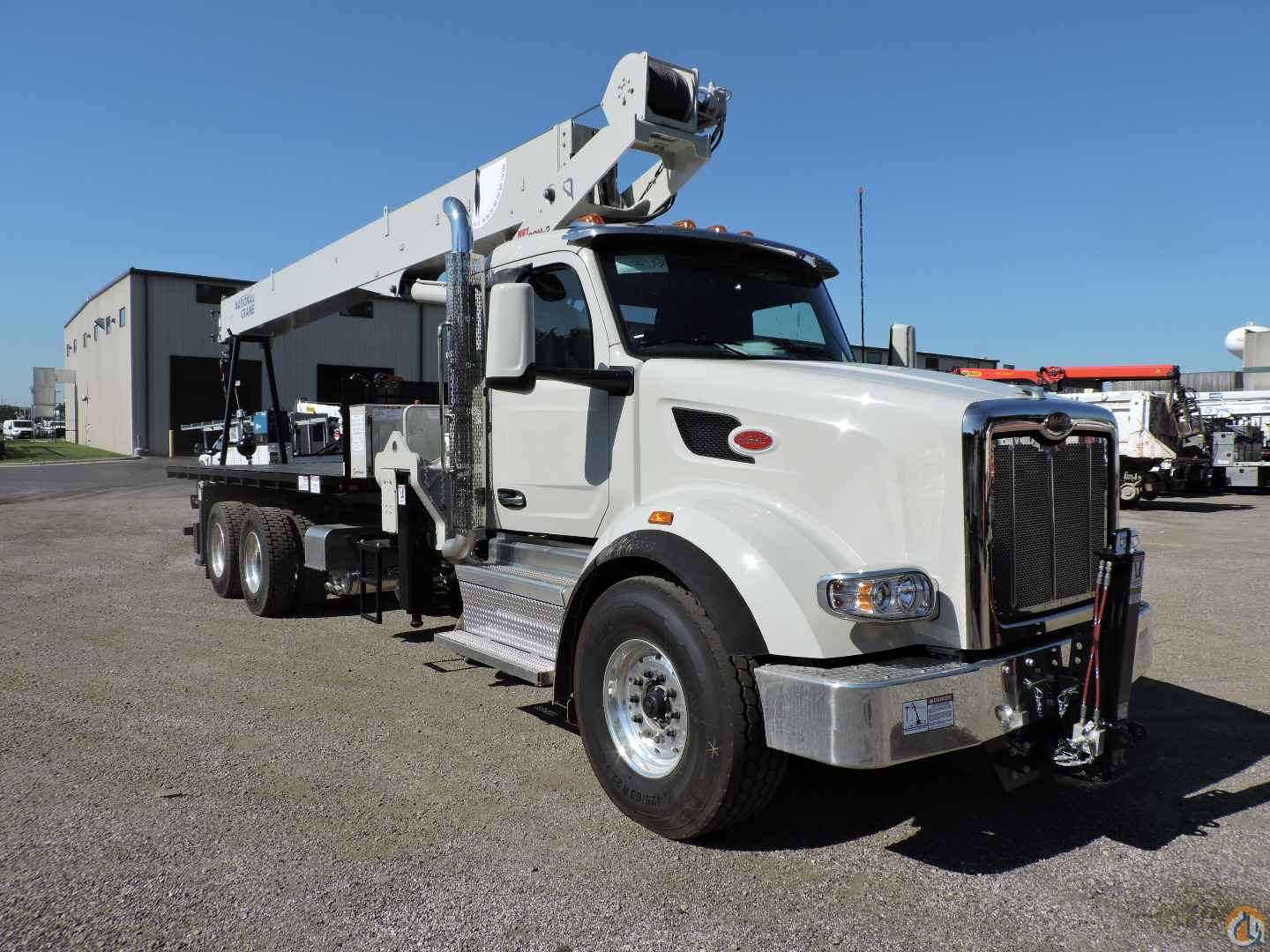

National NBT30H-2 equipped as follows:

- 30-Ton capacity

- 33’ – 110’ four section boom, 120’ tip height

- 25’-44’ telescoping boom extension

- Rated Capacity Limiter System – displays boom angle and length, working radius, rated load and total weight being lifted. Includes WADS

- Anti-two block system with internal wiring

- Front out-and-down outriggers with 20’ full span, 14’ mid span with manual lock pins. Capacity charts provided for full, mid, and fully retracted span

- Rear out and down stabilizers with 18’6” span

- Two (2) 20” diameter polymeric outrigger pads for main outriggers

- Single front outrigger for 360° stability

- Outrigger motion alarm

- Outrigger monitoring system

- 410° non-continuous rotation with adjustable swing drive

- 390’ of 9/16” rotation-resistant wire

- Single line pull – 7,700 lbs

- Round downhaul weight with top swivel, 7-Ton capacity

- Two-speed winch

- Dual-side manual control levers

- Electric outrigger control pendant for outriggers and stabilizers

- Hydraulic system includes load sensing piston pump

- 73-gallon oil reservoir with butterfly valve on suction line

- Oil cooler

- Painted National Platinum

- 22’ super-duty wood floor bed

- 30” bulkhead

- 36” x 24” x 24” aluminum tool box

- 30 ton bolt in pintle hitch with rigid mounted pintle hook

MOUNTED ON:

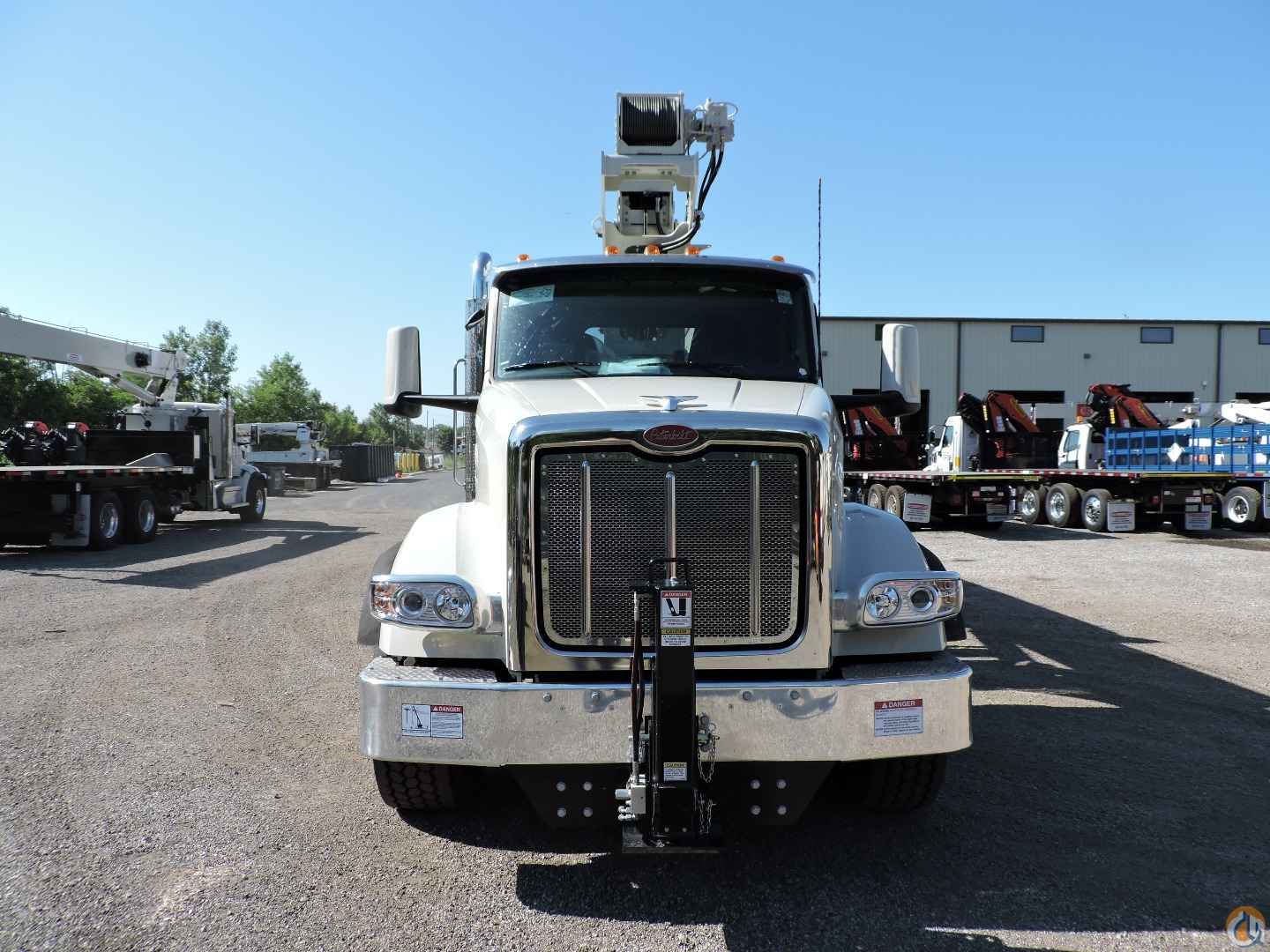

2025 Peterbilt 567, equipped as follows:

- Cummins X15 450V@1600 rpm, GOV@2000, 1650 ft/lb@950rpm, does not include CARB

- Engine block heater 110-120V

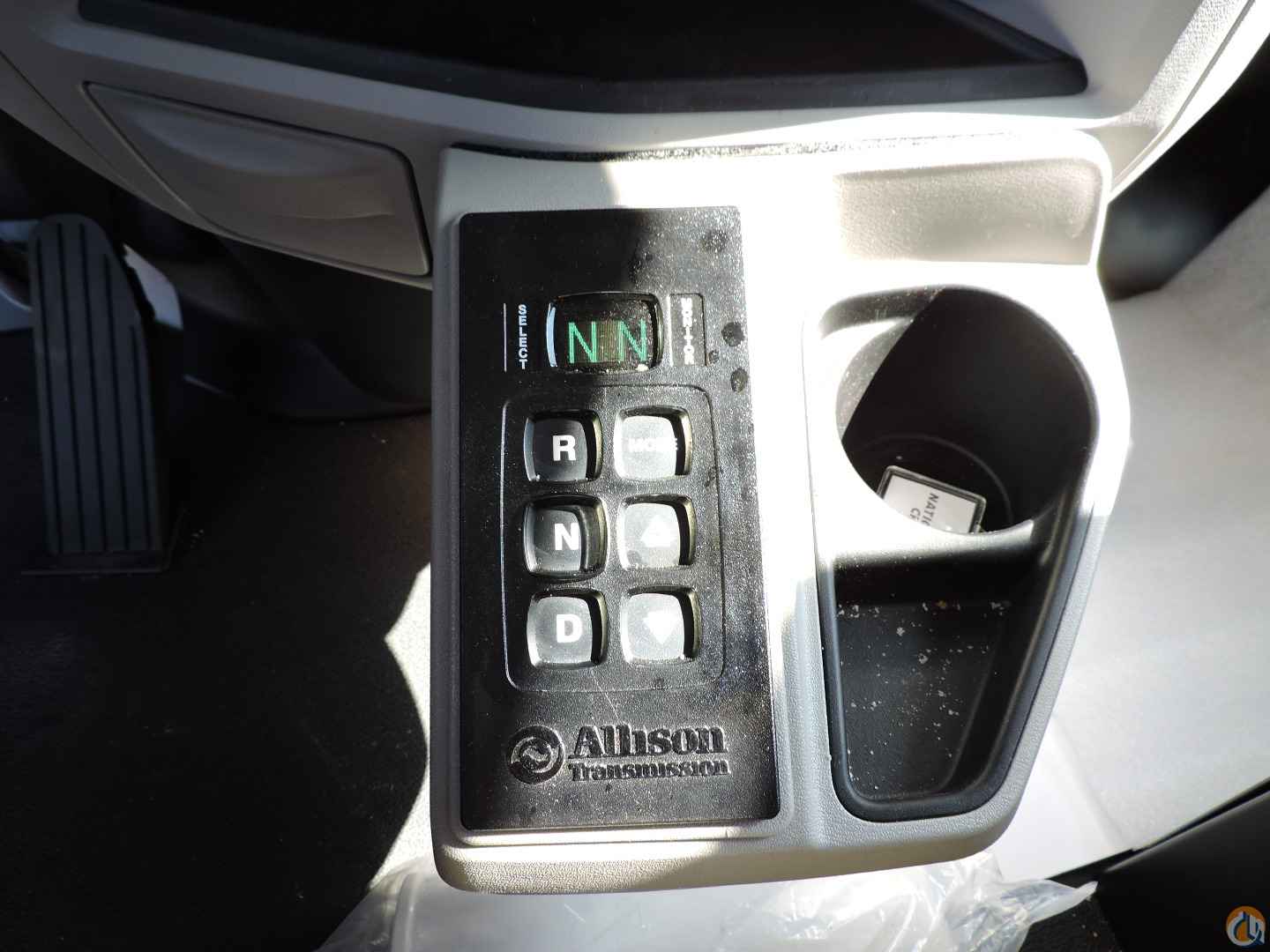

- Allison 4500 RDS-P Transmission, Gen 6

- Front Axle – 20,000 lbs with Taper Leaf springs

- Rear Axle – 46,000 lbs with Hendrickson HMX EX 400/460 suspension

- 4.30 rear axle ratio

- Differential lock tandem axles

- Tires

- Front – 20 ply 425/65R22.5

- Rear – 14 ply 11R22.5

- Aluminum wheels with Alcoa finish

- 4 PACCAR premium 12V batteries – 2920 CCA total

- Exhaust single RH side of cab

- Bendix air dryer with heater

- Polished aluminum air tanks outside

- 26” aluminum 80-gallon fuel tank

- Aluminum bumper swept back polished

- Stainless steel cover for DEF tank

- Thermal insulation package in cab

- Rubber fender lips 4.5” wide

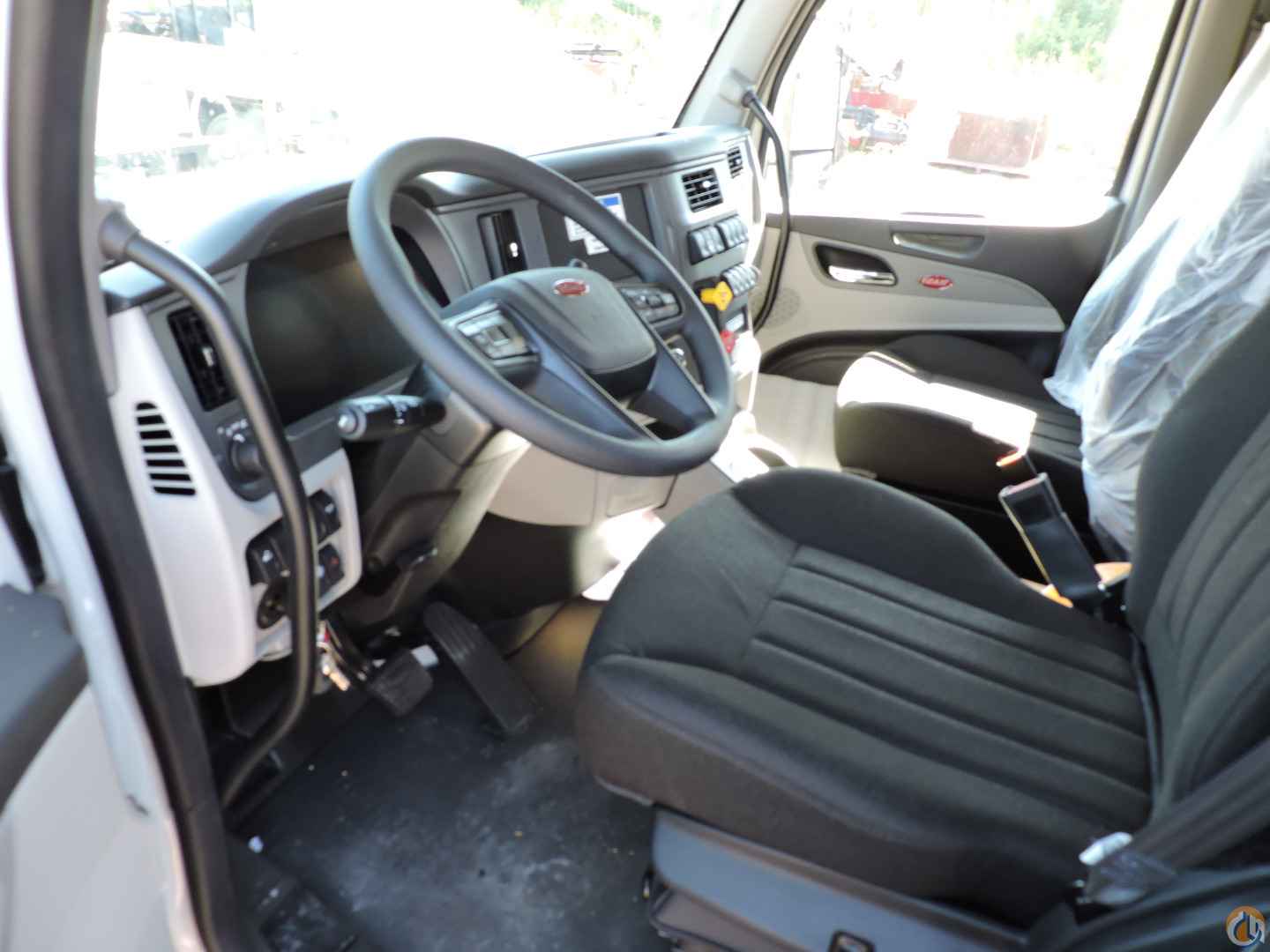

- Peterbilt high-back driver seat, air ride, fabric, w/ dual arm rests

- Peterbilt high-back passenger seat, fixed, fabric

- Adjustable steering column, tilt/telescope

- ConcertClass stereo – AM/FM, WB, USB, BT phone

- Power lift windows

- Power door locks

- Outside sunvisor stainless steel

- Air horn

- Cab air suspension

- Triangle reflector kit

- Fire extinguisher

- Painted Sand Gray
