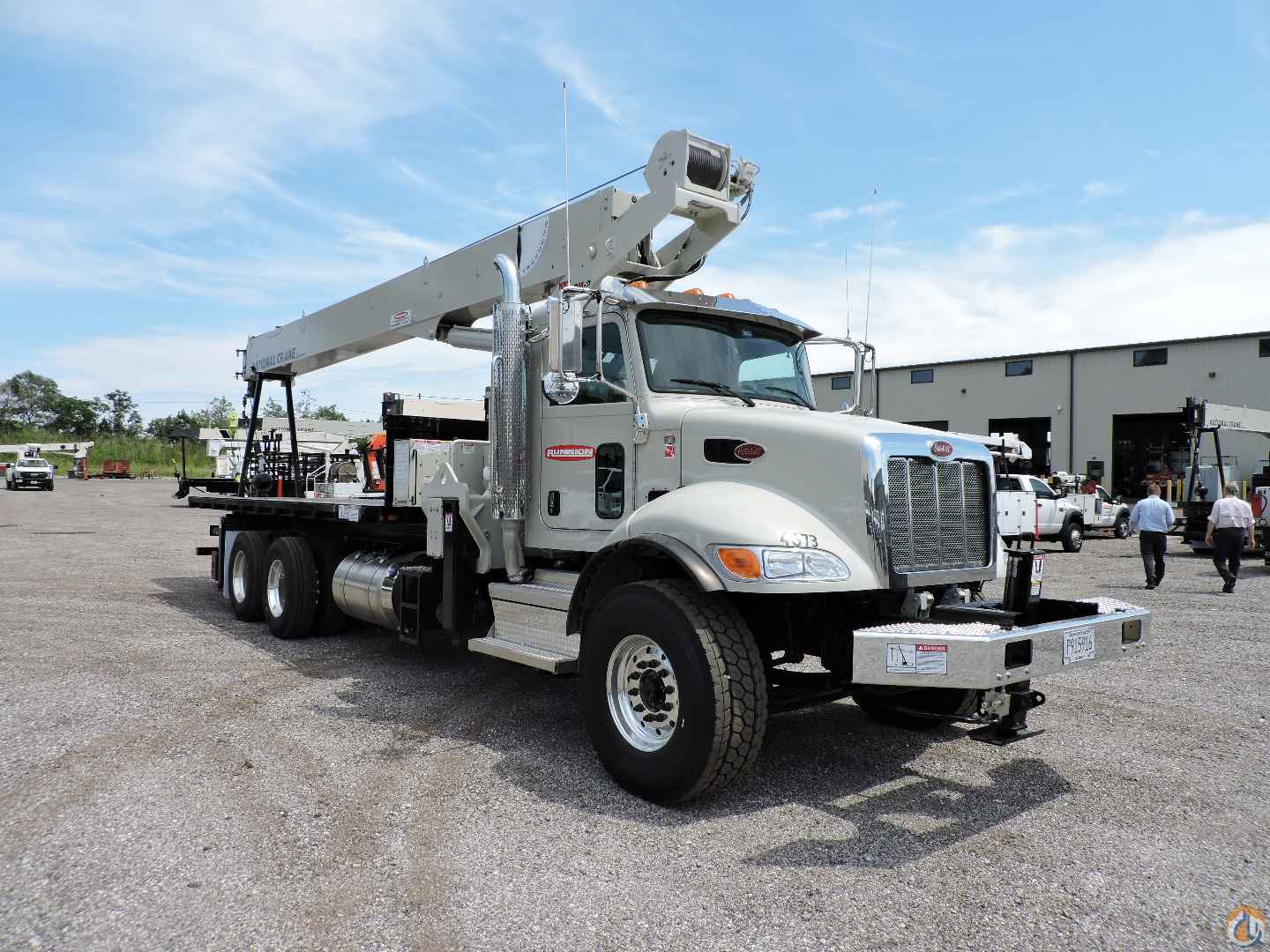

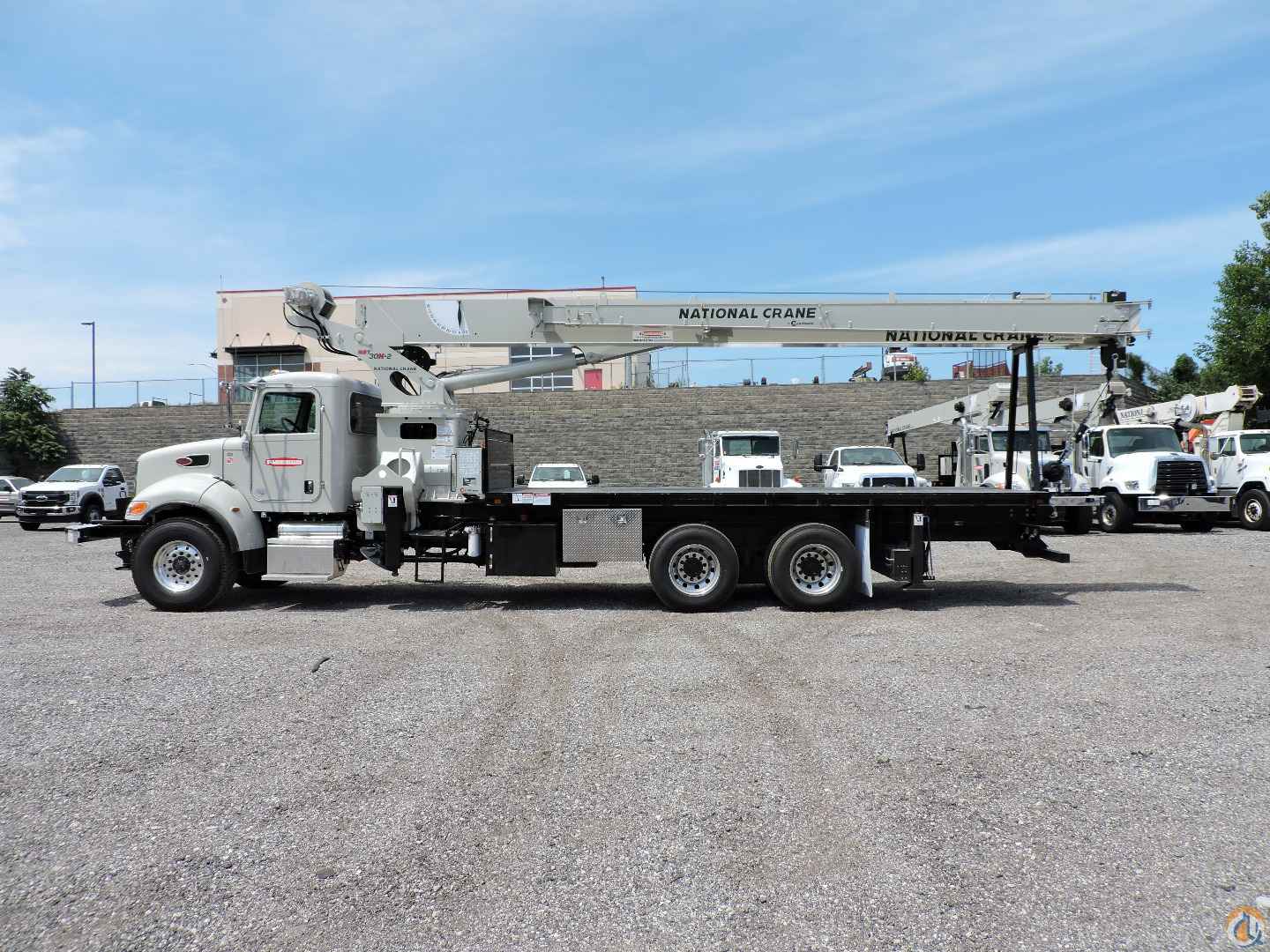

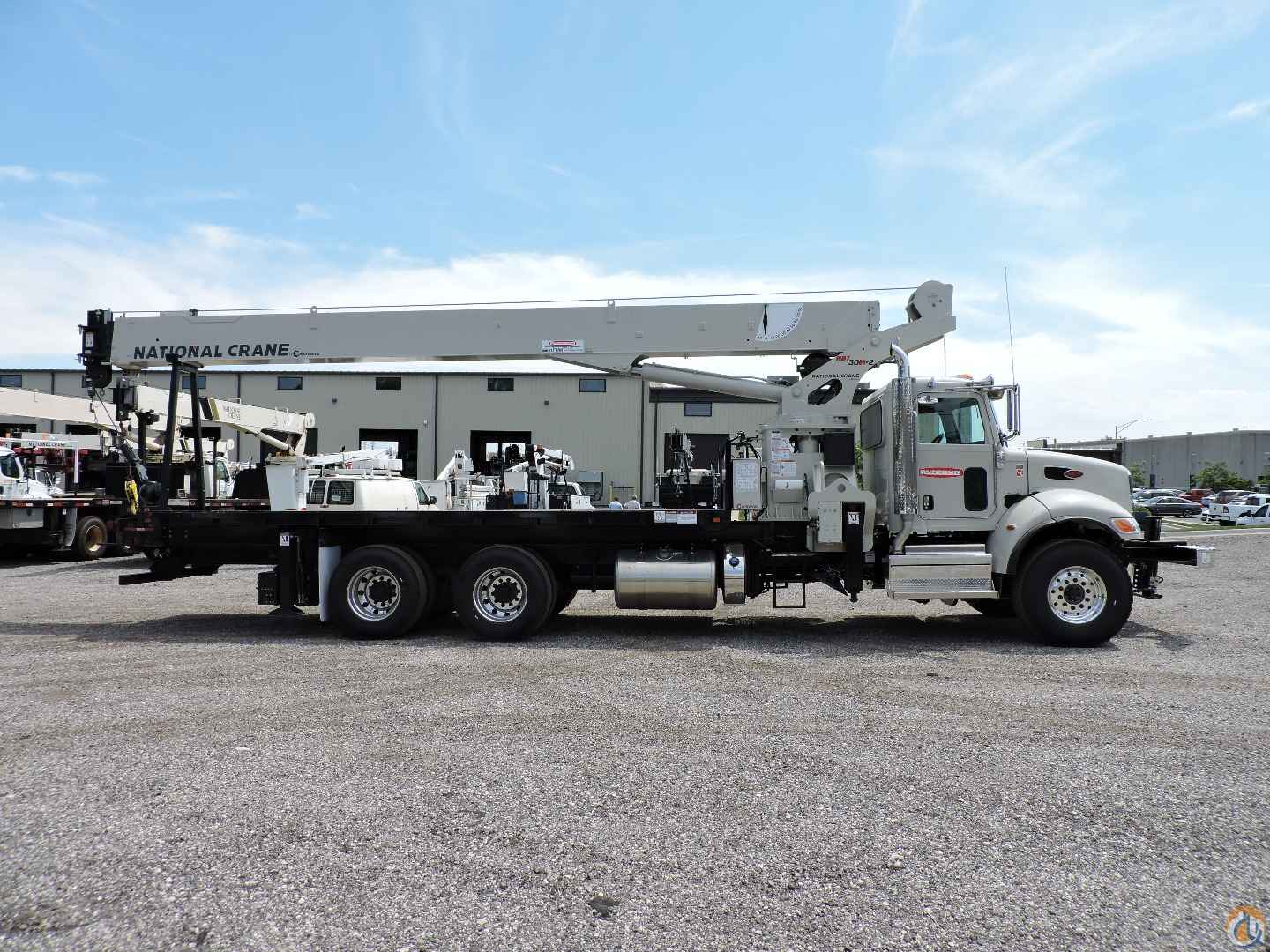

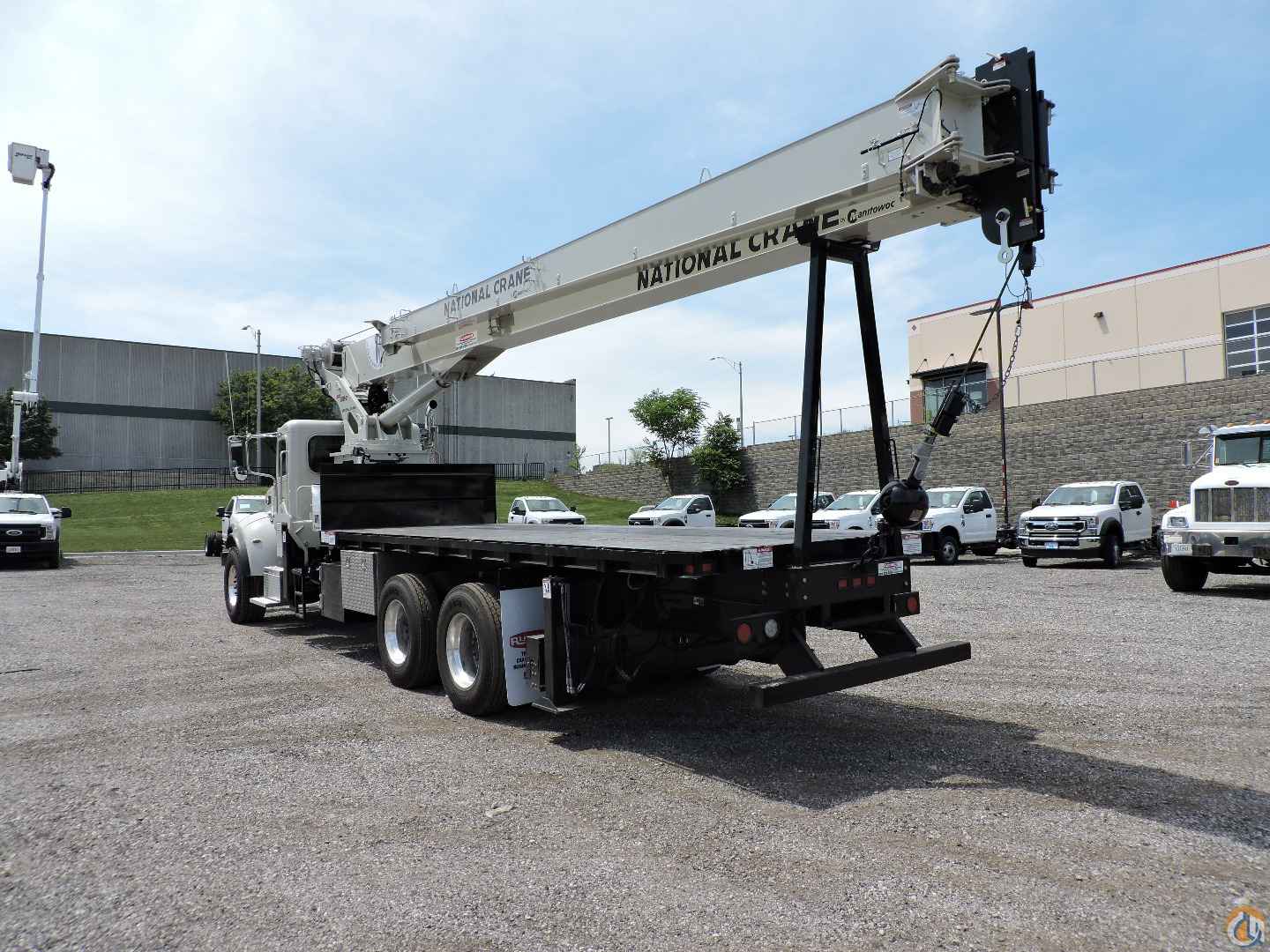

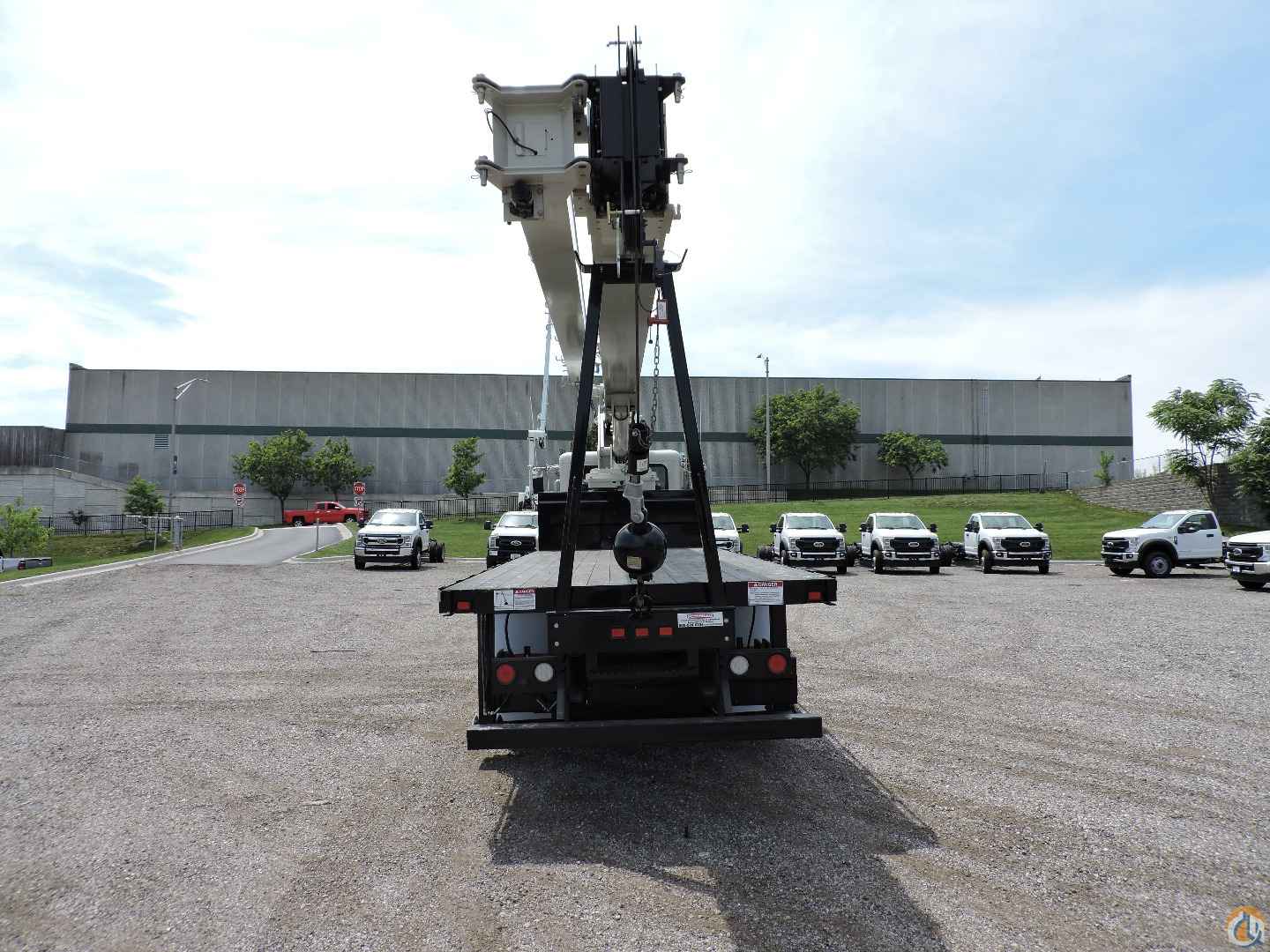

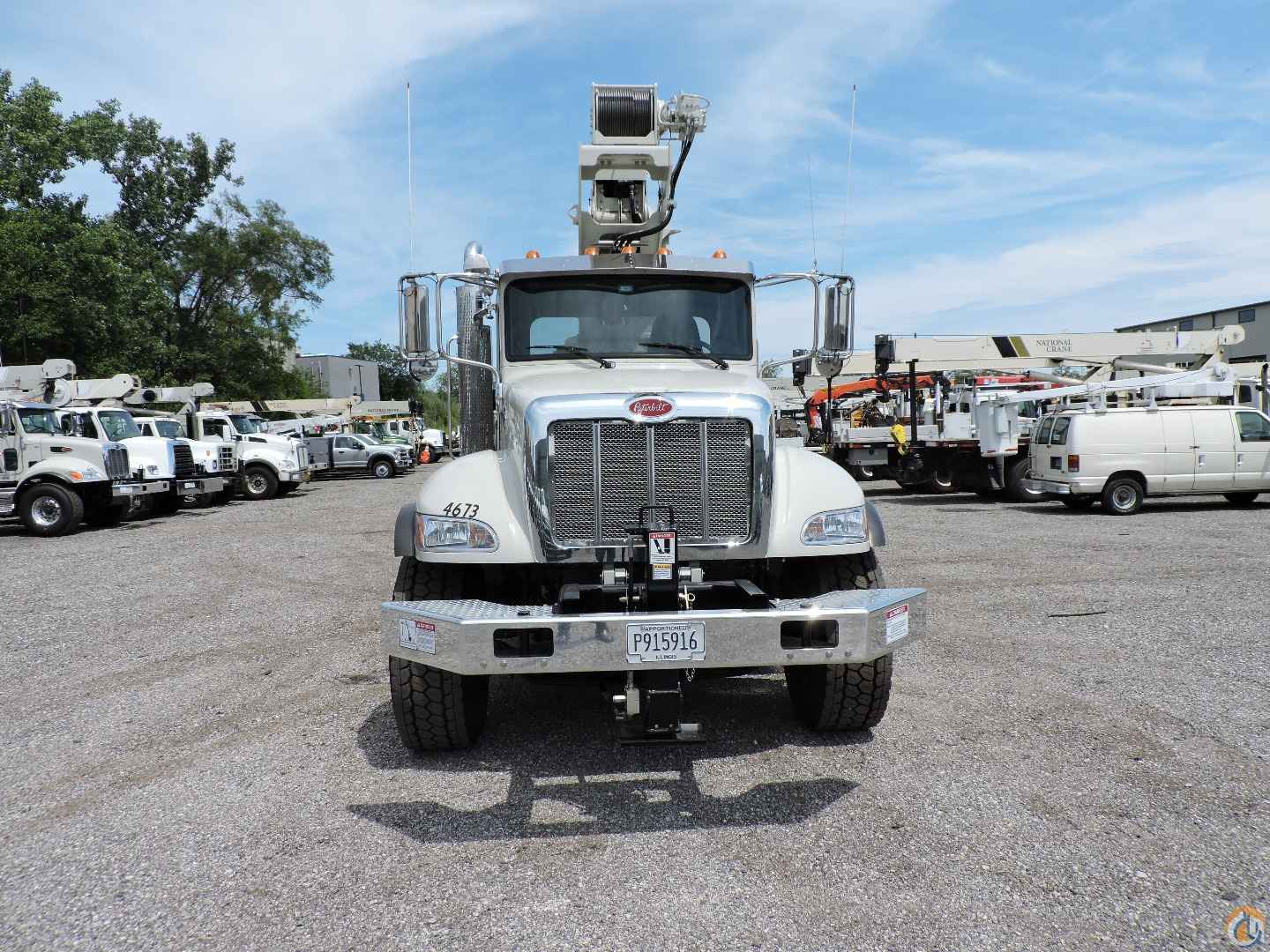

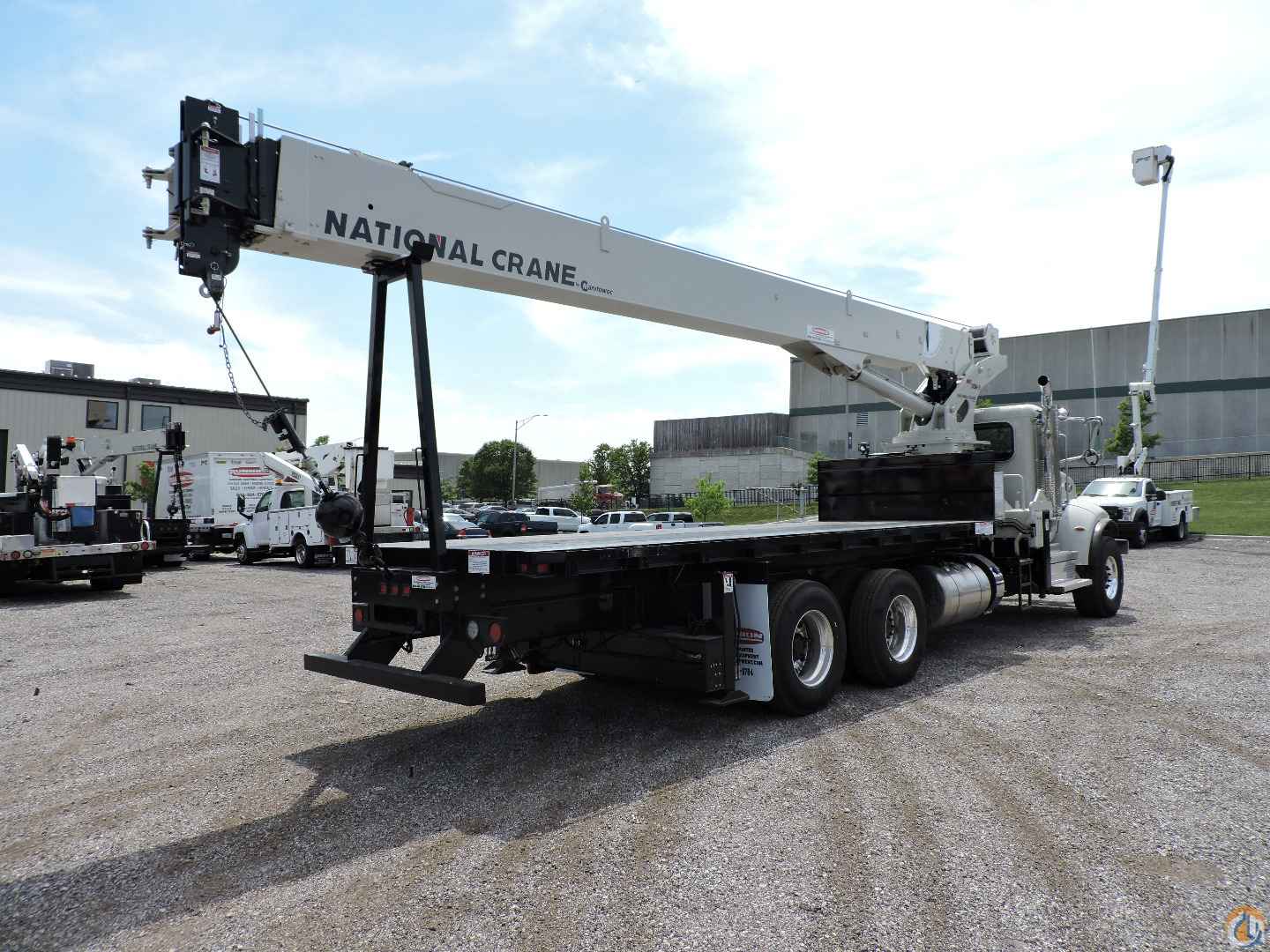

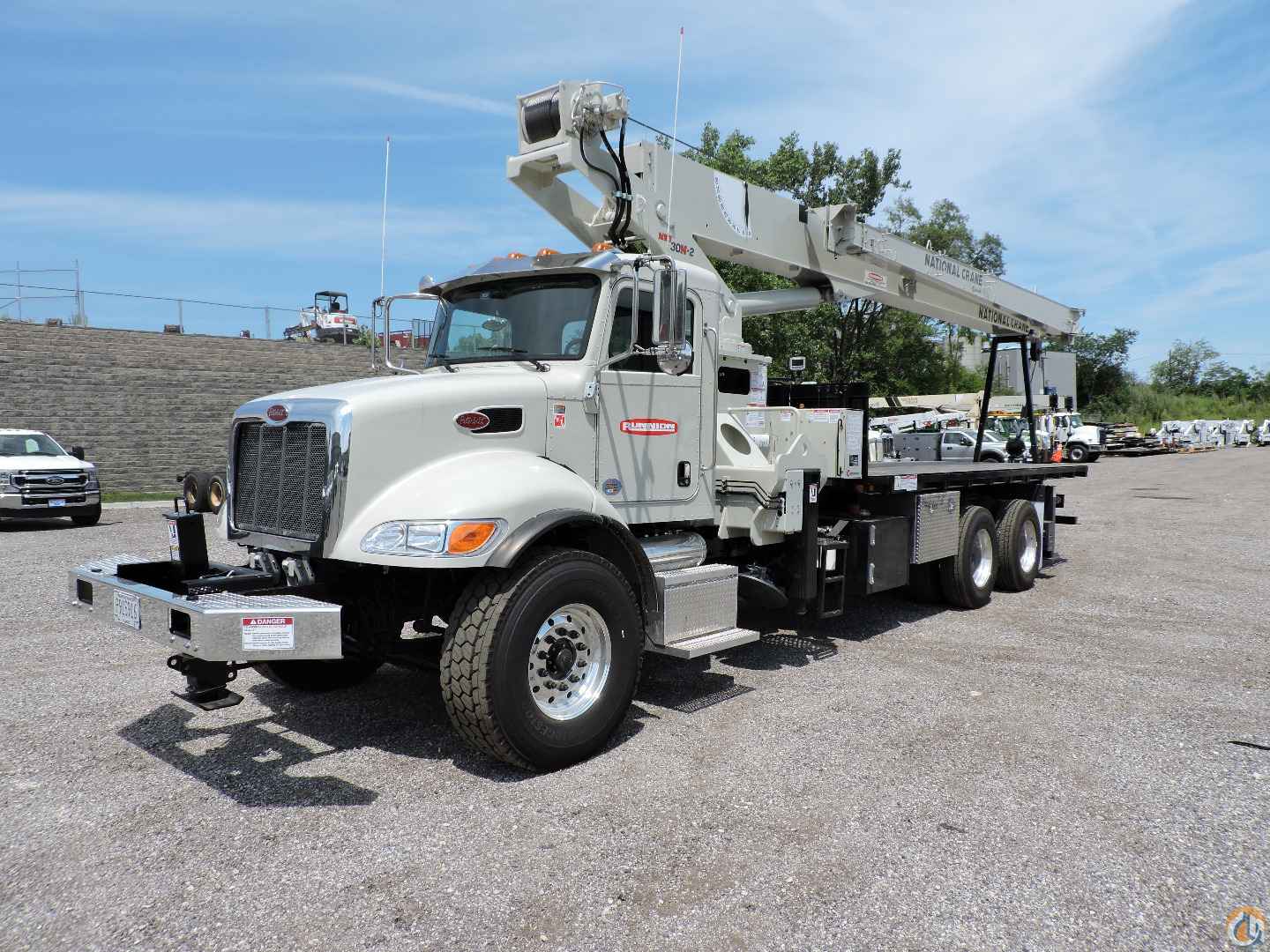

National Crane NBT30H-2 equipped as follows:
24-44’ telescoping jib – 164’ tip height
Rated Capacity Limiter System – displays boom angle and length, working radius, rated load and total weight being lifted. Includes WADS
Anti-two block system with internal wiring
Front out-and-down outriggers with 20’ full span, 14’ mid span with manual lock pins. Capacity charts provided for full, mid, and fully retracted span
Rear out and down stabilizers with 18’6” span
Two (2) 20” diameter polymeric outrigger pads for main outriggers
Single front outrigger for 360° stability
Outrigger motion alarm
Outrigger monitoring system
410° non-continuous rotation with adjustable swing drive
9/16” rotation-resistant wire
Round downhaul weight with top swivel, 7-Ton capacity
Two-speed winch

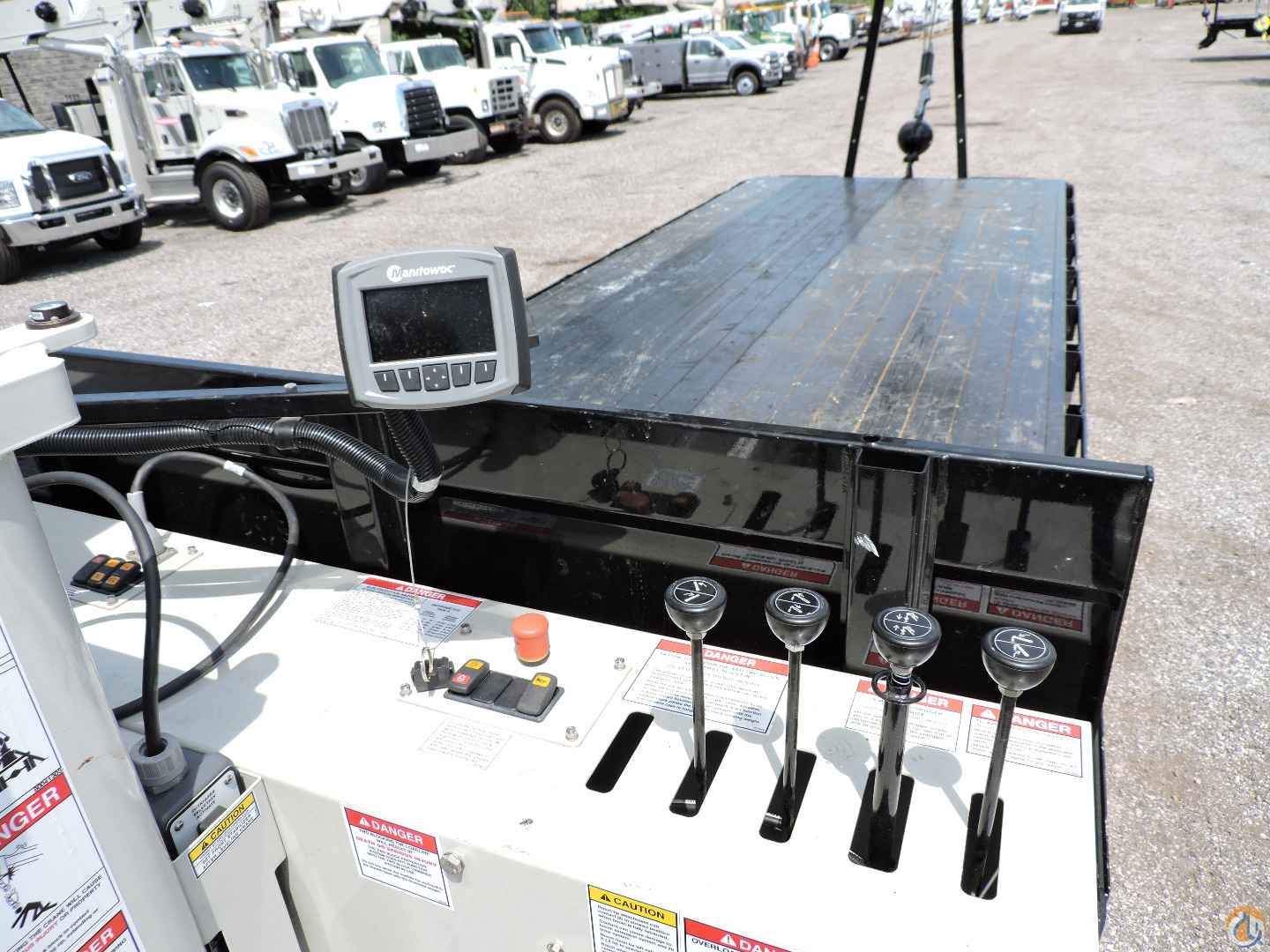

Dual-side manual control levers
Electric outrigger control pendant for outriggers and stabilizers
HLoad sensing piston pump

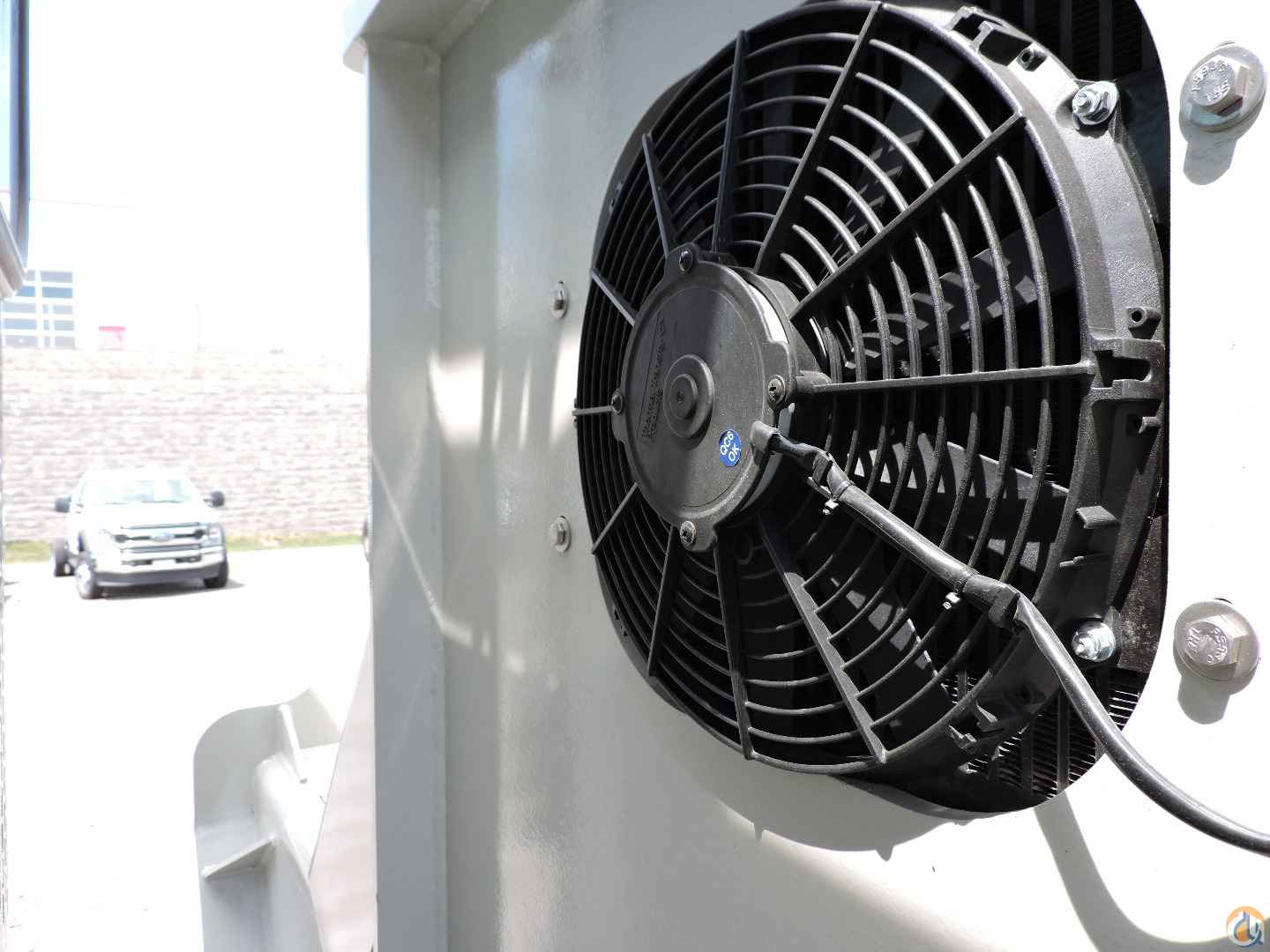

Oil cooler
Painted National Platinum
22’ super duty wood bed with rub rails
30” bulkhead
36” x 24” x 24” aluminum tool box
2022 Peterbilt 348 equipped as follows:
Paccar PX-9 engine, 350 hp @ 2000 rpm, 1000 lb/ft @ 1400
Allison 3000 RDS-P automatic transmission
Front Axle – 20,000# with Taper Leaf springs
Rear Axle – 40,000# with Haulmaax HMX400 suspension
Front tires 425/65R22.5
Front wheels – 22.5x12.25 Alcoa aluminum with Clean Buff finish
Rear tires – 11R22.5
Rear wheels – 22.5x8.25 Alcoa aluminum with Clean Buff finish on outside wheels
Differential locks on both axles
Aluminum hubs
Block heater
Bendix air dryer with heater
Pull cord drain valves on all air tanks
Polished aluminum air tanks for tanks on outside of frames
Trailer hand valve
7-way socket connected to end of frame
90-gallon aluminum fuel tank
11-gallon DEF tank with polished stainless-steel cover

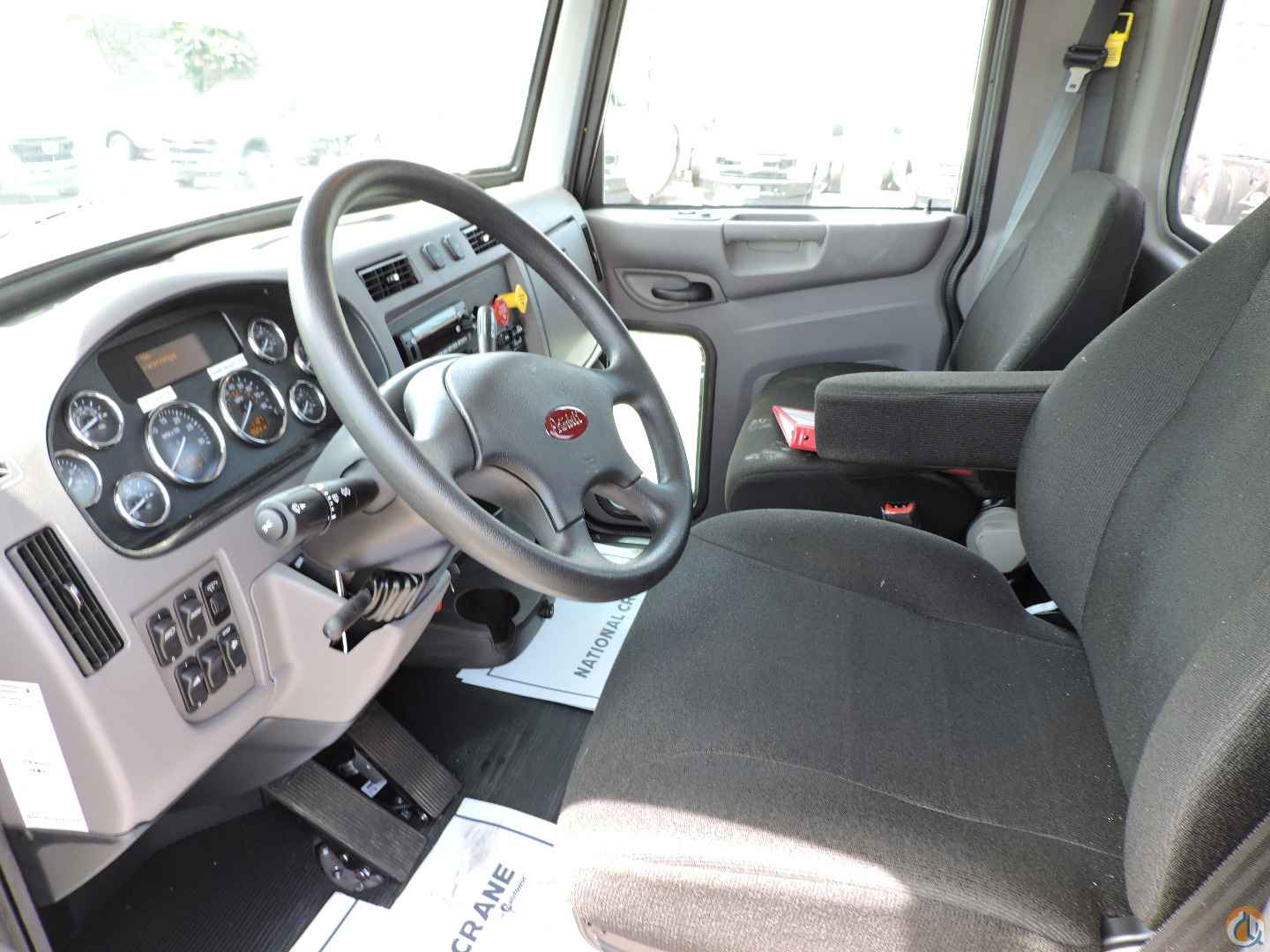

Driver’s seat – air ride, high back fabric with right armrest
Passenger’s seat – fixed, low back fabric
Adjustable steering column – tilt/telescope
Exterior sun visor – stainless steel
Stainless steel heated mirrors
Power windows and doors
Air horn – 24.5” chrome

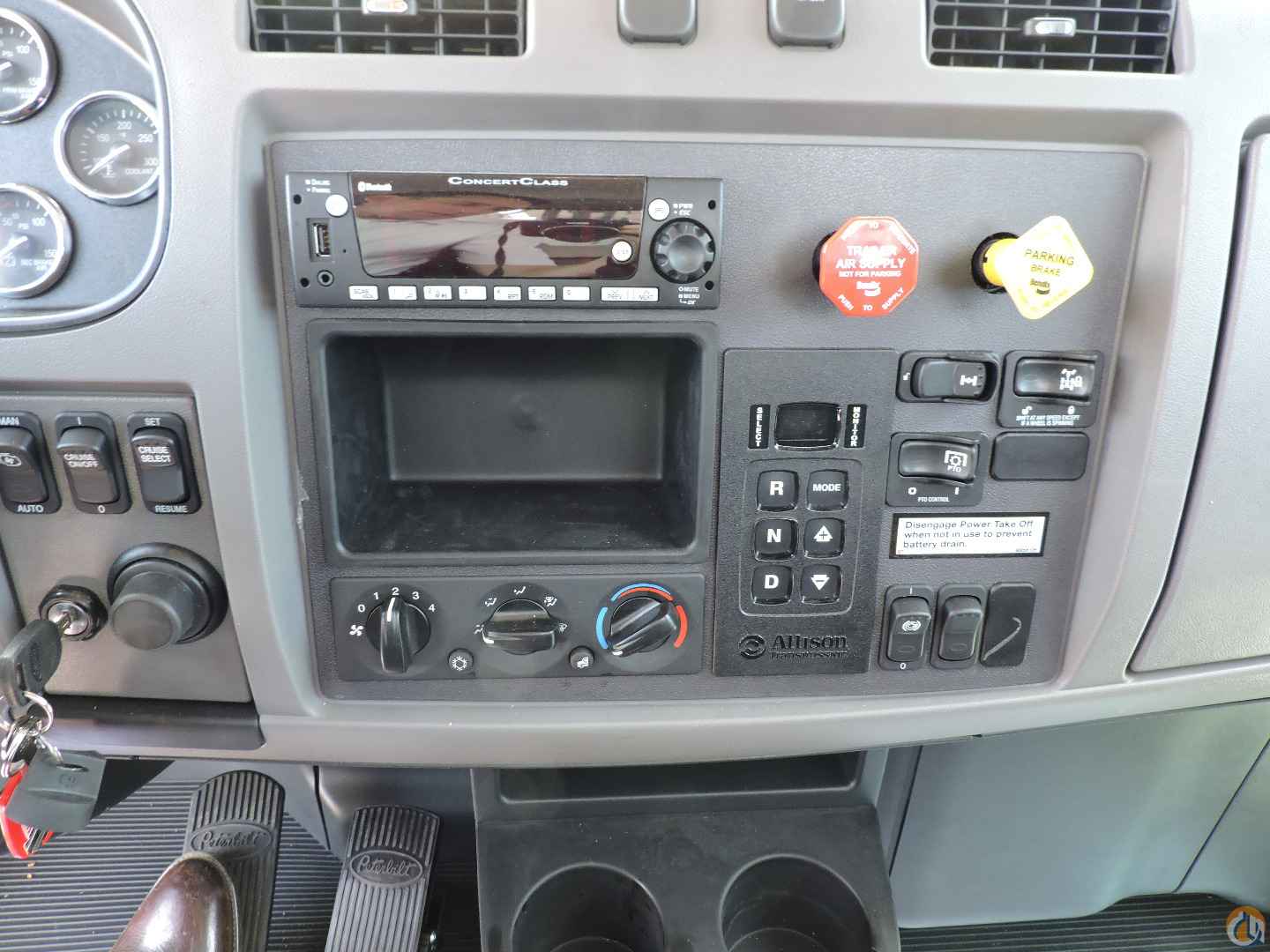

ConcertClass Stereo – AM/FM, WB, USB, MP3, Bluetooth phone
Cab air suspension
Painted National Platinum
