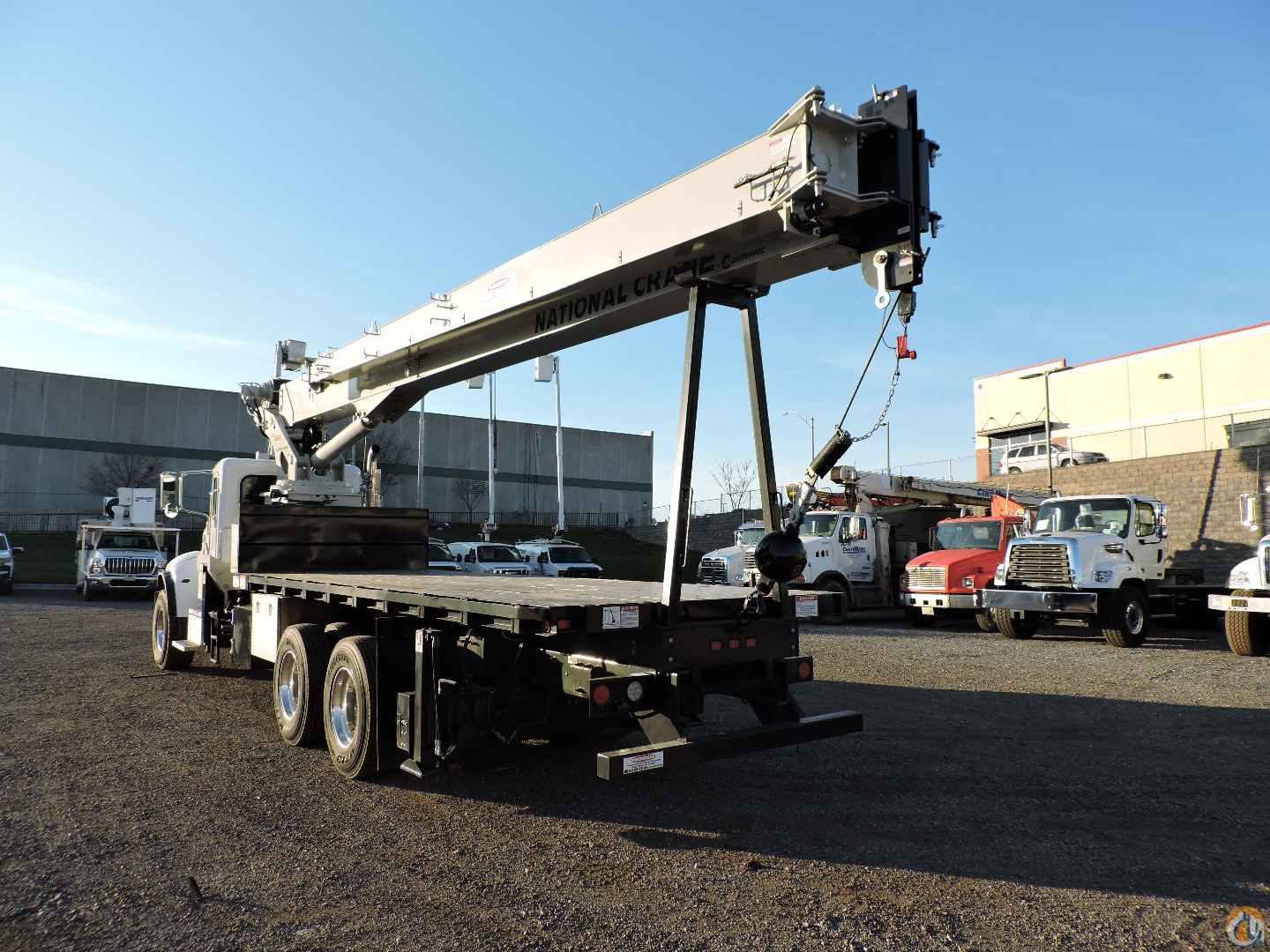

2020 National NBT30H-2 Boom Truck Crane (Sold)

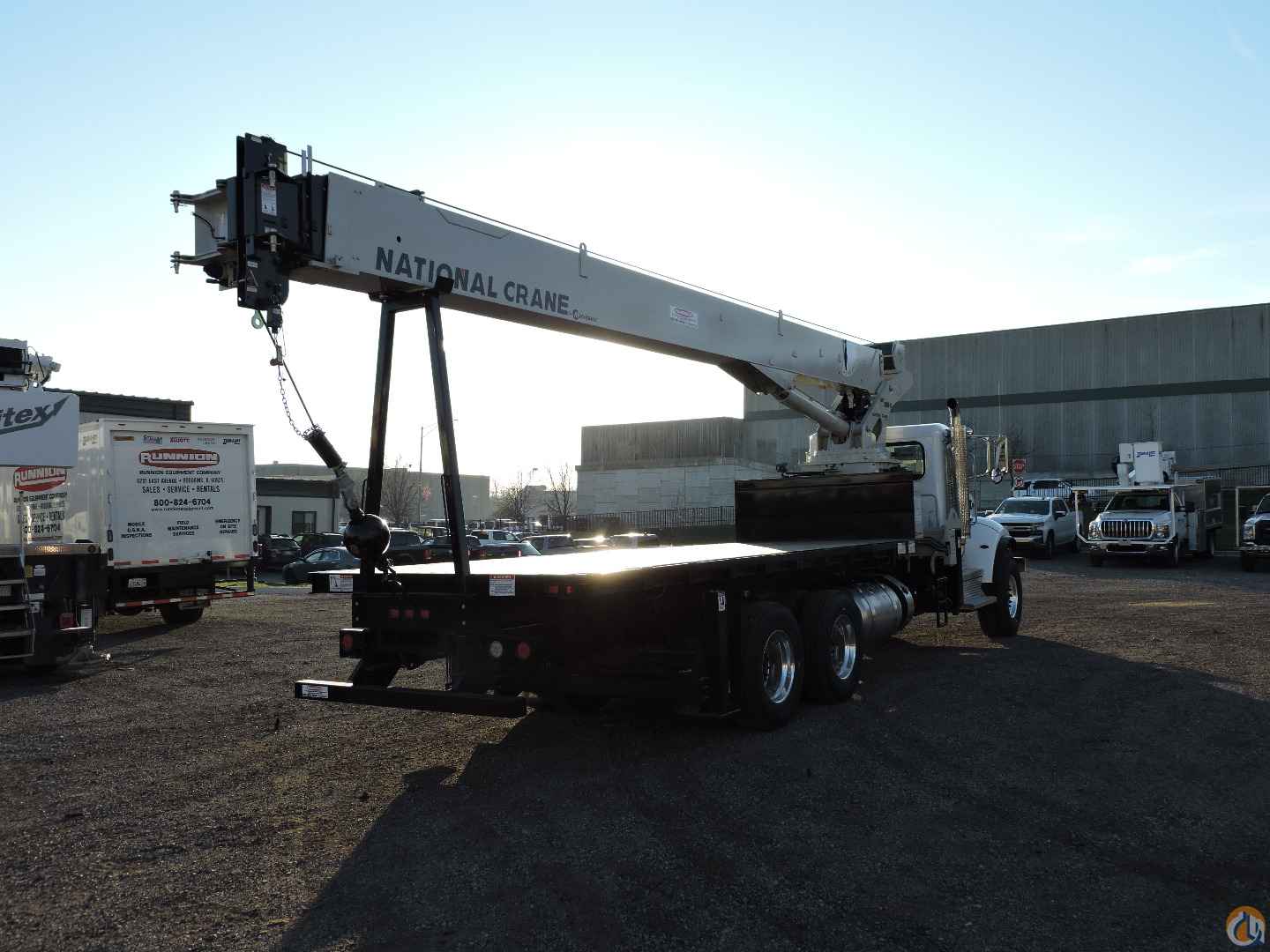

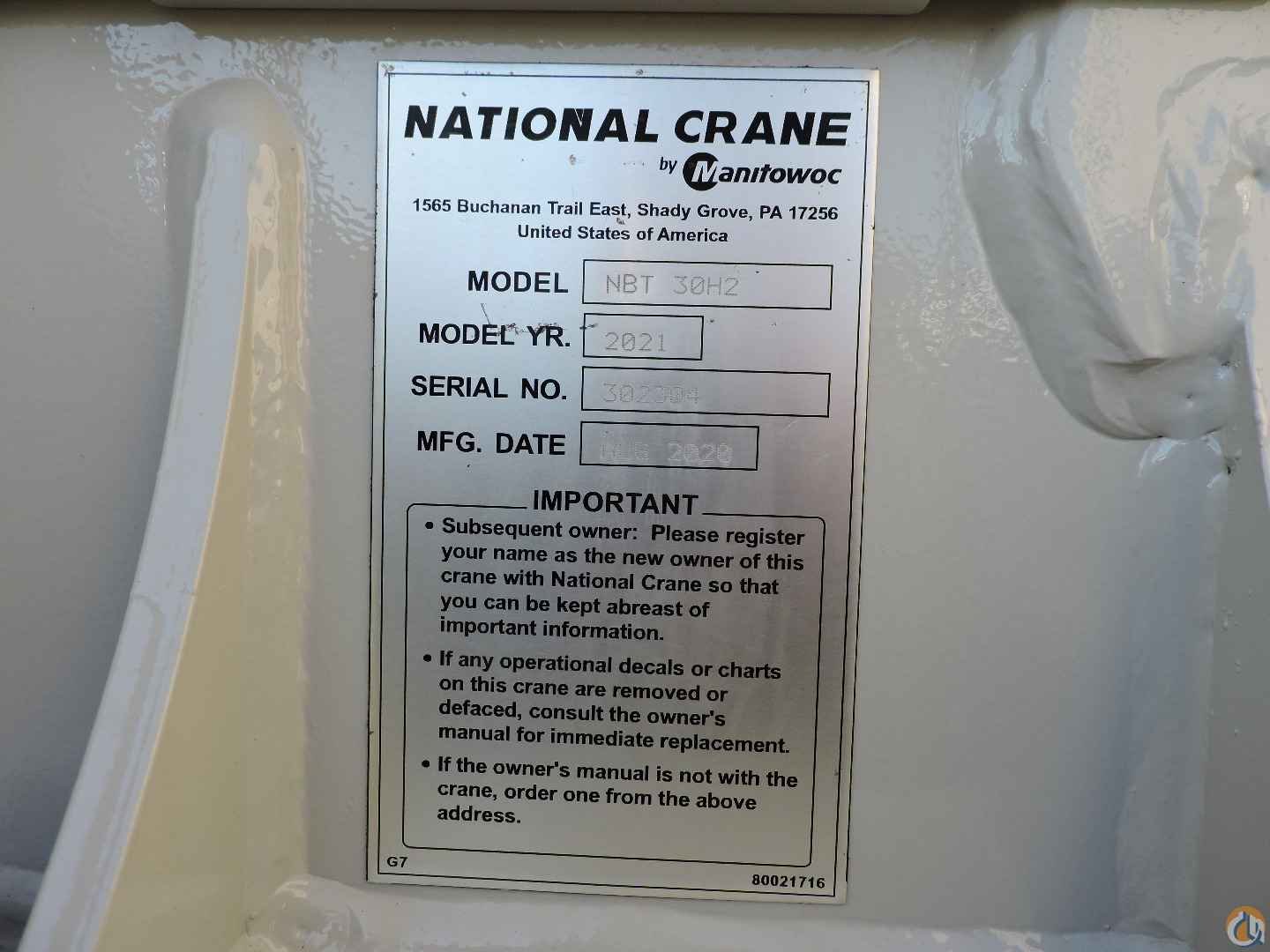

National Crane NBT30H-2

• 30-Ton capacity
• 33’ – 110’ four section boom, 120’ tip height
• 24-44’ telescoping jib – 164’ tip height

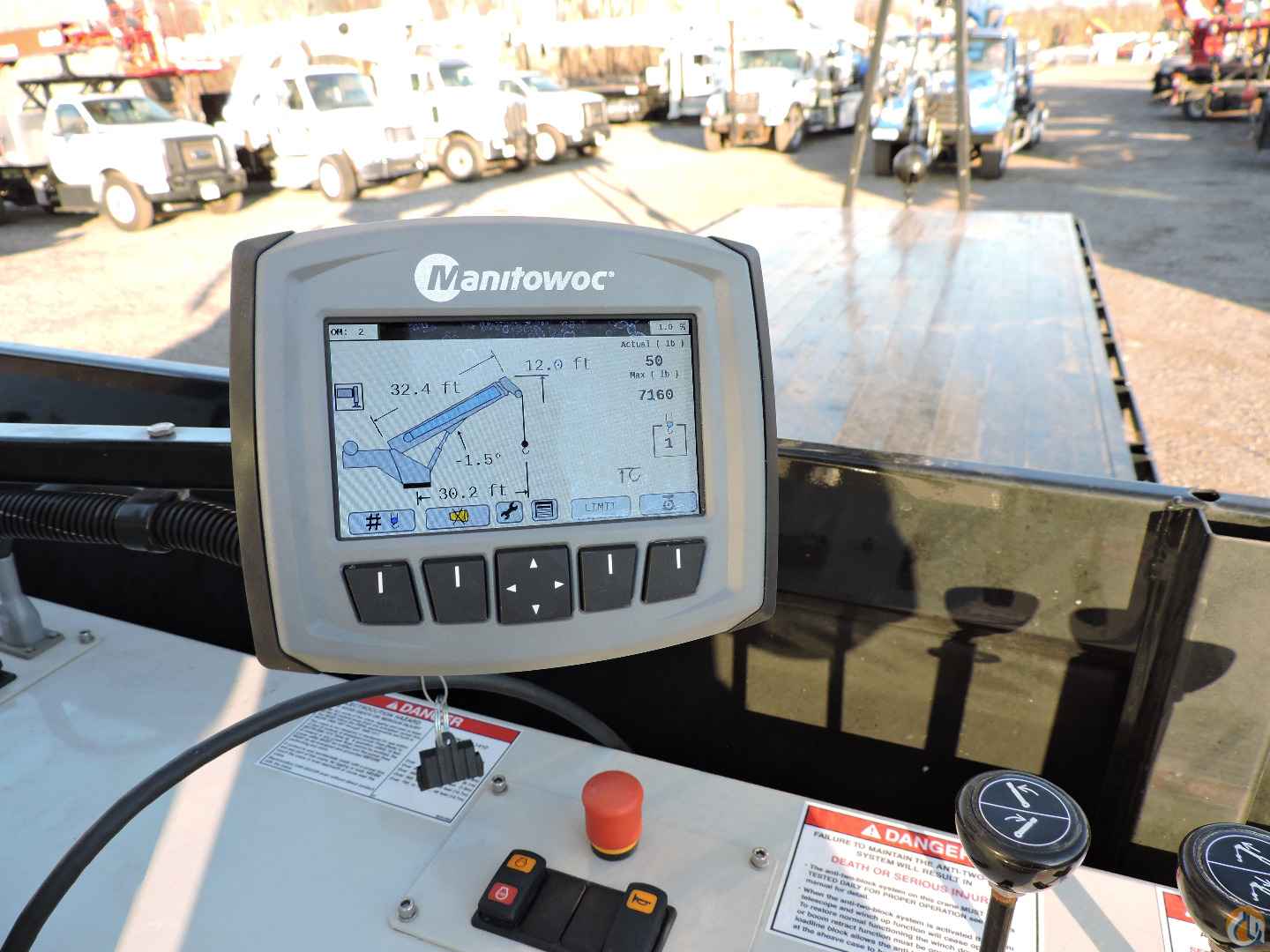

• Rated Capacity Limiter System – displays boom angle and length, working
  radius, rated load and total weight being lifted. Includes WADS
• Anti-two block system with internal wiring
• Front out-and-down outriggers with 20’ full span, 14’ mid span with manual
  lock pins. Capacity charts provided for full, mid, and fully retracted span.
• Rear out and down stabilizers with 18’6” span
• Two (2) 20” diameter polymeric outrigger pads for main outriggers
• Single front outrigger for 360° stability
• Outrigger motion alarm
• Outrigger monitoring system
• 410° non-continuous rotation with adjustable swing drive
• 9/16” rotation-resistant wire
• Single line pull – 7,700 lbs
• Round downhaul weight with top swivel, 7-Ton capacity
• Two-speed winch
• Dual-side manual control levers
• Electric outrigger control pendant for outriggers and stabilizers
• Hydraulic system includes load sensing piston pump
• 73-gallon oil reservoir with butterfly valve on suction line

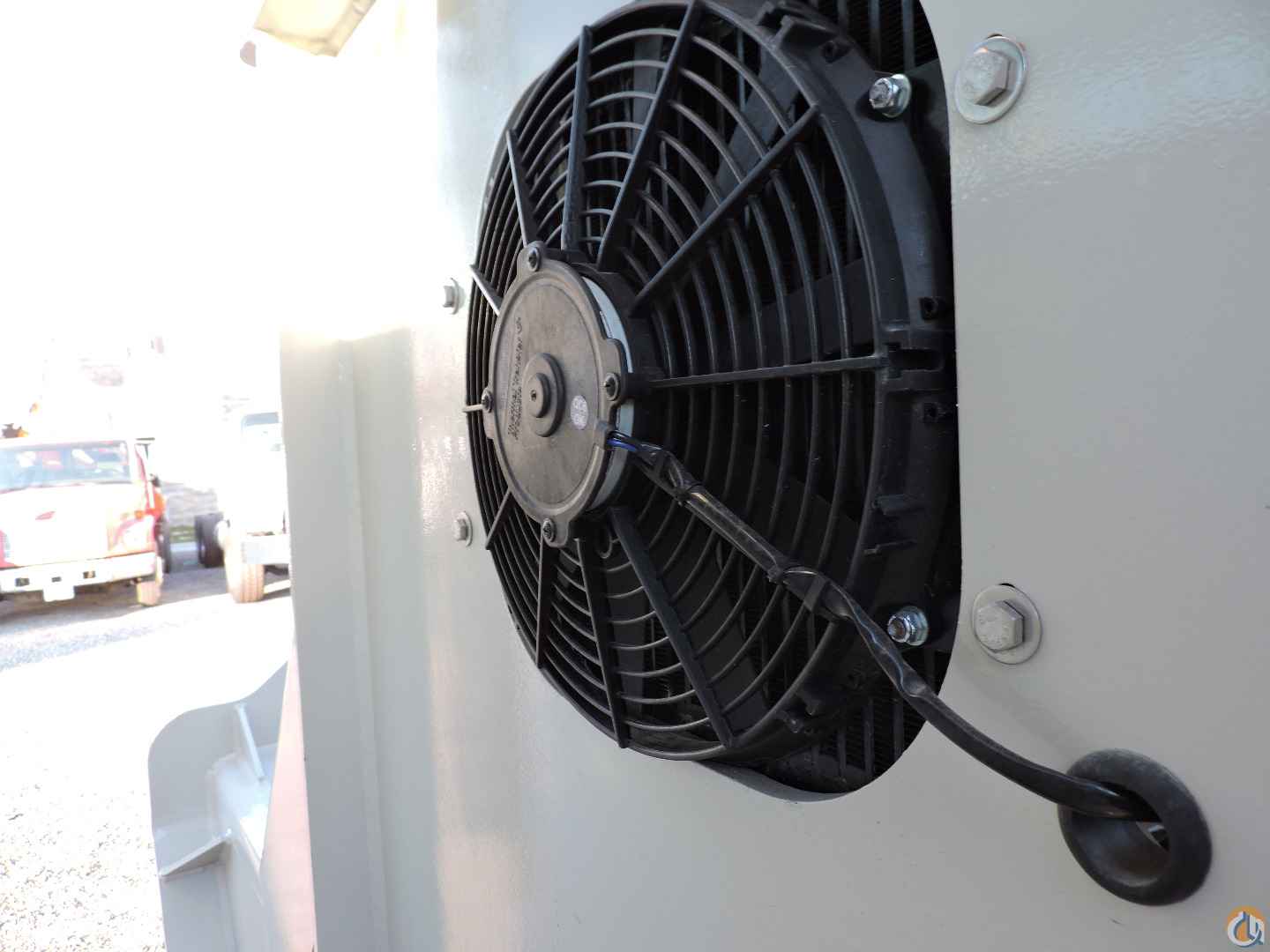

• Oil cooler
• Painted National Platinum
• 22’ super duty wood bed with rub rails
• 30” bulkhead

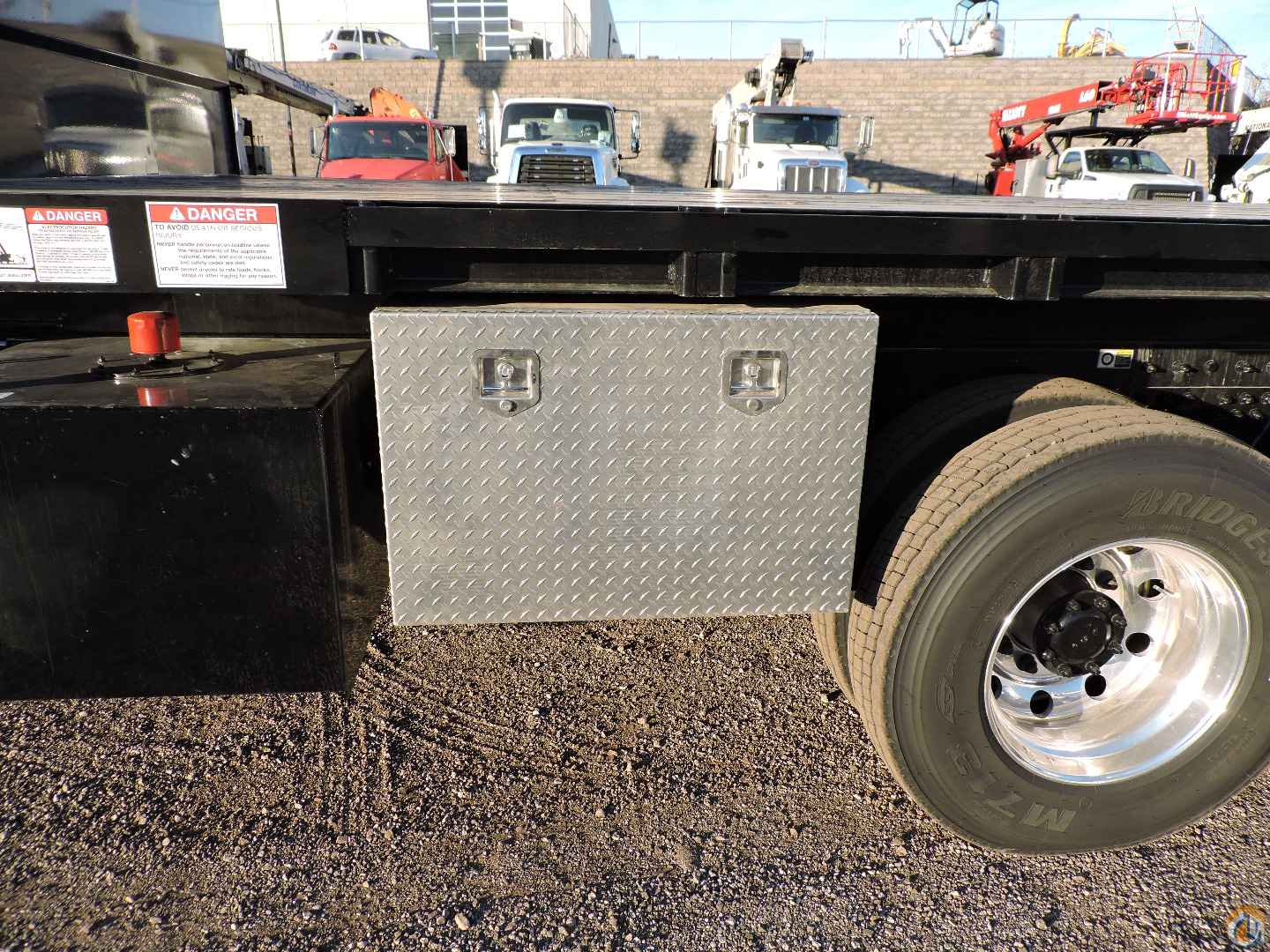

• 36” x 24” x 24” aluminum tool box

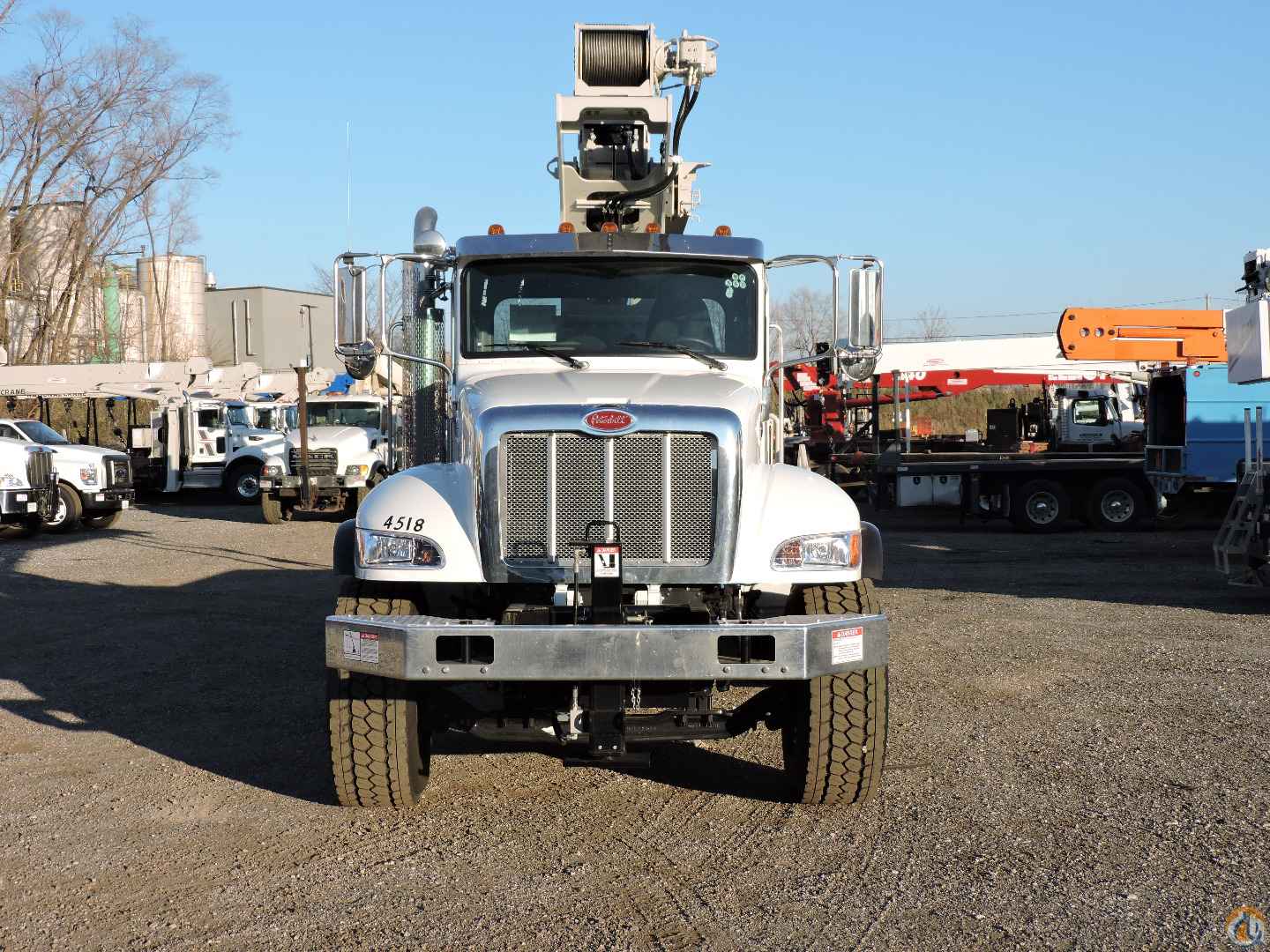

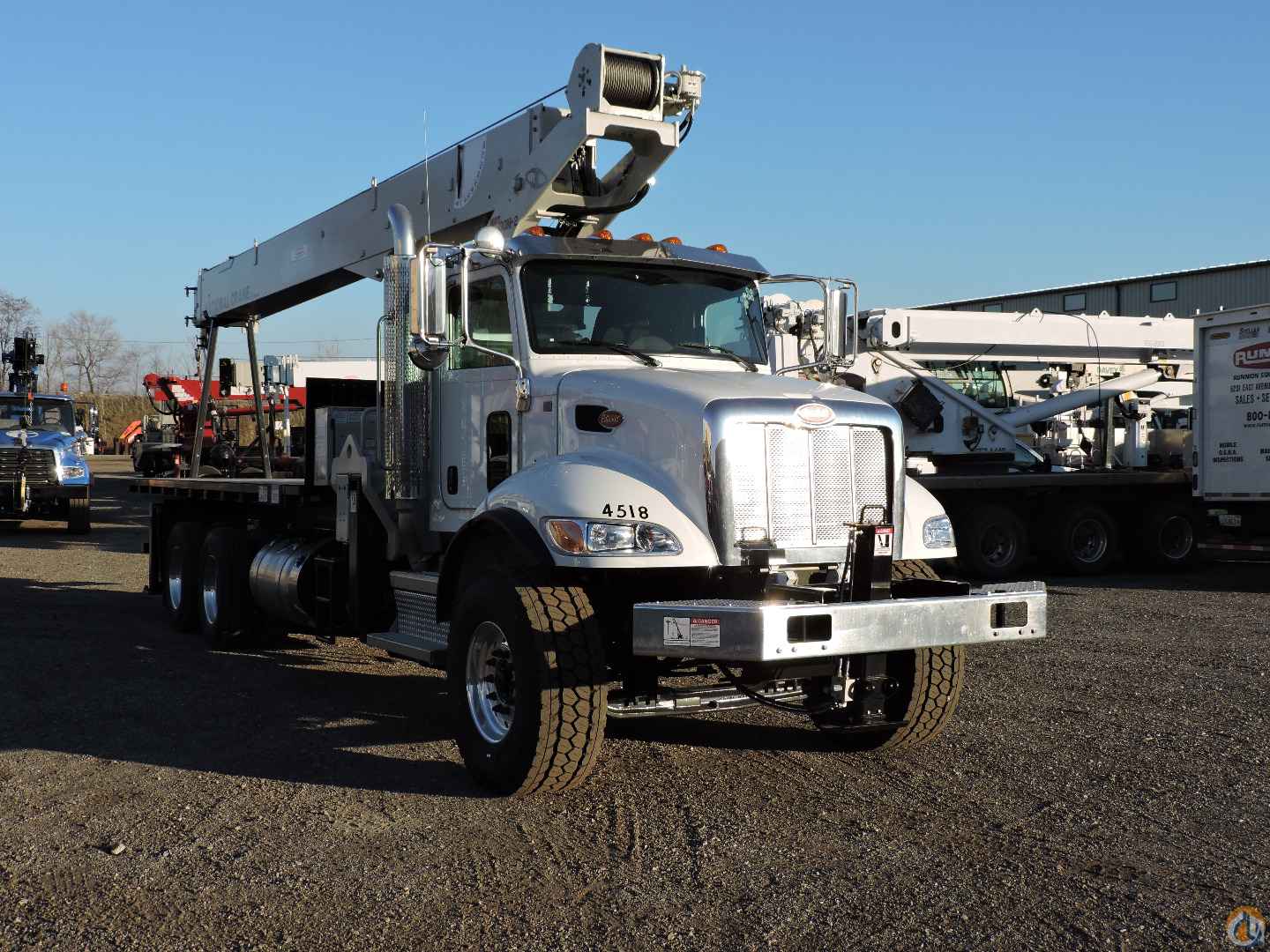

2021 Peterbilt 348

• 60,000# GVW
• Paccar PX-9 engine, 350 hp @ 2000 rpm, 1150 lb/ft @ 1400
• Allison 3000 RDS-P automatic transmission
• Front Axle – 20,000# with Taper Leaf springs
• Rear Axle – 40,000# with Haulmaax HMX400 suspension
• Front tires 425/65R22.5
• Front wheels – 22.5x12.25 Alcoa aluminum with Clean Buff finish
• Rear tires – 11R22.5
• Rear wheels – 22.5x8.25 Alcoa aluminum with Clean Buff finish on
  outside wheels
• Differential locks on both axles
• Aluminum hubs
• Anti-Lock Braking System 4S4M
• Rear axle ratio 4.33
• PACCAR 160 Amp alternator
• Block heater
• PACCAR 12V starter
• Three (3) PACCAR Premium 12V dual purpose batteries 2190 CCA
• 2-Speed fan clutch
• Bendix air dryer with heater
• Pull cord drain valves on all air tanks
• Polished aluminum air tanks for tanks on outside of frames
• Trailer hand valve
• 7-way socket connected to end of frame
• 90-gallon aluminum fuel tank
• 11-gallon DEF tank with polished stainless steel cover

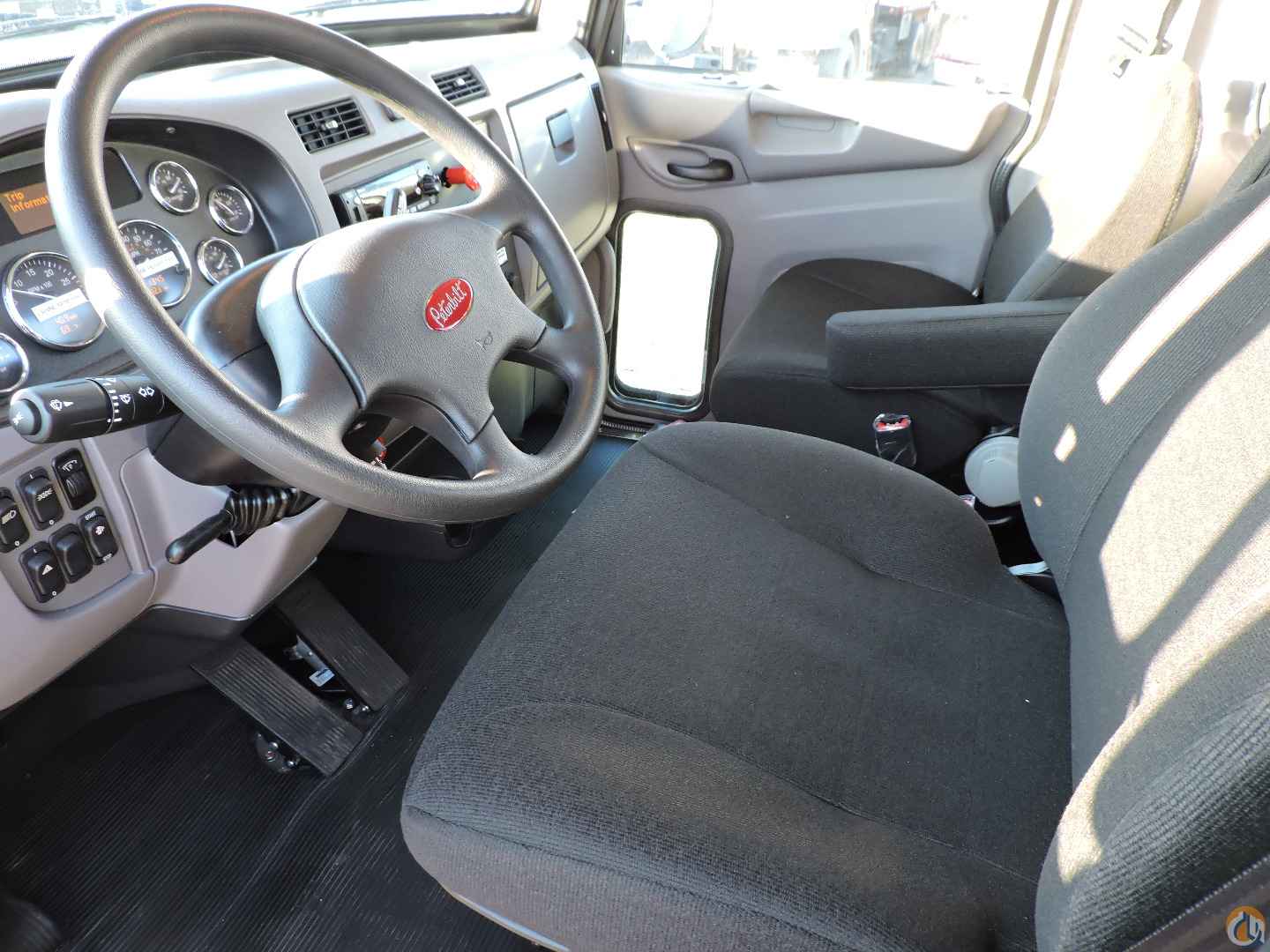

• Driver’s seat – air ride, high back fabric with right armrest
• Passenger’s seat – fixed, low back fabric
• Adjustable steering column – tilt/telescope
• Extended rear window
• Floor mounted cup holder
• Exterior sun visor – stainless steel
• Stainless steel heated mirrors
• 8” convex mirrors
• Power windows and doors
• Air horn – 24.5” chrome

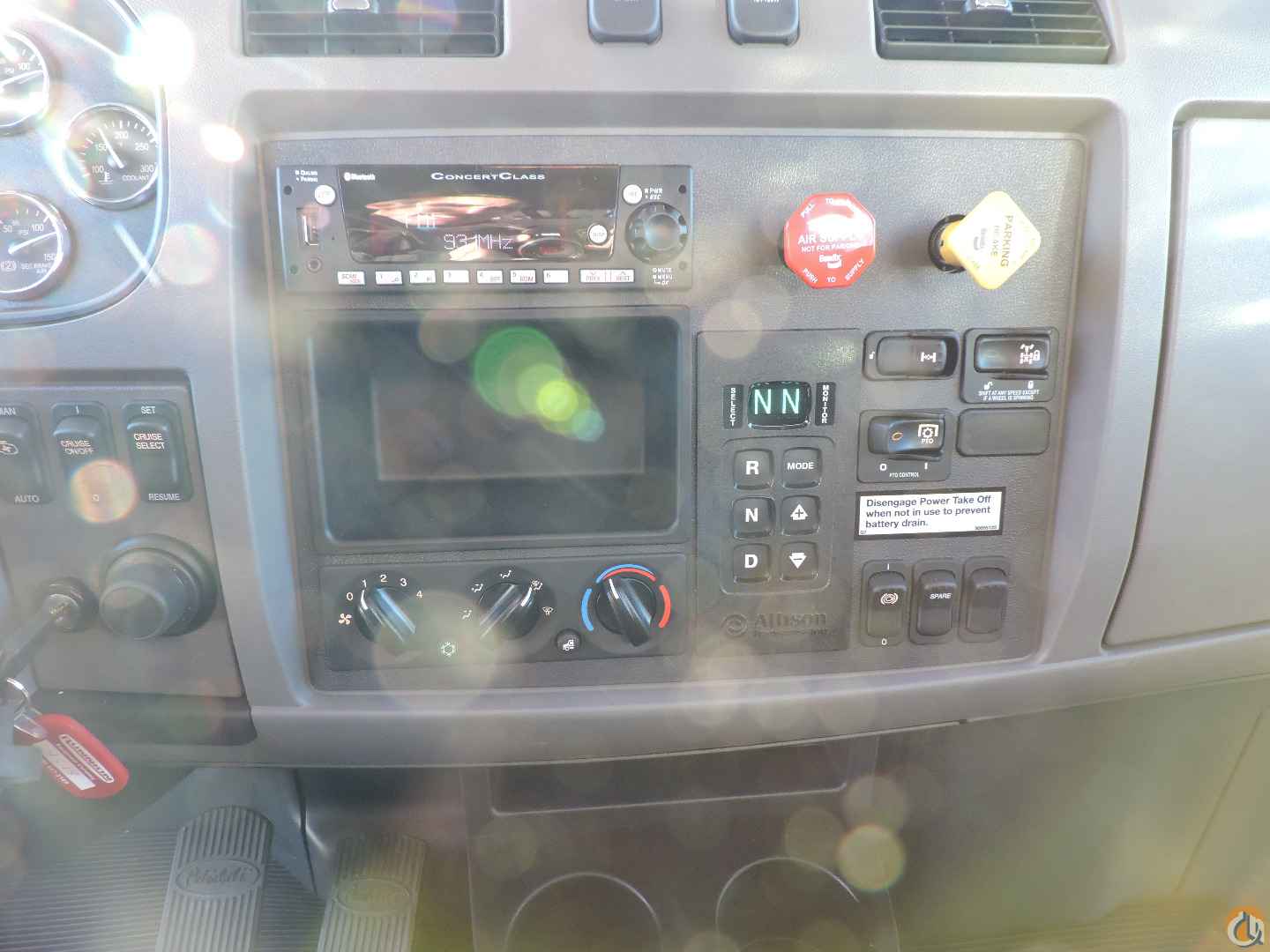

• ConcertClass Stereo – AM/FM, WB, USB, MP3, Bluetooth phone
• Cab air suspension
• Back up alarm
• Painted white
