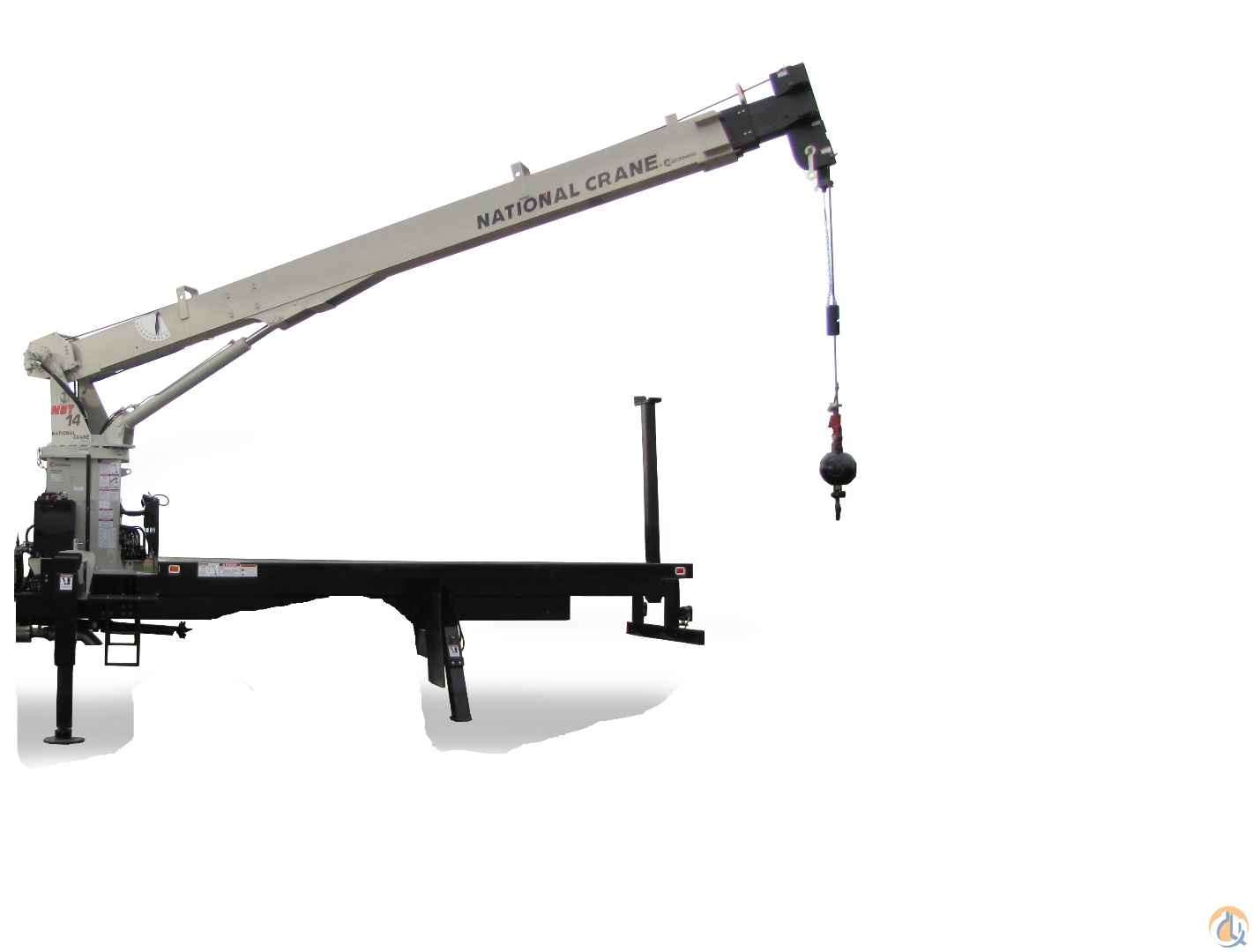

National Crane NBT16, Unmounted, Radio Remotes
- Unmounted 16T capacity crane
- 24-60’ three-section boom
- 180 degree stable unit
- Radio remote control
- Hydraulic capacity alert system – maximum capacity sensing device that monitors lift cylinder pressure and displays boom length and angle
- 410o non-continuous rotation with adjustable swing drive
- Hydraulic system – closed center with high pressure pump
- 25 gal (91.6 L) oil tank
- Burst of speed planetary winch with 10,380# of bare drum pull
- 220’ of 9/16” rotation resistant wire rope
- Single line pull 7,700#
- Round headache ball with top swivel – 7 ton (6.35 mt) capacity
- Front out-and-down outriggers with swivel pads
- Outriggers full span 18’ and 13’ mid-span with manual lock pins
- Capacity charts provided for full, mid and fully retracted spans ASH rear stabilizers with 10’ span
- Anti-two block with internal wiring
