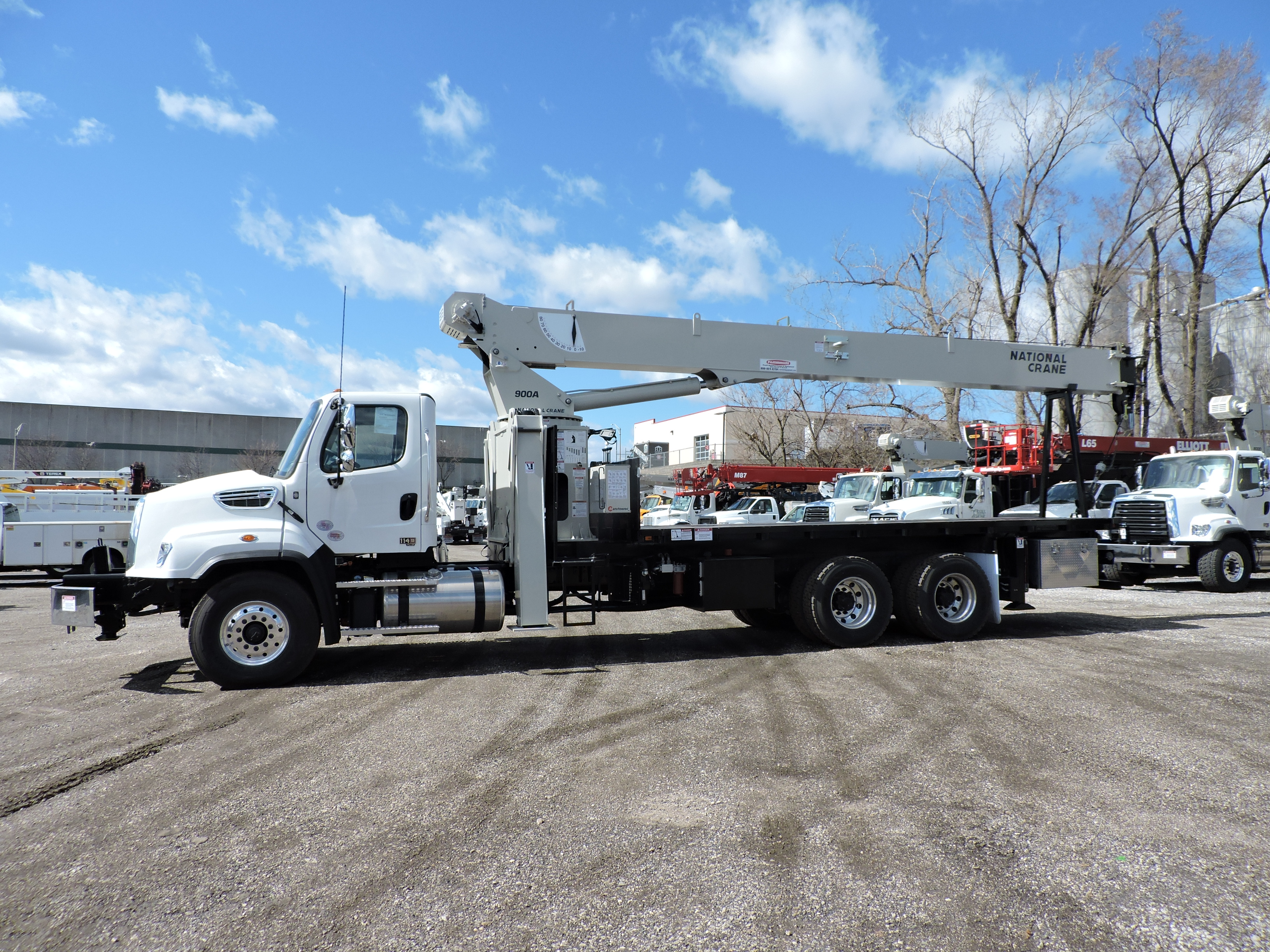

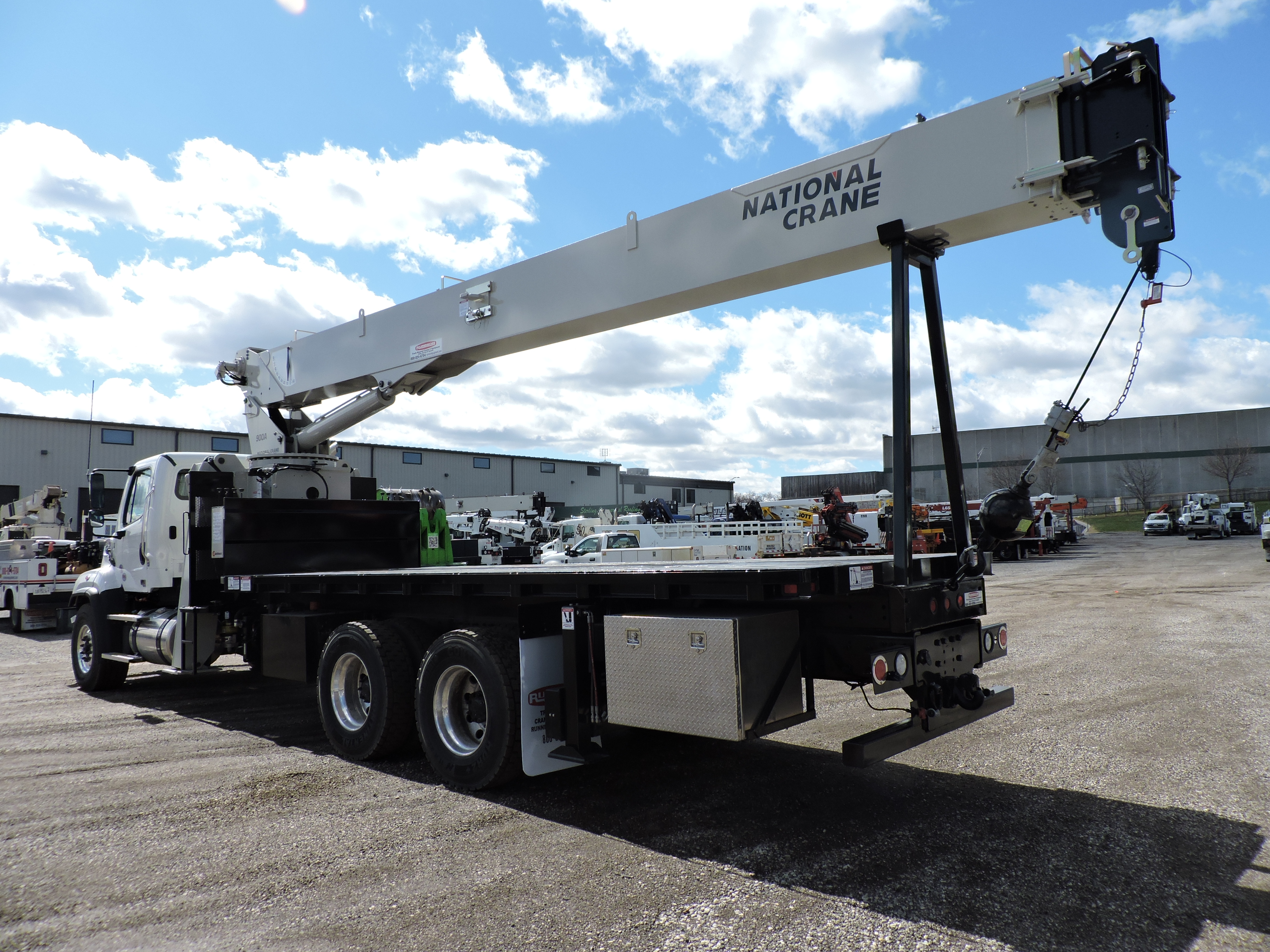

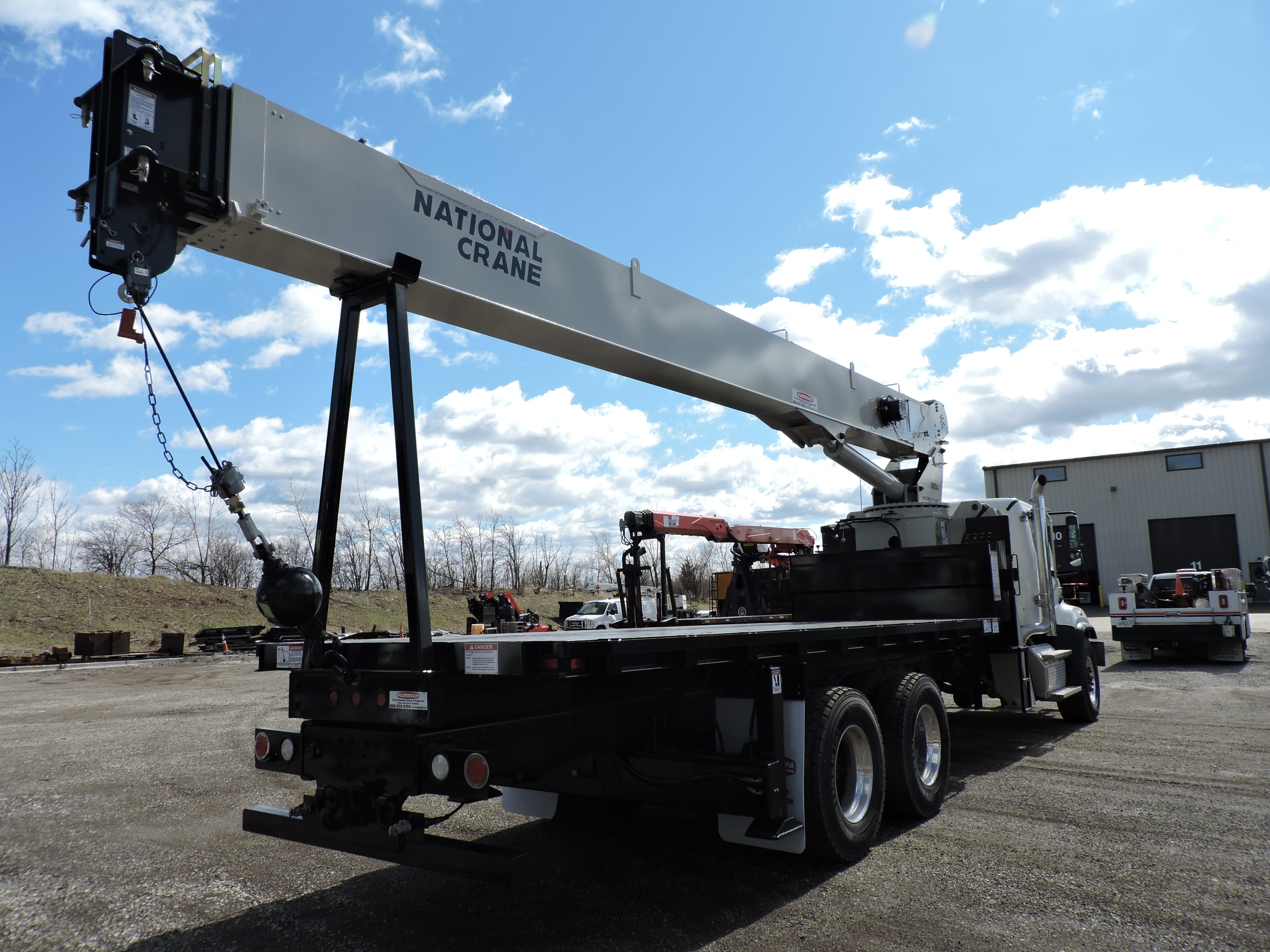

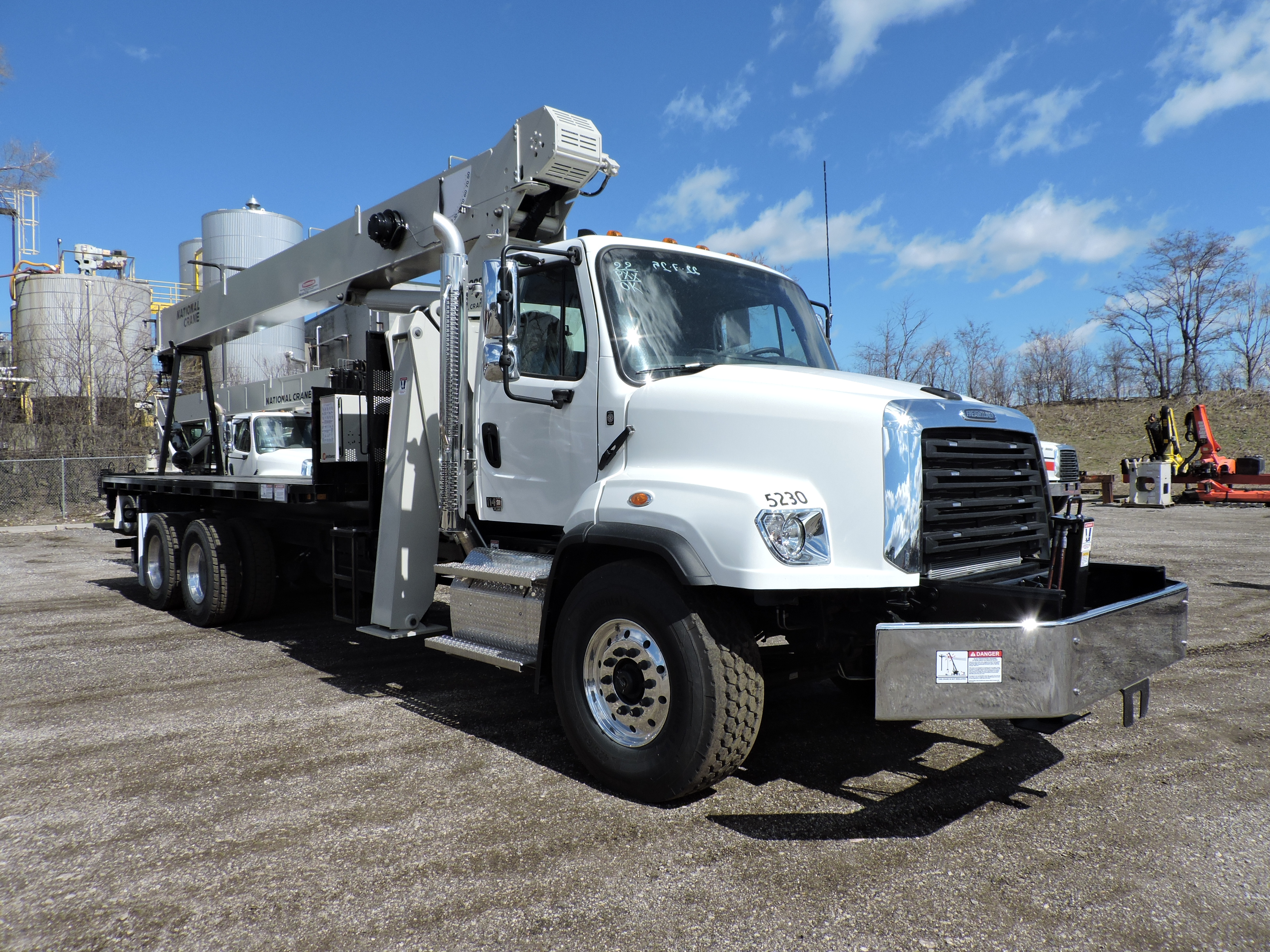

National Crane Model 9103A equipped as follows:

-          26-Ton capacity

-          31’ to 103’ four (4) section hydraulic telescopic boom, 113’ sheave height

-          Prepped for future jib

-          “A” type box slide outriggers

-          Out and down rear hydraulic stabilizers - 16’ span

-          Outrigger motion alarm

-          Single front outrigger for 360° stability

-          Anti-two block safety device; shuts off telescope out and winch up controls and does not allow hook to be pulled into sheave case includes keyed override.

-          Anti-two block reel and cable run inside boom

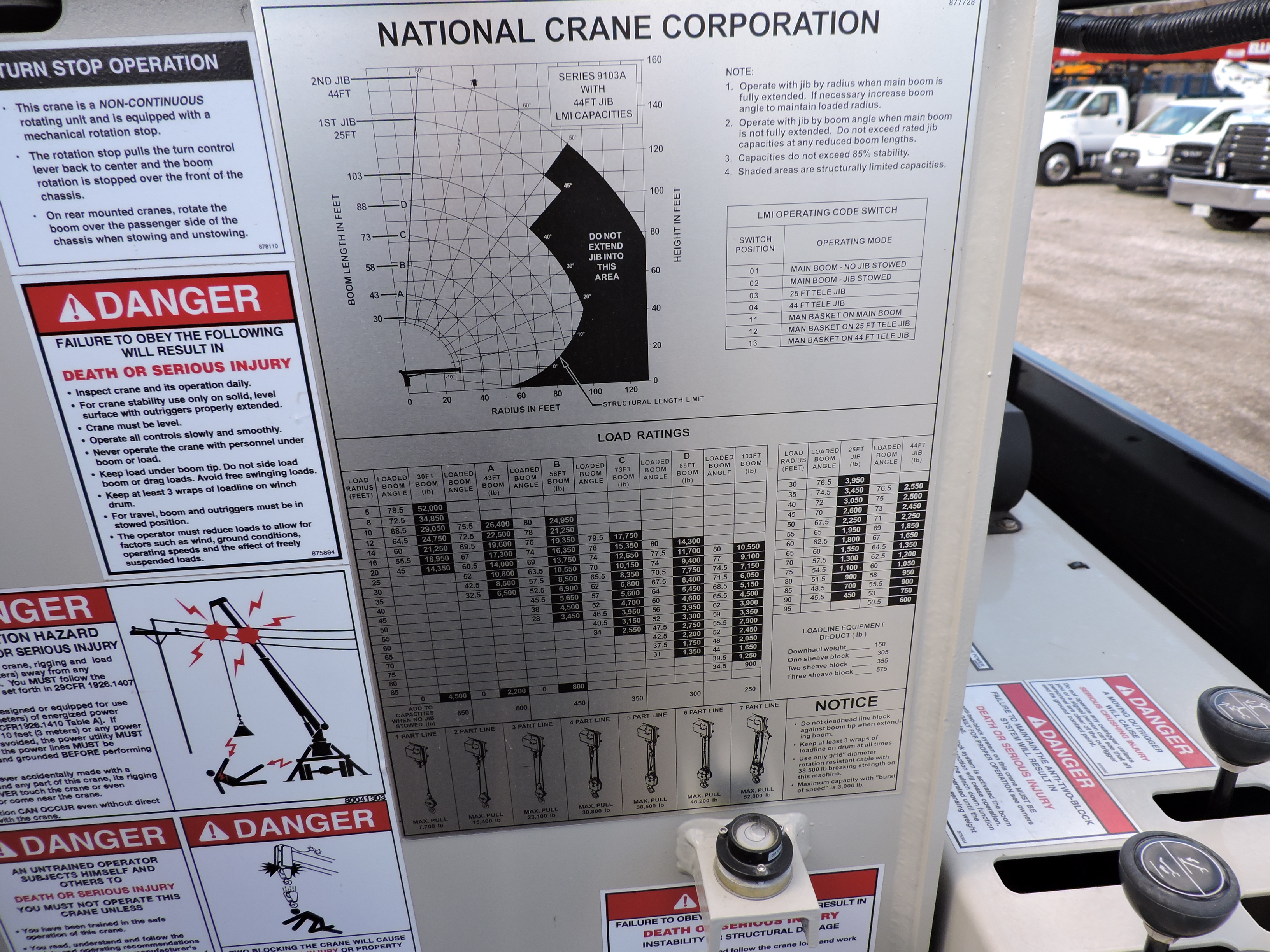

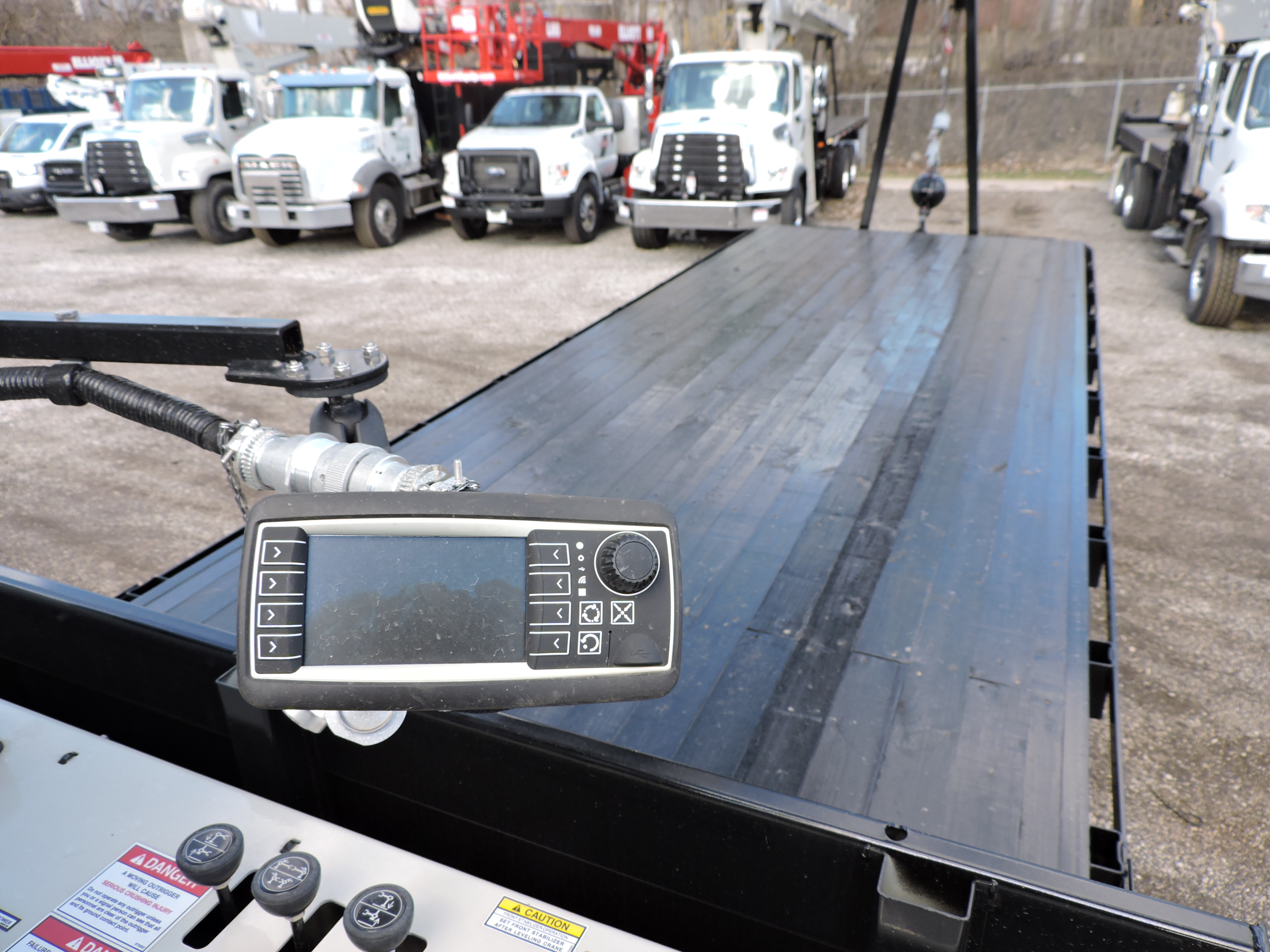

-          Rated Capacity Limiter offers a console display of boom length and angle, load on the hook and available load capacity that can be lifted, when capacity is reached red warning light and horn are activated and RCL halts crane movement to prevent overload. A key override is provided for systems operation in the event of emergency boom position

-          Hi-performance planetary winch with 9/16” spin resistant wire rope, round style headache ball weight with top swivel, hook, and safety latch

-          Burst-O-Speed winch with 135 fpm and 206 fpm line speed

-          Dual side controls with operator platforms, foot throttles, horn and kill switches. Operator platform 40” above ground for maximum visibility

-          375° non-continuous rotation

-          Adjustable swing speed control

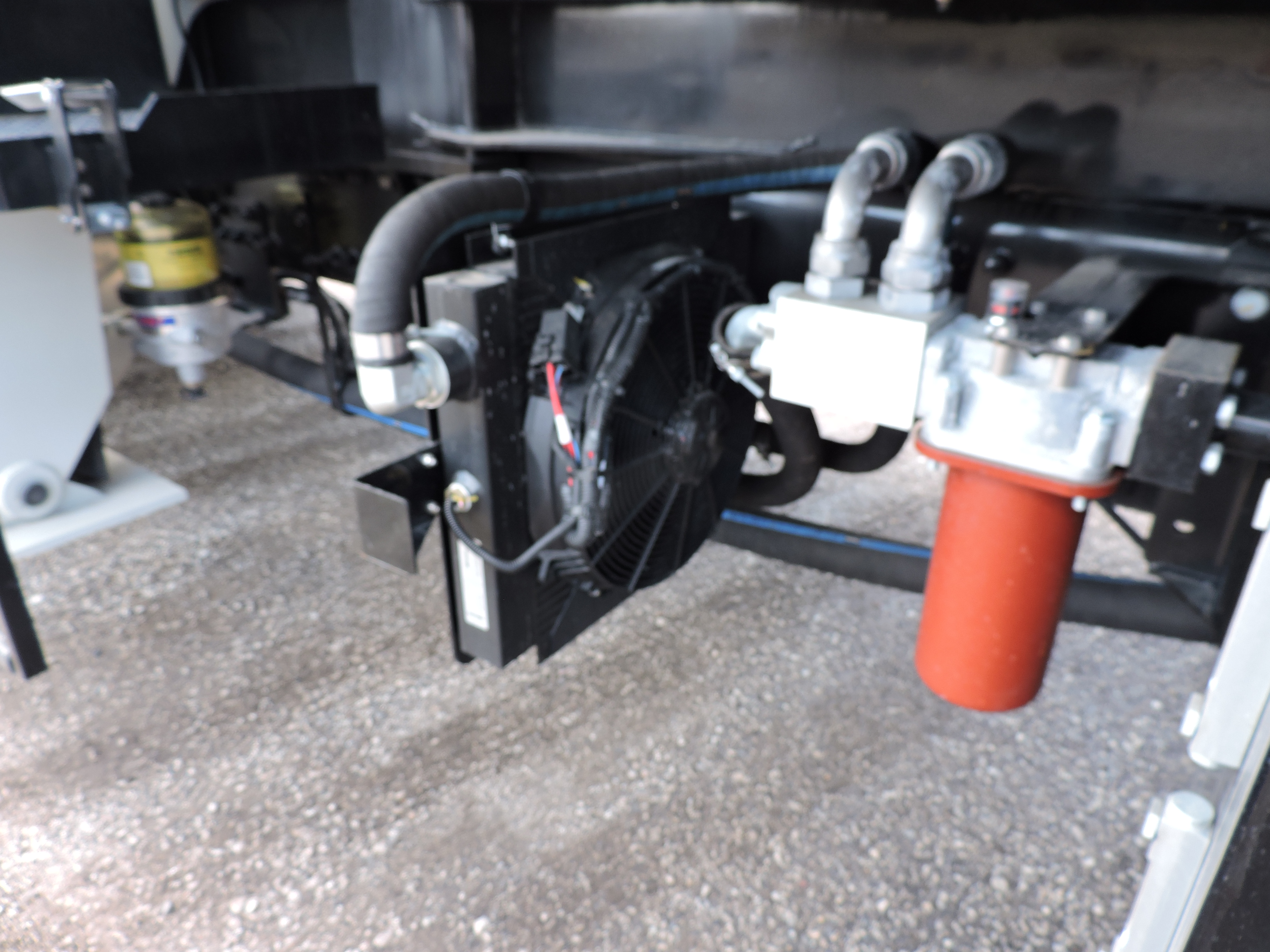

-          Heavy duty hydraulic system with triple pump, provides three (3) separate hydraulic circuits for independent operation of winch, swing, and crane functions

-          66-gallon hydraulic tank with return oil diffuser and sight gauge

-          Hydraulic tank suction shut-off valve

-          22’ super-duty wood deck with steel bulkhead

-          Back up alarm

-          Hour meter

-          One removable boom rest

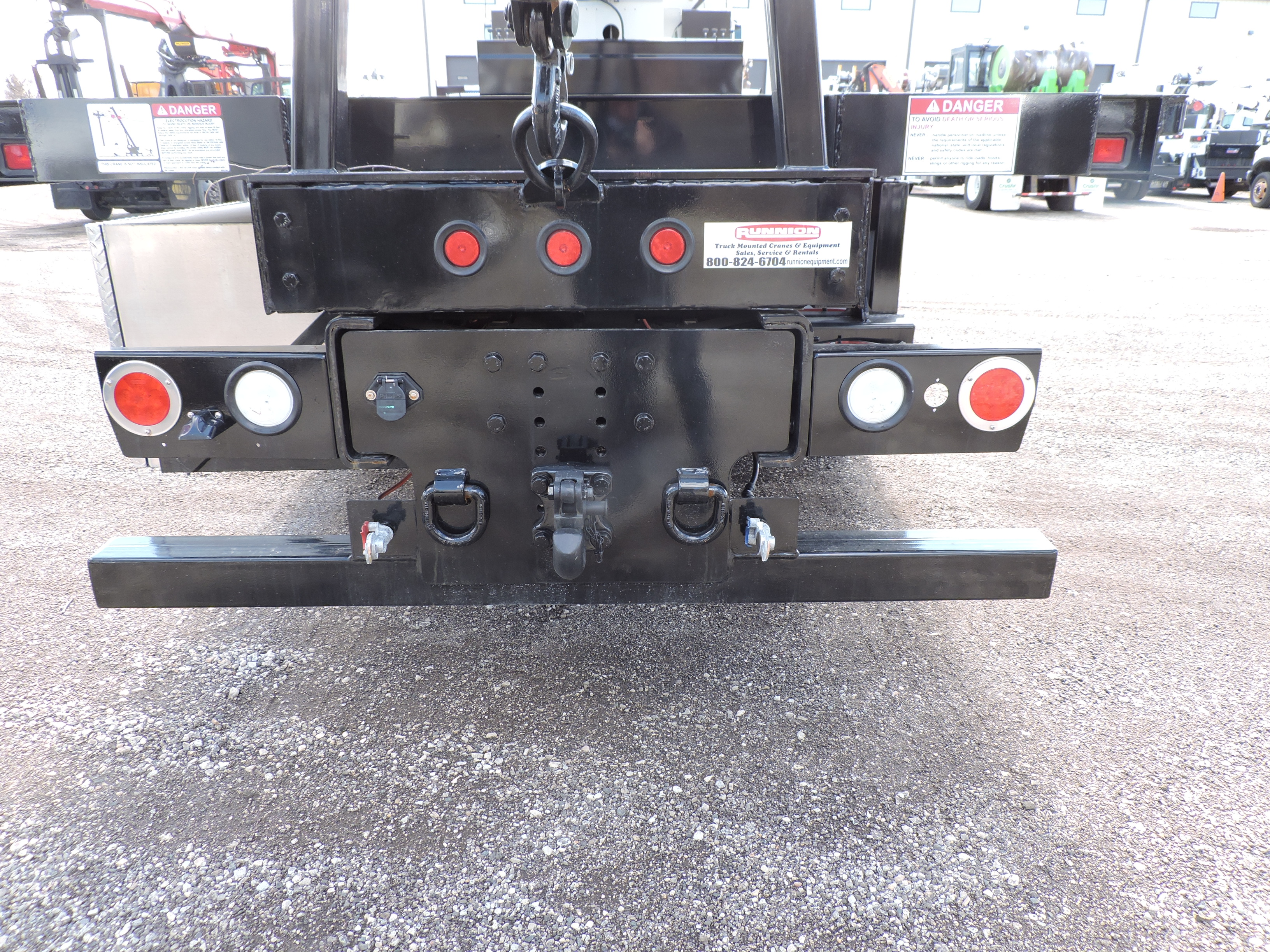

-          Rear bumper underride protection

-          Painted “National Platinum”

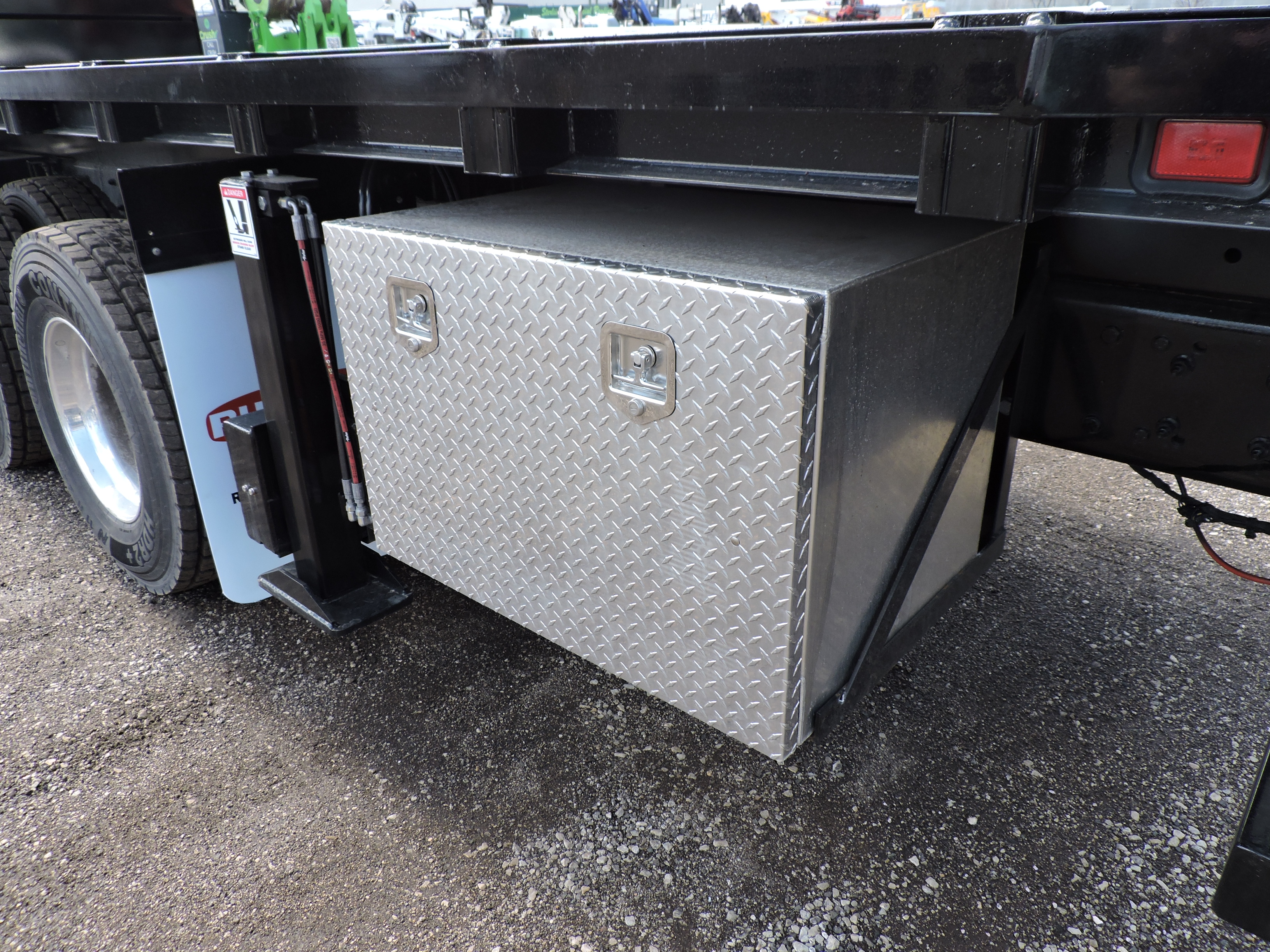

-          36” x 24” x 24” aluminum tool box



MOUNTED ON:

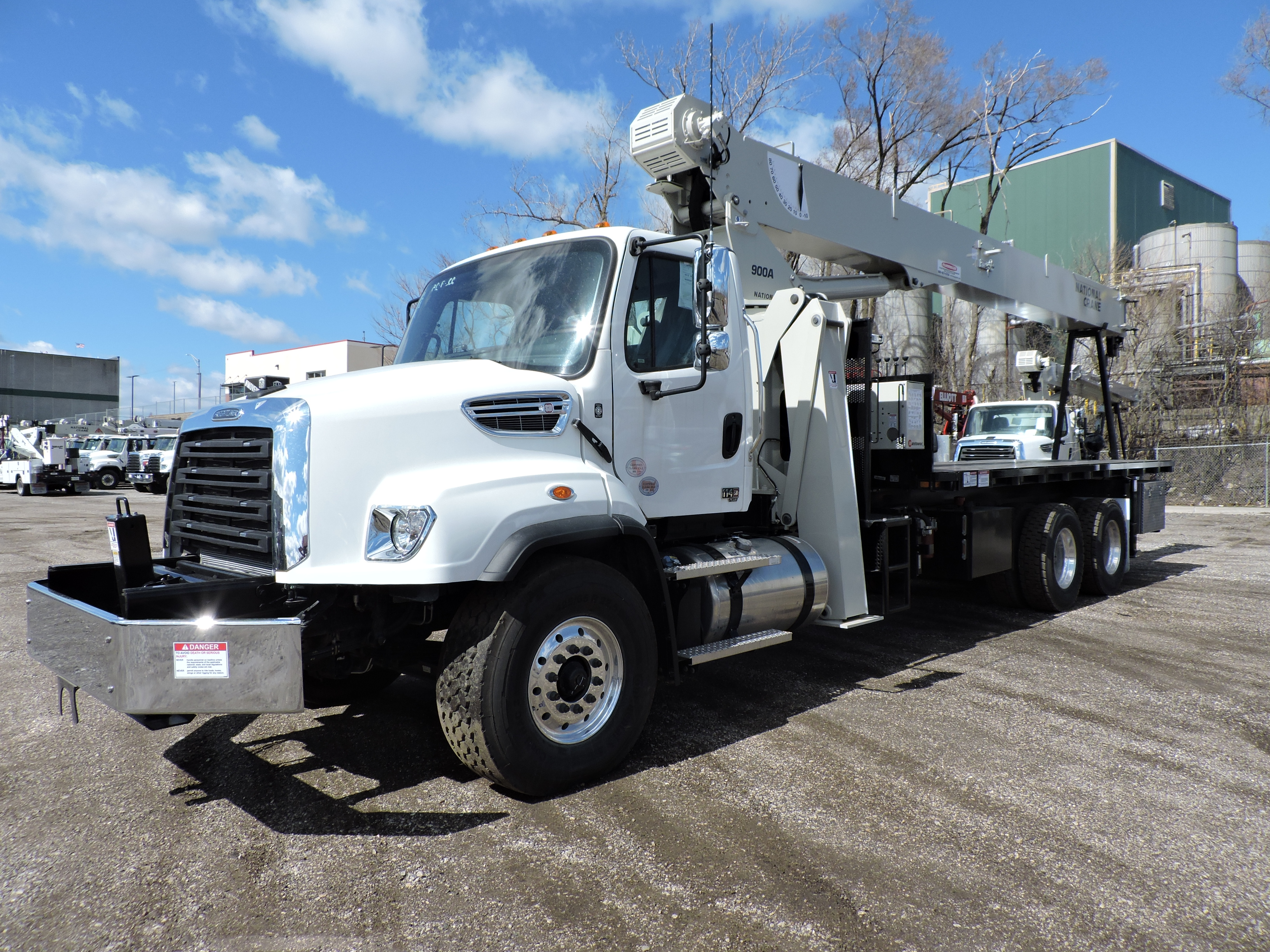

2026 Freightliner 114SD+ equipped as follows:

-          Detroit DD13 - 450 HP @ 1625 RPM, 1550 lb/ft @ 975 RPM

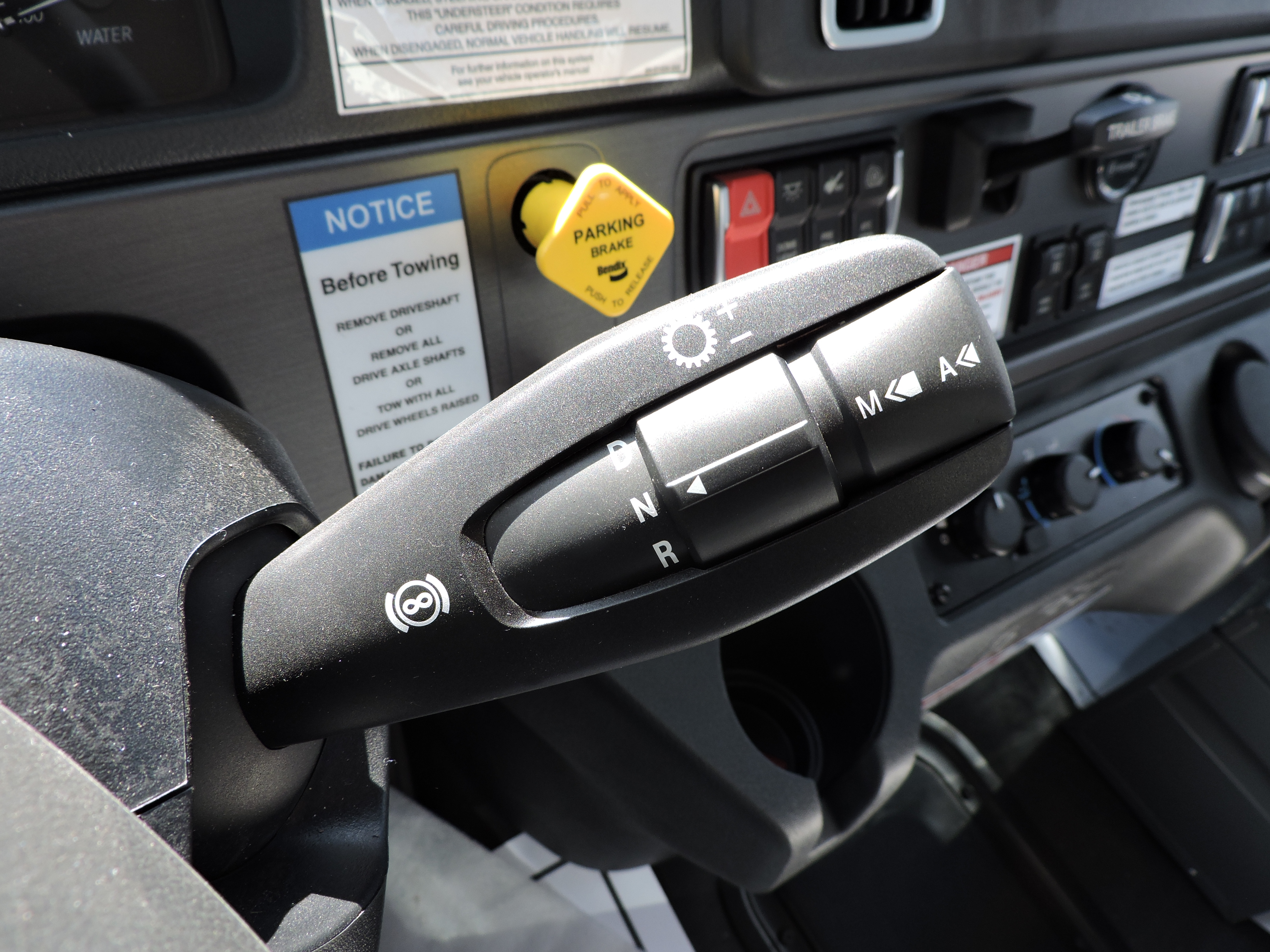

-          DT12-1550-OV vocational 12-speed overdrive automated manual transmission

-          Front axle - 20,000 lbs with Taperleaf suspension

-          Front tires - 425/65R22.5

-          Front wheels - aluminum, 22.5 x 12.25

-          Tandem rear axle - 46,000 lbs with Hendrickson Haulmaax suspension

-          Rear tires 11R22.5

-          Rear wheels – aluminum, 22.5 x 8.25

-          Dual locking differential

-          7-way primary trailer cable receptacle

-          Dual West Coast Heated Mirrors – LH and RH remote

-          8” convex mirrors under primary mirrors

-          Chromed steel bumper

-          Front tow hooks

-          Air cab

-          Air dryer with heater

-          High back, air ride driver’s seat - black Cordura

-          High back, fixed, passengers’ seat - black Cordura

-          100 gallon fuel tank

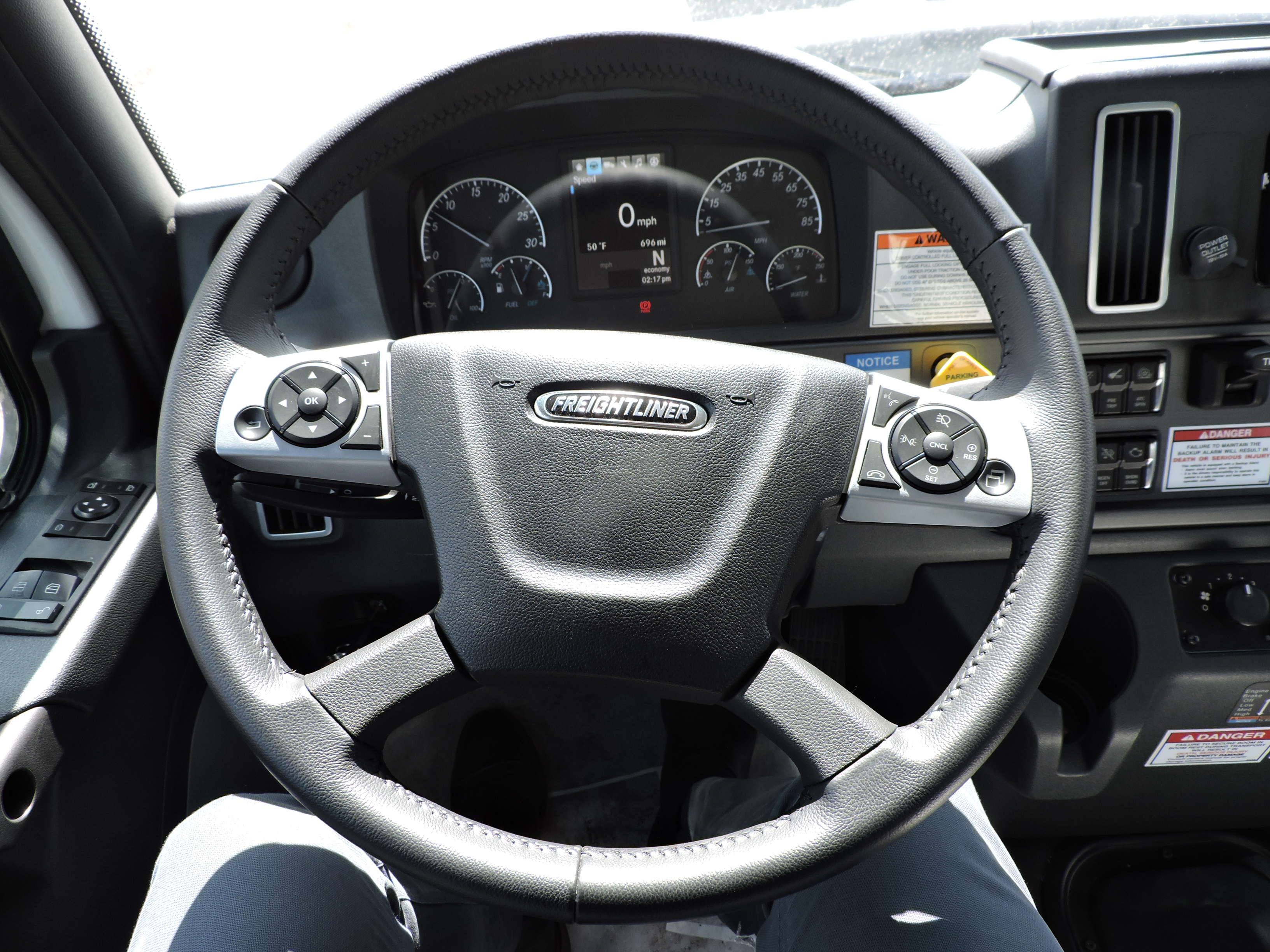

-          Adjustable tilt and telescopic steering wheel

-          Driver and passenger interior sun visors

-          Power windows and doors

-          Heater, defroster, and A/C

-          Cruise control

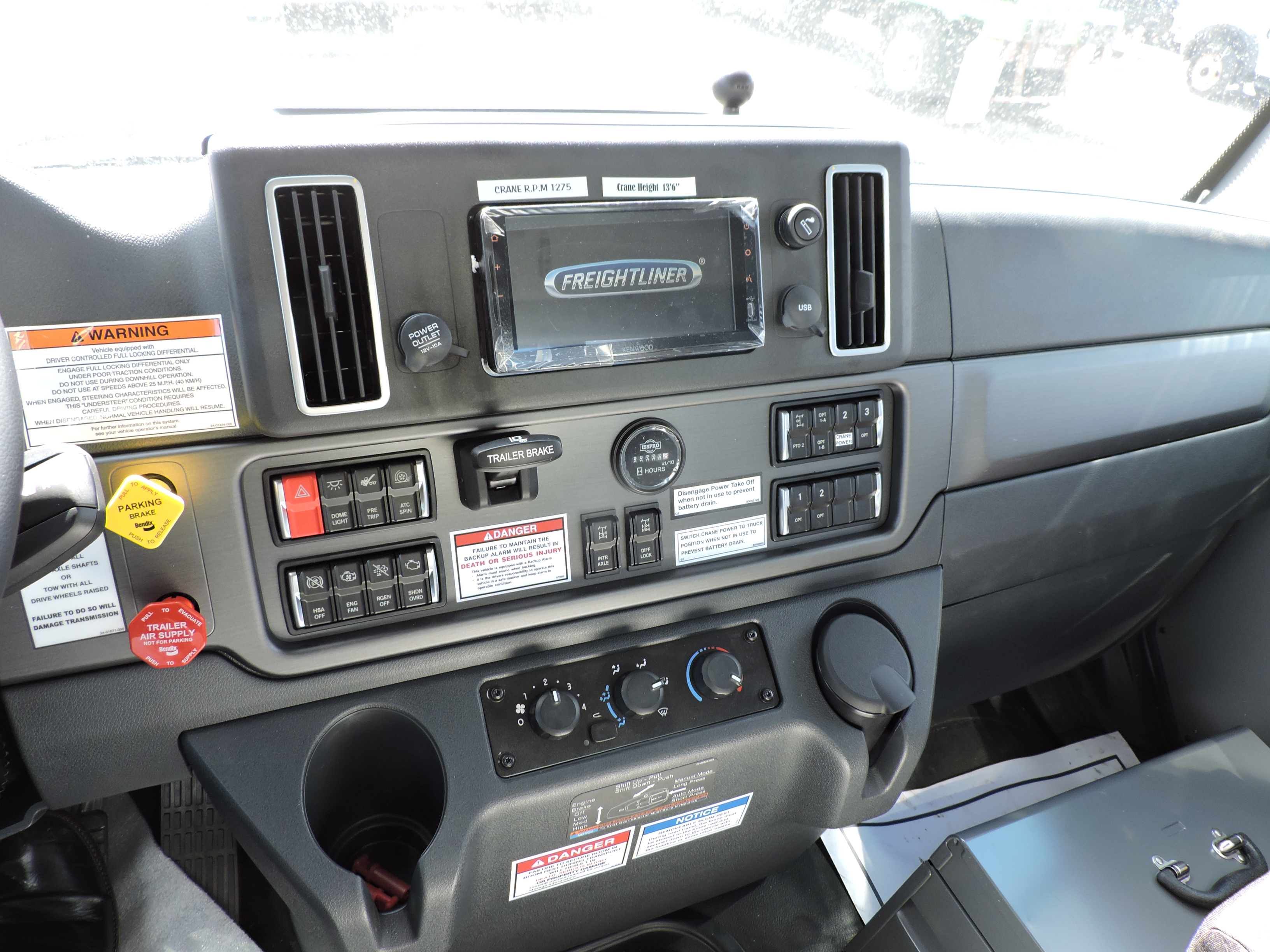

-          AM/FM/WB Radio with Bluetooth, and USB

-          Painted white
