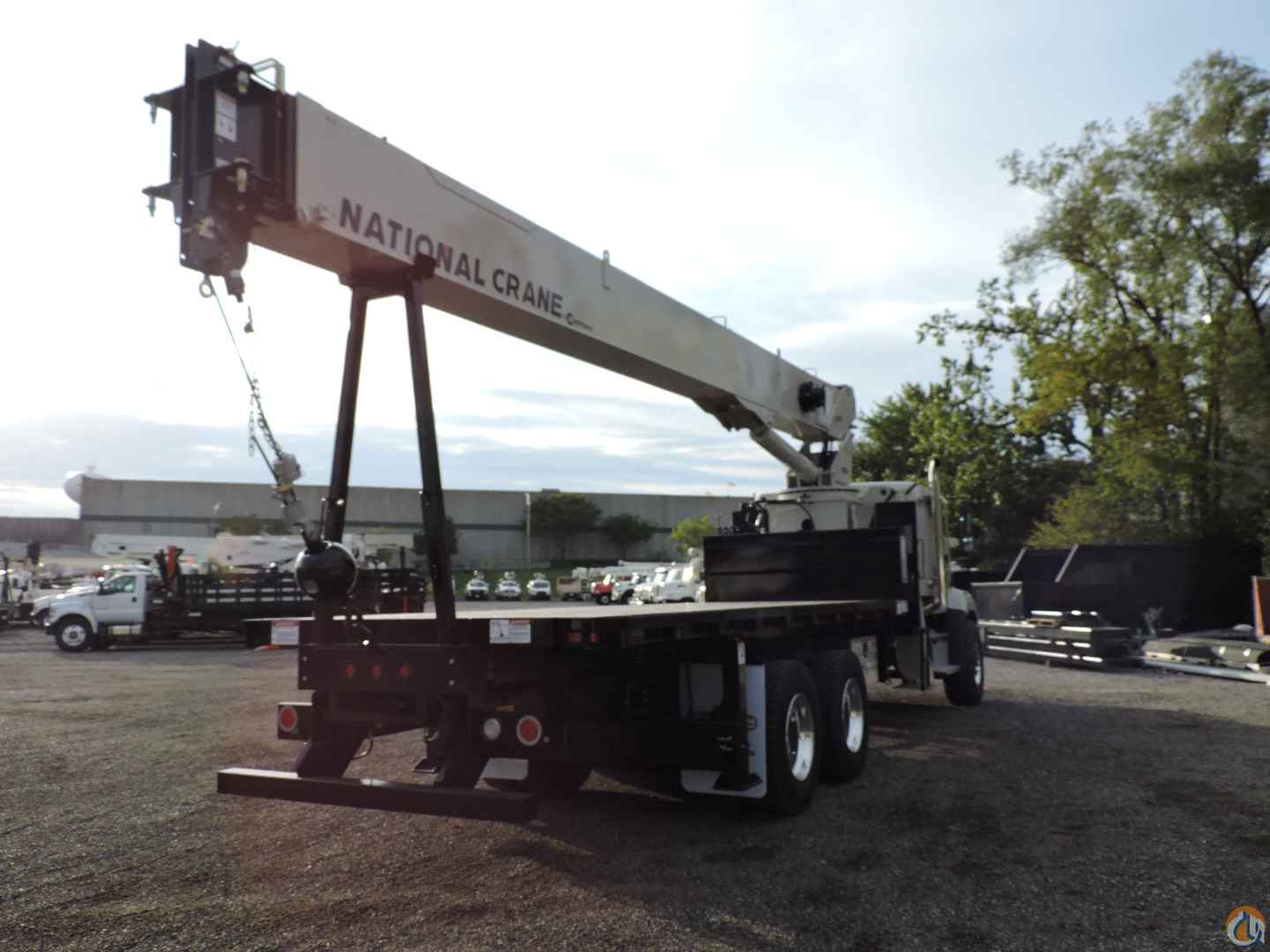

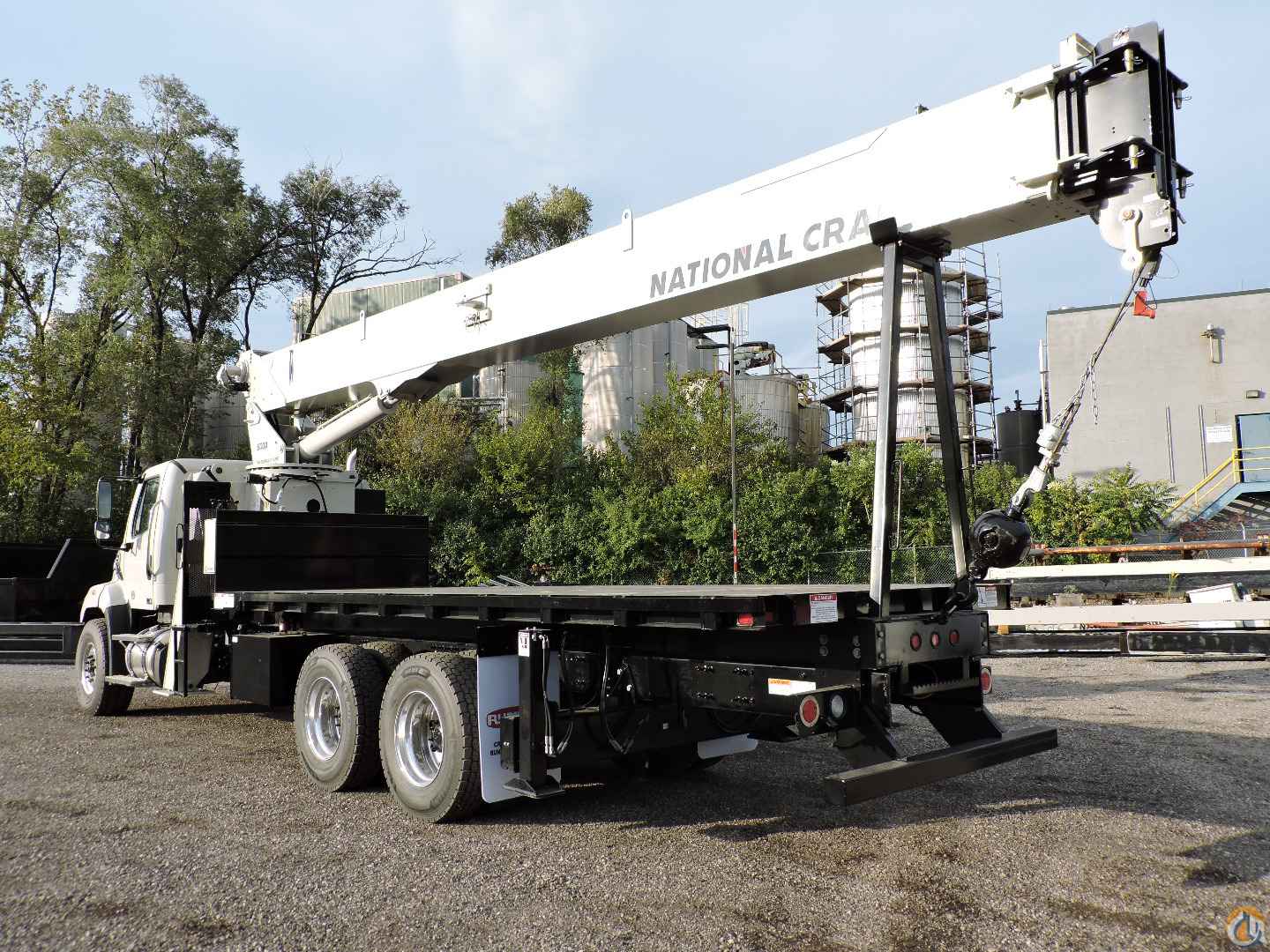

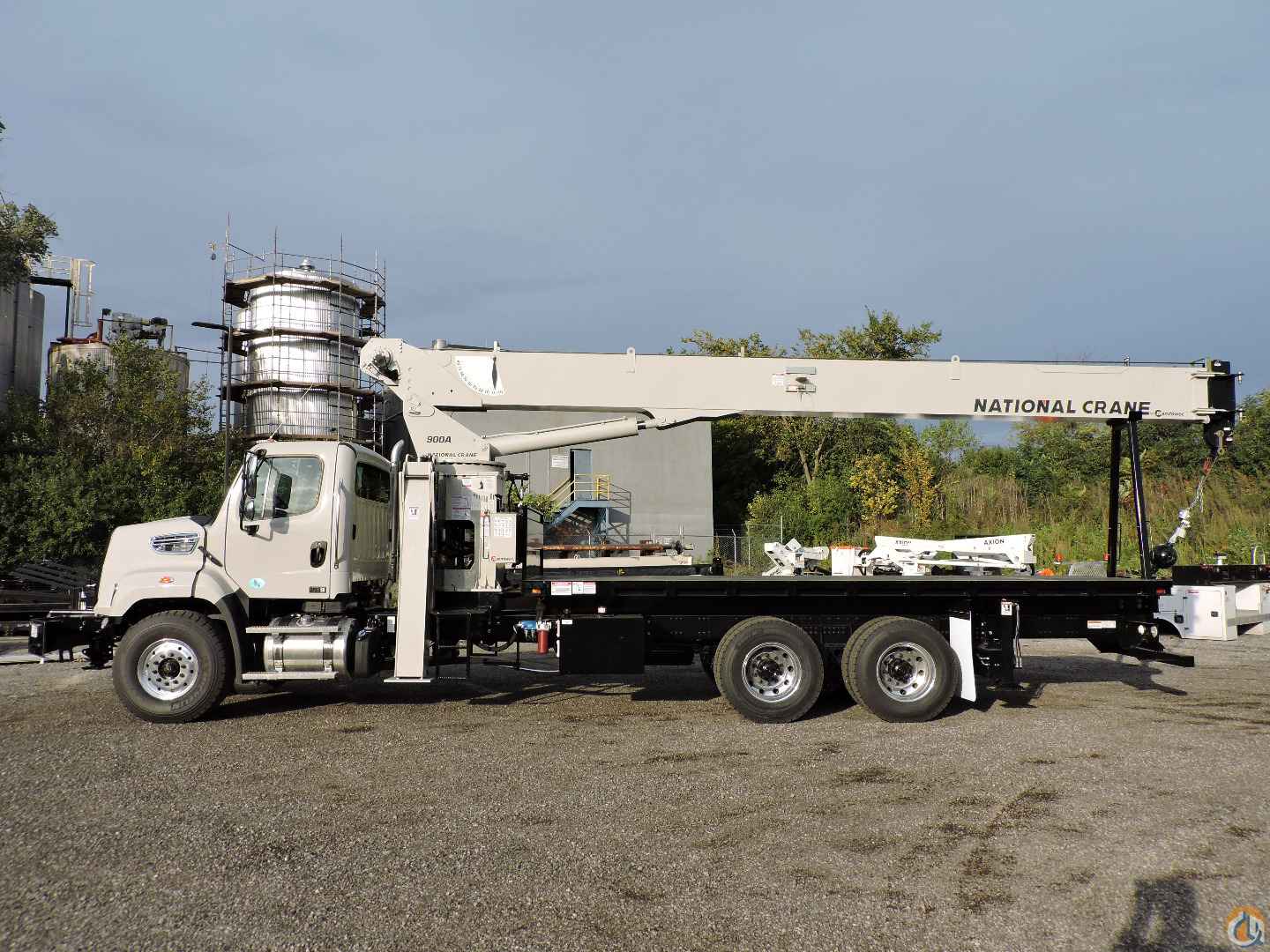

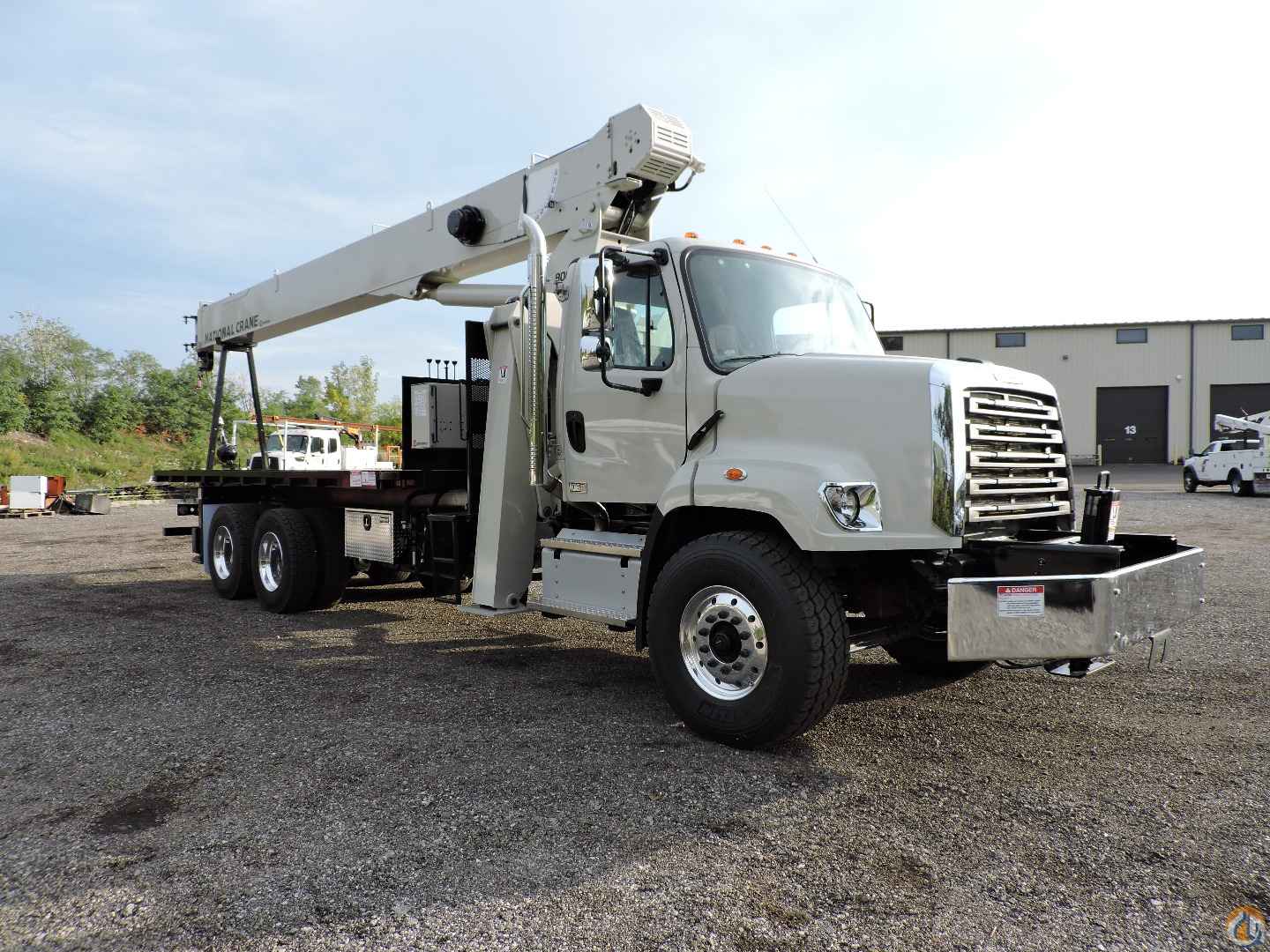

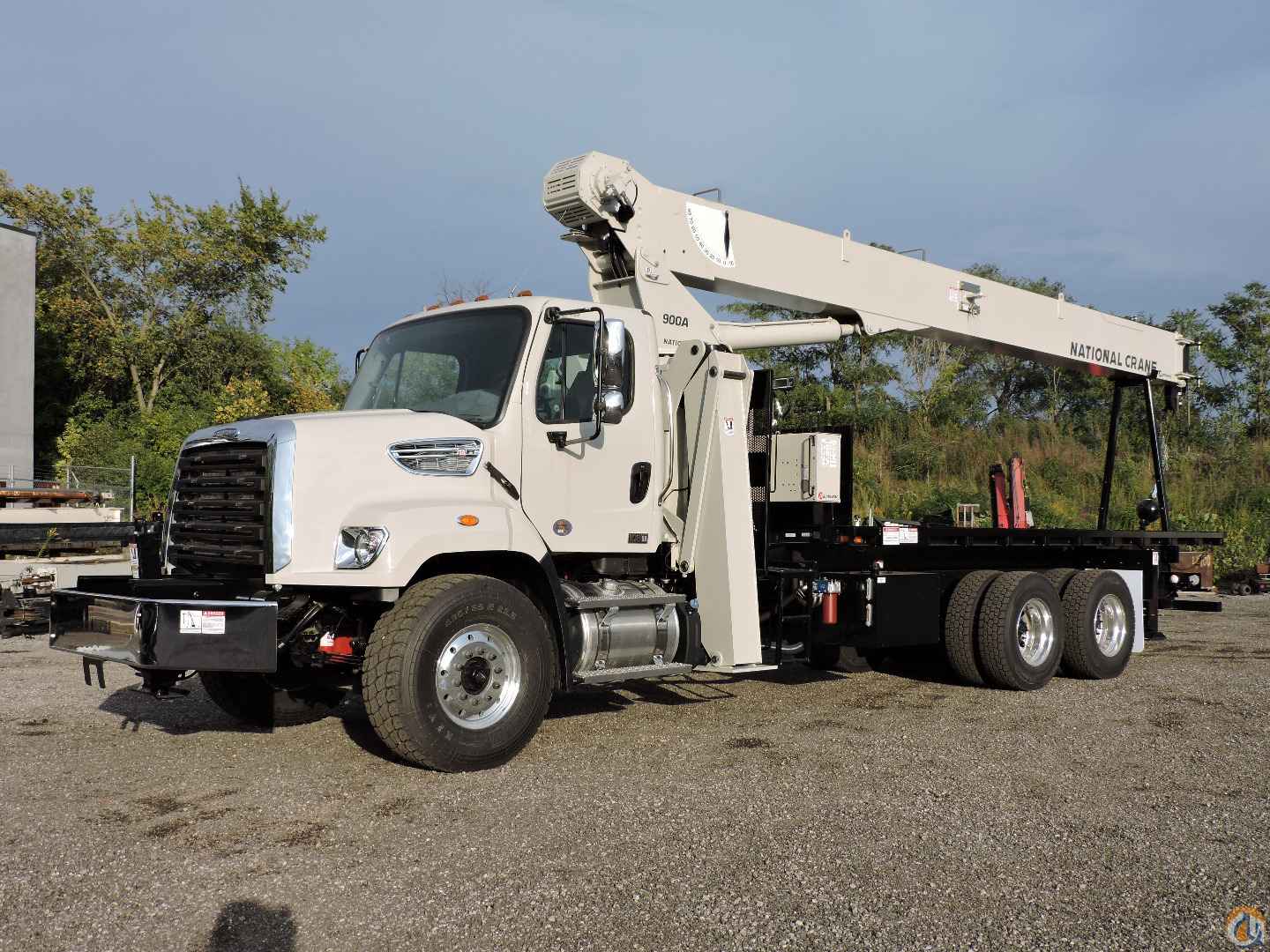

2024 National 9103A Boom Truck Crane for Rent

National Crane 9103A equipped as follows:

- 26-Ton capacity

- 31’ to 103’ four (4) section hydraulic telescopic boom - 113’ sheave height

- Prepped for future jib

- “A” type box slide outriggers – 21’ span

- Out and down rear hydraulic stabilizers - 16’ span

- Outrigger motion alarm

- Single front outrigger for 360° stability

- Anti-two block safety device; shuts off telescope out and winch up controls and does not allow hook to be pulled into sheave case includes keyed override

- Anti-two block reel and cable run inside boom

- Rated Capacity Limiter offers a console display of boom length and angle, load on the hook and available load capacity that can be lifted, when capacity is reached red warning light and horn are activated and RCL halts crane movement to prevent overload. A key override is provided for systems operation in the event of emergency boom position

- Hi-performance planetary winch with 9/16” spin resistant wire rope, round style headache ball weight with top swivel, hook and safety latch

- Burst of Speed winch with 135 fpm and 206 fpm line speed

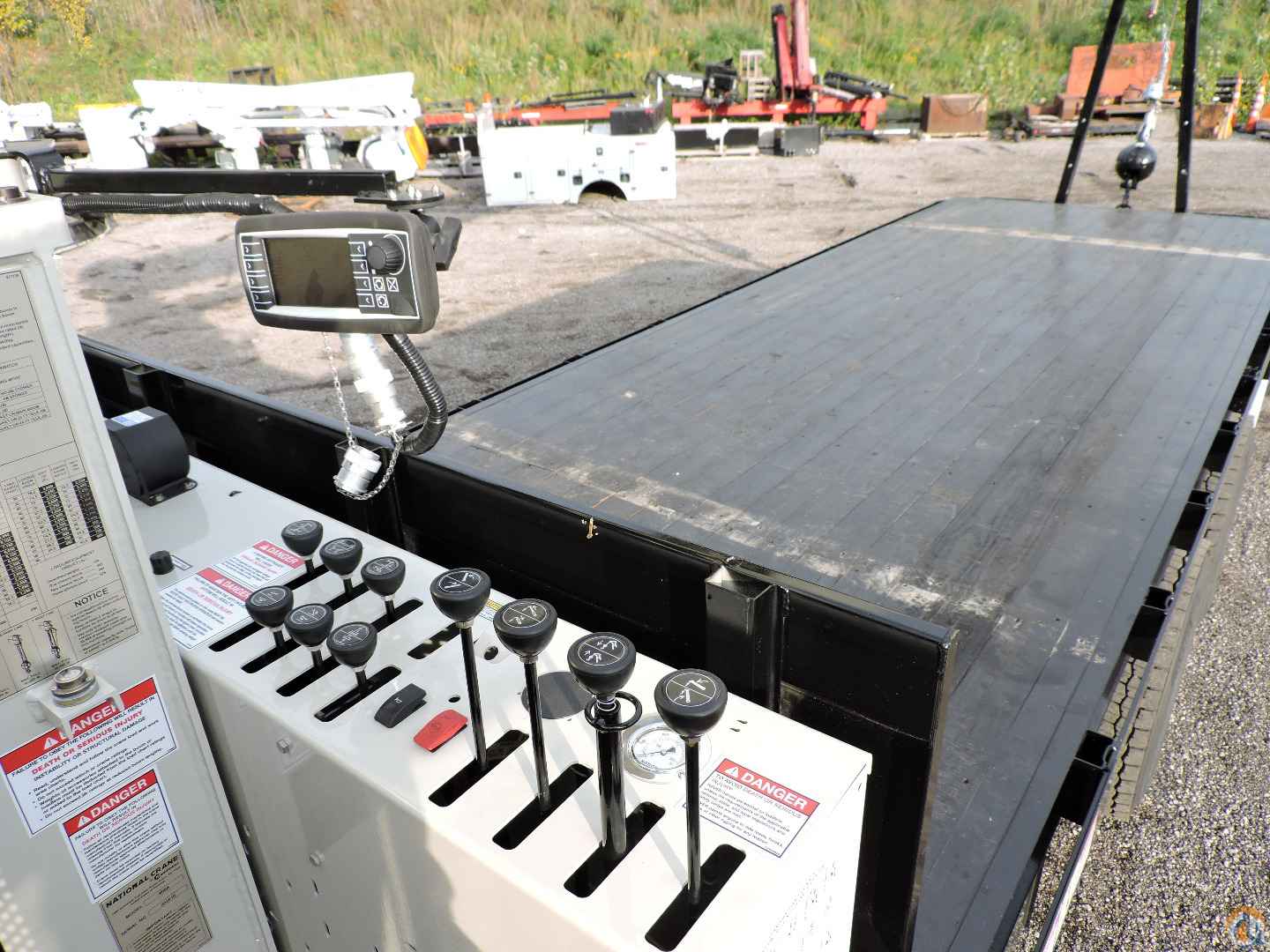

- Dual side controls with operator platforms, foot throttles, horn and kill switches

- Operator platform 40” above ground for maximum visibility

- 375° non-continuous rotation

- Adjustable swing speed control

- Heavy duty hydraulic system with triple pump, provides three (3) separate hydraulic circuits for independent operation of winch, swing and crane functions

- 22’ torsion resisting sub-base

- Air shift PTO

- 66-gallon hydraulic tank with return oil diffuser and sight gauge

- Hydraulic tank suction shut-off valve

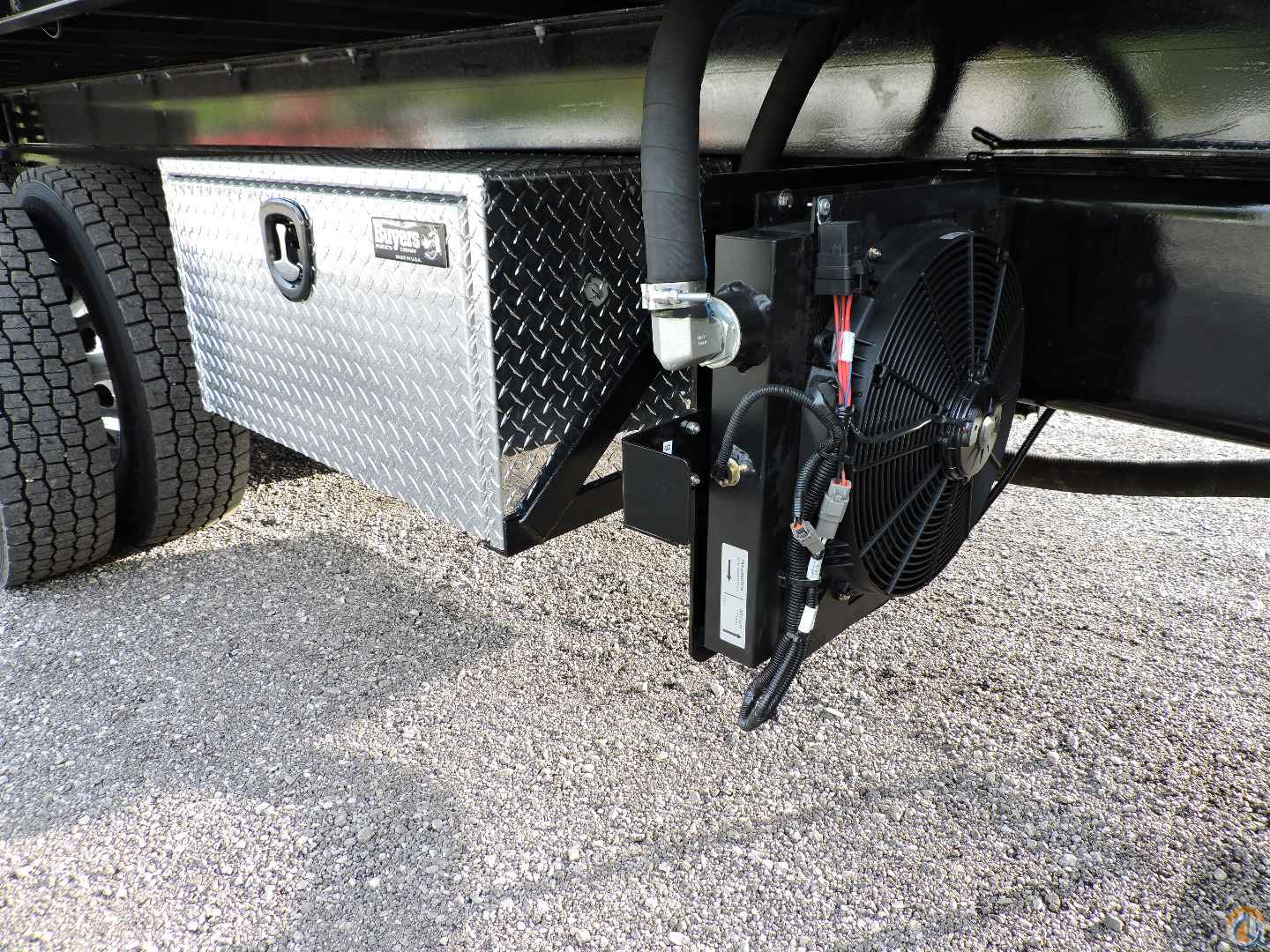

- Single fan oil cooler

- 22’ Super-Duty wood deck with steel 30” bulkhead

- Back up alarm

- Hour meter

- One removable boom rest

- Rear bumper underride protection

- 36”x24”x24” aluminum diamond plate toolbox

- Painted “National Platinum”

MOUNTED ON:

2024 Freightliner 108SD equipped as follows:

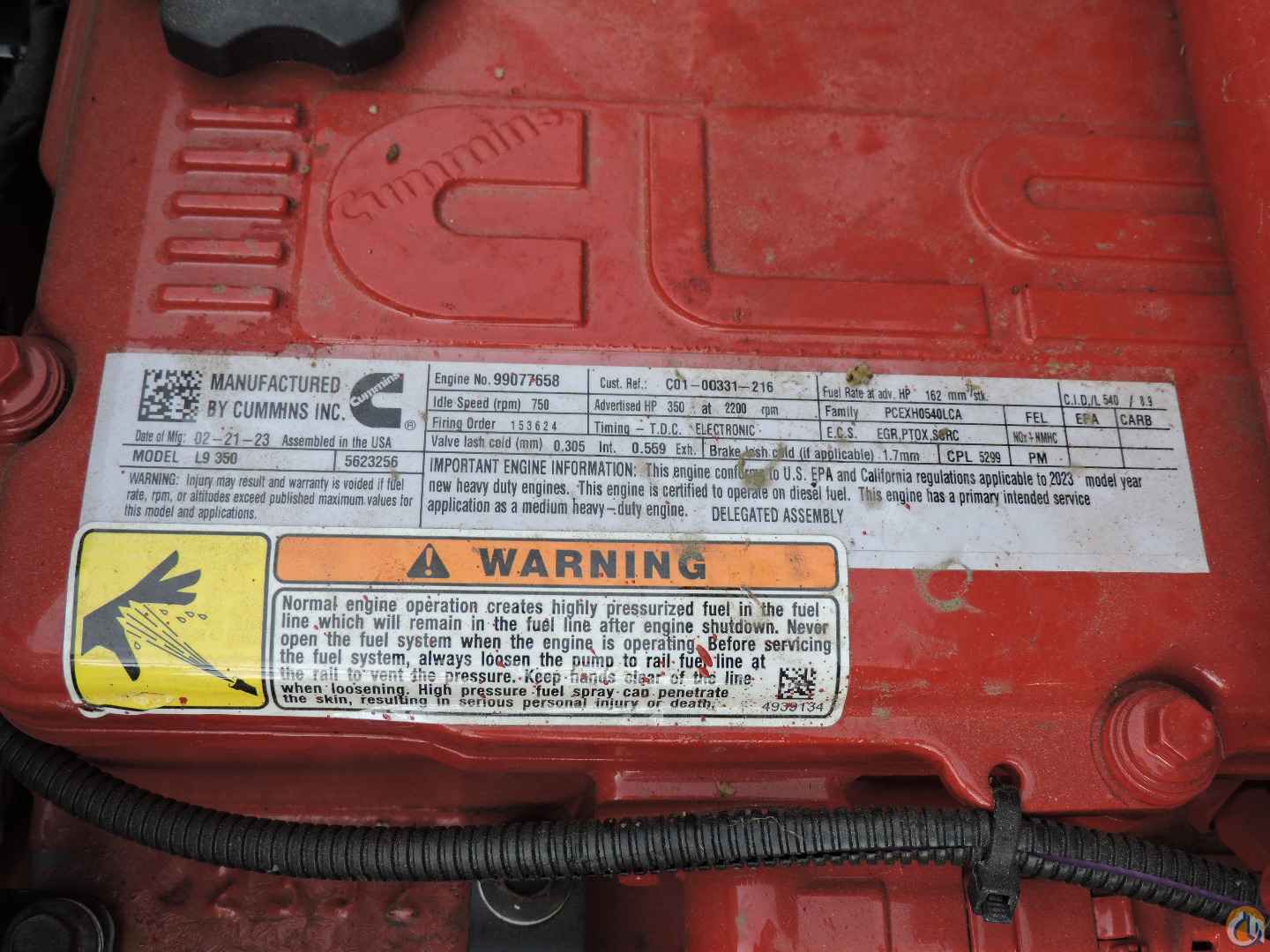

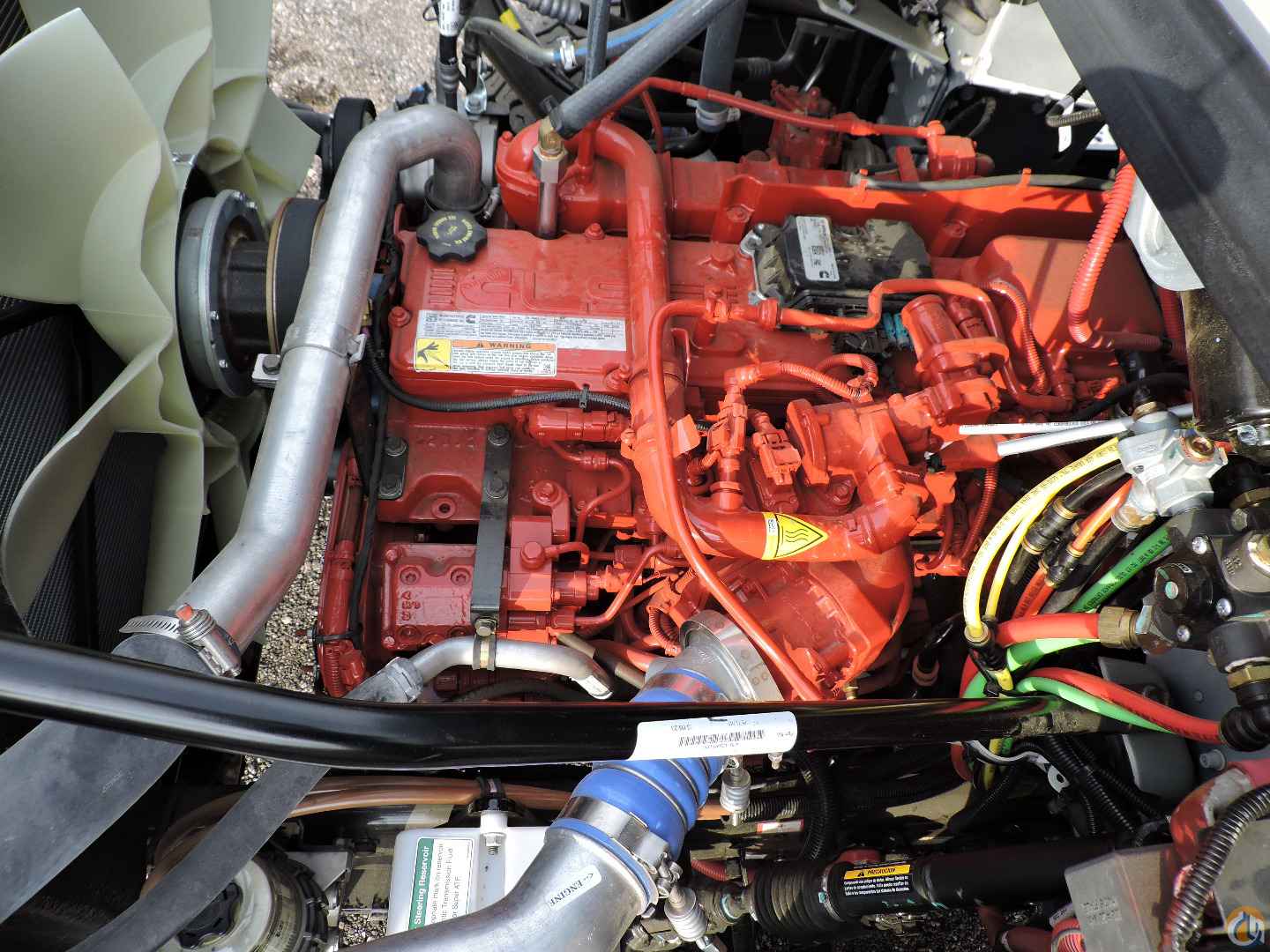

- Cummins L9 - 350 HP @ 2200 RPM, 1050 lb/ft @1200 RPM

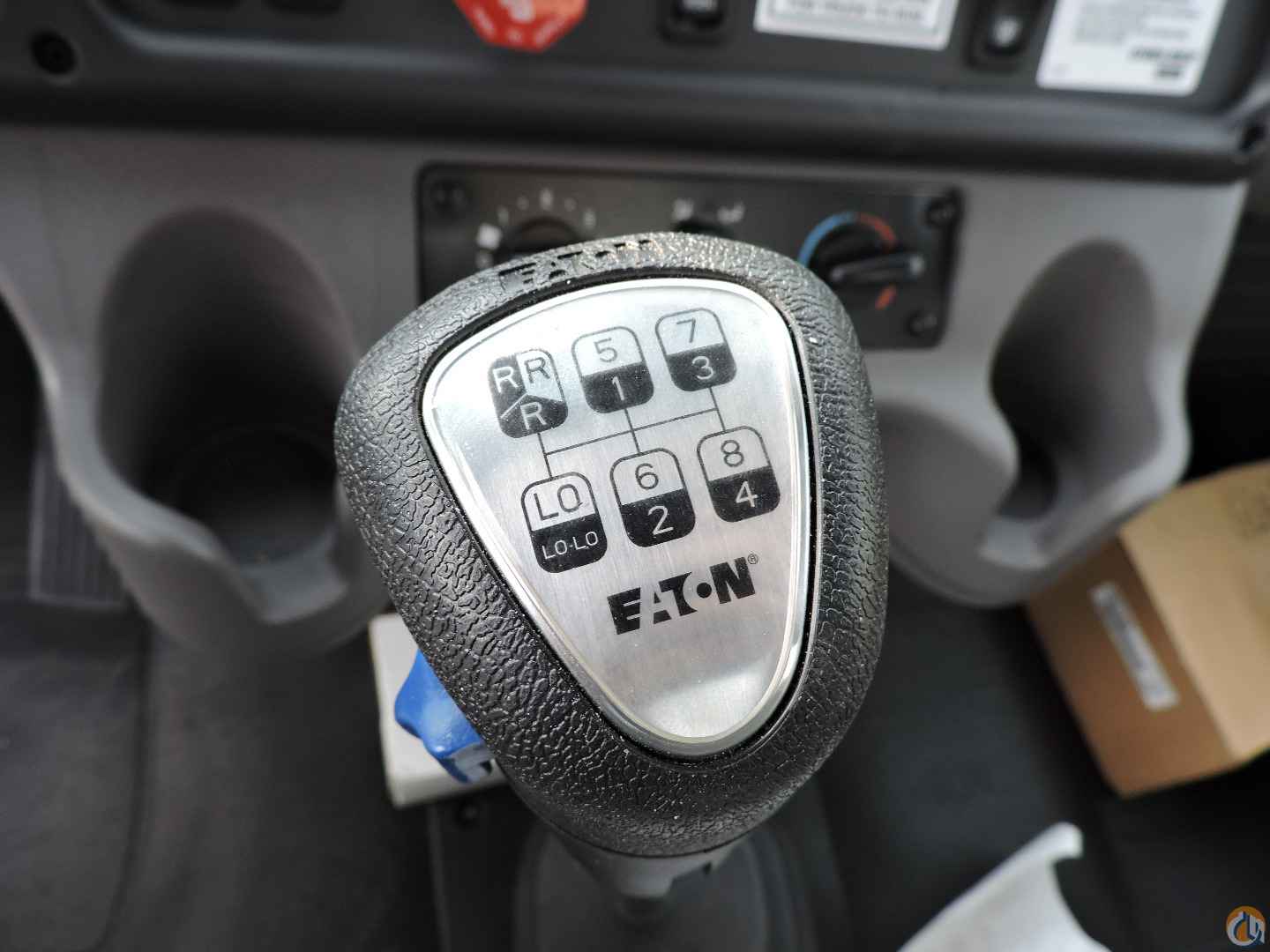

- Eaton Fuller RTO-14908LL transmission

- Front axle - 20,000 lbs with Taperleaf suspension

- Front tires - 425/65R22.5

- Front wheels - aluminum, 22.5 x 12.25

- Tandem rear axle - 40,000 lbs with Hendrickson Haulmaax suspension

- Rear tires 11R22.5

- Rear wheels – aluminum, 22.5 x 8.25

- Dual locking differential

- 7-way primary trailer cable receptacle with glad hands to rear for future pintle

- Dual West Coast Heated Mirrors – LH and RH remote

- 8” convex mirrors under primary mirrors

- Chromed steel bumper

- Front tow hooks

- Air cab

- Air dryer with heater

- High back, air ride driver’s seat - black cordura

- High back, fixed, passengers’ seat - black cordura

- 70 gallon fuel tank

- Adjustable tilt and telescopic steering wheel

- Driver and passenger interior sun visors

- Power windows and doors

- Heater, defroster, and A/C

- Cruise control

- AM/FM/WB Radio with Bluetooth, USB, and auxiliary input

- Painted Sand Gray
