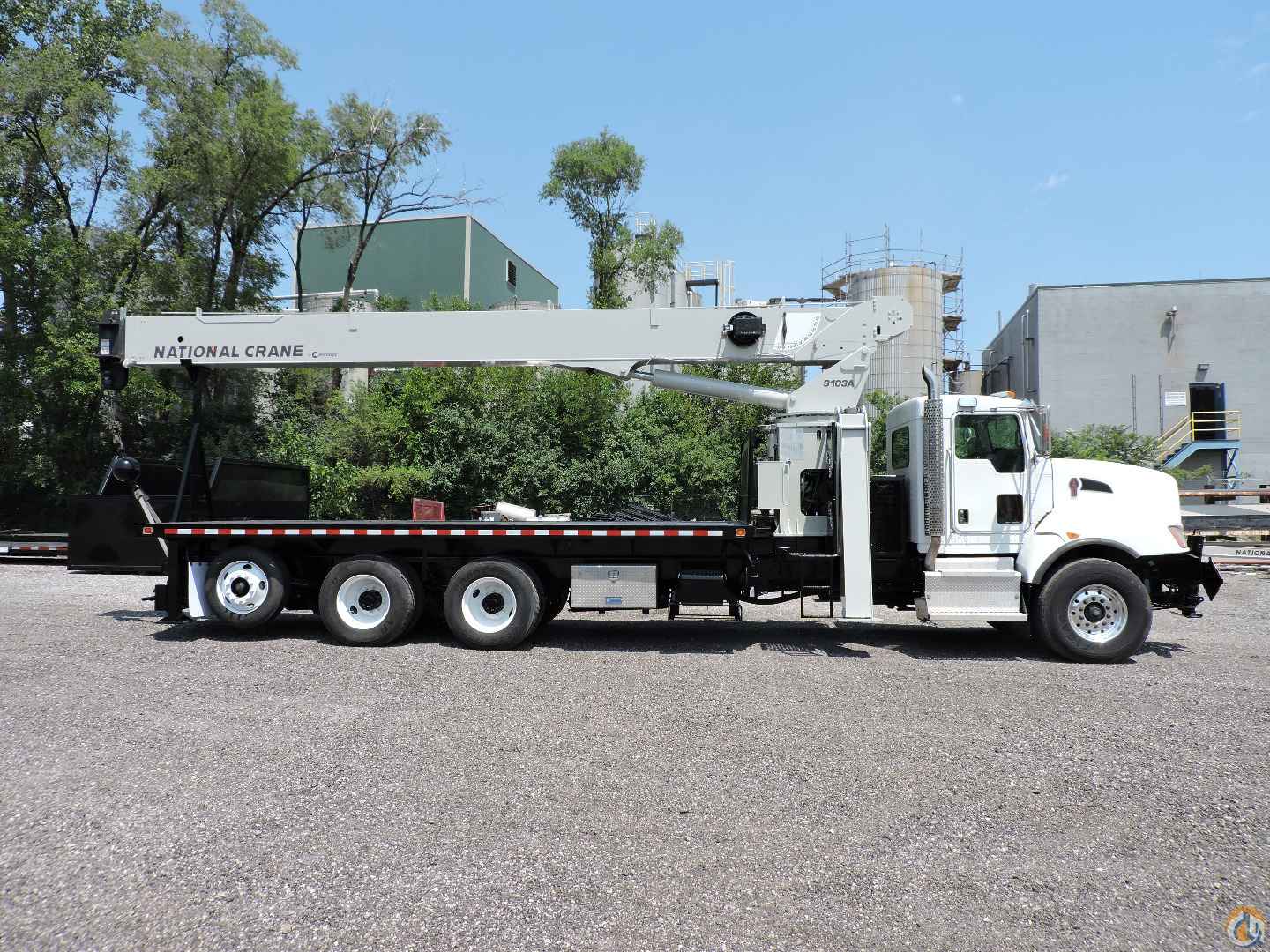

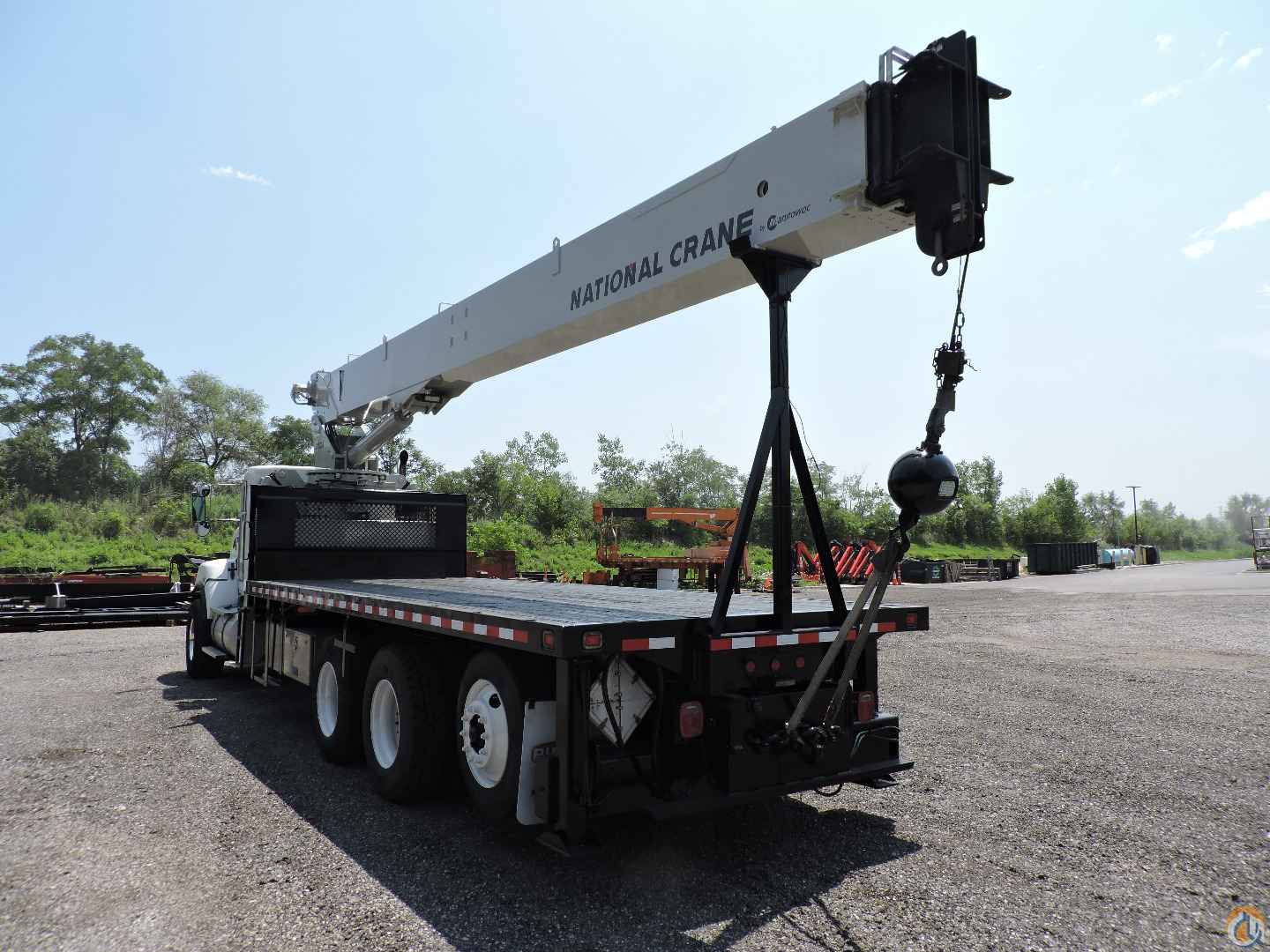

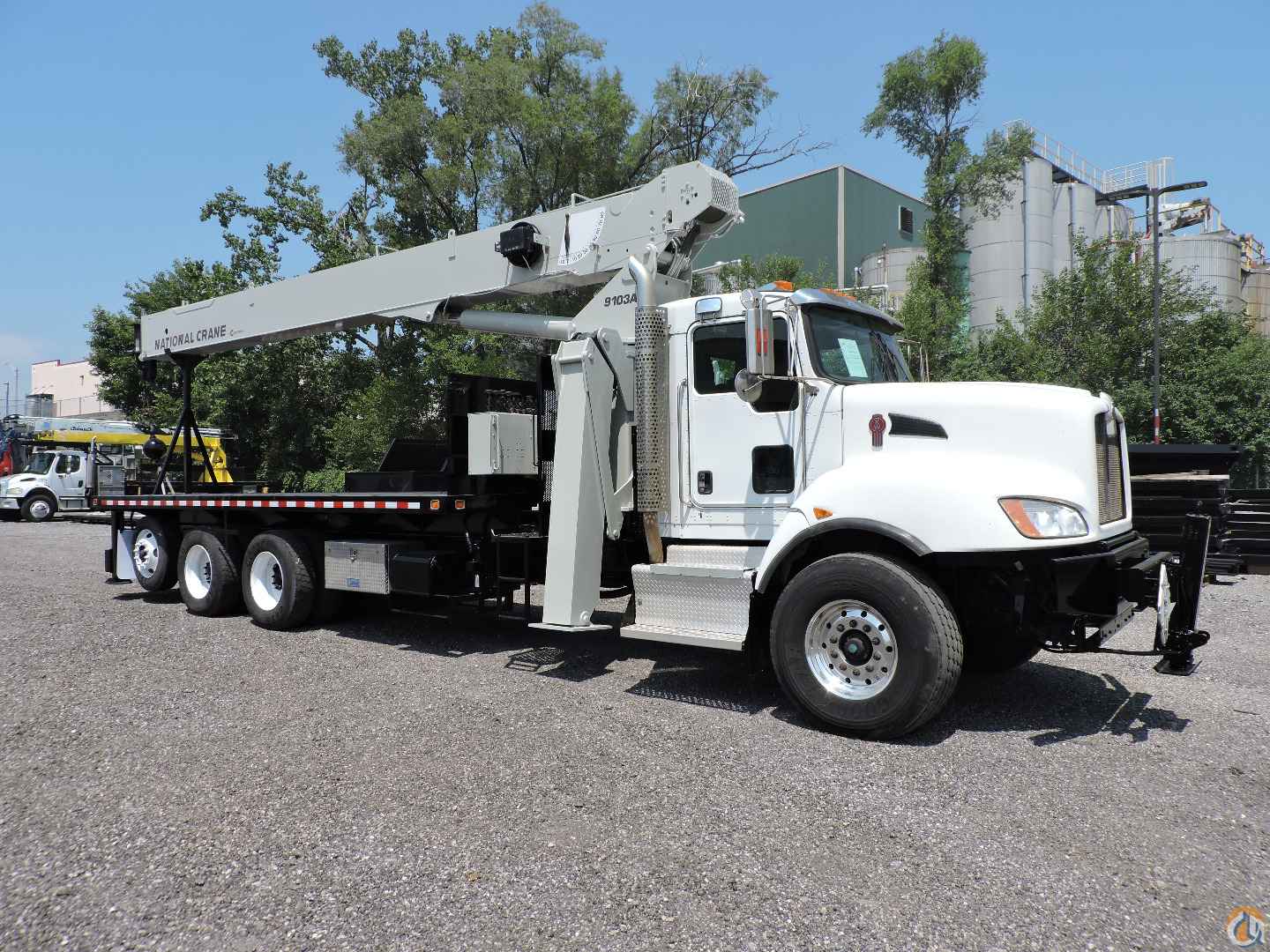

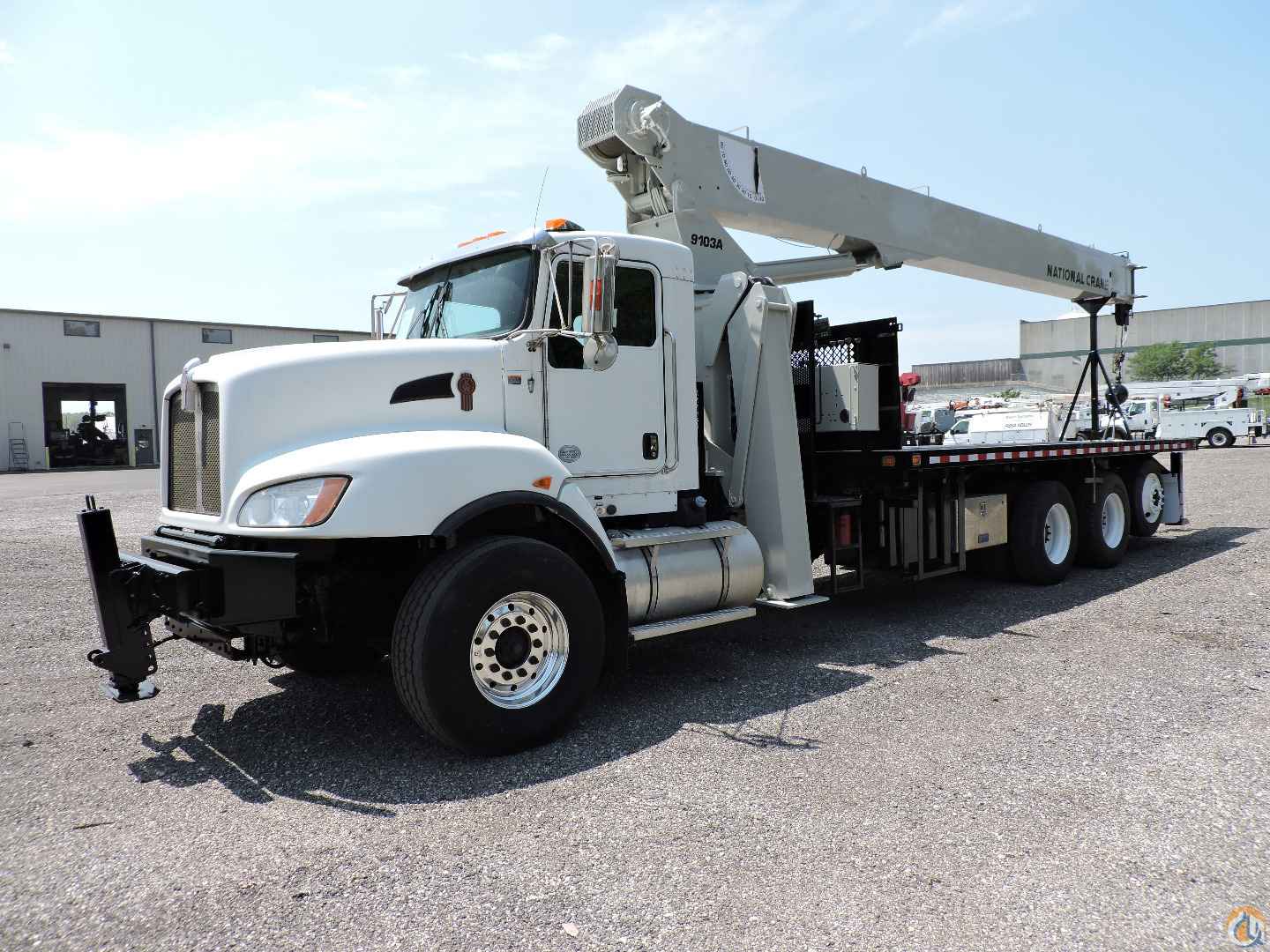

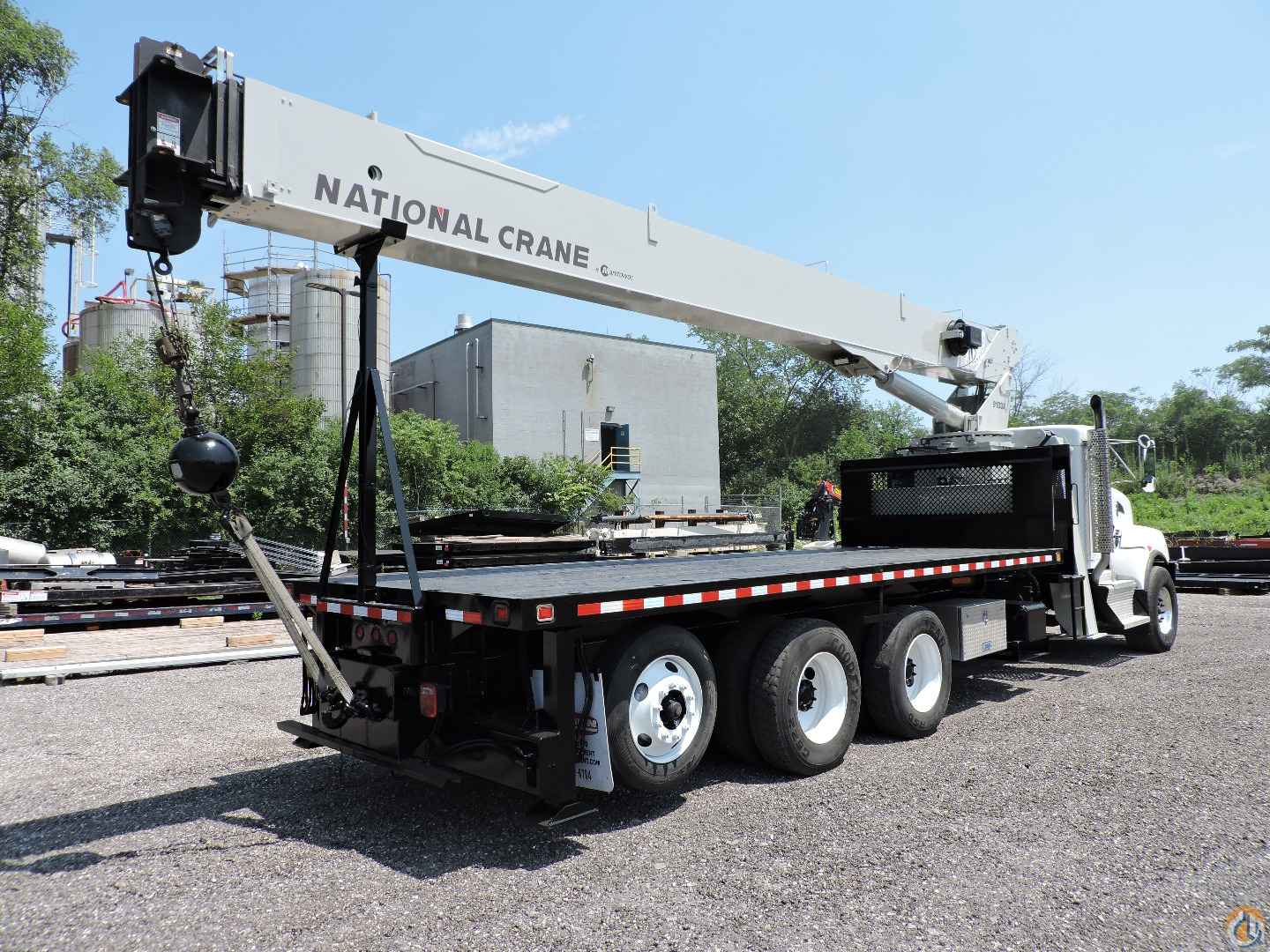

2014 National 9103A Boom Truck Crane (Sold)

National Crane Model 900A equipped as follows:

- 26 ton capacity

- 31’ to 103’ four (4) section hydraulic proportional boom – 113’ sheave height

- “A” type box slide outriggers in front – 21’ span

- Out and down rear hydraulic stabilizers with 16’ span

- Single front outrigger for 360 degree stability

- Anti-two block safety device; shuts off telescope out and winch up controls and does not allow hook to be pulled into sheave case. Includes keyed override. Anti-two block reel and cable run inside boom

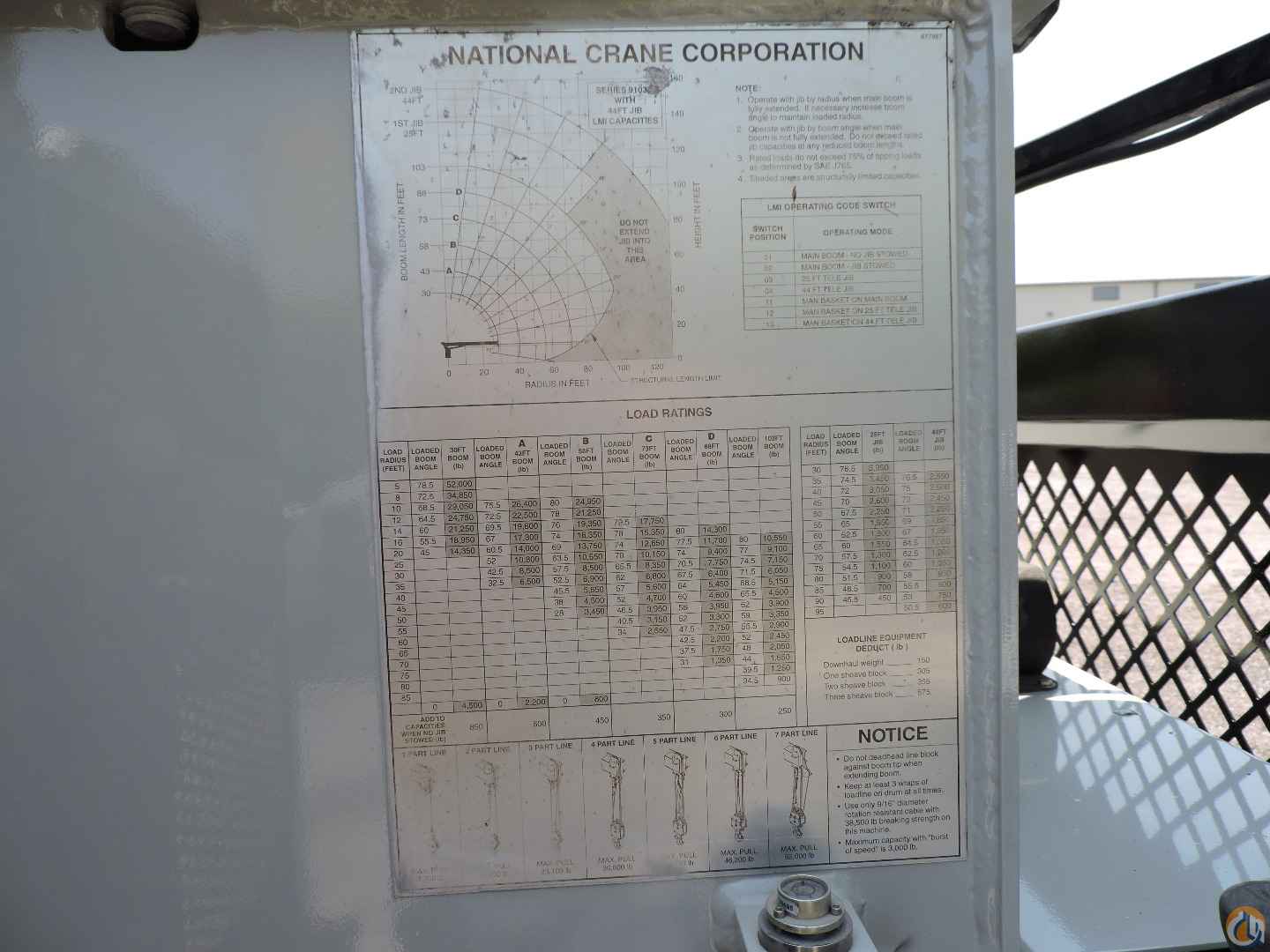

- Load moment indicator offers a console display of boom length and angle, load on the hook and available load capacity that can be lifted, when capacity is reached red warning light and horn are activated and LMI halts crane movement to prevent overload. A key override is provided for systems operation in the event of emergency boom position

- Hi-performance planetary winch with 9/16” spin resistant wire rope

- Downhaul weight and hook

- Burst-O-Speed winch with 135 fpm and 206 fpm line speed

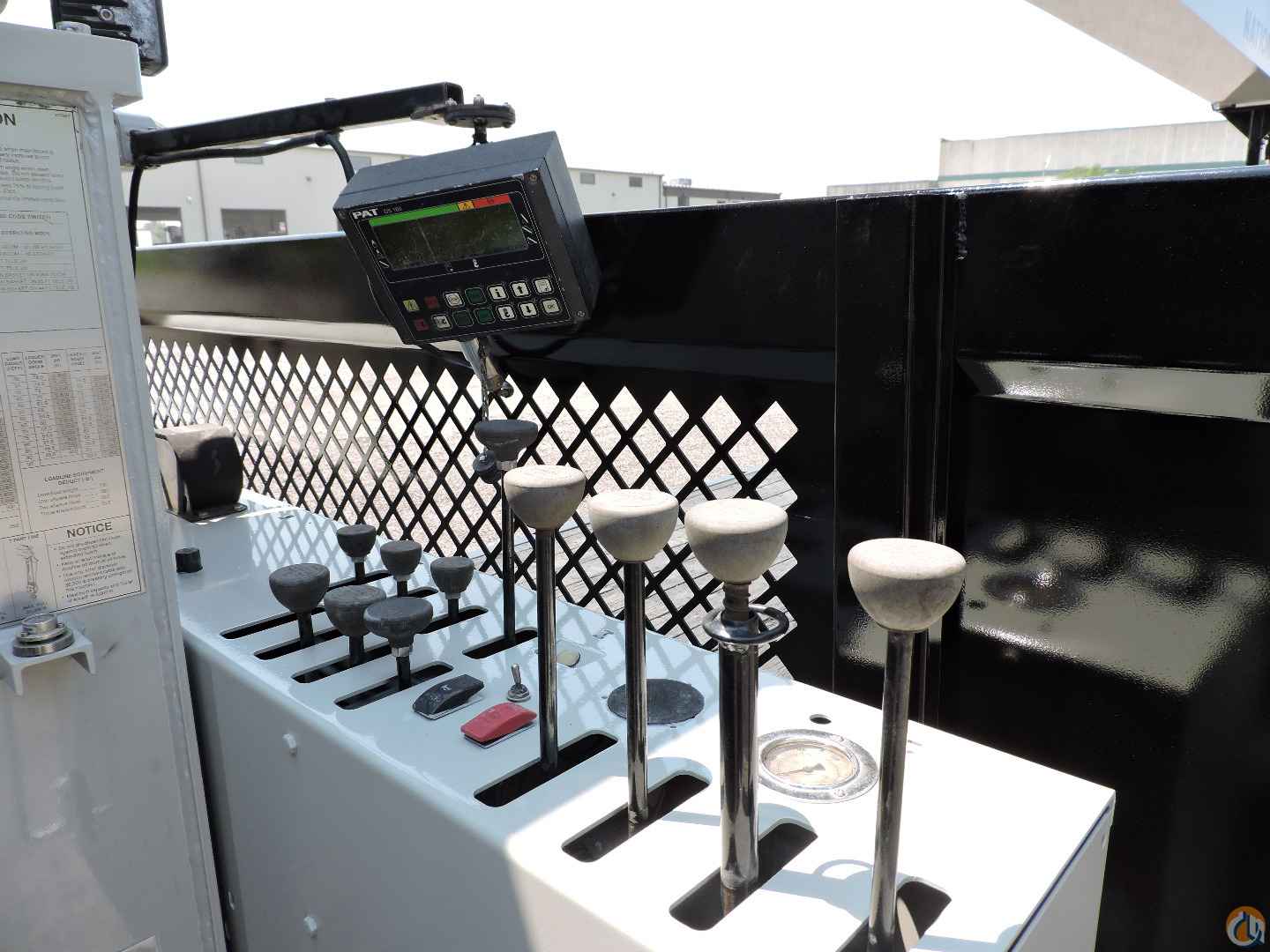

- Dual side controls with operator platforms, foot throttles, horn and kill switches. Operator platform 40” above ground for maximum visibility

- 375 degree planetary rotation

- Adjustable swing speed control

- Heavy duty hydraulic system with triple pump, provides three (3) separate hydraulic circuits for independent operation of winch, swing and crane functions

- 66 gallon hydraulic tank with return oil diffuser and sight gauge

- Hydraulic tank suction shut-off valve

- Heavy duty 22’ wood bed with 40” steel bulkhead – 102” wide

- One 36” and one 60” toolbox

- Back up alarm

- 15 ton spring loaded pintle hitch with 7-way plug, D-rings and air gladhands

MOUNTED ON:

2014 Kenworth T470 equipped as follows:

- Cummins ISL9 380/2010 380@1900 365@2100 1300@1400

- Fuller RTO14908LL 10-speed transmission

- 20,000# front axle load

- 40,000# rear axle with Hendrickson Haulmaax HMX400

- Watson-Chalin TruTrack 13.2k rated tag axle

- FF: 425/65R22.5 with 22.5 x 12.25 aluminum wheels

- RR: 11R22.5 with steel wheels

- 18” 4-spoke steering wheel

- Slate gray w/trim dark slate gray

- Kenworth air cushion driver seat

- Kenworth AM/FM/CD weather band w/LED radio
