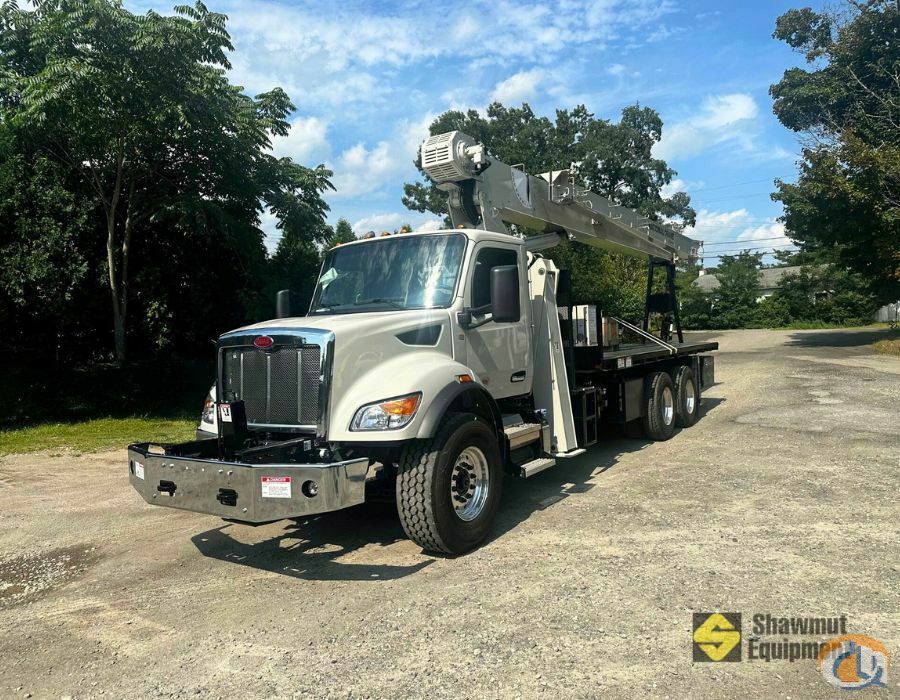

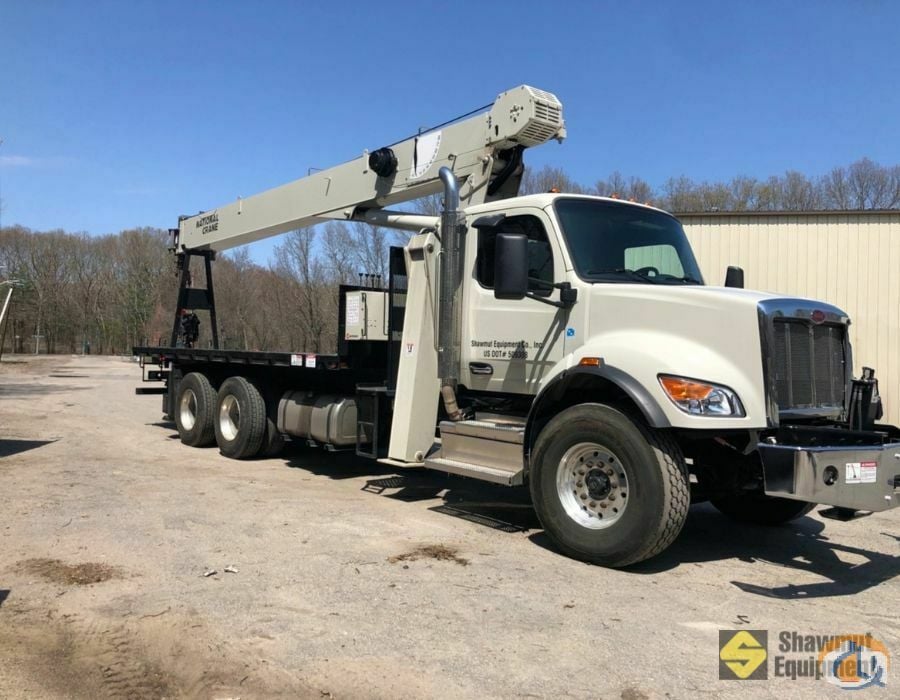

2024 National 8100D, S/N: 303334, 23-Ton Hydraulic Crane

CRANE SPECIFICATIONS:

- 29.5’ to 100' Four-Section Full Power Main Boom
- 25’ to 44’ Telescoping Boom Extension
- RCL and Anti-Two-Block System
- Dual Side Stand Up Operator’s Stations
- Hour Meter
- Horn and Engine Start / Stop Switch
- Electronic Engine Throttle
- 375 Degree Non-Continuous Rotation
- Adjustable Swing Speed
- 66 Gallon Hydraulic Reservoir
- Planetary “Burst of Speed” Winch
- Hot Shift PTO
- Clockwise Rotation Pump
- ICC Safety Kit
- 325’ (99,1 m) 9/16” (14 mm) Rotation Resistant Wire Rope
- “A” Frame Box Slide Outriggers
- Rear Out and Down Stabilizers
- Single Front Outrigger (SFO)
- Torsion Resisting Subbase for 22’ Flatbed
- 22’ Super Duty Wood Floor Bed
- Back Up Alarm
- Outrigger Position Monitoring System / Motion Alarm
- Two (2) Owner’s Manuals (1 Paper & 1 USB)
- Removable Rear Boom Carrying Rack
- Rear Bumper Underride Protection
- Drive Line Kit
- Oil Cooler: Hydraulic, Self-Contained Radiator System w/ Electric Fan
- 30” Steel Solid Wall Bulkhead
- Painted National “Platinum” Gray
- Single Sheave Block Holder Mounted to Boom Rest
- Additional Rear Access Ladder Located at Rear of Truck Bed
- 7 Ton Round Downhaul Weight w/ Top Swivel
- 2 & 3 Part 12.5 Ton Single Sheave Hookblock

TRUCK SPECIFICATIONS:

- 2025 Peterbilt model 548
- PACCAR PX-9 350@2500 Diesel Engine
- Allison 3000 RDS Transmission
- VGT Exhaust Brake
- 20,000 LB. Front Axle Weight Rating
- 40,000 LB. Rear Axle Weight Rating
- Differential Locks on Both Axles
- Aluminum Wheels on Front and Rear
- Truck Cab Painted National Platinum Gray
- (2) 36” x 24” x 24” Black Steel Toolboxes

Engine Hours: 834
PTO Hours: 428
Miles: 11,903
