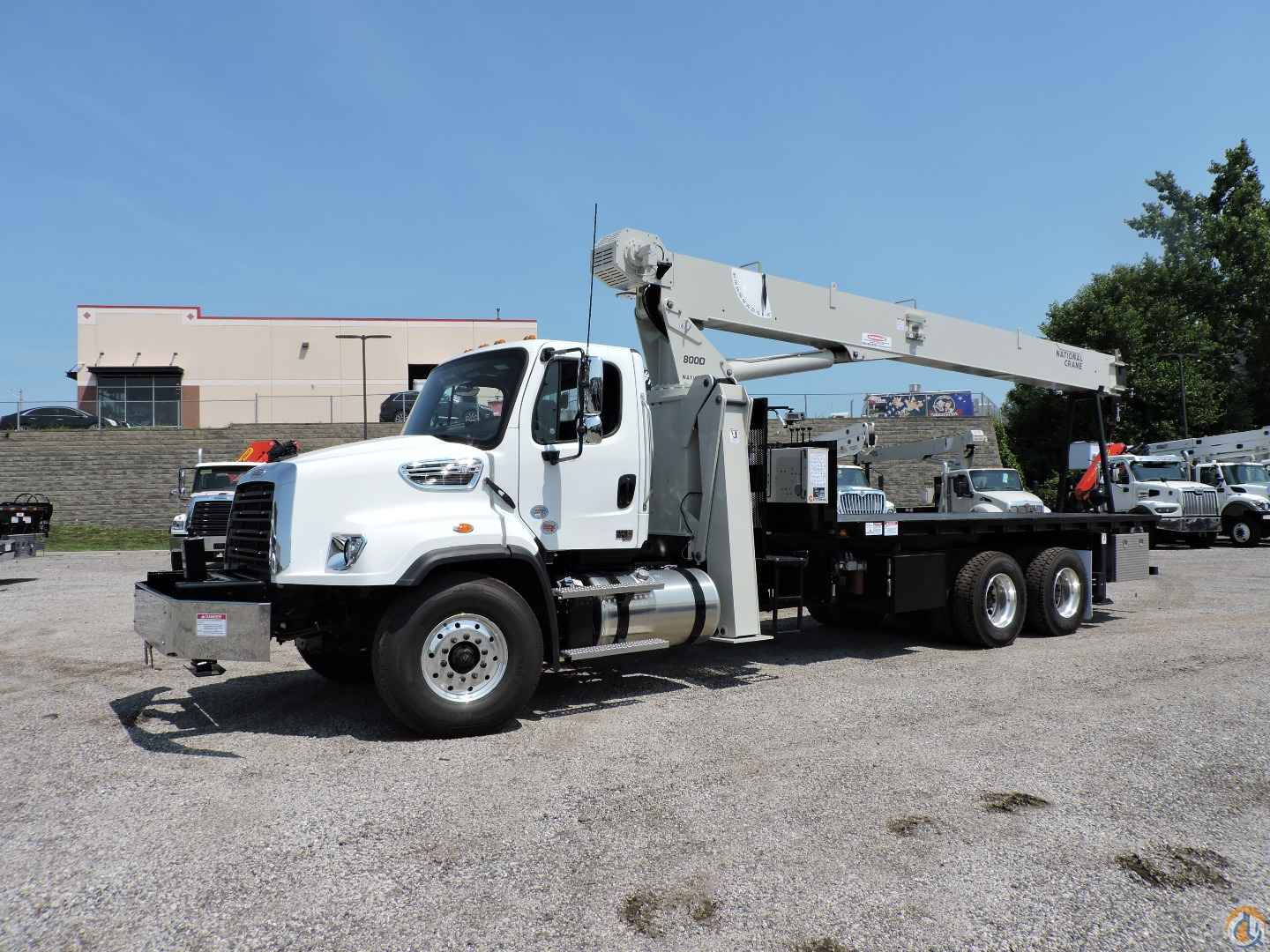

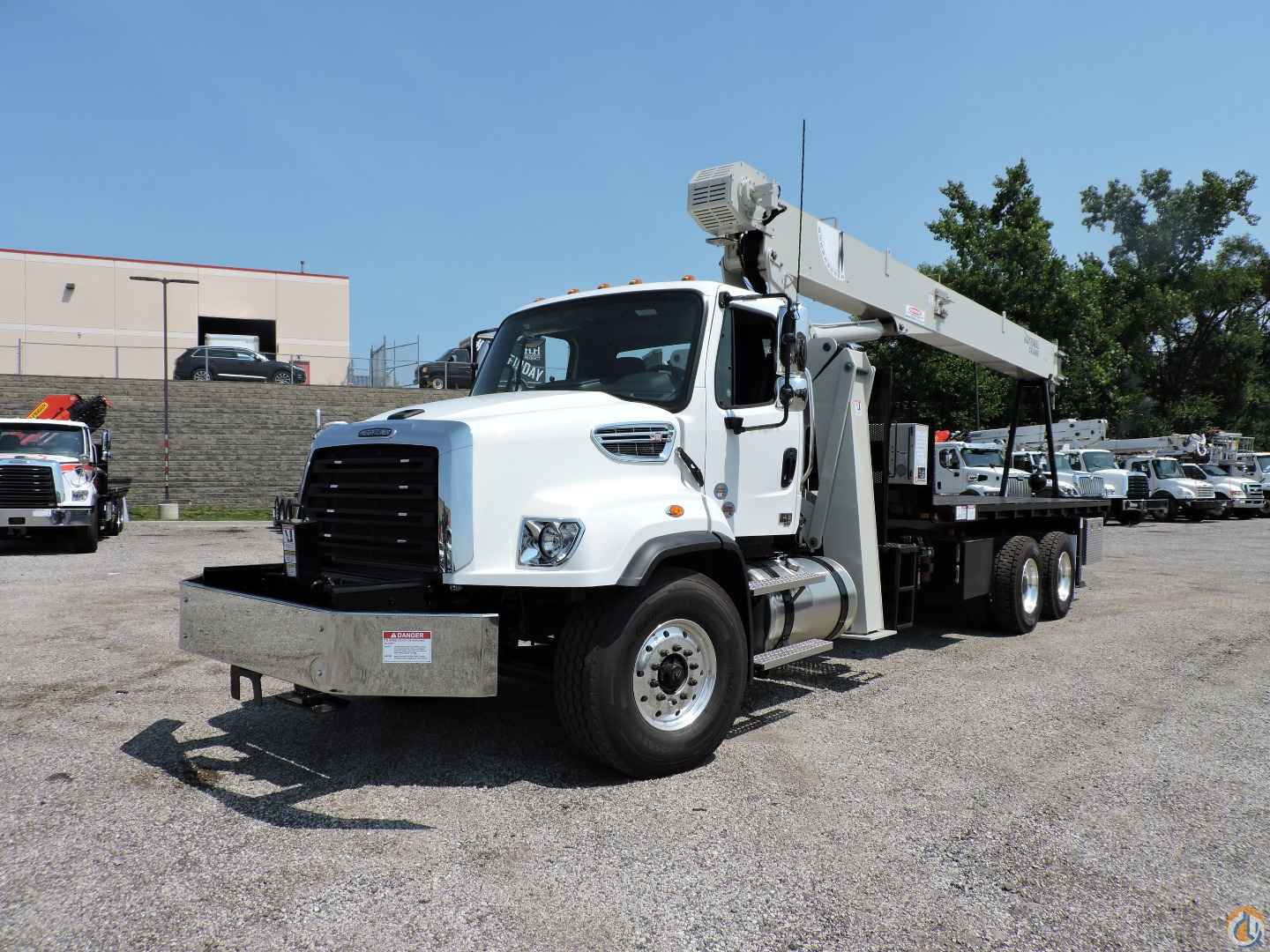

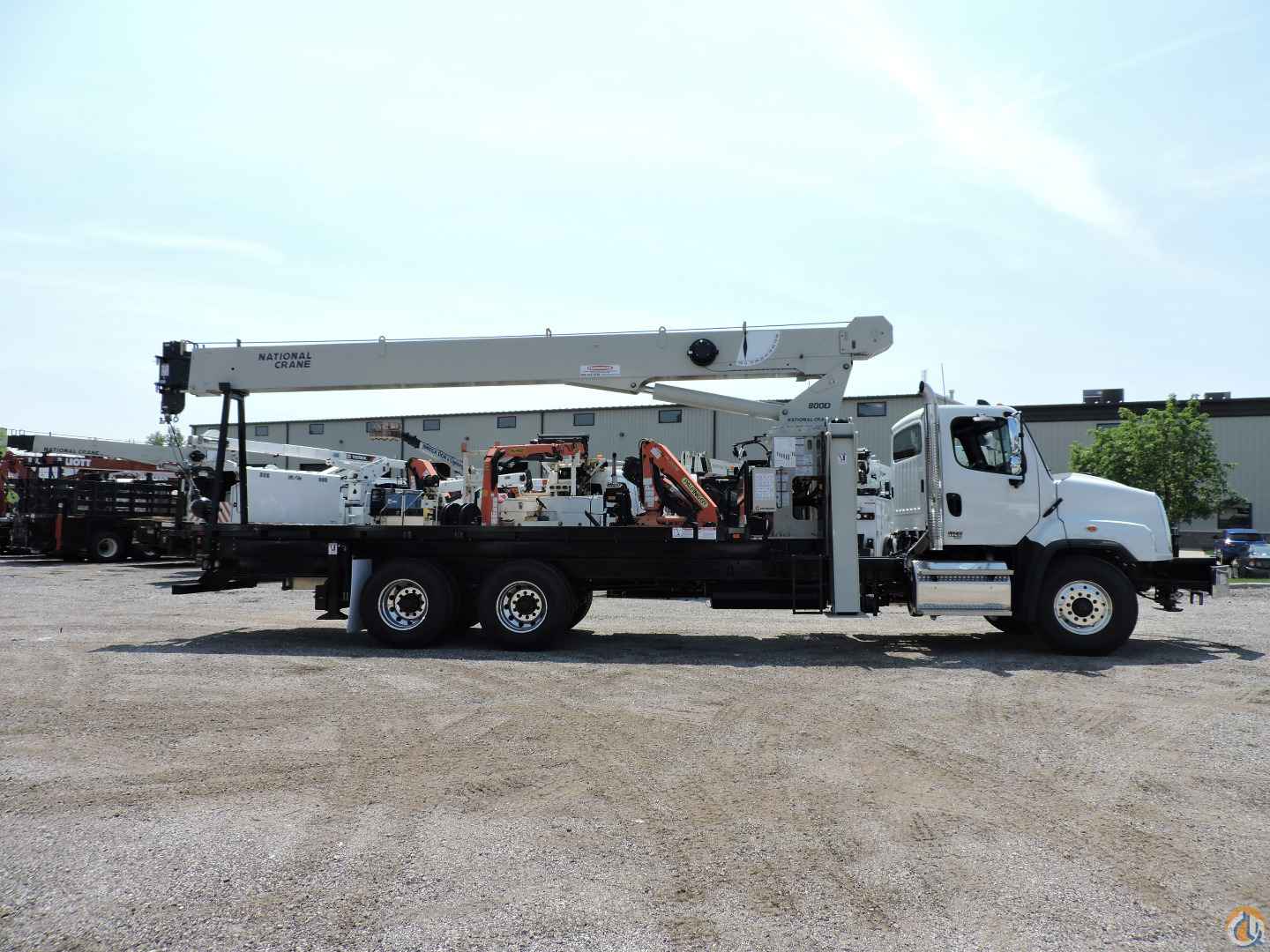

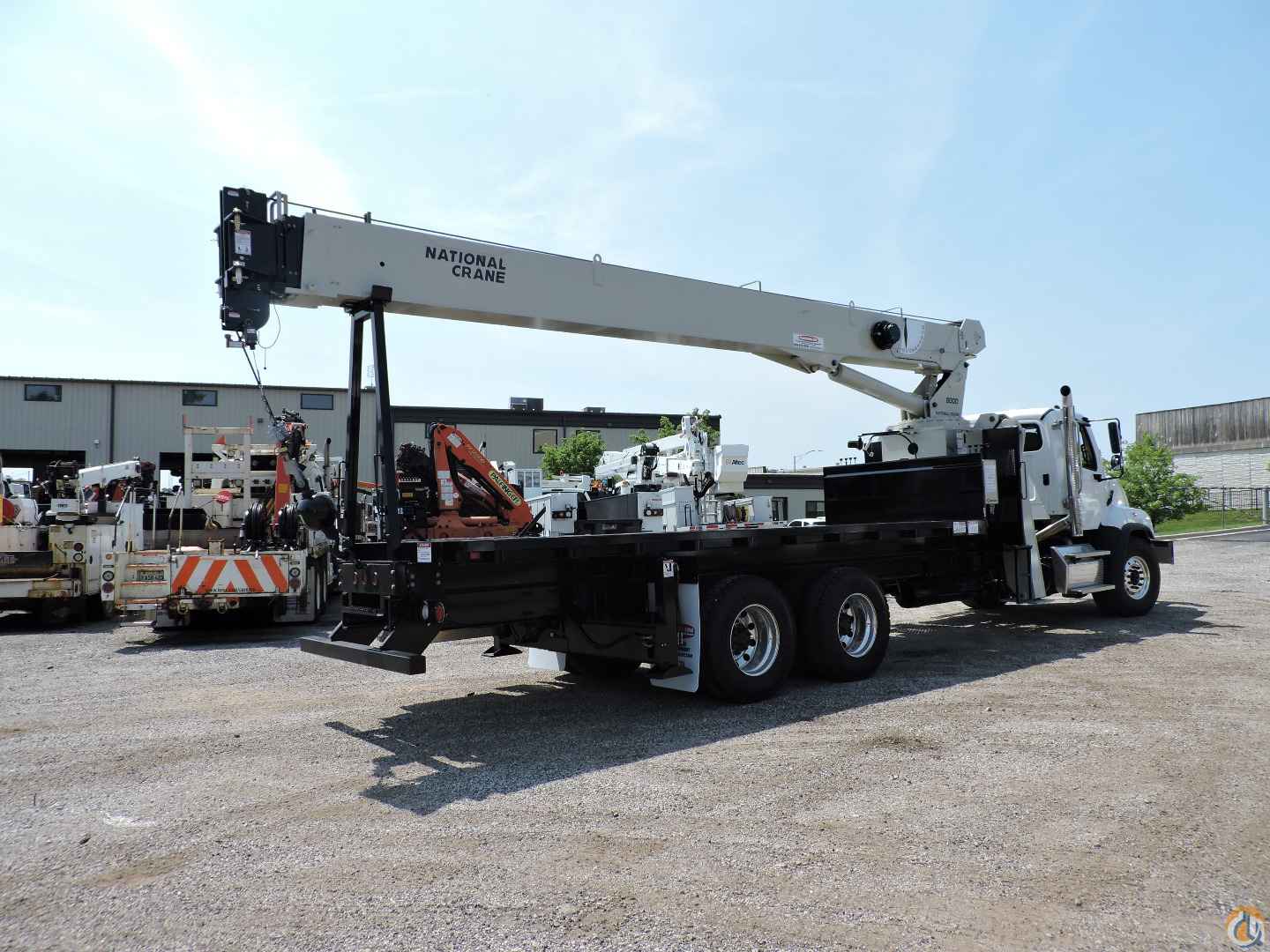

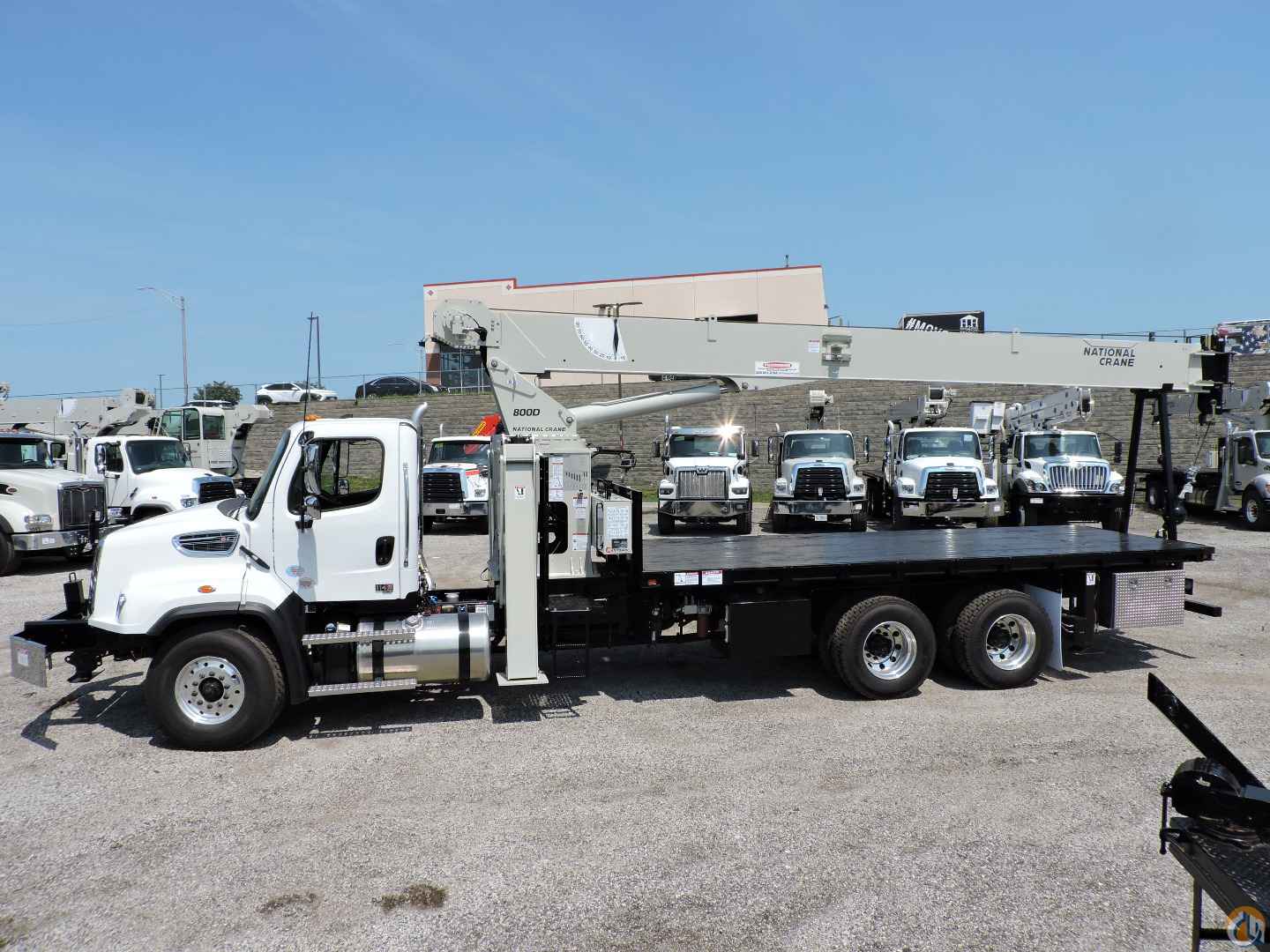

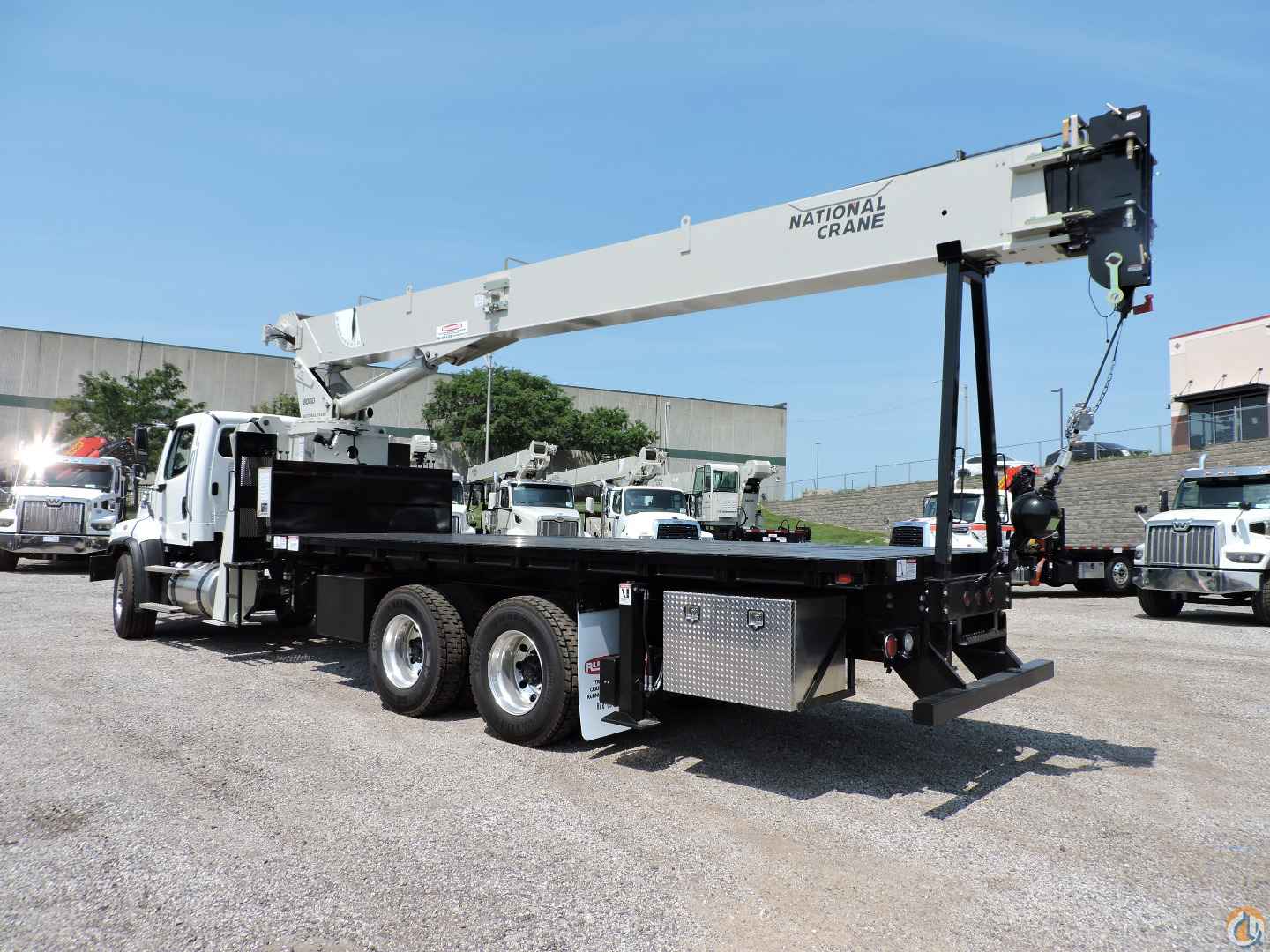

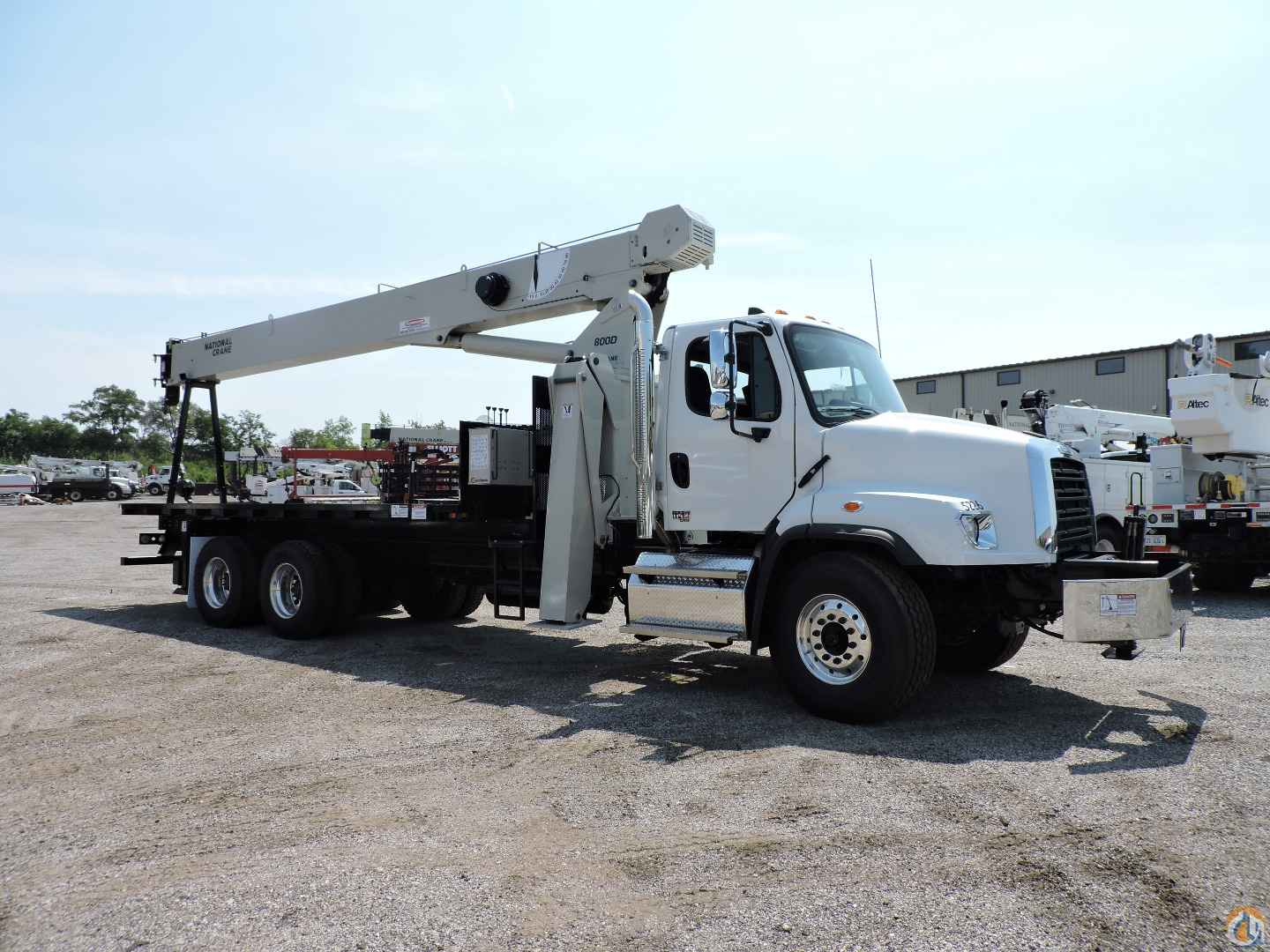

2026 National 8100D Boom Truck Crane for Sale

National Crane 8100D equipped as follows:

- 23 ton capacity

- 29.5’ to 100’ four (4) section telescopic boom – 110’ sheave height

- Calibrated for future jib

- “A” type box slide outriggers with swivel pads

- Out and down rear hydraulic stabilizers with 16’ span

- Single front outrigger for 360 degree stability

- 22’ super-duty wood deck with 30” steel bulkhead

- Outrigger motion alarm

- Anti-two block safety device; shuts off telescope out and winch up controls and does not allow hook to be pulled into sheave case

- Internal anti-two block wiring

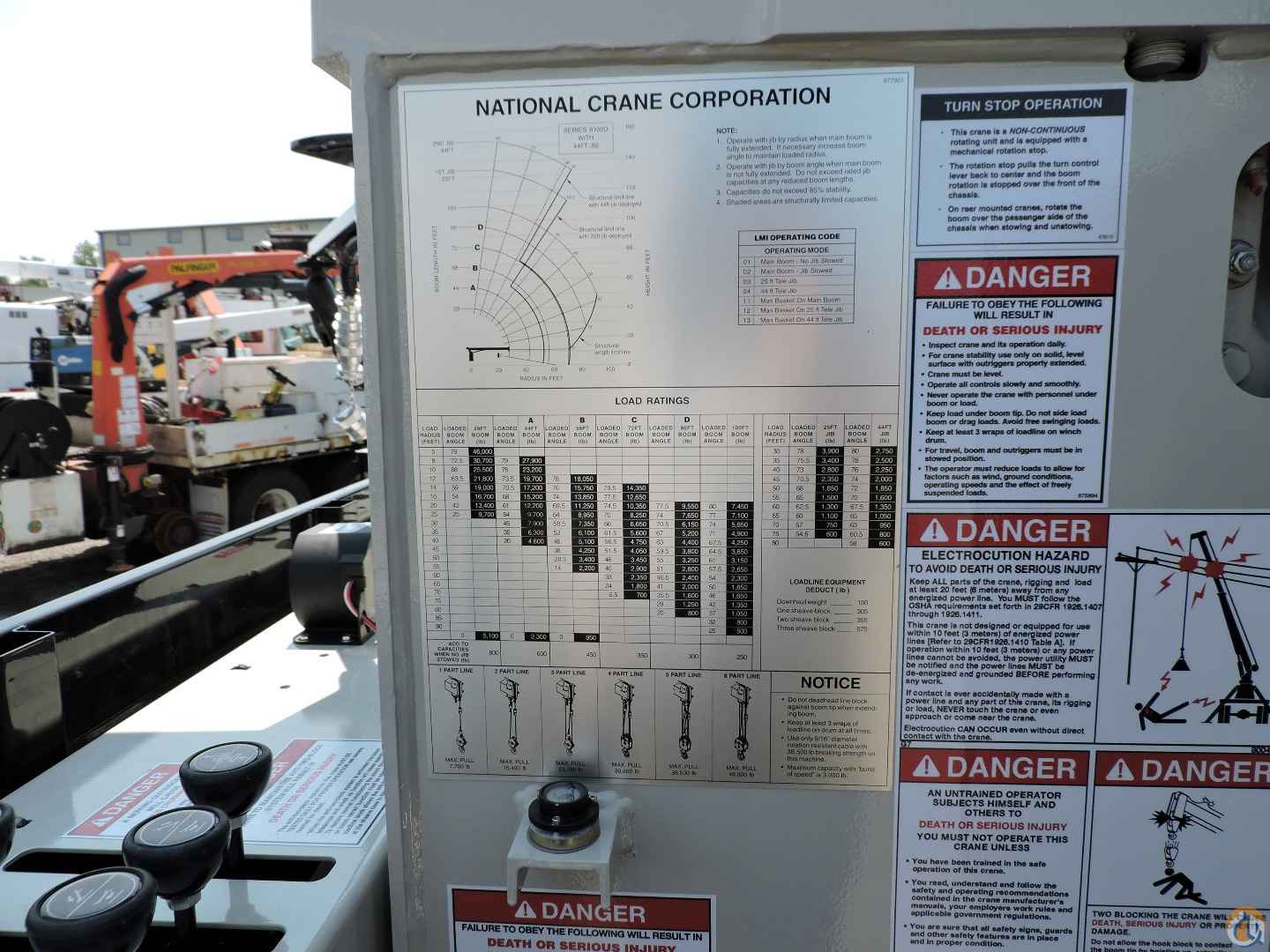

- Rated Capacity Limiter System (RCL) computer capacity alert system RCL displays boom angle and length, working radius, rated load and total weight being lifted

- Hi-performance planetary winch with 9/16” spin resistant wire rope

- 7-ton round downhaul style weight with top swivel and hook

- Burst-O-Speed winch with 147 FPM and 206 FPM line speed

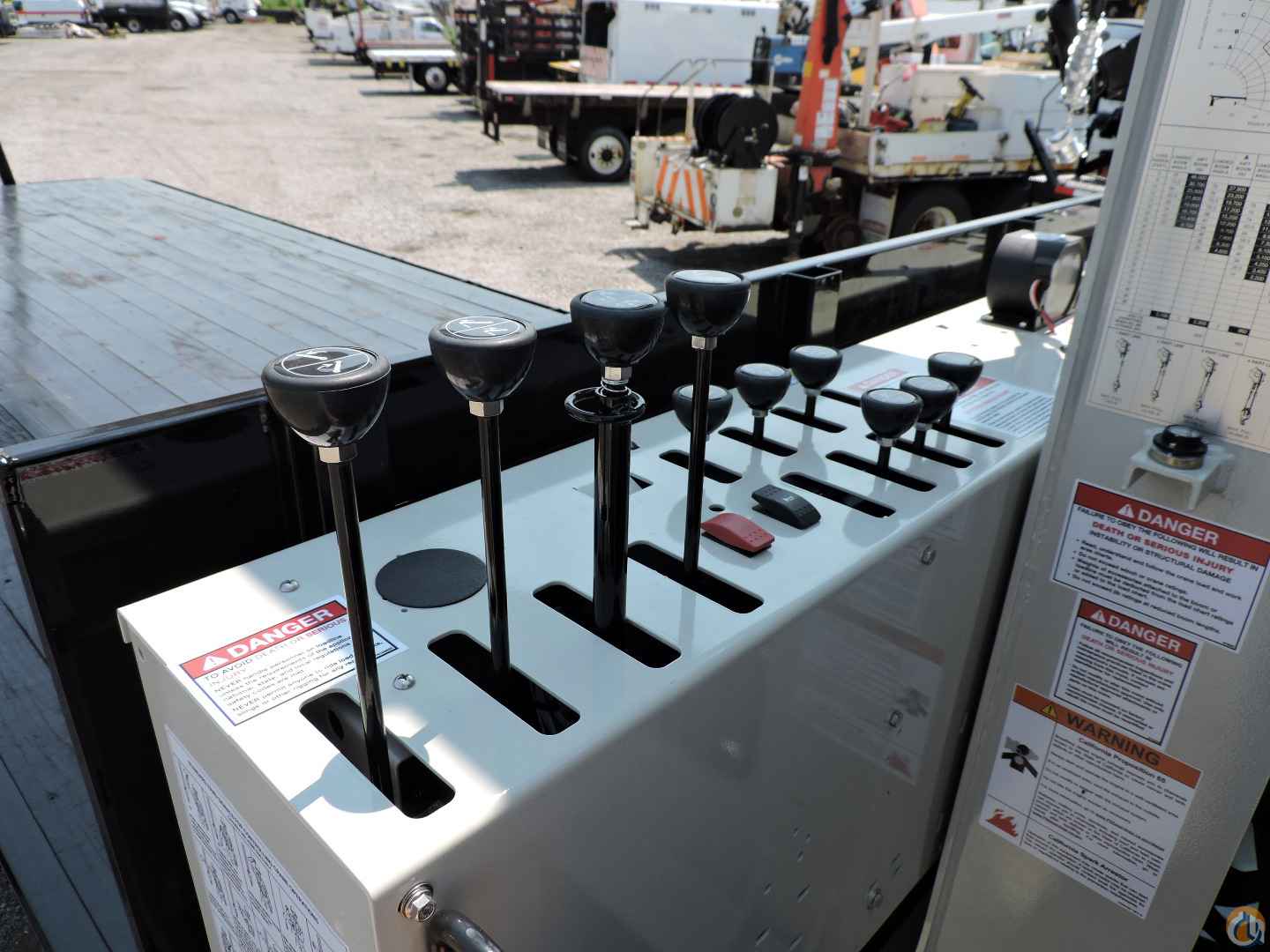

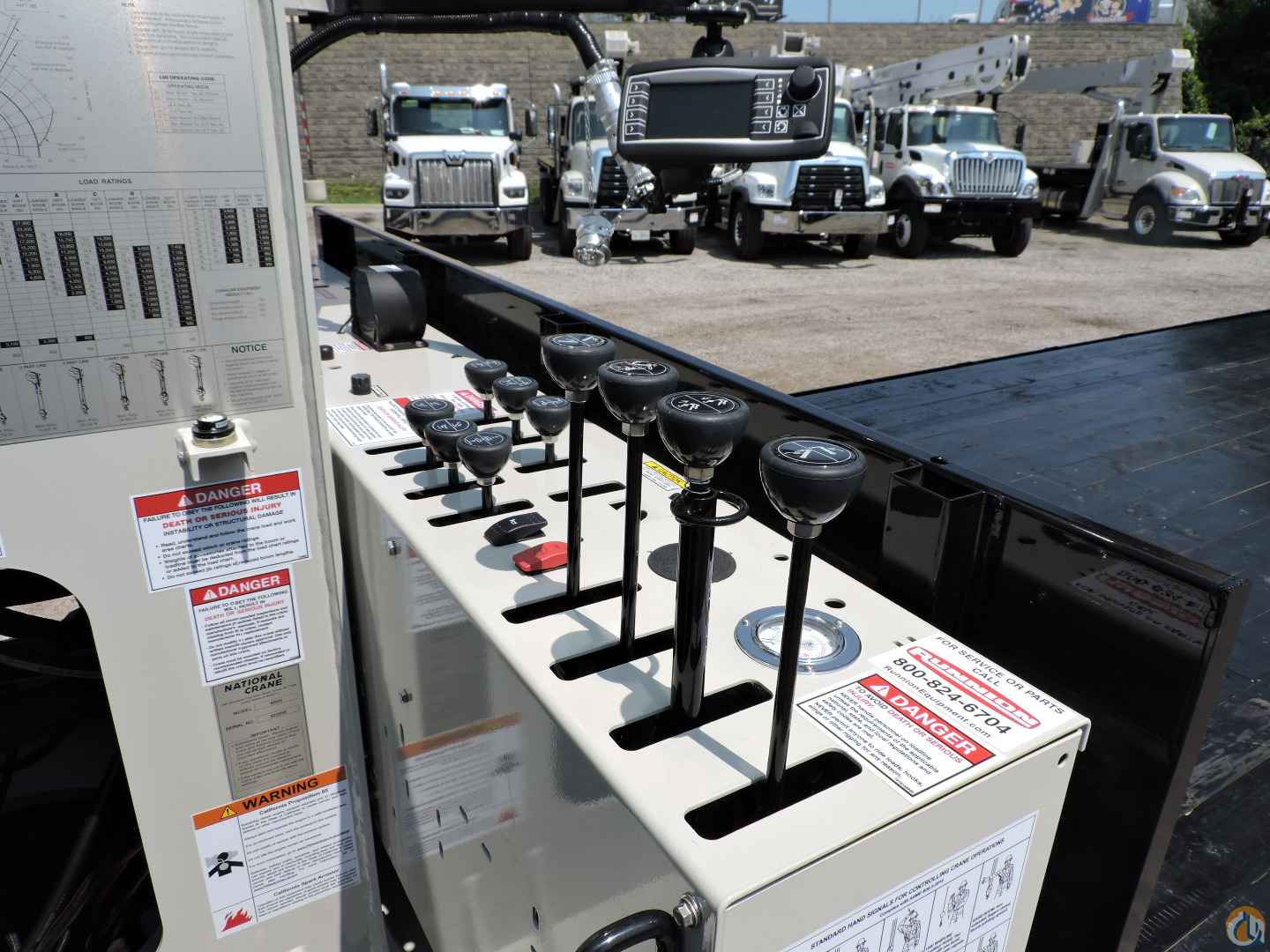

- Dual side stand-up operator’s stations, dual engine throttle, horn and engine start/stop

- Operator platform 40” above ground for maximum visibility

- 375^o non-continuous rotation, adjustable swing drive

- Heavy duty hydraulic system with triple pump, provides three (3) separate hydraulic circuits for independent operation of winch, swing and crane functions

- 66-gallon hydraulic tank with return line filter, oil diffuser, sight gauge, and shut off gate valve

- Single fan oil cooler

- One removable boom rest

- Hour meter

- Back-up alarm

- Rear bumper underride protection

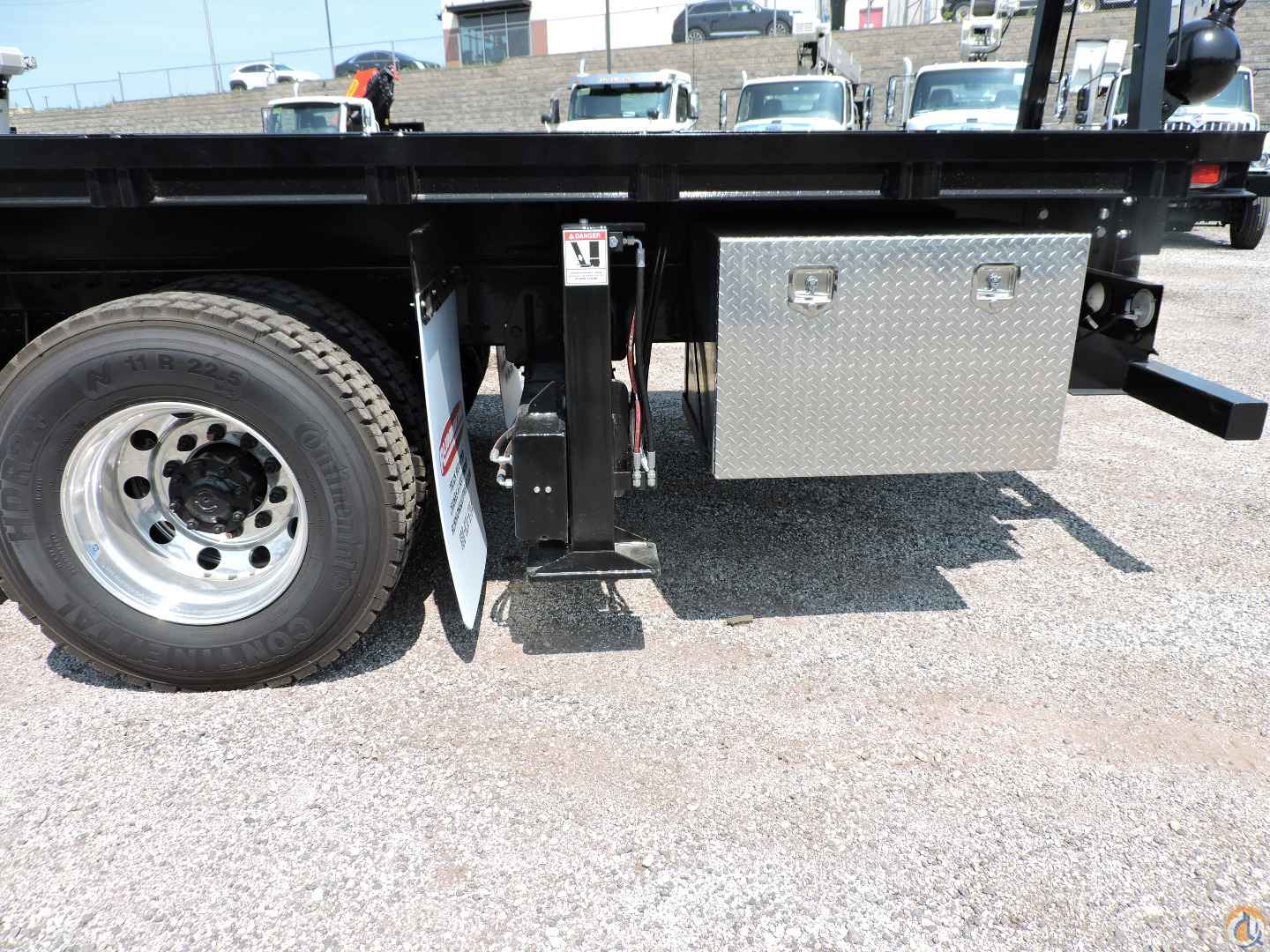

- 36” x 24” x 24” aluminum tool box

- Painted National Platinum

MOUNTED ON:

2026 Freightliner 114SD Plus equipped as follows:

- Cummins X12 engine, 455 hp at 1900 rpm, 1550 ft/lbs at 1000 rpm

- Eaton Cummins EXDP-18F118D automated manual transmission

- 20,000lb front axle with taperleaf suspension

- 46,000lb tandem rear axle with Hendrickson Haulmaax EX suspension

- Differential lock tandem axles

- Air dryer with heater

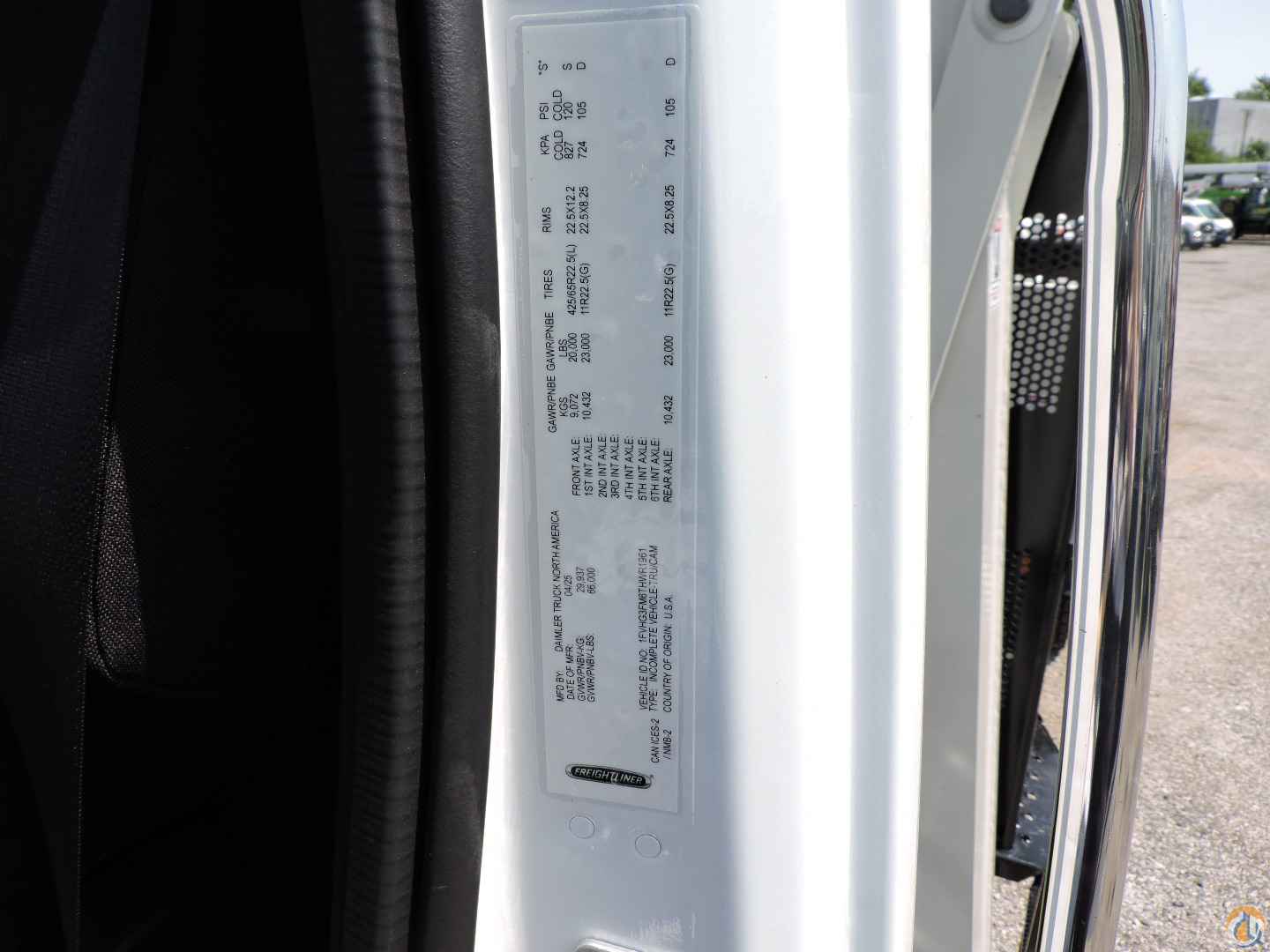

- Tires: FR – Continental 425/65R22.5 front tires

- Tires: RR –11R22.5 rear tires

- Aluminum wheels

- 100-gallon fuel tank with painted steel bands

- 13-gallon DEF tank

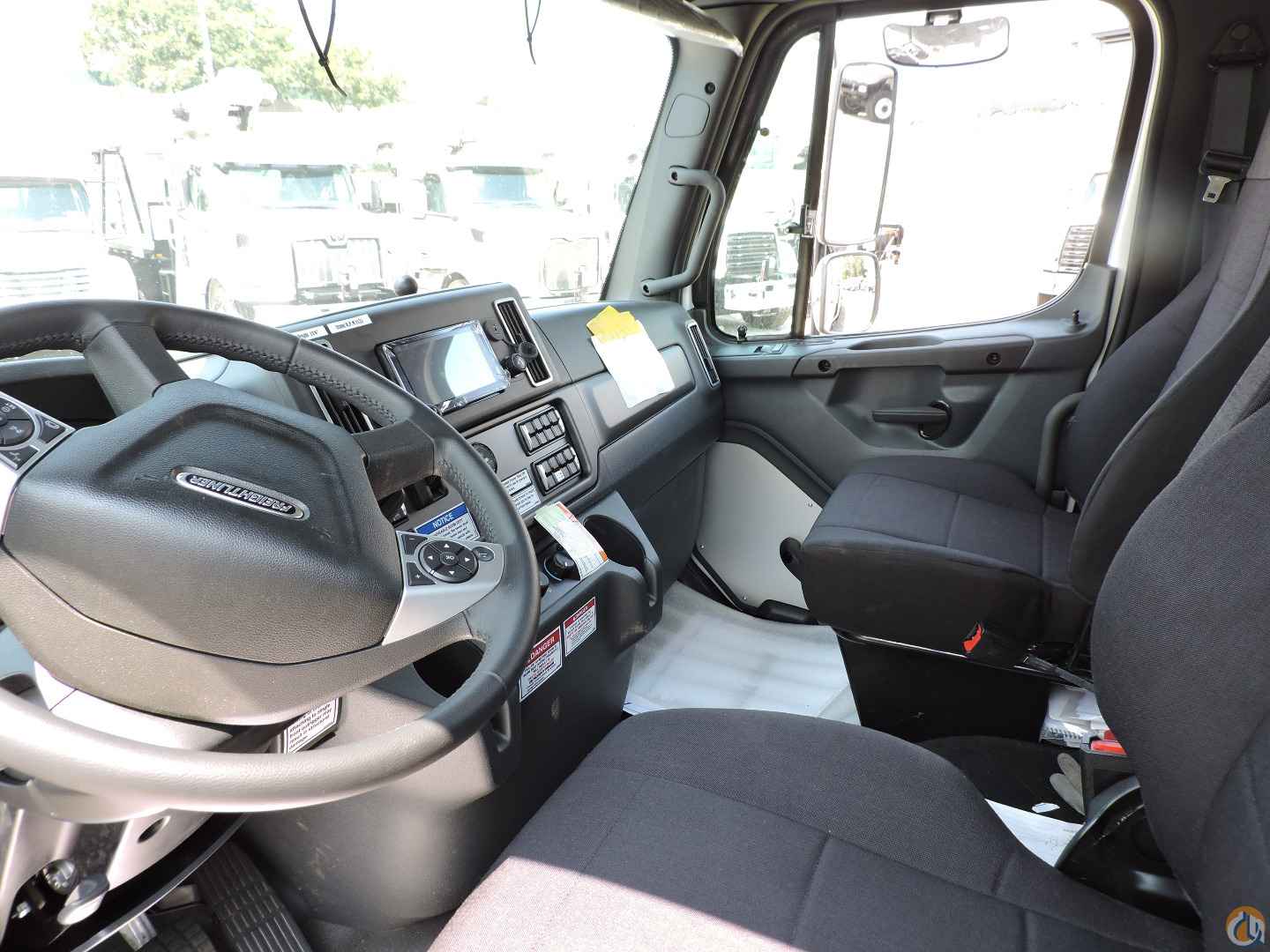

- Drivers Seats – Air ride, high back, black Cordura

- Passenger Seat – High back, tool box, black Cordura

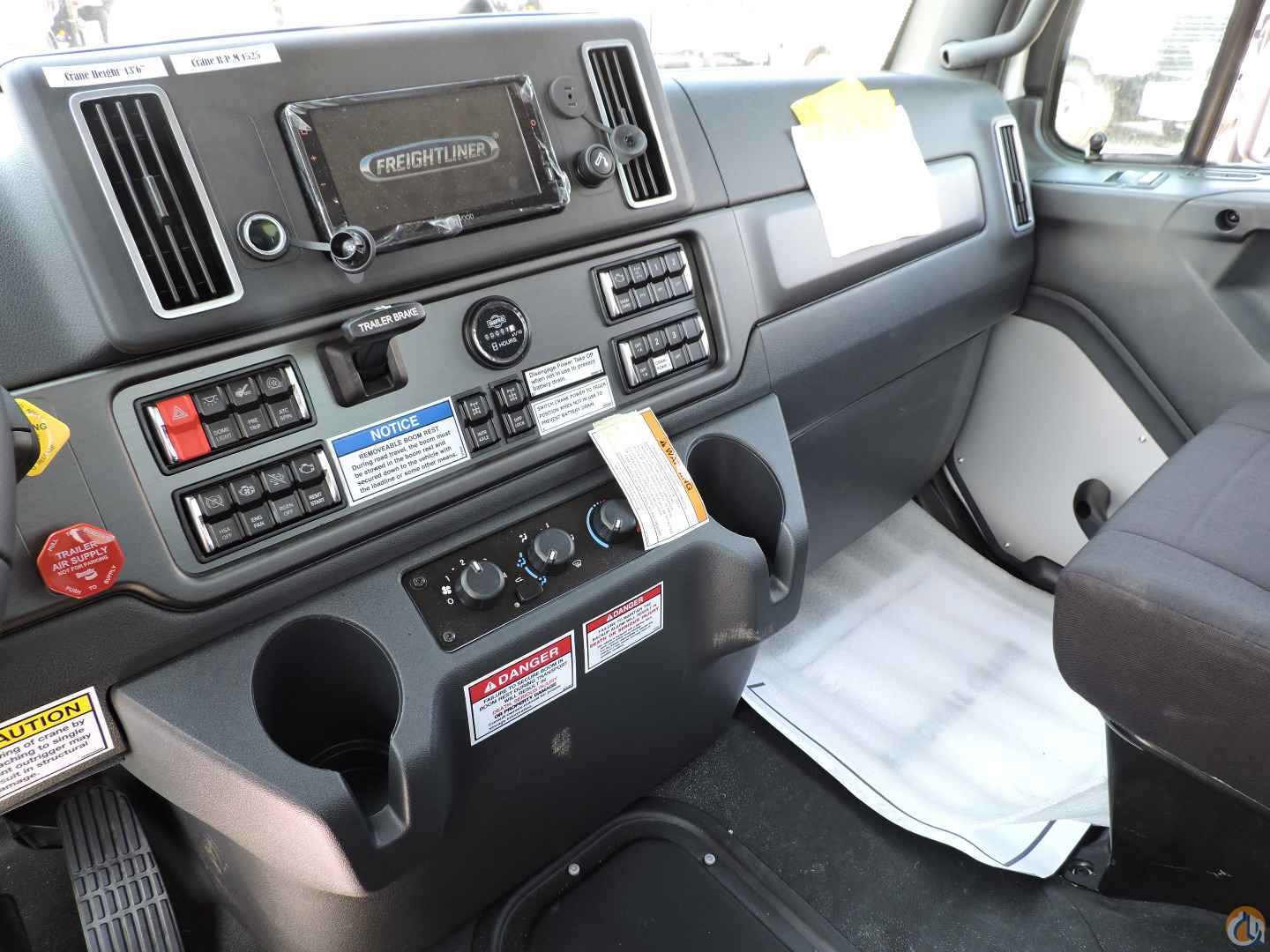

- Adjustable steering column - tilt/telescope

- Power door locks and windows

- Air conditioner

- AM/FM/WB radio with Bluetooth, and USB

- Heated mirrors

- Painted white
