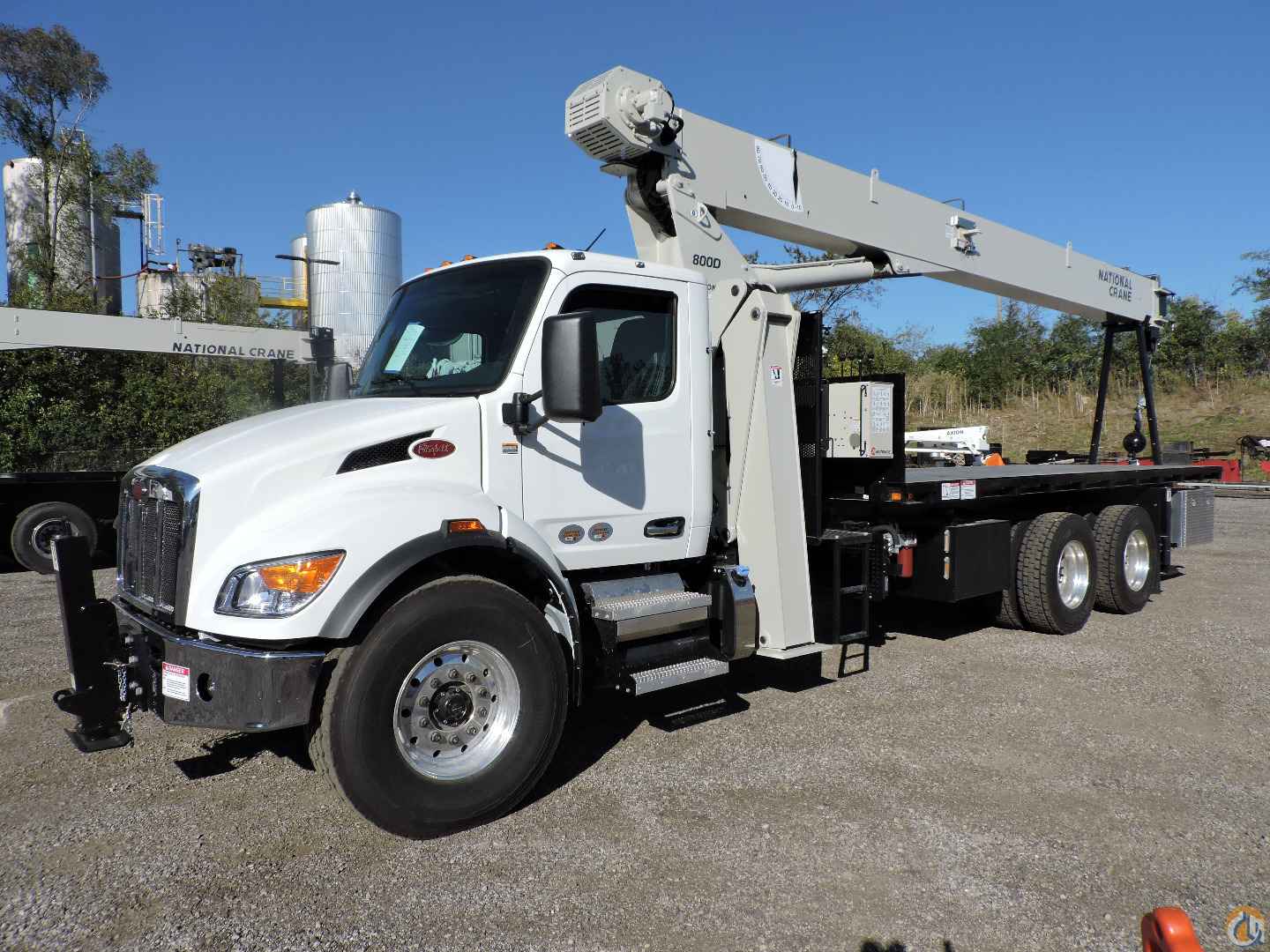

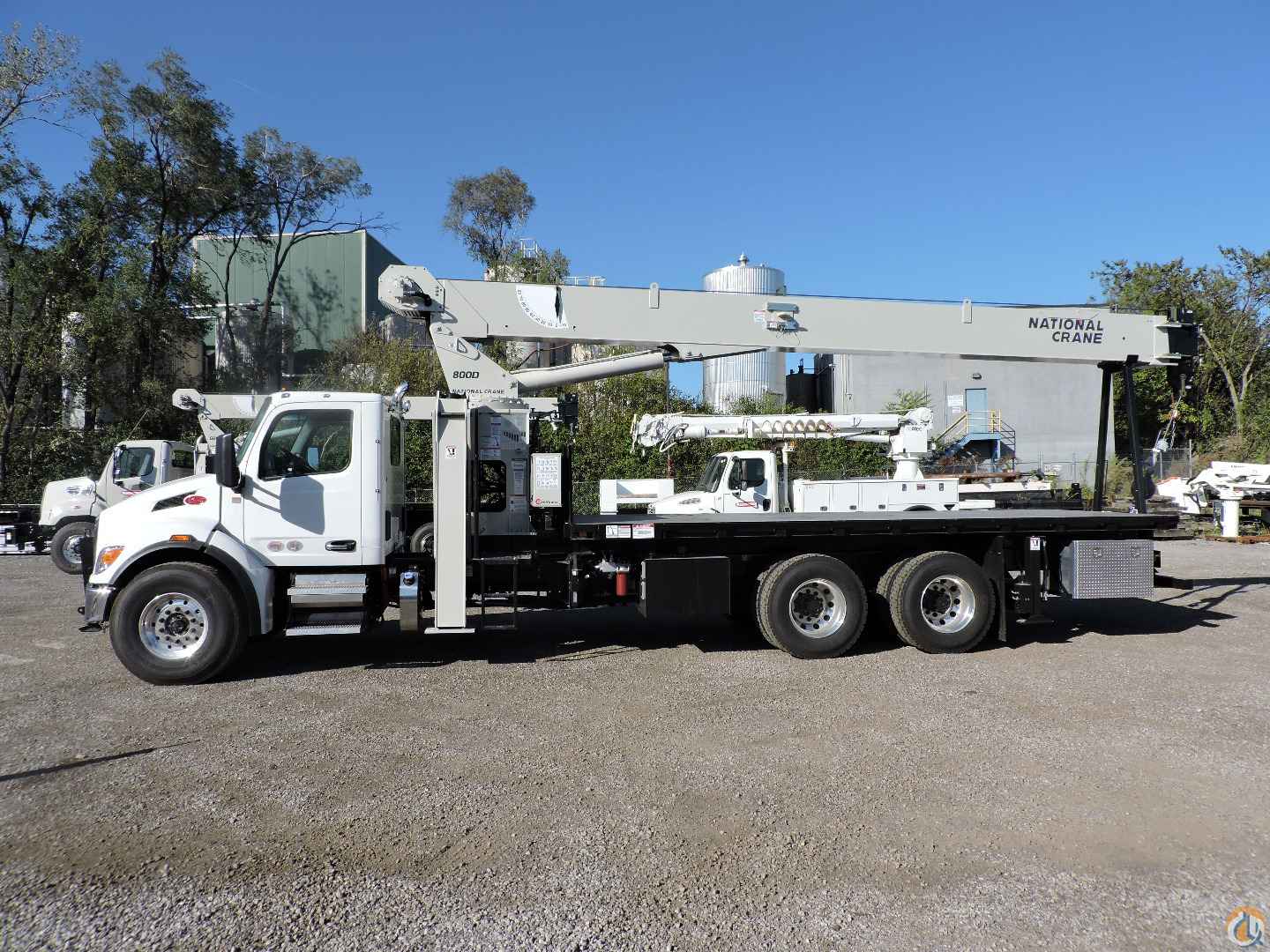

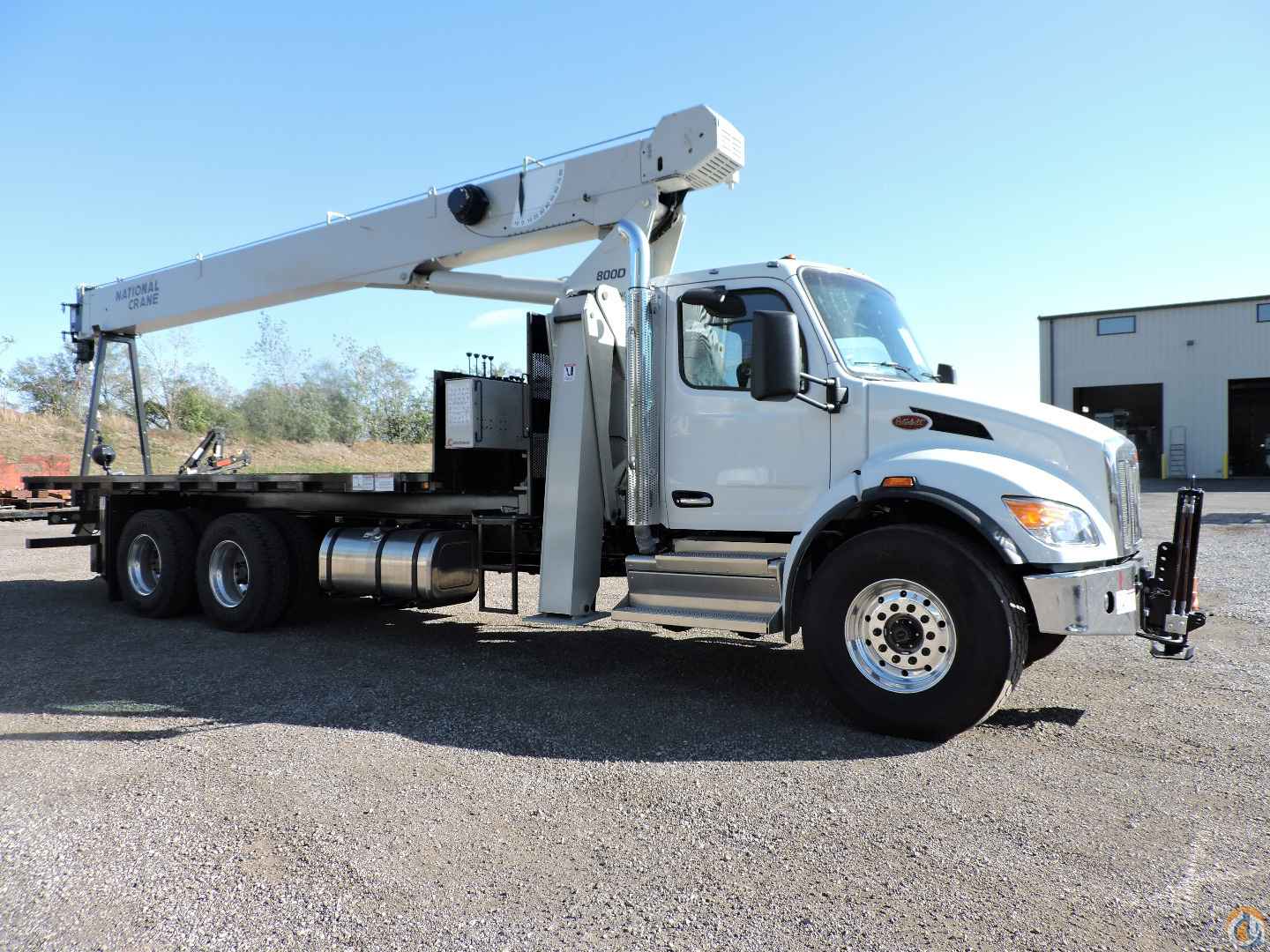

National Crane Model 8100D:

- 23 ton capacity

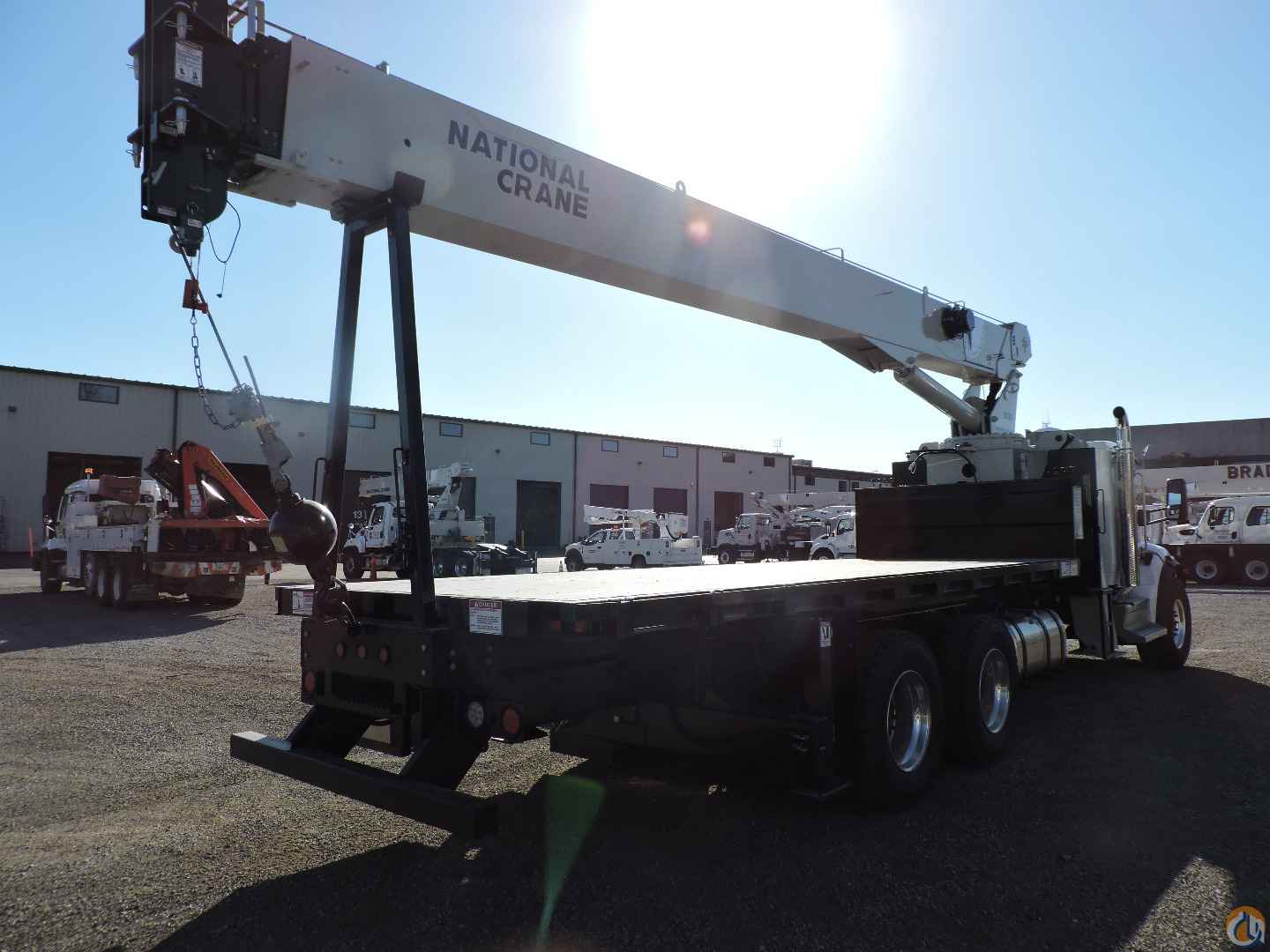

- 29.5’ to 100’ four (4) section telescopic boom – 110’ sheave height

- “A” type box slide outriggers with swivel pads

- Out and down rear hydraulic stabilizers with 16’ span

- Single front outrigger for 360 degree stability

- 22’ super duty wood deck with 30” steel bulkhead

- Outrigger motion alarm

- Anti-two block safety device; shuts off telescope out and winch up controls and does not allow hook to be pulled into sheave case

- Internal anti-two block wiring

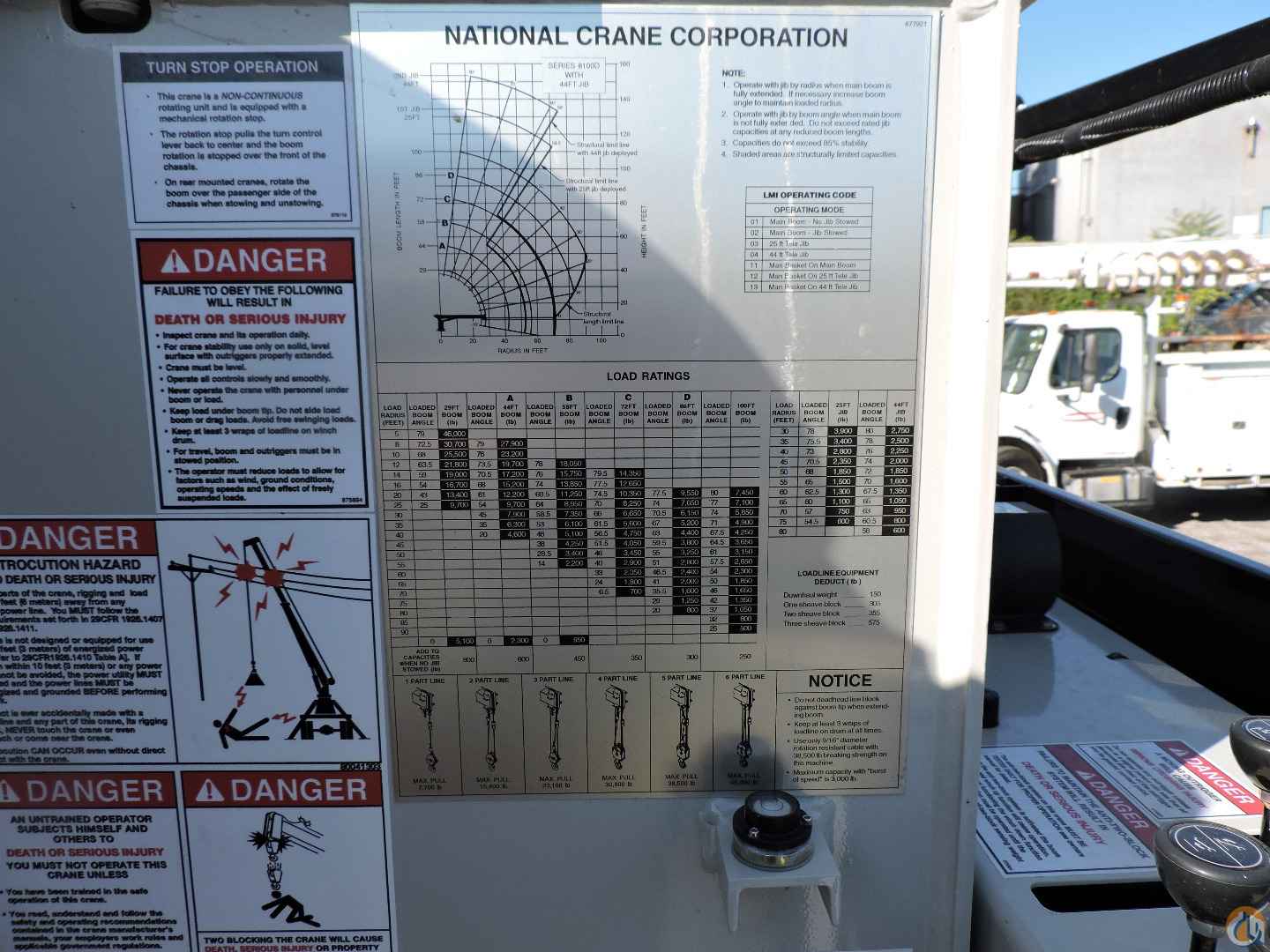

- Rated Capacity Limiter System (RCL) computer capacity alert system RCL displays boom angle and length, working radius, rated load and total weight being lifted

- Hi-performance planetary winch with 9/16” spin resistant wire rope

- 7-ton round downhaul style weight with top swivel and hook

- Burst-O-Speed winch with 147 FPM and 206 FPM line speed

- Dual side stand-up operator’s stations, dual engine throttle, horn and engine start/stop

- Operator platform 40” above ground for maximum visibility

- 375^o non-continuous rotation, adjustable swing drive

- Heavy duty hydraulic system with triple pump, provides three (3) separate hydraulic circuits for independent operation of winch, swing and crane functions

- 66-gallon hydraulic tank with return line filter, oil diffuser, sight gauge, and shut off gate valve

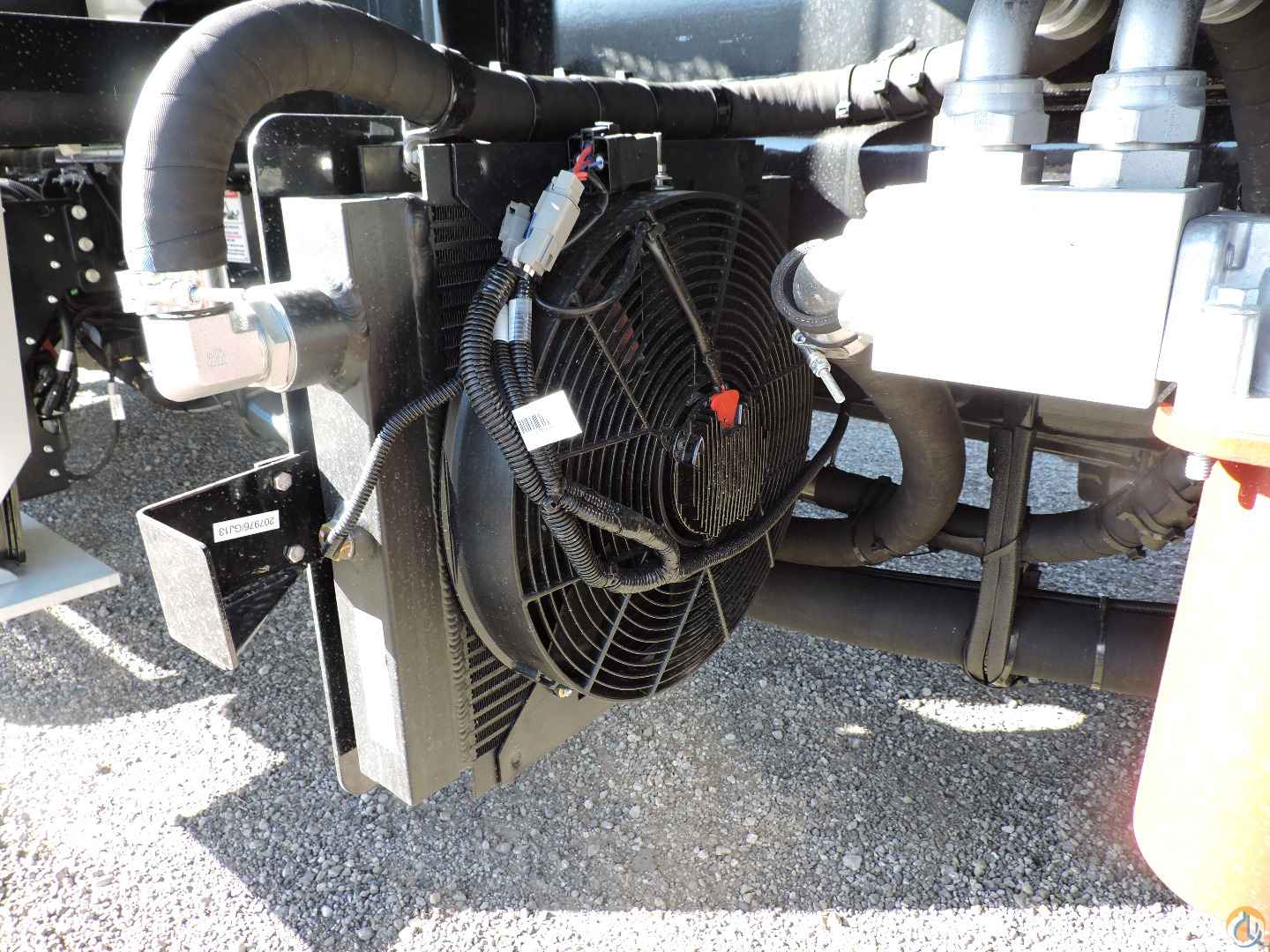

- Single fan oil cooler

- Painted National Platinum

- One removable boom rest

- Hour meter

- Back-up alarm

- Hot shift P.T.O.

- Rear bumper underride protection

- One owner’s manual and one CD owner’s manual

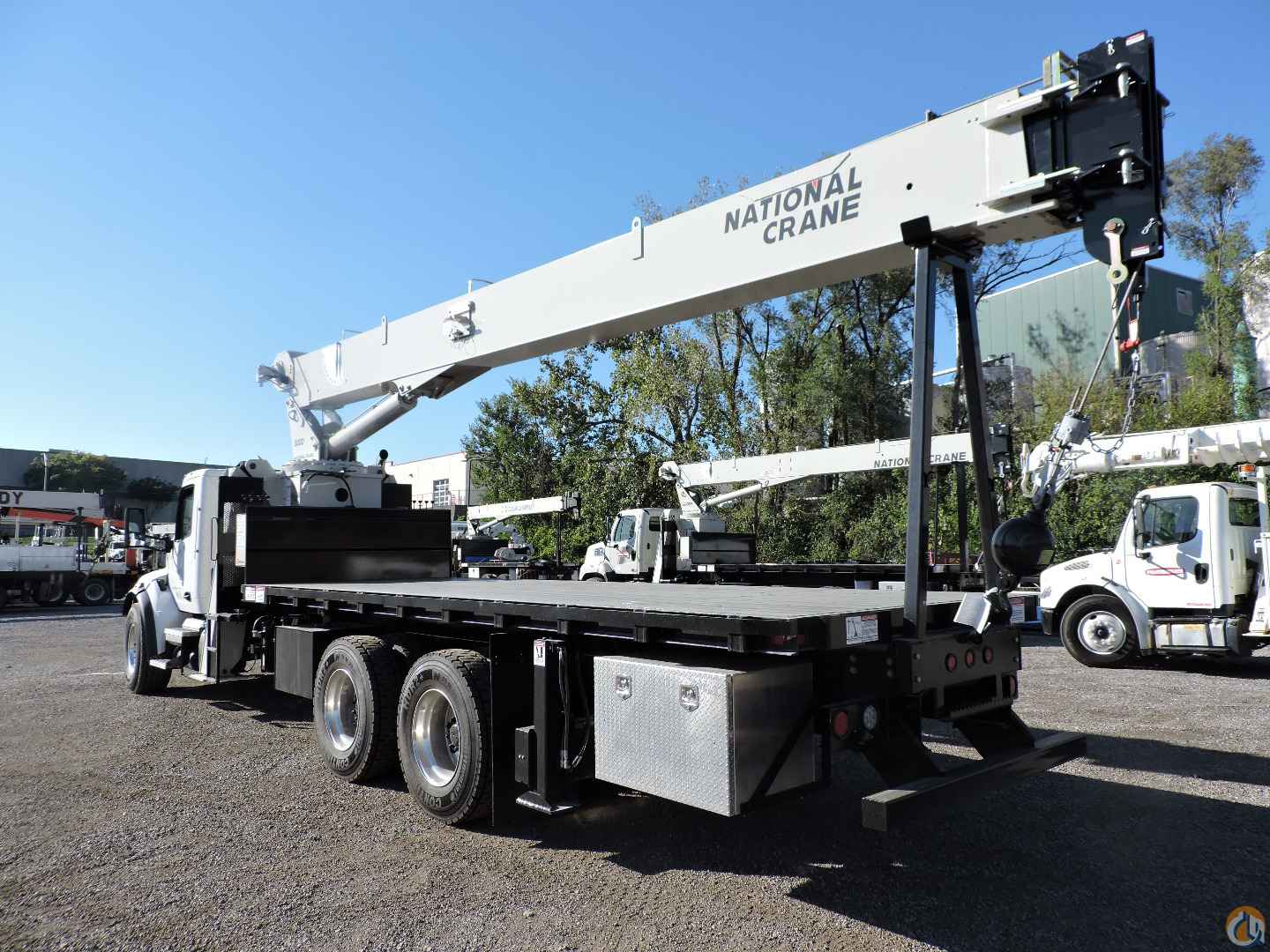

- 36” x 24” x 24” aluminum tool box

MOUNTED ON:

2025 Peterbilt 548:

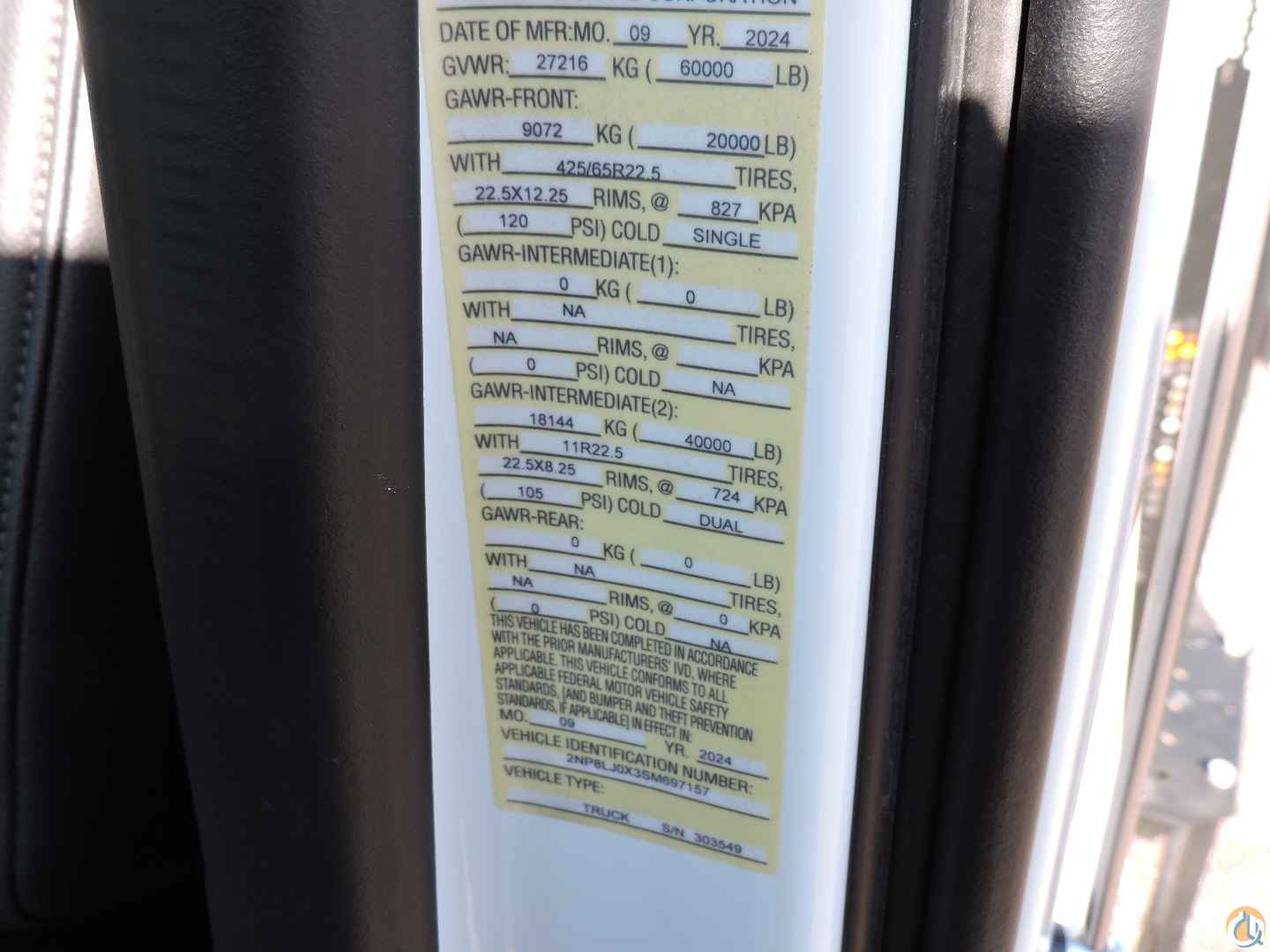

- 60,000 lb GVWR

- Not approved for CARB states

- Paccar PX-9 engine, 350 hp @ 2000 rpm, 1050 lb/ft @ 1200

- Allison 3000 RDS-P automatic transmission

- Front Axle – 20,000# with Taper Leaf springs

- Rear Axle – 40,000# with Haulmaax HMX EX 400 suspension

- Front tires 425/65R22.5

- Front wheels – 22.5x12.25 high polish

- Rear tires – 11R22.5

- Rear wheels – 22.5x8.25 high polish

- Differential locks on tandem axles

- Aluminum hubs

- Anti-Lock Braking System 4S4M

- PACCAR 160 Amp alternator

- Block heater

- PACCAR 12V starter

- Three (3) PACCAR Premium 12V dual purpose batteries 2190 CCA

- 2-Speed fan clutch

- Bendix air dryer with heater

- Pull cord drain valves on all air tanks

- Aluminum with painted finish air tanks

- 80-gallon aluminum fuel tank

- 14-gallon DEF tank with polished stainless-steel cover

- Driver’s seat – air ride, high back, vinyl with dual armrests

- Passenger’s seat – fixed, high back, vinyl with left armrest

- Adjustable steering column – tilt/telescope

- Power windows and doors

- Air horn

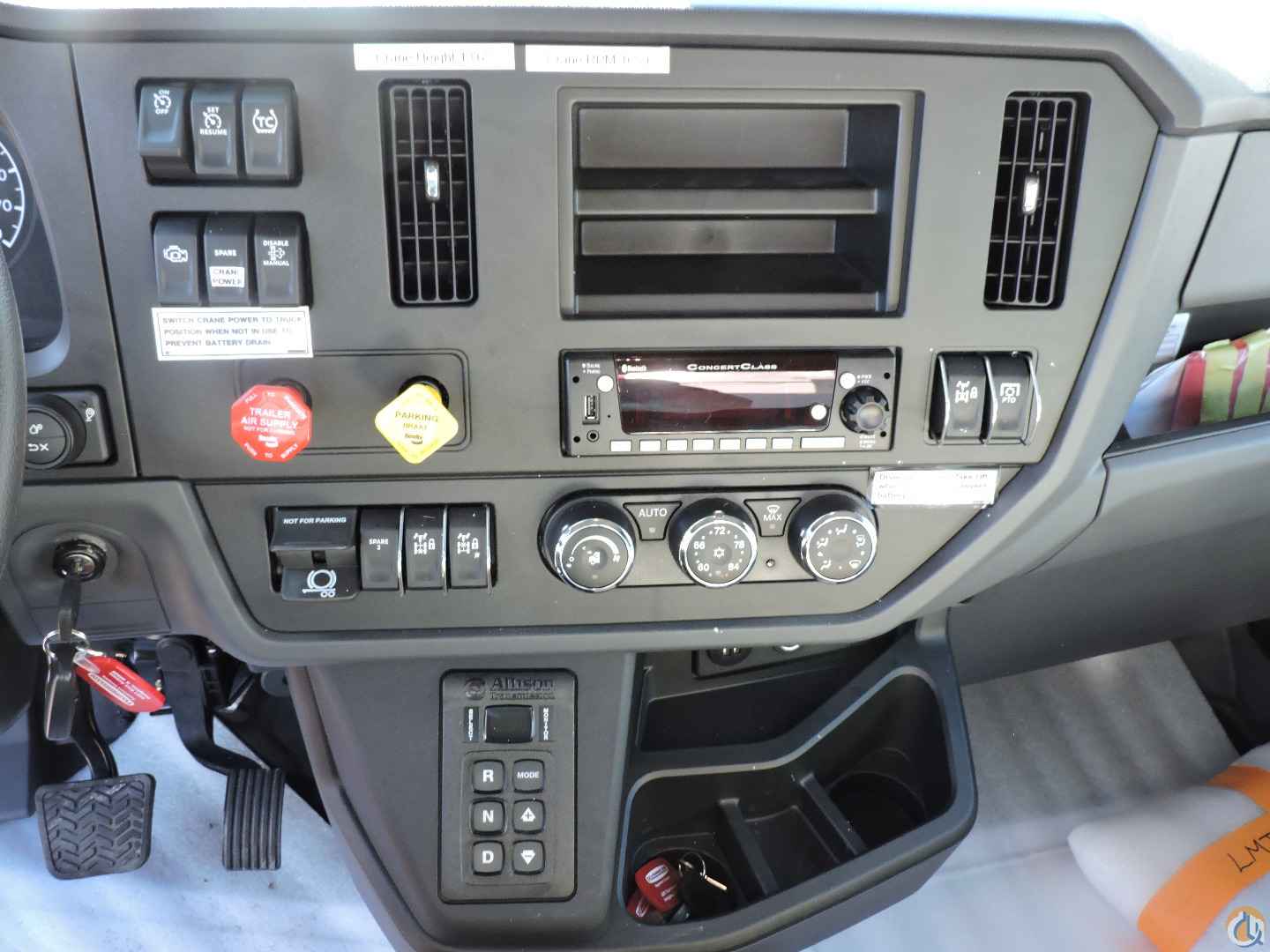

- ConcertClass Stereo – AM/FM, WB, USB, Bluetooth phone

- Cab air suspension

- Painted white
