Year: 2015
Capacity: 23
Condition: Excellent
Location: Hodgkins, Illinois

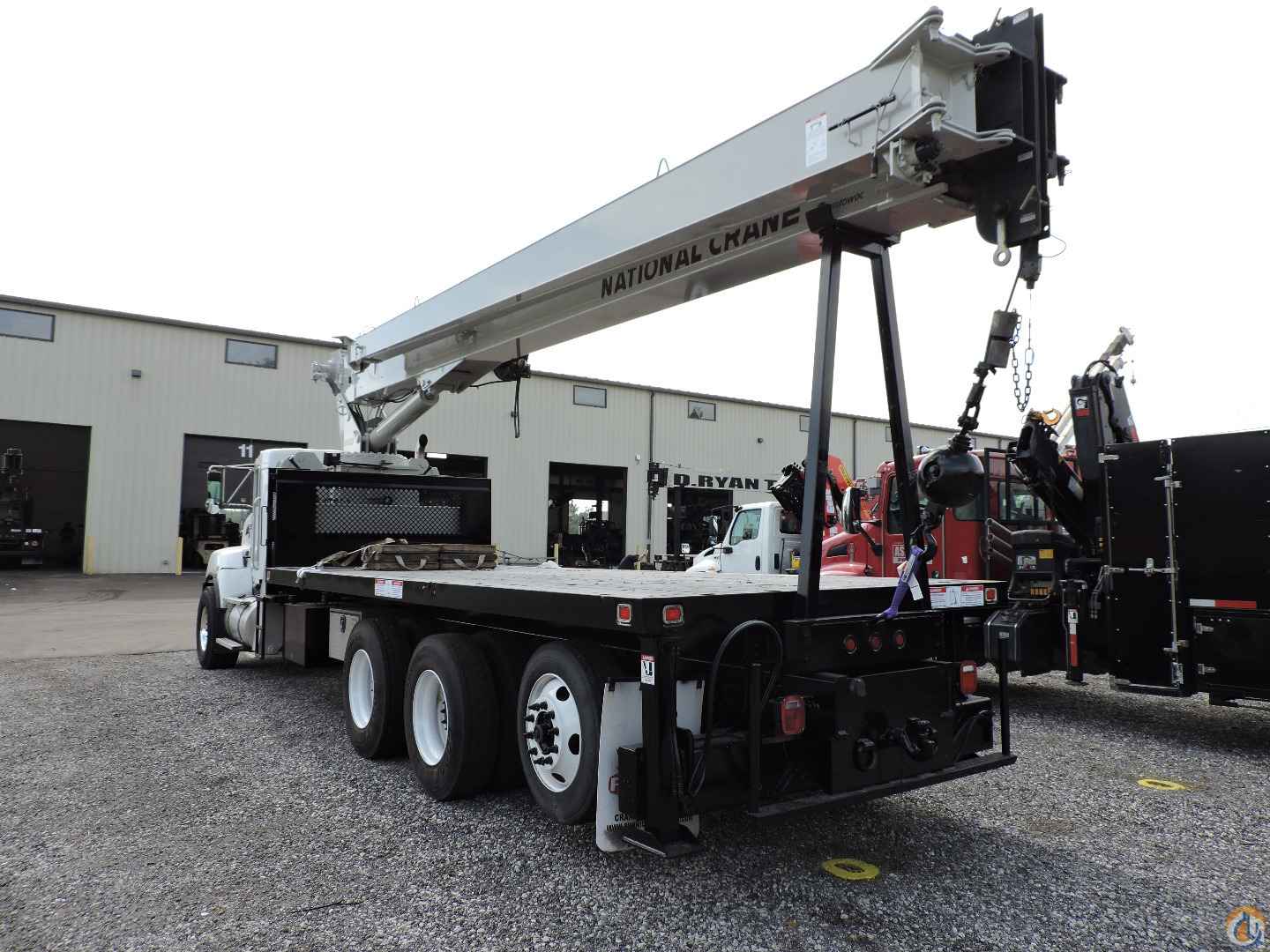

National Crane Model 8100D equipped as follows:
- 23 ton capacity
- 29-6” to 100’ four (4) section proportional boom – 110’ sheave height
- 25’ – 44’ jib with 19’ manual pull out to 44’
- “A” type box slide outriggers in front 21’ span
- Out and down rear hydraulic stabilizers with 16’ span

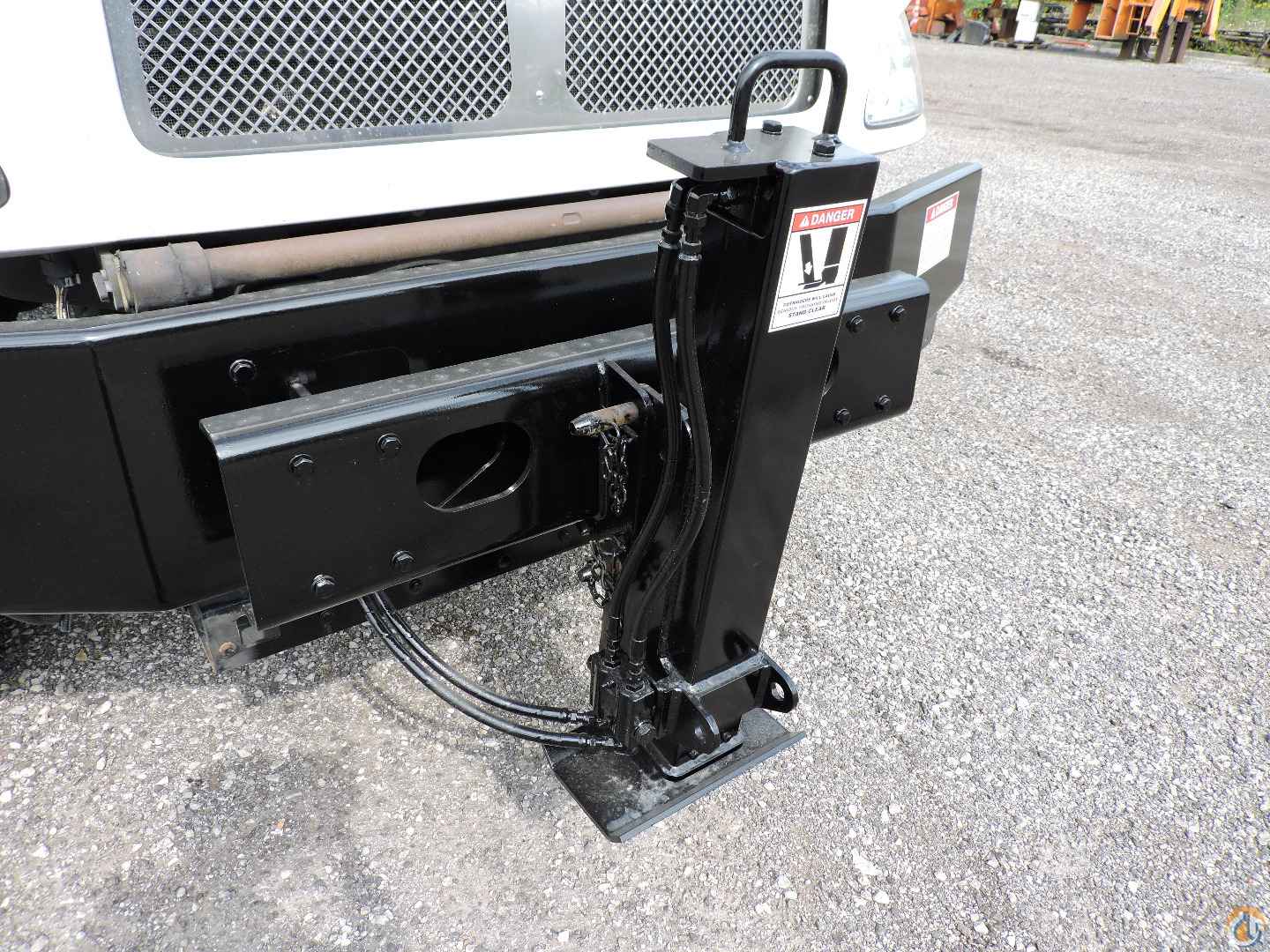

- Single front outrigger for 360 degree stability
- Outrigger motion alarm
- Anti-two block safety device; shuts off telescope out and winch up controls and does not allow hook to be pulled into sheave case

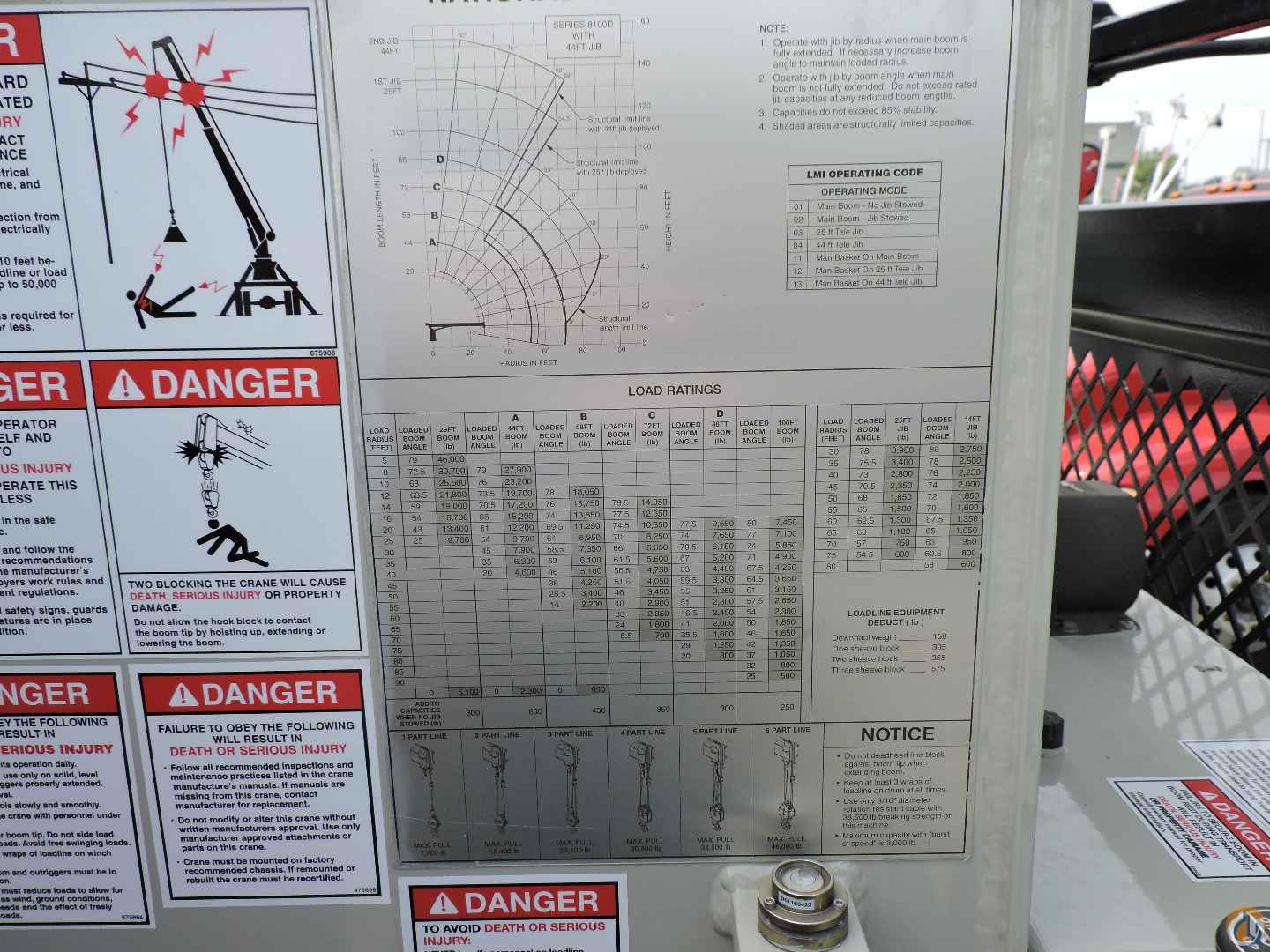

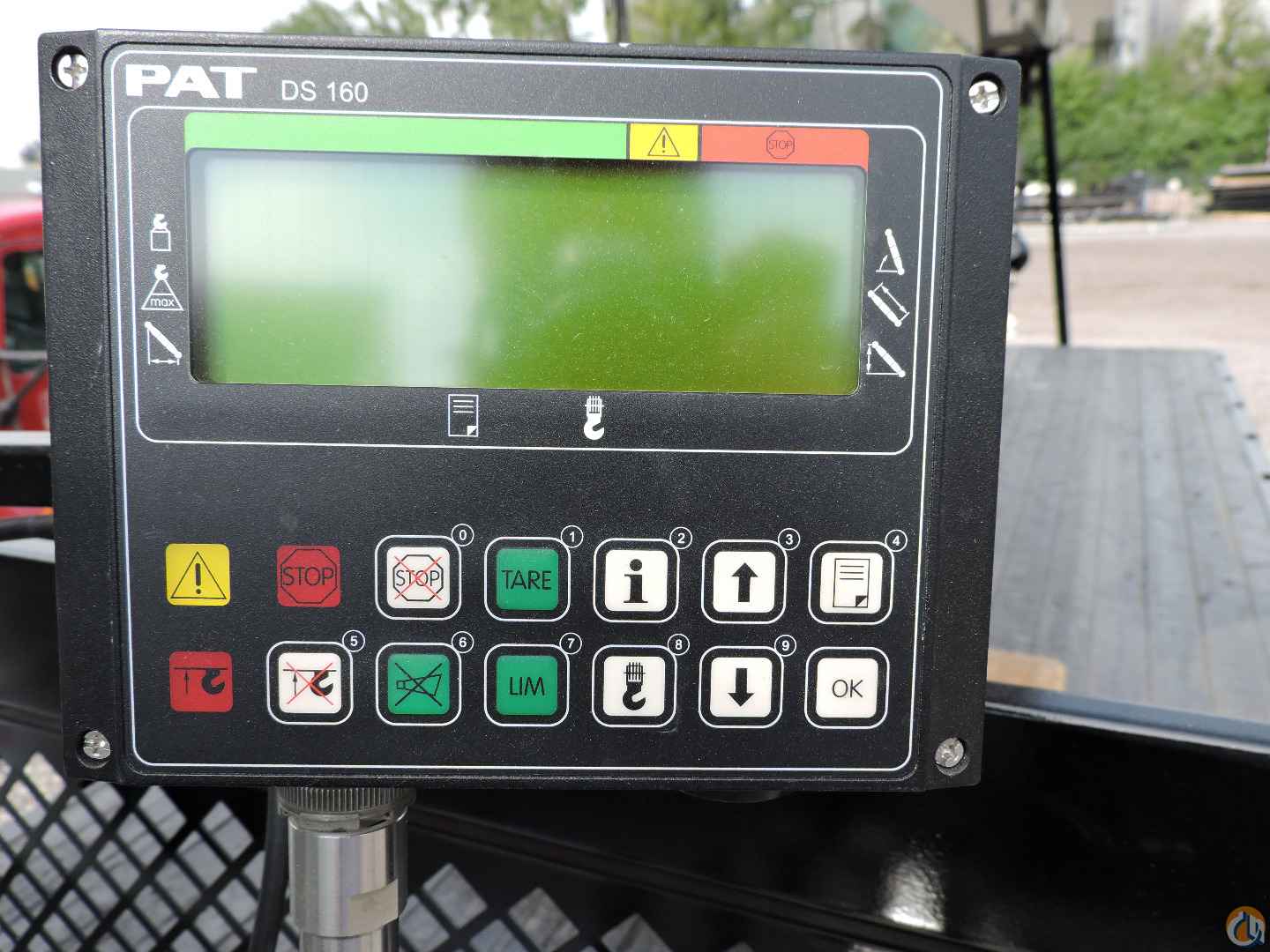

- Load moment indicator (LMI) computer capacity alert system – LMI has display console showing boom length, boom angle, maximum allowable load and load on hook, also allows for maximum or minimum boom angle presets
- Hi-performance planetary winch with 9/16” spin resistant wire rope
- 7 ton round downhaul style weight with top swivel and hook
- Burst-O-Speed winch with 147 FPM and 206 FPM line speed
- Dual side controls with operator platforms, foot throttles, horn and kill switches
- Operator platform 40” above ground for maximum visibility
- 375 degree planetary rotation non-continuous
- Adjustable swing speed
- 66 gallon hydraulic tank with return oil diffuser, sight gauge and shut off gate valve

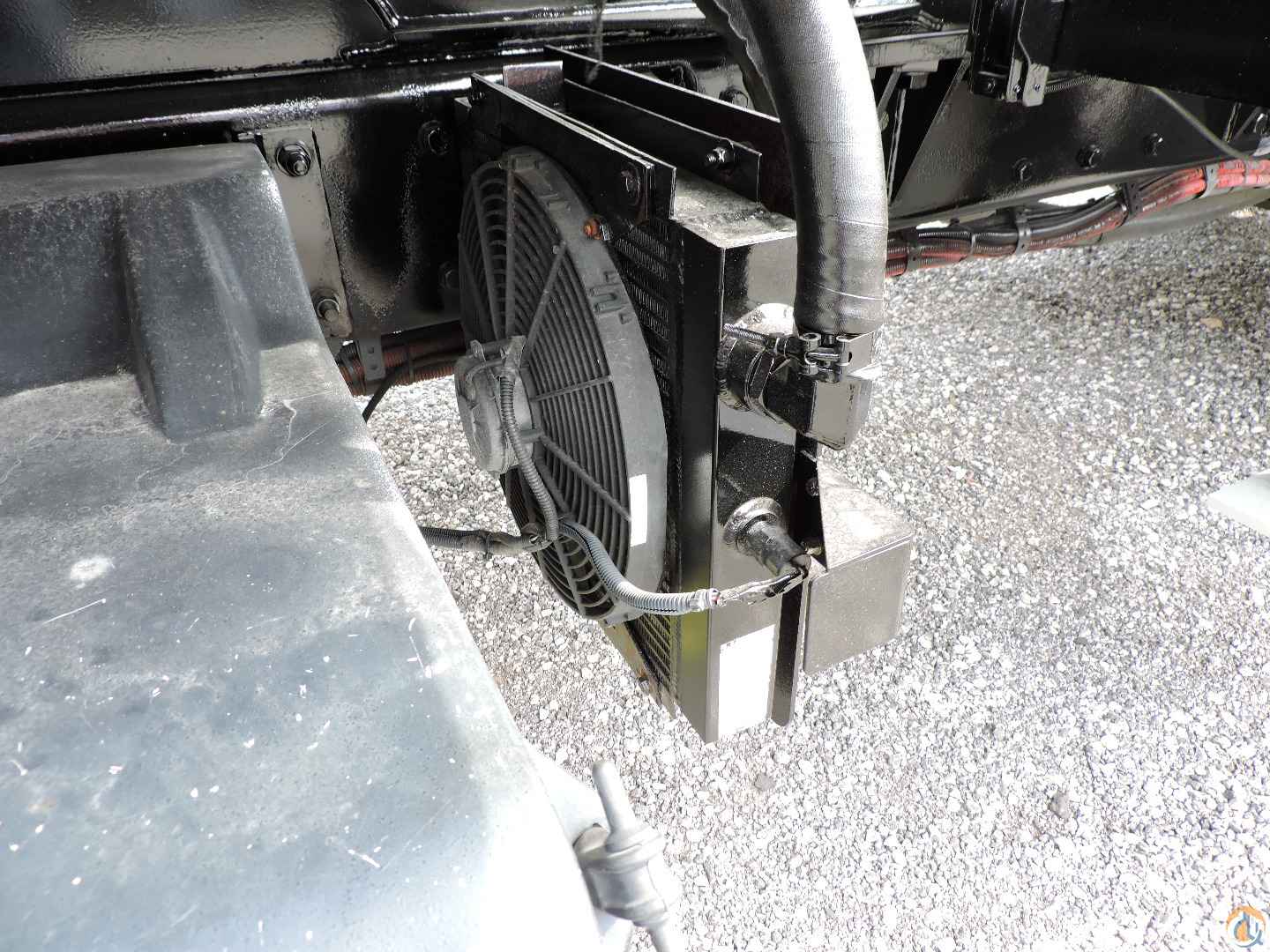

- Hydraulic oil cooler
- Hydraulic hose reel
- One removable boom rest

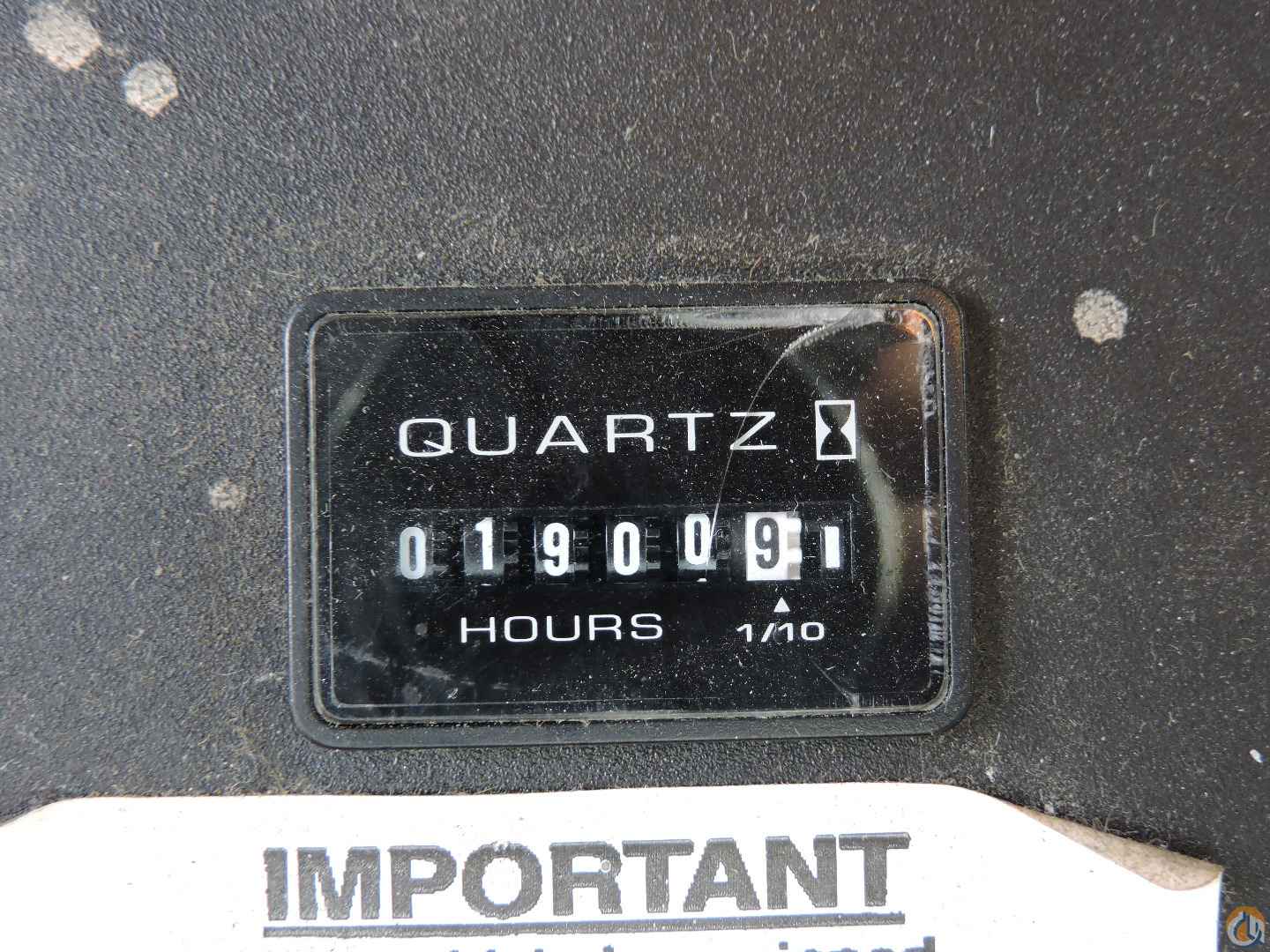

- Hour meter
- Reverse back-up alarm

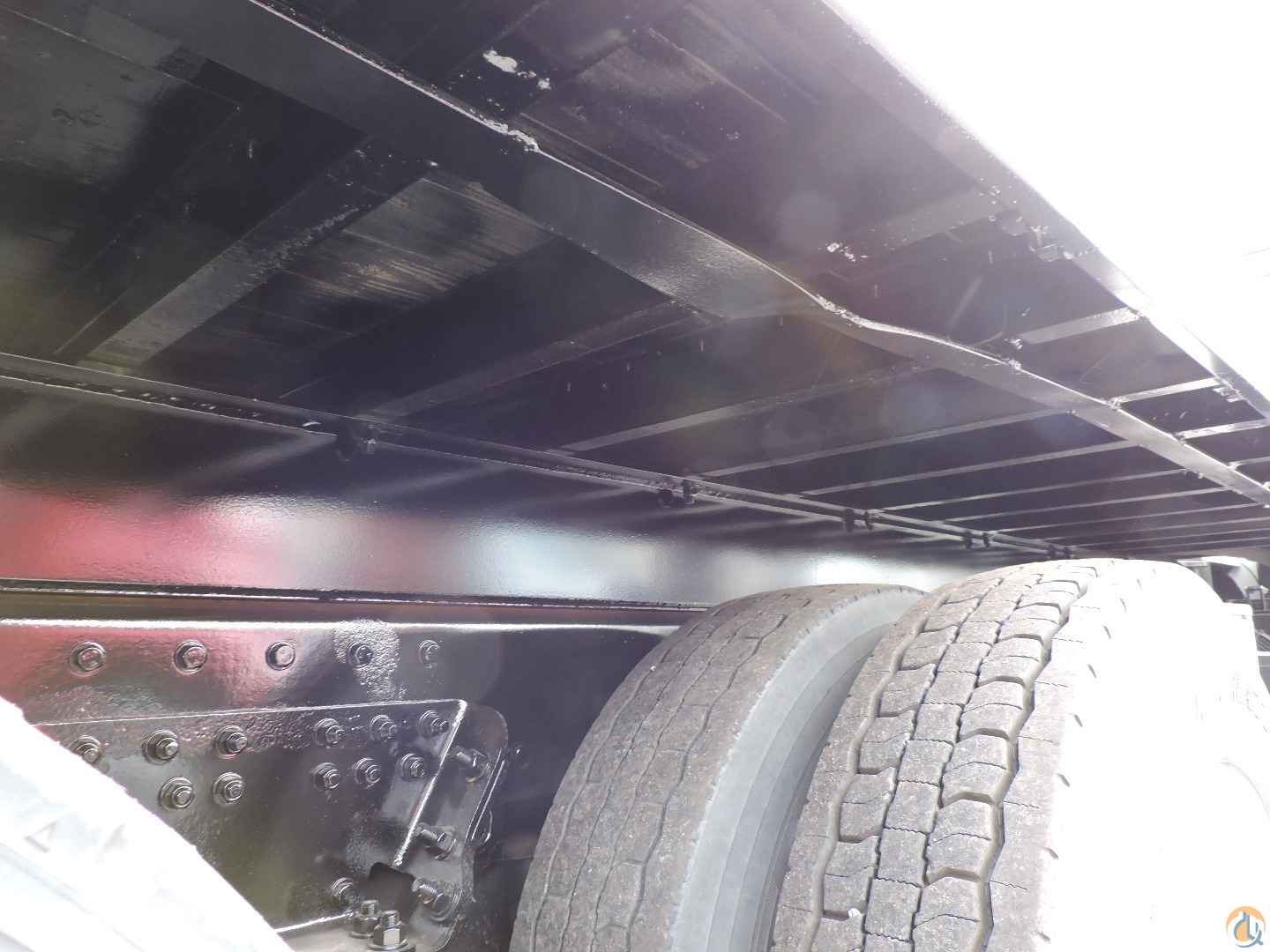

- 22’ super duty wood deck with bulkhead

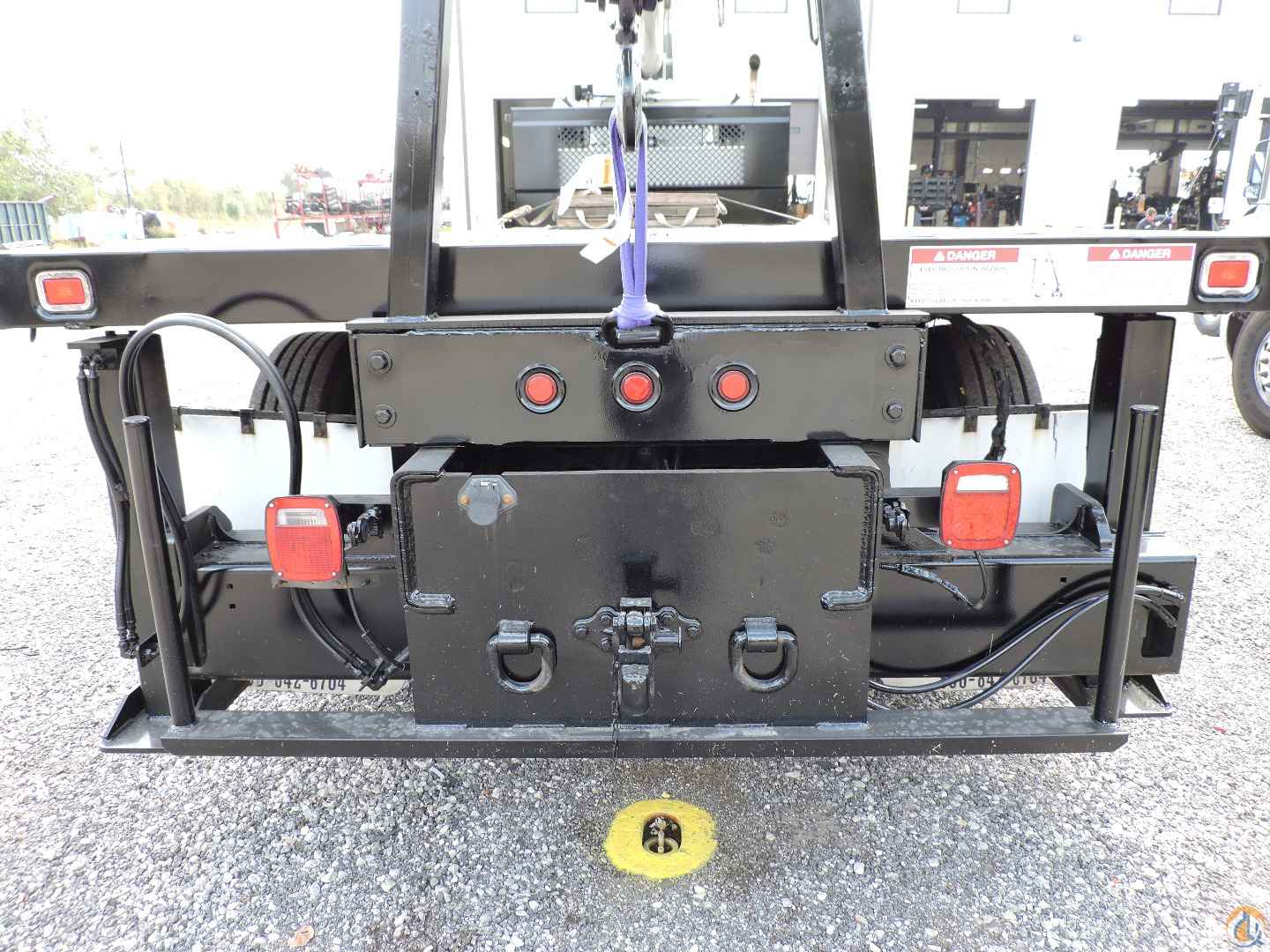

- Includes pintle hitch and two toolboxes
MOUNTED ON:

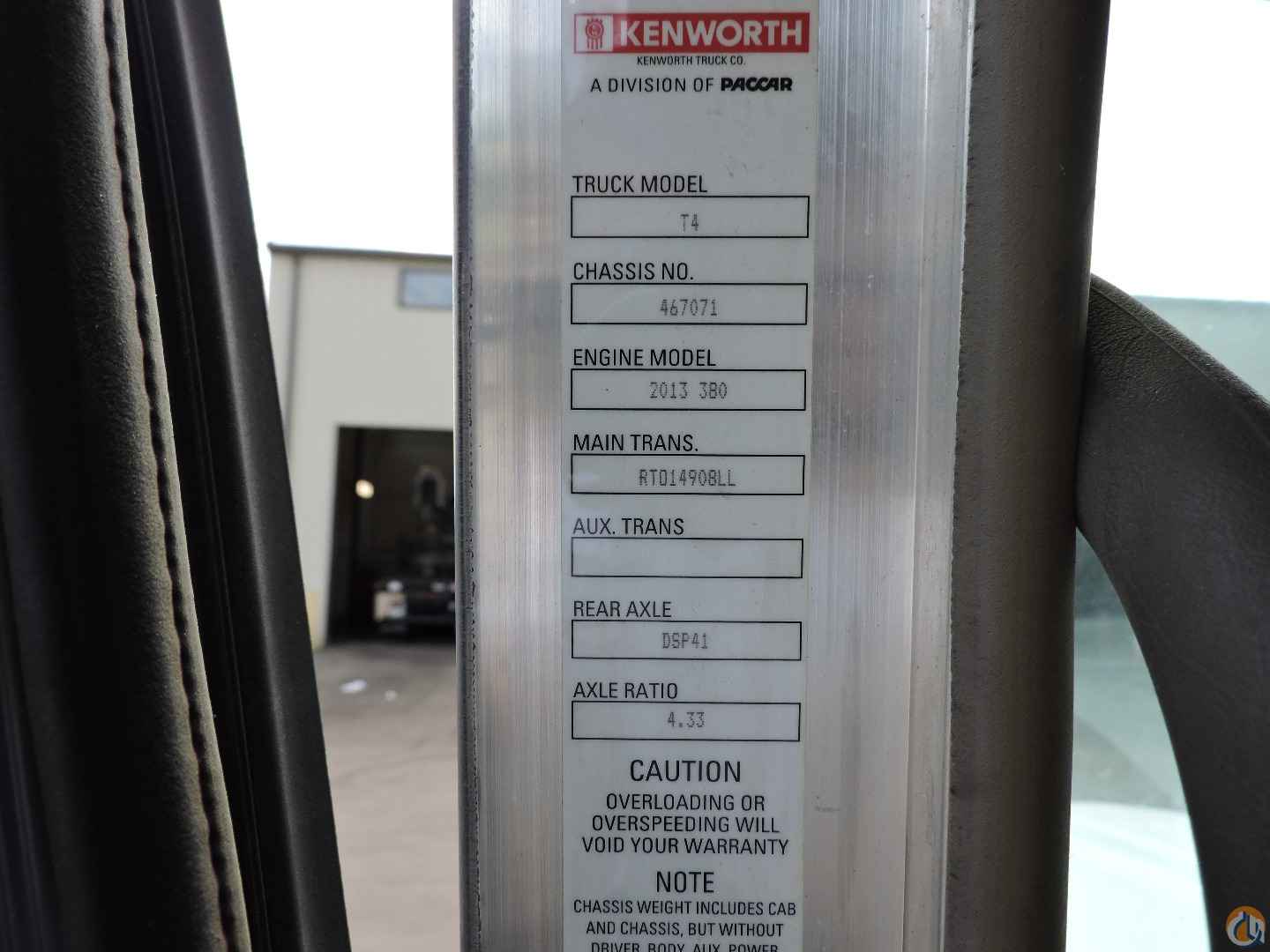

2015 Kenworth T470 equipped as follows:
- Paccar PX9 engine
- Engine block heater

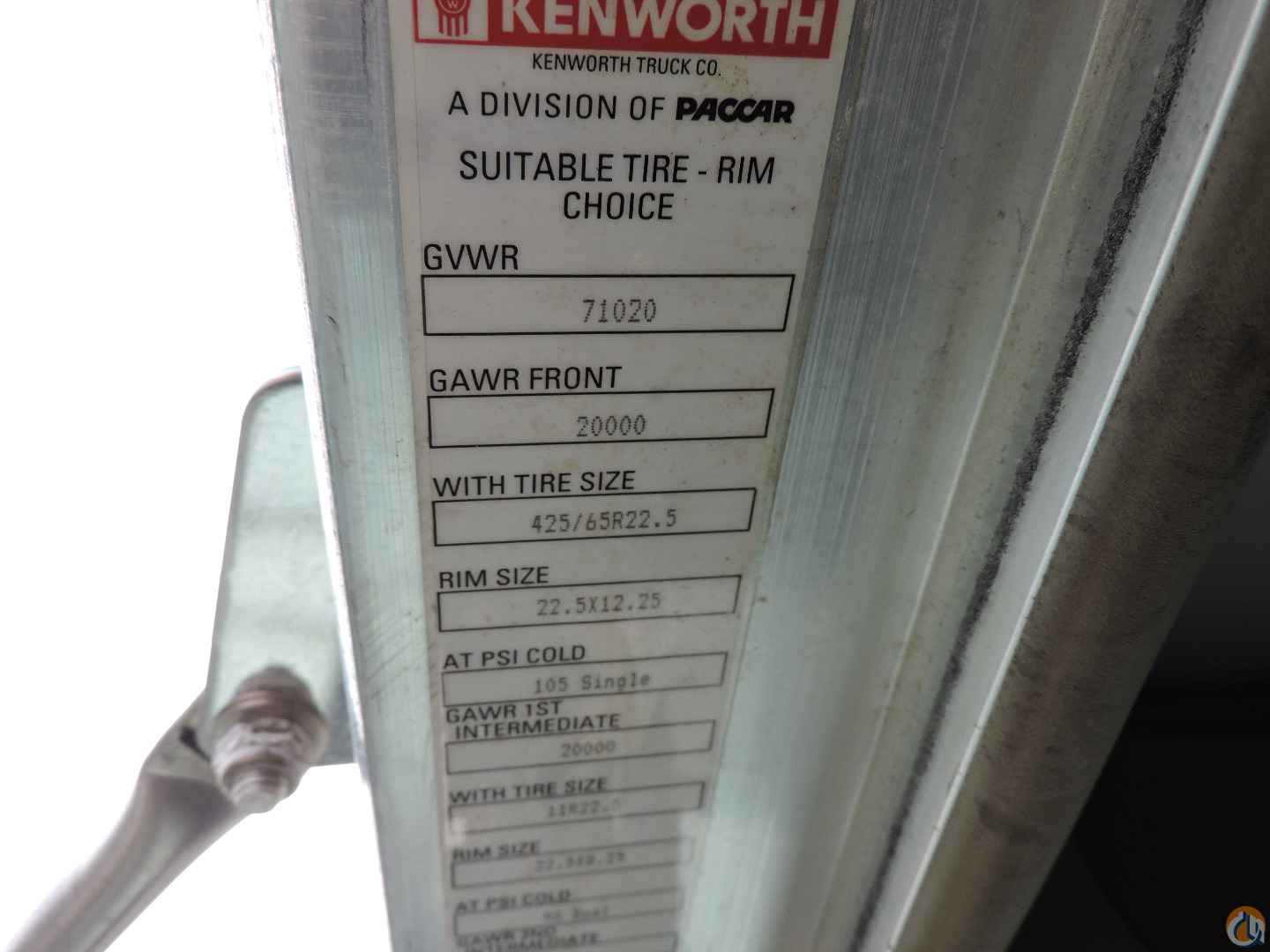

- 20,000# front axle load

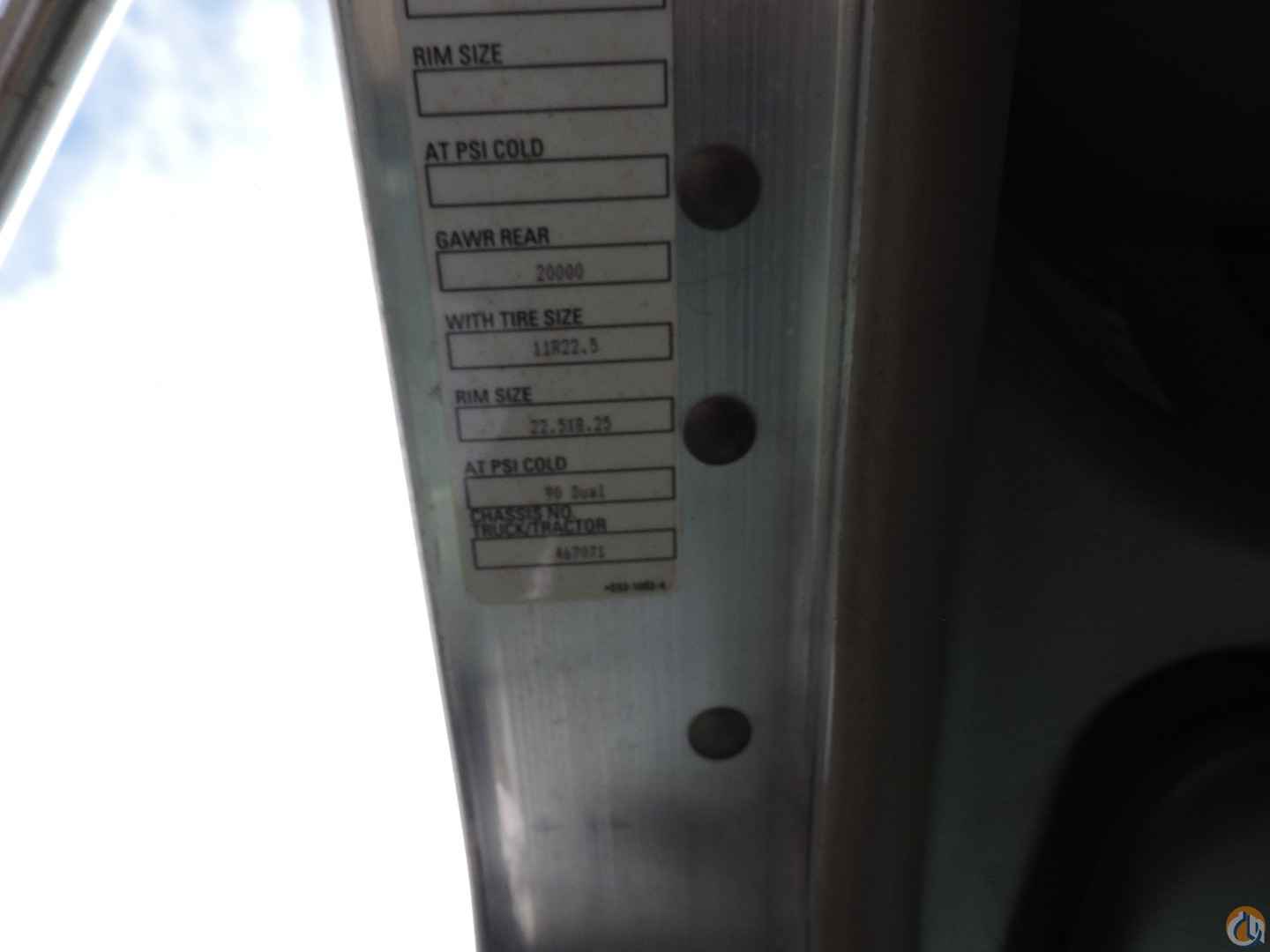

- 40,000# rear axle load
- Watson-Chalin TruTrack 13.2k rated tag axle

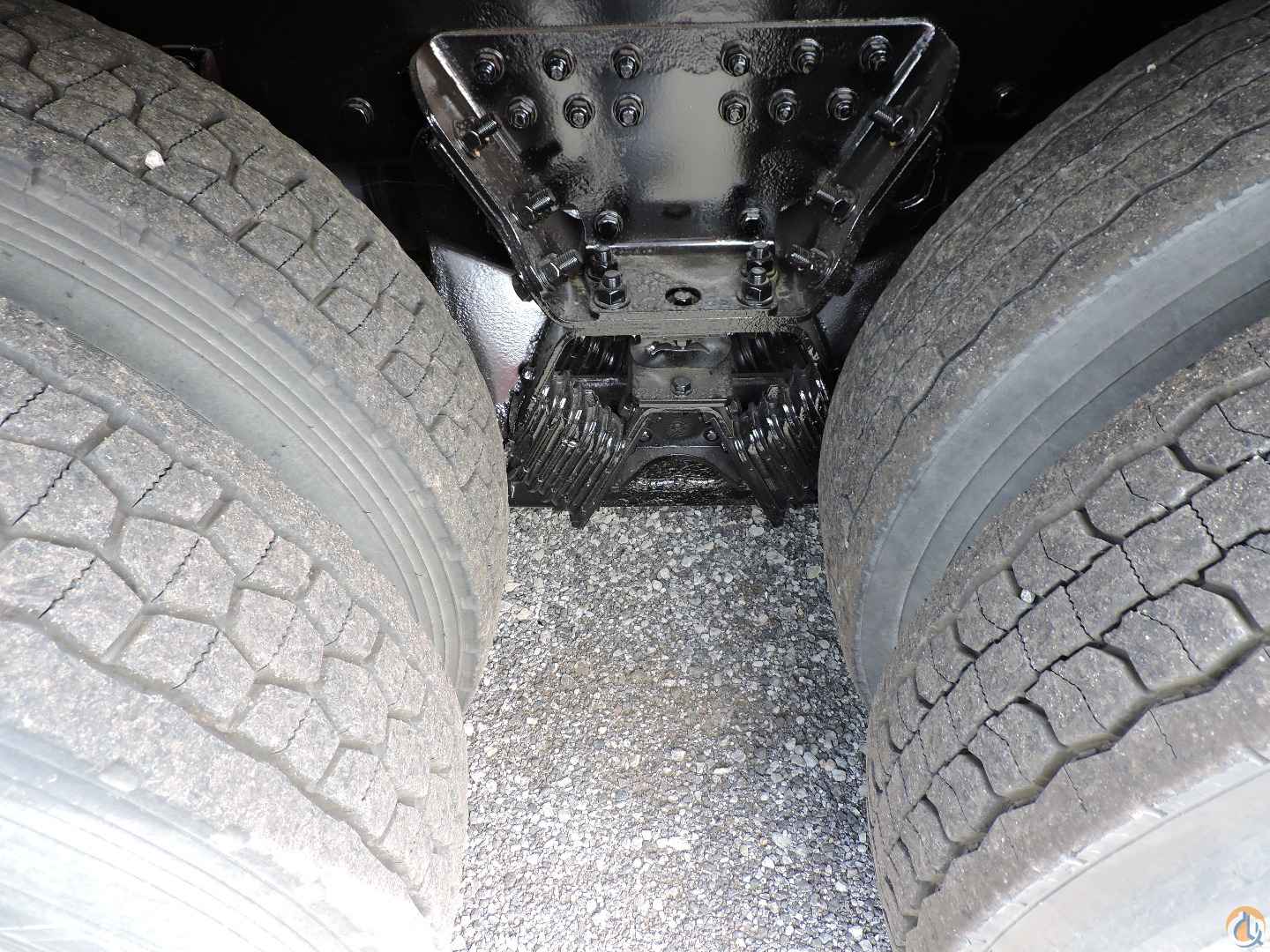

- Hendrickson Haulmaax HMX400 40,000#

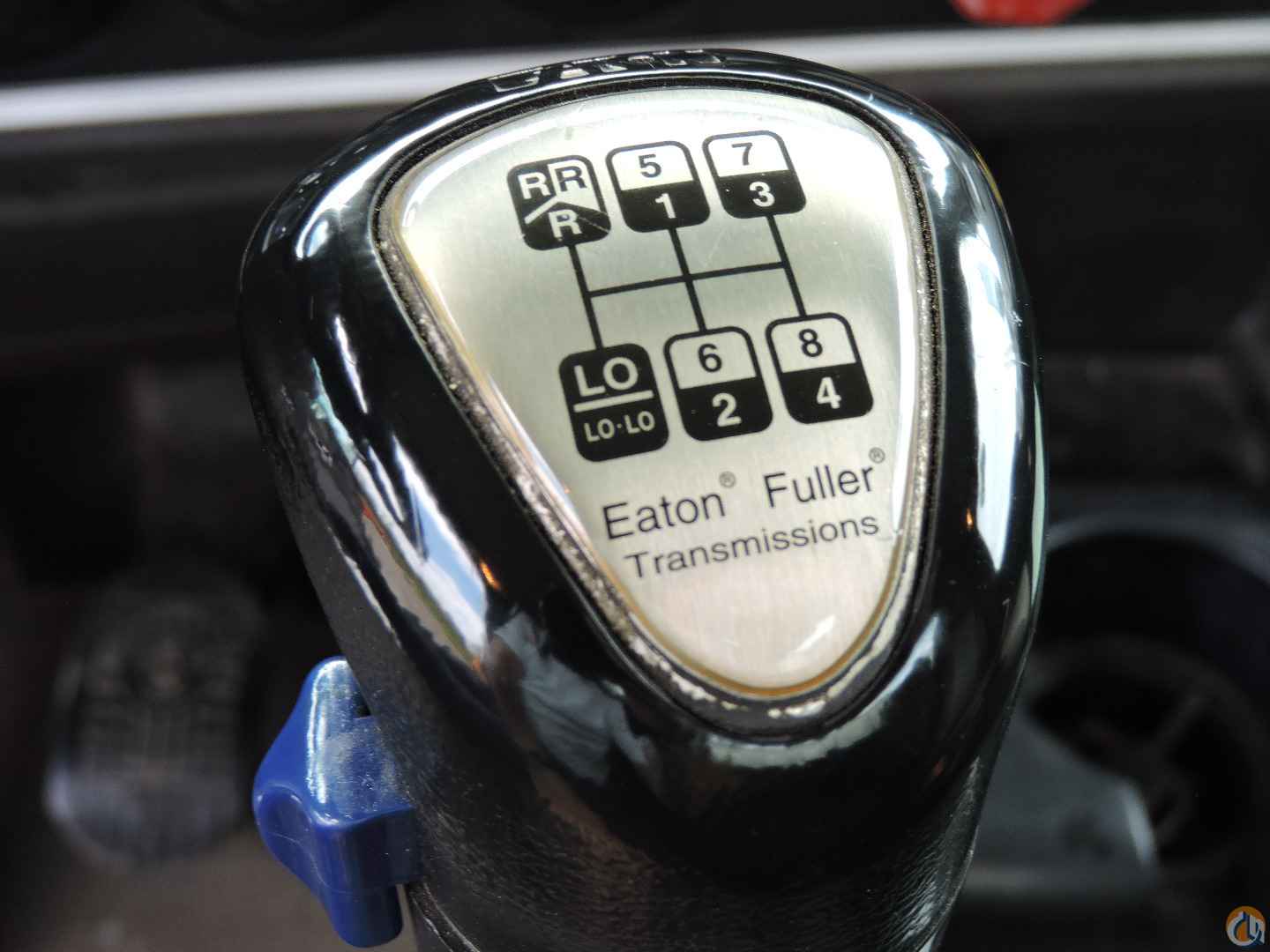

- Fuller RTO14908LL 10-speed transmission

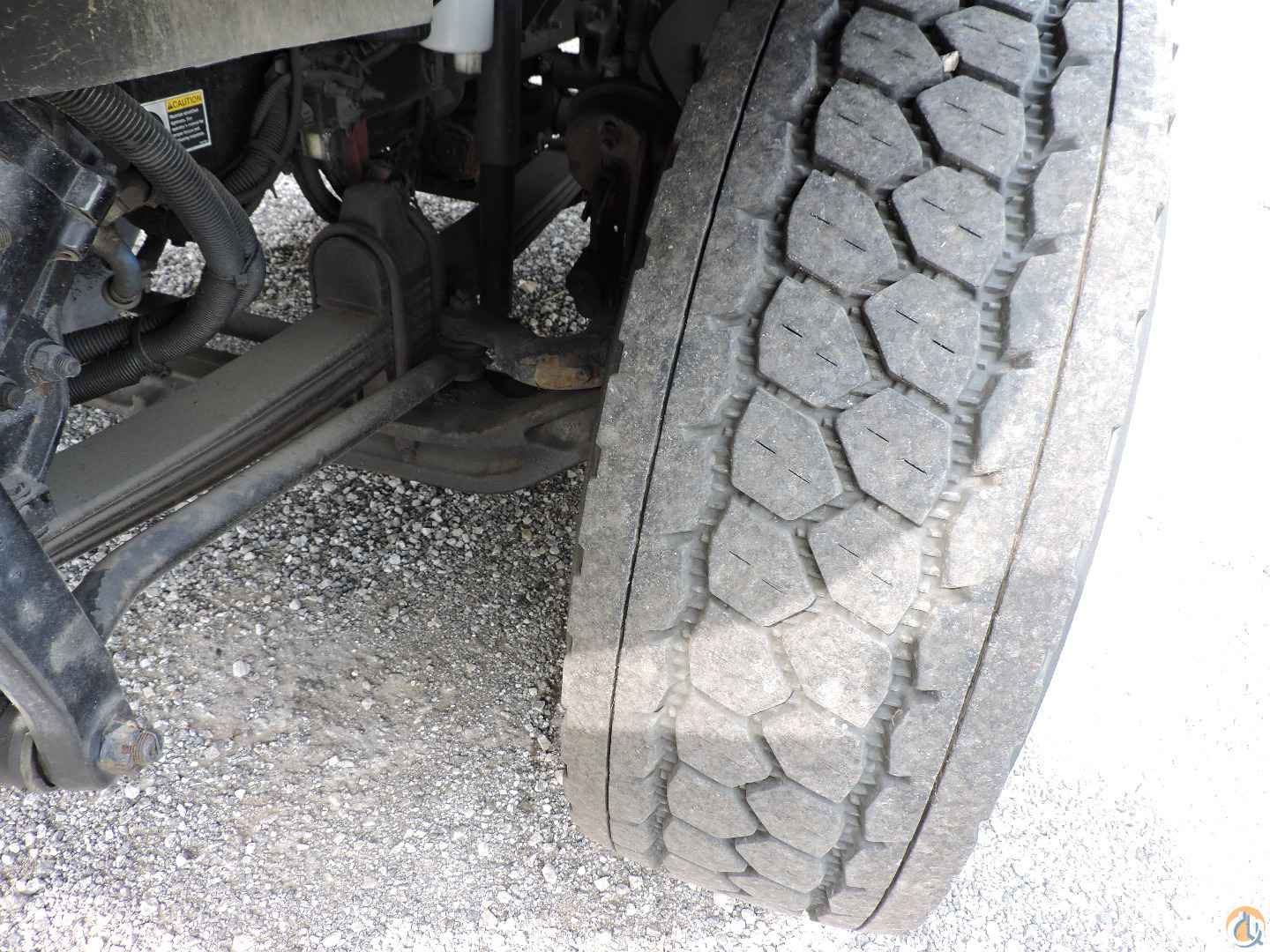

- Front tires: 425/65R22.5 with aluminum wheels

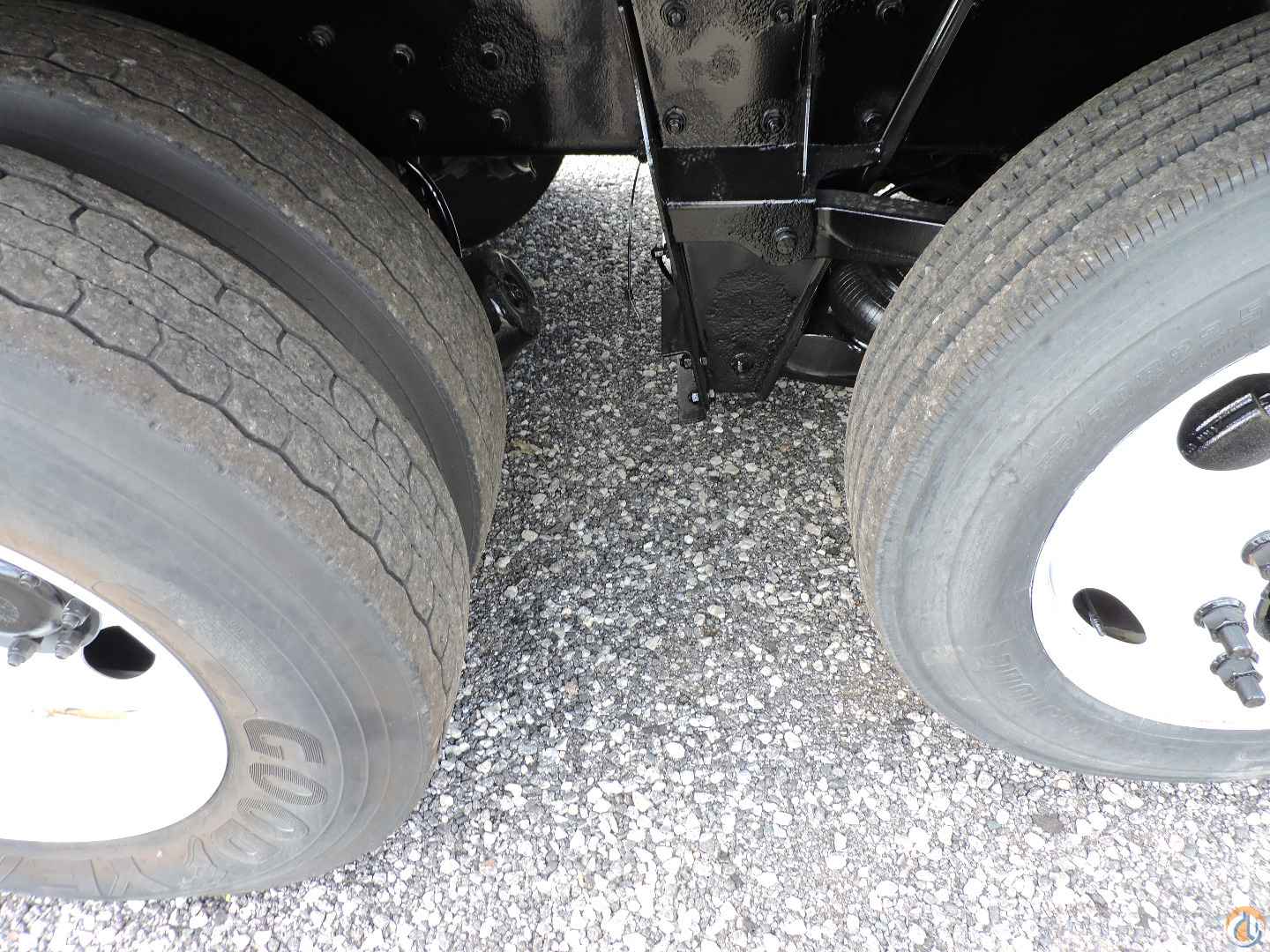

- Rear tires: 11R22.5
- Steel rear wheel
- 100 gallon fuel tank
- Slate gray w/trim dark slate gray
- Kenworth air cushion driver seat
- Kenworth AM/FM/CD weather band w/LED radio
