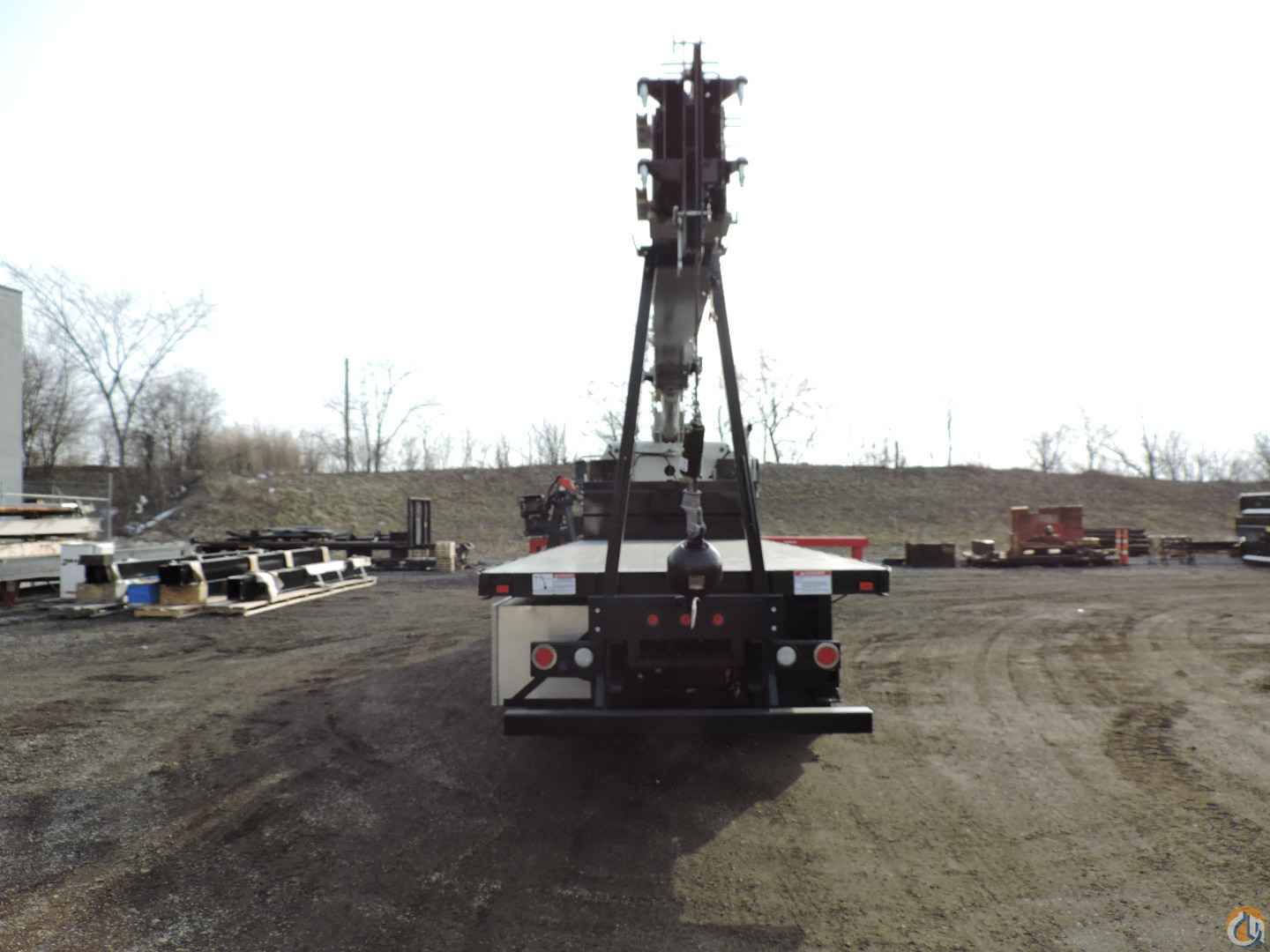

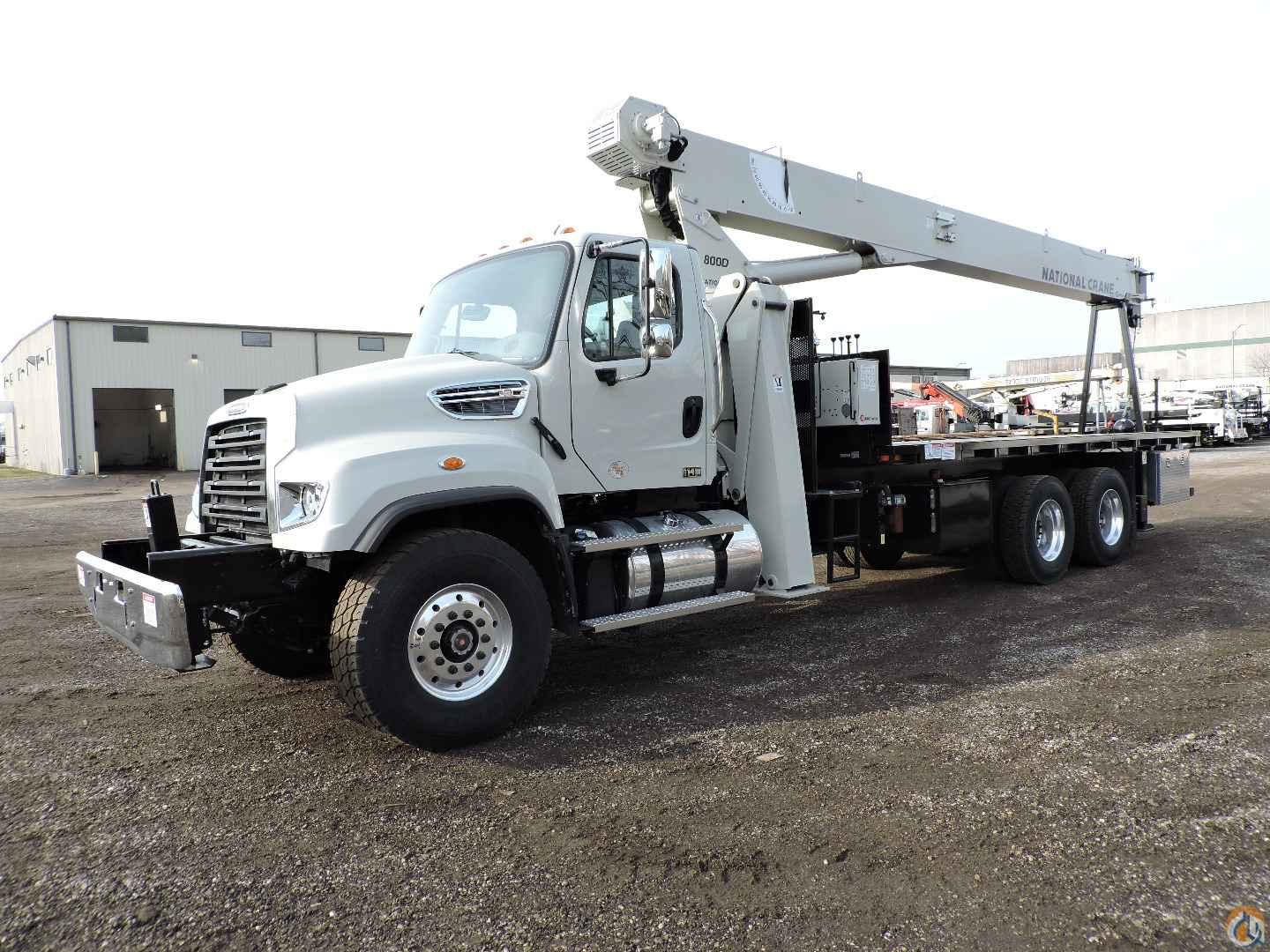

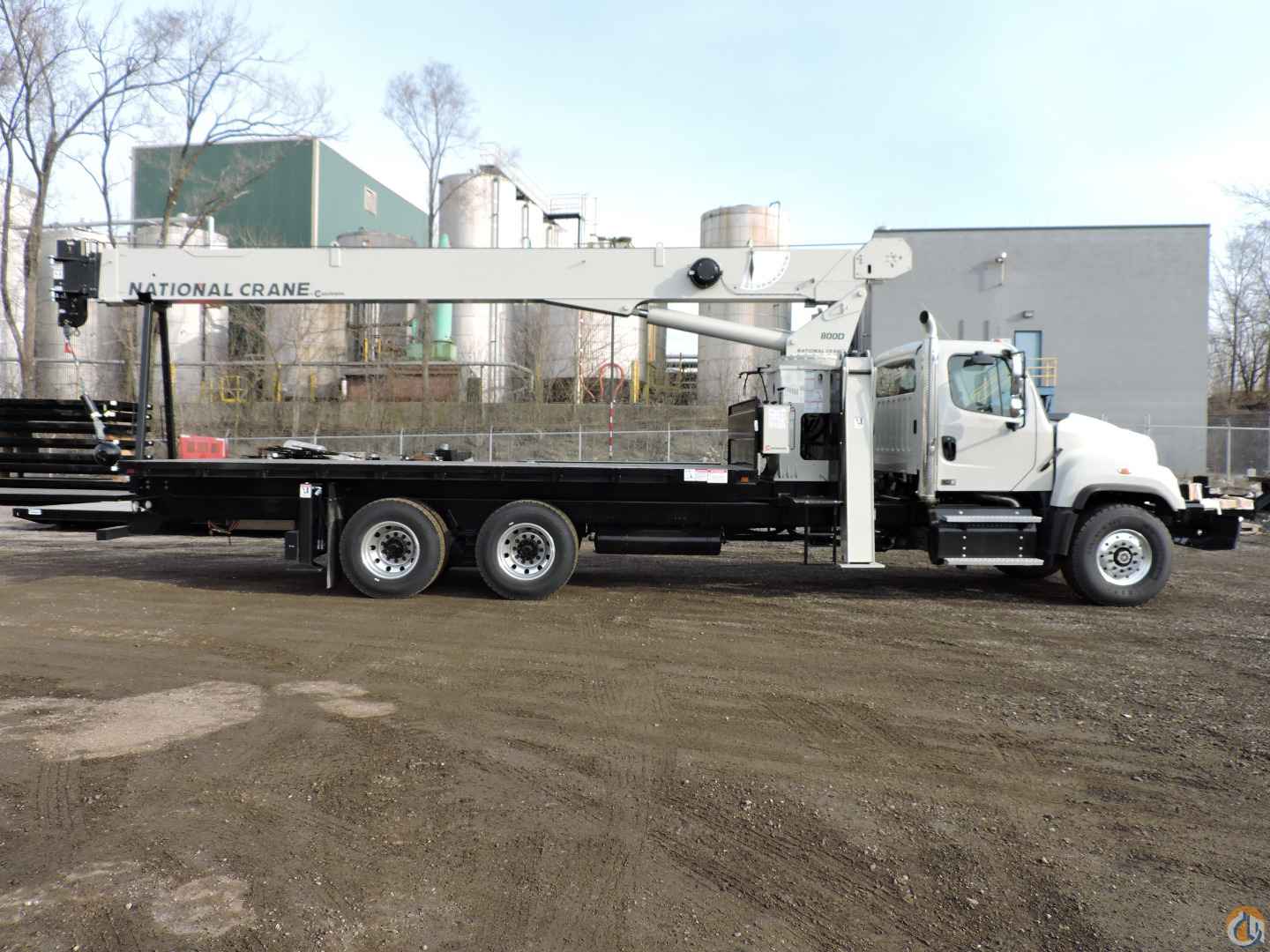

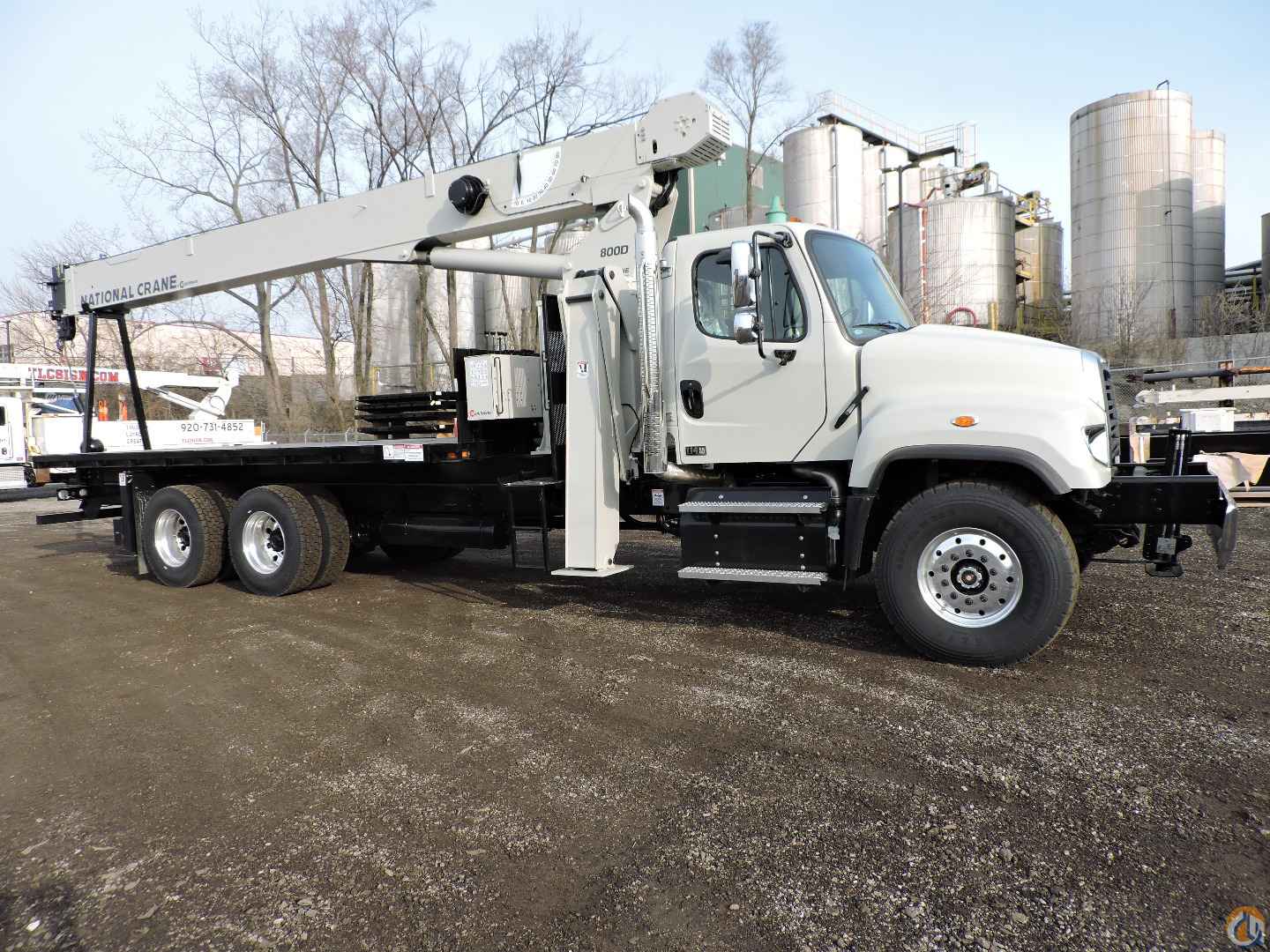

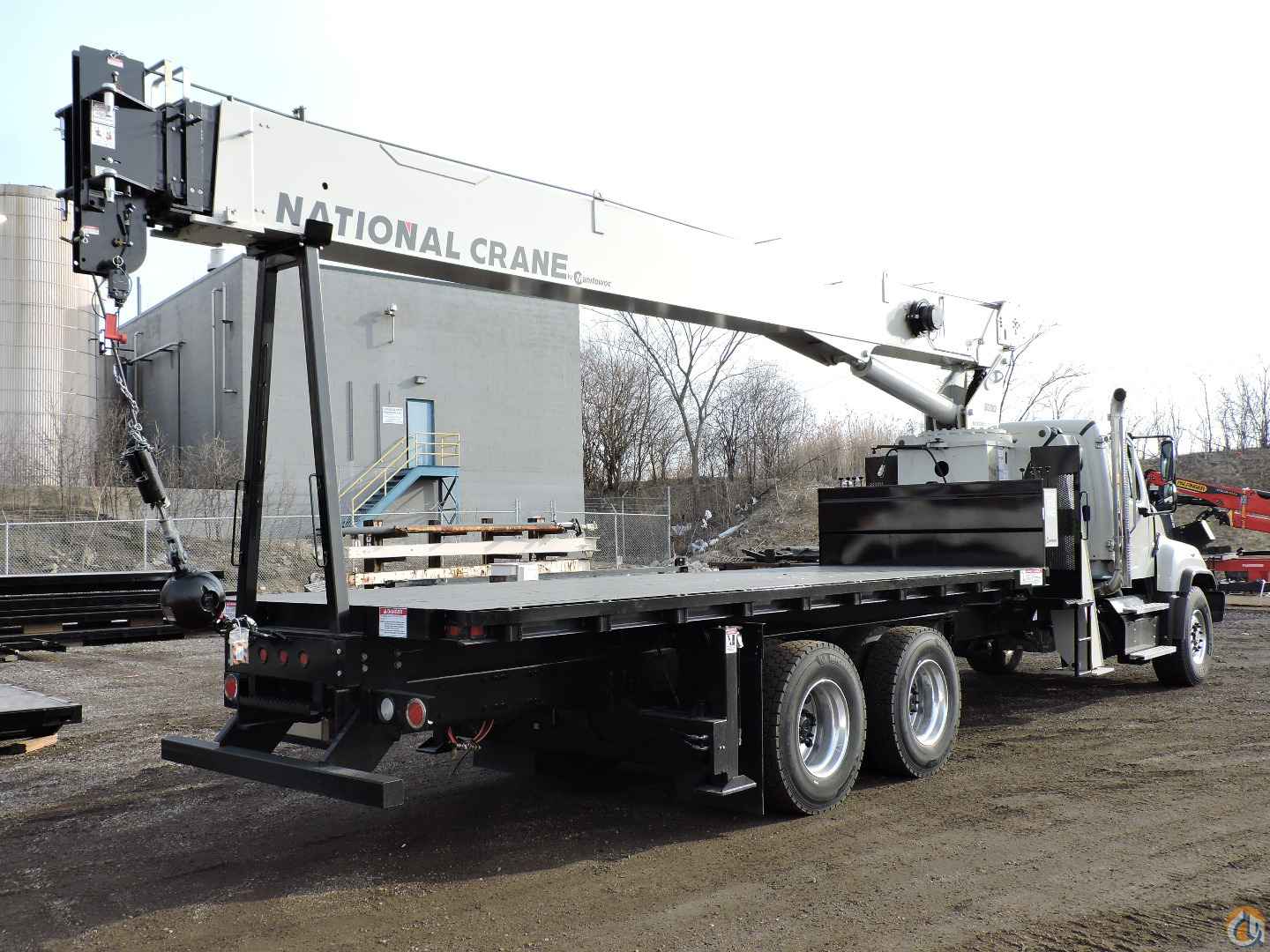

2022 National 8100D Boom Truck Crane (Sold)

National Crane Model 8100D equipped as follows:

- 23 ton capacity

- 29-5” to 100’ four (4) section telescopic boom – 110’ sheave height

- Calibrated for future jib

- “A” type box slide outriggers with swivel pads

- Out and down rear hydraulic stabilizers with 16’ span

- Single front outrigger for 360 degree stability

- 22’ Super Duty wood deck with 30” steel bulkhead

- Outrigger motion alarm

- Anti-two block safety device; shuts off telescope out and winch up controls and does not allow hook to be pulled into sheave case.

- Internal anti-two block wiring

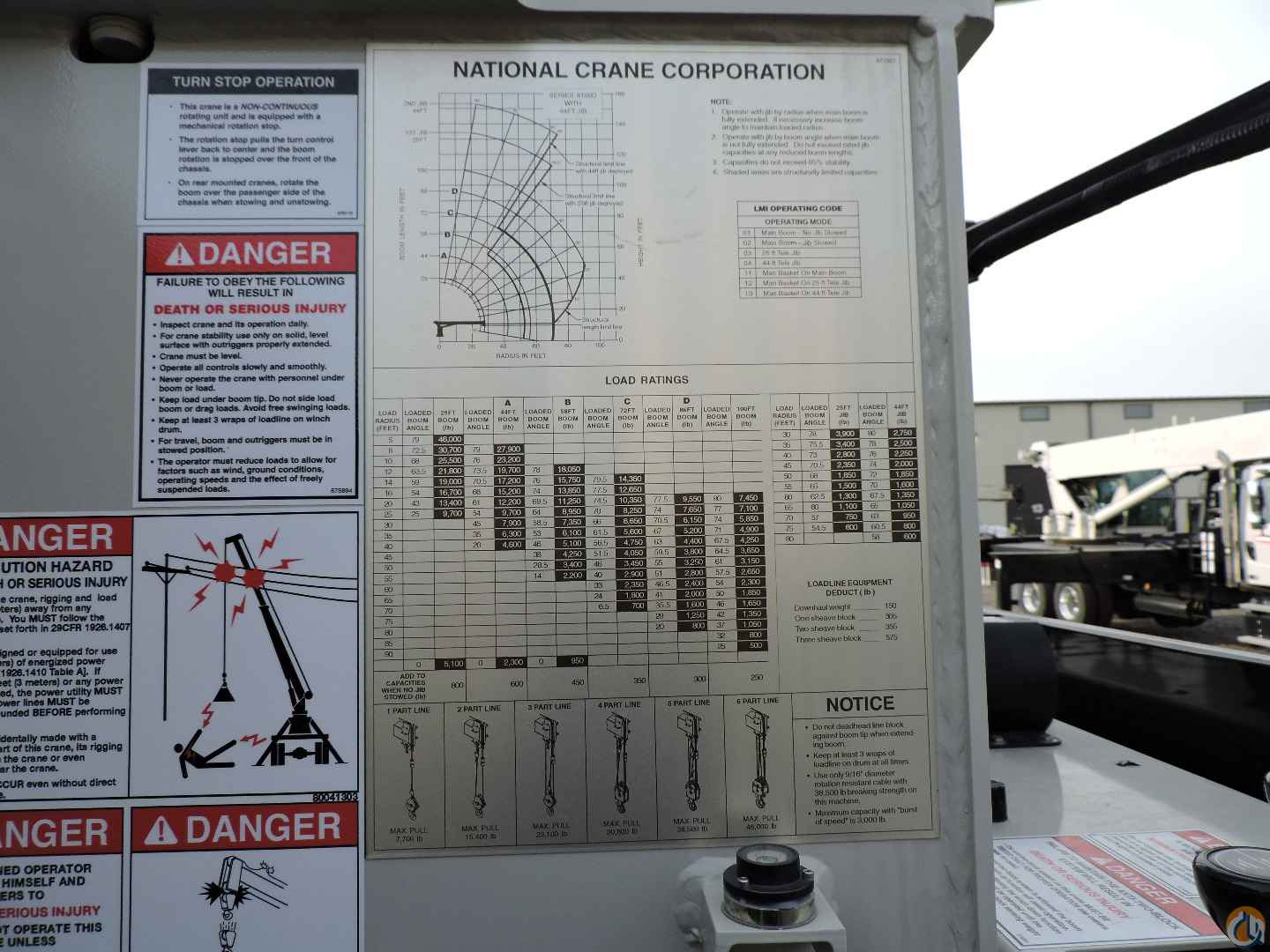

- Rated Capacity Limiter System (RCL) computer capacity alert system RCL displays boom angle and length, working radius, rated load and total weight being lifted

- Hi-performance planetary winch with 9/16” spin resistant wire rope

- 7 ton round downhaul style weight with top swivel and hook

- Burst-O-Speed winch with 147 FPM and 206 FPM line speed

- Dual side stand-up operator’s stations, dual engine throttle, horn and

- engine start/stop.

- Operator platform 40” above ground for maximum visibility

- 375 degree non-continuous rotation, adjustable swing drive

- Adjustable swing speed

- Heavy duty hydraulic system with triple pump, provides three (3) separate hydraulic circuits for independent operation of winch, swing and crane functions

- 66 gallon hydraulic tank with return line filter, oil diffuser, sight gauge, and shut off gate valve

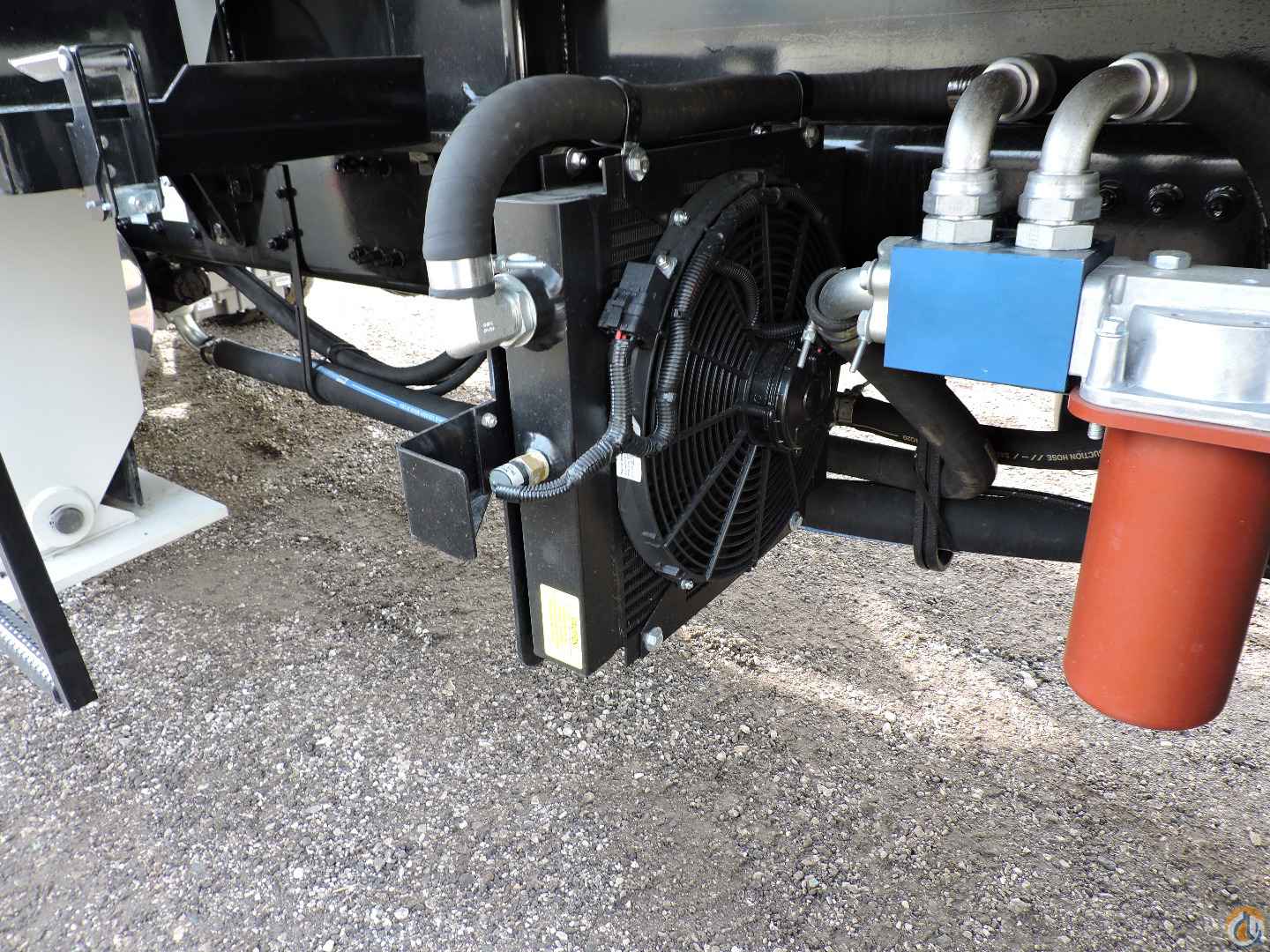

- Single fan oil cooler

- Painted National Platinum

- One removable boom rest

- Hour meter

- Back-up alarm

- Hot shift P.T.O.

- Rear bumper underride protection

- One owner’s manual and one CD owner’s manual

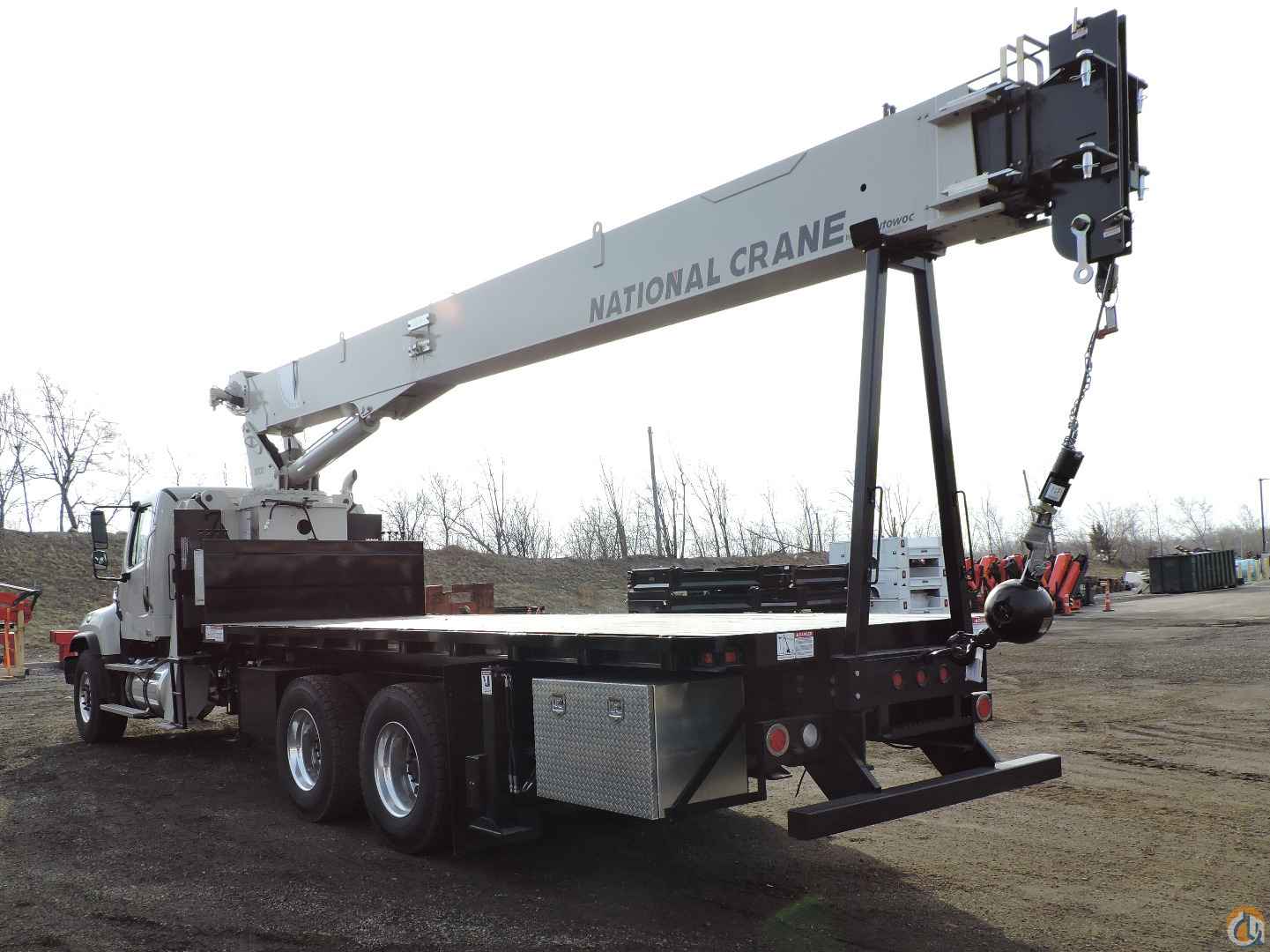

- 36” x 24” x 24” aluminum tool box

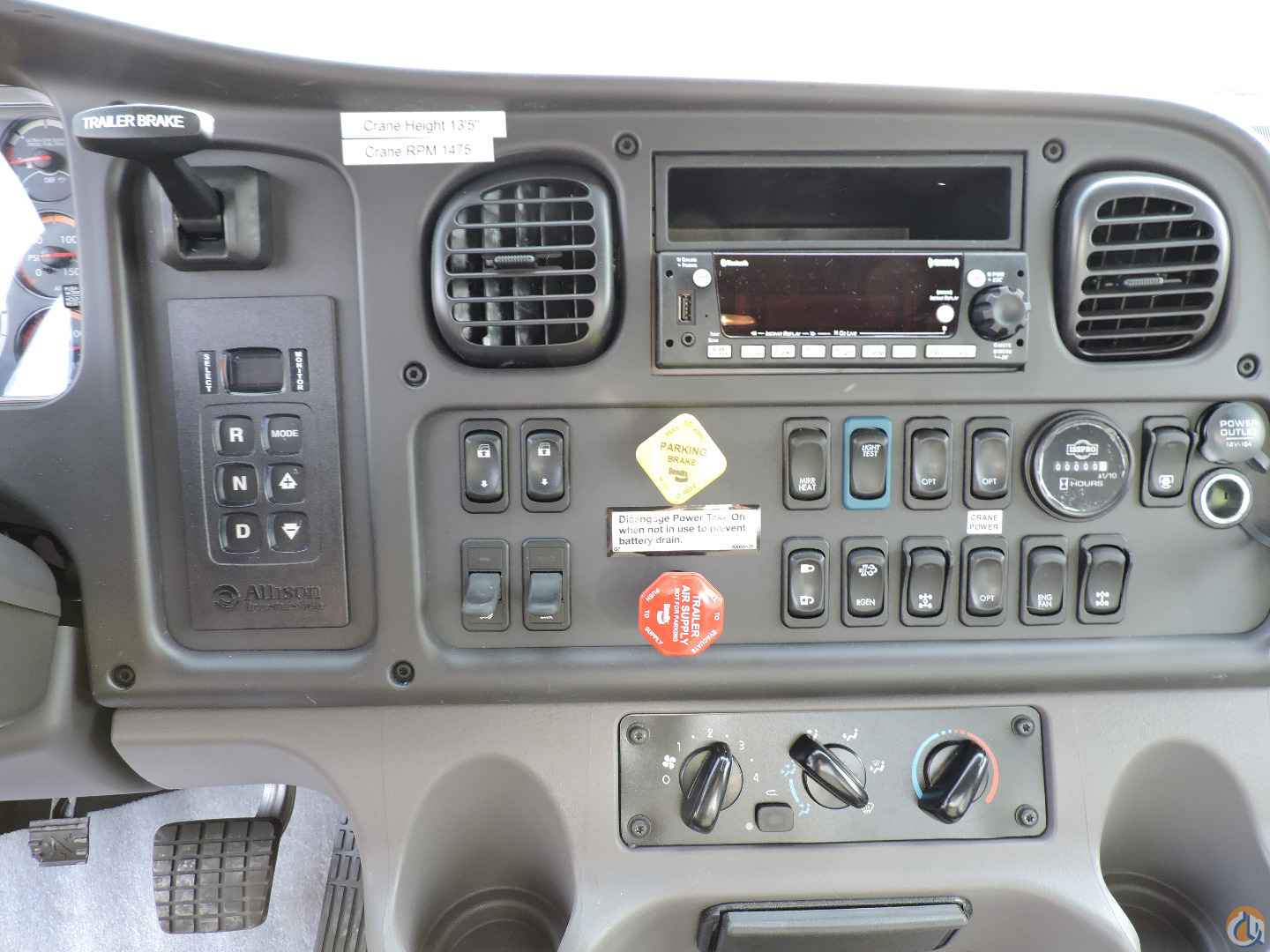

2022 Freightliner 114SD equipped as follows:

- GVWR 60,000 lbs.

- Cummins X12 455v HP @1900 RPM, 1550 lb-ft @

- 1000 RPM, 2000 GOV RPM

- Allison 4500RDS automatic transmission

- Front axle 20,000# capacity with TaperLeaf suspension

- Tandem rear axle 46,000# capacity with Hendrickson

- HaulMaax suspension

- Driver controlled traction differential – both tandem rear axles

- Cummins compression brake

- Three (3) batteries – 3000 CCA total

- Wabco system saver HP with integral air governor and heater

- On/off engine fan clutch

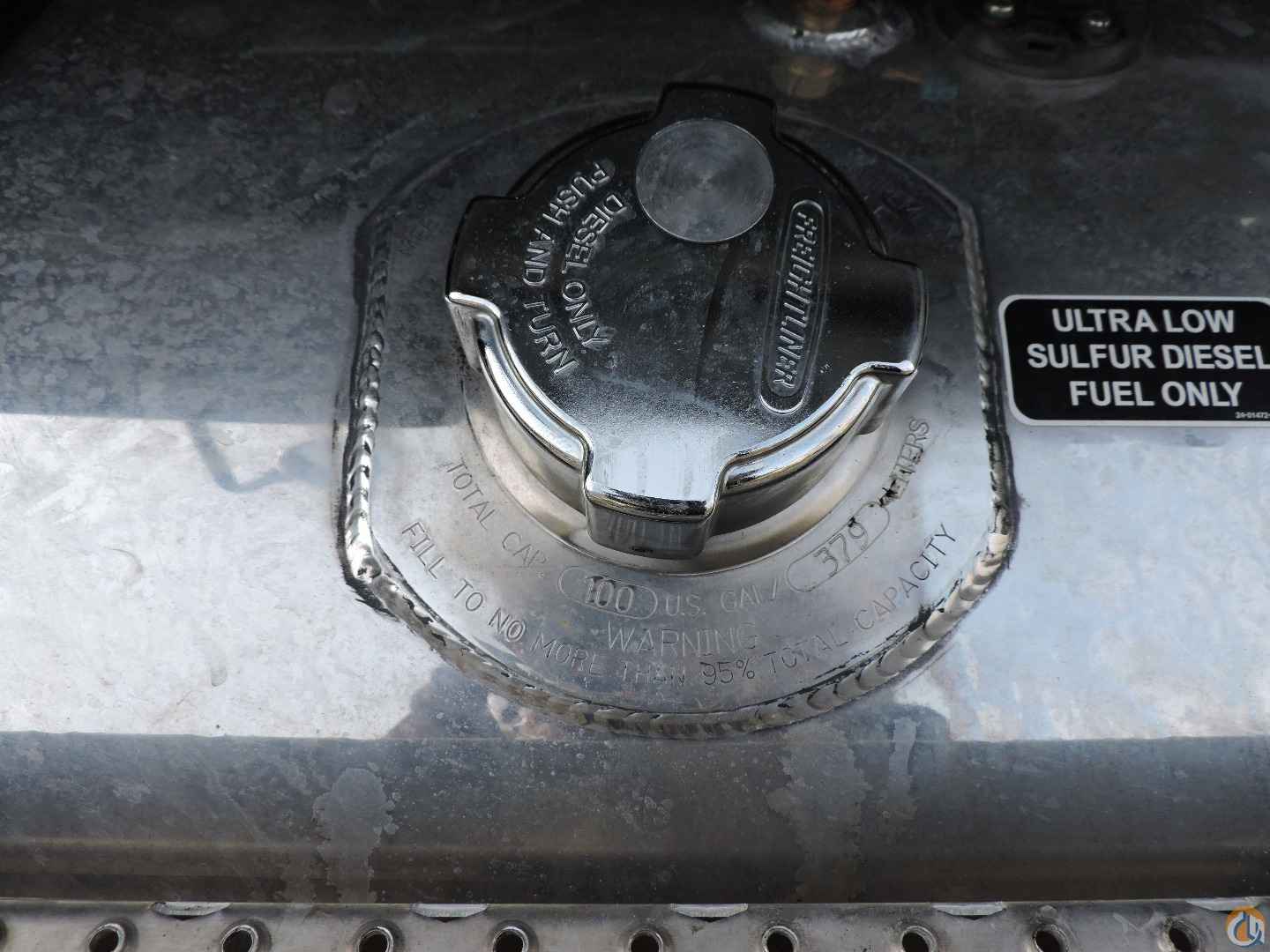

- 100 gallon aluminum fuel tank

- 13 gallon DEF tank

- Front tires 425/65R22.5

- Front wheels 22.5x12.25 aluminum disc with Dura-Bright finish

- Rear tires 11R22.5

- Rear wheels 22.5x8.25 with Dura-Bright finish on outer wheels

- 16.5” chromed steel bumper

- Chrome hood-mounted air intake grille

- Heated mirrors with remote

- Driver’s seat- high back, air suspension with mechanical lumbar

- Passenger’s seat-high back, non-suspension

- 8” convex spot mirrors

- Down view mirror – RH

- Air conditioning

- Power windows and door locks

- Tilt and telescoping steering wheel

- AM/FM/WB stereo with BlueTooth, CD, USB, and aux inputs

- Air and electric horns

- Painted National Platinum
