STANDARD FEATURES

23 US T maximum capacity

152’ maximum vertical reach

109’ maximum vertical hydraulic reach

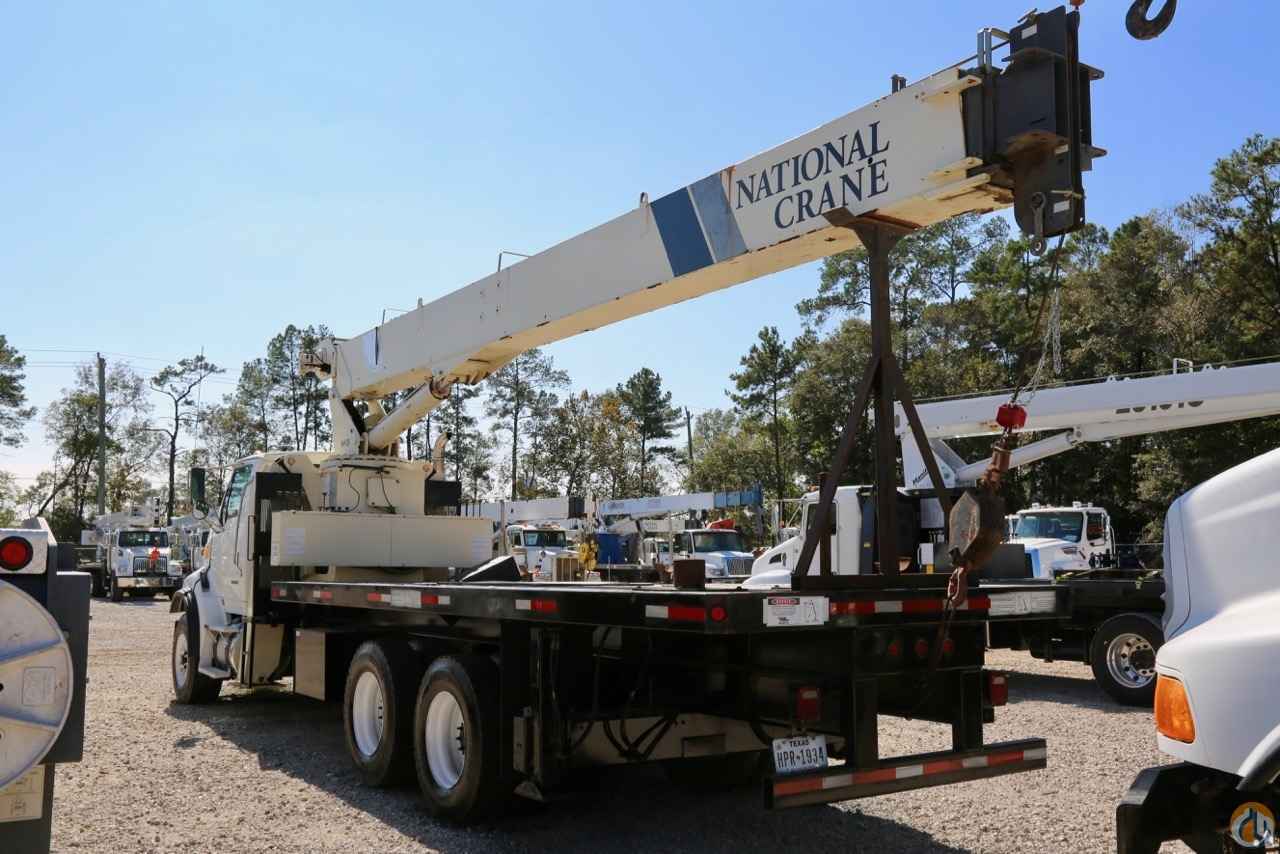

100’ four-section boom

Self-lubricating “Easy Glide” wear pads

Internal Anti-Two Bock

Adjustable Swing Speed A control knob located on the swing motor brake release valve can be easily adjusted to the crane operator’s swing speed preference.

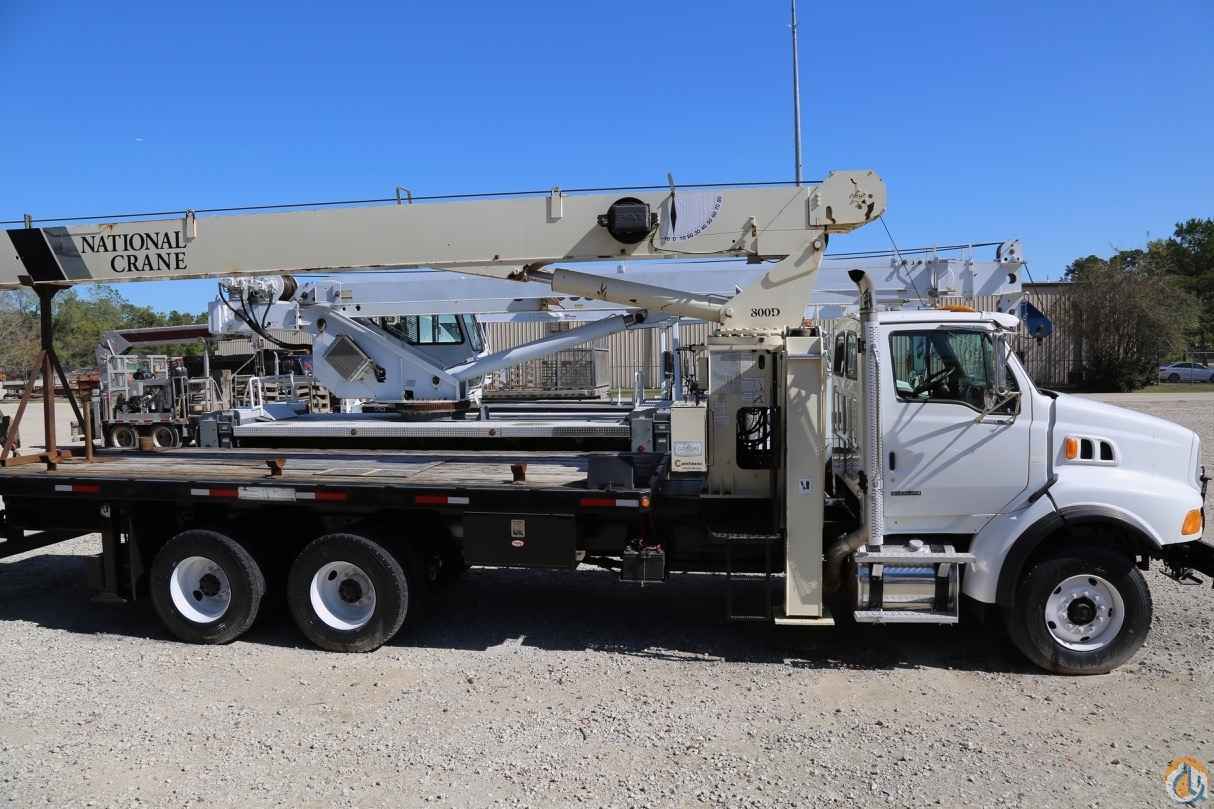

Four-section boom At 100’ the Series 800D boom is the longest in its size range. The longer boom allows the operator to perform more lifts without the use of a jib, reducing setup time and improving efficiency.

Overload protection All National Crane boom trucks are equipped with overload protection. A Load Moment Indicator (LMI) is required on all machines equipped with jibs or personnel baskets.

Boom tip The speedy-reeve boom tip and sheave blocks simplify rigging changes. Load line wedge socket removal is not required for reeving of multi-part line options

INCLUDED ITEMS

22’ Wood Bed

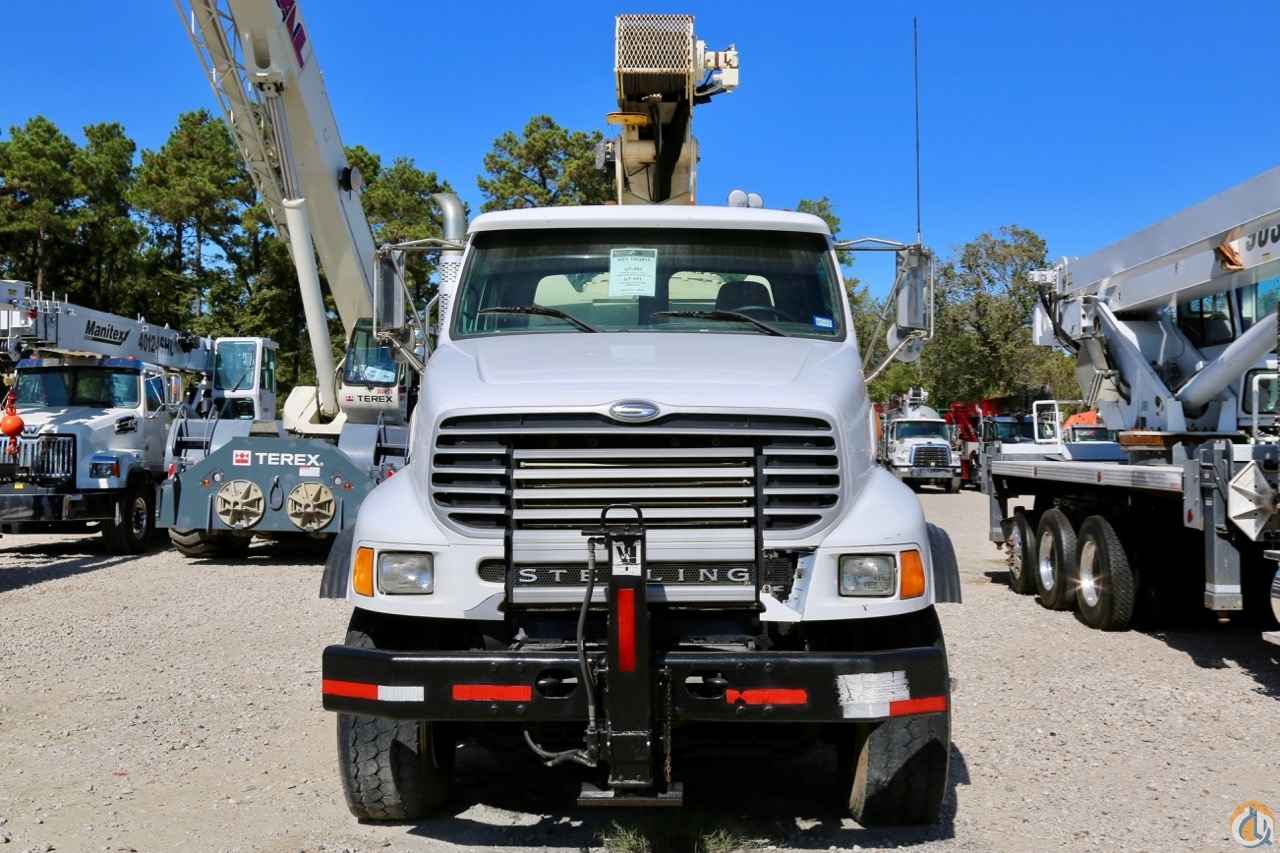

Front bumper stabilizer

15T hookblock

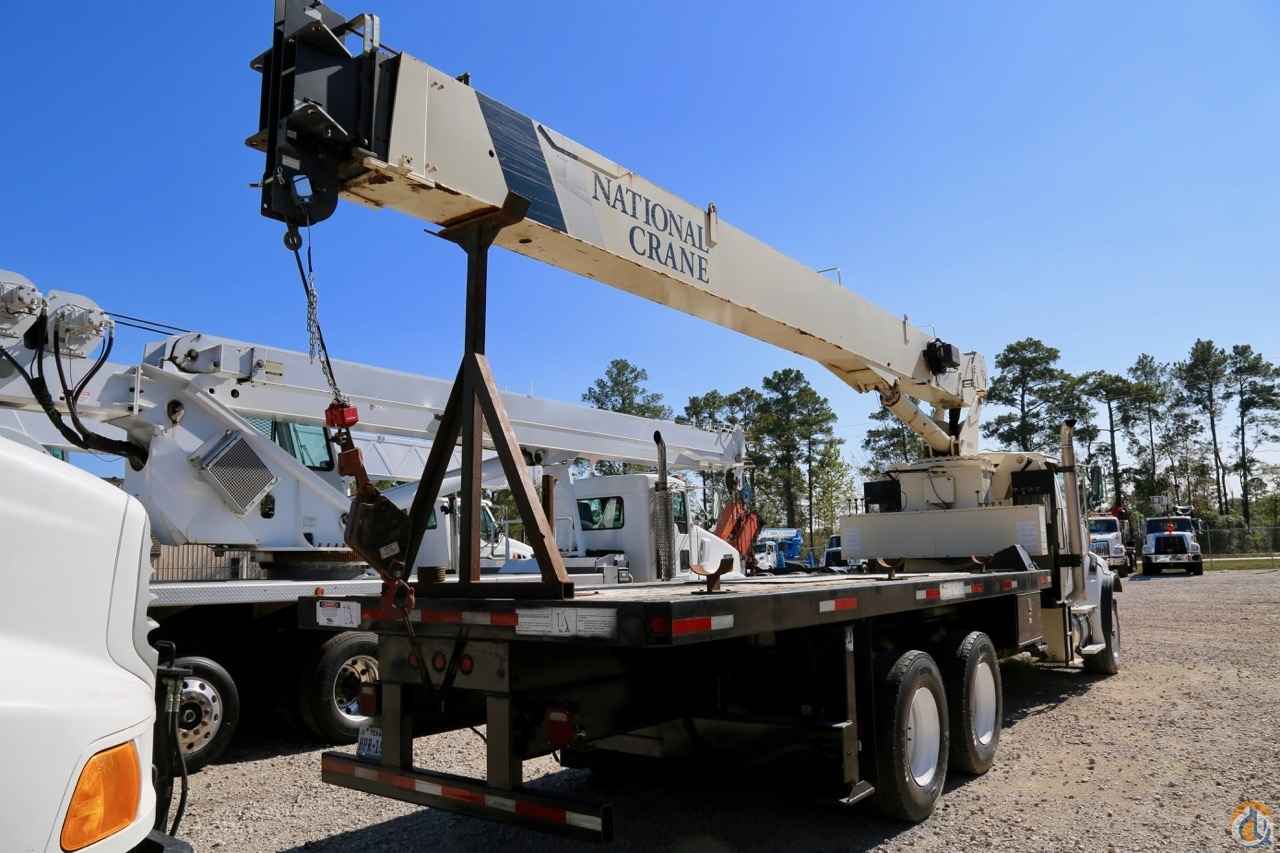

A Frame outriggers on front

Out & Down outriggers on rear

TRUCK

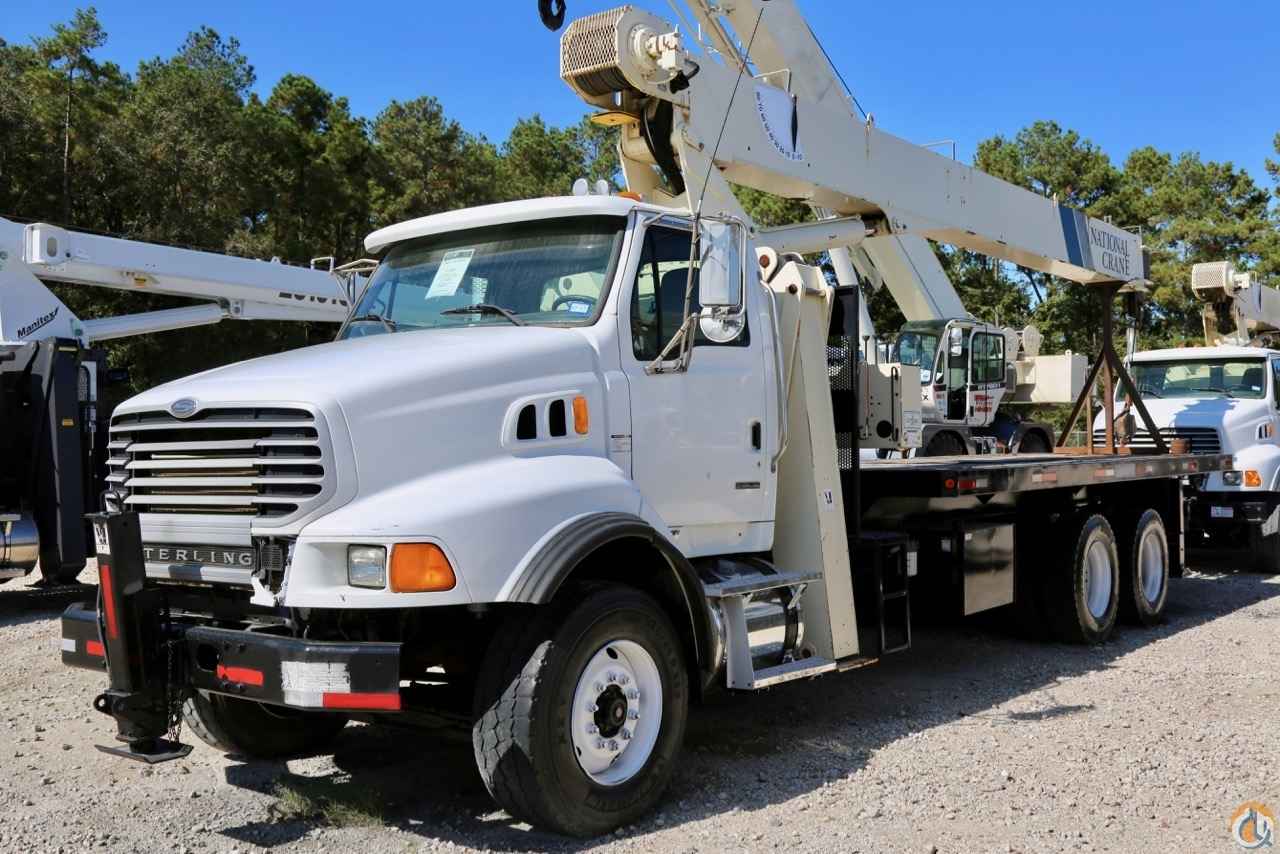

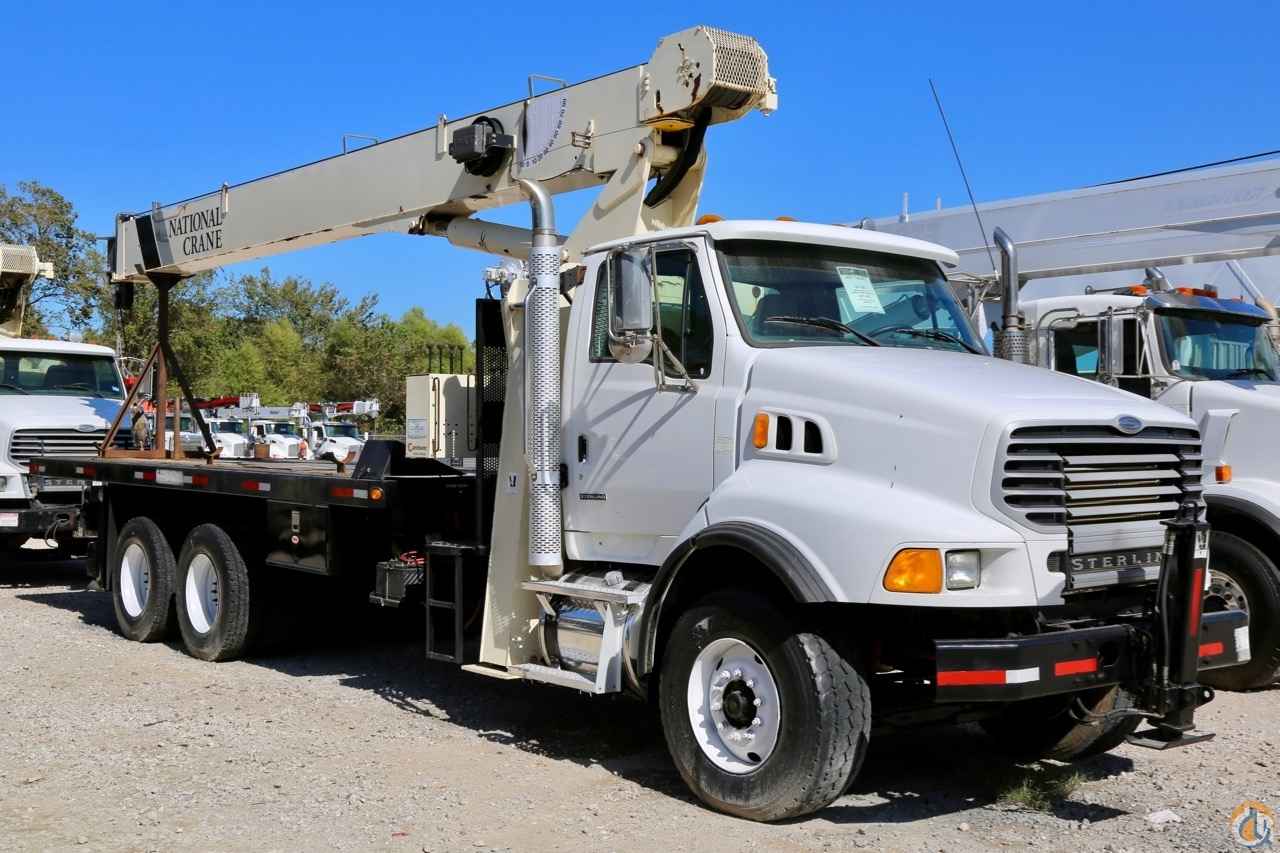

2006 Sterling LT7500 Daycab

CAT C7 330hp engine

Fuller 1908LL 10sp manual transmission

Front Axle 20k lb. rated

Rear Axles 40k lb. rated tandem

Hendrickson RTE spring suspension

385/65R22.5 front tires on steel disc wheels

11R22.5 rear tires on steel disc wheels

Dual 50 gal fuel tanks

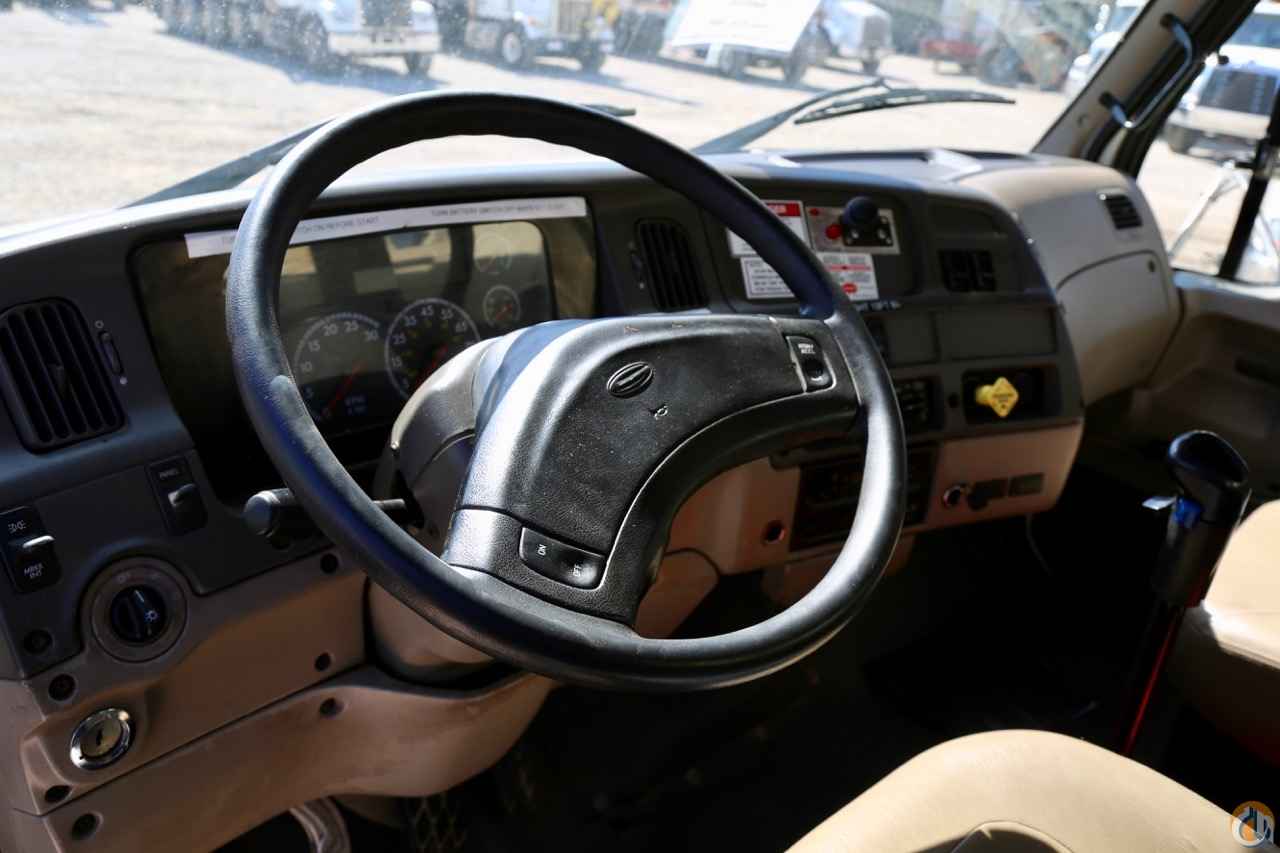

Driver seat highback air suspension

Passenger seat midback non-air suspension
