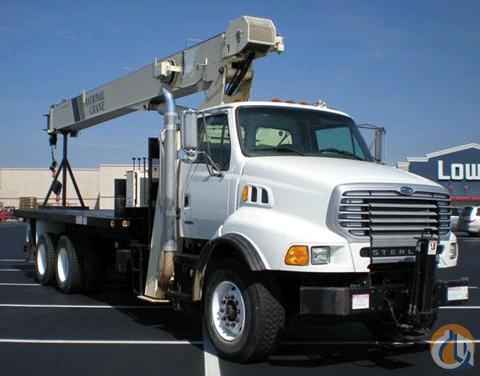

Location...Wisconsin. 2003 National Crane 8100D Boom Truck (23 ton) - crane was manufactured late 2003 - 23 ton capacity - 29'- 100' four section proportional telescopic boom, 110' tip height - Side fold and stow two-stage 25'-44' jib (~154' max. tip height with jib) - Front bumper outrigger (SFO) - provides 360 degree stability - 'A' type box slide outriggers in front with 21' span and 18' x 18' outrigger pads - Out and down rear hydraulic stabilizers with 16' span - cylinders fully enclosed to protect shafts - Load Moment Indicator (LMI), model PAT DS160 provides digital readout of boom functions and notifies operator of an overload condition. LMI has display console showing boom length, boom angle, maximum allowable load and load on hook, and boom angle preset - Anti-two block safety device shuts off telescope out and winch up controls and does not allow hook to be pulled into sheave case. Anti-two block reel and cable run inside boom. - Heavy duty hydraulic system with triple pump, provides three separate hydraulic circuits for independent operation of winch, swing and crane functions - 'Burst of Speed' (two speed) planetary winch with wire rope, downhaul weight and hook - Dual side controls with operator platforms, foot throttles, horn and engine stop switches - 375 degree non-continuous planetary rotation - Adjustable swing speed includes a control knob on swing motor break release valve that can be adjusted to speed or slow the crane's swing speed to operator's preference - Torsion resisting sub-base - 22' heavy duty wood bed - Removable boom rest - Used Pallet Forks included. Crane is mounted on a 2004 Sterling LT8513 Truck, with 20,000# front axle, 40,000# rear axle, 60,000# GVWR, CAT C7 300 hp Diesel engine with 860 ft. lbs. of torque. Fuller RT890LL 10 speed transmission has low low feature, and Dual locking differentials, both inter-axle and full locking, for off road maneuverability. Truck also has Air brakes with air dryer, Air Conditioning, Cruise control, Heated mirrors, Back up alarm, Dual 60 gallon fuel tanks, 385/65R22.5 'floater' front tires, 11R22.5 mud and snow rear tires, Air ride driver's seat and fixed passenger seat (vinyl), and Misc: tinted glass, air horns, horizontal muffler with vertical exhaust pipe, front tow hooks and more. Travel height is 13'6', Mileage is approx. 10,000 miles and Hours are approx. 1,600 hrs. Please call Megan at 877-352-7263 or visit our website at:
www.cranesandbuckets.com for more info. Thank you.
SOLD
