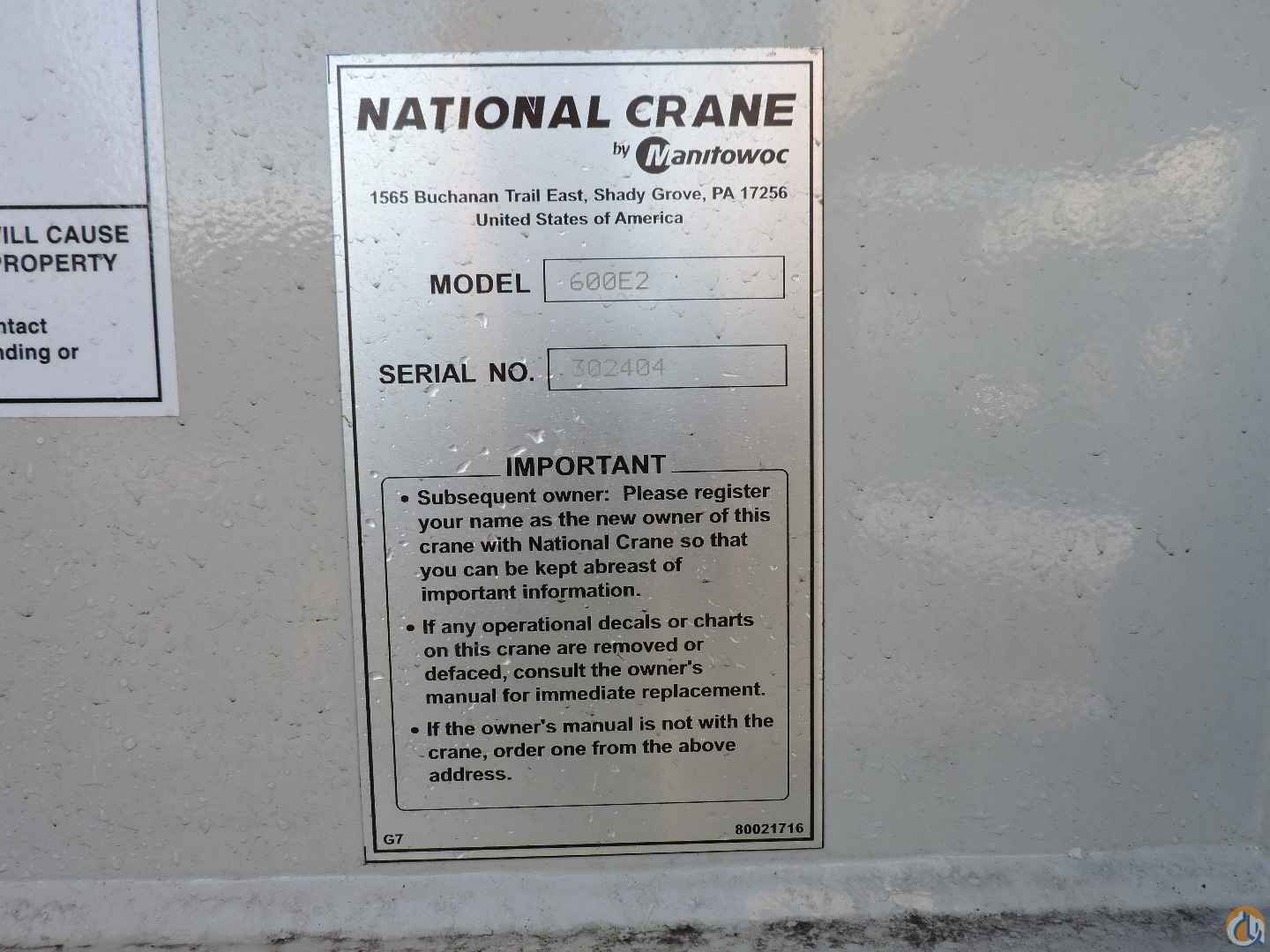

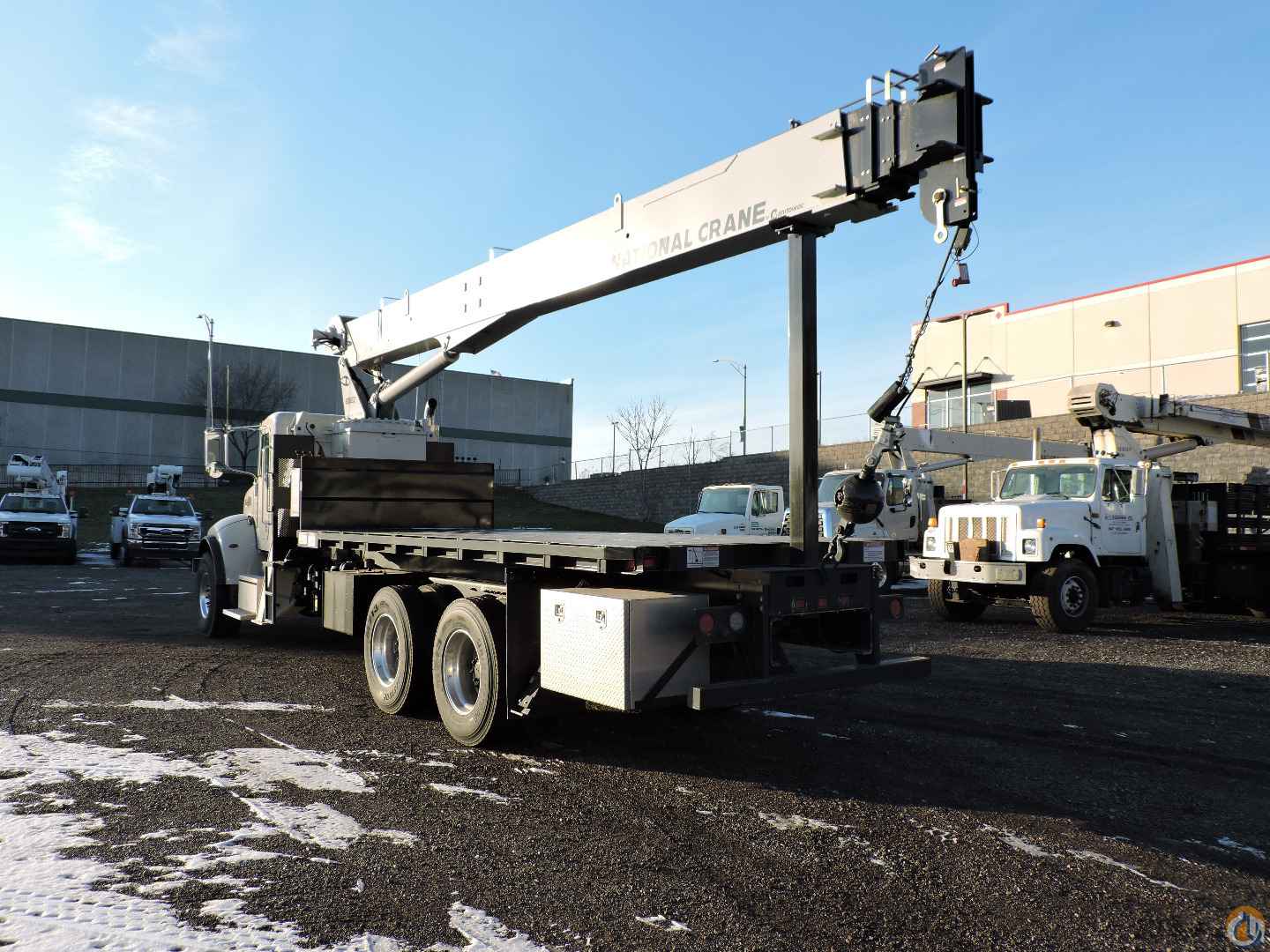

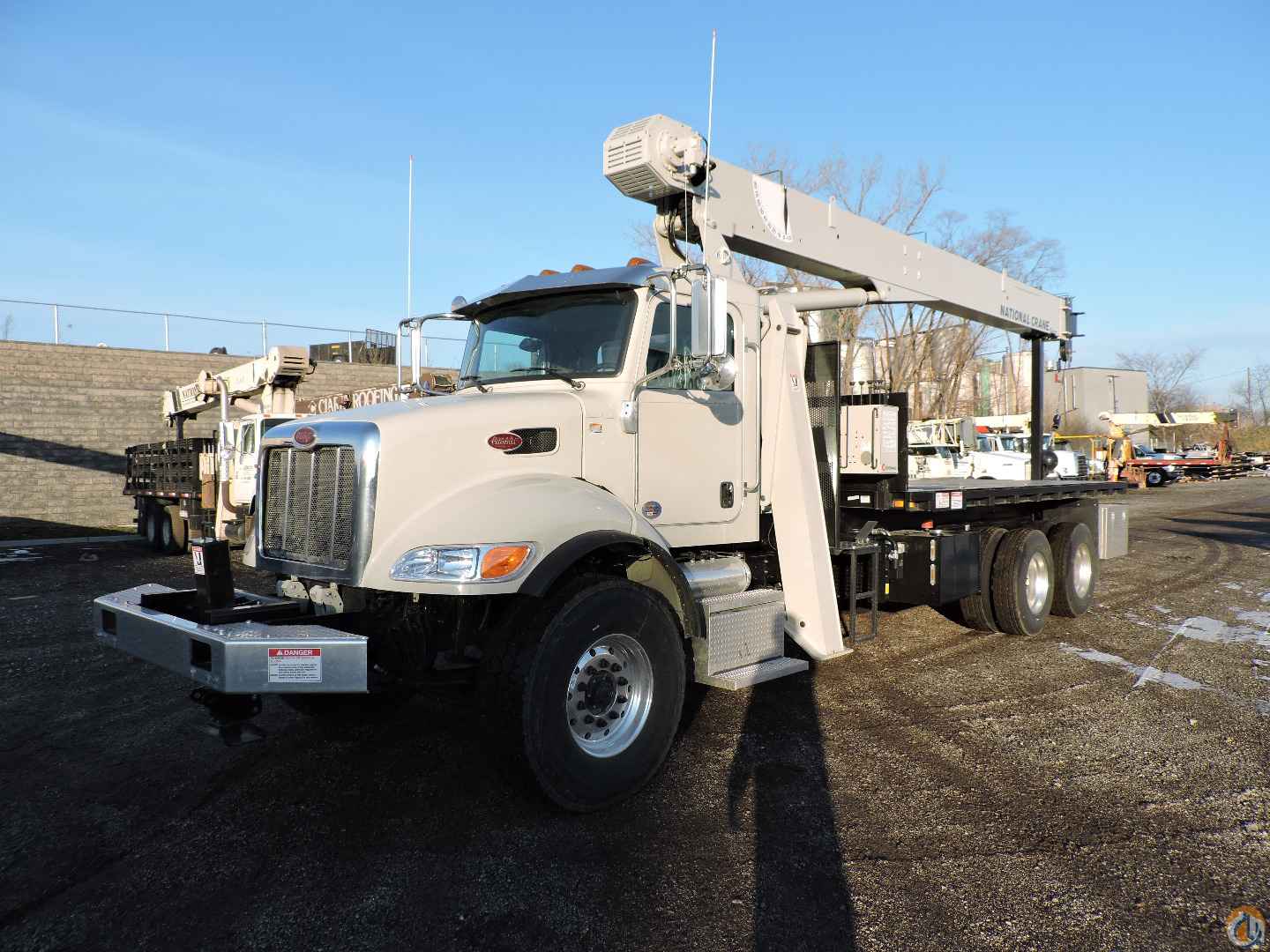

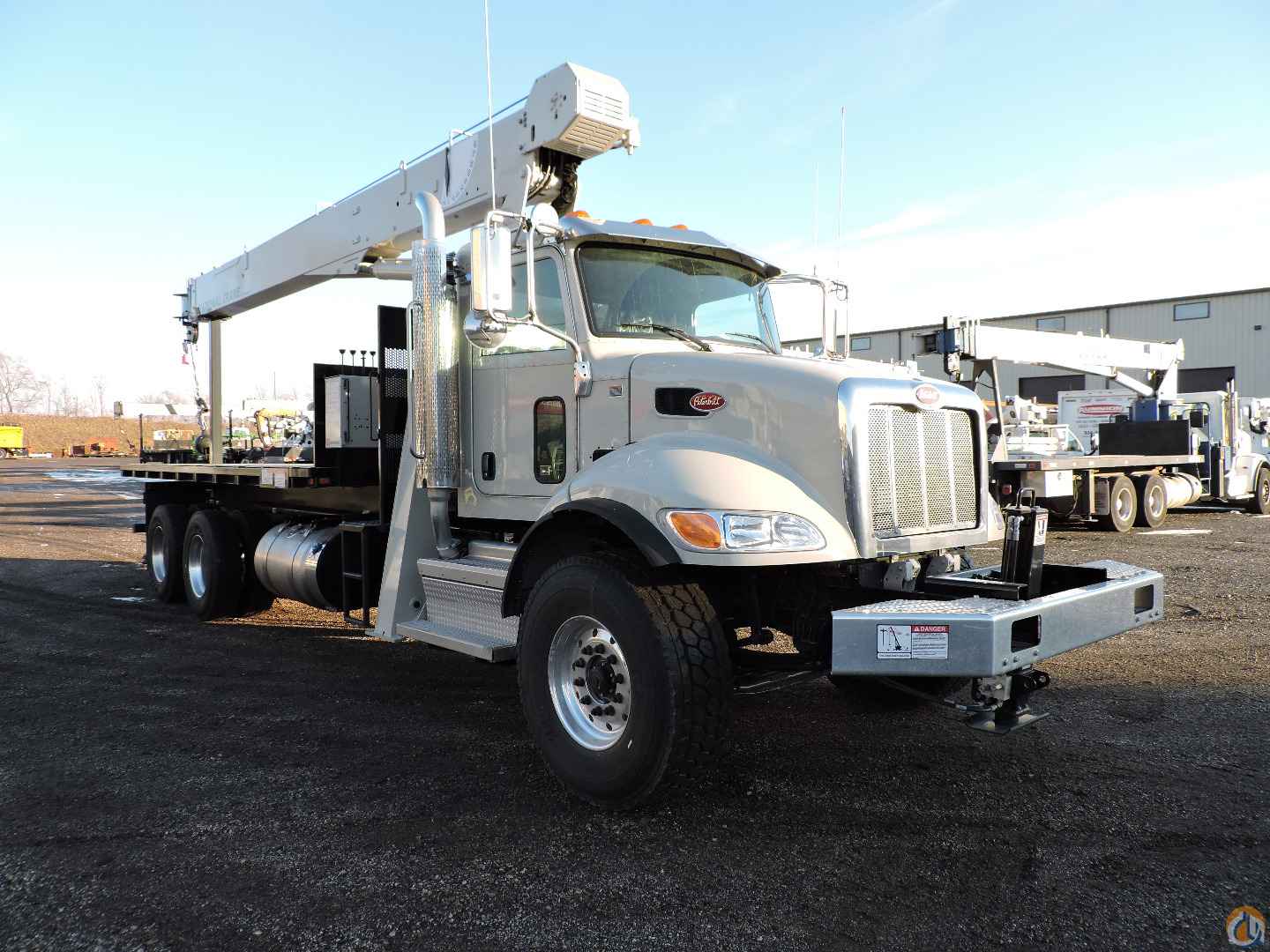

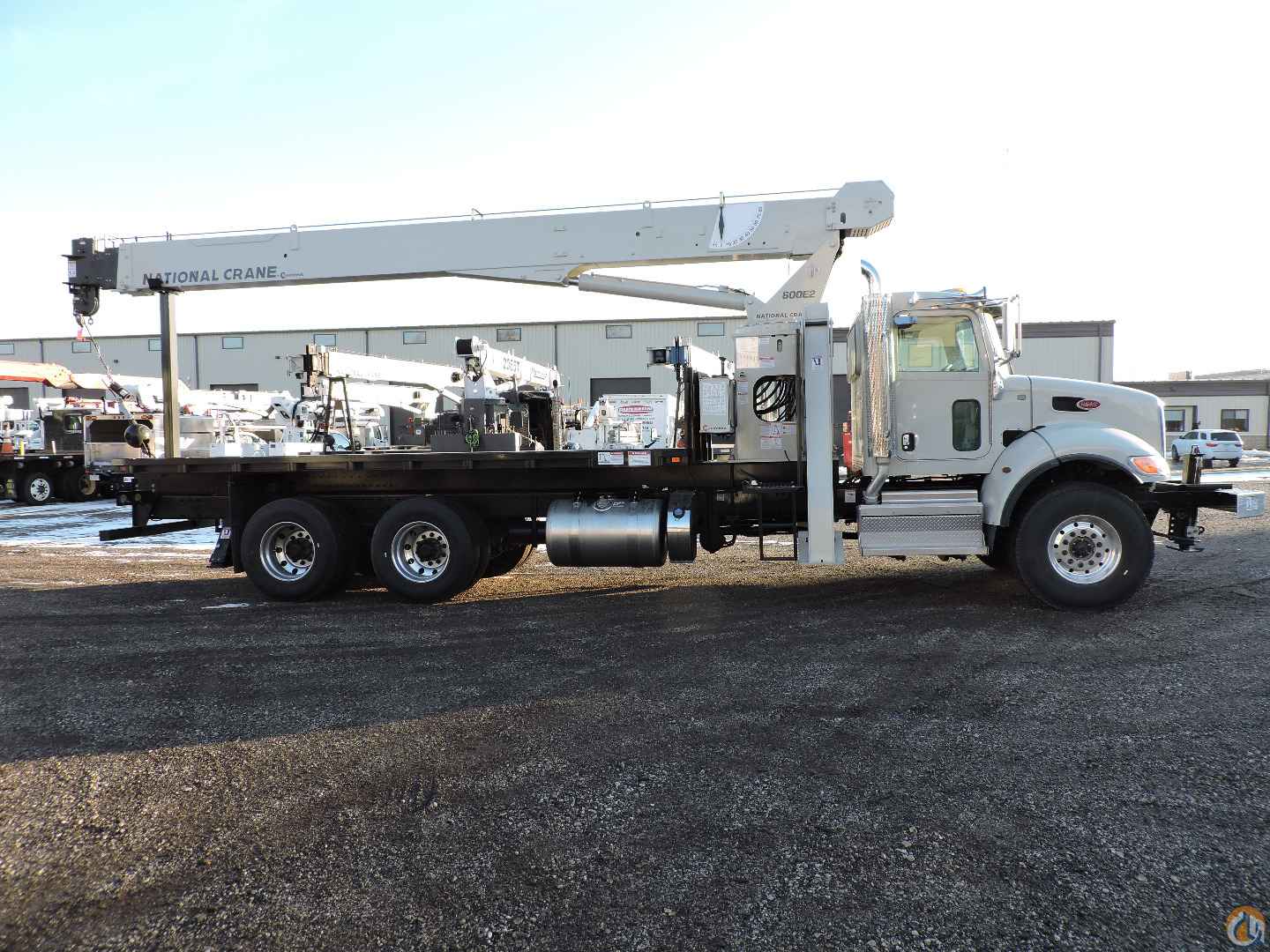

National Crane Model 690E2 equipped as follows:
- 20-Ton capacity
- 27’ to 90’ four (4) section hydraulic proportional boom – 100’ sheave height
- Single front hydraulic stabilizer for 360° stability
- HCAS hydraulic capacity alert system is a hydraulically operated, maximum capacity sensing device that is designed to stop all of the normal crane functions that cause overload when maximum capacity is exceeded on the main boom. Includes indicator gauge and key operated override
- Anti-two block safety device; shuts off telescope out and winch up controls and does not allow hook to be pulled into sheave case. Includes keyed override.
- Anti-two block reel and cable run inside boom
- Hi-performance planetary winch with 9/16” spin resistant wire rope downhaul weight and hook

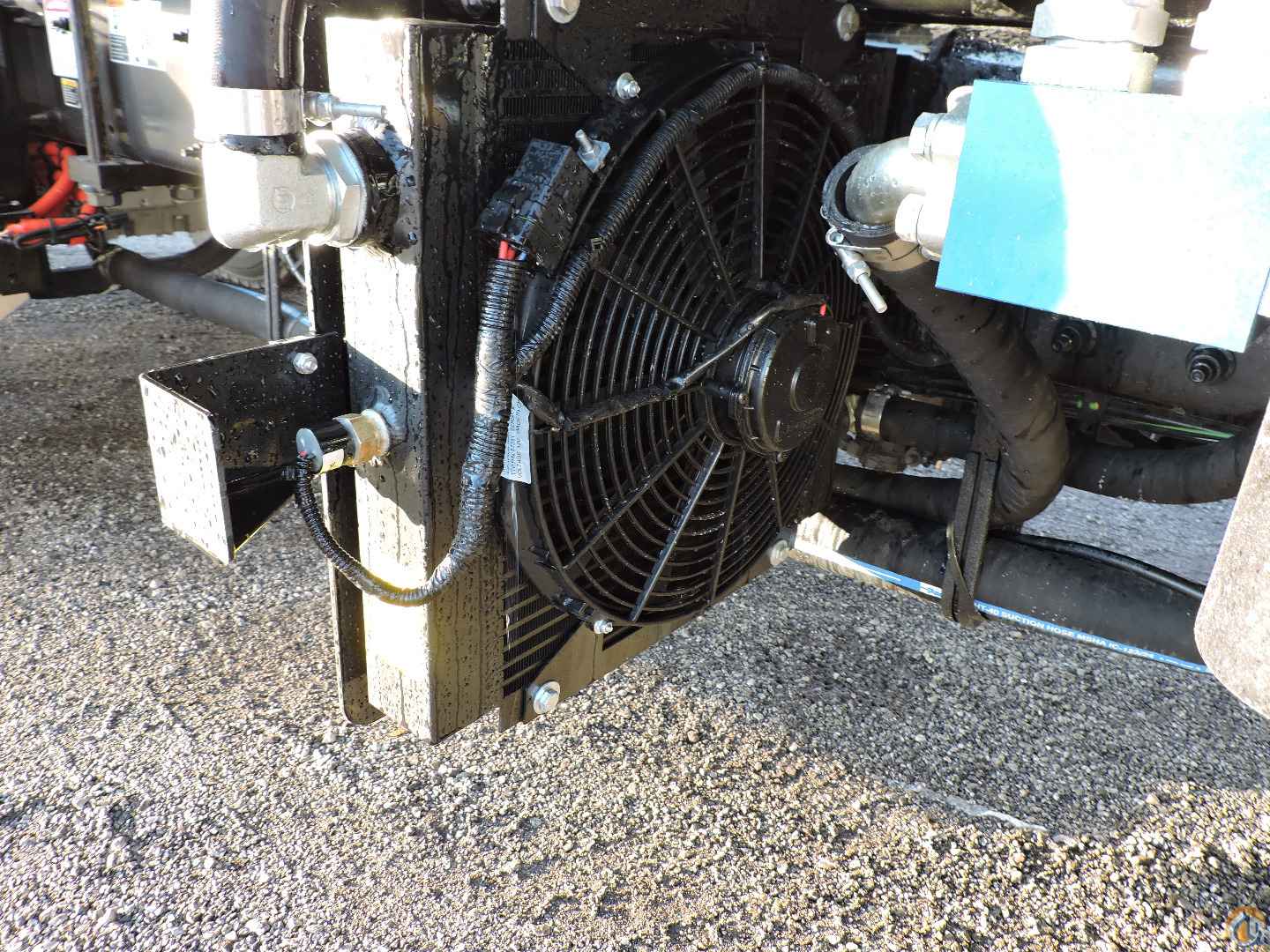

- Duty cycle package includes burst-o-speed winch with oil cooler
- 375° planetary rotation
- Adjustable swing speed
- 66-gallon hydraulic tank with return oil defuser and sight gauge

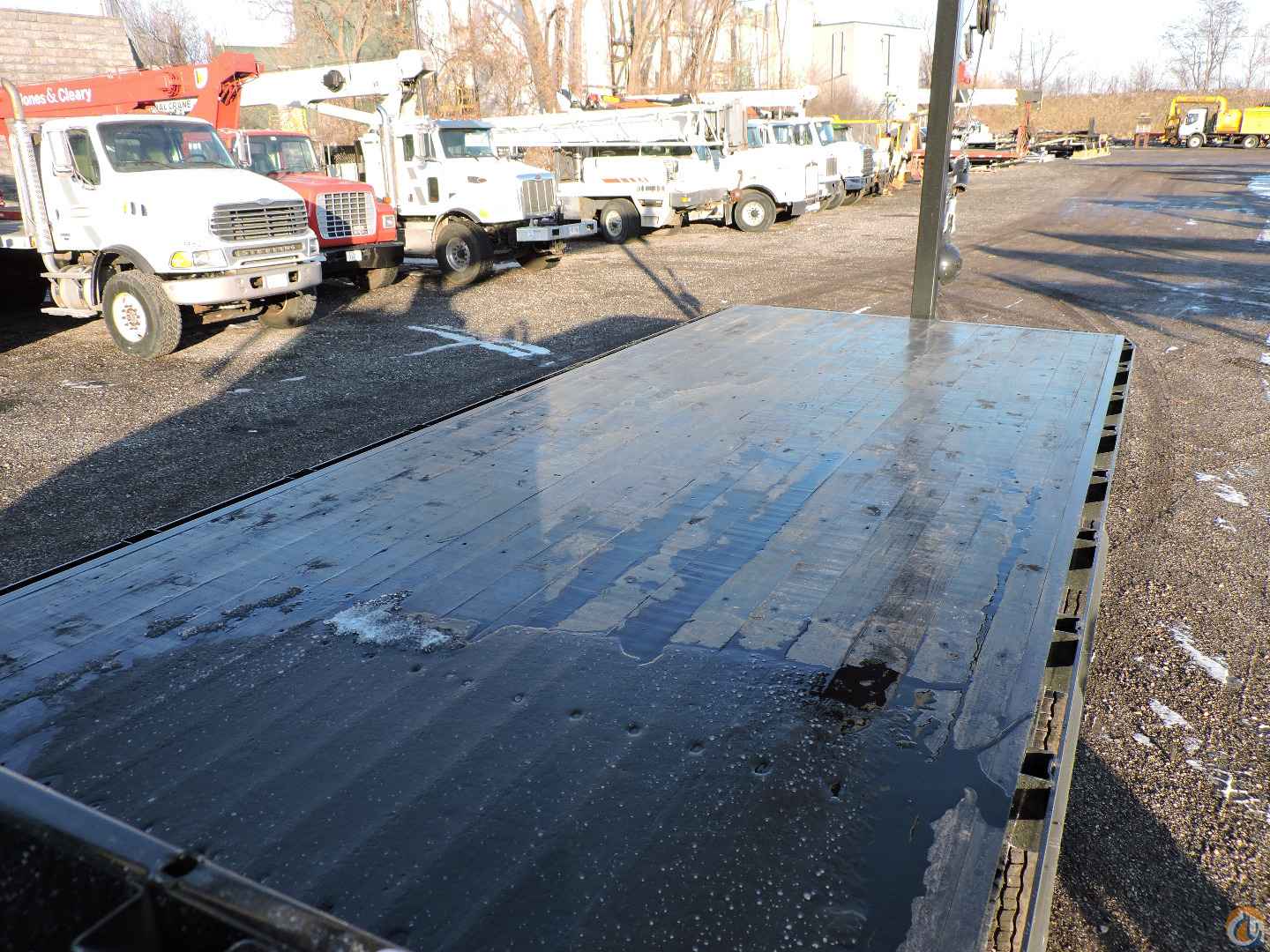

- 20’ super duty wood bed with rub rails and 30” steel bulkhead
- 36” x 24” x 24” aluminum toolbox

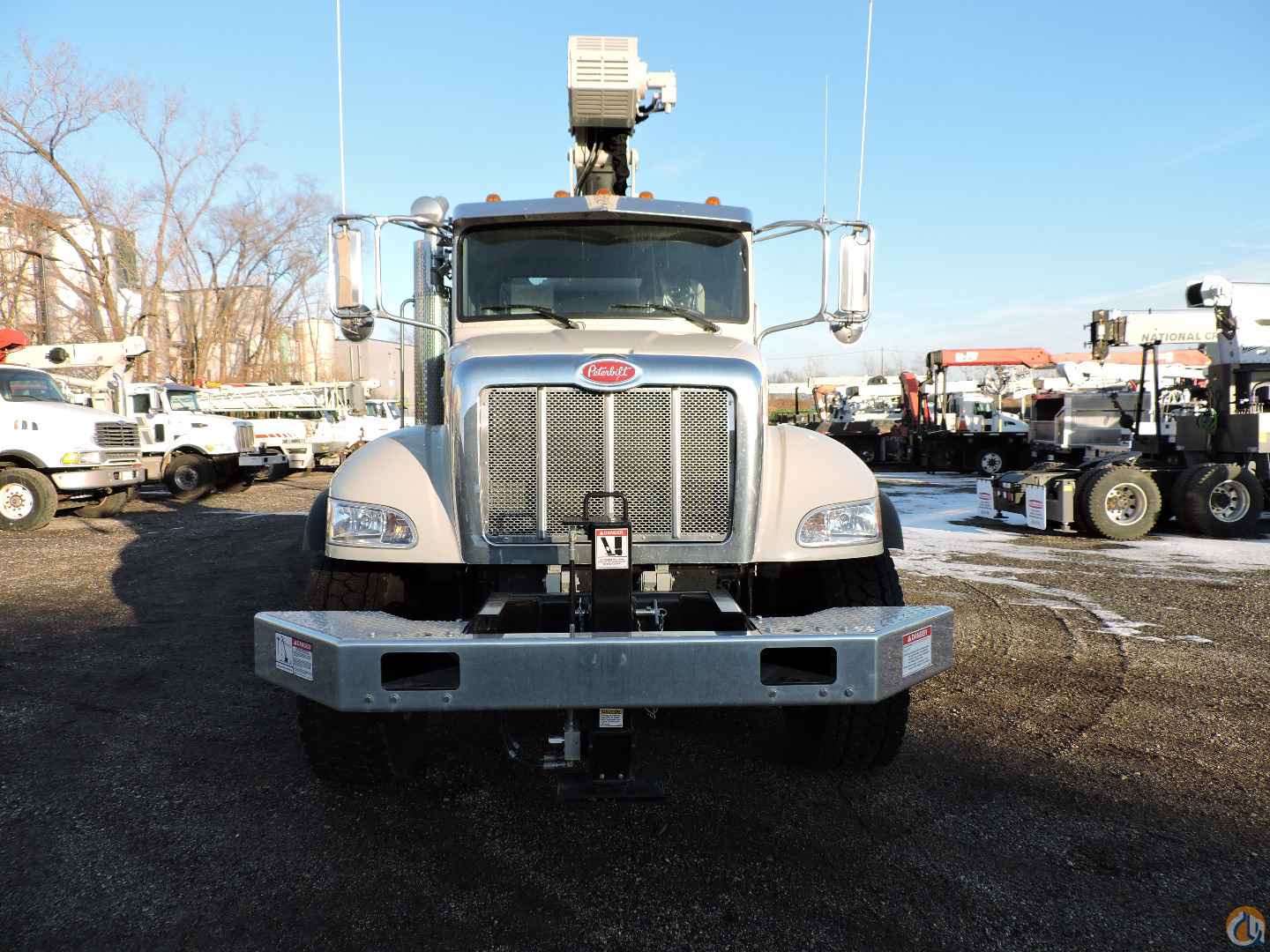

2022 Peterbilt 348 equipped as follows:

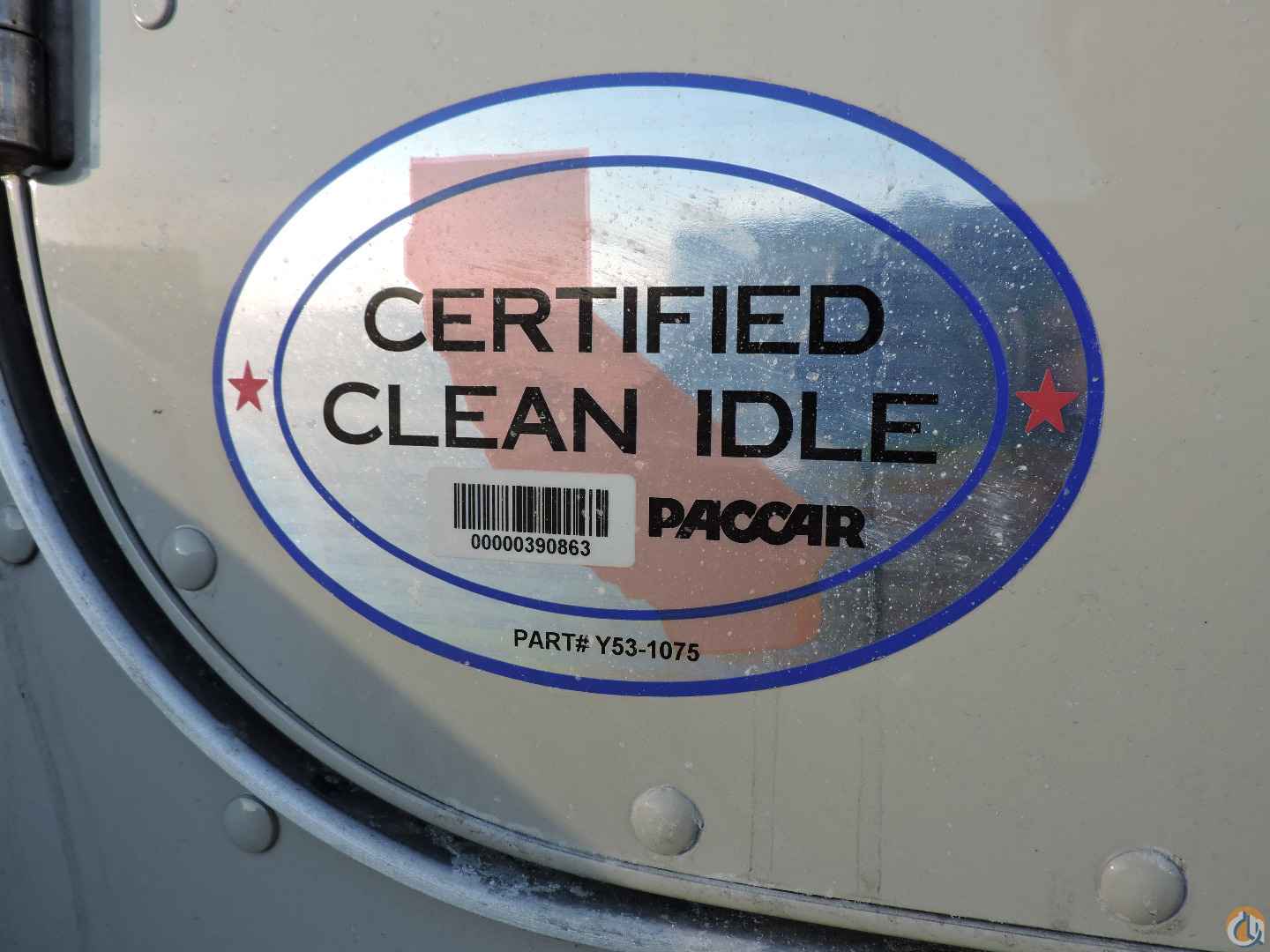

- PACCAR PX-9 engine – 350hp at 2000 rpm, 1000 ft-lbs @ 1400
- Block heater
- Allison 3000 RDS-P transmission
- Front tires 425/65R22.5 – 20 ply
- Front wheels 22.5x12.5 - Clean Buff Finish, aluminum
- Rear tires 11R22.5 – 14 ply
- Rear wheels – 22.5x8.25 – Clean Buff Finish, aluminum
- Front Axle 20,000# with Taper Leaf spring suspension

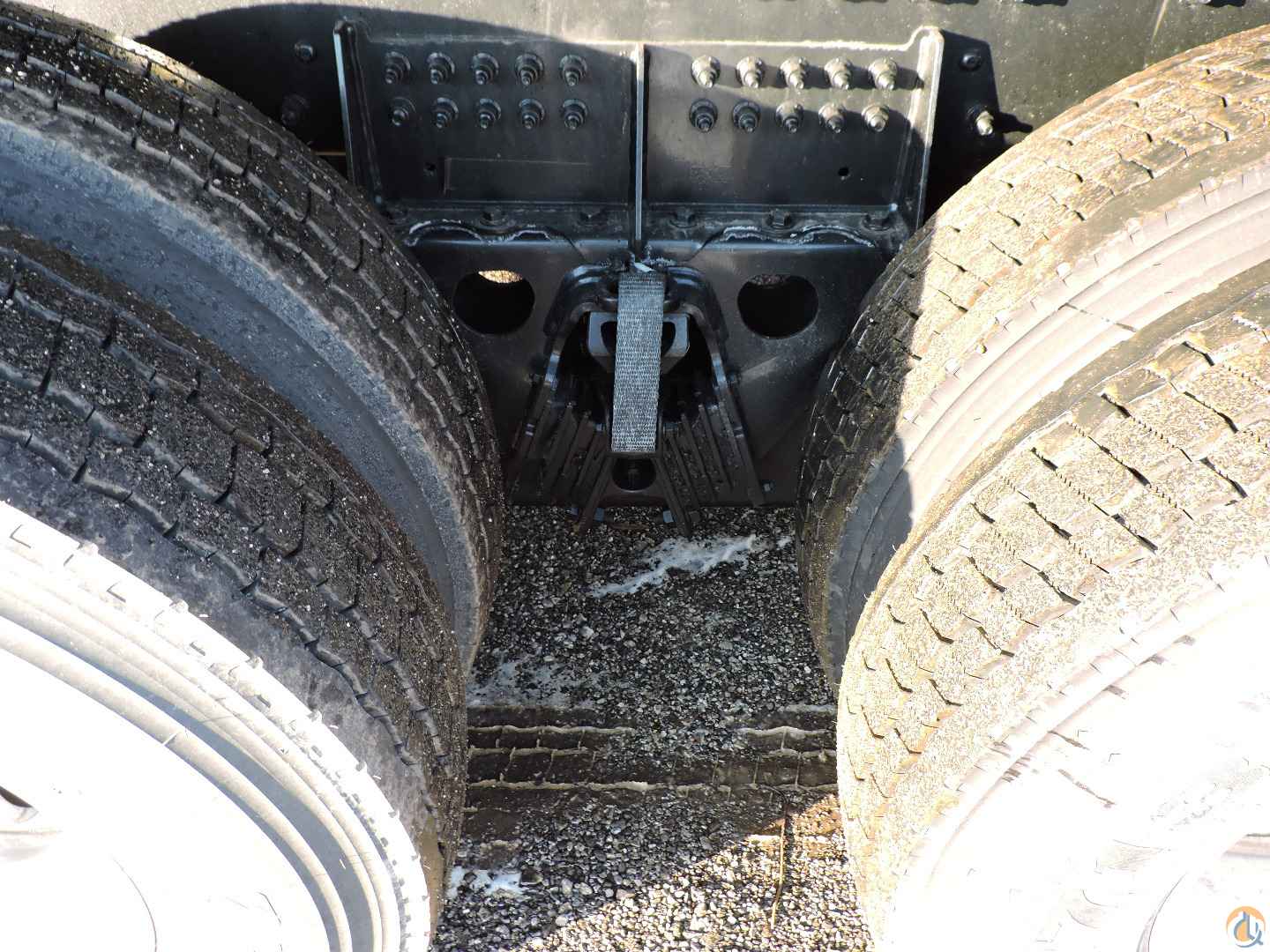

- Rear Axle 40,000# Dana Spicer with Hendrickson HMX400 suspension with rebound straps
- Dual locking differentials
- VGT exhaust brake
- Trailer package – air and electric to rear for future pintle
- 90 gallon aluminum fuel tank
- DEF tank with polished stainless steel cover
- Rubber fender lips 4” extra wide
- Peterbilt UltraRide driver seat includes high back air ride
- Power lock and windows
- Tilt/telescope steering wheel
- Stainless steel outside sunvisor
- Stainless steel mirrors 7x16 with heat element
- 24.5” air horn chrome

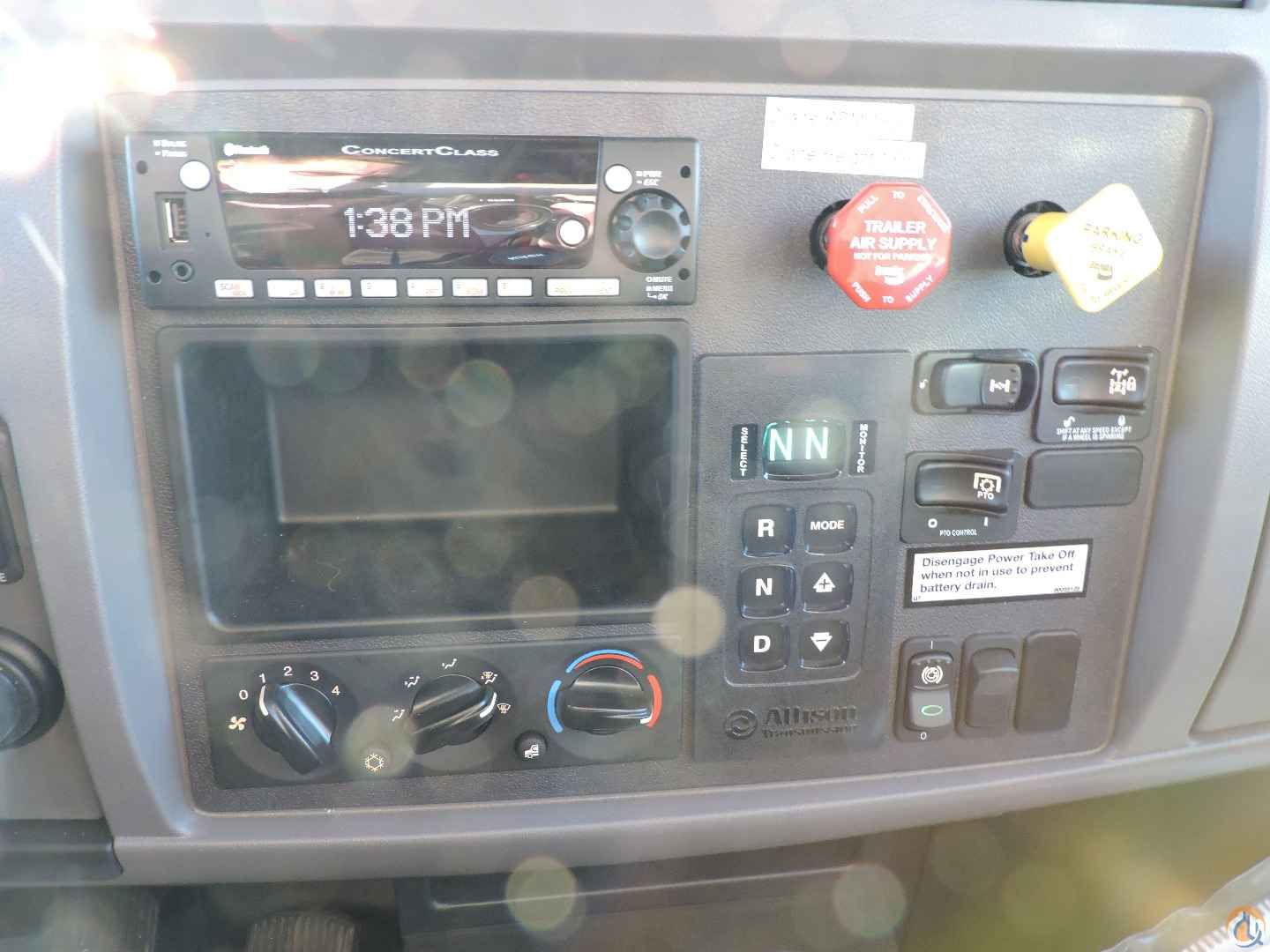

- ConcertClass stereo with AM/FM/WB/USB and Bluetooth phone
- Painted “National Platinum”
