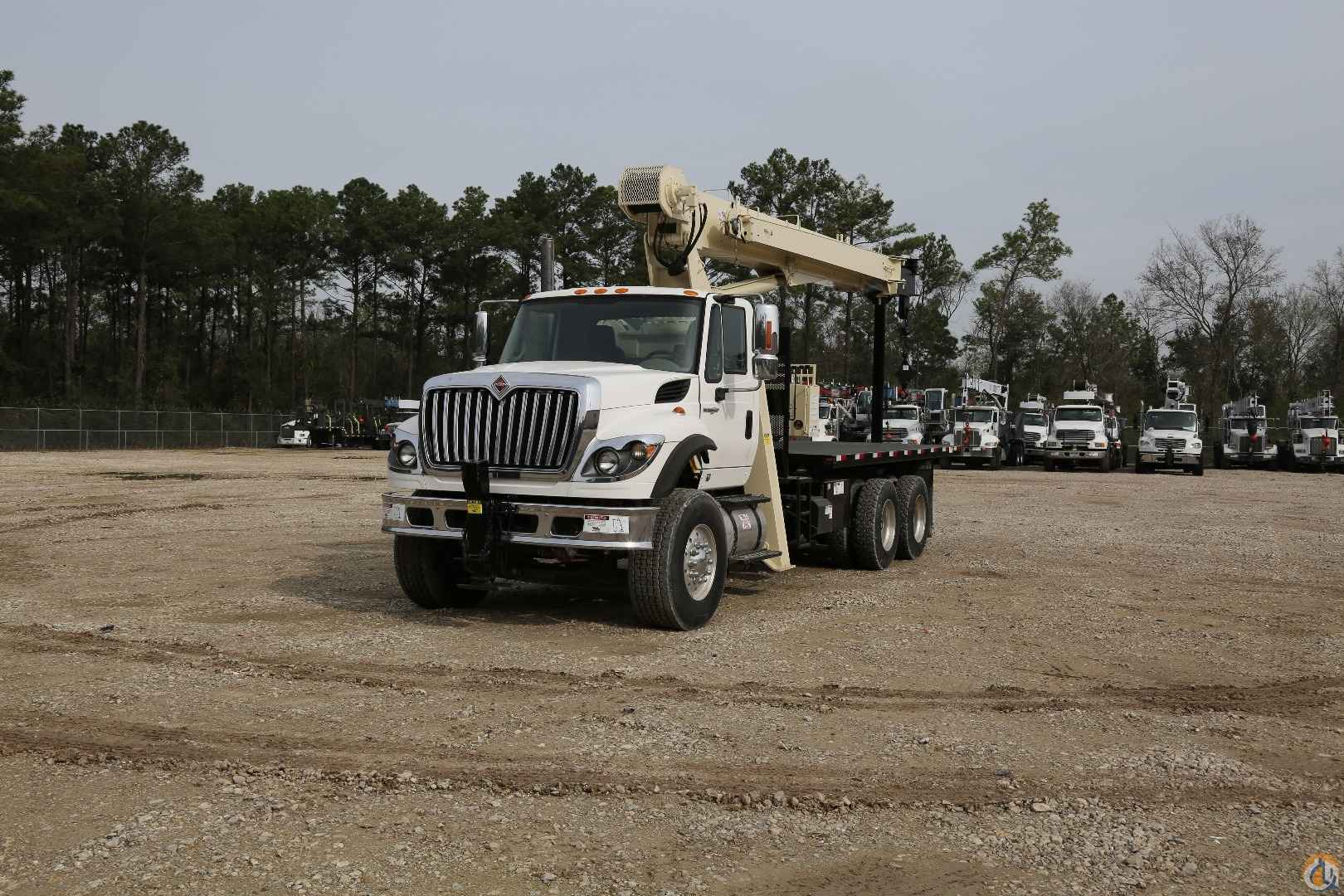

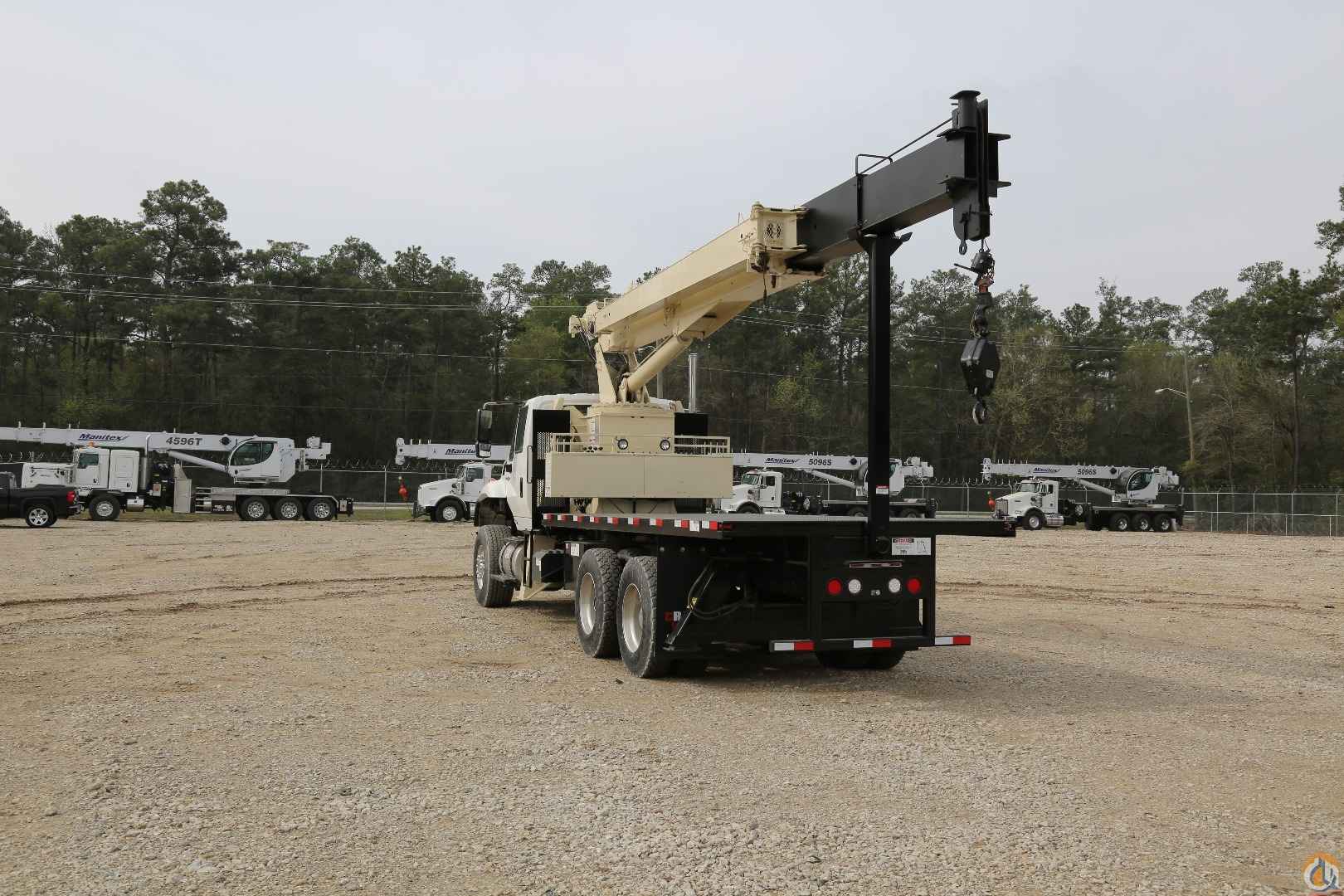

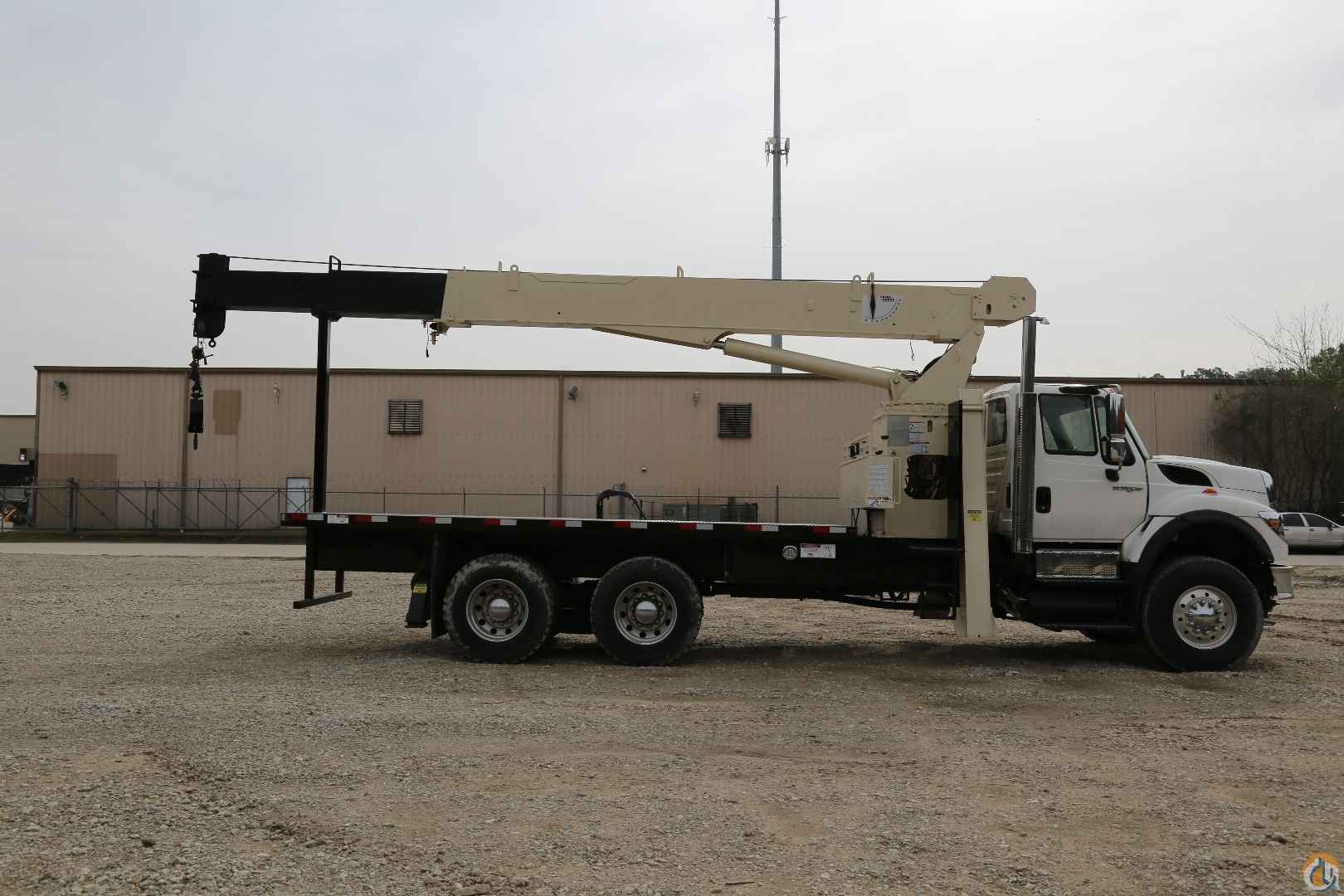

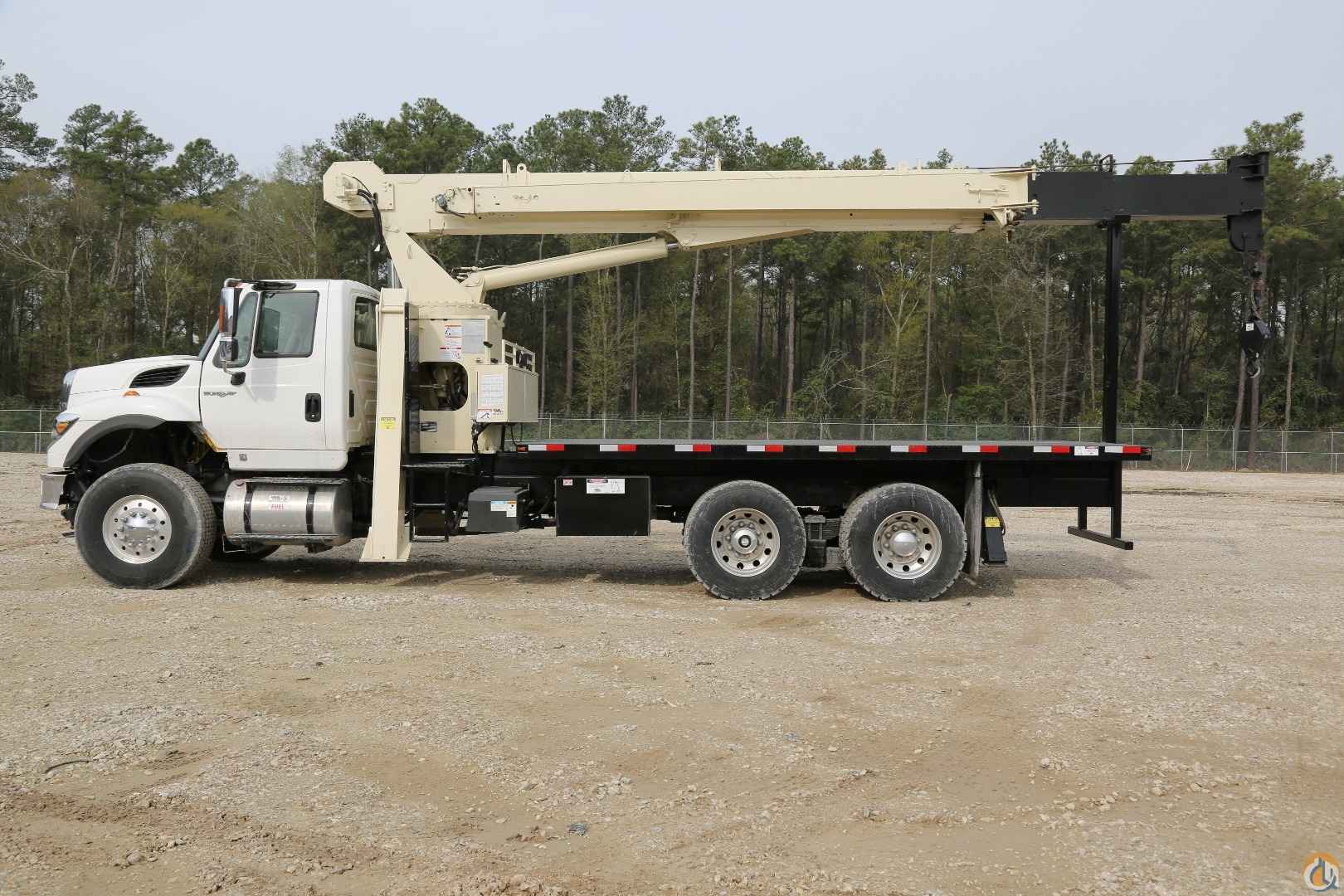

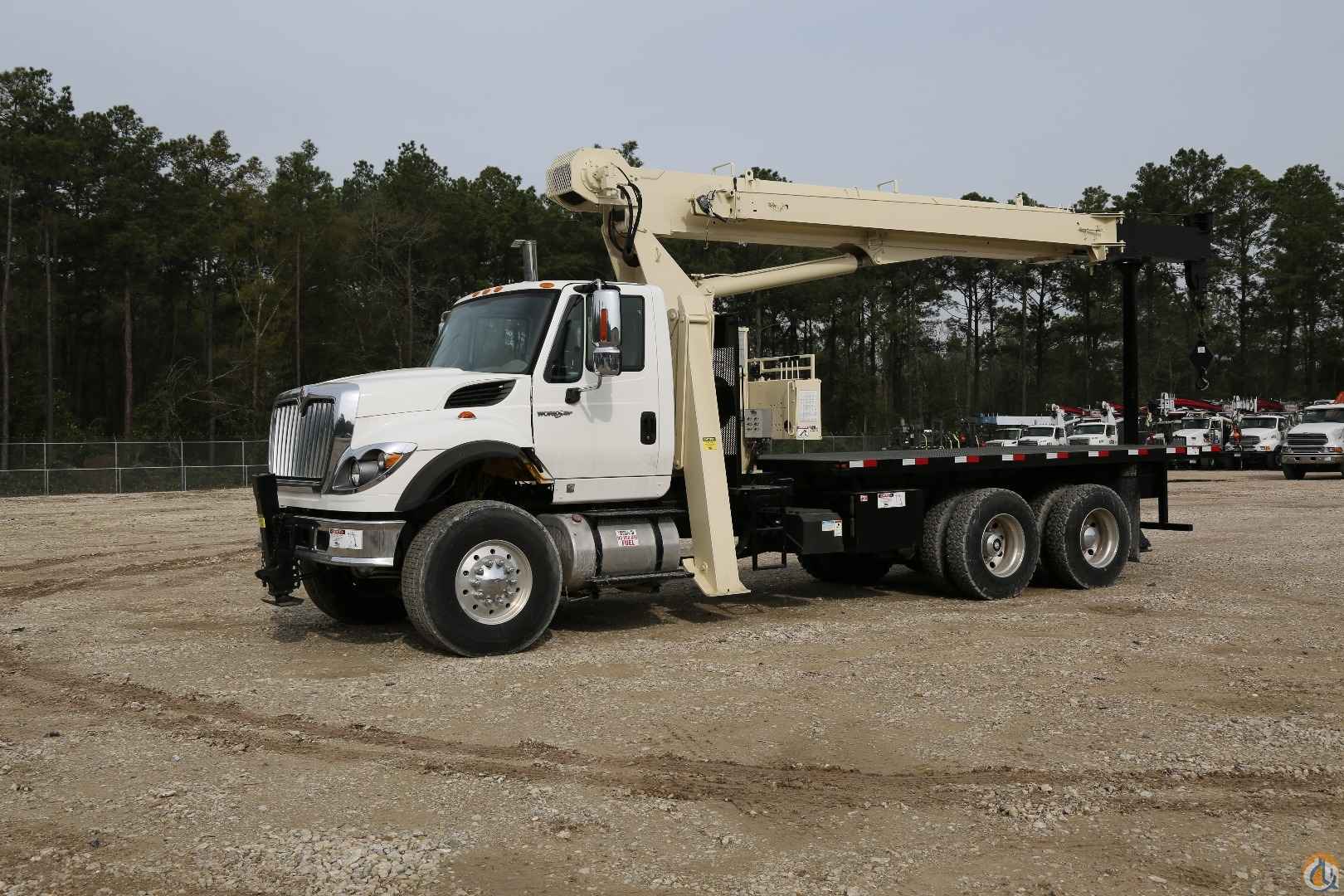

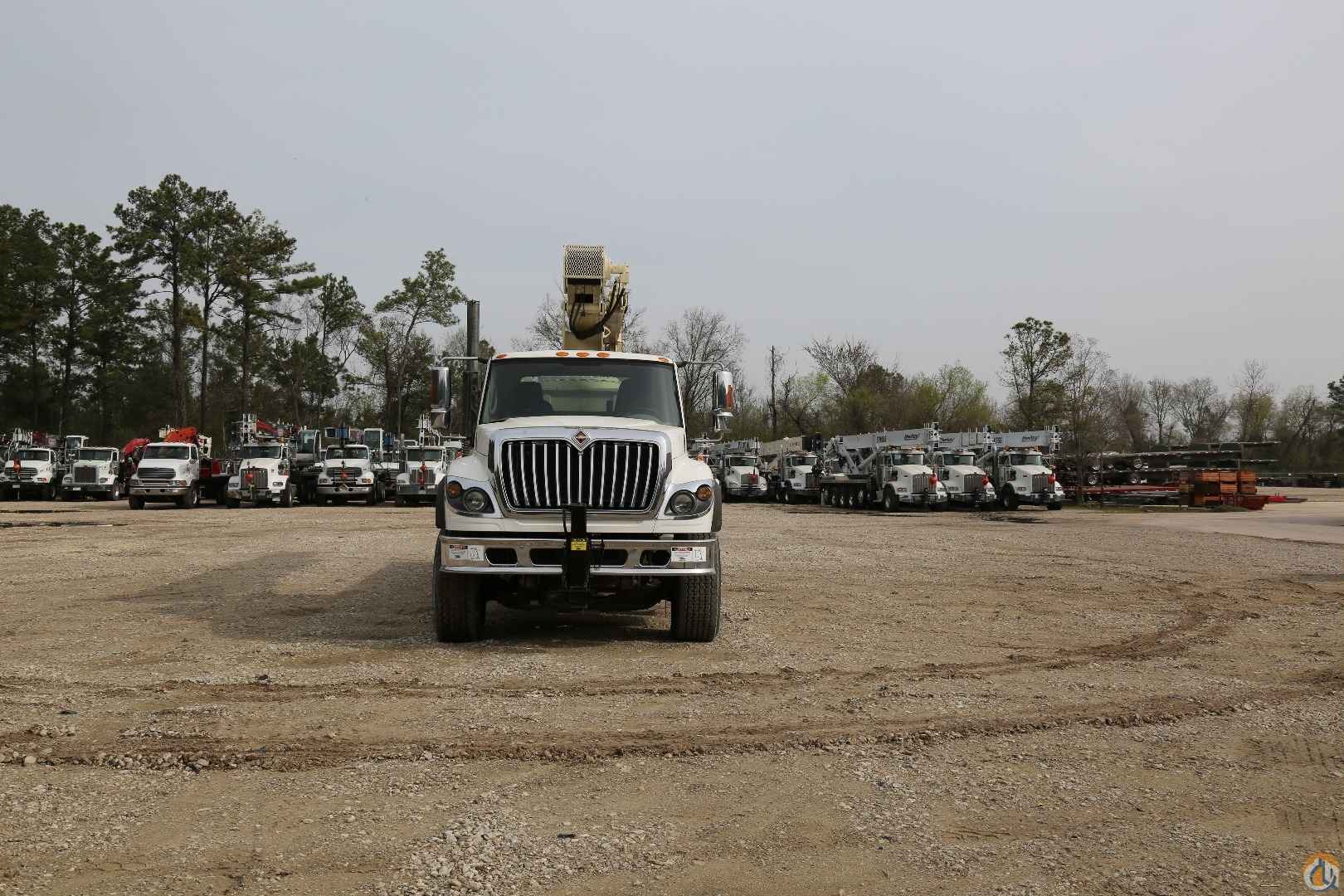

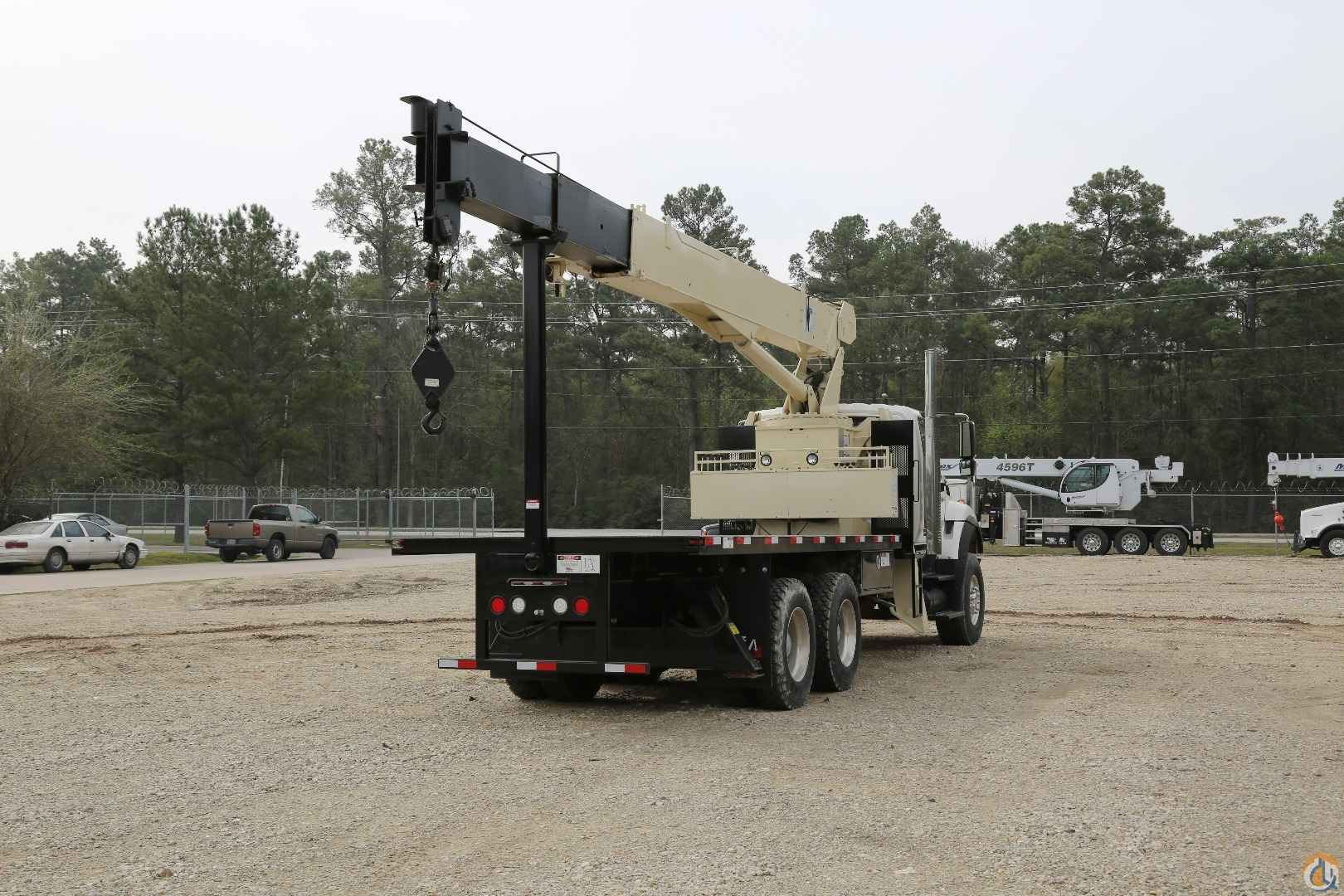

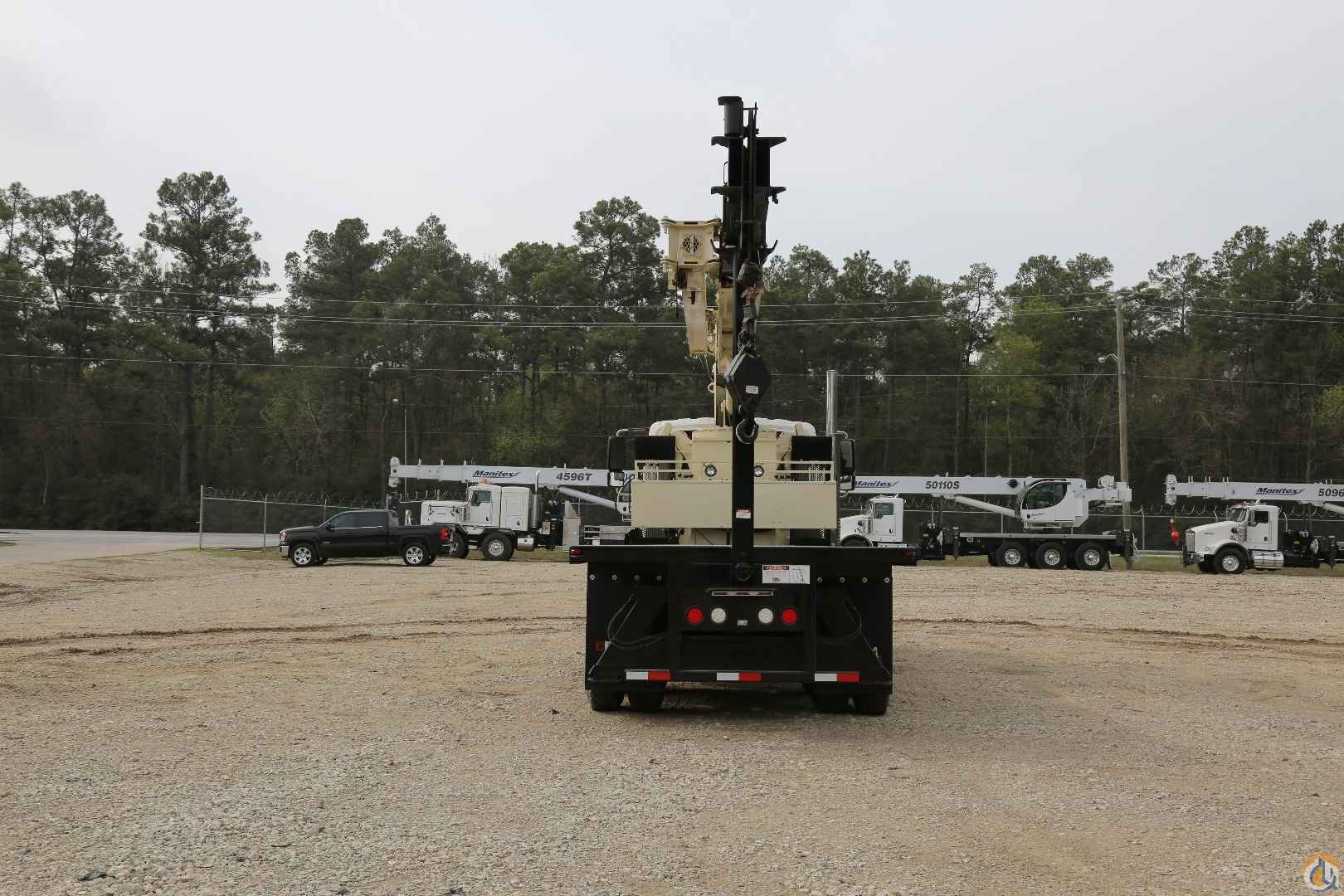

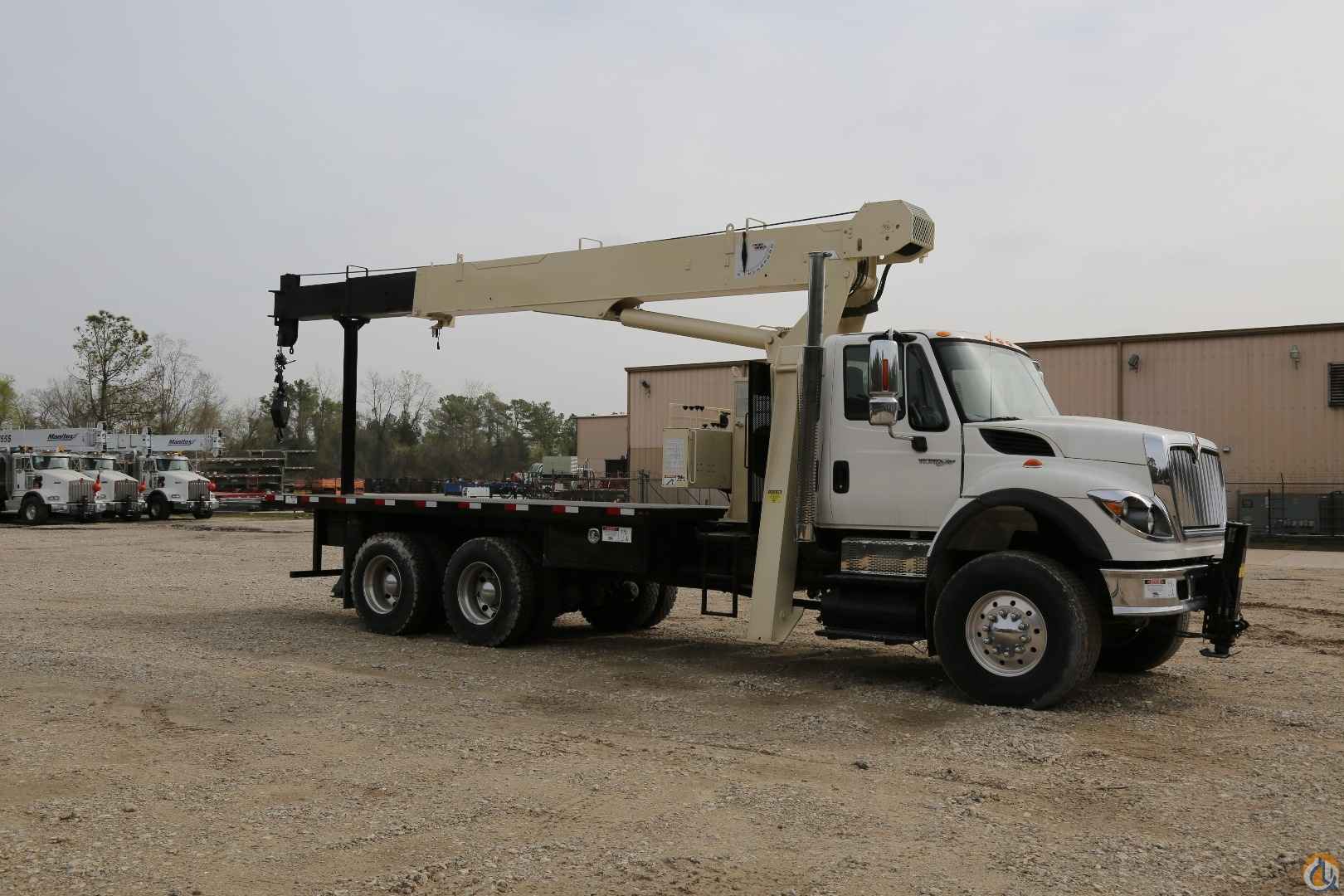

Year: 2009
Capacity: 20.00
Condition: Good
Unit #: UT-216
Location: Houston, Texas
Boom: 47
STANDARD FEATURES

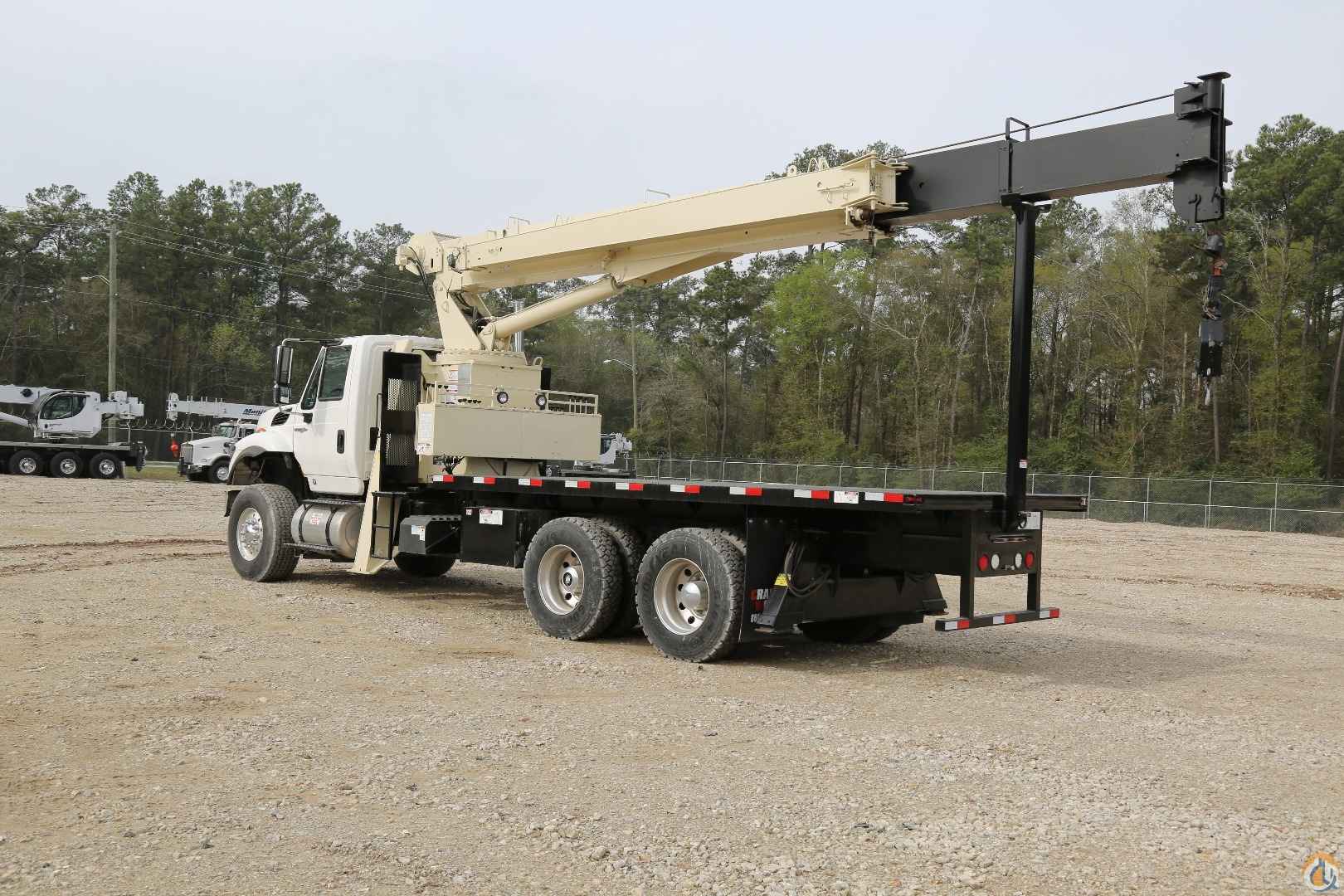

47’ 3-Section Boom

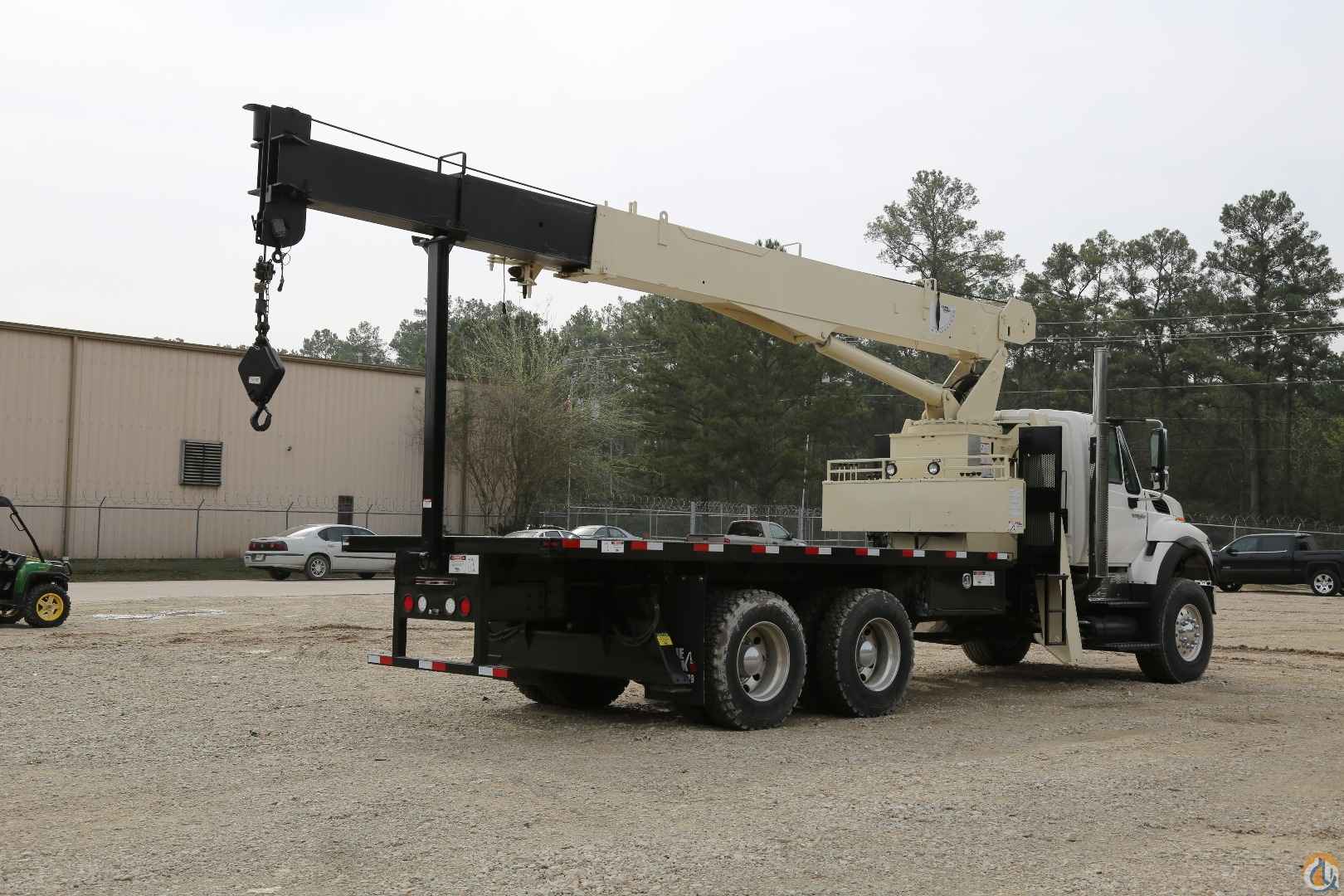

18’ to 29’ Jib
20-Ton Rating
57’ Vertical Hydraulic Reach on Main Boom
A Frame Outriggers, Main
A Frame Outriggers, Supplemental
Hydraulic Capacity Alert System
Proportional Boom Extension
High-Performance Planetary Winch with 9/16 Inch Rope
Heavy-Duty Piston Pump Hydraulics
Quick-Reeve Boom Tip and Sheave Blocks
Burst-of-Speed Winch Provides Faster Winch Payout and Pickup of Unloaded Cable
Self-Lubricating “Easy Glide” Wear PadsInternal Anti-Two-Block
Variable Displacement Hydraulic System
TRUCK

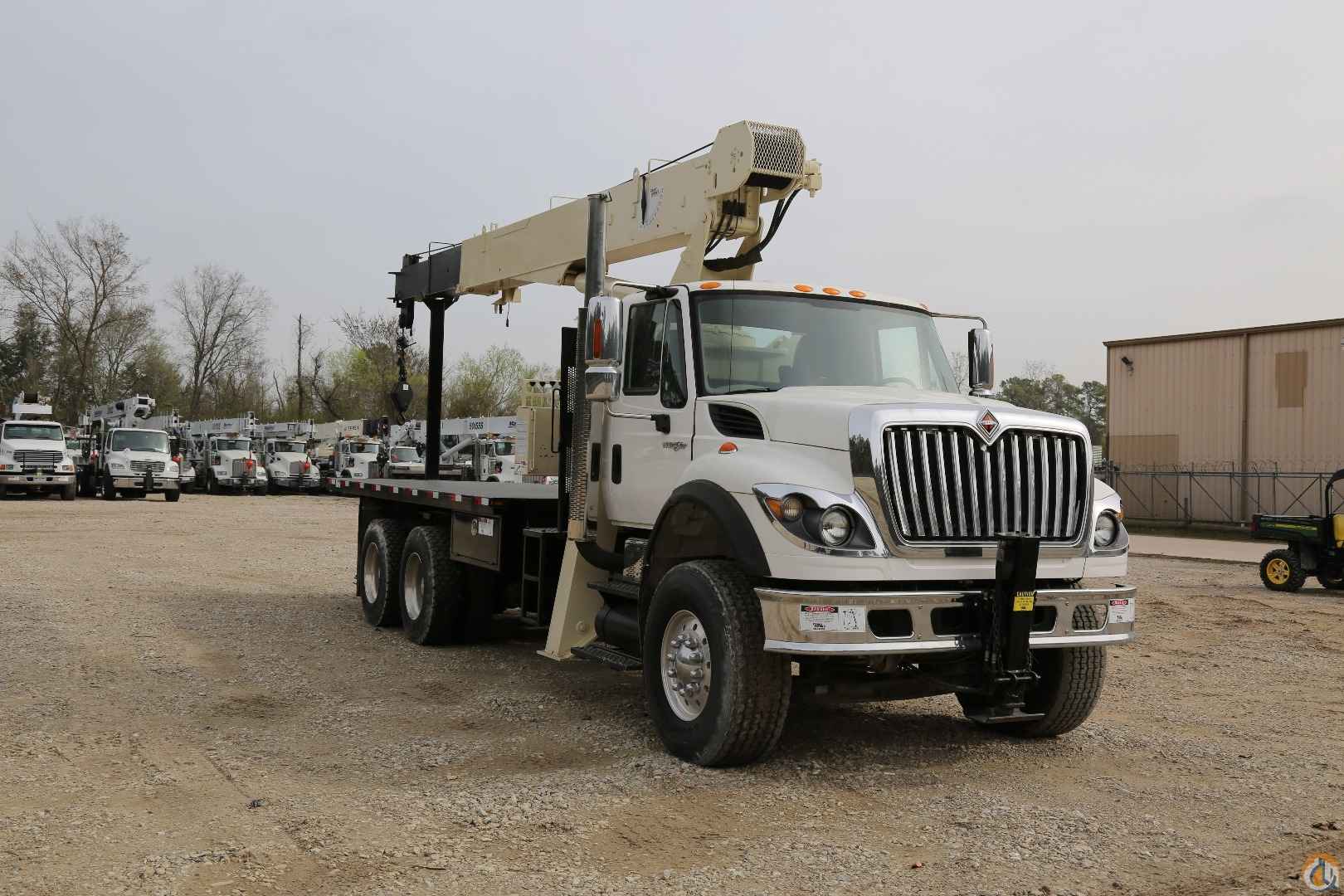

2009 International 7600 SBA 6x4
· Engine: Caterpillar: CAT C13 ACERT 410HP@210RPM
· Transmission: Manual {Fuller RTO (F)-16908LL} 10-Speed
Wheel Base: 232.0

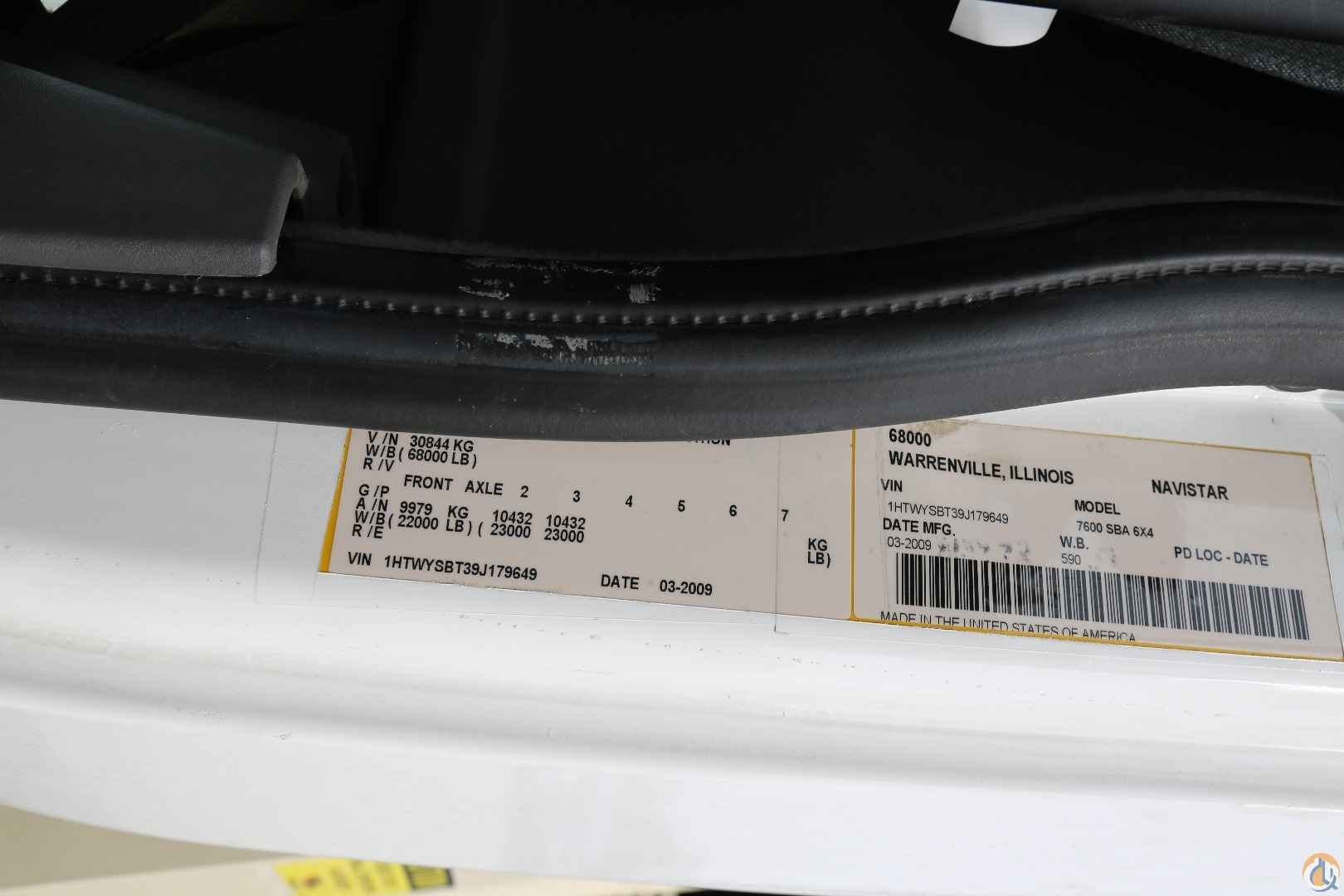

GVWR: 68,000
Original Gear Ratio: 489
Frame Rails Heat Treated Alloy Steel (120,000 PSI Yield)
Frame Reinforcement Outer “C” Channel, Heat-Treated Alloy Steel
Front Axle: Non-Driving {Dana Spicer I-220W} Wide Track, I-Beam Type, 22,000 lb. Capacity
Front Suspension: Spring Parabolic, Taper Leaf; 22,000 lb. Capacity with Rubber Auxiliary Springs, with Shock Absorbers
Rear Axle: Tandem {Meritor RT-46-164EH} Single Reduction, Standard Width, 46,000 lb. Capacity, with Driver Controlled Locking Differential in Forward Rear and Rear
Rear Suspension: Tandem, Hendrickson RT-463
Air Brake ABS {Bendix Antilock Brake System} Full Vehicle Wheel Control System (4-Channel)
Steering Gear (2) {Sheppard M-100/HD94} Dual Power

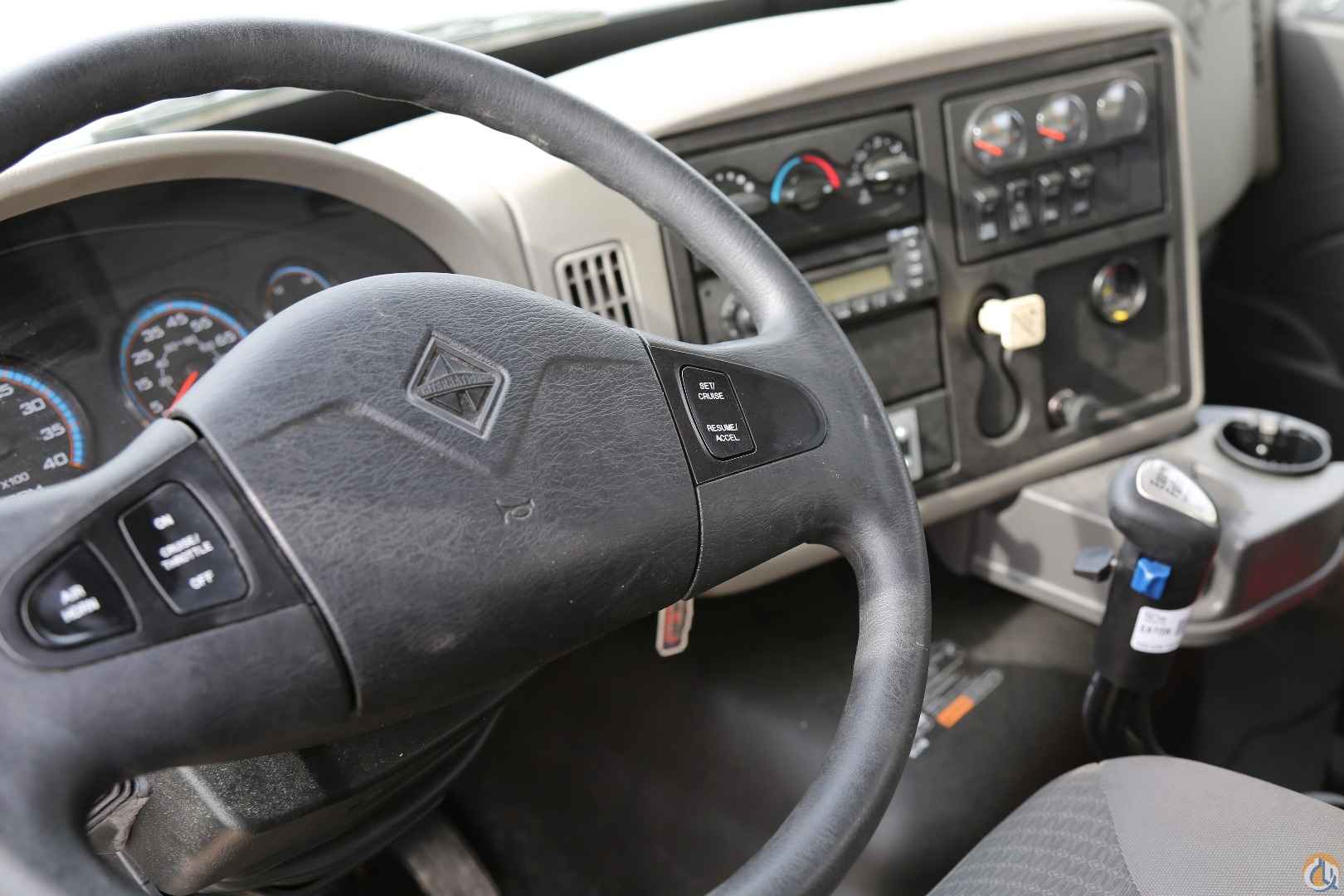

Steering Column Tilting and Telescoping
Driver Seat: National 2000, Air Suspension, High Back with Integral Headrest, Cloth Isolator, 1 Chamber Lumbar, 2 Position Front Cushion Adjust, -3 to 14 Degree Back Angle Adjust Passenger Seat: Gra-Man, High Back, Fixed Back Integral Headrest, Cloth
Power Windows, Power Locks
A/C with Integral Heater and Defroster
