Standard Features
2861 miles ~ like new!
47’ 3-section boom
20-ton rating
57 ft vertical hydraulic reach on main boom
Hydraulic capacity alert system
Proportional boom extension
High performance planetary winch
Heavy-duty piston pump hydraulics
Quick-reeve boom tip and sheave blocks
Burst-of –Speed Winch provides faster winch payout and pickup of unloaded cable
Self-lubricating “easy glide” wear pads
Internal Anti-two-block
Auxiliary Stabilizers
Variable displacement hydraulic system

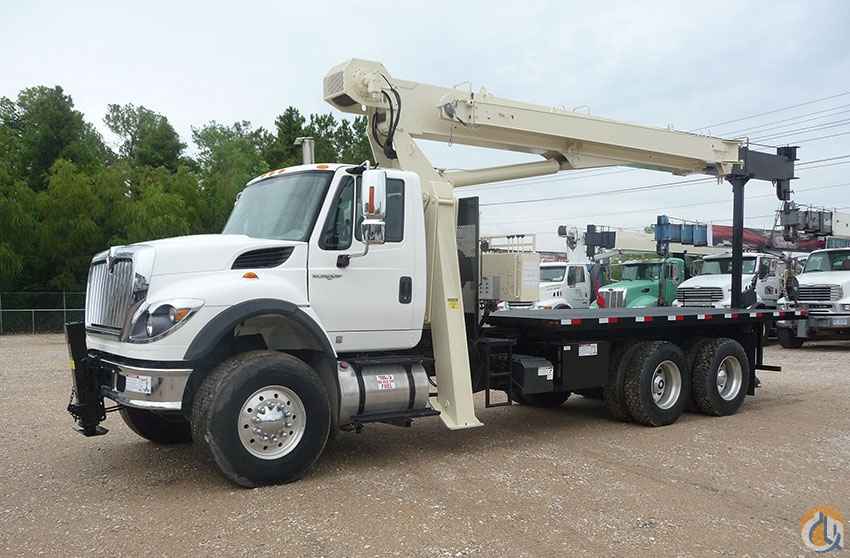

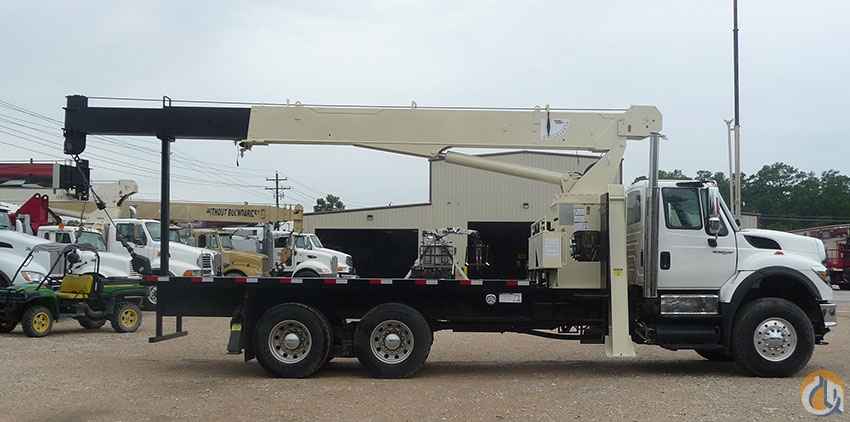

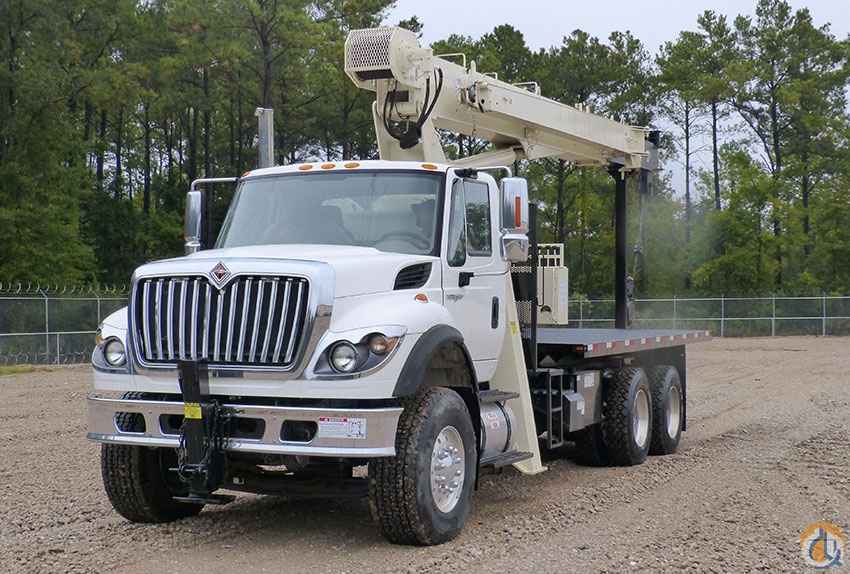

Truck
2009 International 7600 SBA 6X4
Engine: Caterpillar: CAT C13 ACERT 410HP@2100RPM
Transmission: Manual {Fuller RTO(F)-16908LL} 10-speed
Wheel Base: 232.0
GVWR: 68,000
Original Gear Ratio: 489
Frame rails heat treated alloy steel (120,000 PSI yield)
Frame reinforcement outer “C” Channel, heat treated alloy steel
Front Axle: non-driving {Dana Spicer I-220W} Wide Track, I-Beam Type, 22,000 lb capacity
Front Suspension: spring parabolic, Taper Leaf; 22,000 lb capacity with rubber auxiliary springs, with shock absorbers
Rear Axle: Tandem {Meritor RT-46-164EH} Single reduction, standard width, 46,000 lb capacity, with driver controlled locking differential in forward rear and rear
Rear Suspension: Tandem, Hendrickson RT-463
Air brake ABS {Bendix Antilock brake system} Full vehicle wheel control system (4-channel)
Steering gear (2) {Sheppard M-100/HD94} Dual Power
Steering column tilting and telescoping
Driver Seat: National 2000, air suspension, high back with integral headrest, cloth, isolator, 1 chamber lumbar, 2 position front cushion adjust, -3 to 14 degree back angle adjust
Passenger Seat: Gra-man, high back, fixed back integral headrest, cloth
Power windows, power locks
A/C with integral heater and defroster
