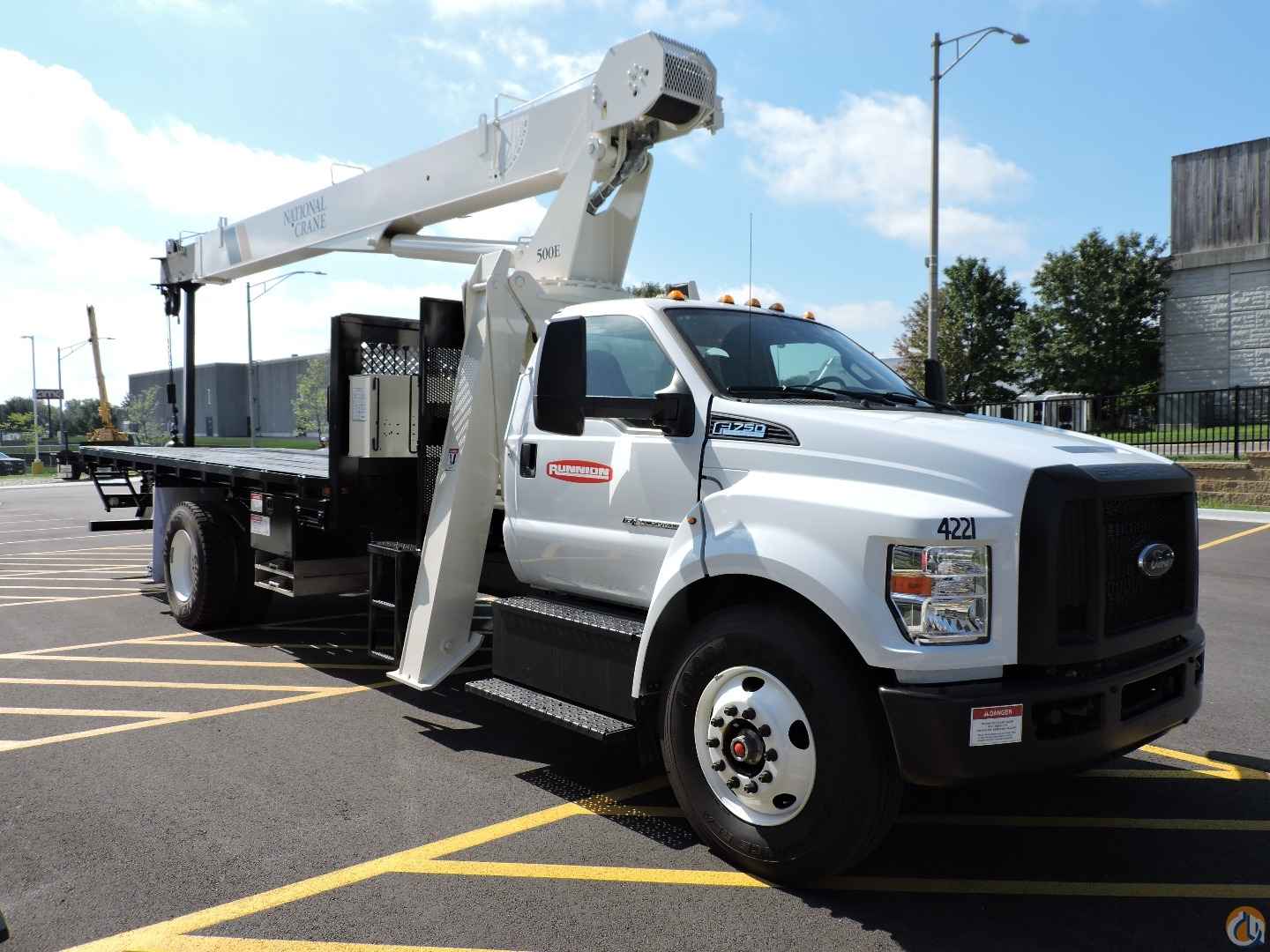

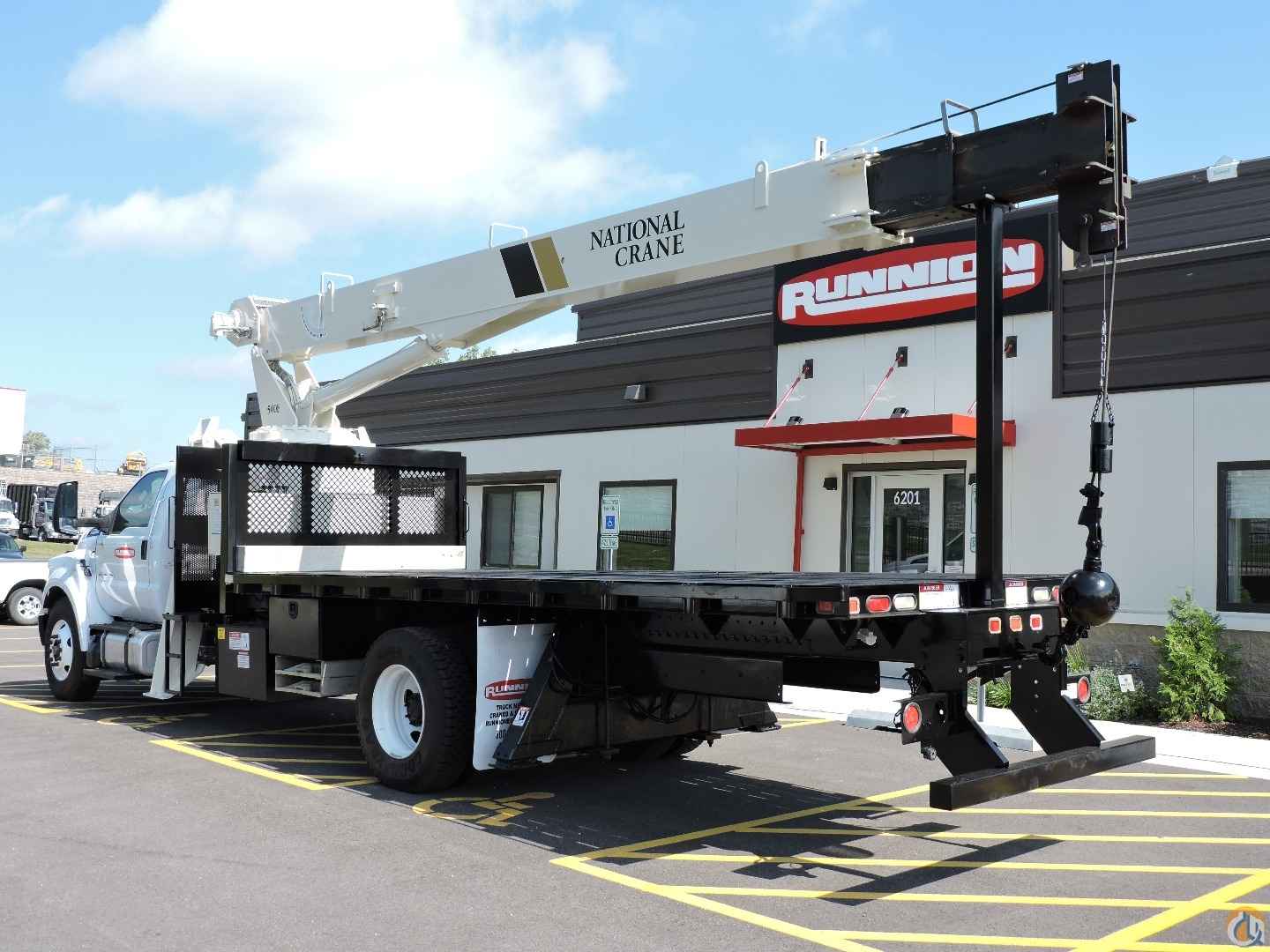

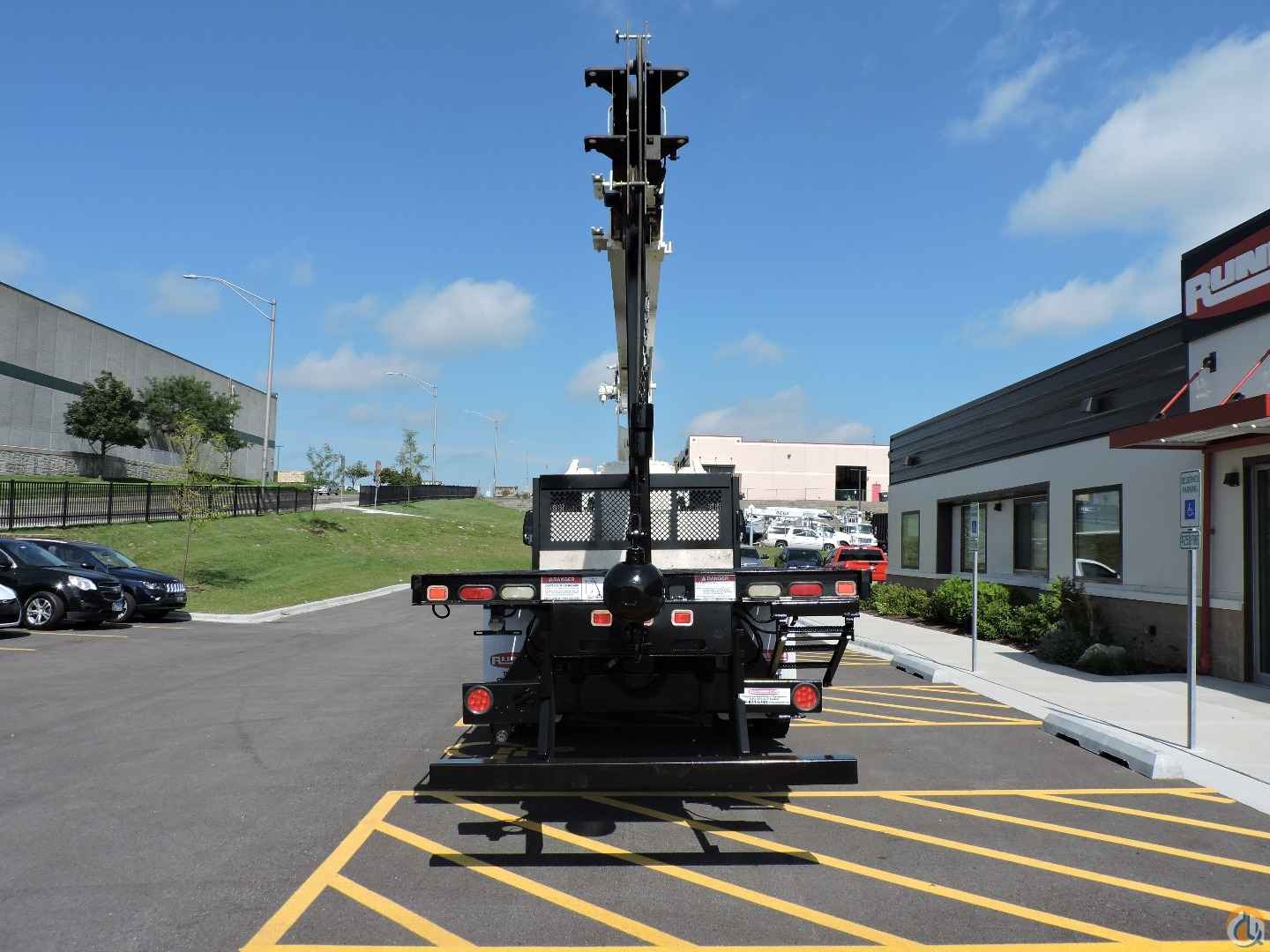

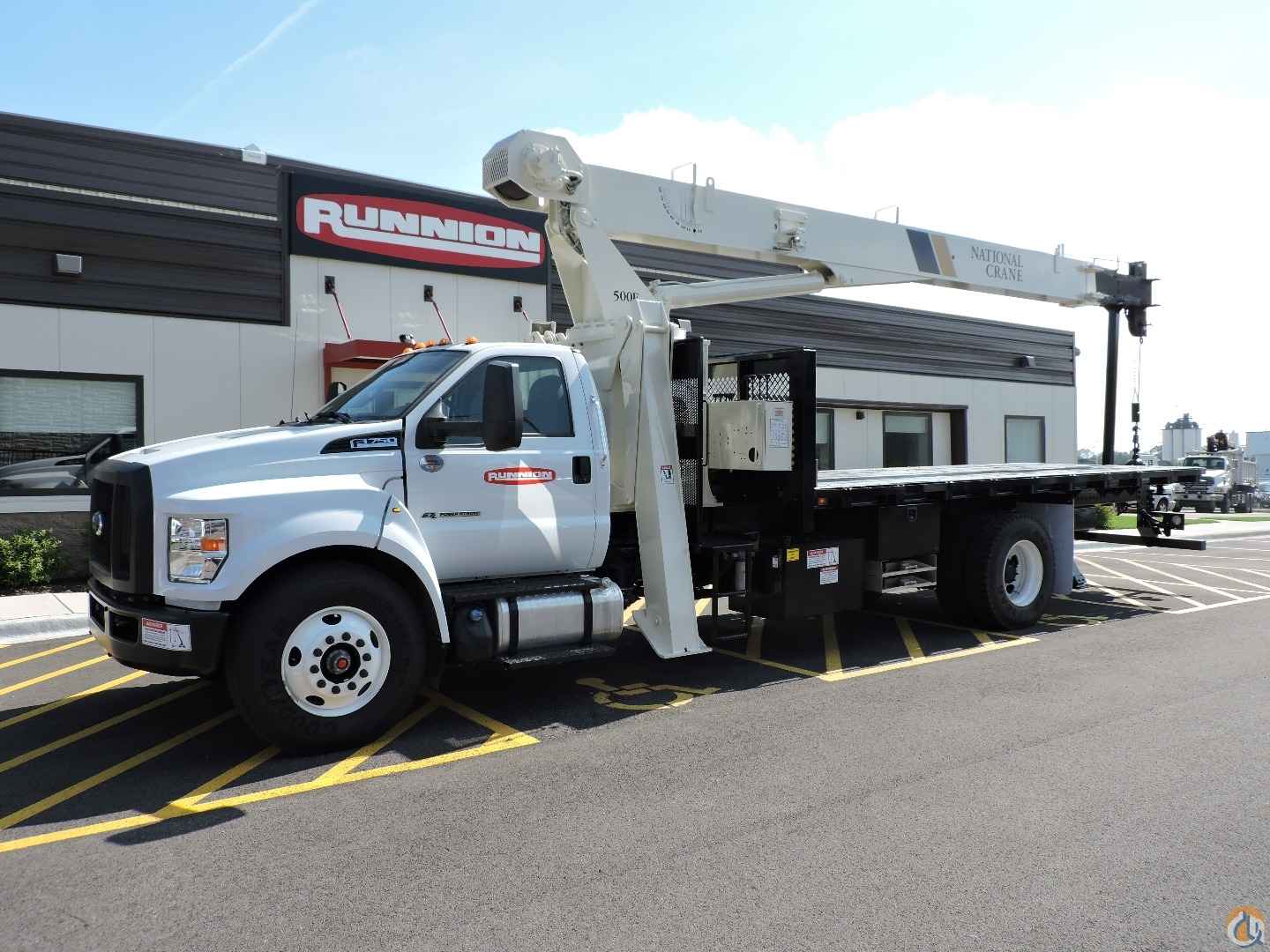

2005 National Crane Model 560E equipped as follows:
- 18 ton capacity
- 24’ to 60’ three (3) section hydraulic proportional boom – 69’ sheave height
- “A” type box slide outriggers in front - 20’ span
- A-frame rear hydraulic stabilizers with 10’ span- cylinders fully enclosed to protect shafts
- HCAS hydraulic capacity alert system is a hydraulically operated, maximum capacity sensing device that is designed to stop all of the normal crane functions that cause overload when maximum capacity is exceeded on the main boom Includes indicator gauge and key operated override
- Internal anti-two block safety device; shuts off telescope out and winchup controls and does not allow hook to be pulled into sheave case. Includes keyed override
- Hi-performance planetary winch with 9/16” spin resistant wire
- Heavy duty multi part hook block
- Dual side controls with operator platforms, foot throttles, horn and kill switches. Operator platform 40” above ground for maximum visibility
- 20’ Knapheide heavy hauler bed with external stake pockets
- Pump and oil tank
MOUNTED ON: 2019 Ford F750 Truck equipped as follows:
- 6.7L Power Stroke V8 turbo diesel engine, 270 hp @ 2,400 RPM 675 lb. /ft. peak torque
- TorqueShift 6-speed automatic transmission
- Engine block heater
- 33,000# GVWR
- 242” wheelbase
- Front and rear 22.5” x 8.25” steel wheels
- Front tires and rear tires 11R22.5G
- Front axle 12,000lbs
- Rear axles 21,000lbs with multi leaf springs
- 50 axle ratio

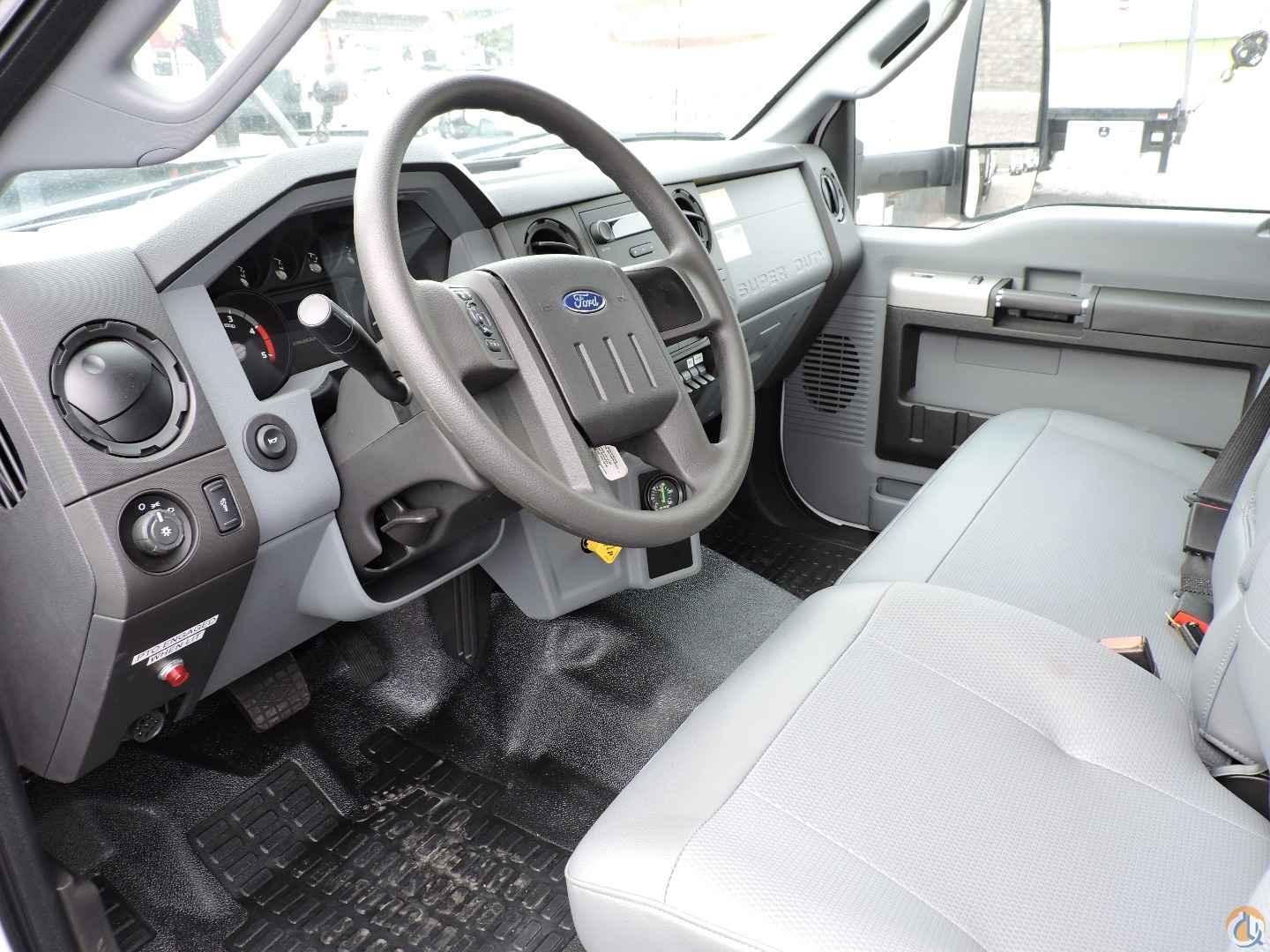

- Fixed driver seat
- Fixed two person passenger bench seat
- 50 gallon aluminum fuel tank
- AM/FM radio with aux audio jack input
- Air brakes
- Heated air dryer
- Heated mirrors
- Air conditioning

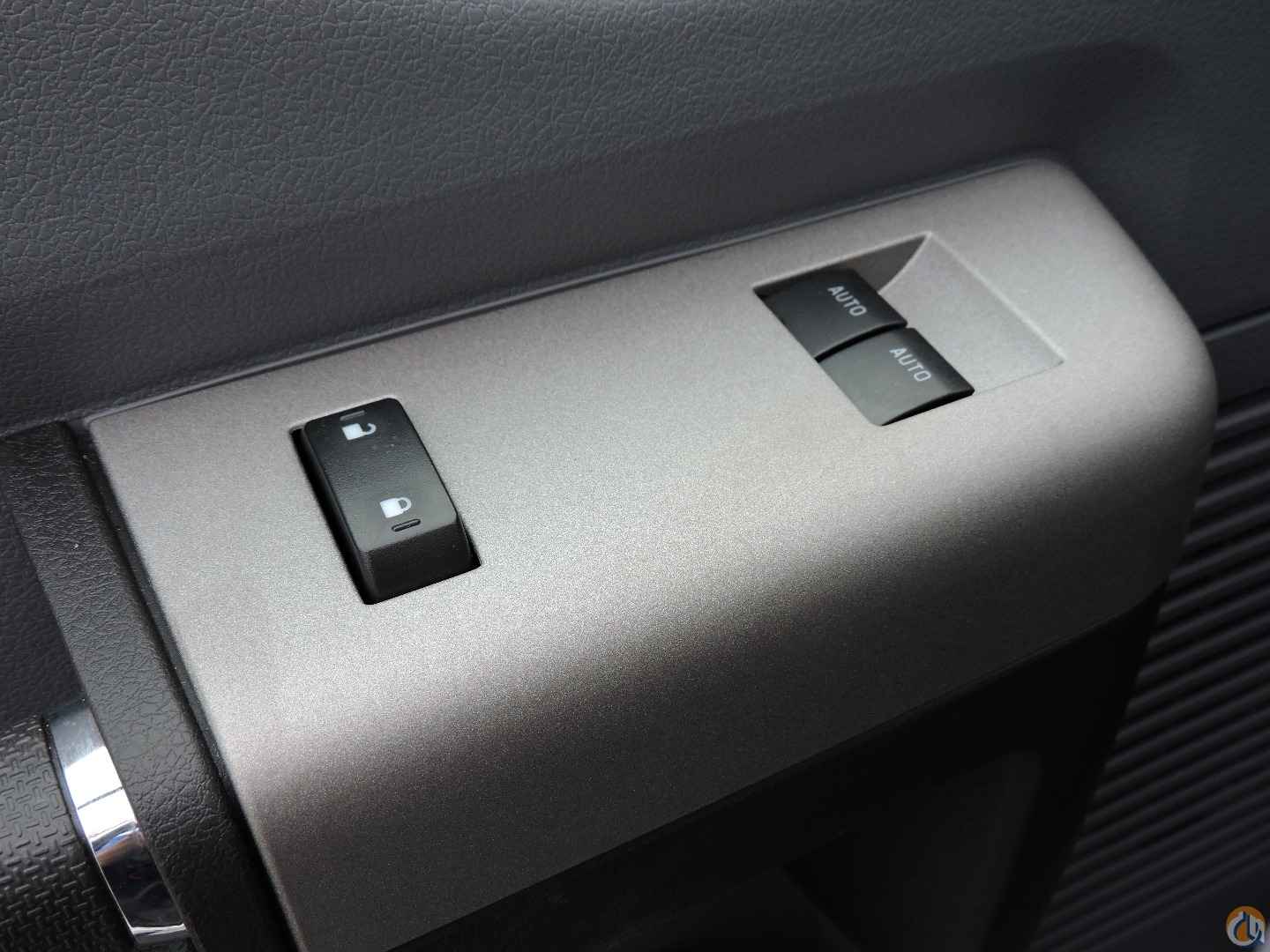

- Power locks and windows

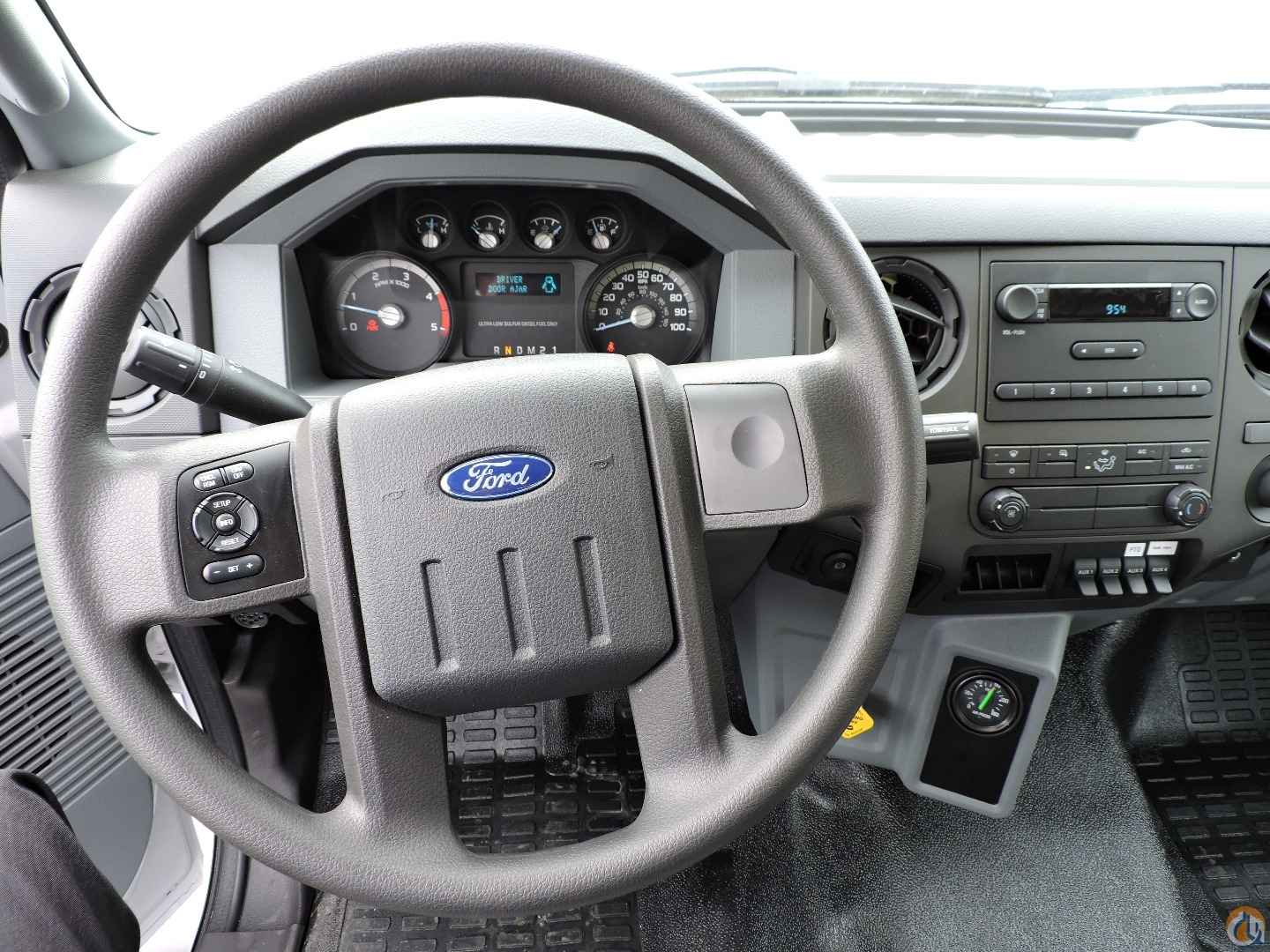

- Cruise control with steering wheel controls
- Back up alarm
- Painted white
- 212 miles and 24 hours as of January 2020
