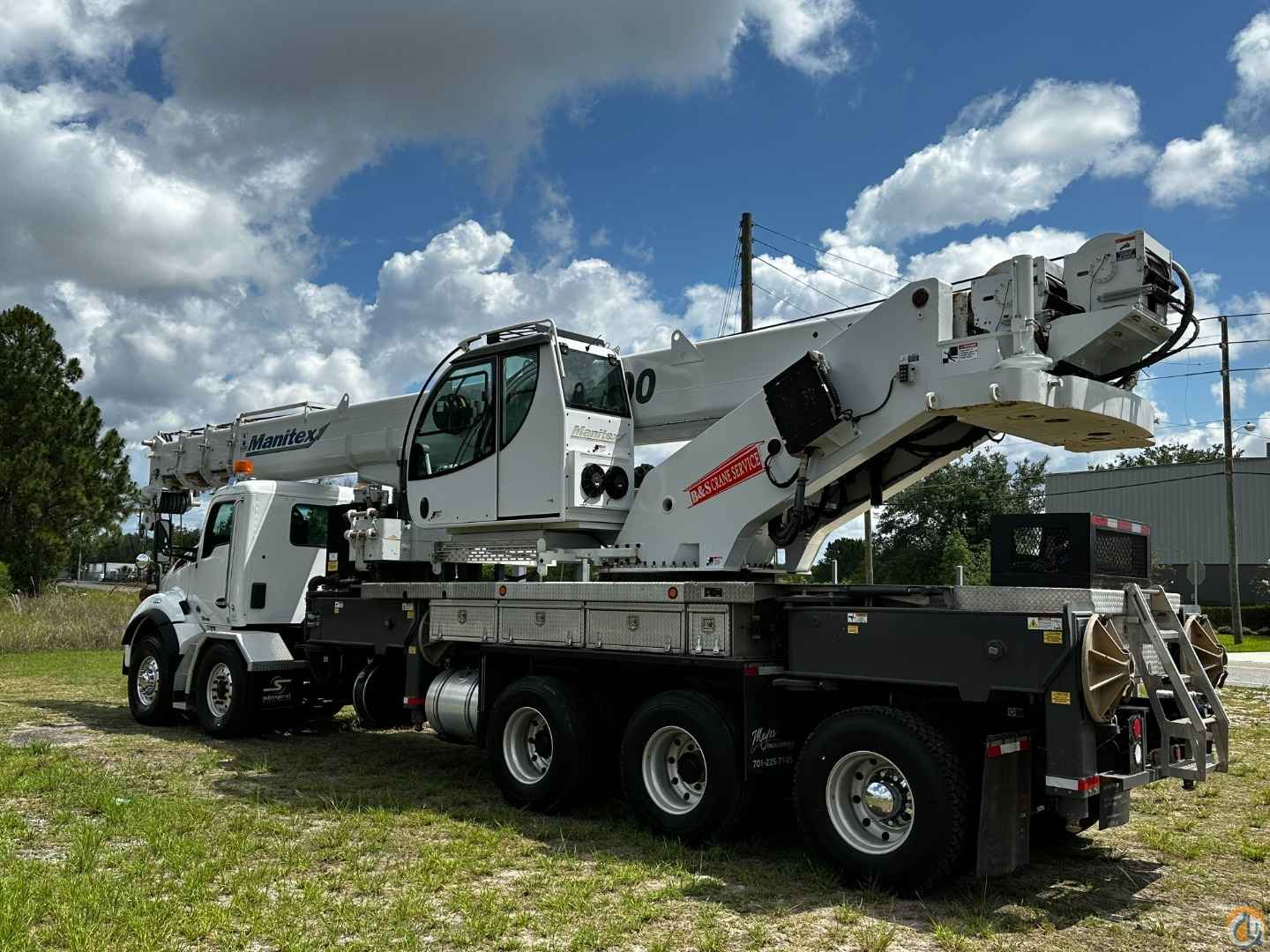

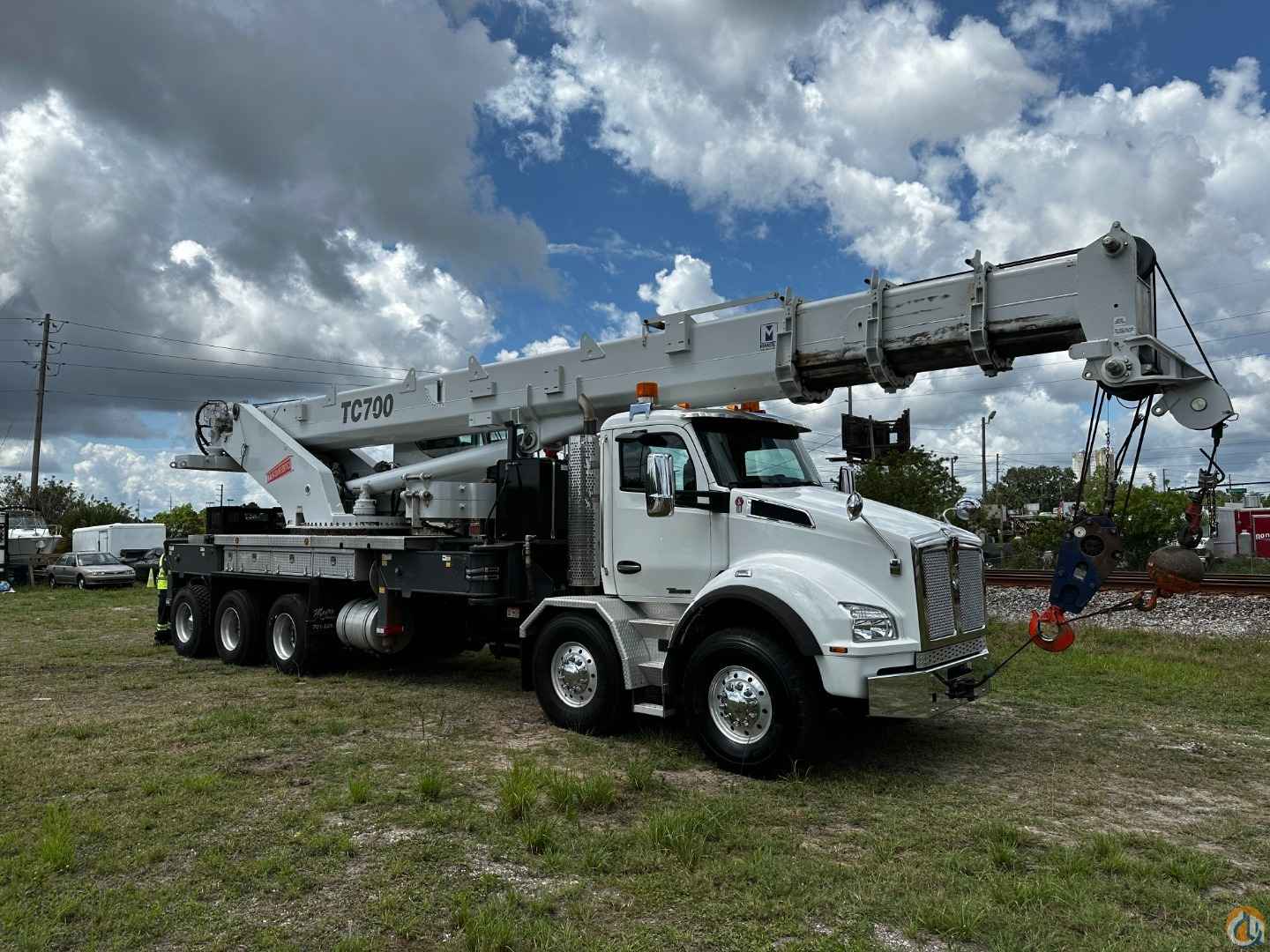

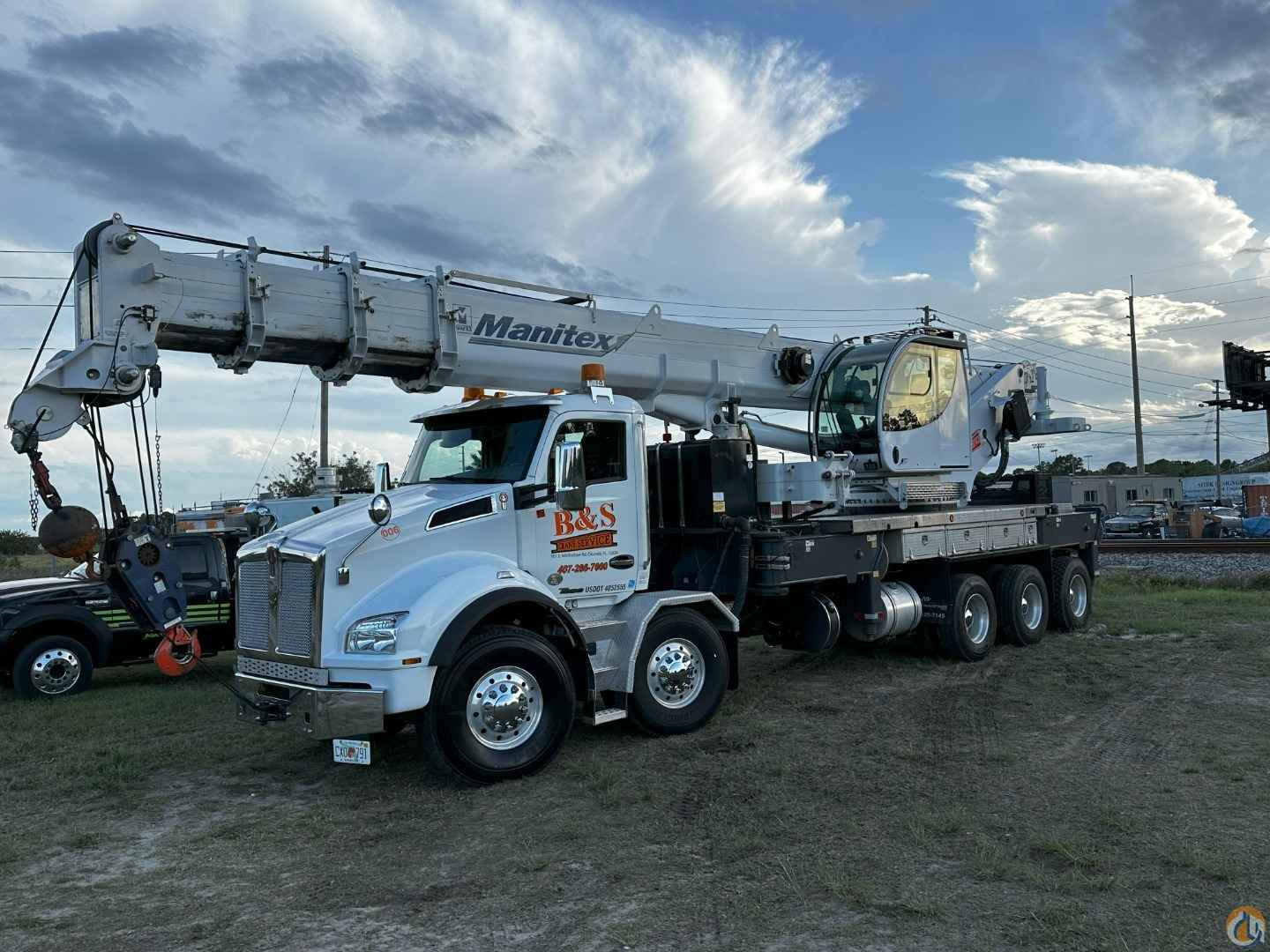

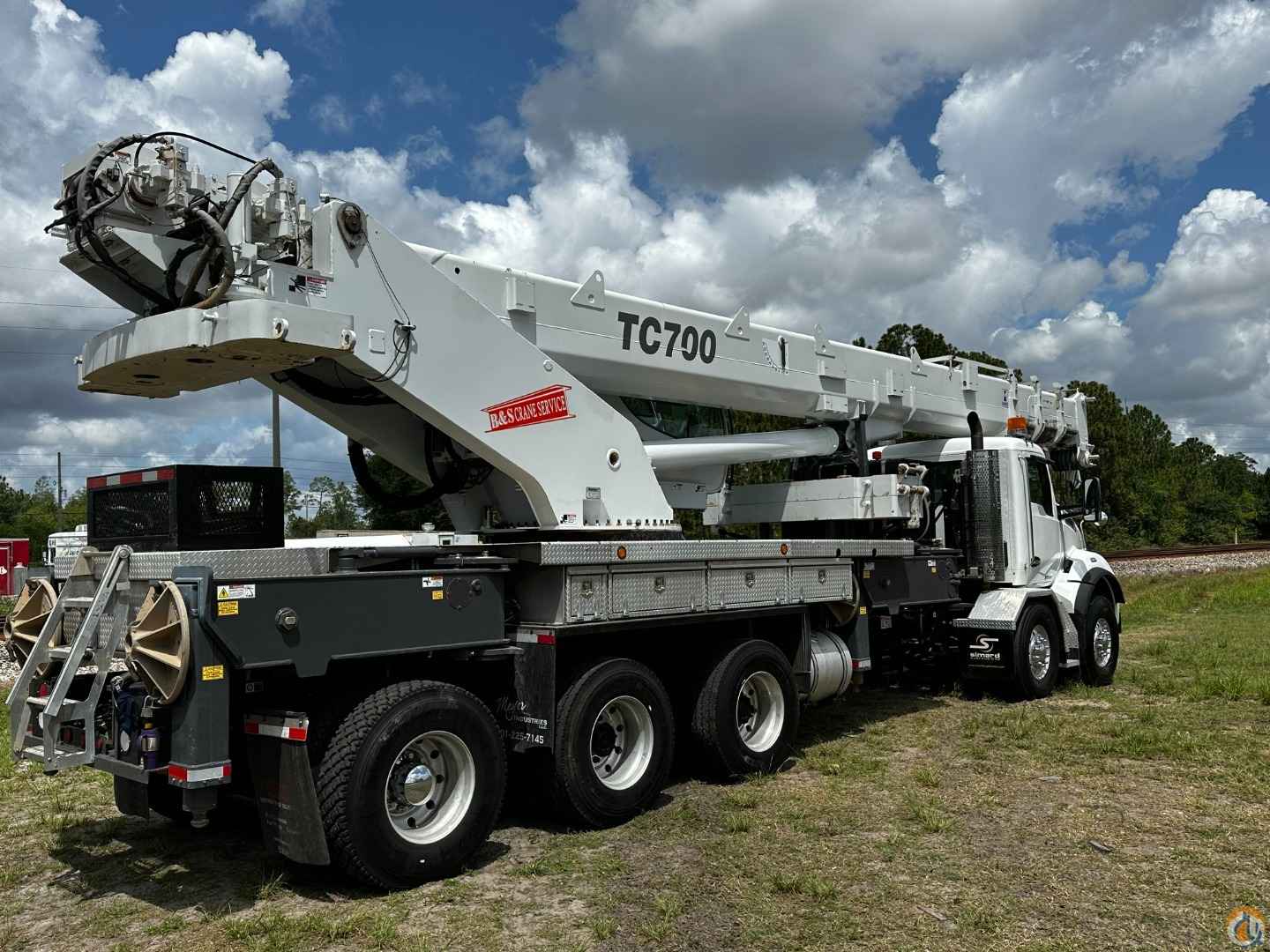

2020 MANITEX TC-700
70 TON BOOM TRUCK
Main Boom: 115 Feet
Main Boom Tip Height: 125 Feet
Jib: 31-53' Jib is Not included-Available option from Manitex.

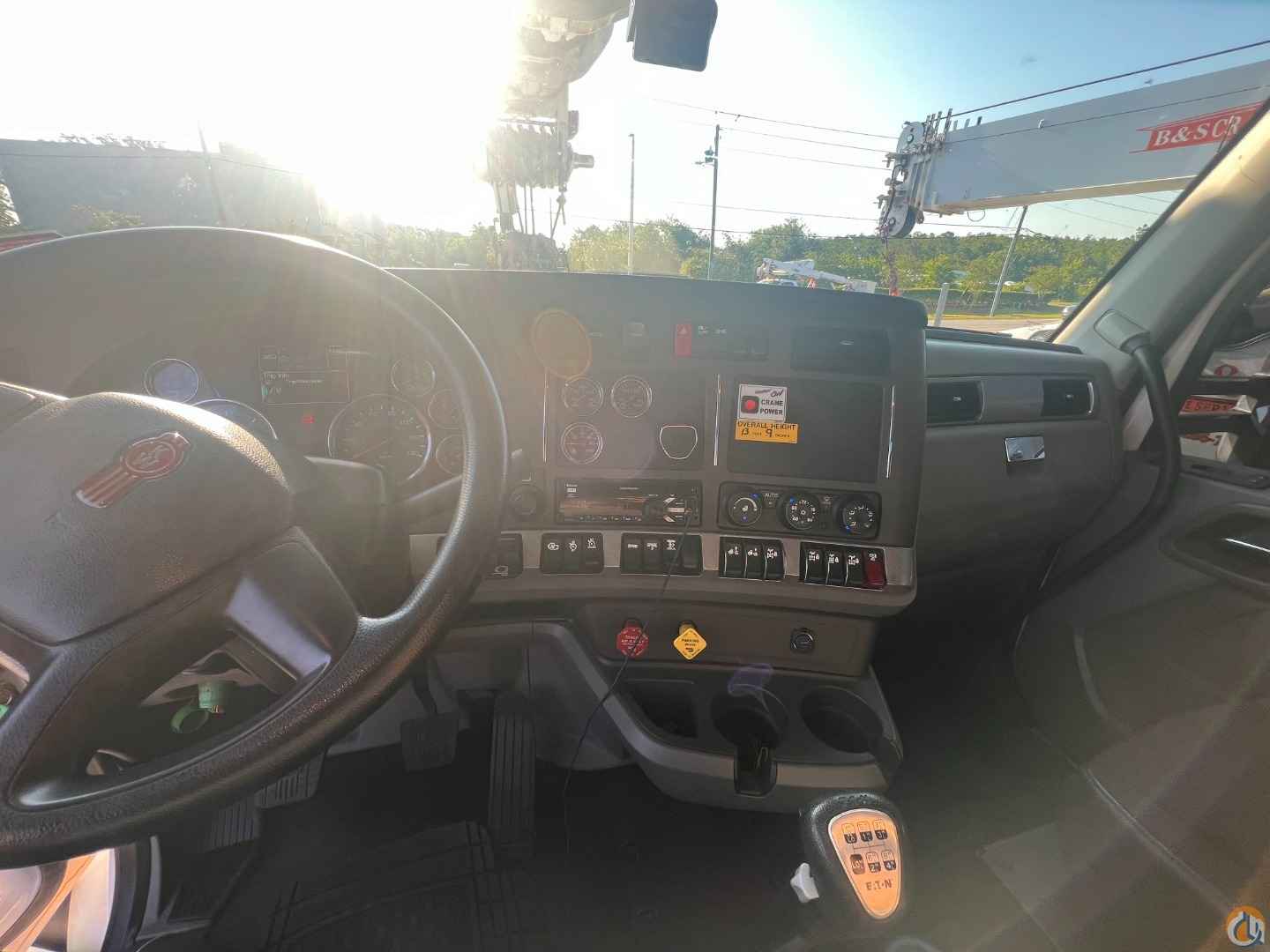

Mounted on a Kenworth T880 Twin Steer Truck
Crane & Truck Year 2019, First in service in 2020.
Meter Readings As of May 10, 2024:
Crane/Upper Operating Time: 3234 Hours
Odometer: 47,454 Miles
7 Ton Top ball with hook and latch
3 Sheave hook Block
16,500 lbs Counterweight Total - Removable
Two Winches
4X-Pattern Out-And-down outriggers
Hand Held Radio Operated Controller for Outriggers & Remote Winch Control
Removable Aluminum Pads Stored at Outrigger
Two position Outriggers Full and Retracted Spread Capacities
2-speed Hoist w/ Grooved Drum, Roller Tensioner, Piston Motor
Wire Rope for Auxiliary Winch - 500'
6-Load Sheave Quick Reeve Boom Head
External Hard Wire Anti-Two Block
Continuous Rotation with Cable Operated Swing Lock

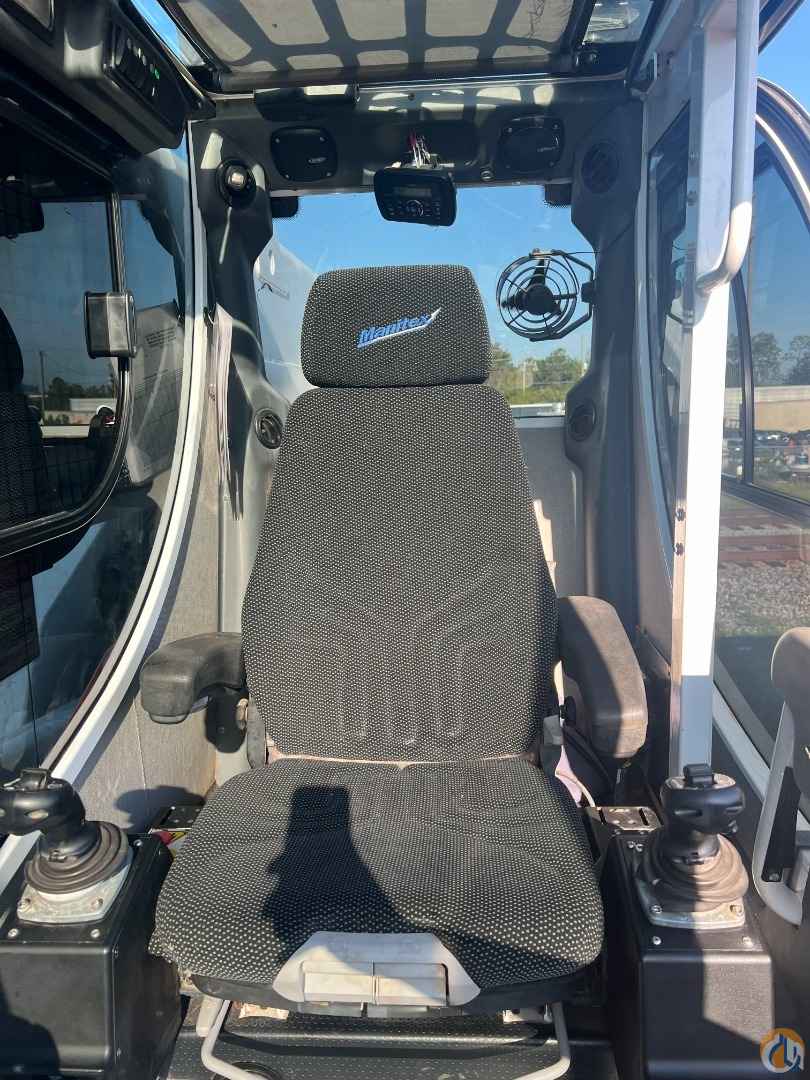

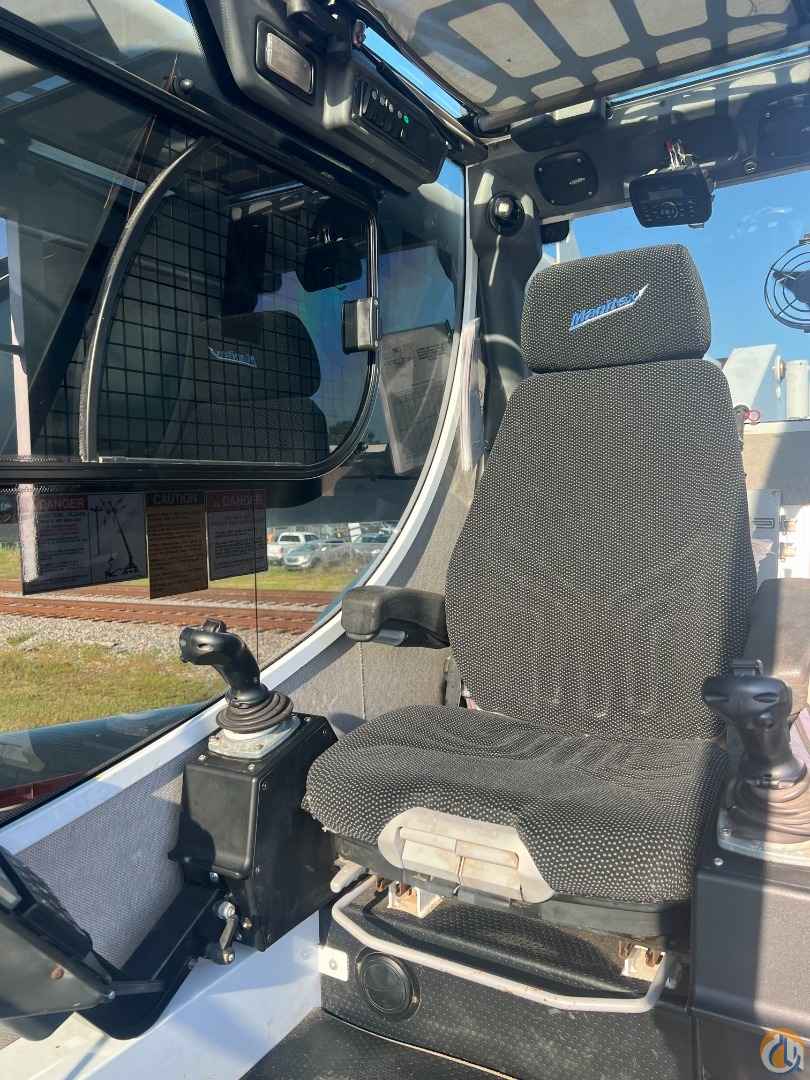

Reclining Cab w/Dual Axis Joystick Controls & Folding Step Access
Air Conditioned and Electrically Heated Operator's Cabin
Boom extend/retract - slider thumb-switch
Foot Operated and Thumb Slide Activated Throttle
Hydraulic Rotation Drum Indicator
Remote Counterweight Removal Controls
Variable Displacement Load Sense Hydraulics
1-Section Gear Pump for Swing Function
220 Gal Hydraulic Reservoir w/Suction Strainer & Ball Valve

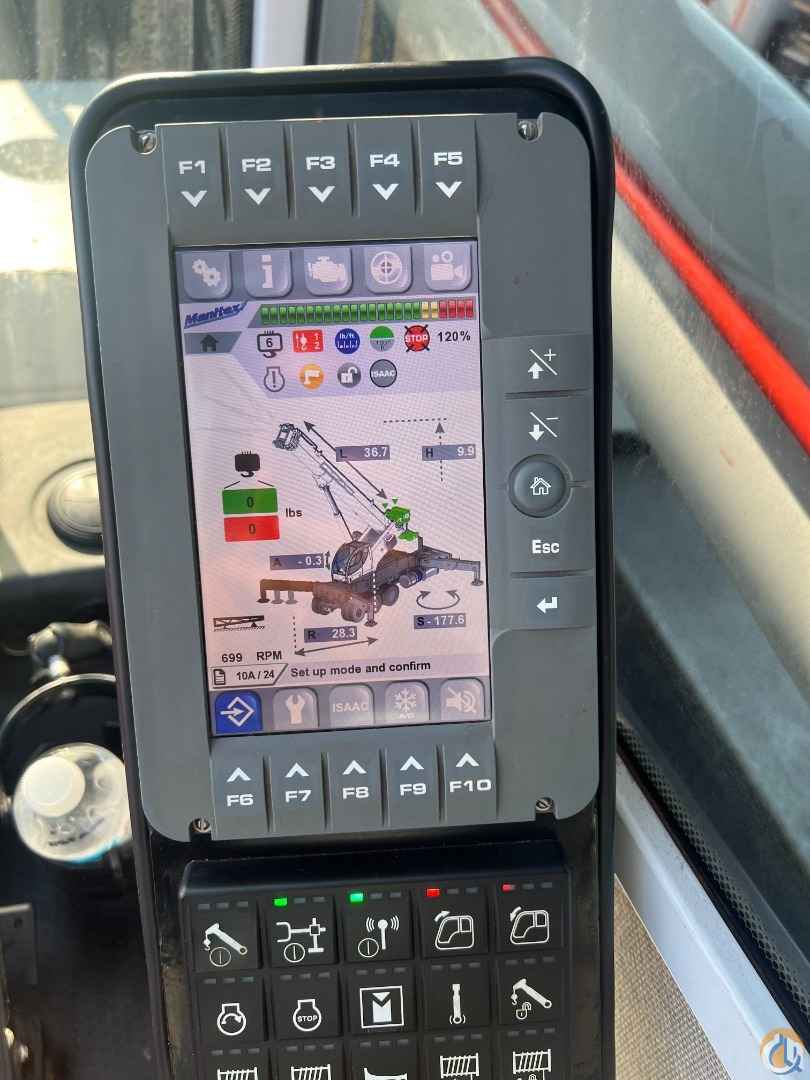

Load Moment Indicator - Full Visual/Audio Capacity Alert w/Shutoff
Diamond Plated Aluminum Decking
Mounted on a Kenworth T880 - Tandem Tridem
40,000lb front tandem axle , 69,000lb rear tri-drive axle with air suspension, wide track
Paccar MX-13 510 HP
Fuller RTLO 18918B 18 Speed Transmission
Front tires 445 65R22.5, Rear tire Z 12 FR22.5
120 US gallon fuel tank

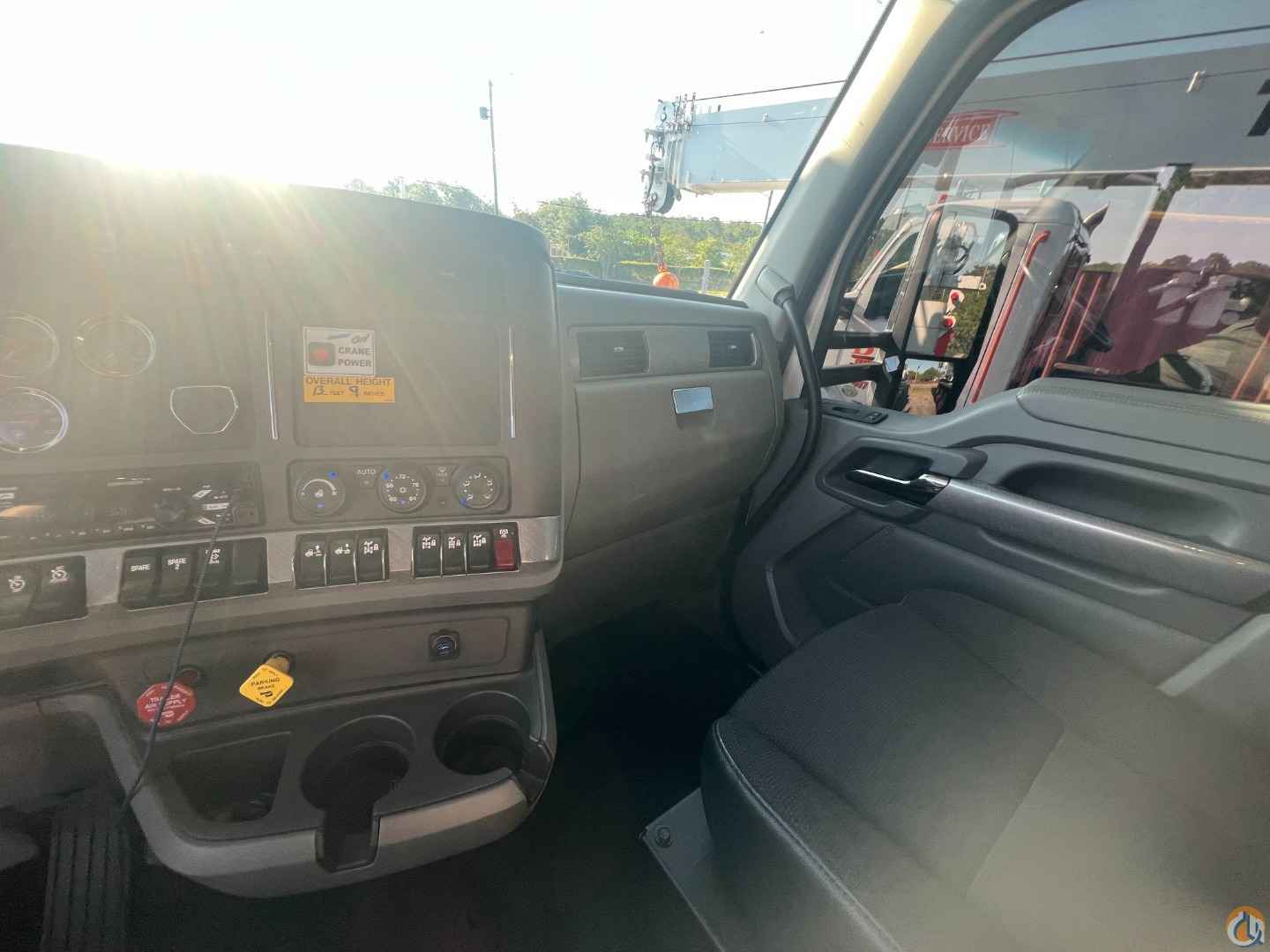

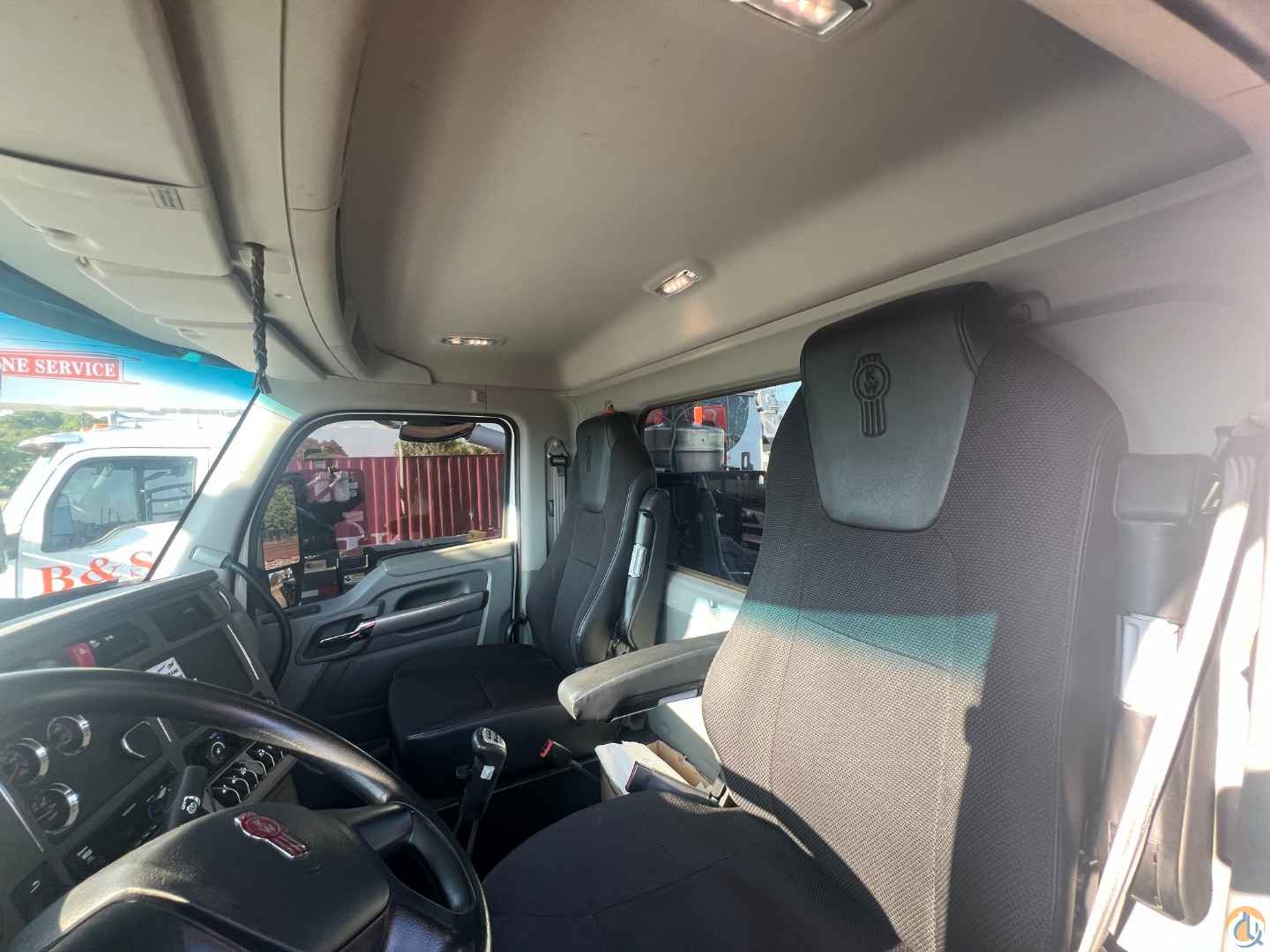

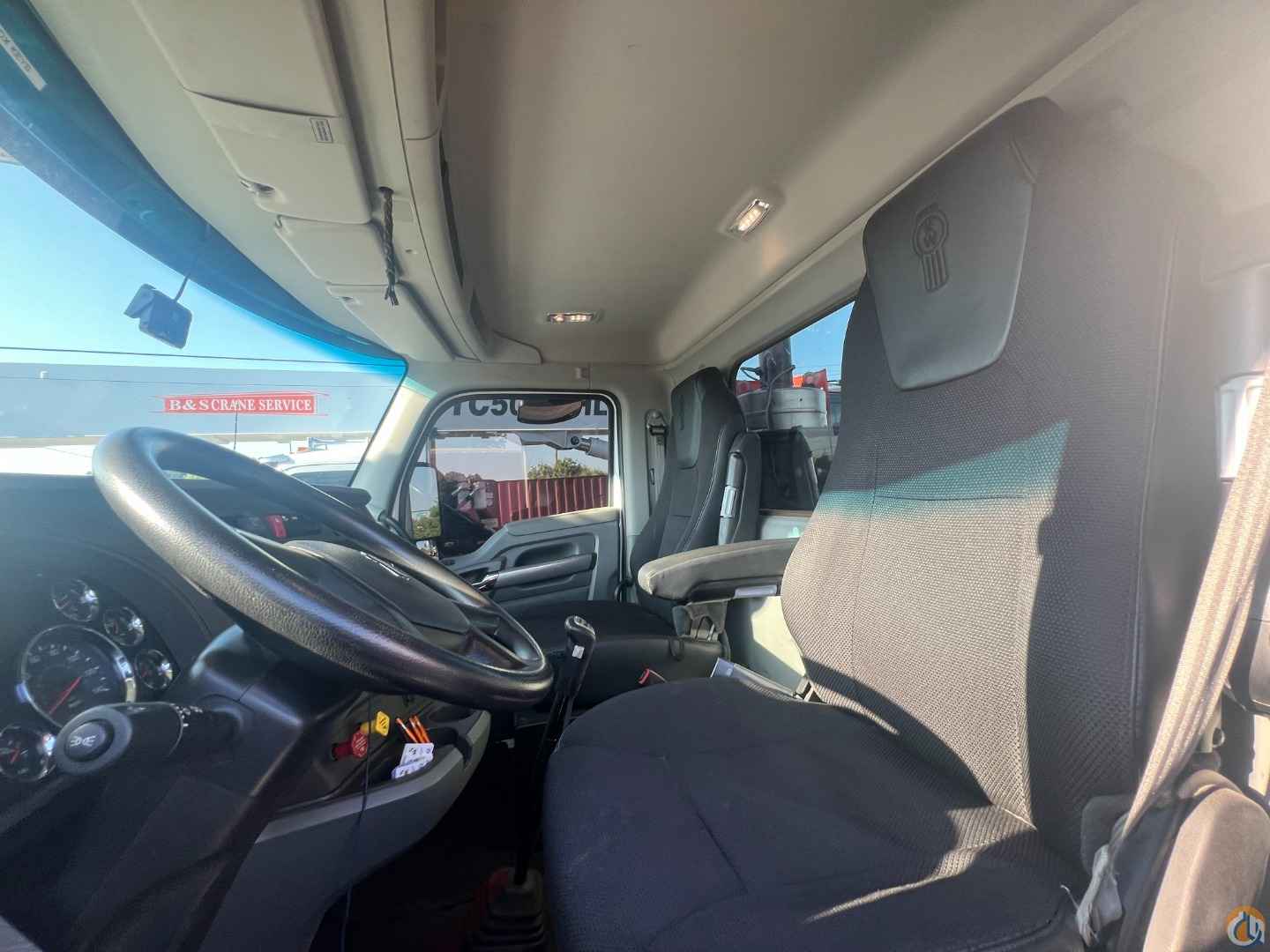

Heating/Air Conditioning with defroster
AM/FM//WB/USB and Bluetooth radio
