REDUCED - LIKE NEW Boom Truck Crane (Sold)

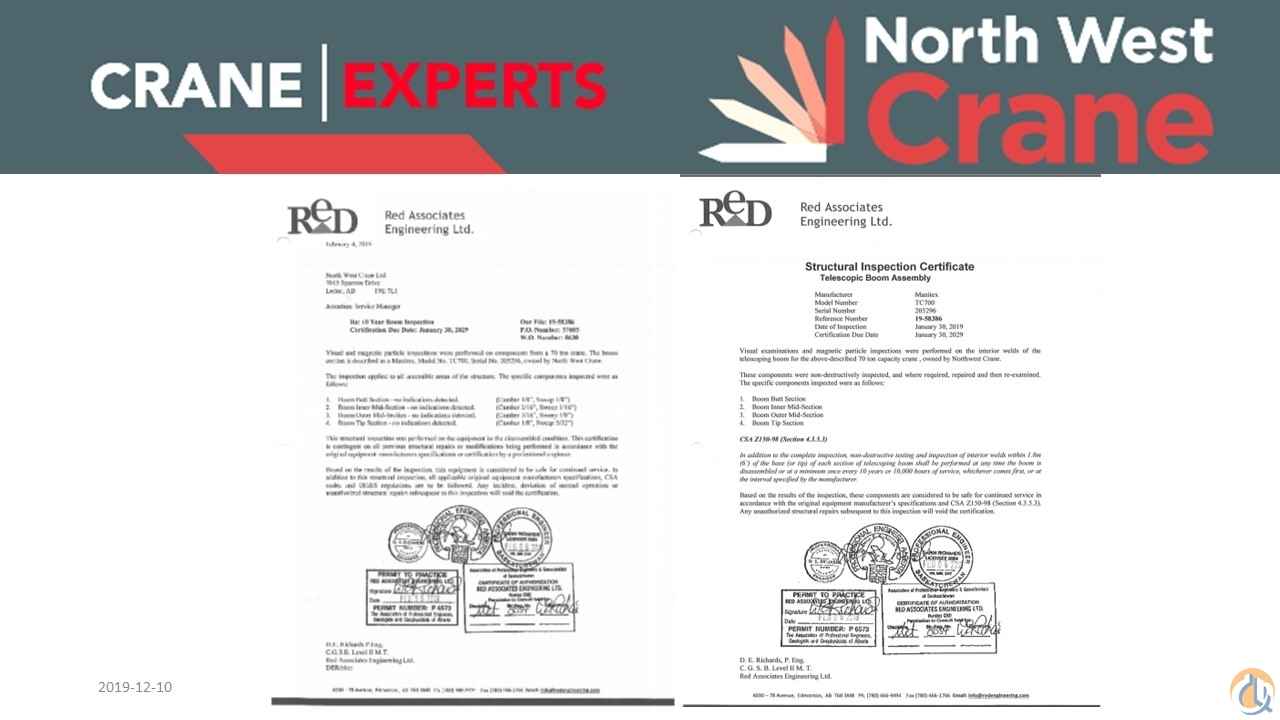

10 Boom Inspection done 2019 / Torque Box Repair done 2019

REDUCED $550,000 ($450,000 off our books before 2021)

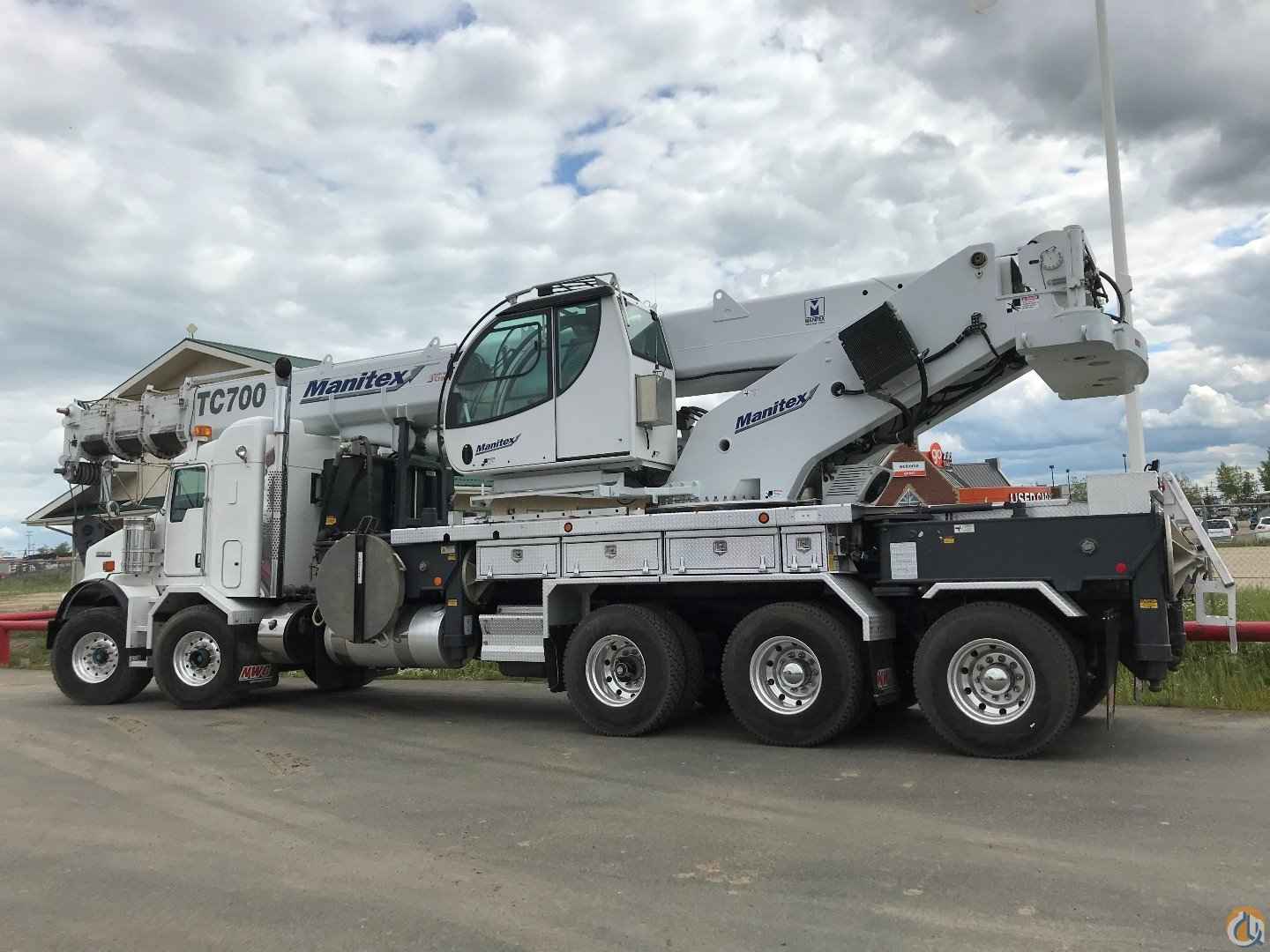

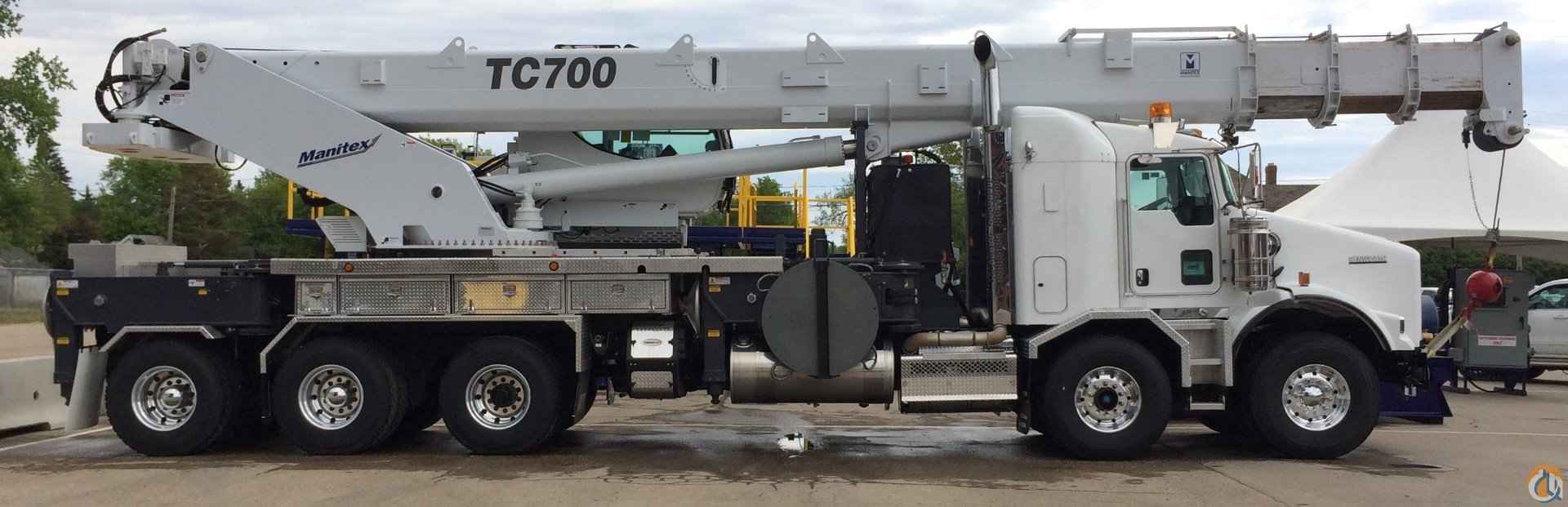

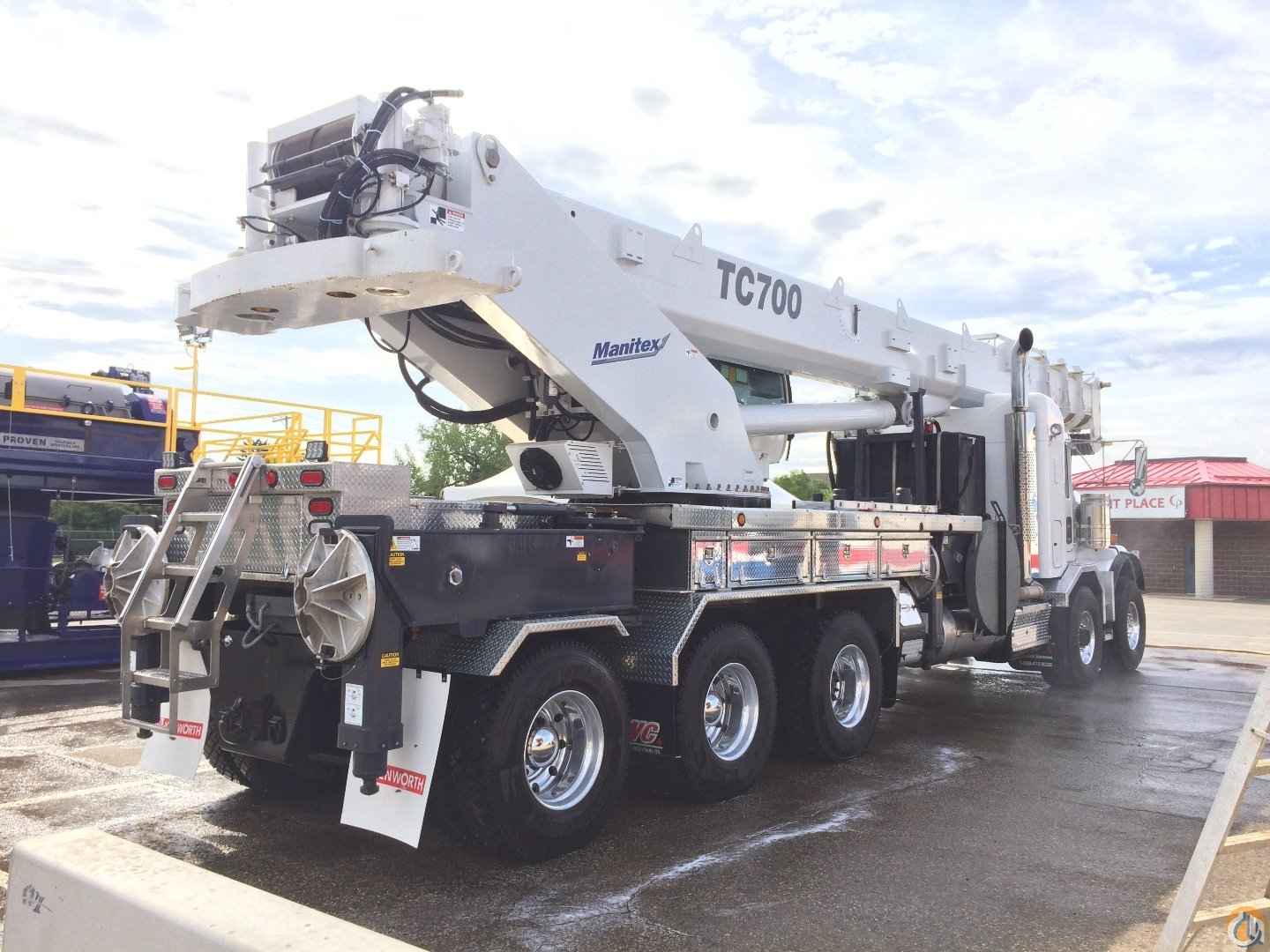

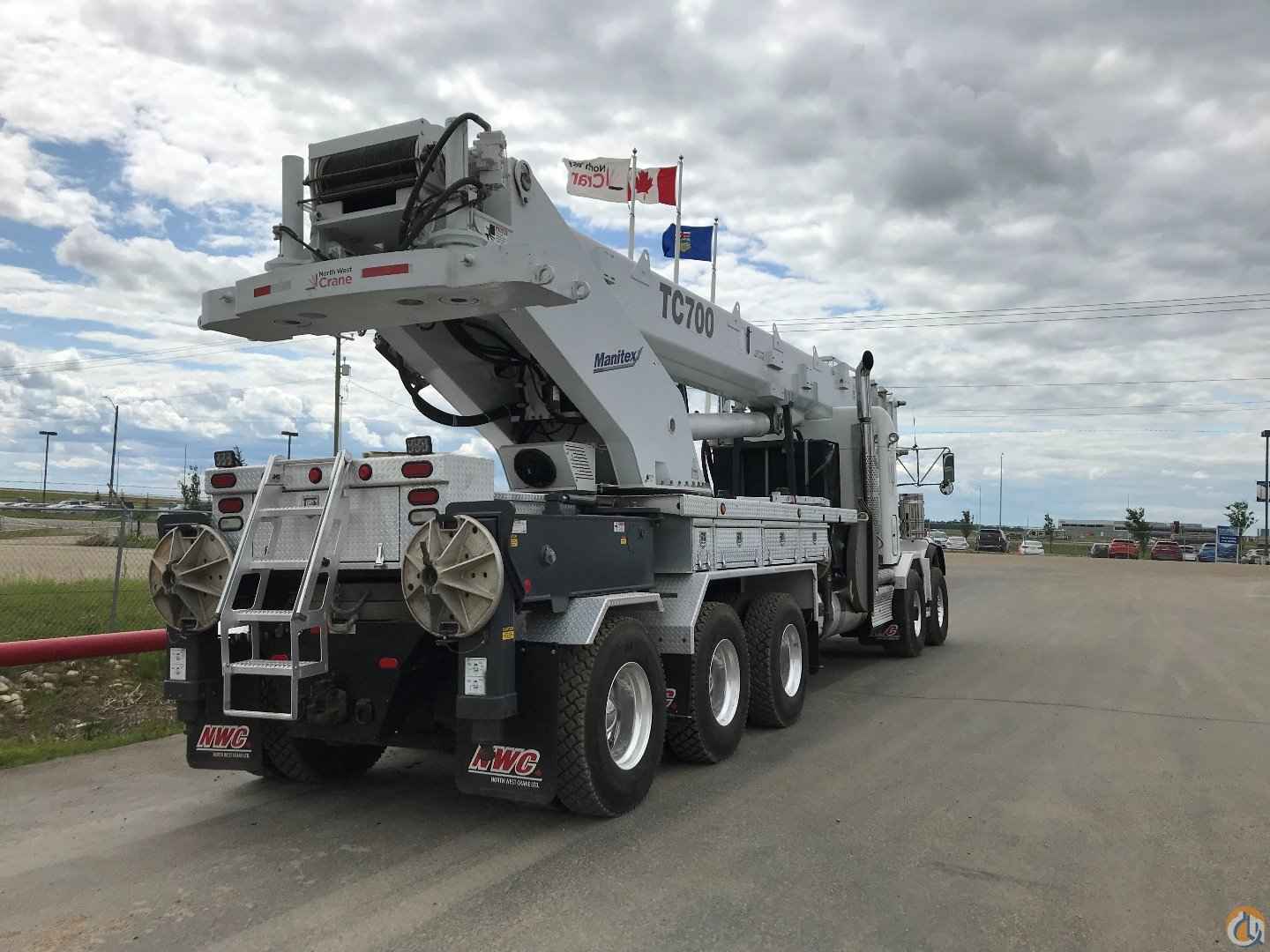

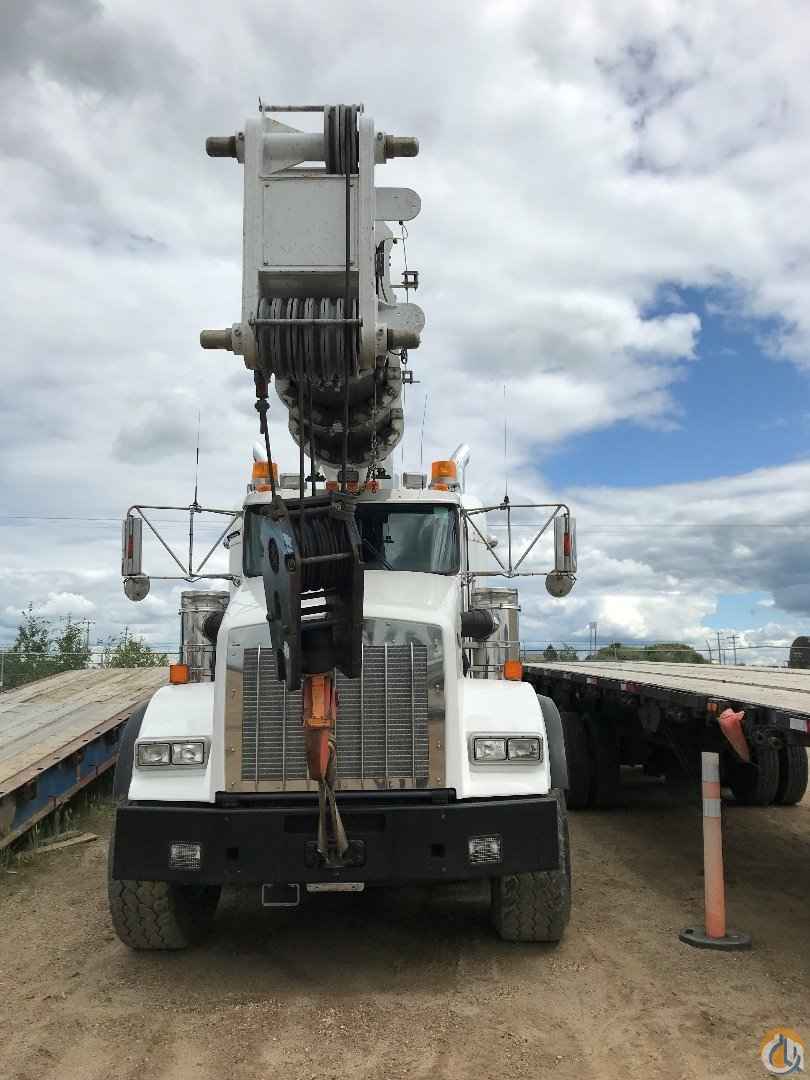

This 2015 Manitex TC700 on T800 62" Aero Sleeper - New NDT & CVIP

Comes with APU

MAIN BOOM: 115'

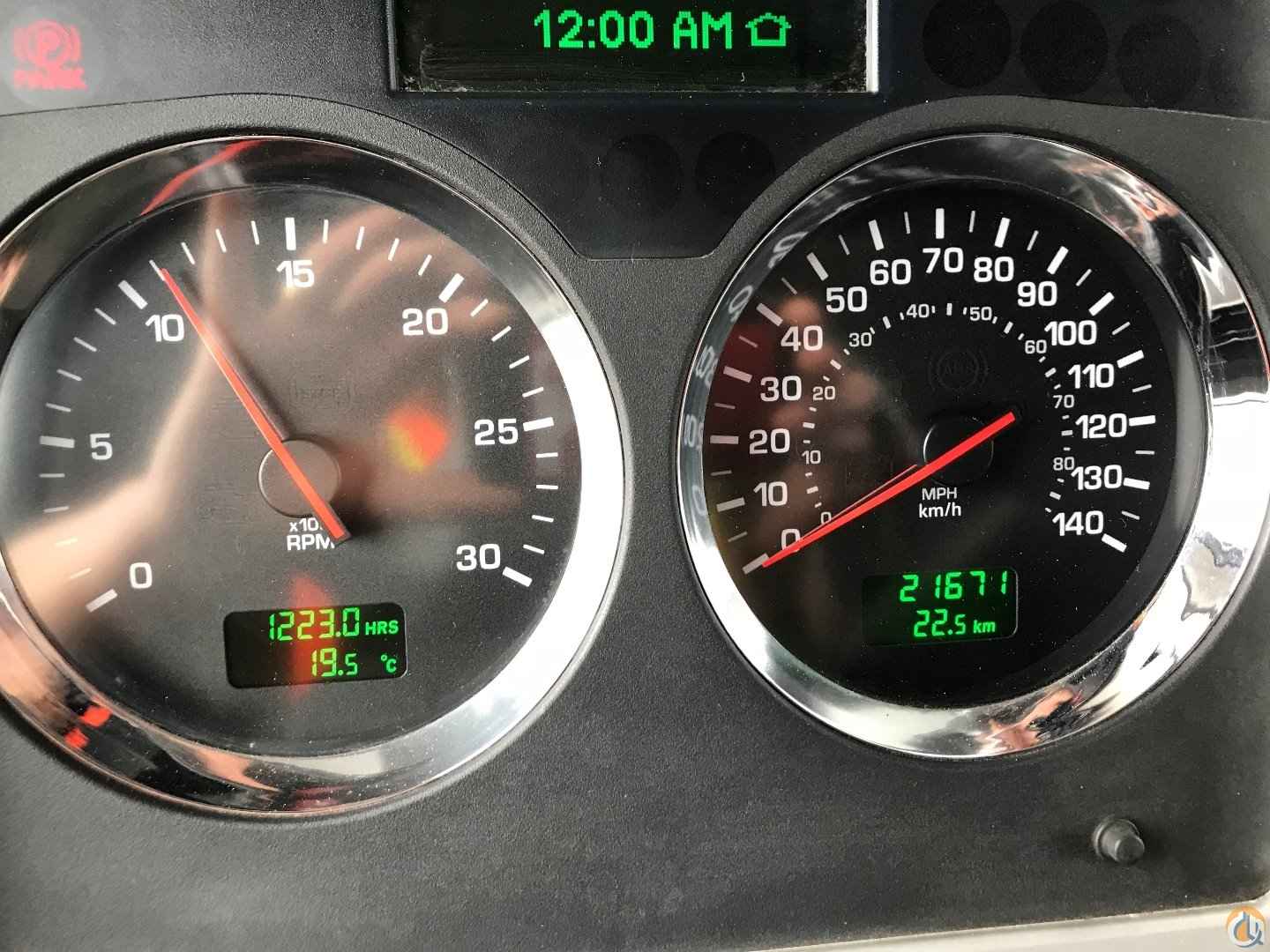

TR 10 year just completed in the spring 2019.UCK HOURS: 1223 hrs

TRUCK MILEAGE: (13,465 MILES)

TRANSMISSION: 18 SPEED FULLER

One (1) – Manitex TC700 stiff boom crane complete w/ the following:

• Lifting Capacity of 140,000 Pounds @ 8' Radius
• Remote Counterweight Removal Controls, c/w a 3-Slab 16,500# Removable Counterweight
• Four-Section Telescopic Boom 38.5' to 115’
• 6-Load Sheave Quick Reeve Boom Head
• Maximum Sheave Height of 125’
• 2-Speed Hoist w/ Grooved Drum, Roller Tensioner (Piston Motor)
• 662’ of 5/8” Non Rotational Wire Rope
• Swing Around Operator Control Station

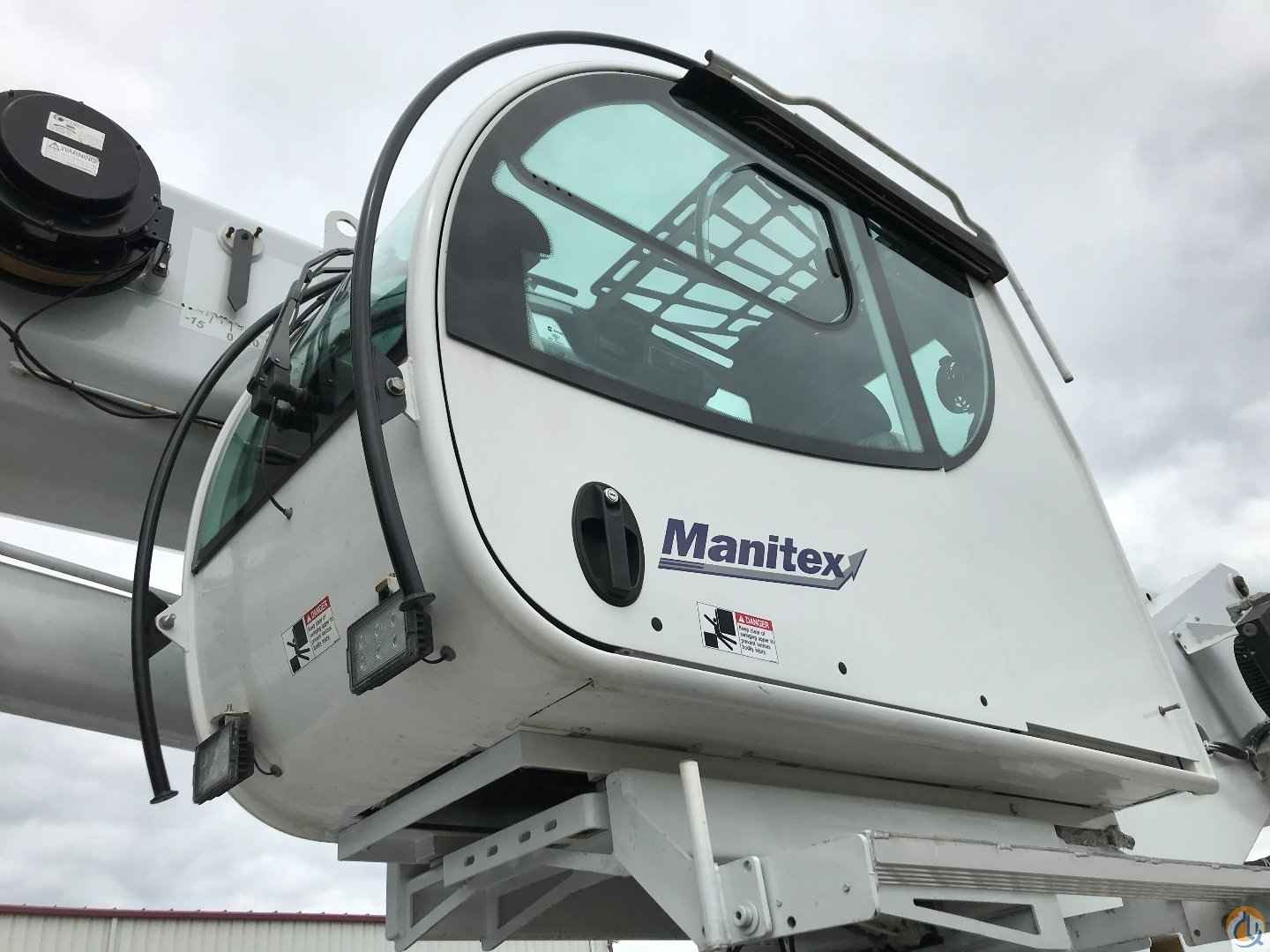

• Fully Enclosed Tilting Cab w/ Air Conditioning & Electric Heating
• Fixed Front Windshield w/ Wiper & Washer.
• Opening Skylight & Opening Rear Window.
• Opening Right Side Window w/ Grill Protection on Opening.
• Fully Adjustable Heated Operator Seat.
• Platform Includes Engine Stop/Start, System Pressure Test Ports & Signal Horn.
• Electronic Foot Throttle.
• Hydraulic Dual Axis Joystick for Swing, Lift & Winch Controls
• Thumb Slide Boom Extend/Retract
• Radio Remote Outrigger Controls, Audible Outrigger Motion Alarm
• Continuous Rotation w/ Free Swing/No Free Swing w/ Integral Multiple-Disk Brake
• Dynamic Brake Pedal & Parking Brake Switch on Control Console
• ACCUSwing Feathering Control
• Oil Cooler in Return Lines Mounted on Side of Turret
• External Hardwired Anti-Two Block w/ Lockout
• 3B6-LMI-Full Visual/Audio Capacity Alert w/Shutoff
• ROC Solid Outriggers; 4X-Pattern Out & Down (Remote Controlled)
• 4- 24” Removable Aluminum Float Pads.
• Reduced Load Charts w/ Fully Retracted & Mid-Span Outrigger Placement.
• Variable Displacement Load Sense Hydraulics & 1- Section Gear Pump for Swing Function

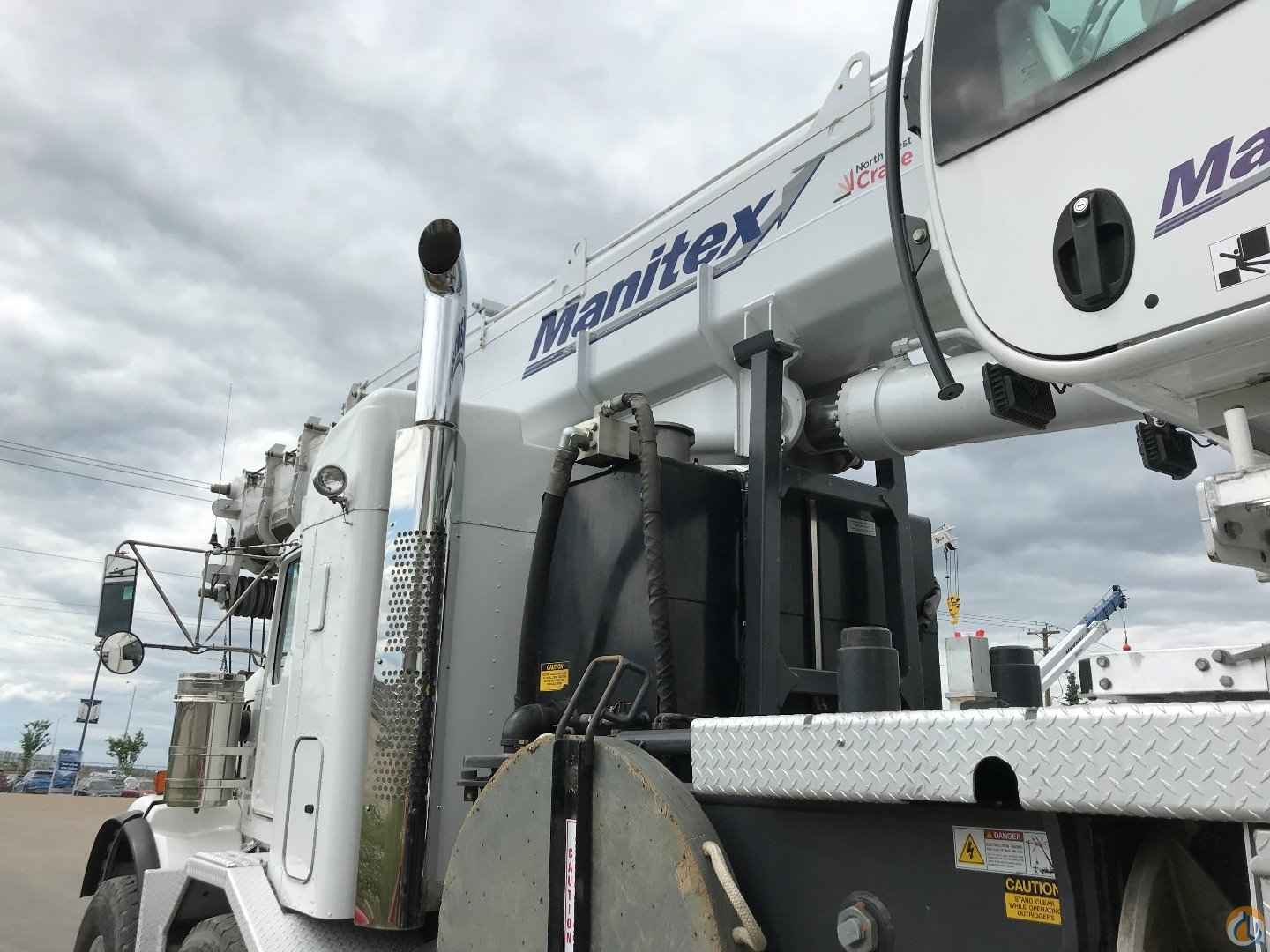

• 220 Gallon Hydraulic Reservoir w/ Strainer & Ball Valve.
• Operator’s Service / Parts Manuals
• Diamond Plated Alum. Decking c/w Alum. Step Ladder w/ Multi Positions
• Finish painted “Manitex” colours
• Factory Installed on Chassis w/ Air Shift PTO, All Hydraulic Plumbing, Oil & Testing.

2015 Kenworth T800 tandem steer/tri-drive chassis complete w/ the following:

• Cummins ISX 525 H.P. @ 2000 RPM; 1850 Lb Ft @ 1200 RPM
• Cummins engine brake for ISX engine.
• Dual outside stainless steel air cleaners, cowl mounted.
• Dual mounted tailpipes (Back of Sleeper)
• Bosch 200 Amp Alternator
• Fuller RTLO18918B 18-speed transmission
• Eaton 15.5" 6-paddle ceramic clutch with Easy Pedal advantage.
• Link Raydan Twin Steer Conversion
• Dual Dana Spicer D2000 capacity front axles
• Taperleaf 40K Front Springs.
• Tridem Dana Spicer T69-170 H.P. rear axle
• Neway ADZ369 69K Tridem rear suspension, 60” spacing
• 4.56 rear axle ratio.
• Bridgestone M844FZ 445/65R22.5 20 Ply front tires
• Alcoa 22.5” by 12.25” aluminum front wheels.
• Bridgestone M775Z 12R22.5 16 Ply rear tires.
• Alcoa 22.5” by 8.25” aluminum rear wheels.
• 10 3/4” by 3/8” full steel frame with full steel insert ( re-enforcements)
• Battery box located on right hand side.
• 120 gallon US fuel tanks located LH side
• 120 gallon US fuel tanks located RH side
• Air conditioning.
• 38" Aerocab Sleeper

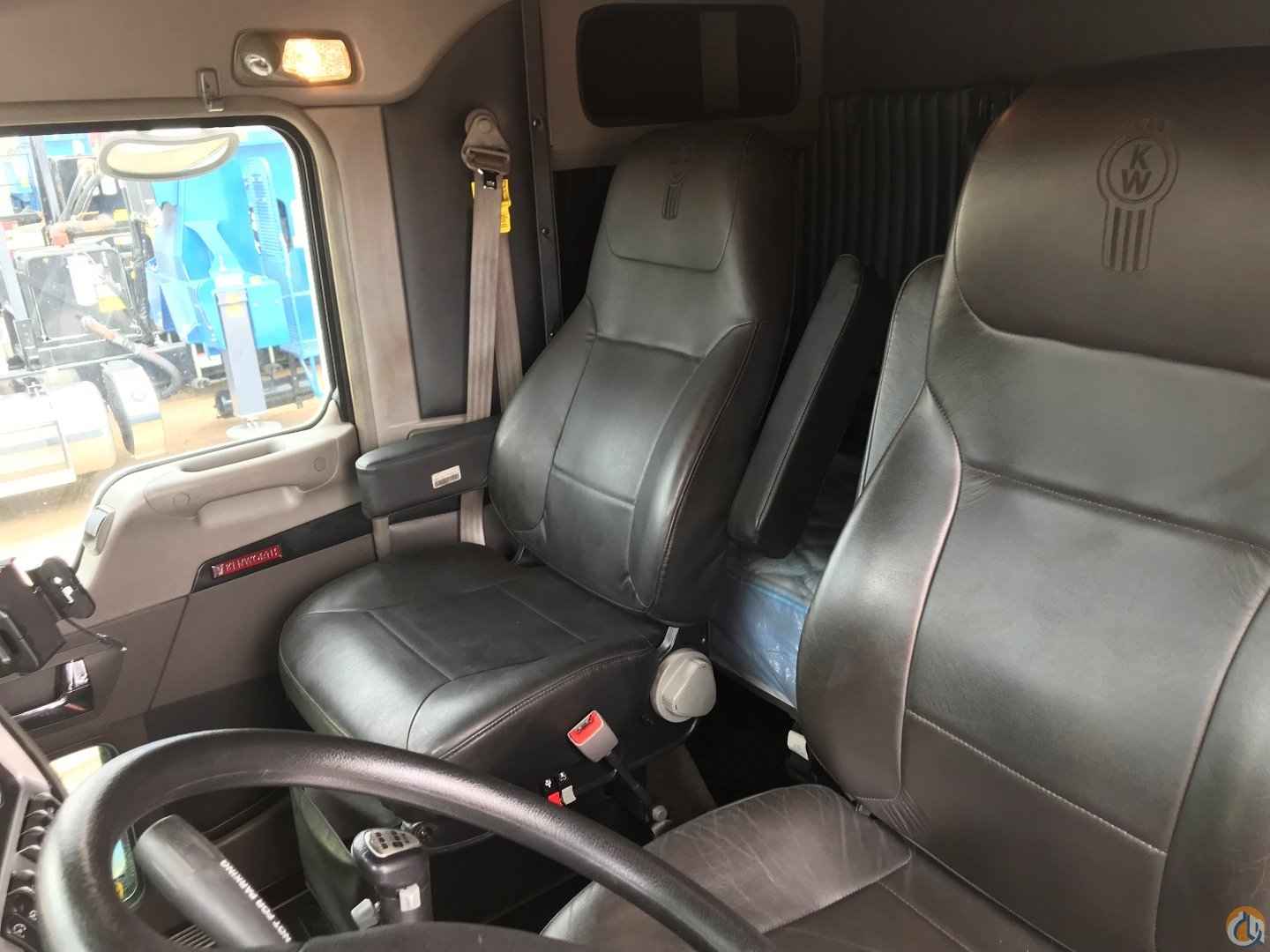

• KW Air Cushion plus driver and passenger seats.
• Daylite doors with RH peeper window
• AM/FM/CD/Weatherband/USB/Bluetooth stereo c/w Sirius-XM Satellite radio.
• Dual Revolving amber roof lights
• Exterior colour White, interior colour Jet Black with Slate Grey

NWC custom rig up complete w/ the following:

• Aluminum Checker-Plate Fenders (2-Permanent Mounted & 2-Fixed to Outriggers)
• Air Operated Pintle Hitch
• Positive Air Shutoff
• Pro West APU Generator
• (Two) Chain Hangers
• Standard Chain-Up Lights
• (Two) Turret Mounted Floodlights
• (One) Boom-Tip Spotlight & (One) 10 inch Boom-Tip Light Bar
• (Two) Tank Heaters
• (Two) Liebherr Crane Ladders
• (Eight) Tool Box Cabinets (4 per side)
• (One) Rear Cabinet
• (One) Drop Box Cabinet (behind turret)
