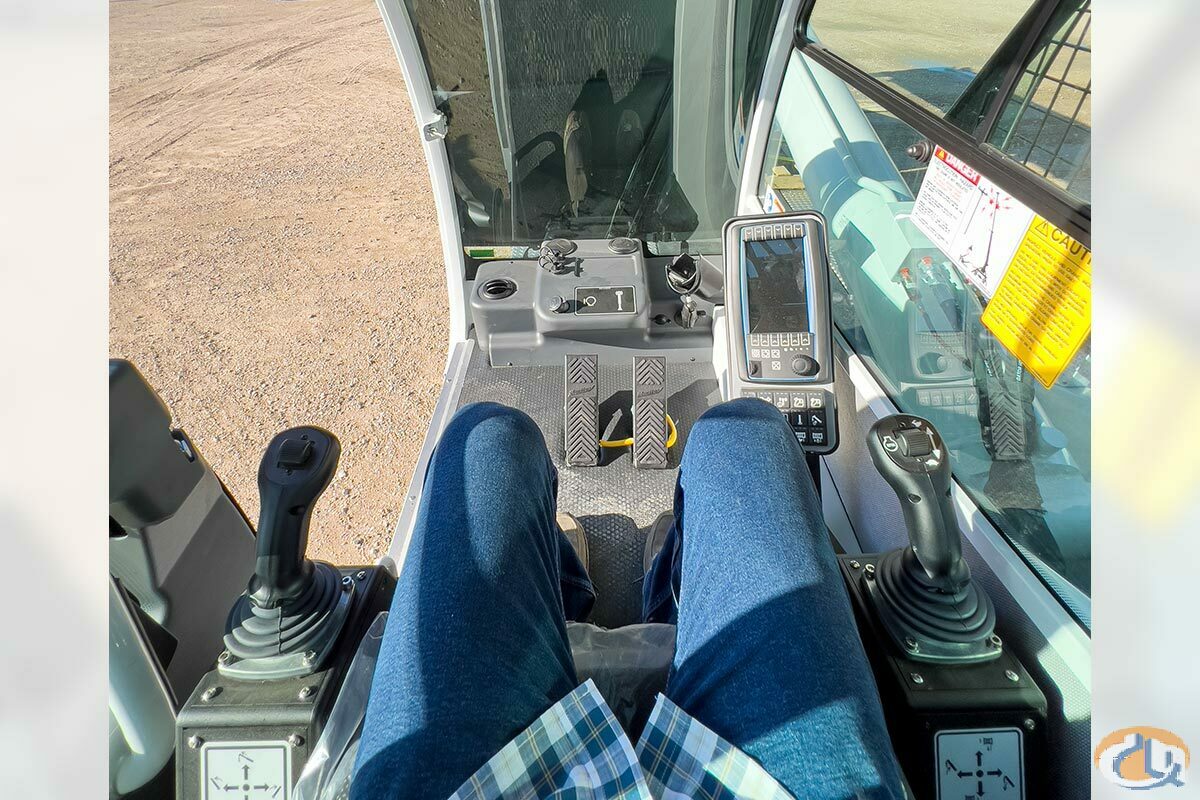

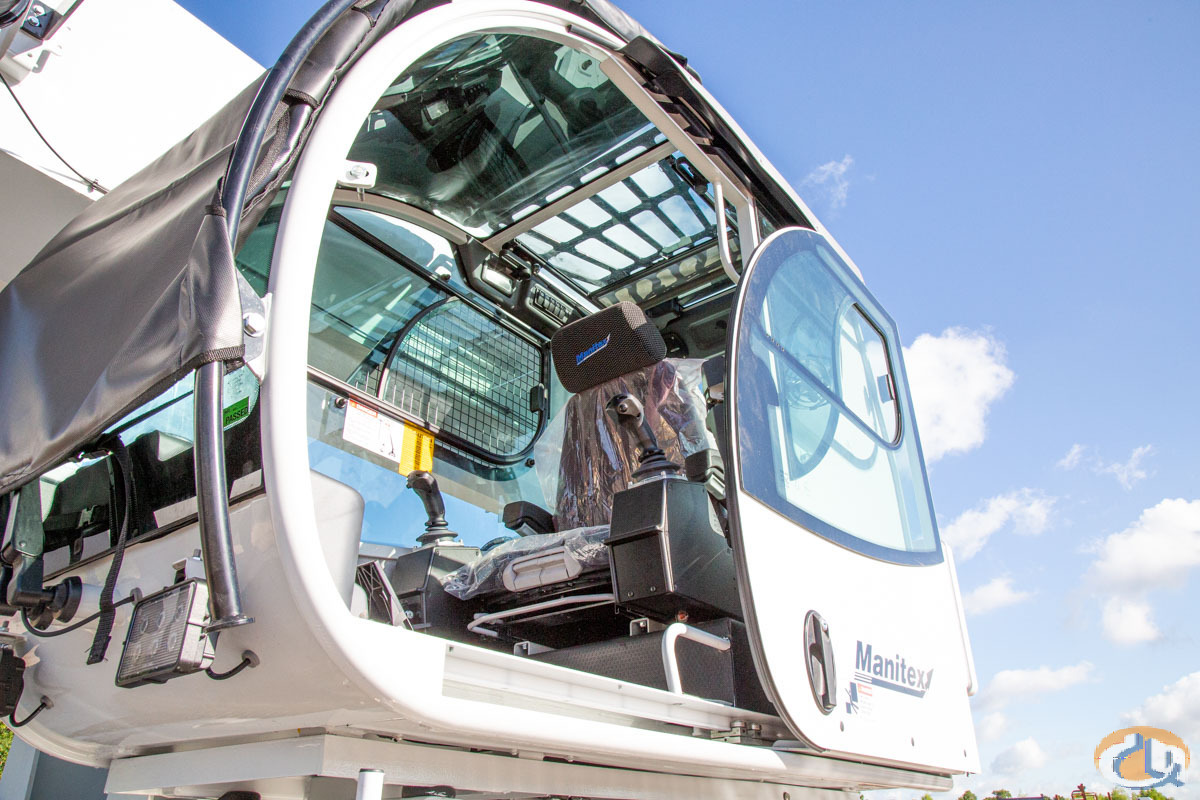

- 50 Ton (45,4 mton) Capacity - Self-Lubricating Boom Slider Pads - Two Speed Planetary Grooved Drum Hoist With Negative Draft Flange and Rope Tensioner - Auxiliary Hoist Option - Hoist Drum Rotation Indicator - Third Wrap Limiter under the Hoist Drum Rotation Indictor - Deluxe Cab with heater, air conditioning, heated cloth seat, 8 seat adjustments, top hinged hatch, rear pop out window, with guard. Front and top windshield wipers, 12 Volt DC outlet, USB ports and engine monitoring system. - PLC crane controller, CANBUS communication, J1939 truck engine communication, electric hand and foot throttle, twin dual axis joysticks, electric/hydraulic valve actuation, electronic sensor monitoring. - Free Swing-No-Free Swing Gear Switch - Continuous Rotation - 360º Work Area - ROCSolid Outriggers feature Radio Remote Outrigger Controls, Audible Outrigger Motion Alarm - Retracted, Intermediate And Fully Extended Outrigger Load Charts - Load Chart On Tires Over The Rear - Wired LMI with crane function cut-offs for overload protection, graphical display, event recorder, WADS – Work Area Definition System - Wired Anti-Two Block System - Rugged, Weatherproof, Automotive Style Electrical System - Hydraulic Oil Cooler - Clamp-On Mounting - Design Meets ANSI B30.5 Recommendations
Included Options

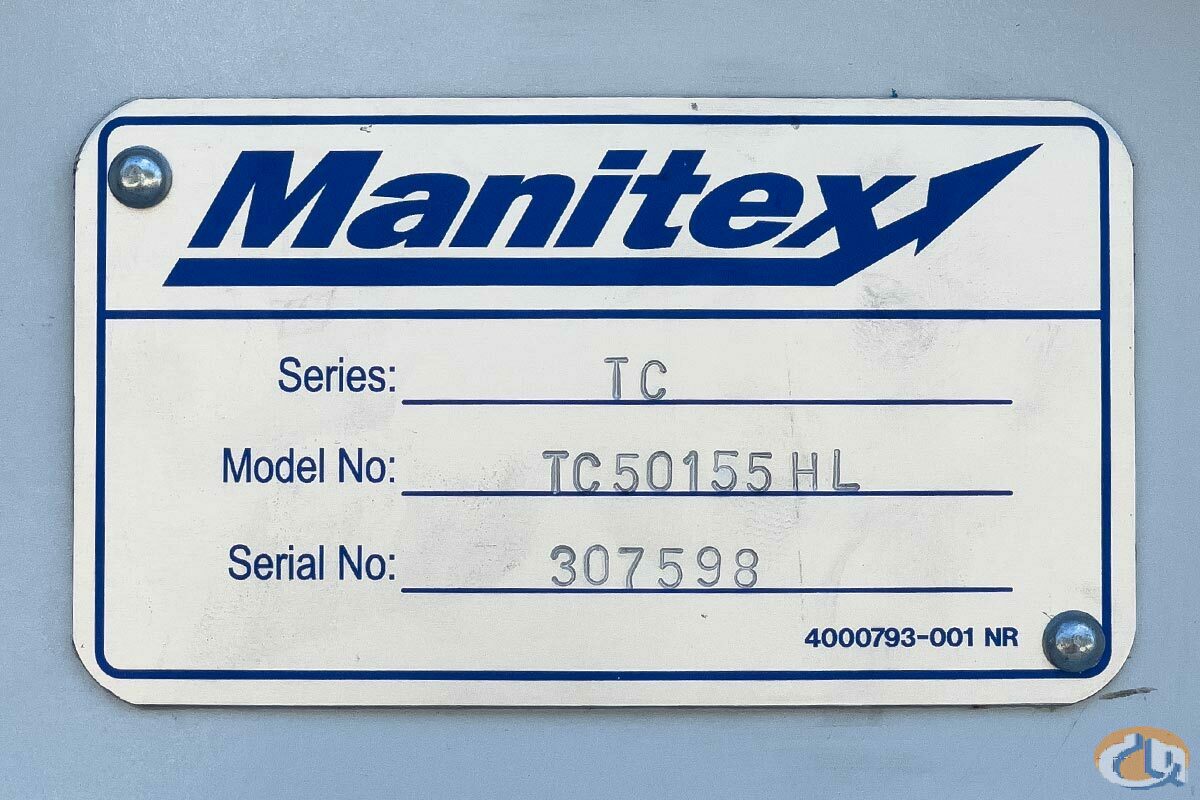

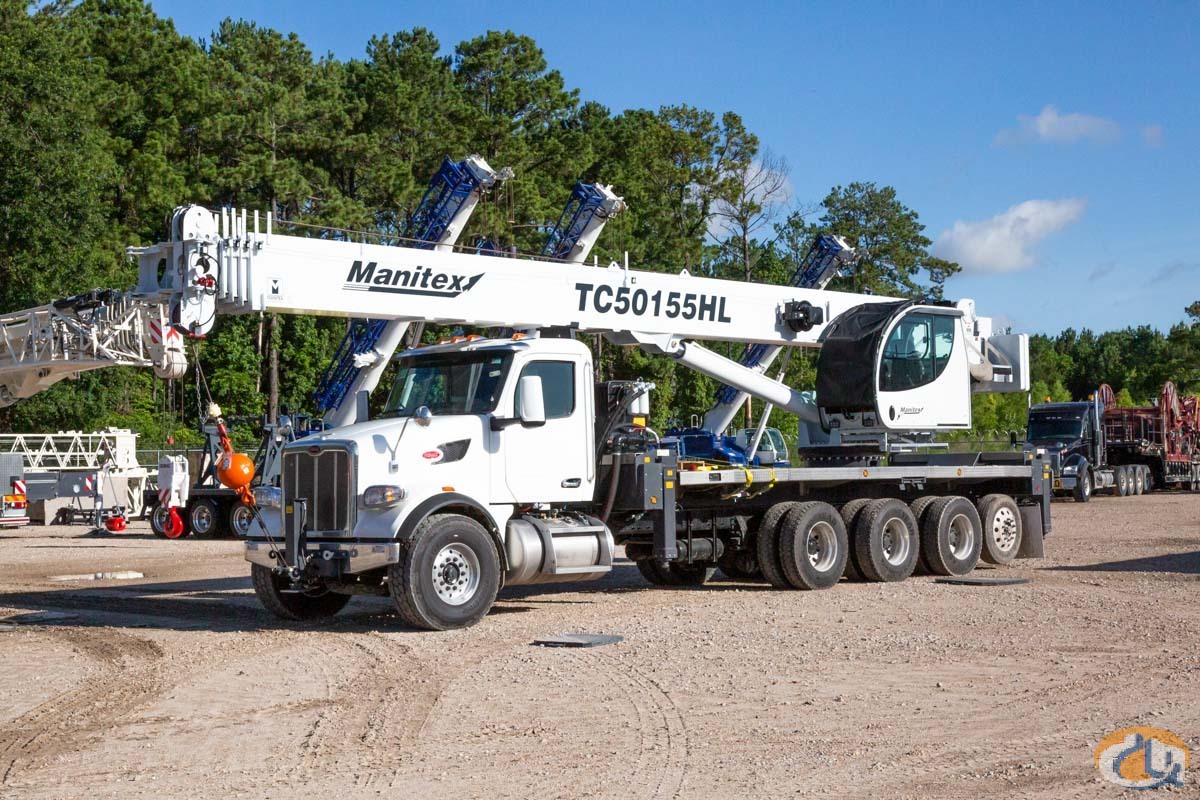

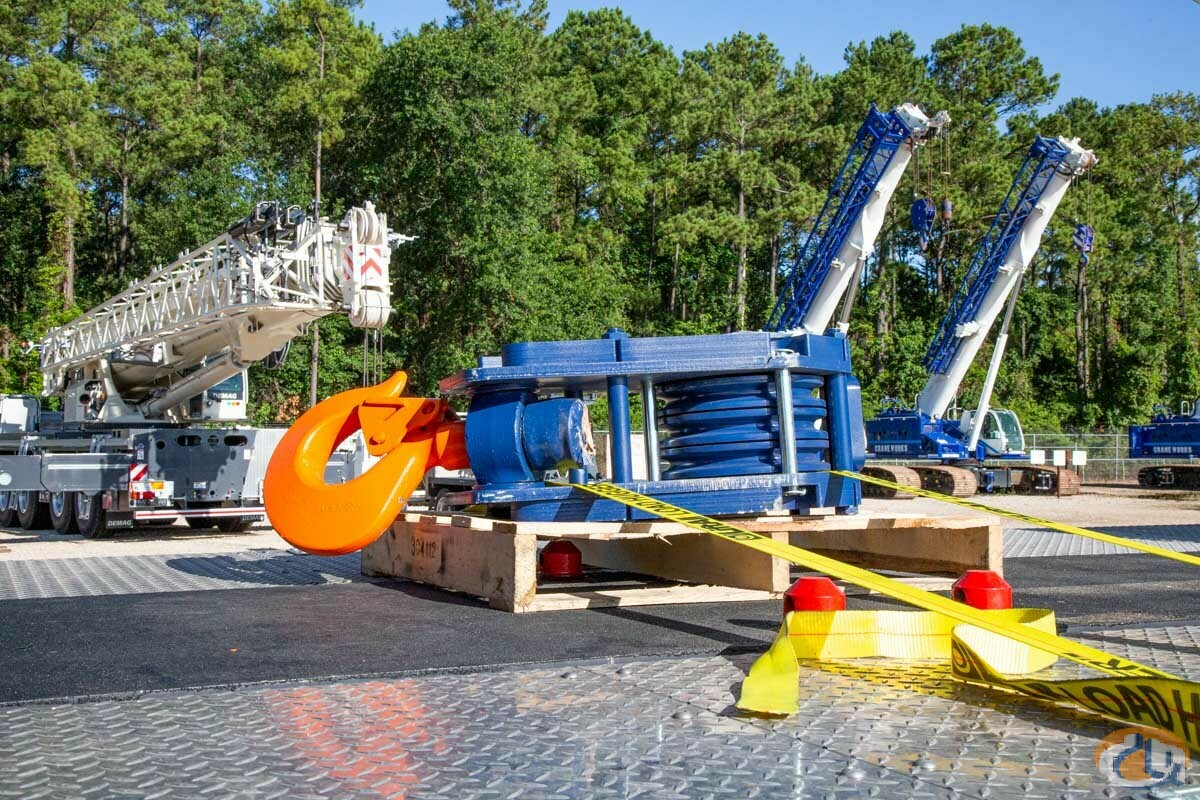

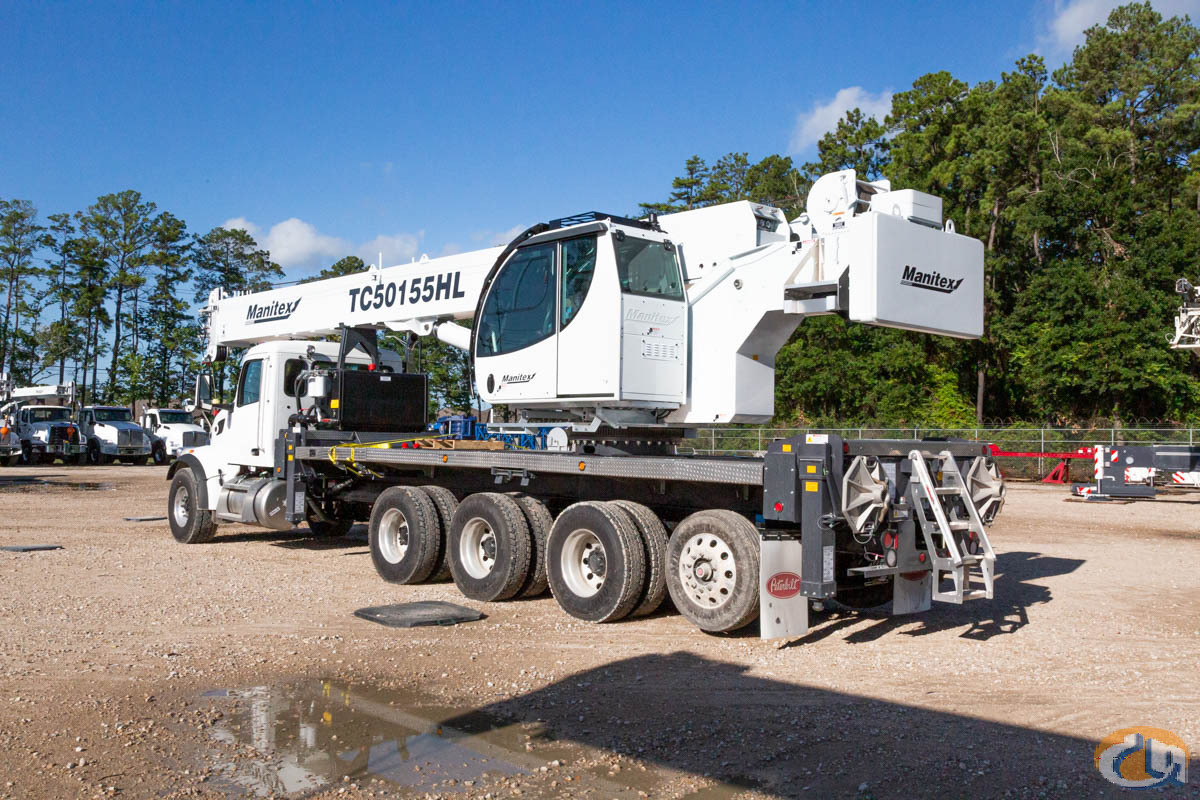

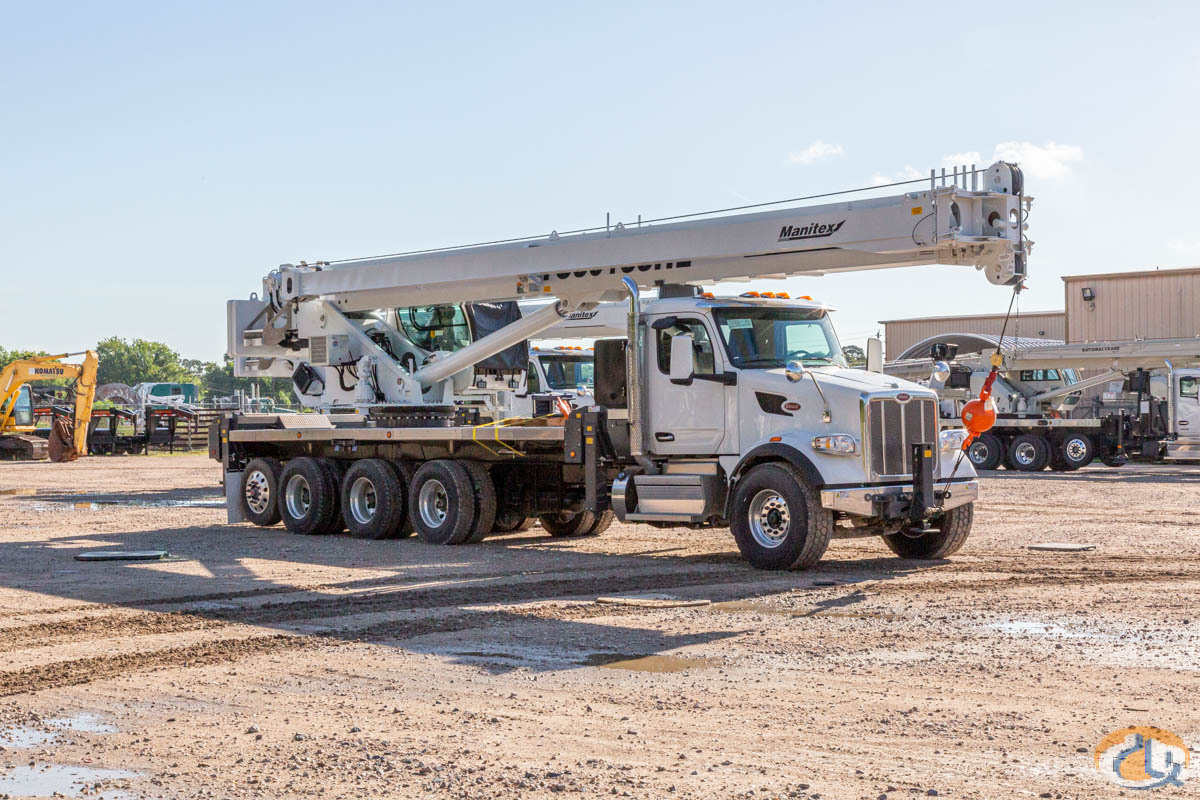

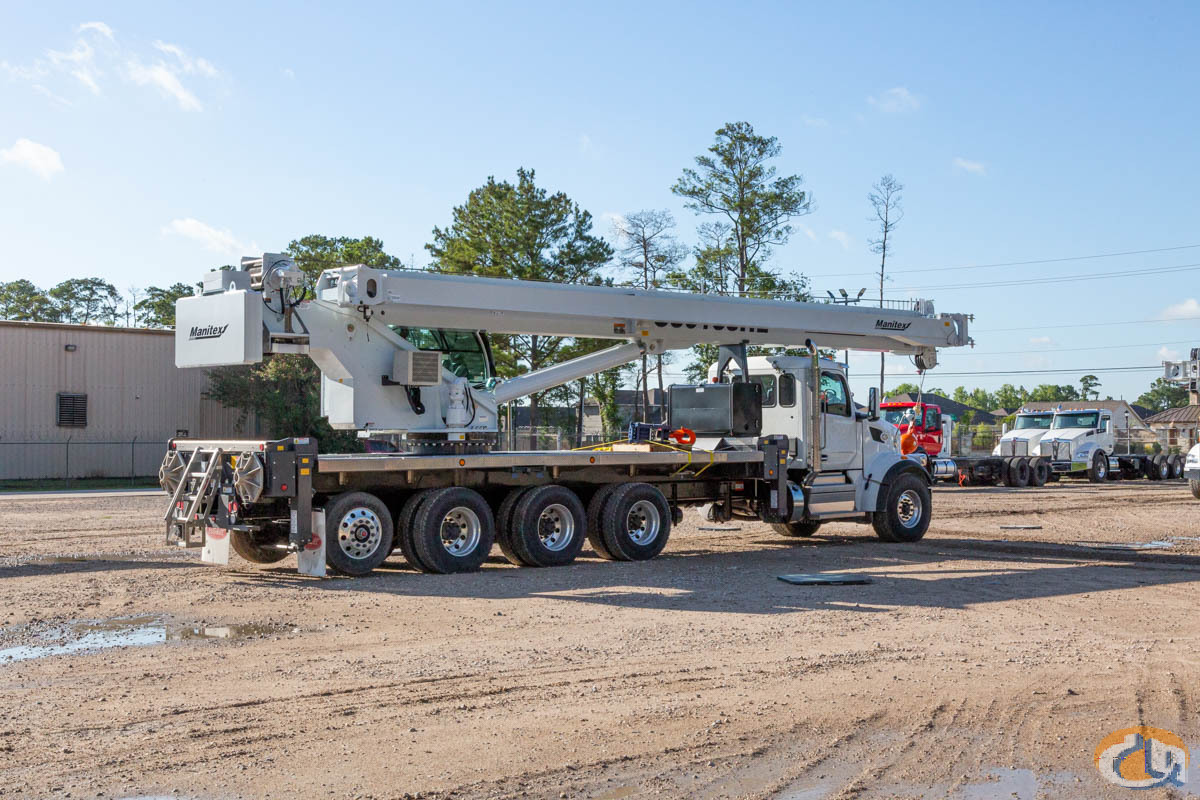

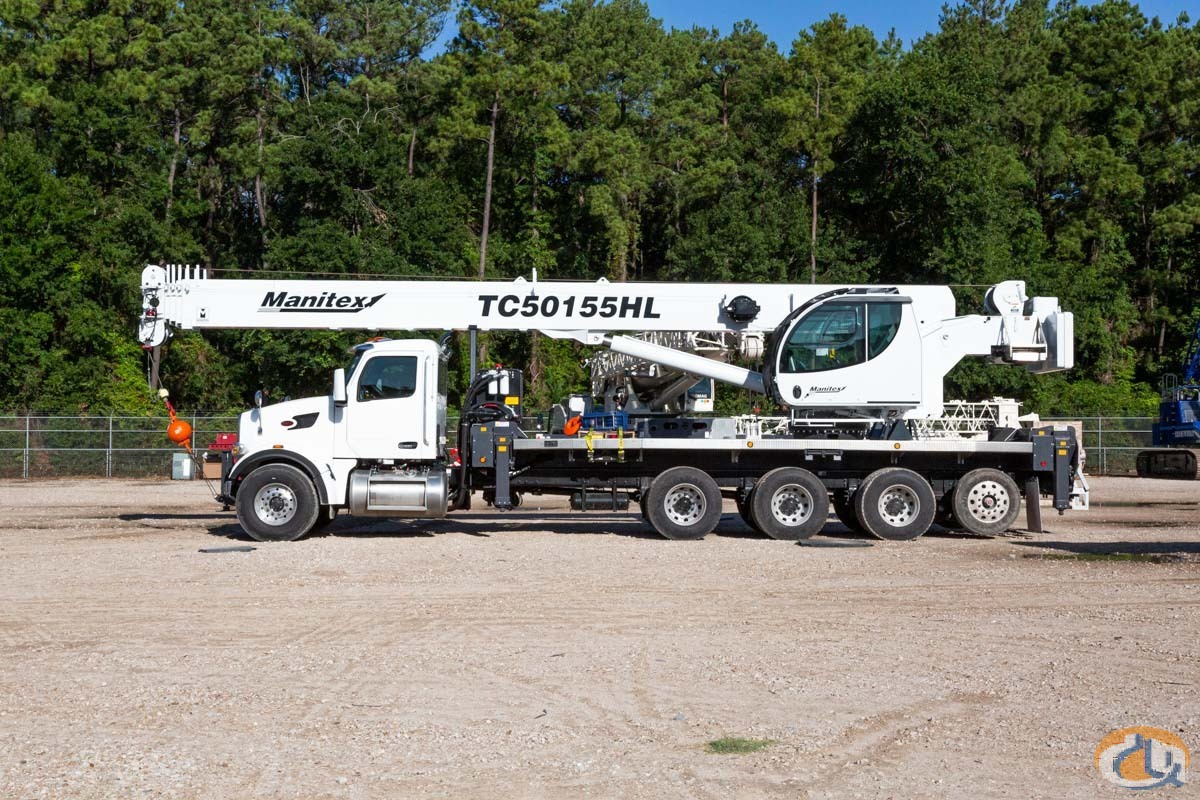

*155' Five Section Telescopic Boom with Heavy Lift Option TC50155HL-5700 CTWT STD *Hischman LMI System (Standard) *4720 Lb. Cwt Special for HL-Requires Engineering approval *Offset Fixed Jib (QA) *Front Bumper Stabilizer *Standard Mount Installation *Braden Winch w/ Piston Motors in Lieu of Standard *35 ton 3-Sheave Hook Block 1-7 Part Line *Hot shift PTO (Required with Automatic Transmission) *Hydraulic Tank Mount In lieu of Standard mounting O/R Top Mount *2 Person (1200 lb. cap) Lightweight Steel, Rotating, Quick-Attach Basket (All models) (QA)
