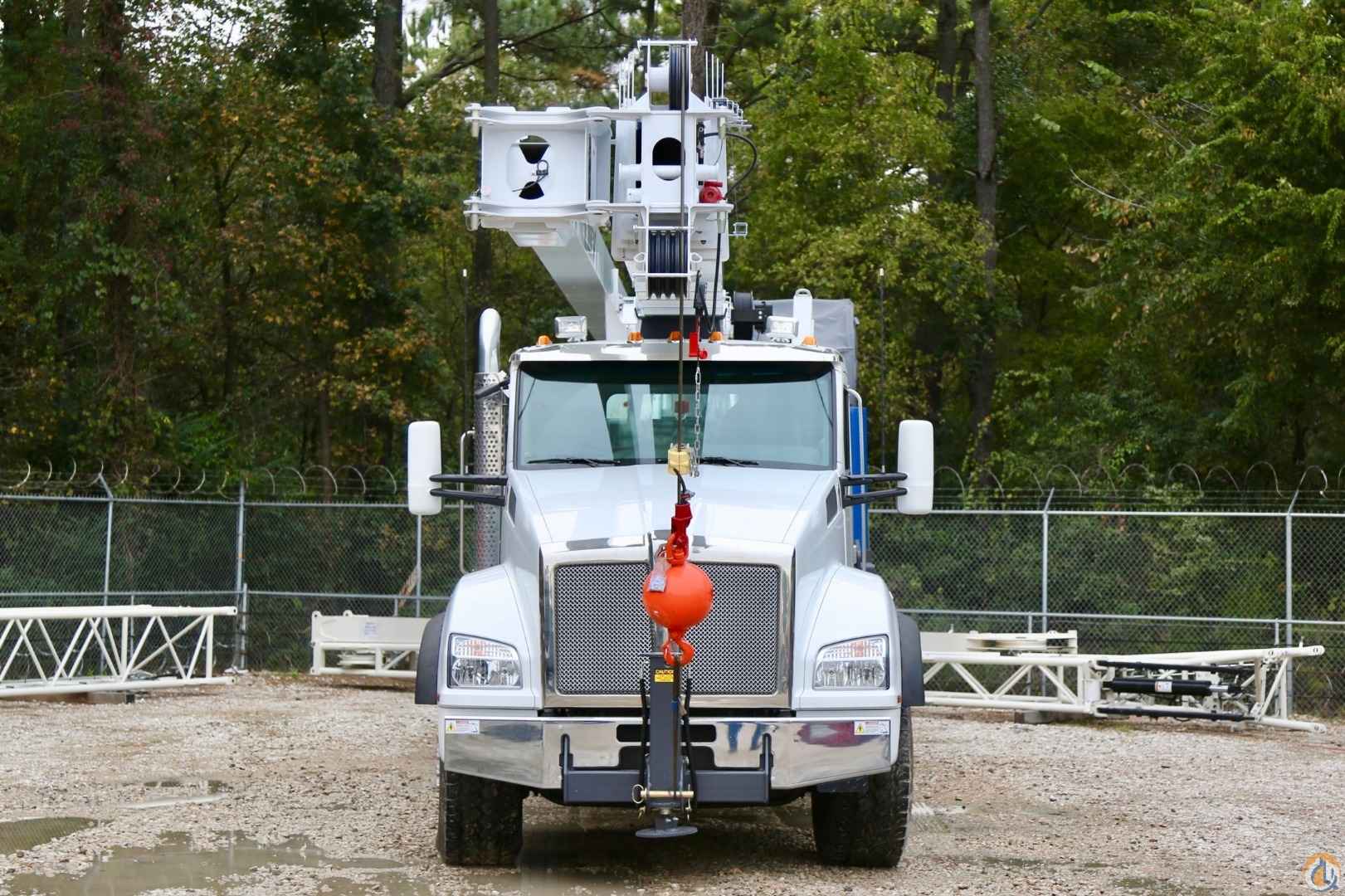

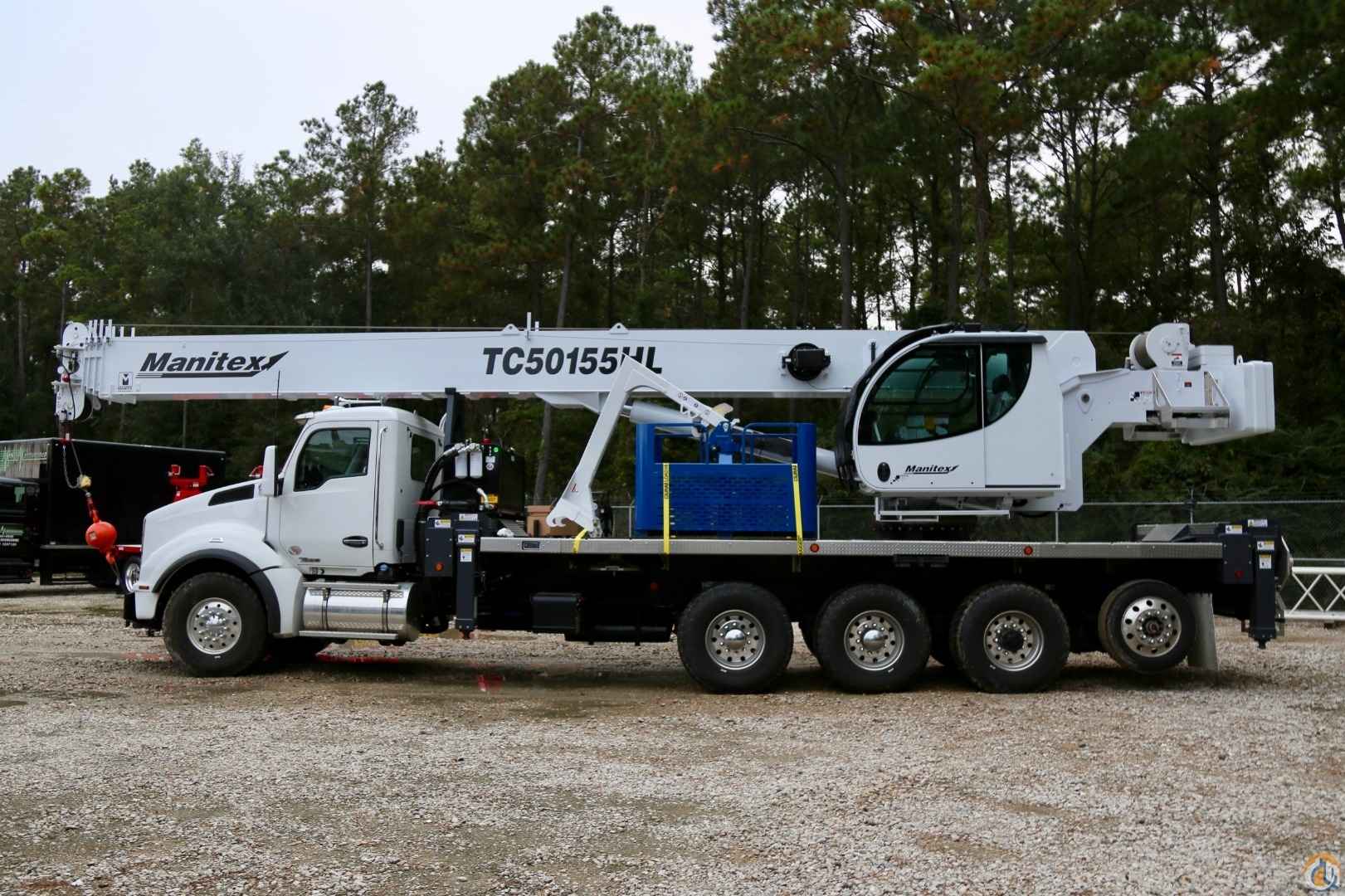

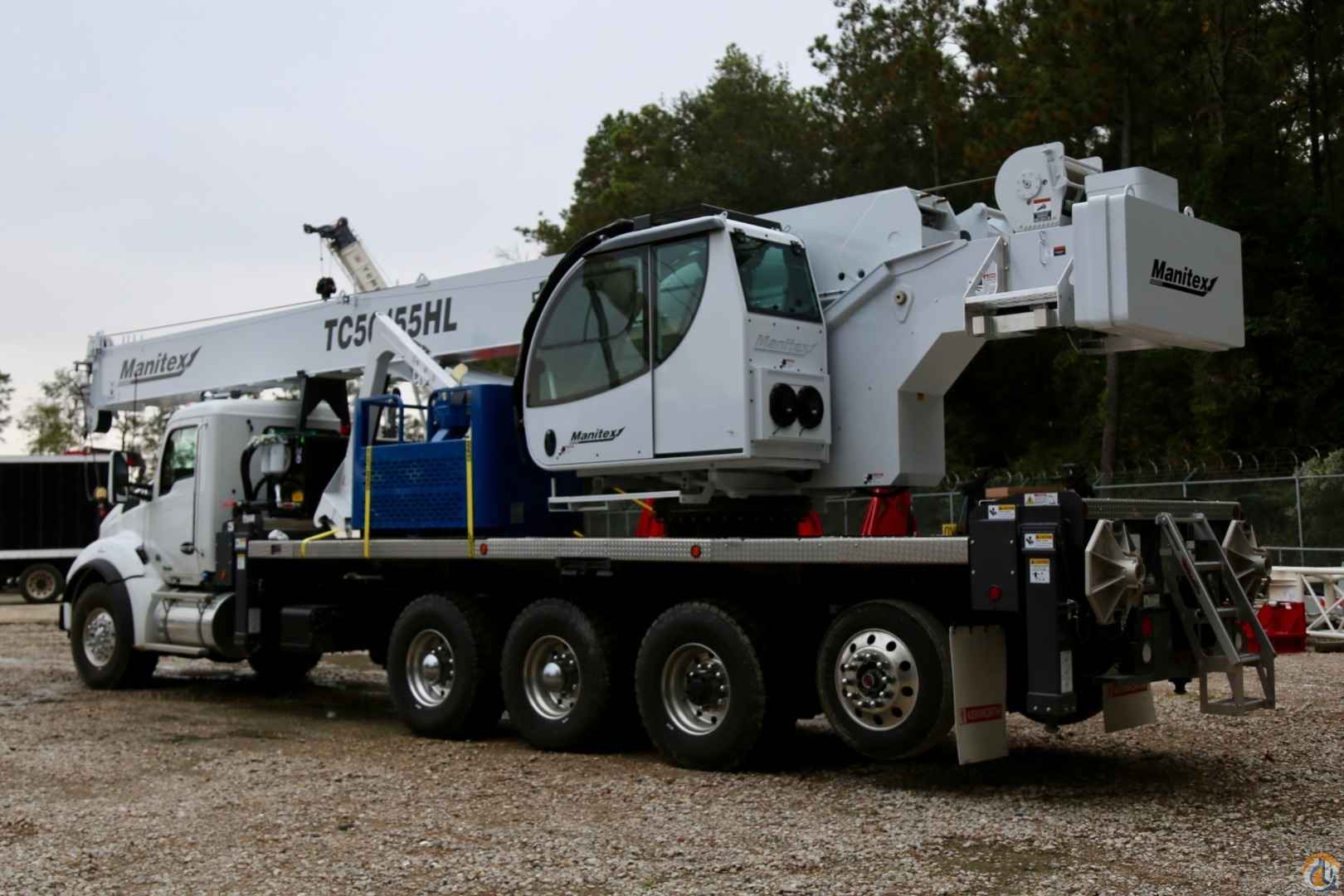

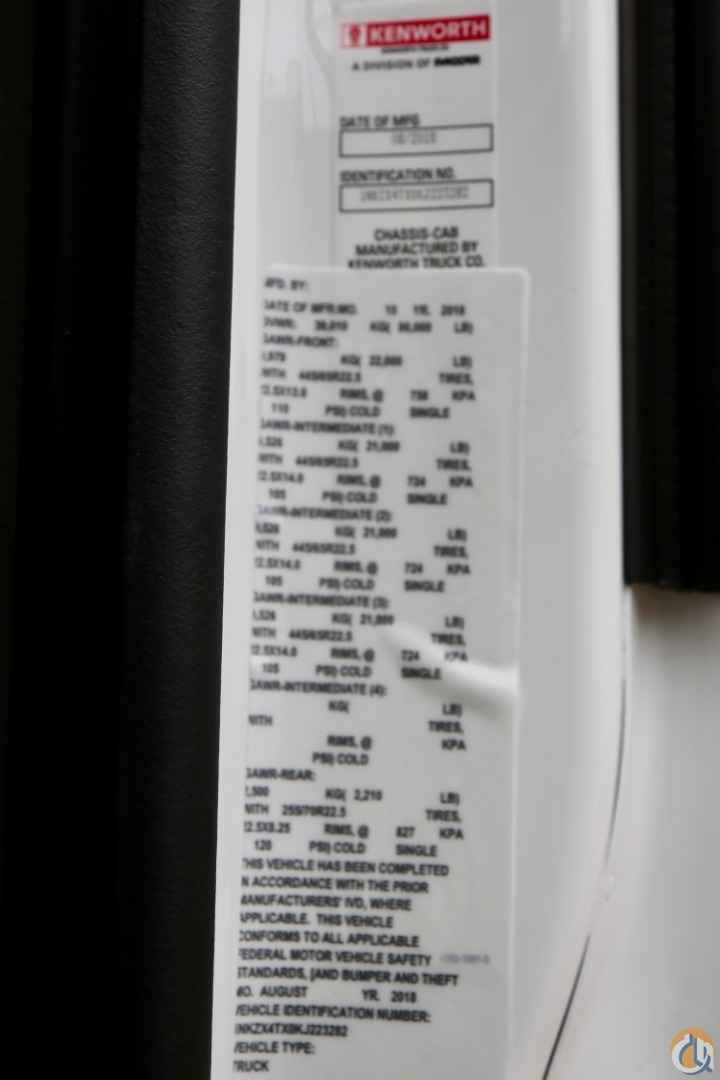

Type: Boom Truck Cranes
Make: Manitex

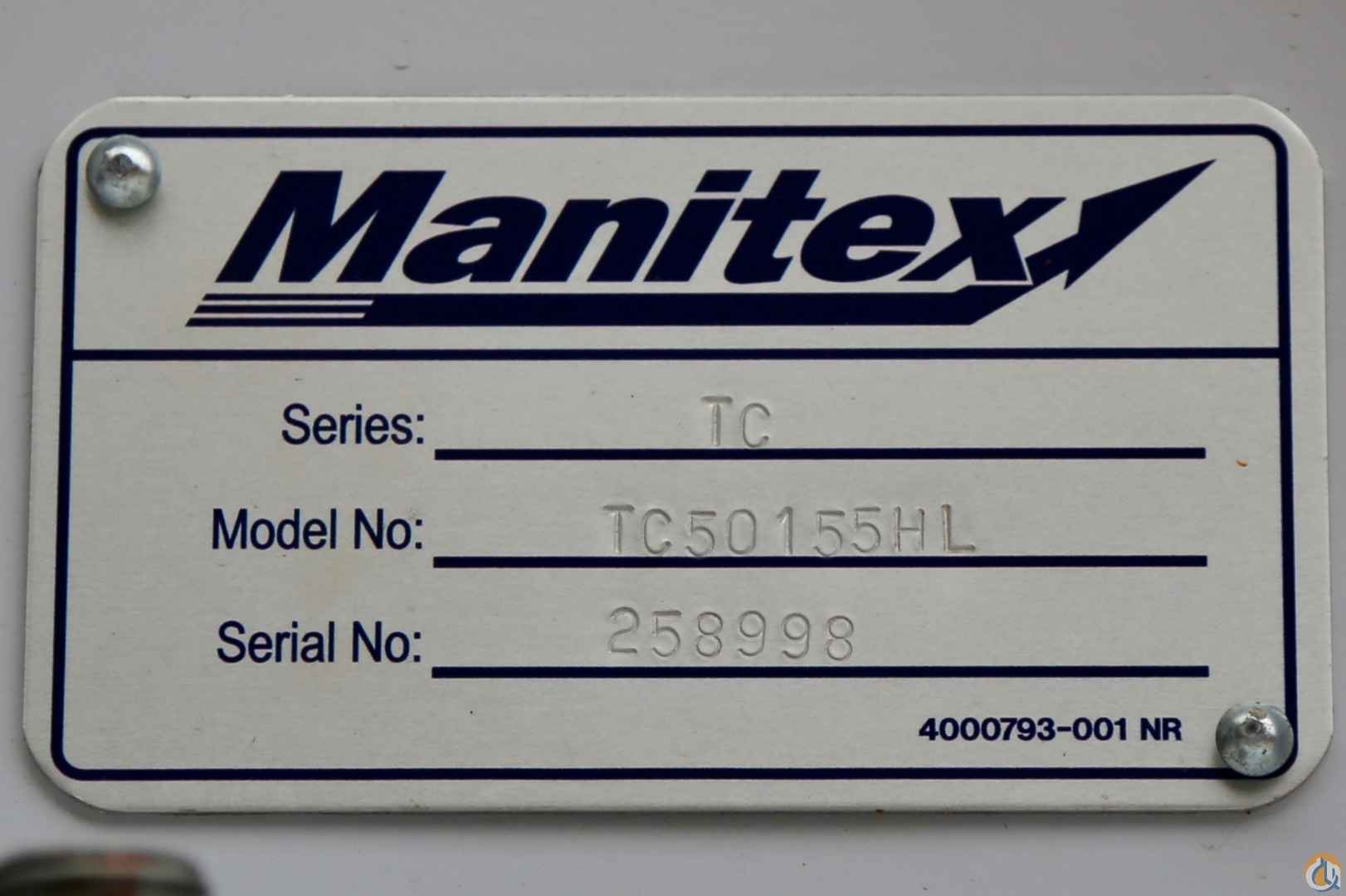

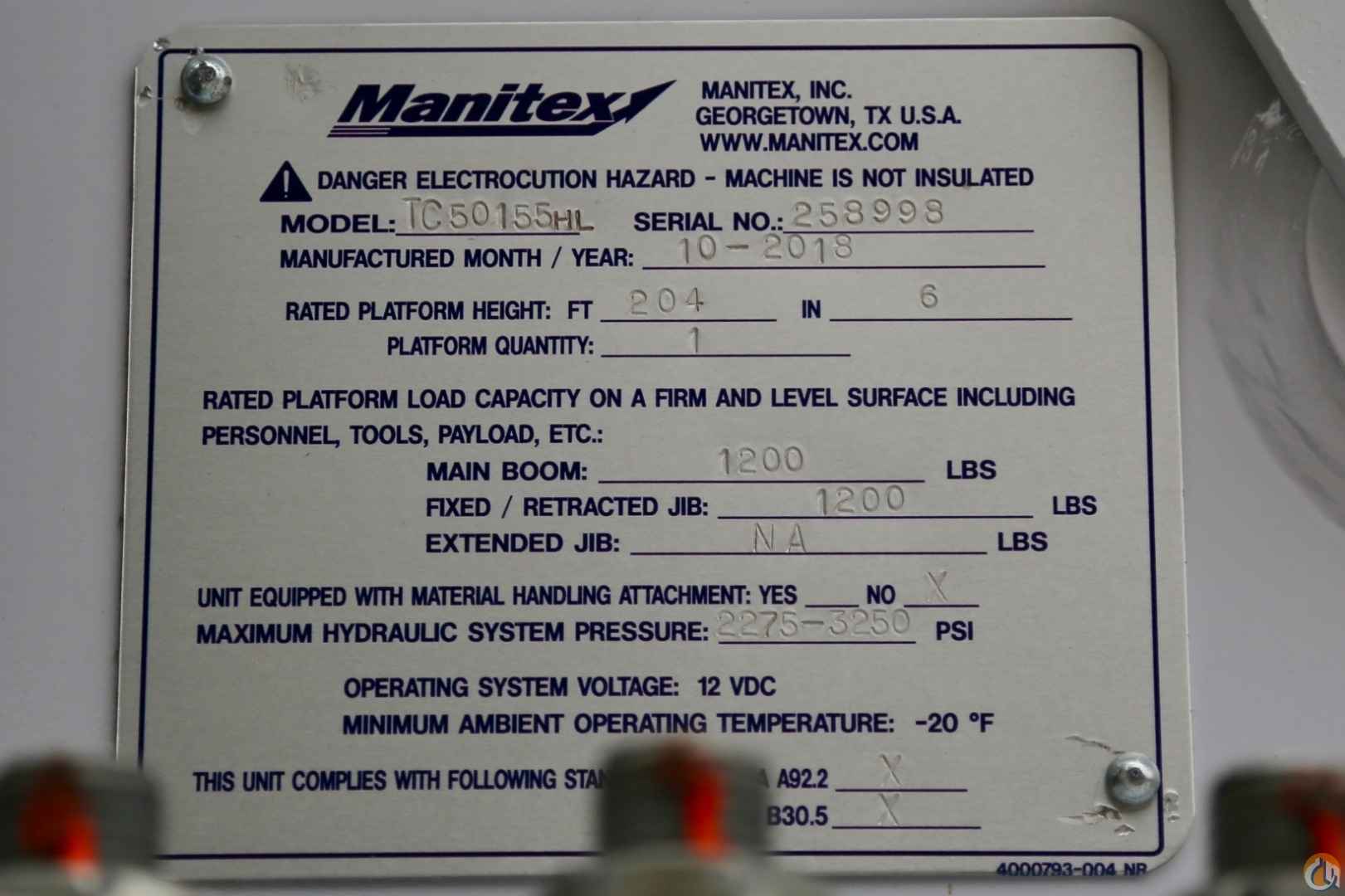

Model: TC50155 SHL
Year: 2019
Capacity: 50.00 Tons
Condition: New
Unit #: BM-2668
Location: Houston, Texas
Boom: 155
50 Ton (45,4 mton) Capacity

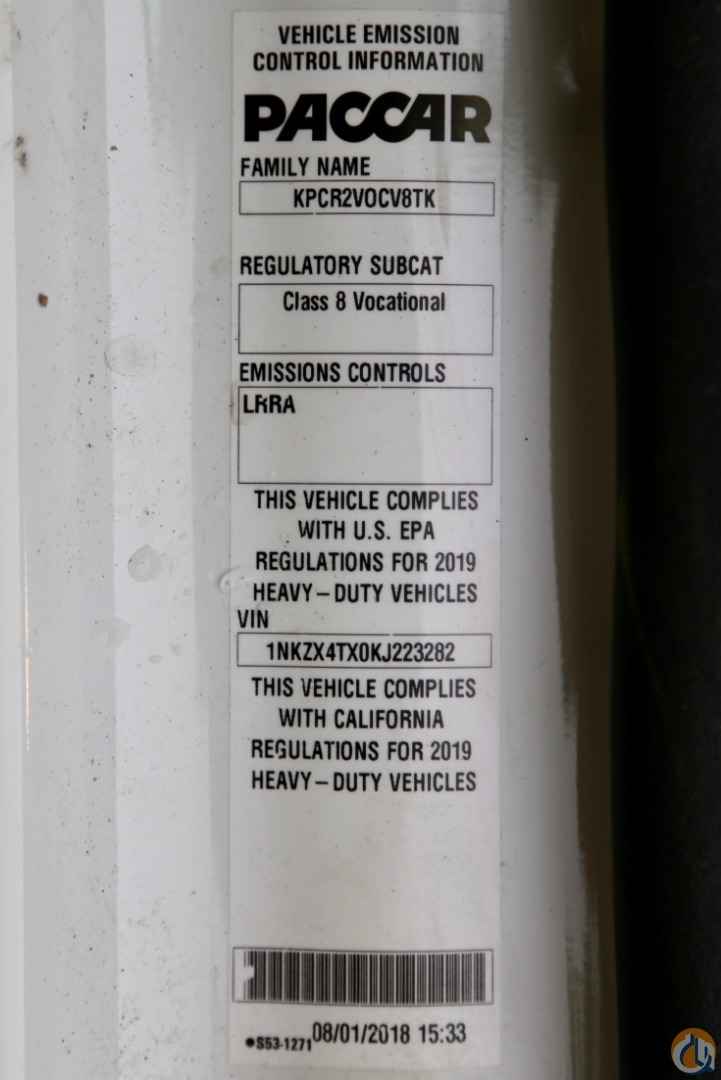

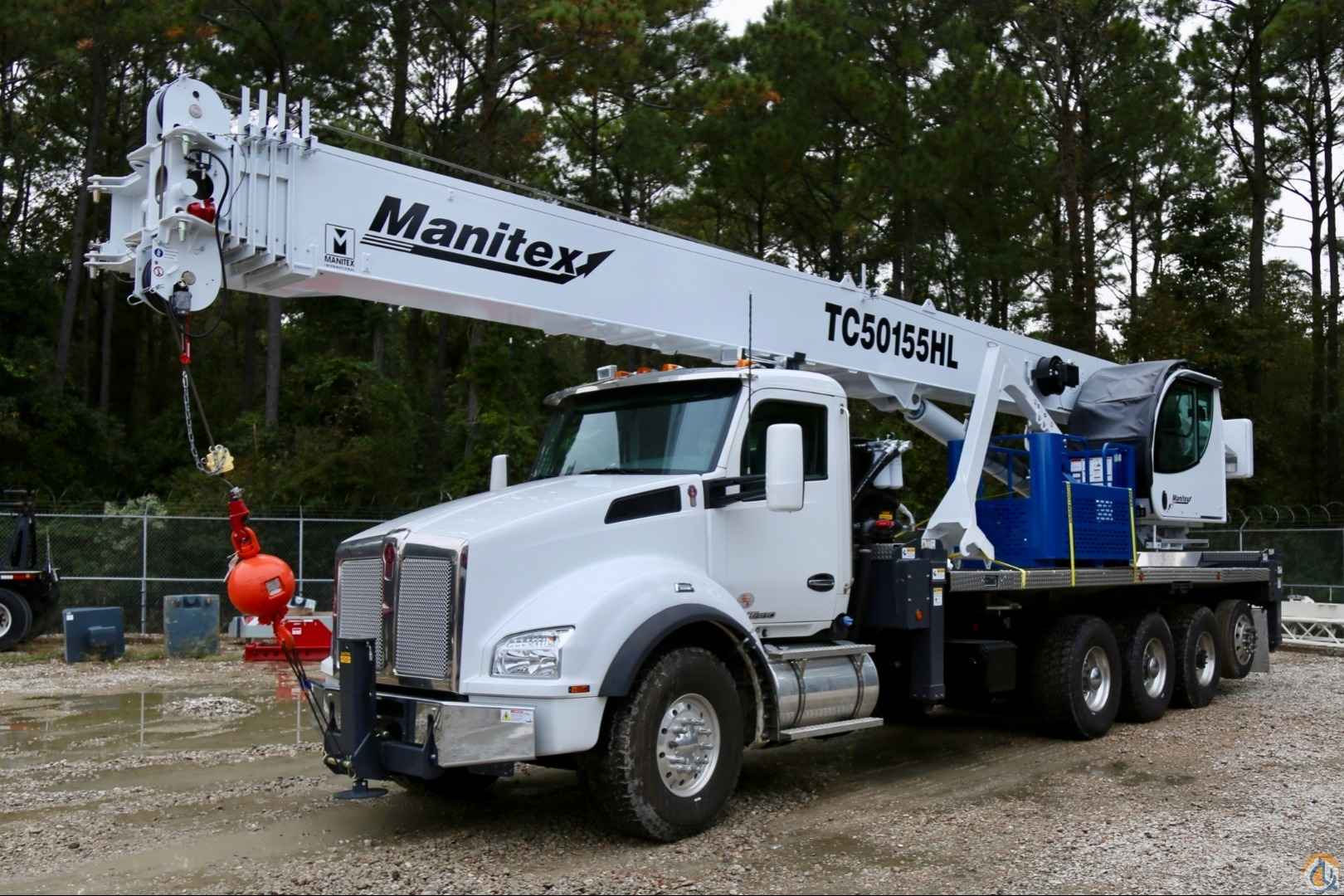

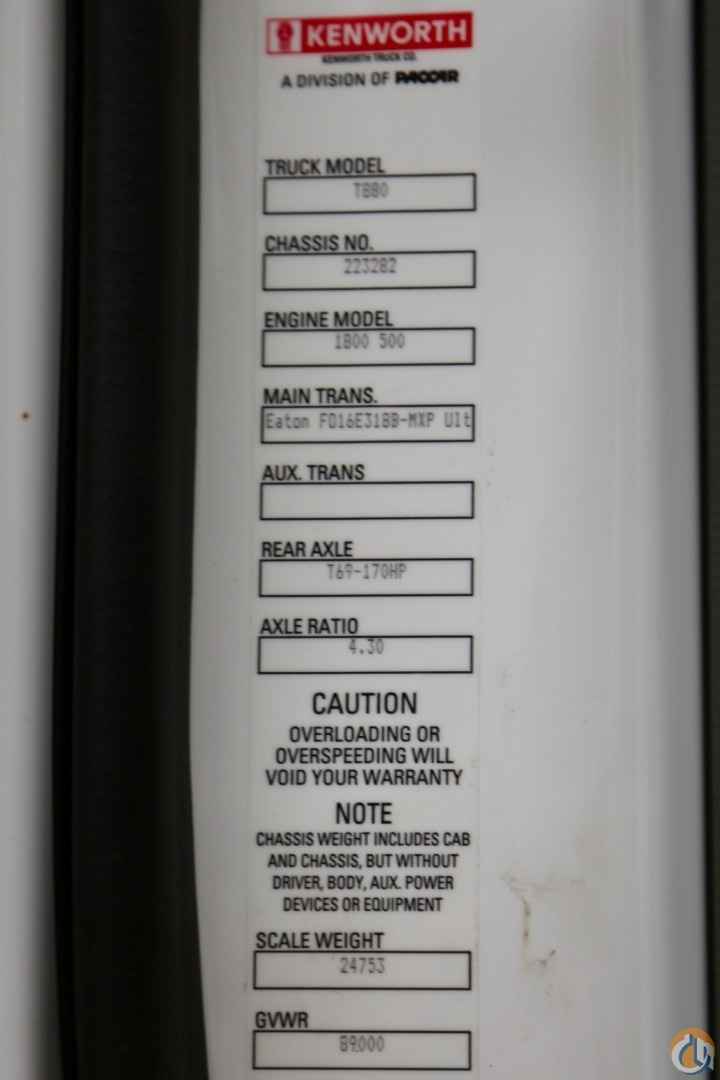

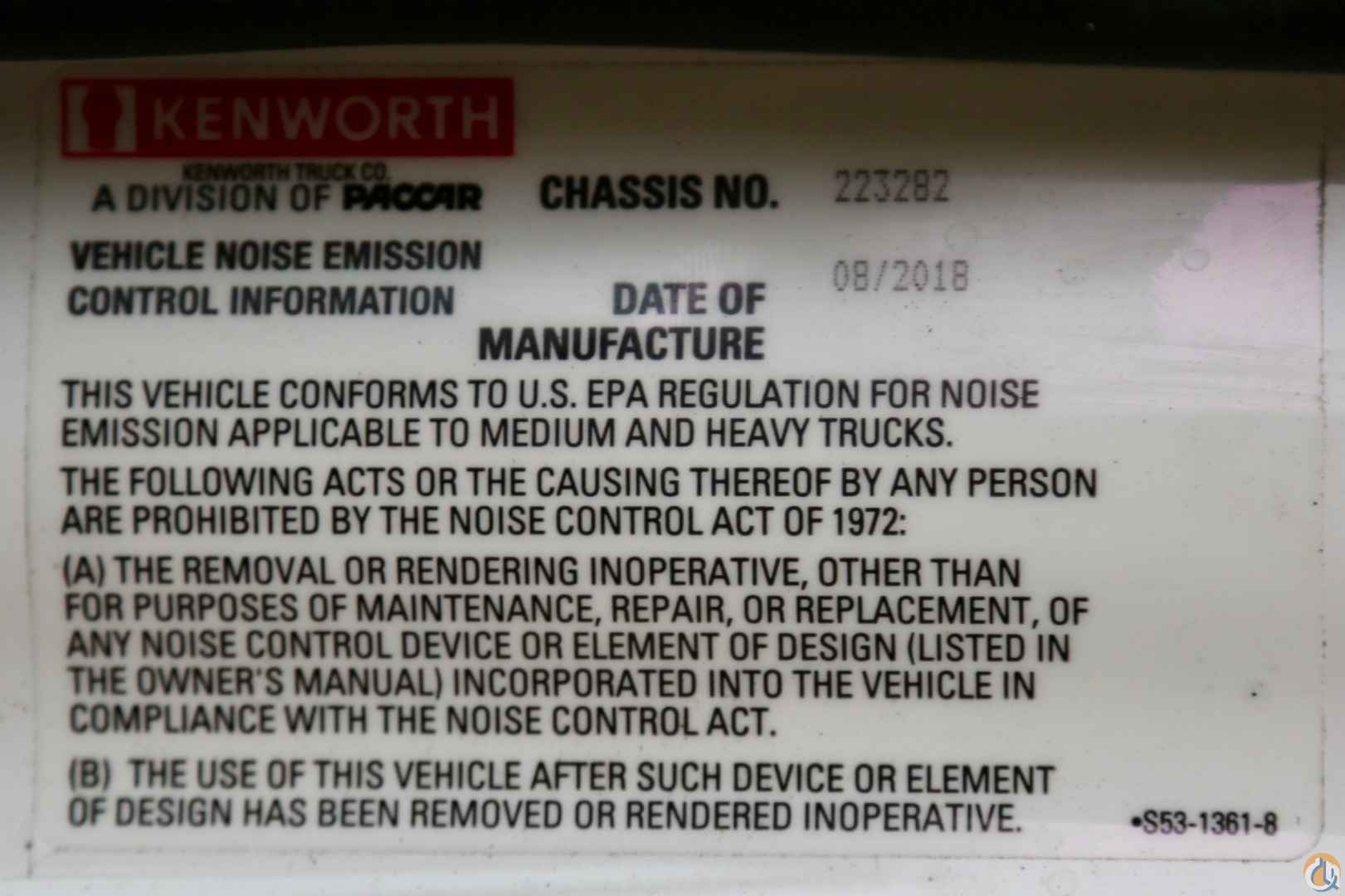

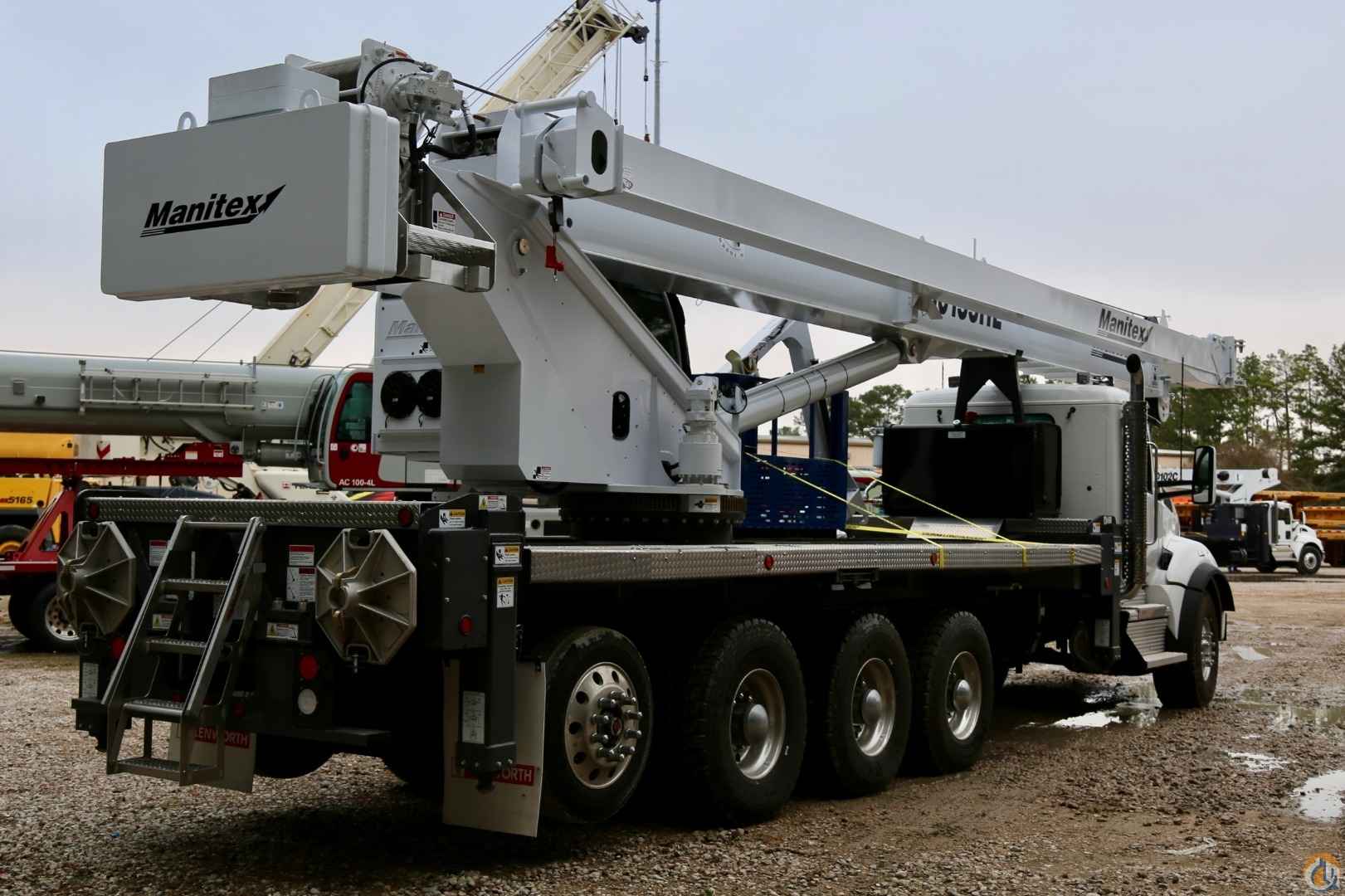

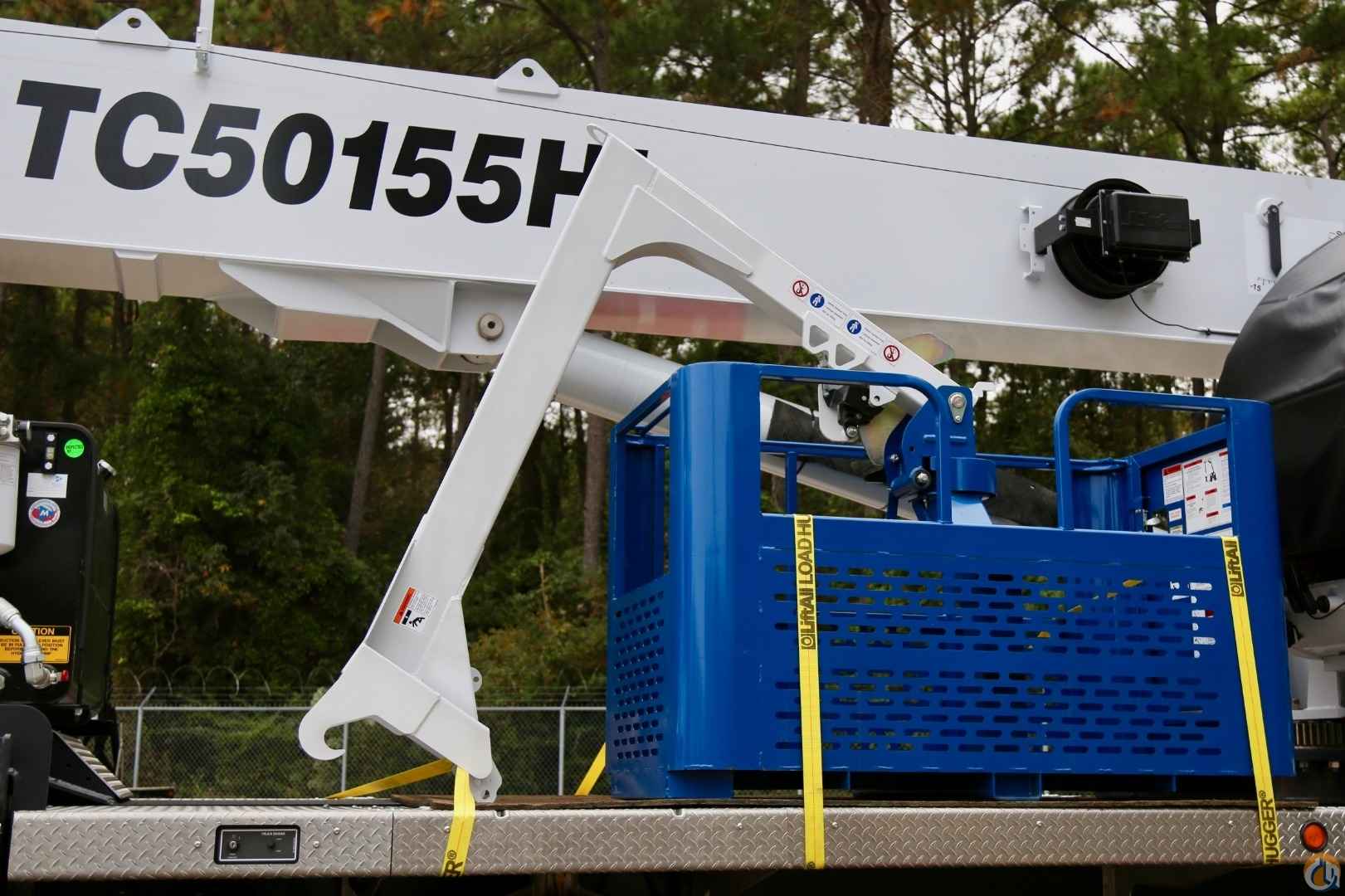

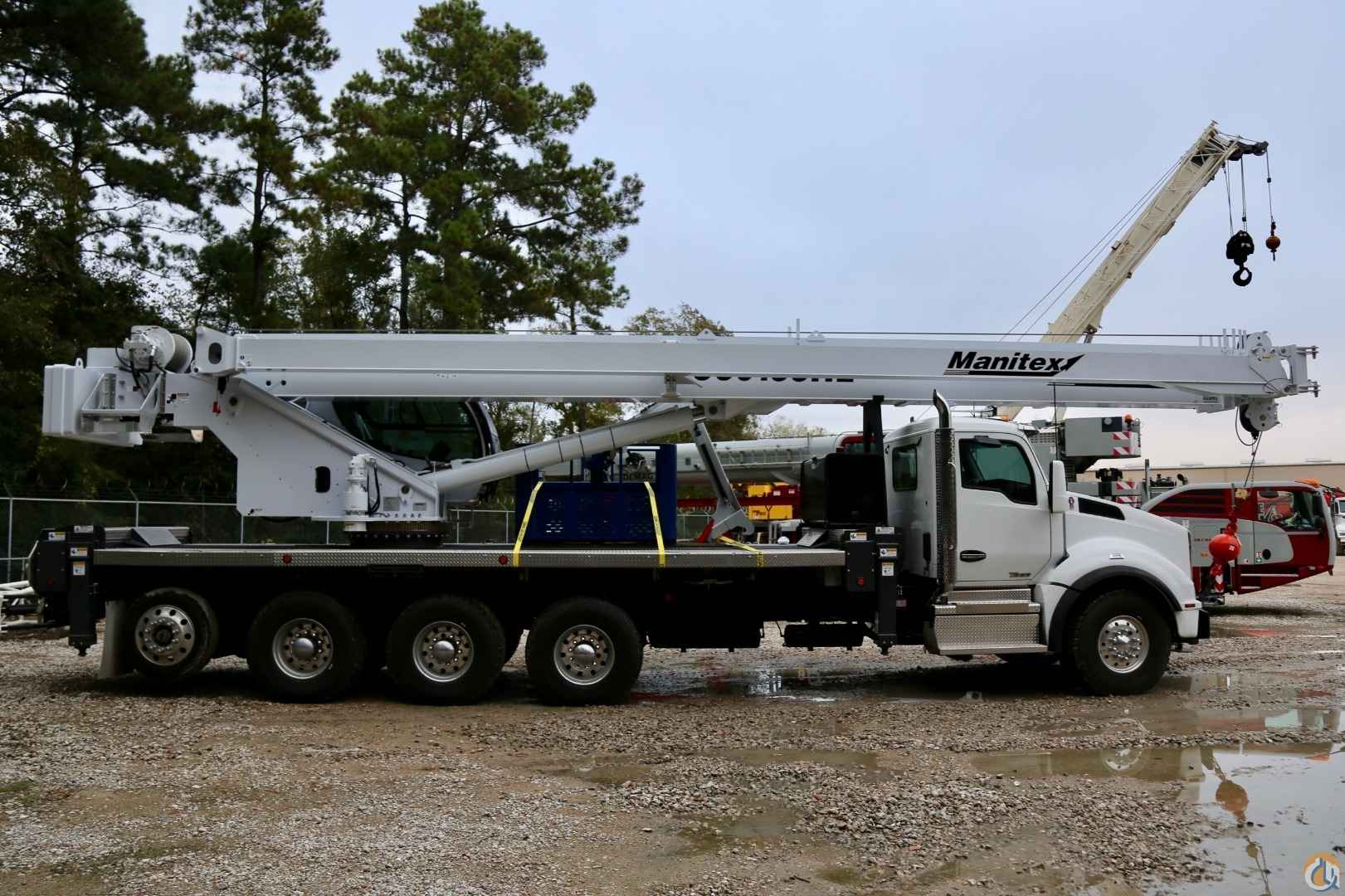

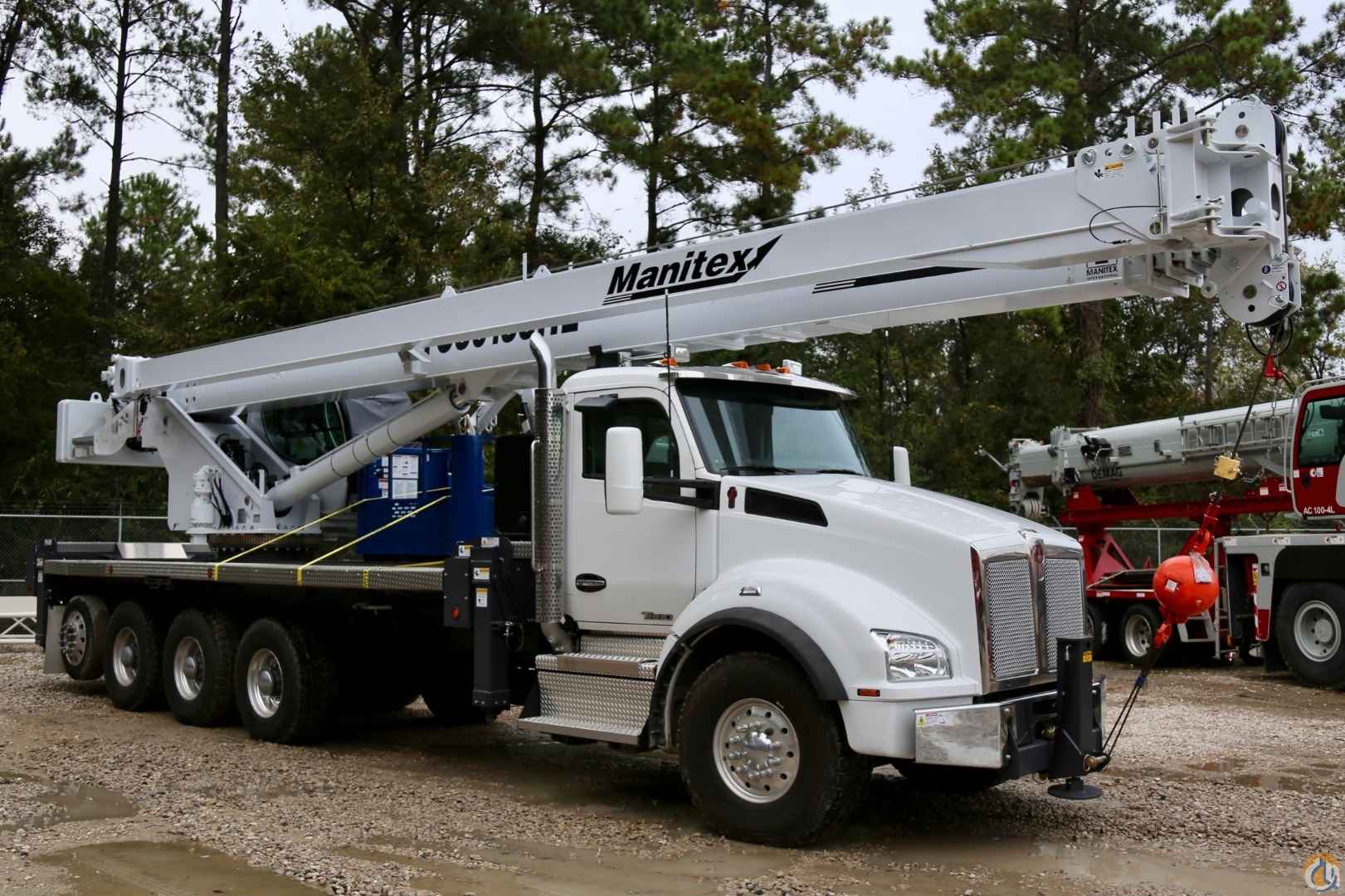

4-Section 96’ (29,3 m) Proportional Boom
2-Section 32’ (9,8 m) To 49’ (14,9 m) Telescopic Offset Jib (15°, 30°) Option; equipped with Jib Jack
153.3 (46,7 m) Maximum tip Height with Telescope Jib 105.2 ft. (32,1 m) Maximum Main Boom Tip Height
Self-Lubricating Boom Slider Pads
Two Speed Planetary Grooved Drum Hoist With Negative Draft Flange and Rope Tensioner
Auxiliary Hoist Option
Hoist Drum Rotation Indicator
Third Wrap Limiter under the Hoist Drum Rotation Indictor

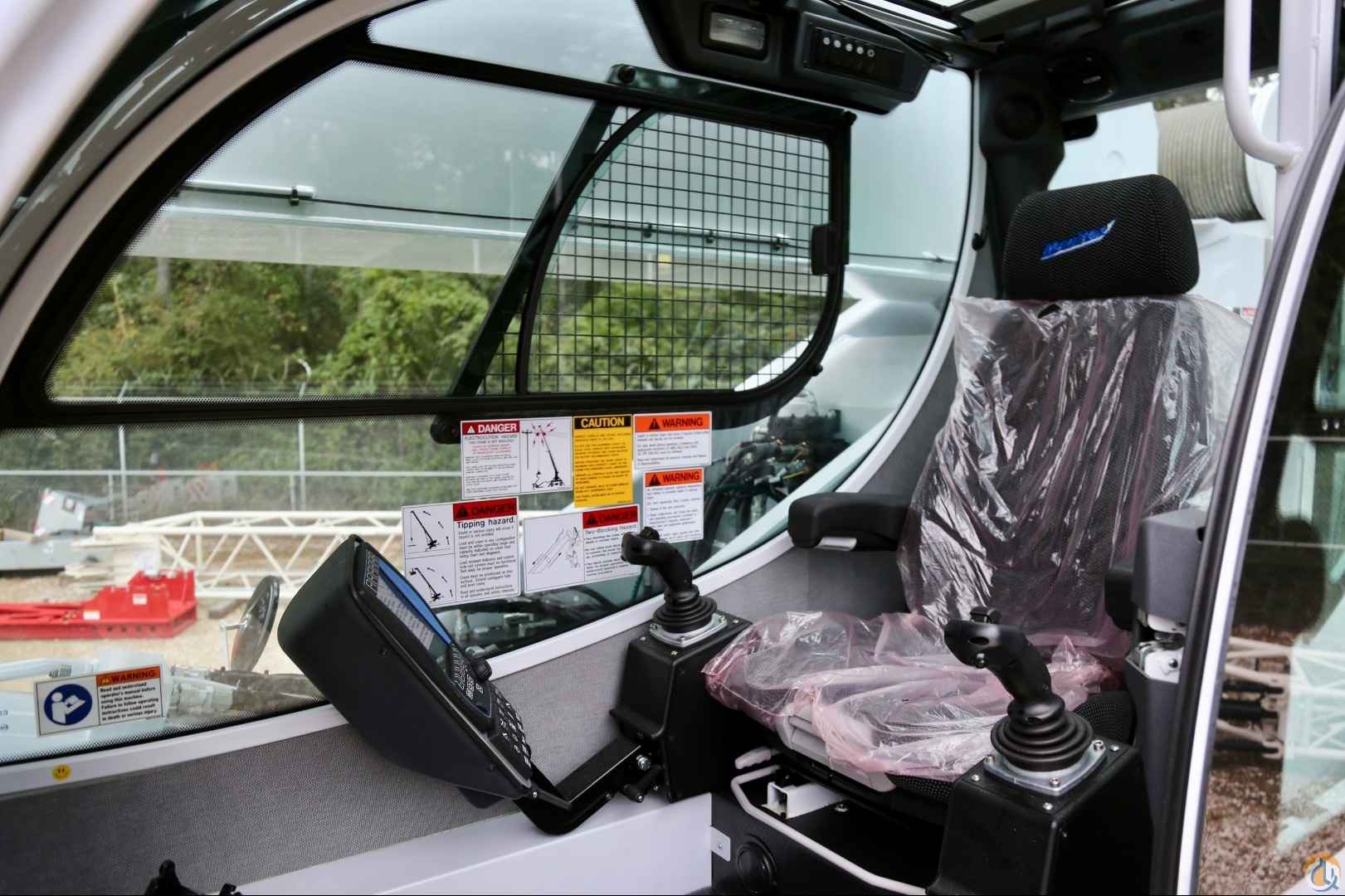

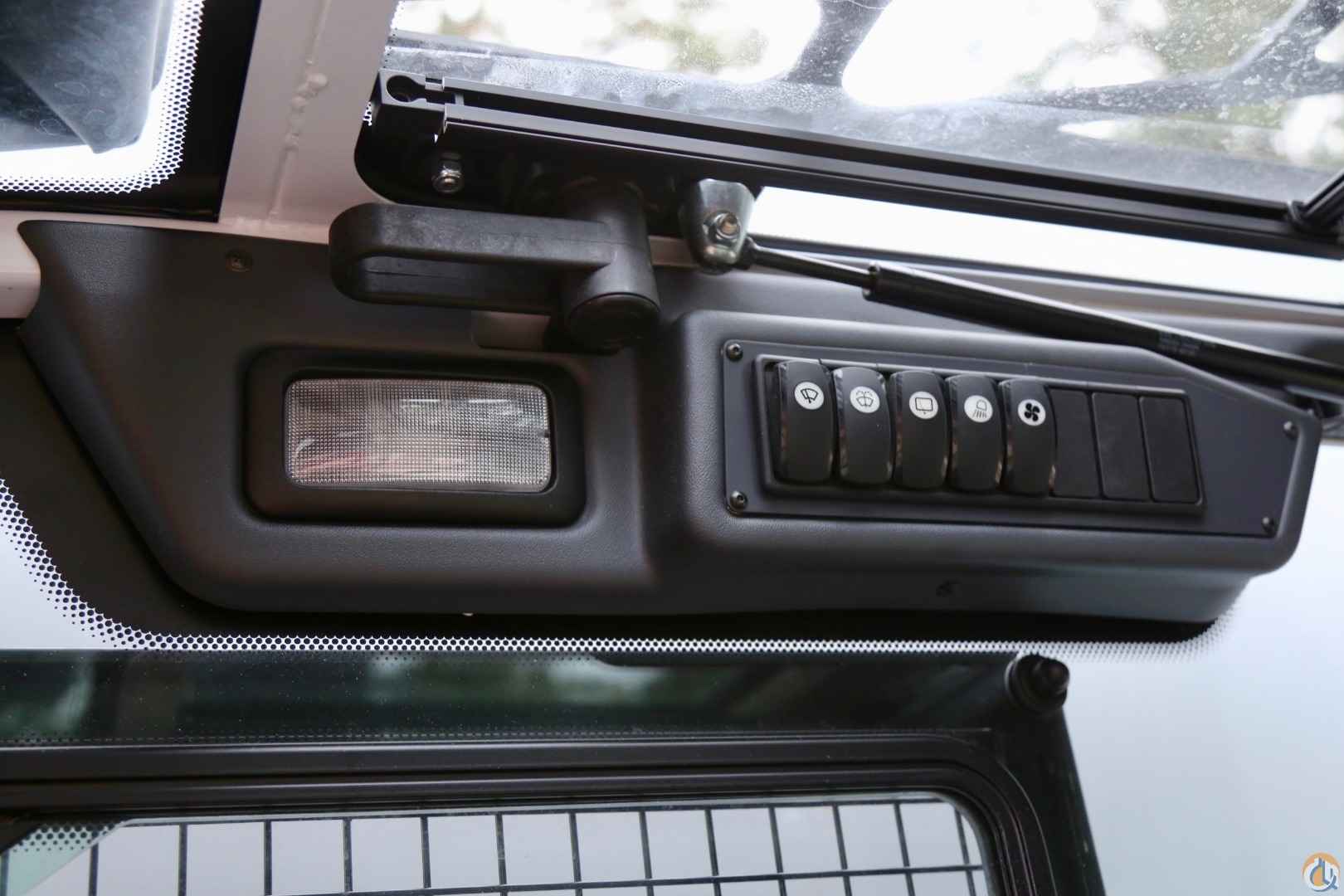

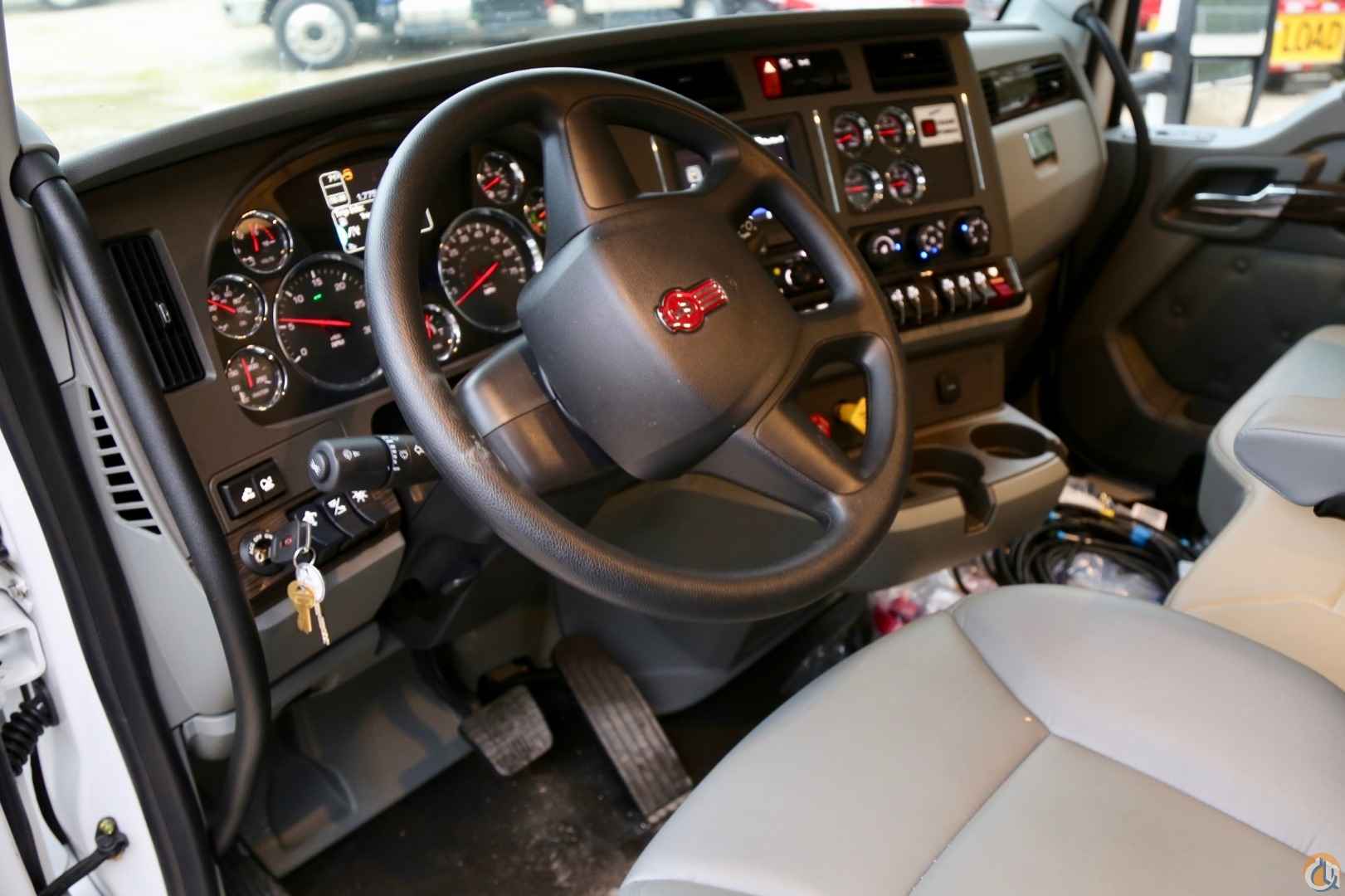

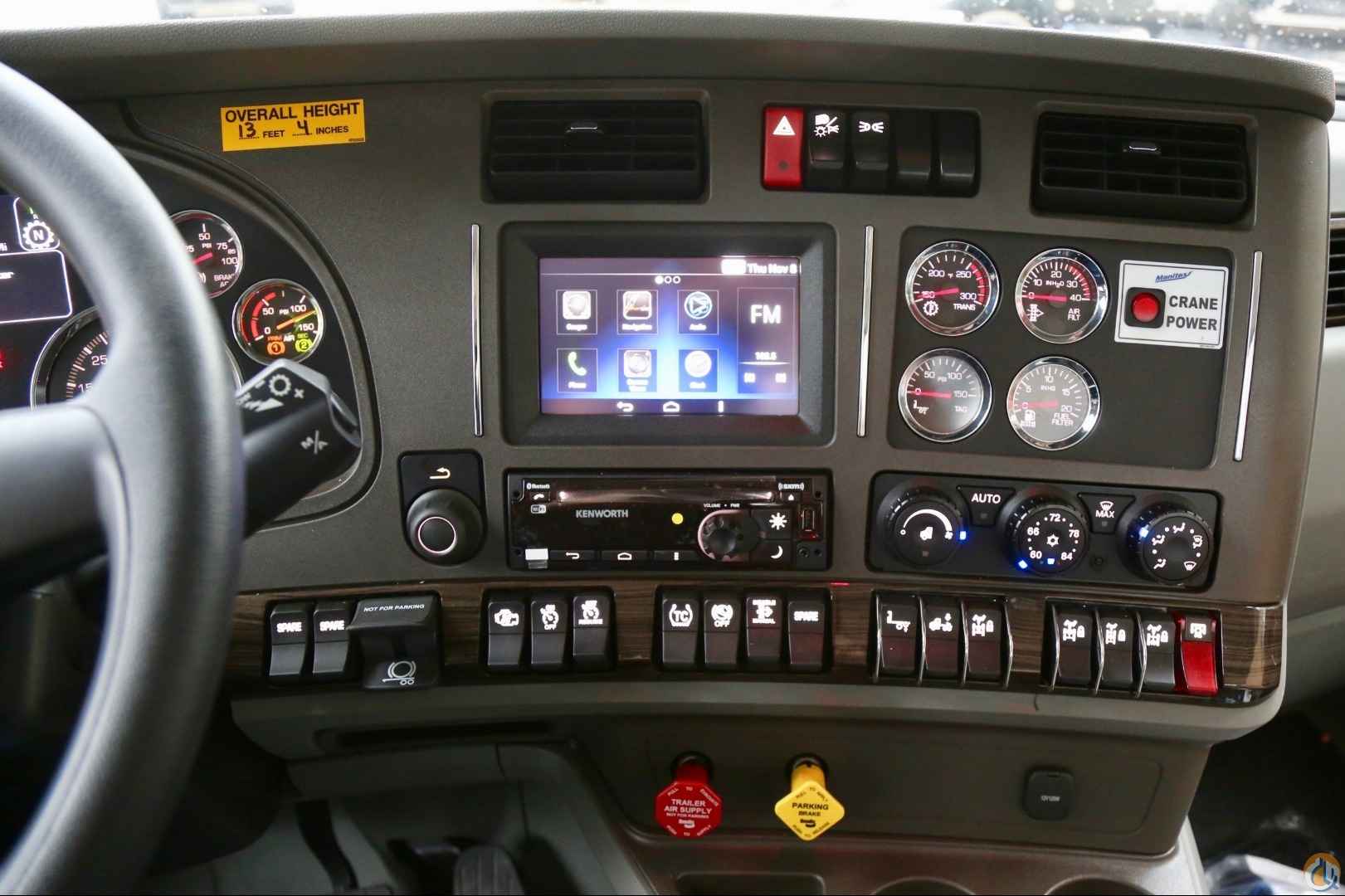

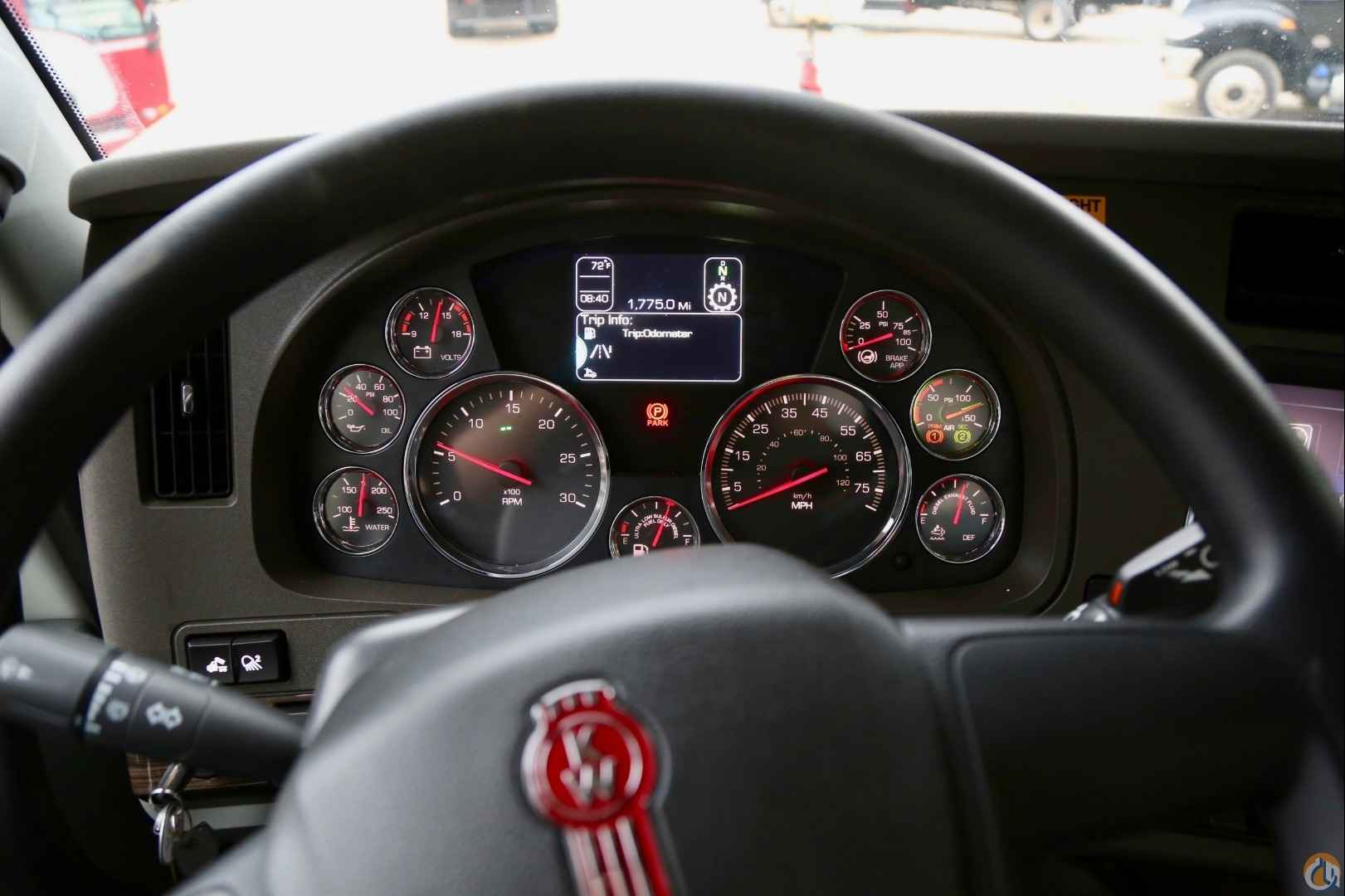

Deluxe Cab with heater, air conditioning, heated cloth seat, 8 seat adjustments, top hinged hatch, rear pop out window, with guard. Front and top windshield wipers, 12 Volt DC outlet, USB ports and engine monitoring system.

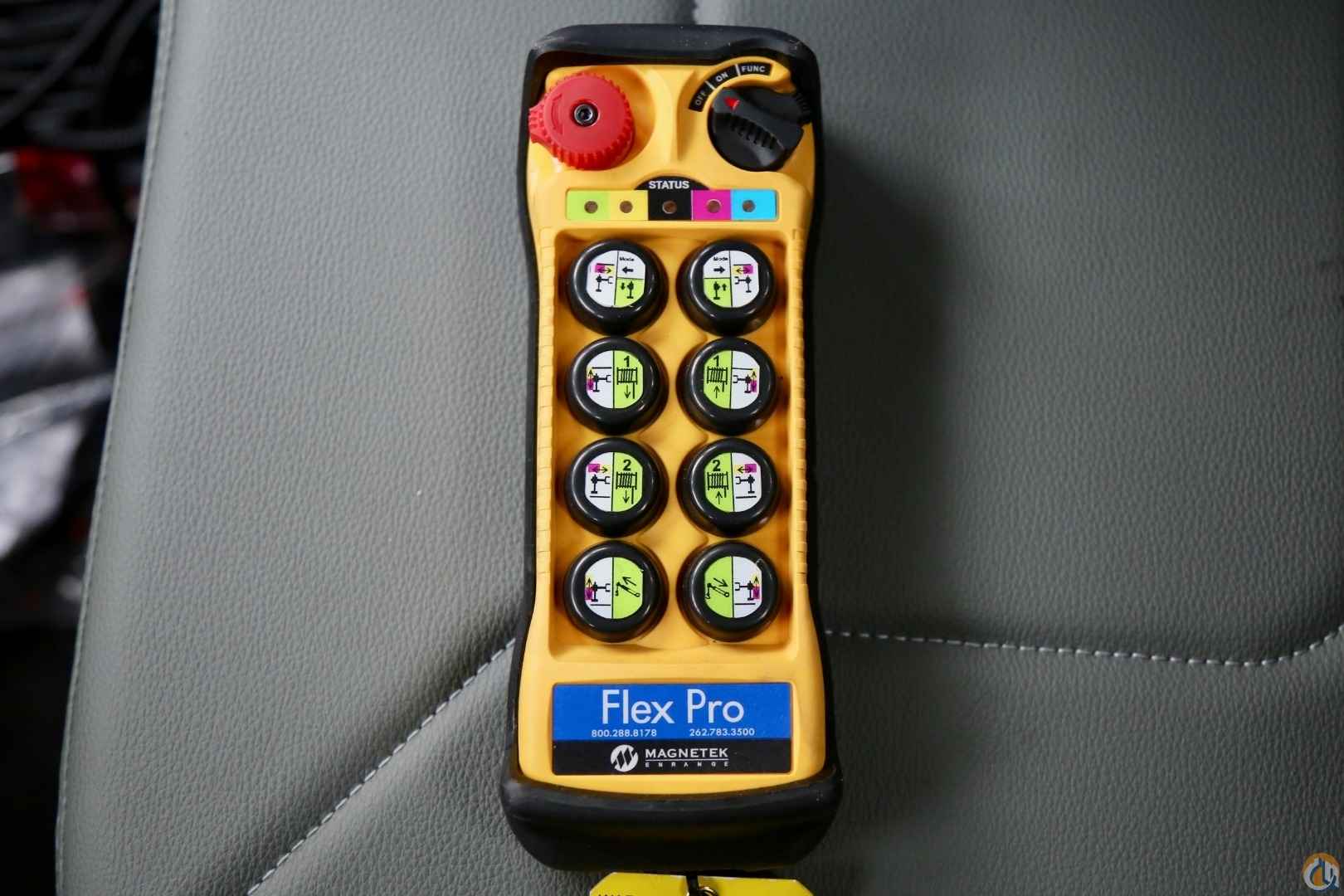

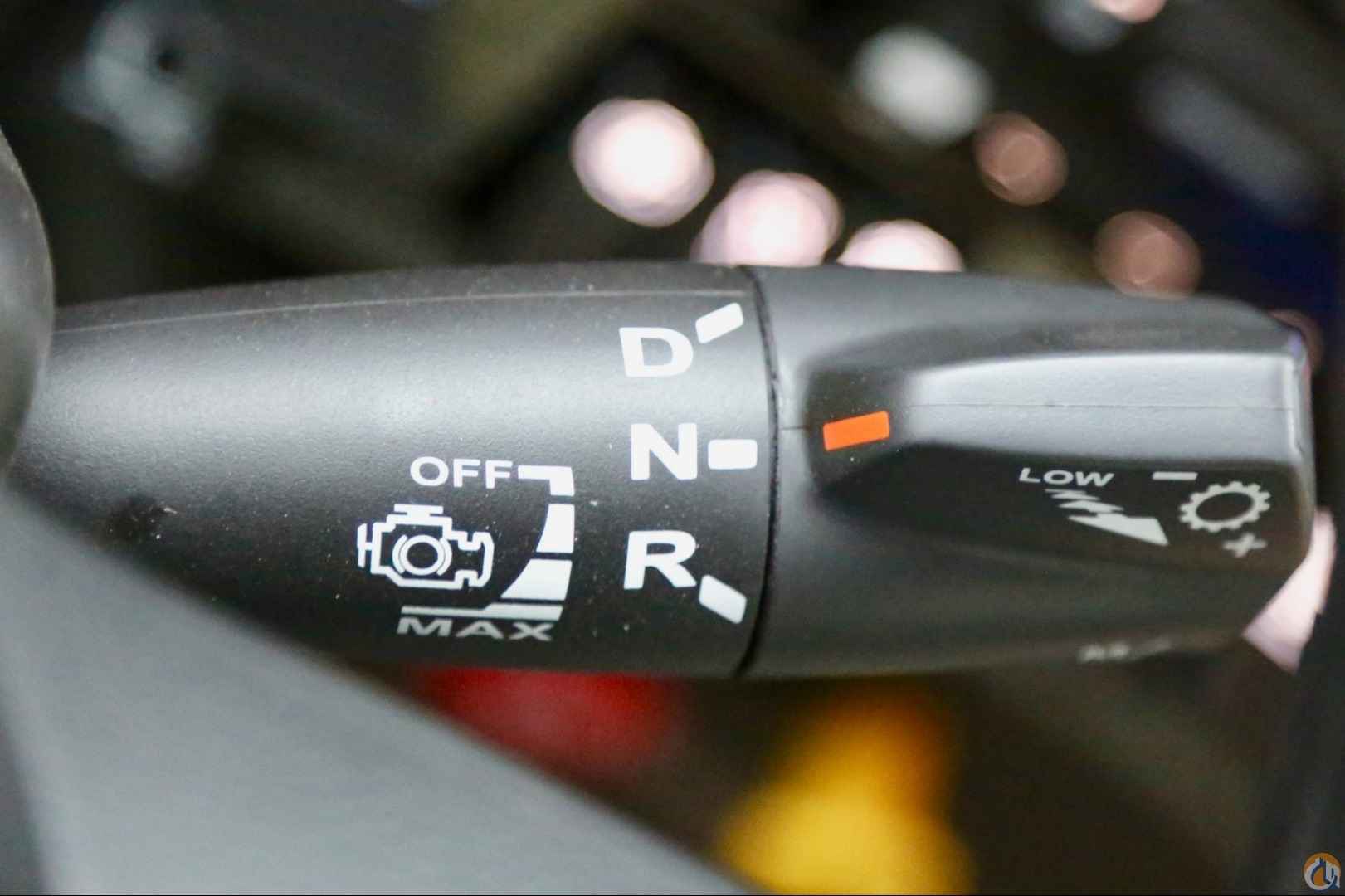

PLC crane controller, CANBUS communication, J1939 truck engine communication, electric hand and foot throttle, twin dual axis joysticks, electric/hydraulic valve actuation, electronic sensor monitoring.
Free Swing-No-Free Swing Gear Switch
Continuous Rotation
360º Work Area

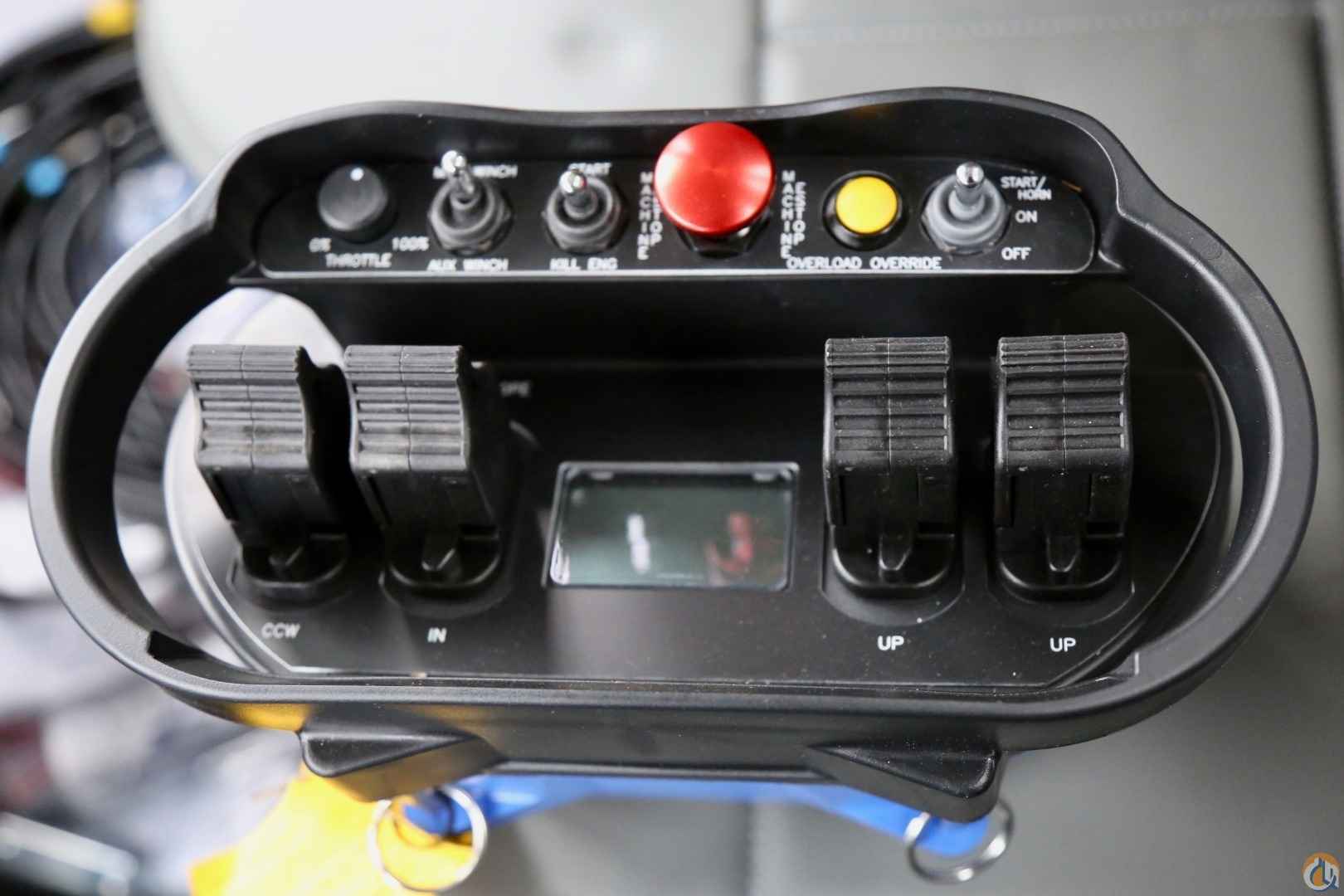

ROCSolid Outriggers feature Radio Remote Outrigger Controls, Audible Outrigger Motion Alarm
Retracted, Intermediate And Fully Extended Outrigger Load Charts
Load Chart On Tires Over The Rear
Wired LMI with crane function cut-offs for overload protection, graphical display, event recorder, WADS – Work Area Definition System
Wired Anti-Two Block System
Rugged, Weatherproof, Automotive Style Electrical System
Hydraulic Oil Cooler
Clamp-On Mounting
Design Meets ANSI B30.5 Recommendations
Manitex UPTime Comprehensive Support
Inverted T-cross section designed for optimum strength to weight ratio; 4-section telescoping type, extended and retracted proportionally by a double-acting hydraulic cylinder and a cable-crowd system. Fitted with easily replaceable self-lubricating wear pads for smooth operation.
50155SHL – 5 Section 38’ 6” – 155 ft.
Quick Reeve Boom Point – Fitted with two upper and four lower high-density nylon load sheaves mounted on heavyduty roller bearings. Removable pin-type rope guards.
Boom Elevation – Double-acting hydraulic cylinder. Working range from 5° below horizontal to 75° above.
Load Hook – 5-ton (4,5 mton) capacity hook with heavyduty swivel and weight is provided for single-line operation.
Planetary reducer with wet multi-disc spring applied, hydraulically released internal brake and grooved drum; negative draft angle on drum flange and load line tension roller virtually eliminates load line stacking while spooling. High efficiency two speed hydraulic motor equipped with patented brake valve for precise lowering.
Main Hoist – Maximum theoretical line speed 453 fpm (138 mpm); maximum theoretical bottom-layer line pull 13396 lb (6 076 kg).
Wire Rope – 500’ (128 m), 5/8” (16 mm) diameter. Low Torque type; a designed balance between rope lay and strand lay offers characteristics similar to those attributed to rotation resistant ropes at a 3.5:1 safety design factor.
Continuous rotation, free swing system assists in tandem lifting and centering of boom over loads. Externally mounted, double-reduction planetary gearbox driven by hydraulic motor. Equipped with a dual brake system; spring-applied hydraulically-released Parking Brake and a foot actuated Dynamic Service brake. Ball-bearing swing circle with external gear.

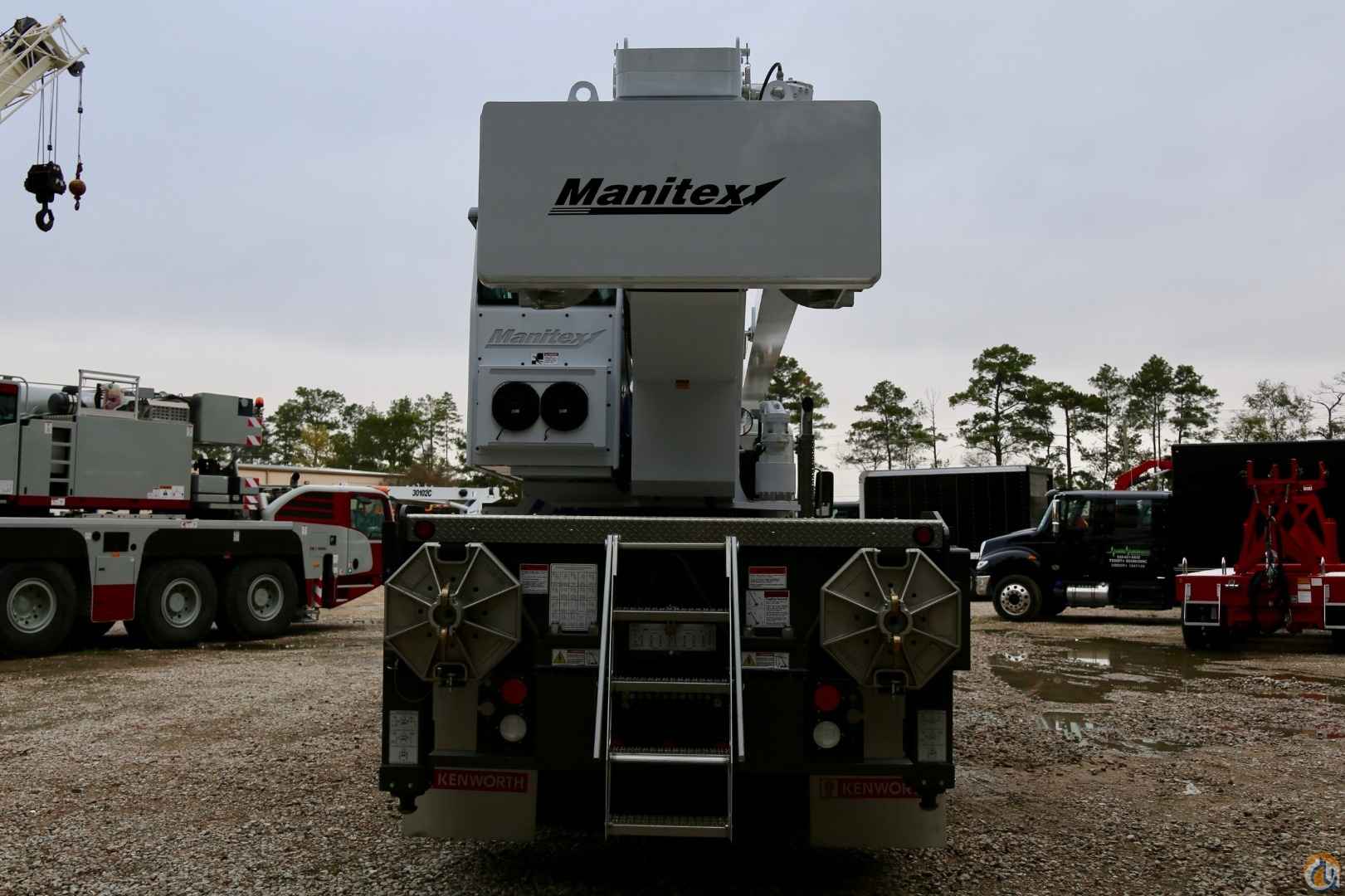

Out-and-down style outriggers, operated independently for precise leveling. Fully extended, intermediate extension and fully retracted outrigger beam positions. Bubble levels located in operator cab and near outrigger manual controls.
Maximum outrigger spread 23’ 3” (7,1 m), Intermediate outrigger spread 15’ 5” (4,7 m), 22” (559 mm) diameter floats.
Front Bumper Stabilizer - Single stabilizer assembly mounted at the front of the truck (required); maximum float load is controlled by preset counterbalance valve to prevent overloading the stabilizer. This feature requires truck front frame extensions, consult factory.
Lower frame is mounted to chassis by threaded rods and clamp plates. No welding, drilling, or bolting to truck frame is required.
Lower Frame – Torsionally resistant, rigid 4-plate design with integrated outriggers and pedestal.
Rear Underride Protection – Standard on factory-mounted cranes. Fabricated structure mounted under rear of crane. Complies with Bureau Motor Carrier Safety Standard 393.86.
Boom Rest – Heavy-duty fabrication. Easily removed to simplify loading and unloading truck deck.
Single cab enclosed operator platform and seat mounted to turret. Four “pilot operated” single-axis crane controls provide precise metering and multifunction capability; winch control fitted with hoist drum rotation indicator (HDRI).
Controls are arranged in accordance with ANSI B30.5 standards.
The operator station also includes engine start/stop, electronic foot throttle, signal horn, load moment indicator display, view of boom angle indictor, load chart, range diagram and the Manitex ACCUSwing control that allows the operator to adjust swing speed up to a maximum of 2.0 rpm.
The operator can with a switch change from no-free swing to free swing.
Stand features include curved glass, 0° to 20° cab tilt, Automotive door, heated cloth seat, 8 seat adjustments, lumbar support and adjustable head rest, sliding windows, rear pop out window, top hinged hatch, standard diesel fired heater, retractable sun screen, windshield cover, upper hatch guard, 12 volt DC outlet, E-Coated cab (10 year rust warranty).
Hydraulic System – A 3-section pump direct-mounted to power take-off on truck transmission provides 41.7 gpm (158 lpm) to the hoist, 28 gpm (106 lpm) to the boom hoist and telescope circuit, and 12 gpm (45 lpm) to the swing and outrigger circuit. 155-gallon (587-liter) baffled reservoir includes suction ball valve with strainer and two 25-micron filters in the return line. Use of SAE O-ring and face seal O-ring hydraulic fittings throughout system.
Hydraulic Cylinders – All load-holding cylinders are equipped with integral holding valves.

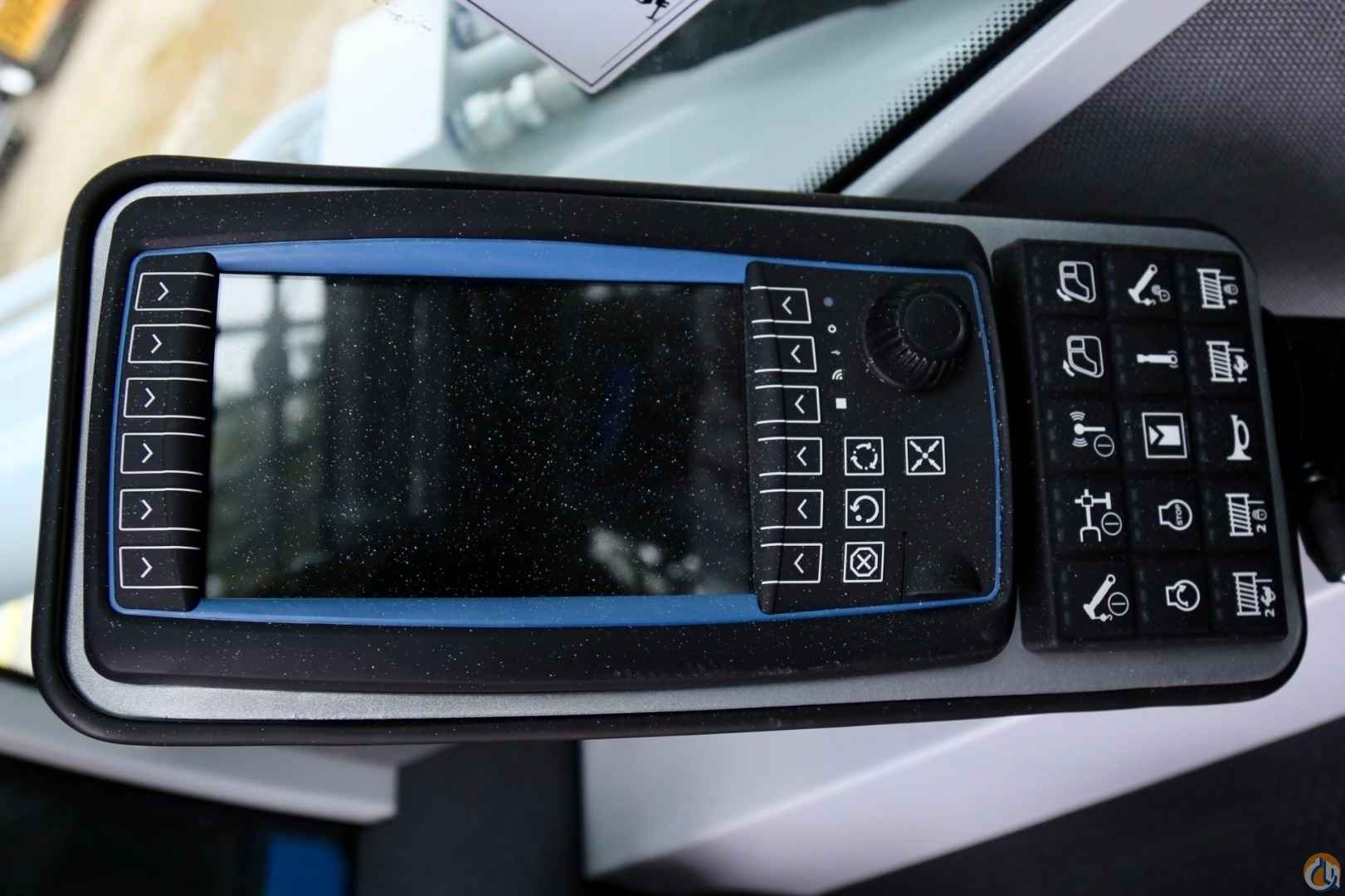

Load Moment Indicator – CAN bus interface system maximize expansion capabilities. Senses boom hoist cylinder pressure, boom length and boom angle. Audio-visual warning indicates overload conditions and overload shutoff feature prevents continuing overload. Operator can access all relative crane configuration and load conditions via a graphical display at the operator station. For added reliability, the LMI system features an external boom length sensing cable. There is an event recorder and WADS-Work Area Definition System.
Externally Wired Anti-Two Block System – Audible warning and shutoff functions prevent hook form contacting boom point. Switch is potted to ensure reliability.
Back-up Alarm – supplied on factory-mounted cranes, electronic audible motion alarm activated when truck transmission is in reverse gear.
Electrical - State-of-the-art, weather-resistant components throughout; automotive style electrical system for easy installation. System is designed to withstand high pressure washing and varying climates.
Design/Welding – Design conforms to ANSI B30.5. Welding conforms to AWS D1.1. Tested to SAE 1063 and SAE 765.
Manuals – Operator/maintenance and parts manuals depict correct crane operation, maintenance procedures and parts listing.
Warranty – 12-month warranty covers parts and labor resulting from defects in material and workmanship.
