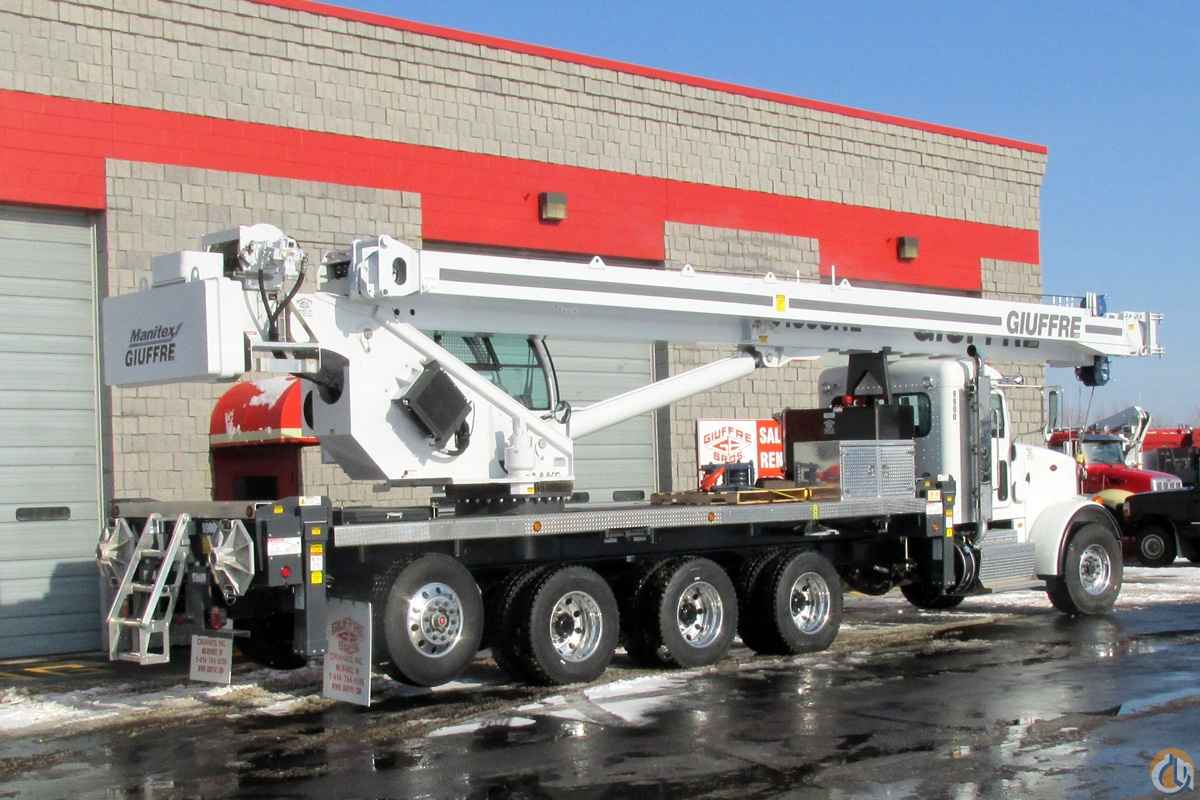

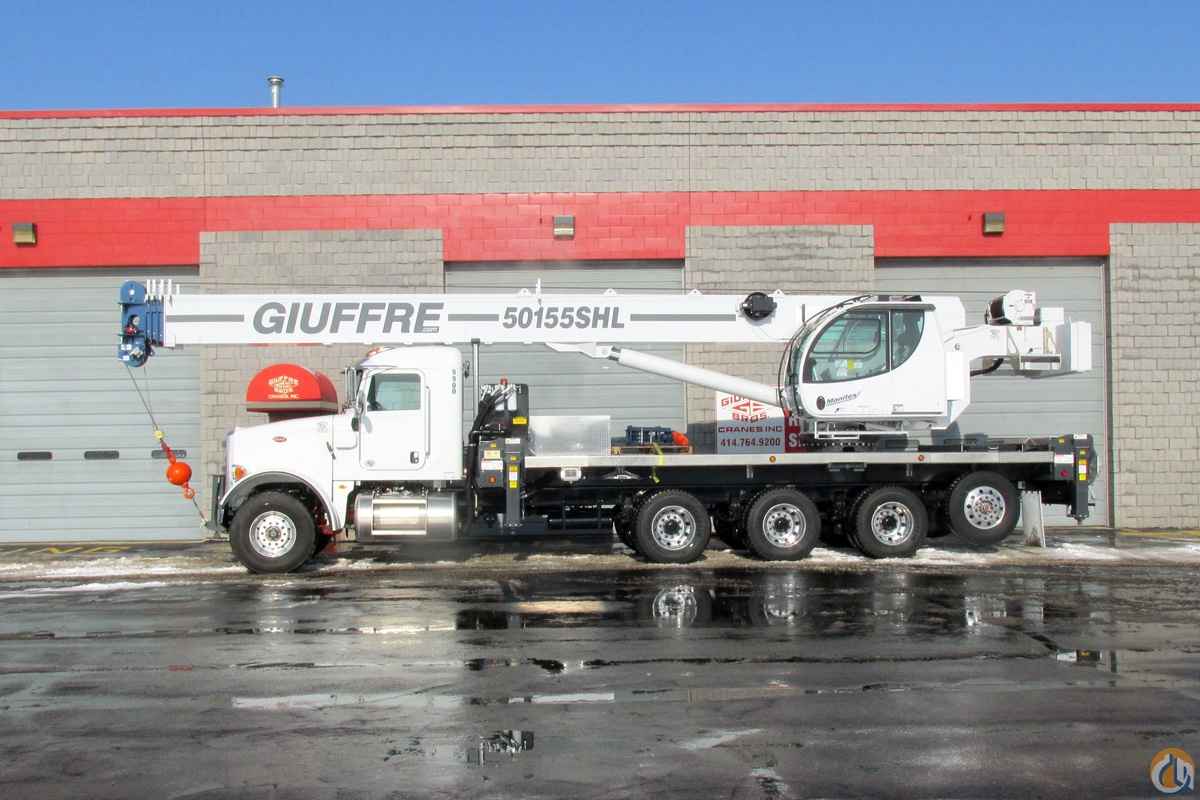

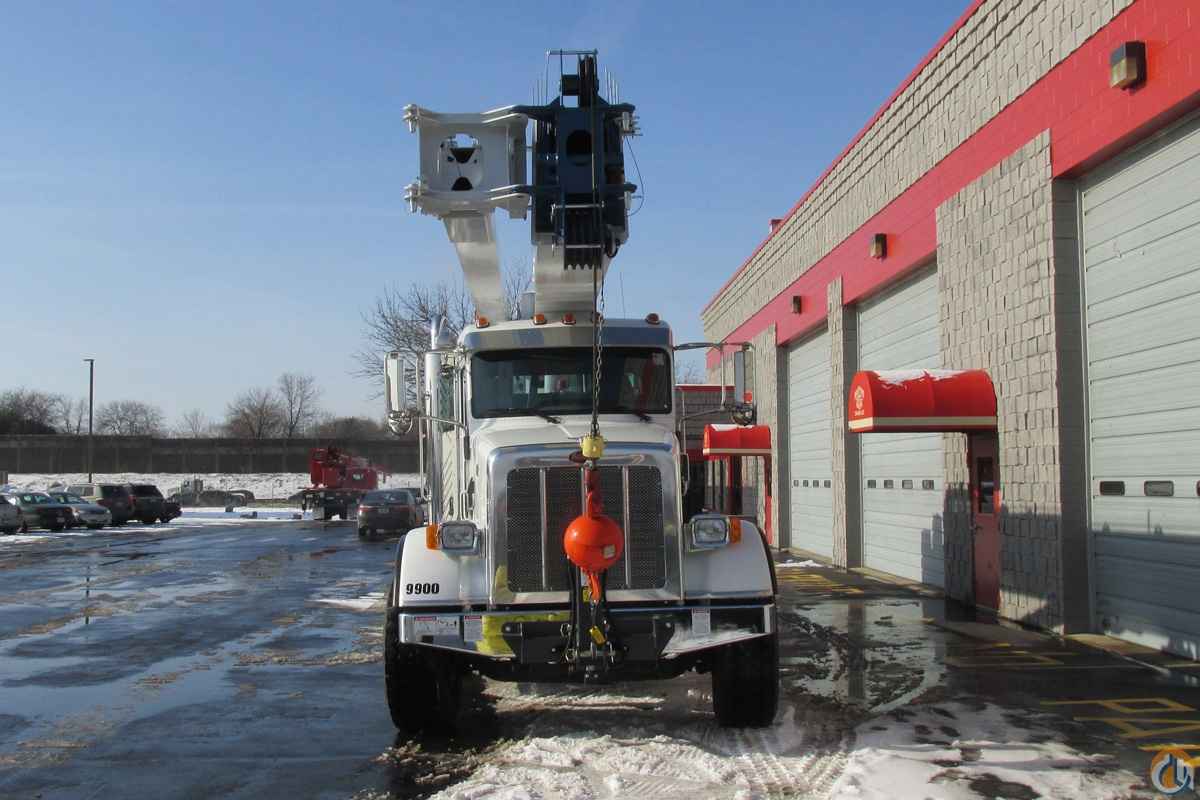

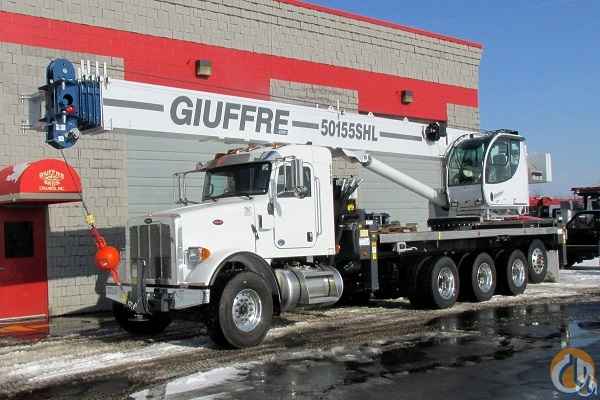

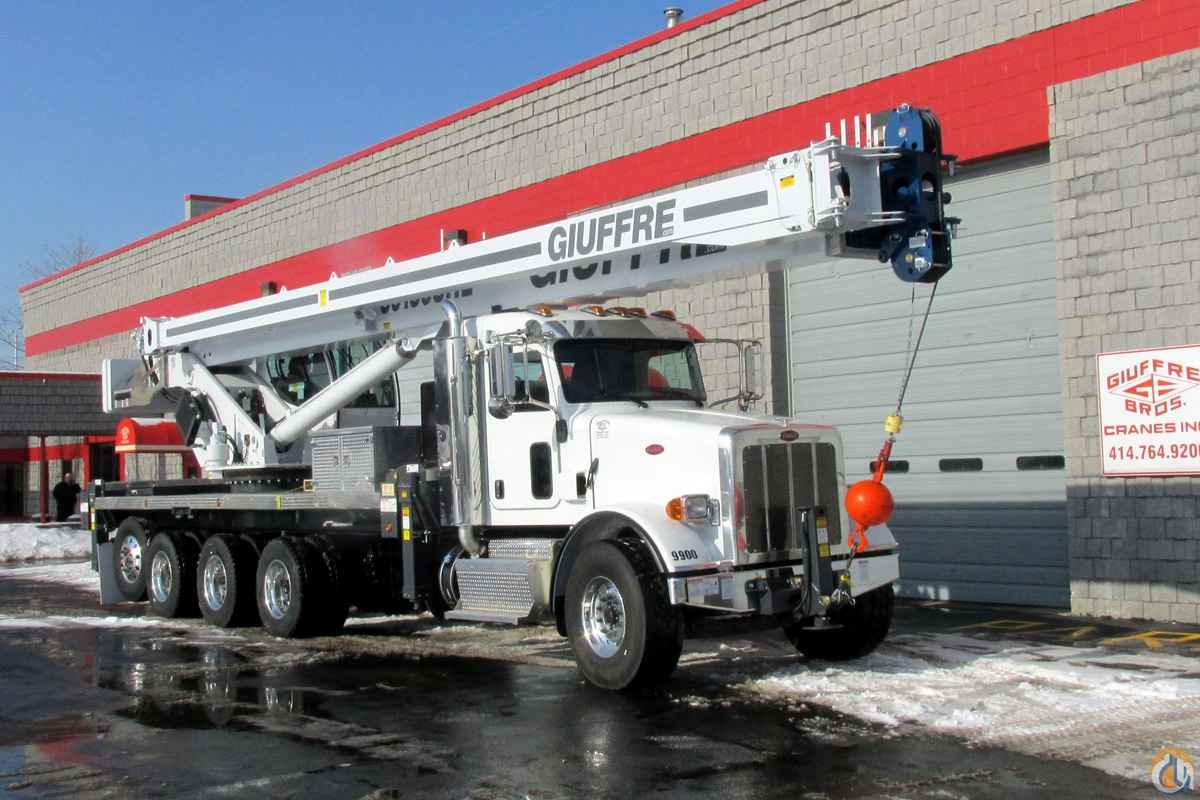

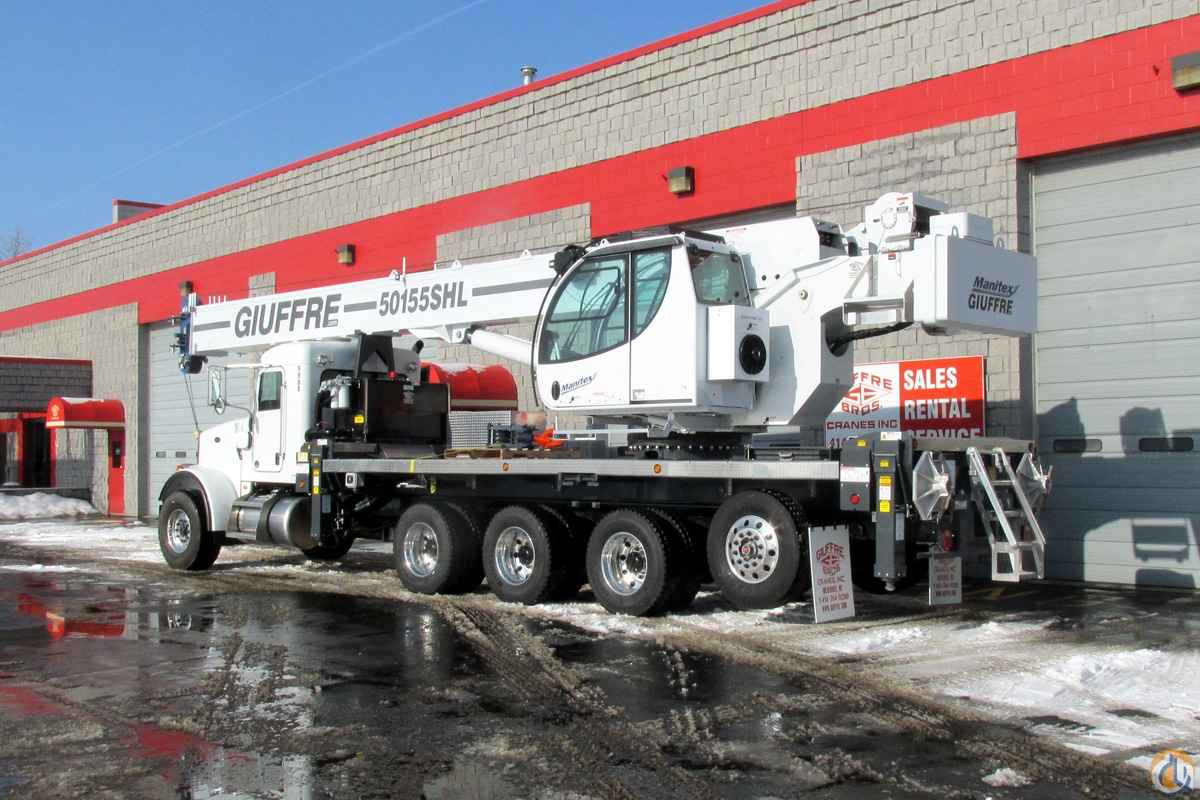

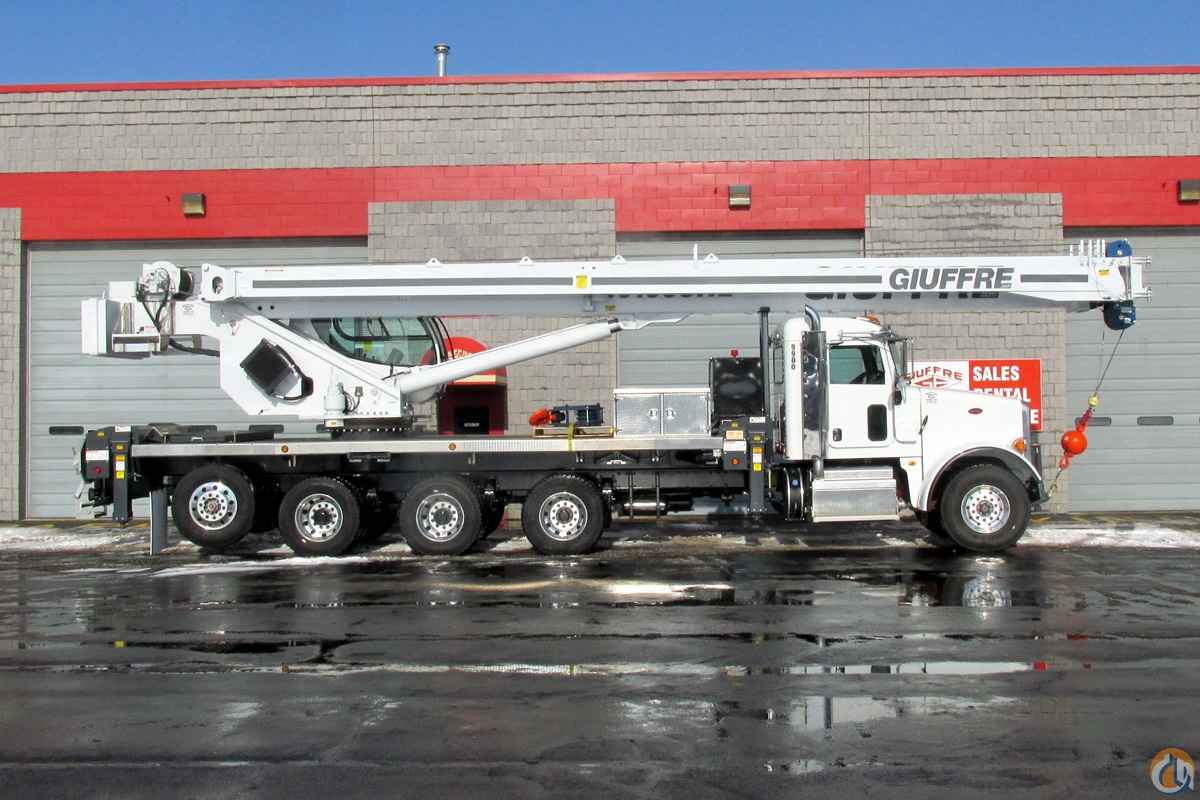

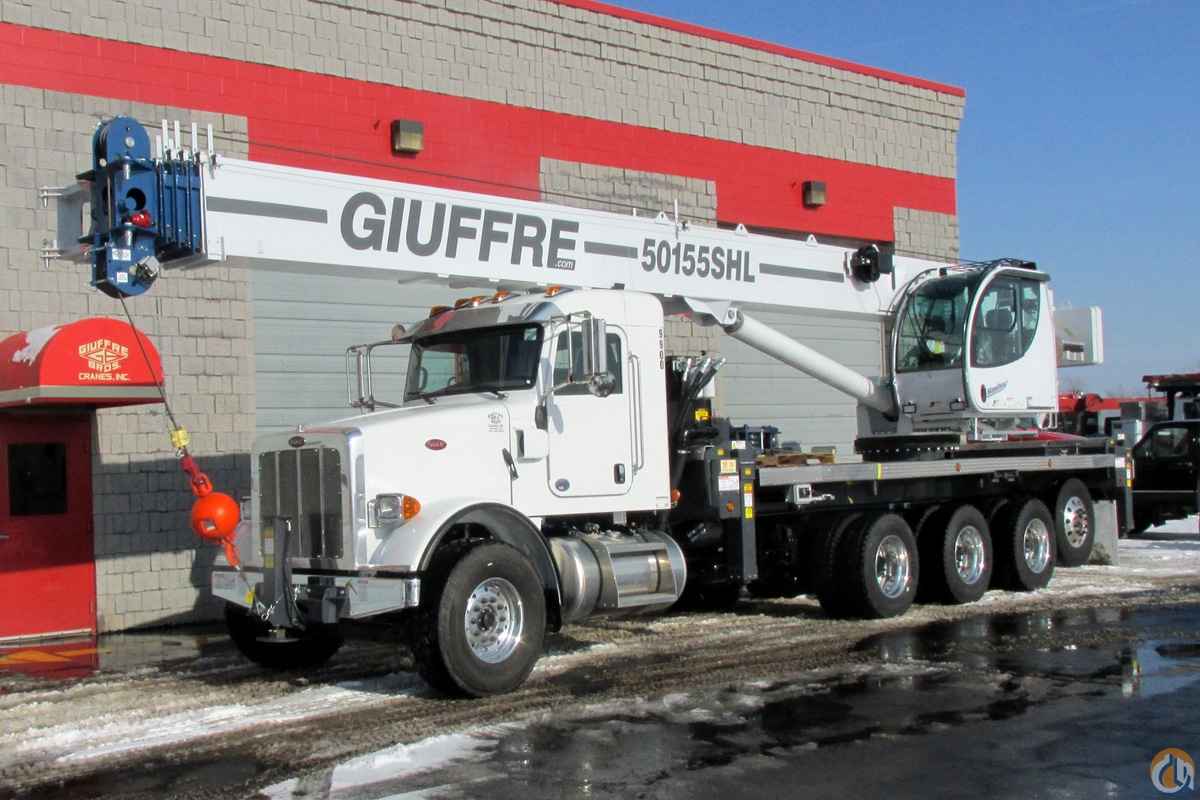

2017 MANITEX TC50155SHL
NEW 50 TON w/ 205' TOTAL TIP HEIGHT!
50 TON CAPACITY SWING CAB,
155 FT 5-SECTION TELESCOPIC BOOM,
6-SHEAVE QUICK REEVE BOOM HEAD,
204 FT TIP HEIGHT WITH 39 FT JIB,

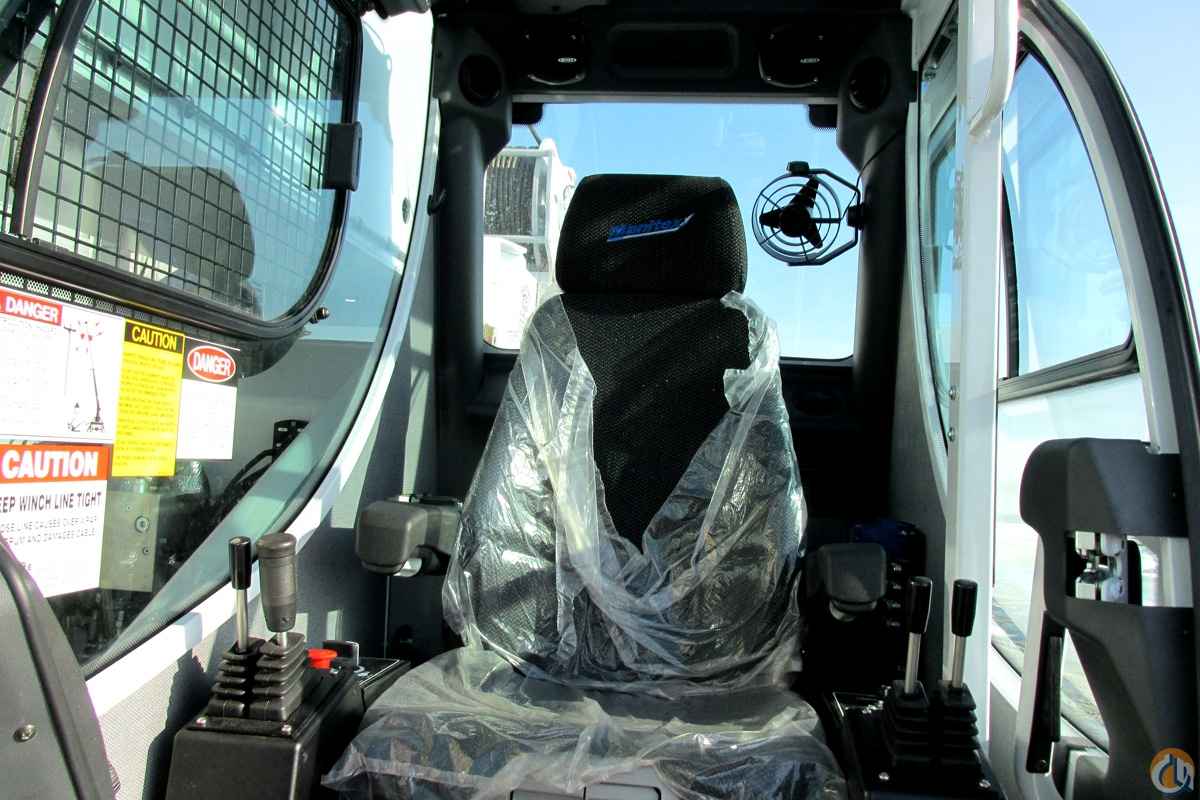

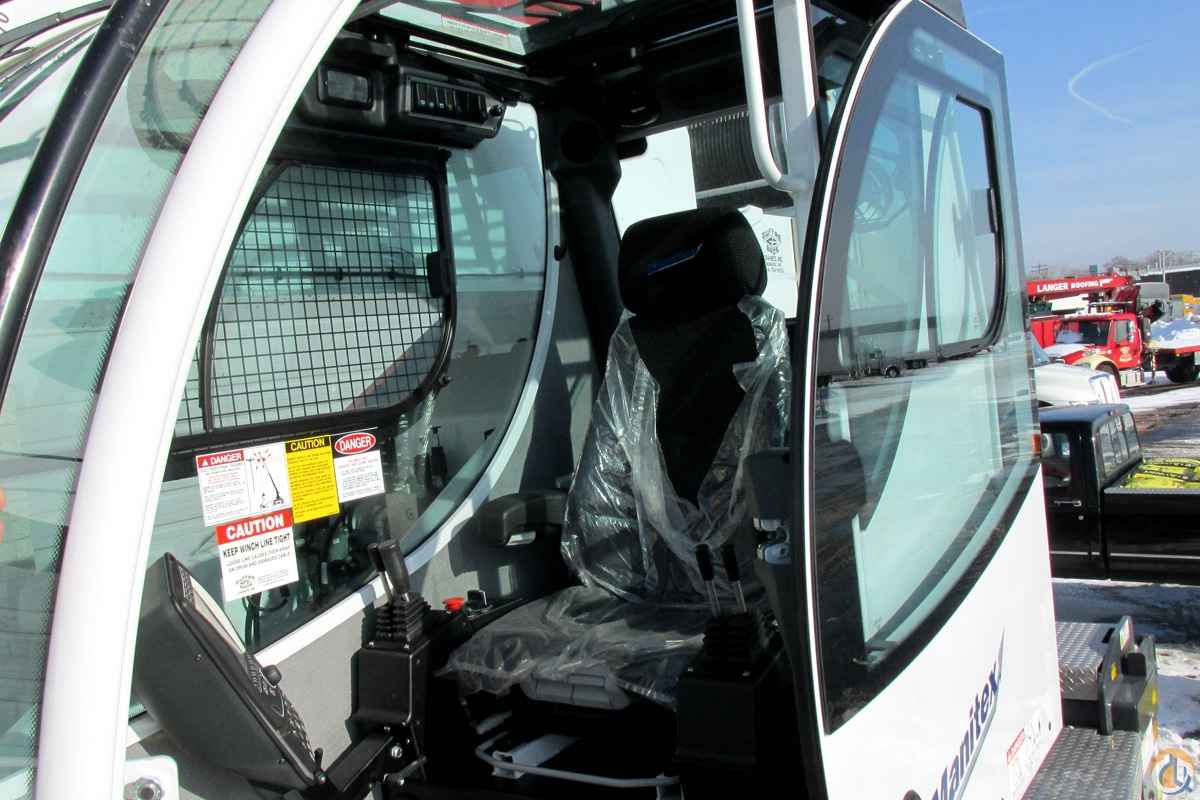

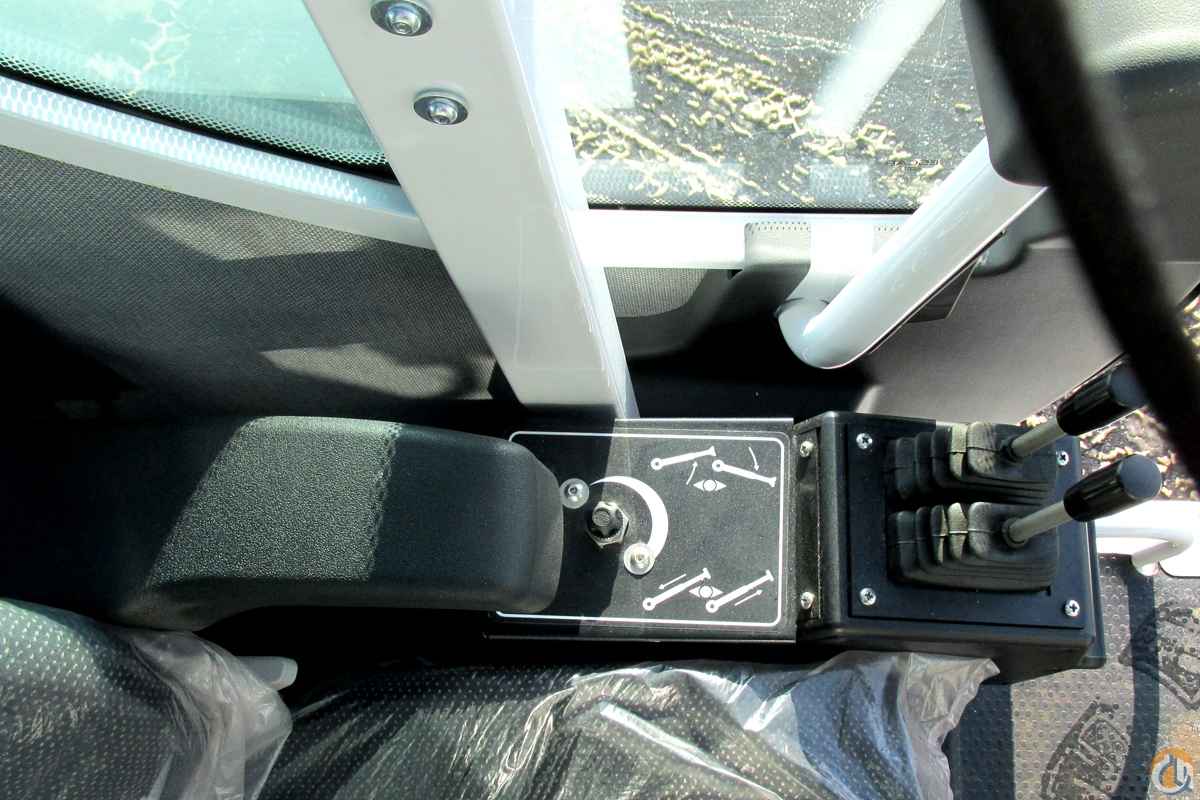

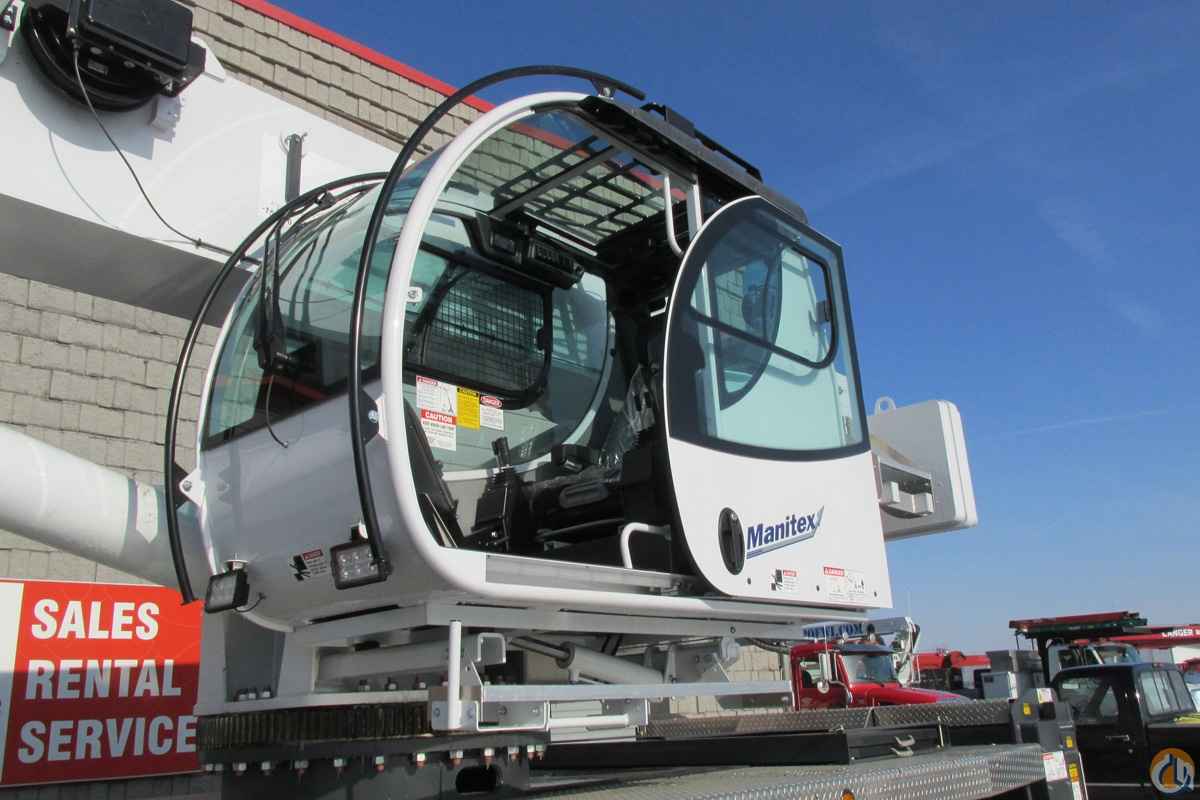

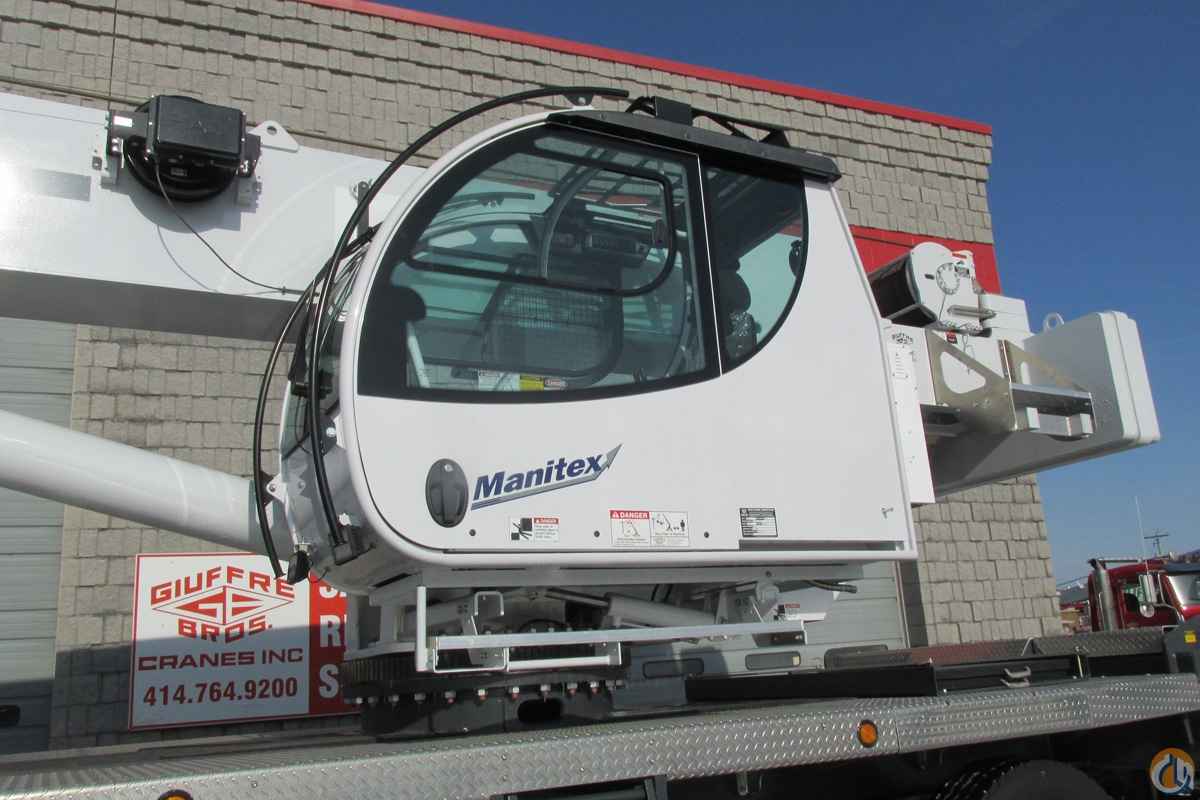

TILTING CAB WITH HEATER, UPPER CAB GUARD & WINDSHIELD COVER,
400' 5/8" ROTATION RESISTANT WIRE ROPE,
3-SEC HYD PUMP W / HYD OIL COOLER,
2-SPEED WINCH MAX LINE SPEED 453 FPM,

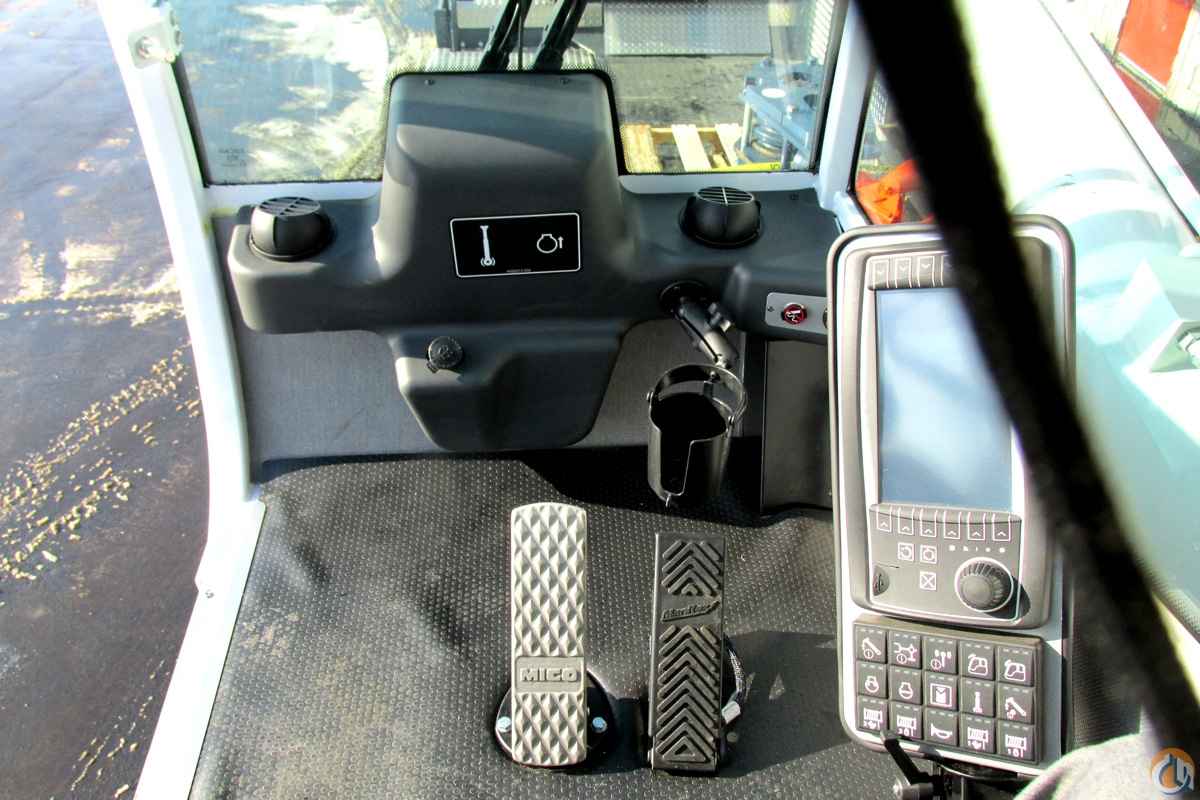

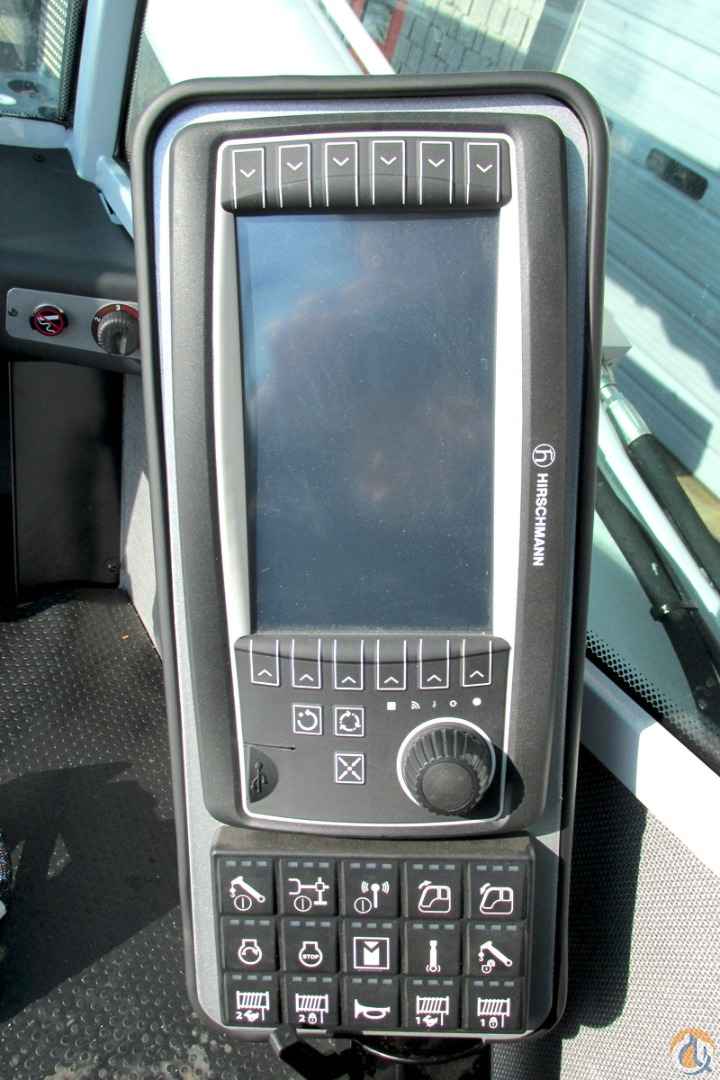

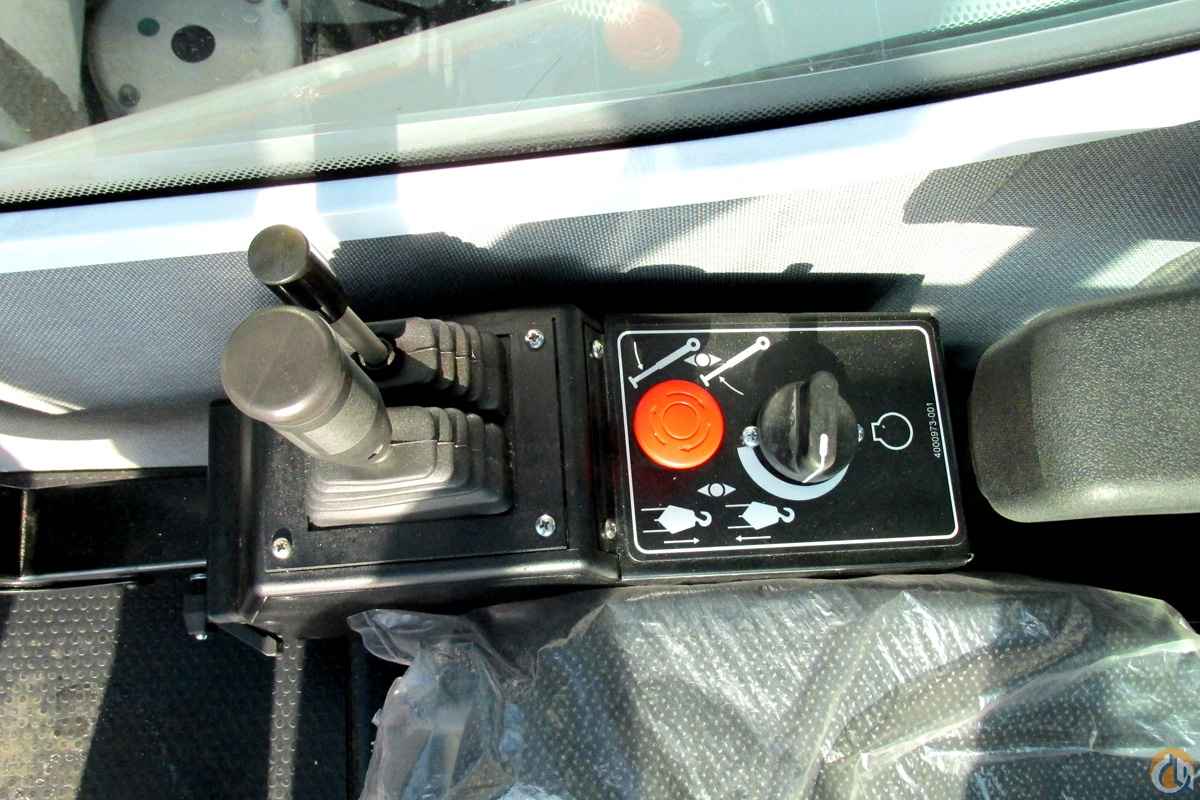

HARDWIRED LMI CRANE FUNCTION SHUT-OFFS FOR OVERLOAD PROTECTION WITH GRAPHIC VISUAL DISPLAY MONITOR,
360 DEGREE CONTINUOUS ROTATION,
HARDWIRED ATB WITH LOCKOUT PROTECT,
4 HYDRAULIC OUT-&-DOWN OUTRIGGERS,
LOAD CHARTS FOR FULLY EXTENDED / INTERMEDIATE / RETRACTED OUTRIGGERS,

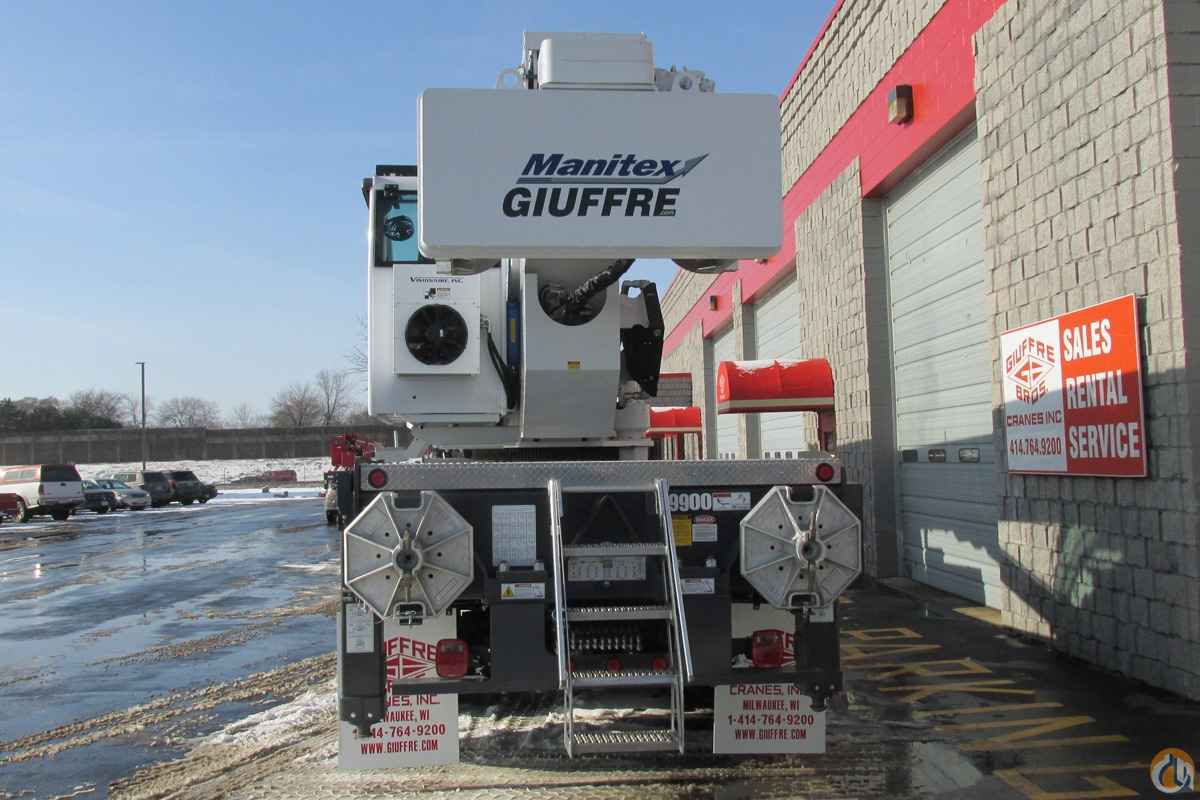

10FT STEEL BED & RETRACTABLE LADDERS,
PAINTED STD MANITEX COLORS,
ALL STANDARD EQUIPMENT,
STANDARD MANITEX FACTORY WARRANTY.
TRUCK

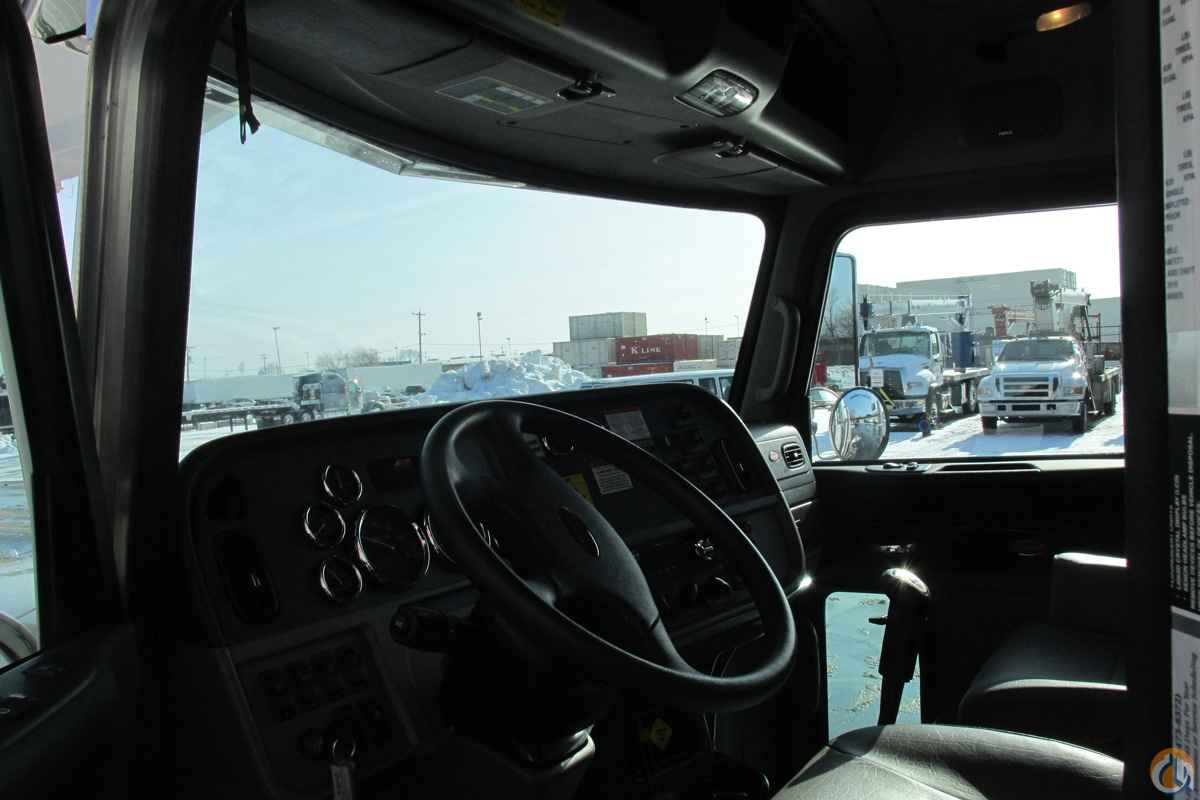

NEW 2017 PETERBILT MODEL 365,
500HP CUMMINS ISX12 TURBO-DIESEL ENGINE WITH JACOBS C-BRAKE,
102,500 LB G.V.W.R.,
20,000 LB FRONT STEER AXLE,
69,000 LB TRI-DEM REAR AXLE,
13,500 LB SELF-STEERING TAG AXLE,
DANA SPICER 20K FRONT AND T69 REAR AXLE SUSPENSION SYSTEM,
FULL STEEL INNER FRAME LINER,
AIR BRAKES W/ ANTI-LOCK BRAKING,
BENDIX SMART ATC TRACTION CONTROL,
AIR TRAC TRI-DRIVE 66K LBS WITH 2 DASH MOUNTED DUMP VALVES,
FULLER 16908LL 10-SPD MANUAL TRANS,
1650 LB-FT TORQUE,
425-65R22.5 FRONT TIRES,
11R-22.5 16 PLY REAR TIRES,
ALCOA ALUMINUM FRONT AND REAR,
TRI-DRIVE DIFFERENTIAL LOCKING,
SHEPPARD M100 POWER STEERING,
BENDIX AD-IS EP AIR DRYER W/ HEATER,
3 OPTIMA BATTERIES 2700 CCA,
PACCAR 130 AMP ALTERNATOR,
PHILLIPS IMMERSION TYPE ENGINE BLOCK HEATER 110-120V,
PACCAR 12 VOLT STARTER,
26" ALUMINUM 110 GAL FUEL TANK (LH),
7 GAL D.E.F. TANK MOUNTED (RH),

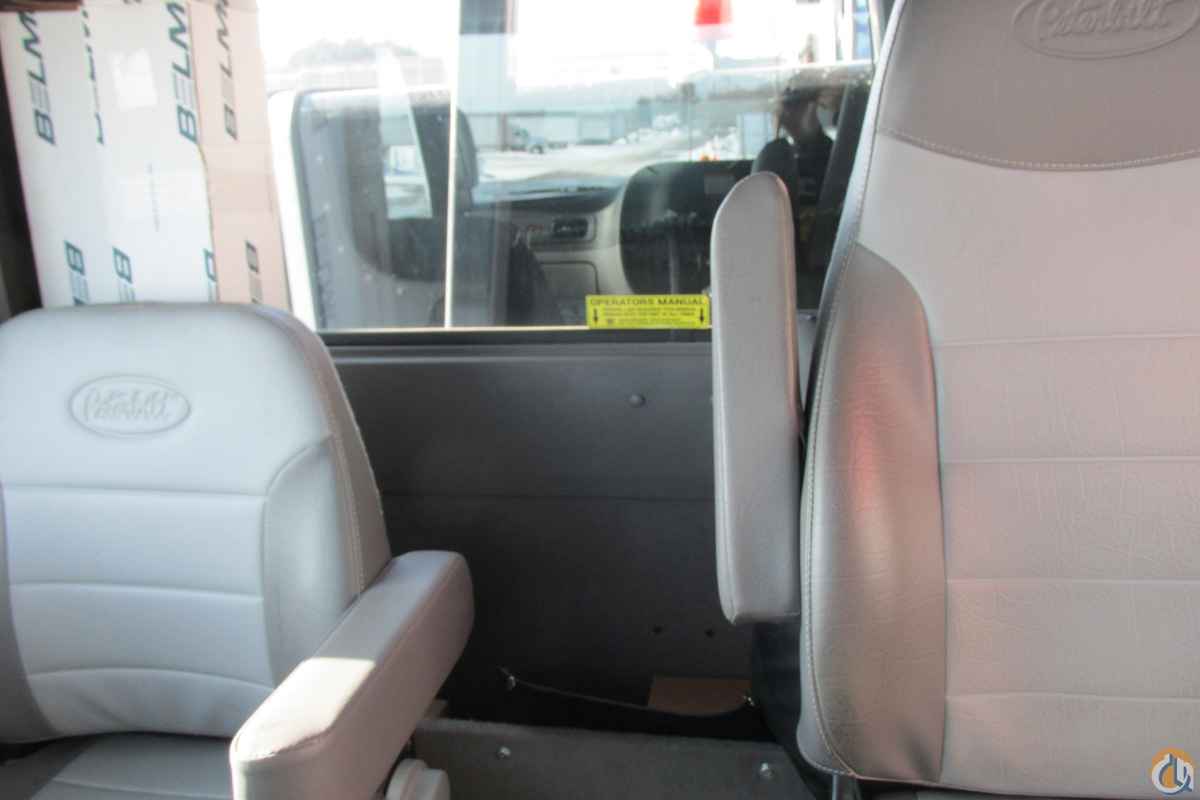

PETERBILT HIGH BACK AIR RIDE DRIVER AND ULTRARIDE PASSENGER SEATS,
POWER LOCKS/WINDOWS BOTH SIDES,
24.5" CHROME AIR HORN W/ SHIELD,
DUAL 7X16 HEATED MIRRORS W/ DUAL 8" STAINLESS CONVEX MIRRORS,
CONCERTCLASS AUDIO SYSTEM W/ BT,
AM/FM/WB AUDIO W/ BT PHONE AND USB,
OUTSIDE STAINLESS STEEL SUN VISOR,
FIRE EXTINGUISHER AND TRIANGLE KIT,
TINTED WINDOWS SIDES AND REAR,

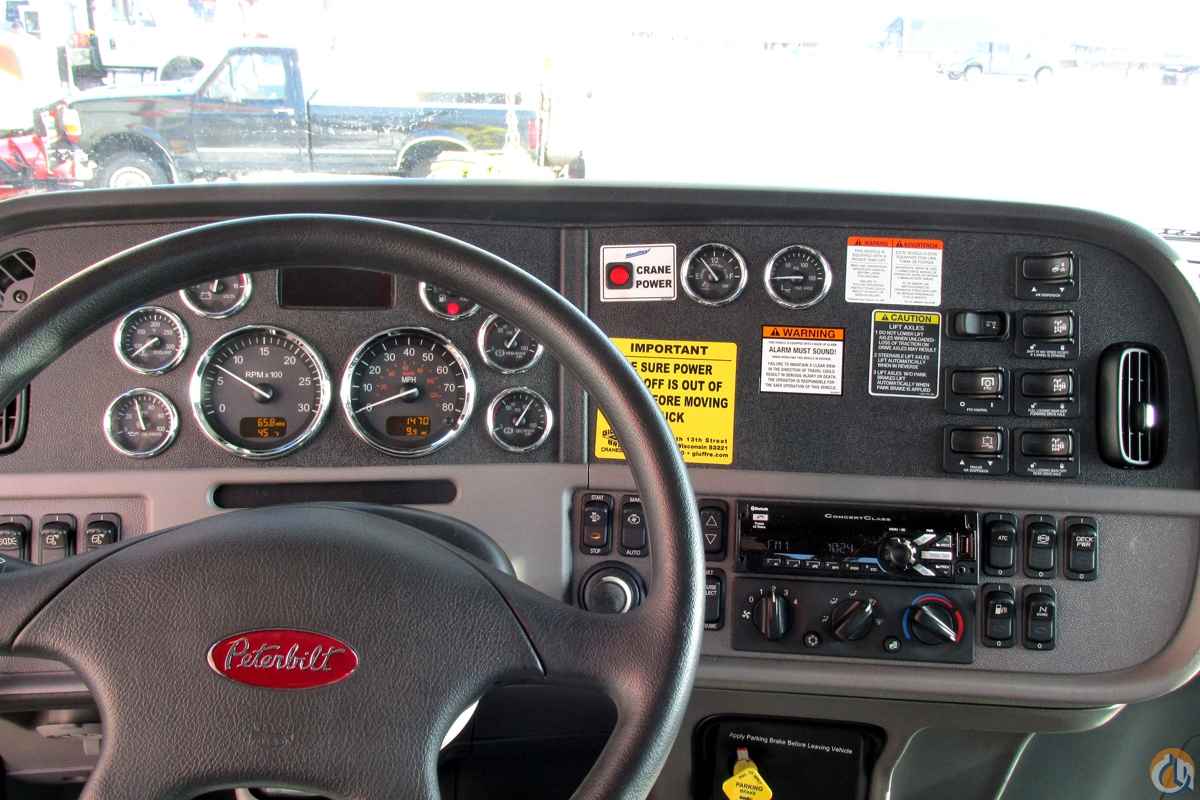

BRIGHT BEZEL GAUGES,
PAINTED PETERBILT/DUPONT WHITE,
STD KENWORTH FACTORY WARRANTY.
