STANDARD FEATURES

2-speed Hoist w/ Grooved Drum Roller Tensioner

5 Ton (4.5mt) Hook and Ball

4-Load Sheave Quick Reeve Boom Head

Hard Wired Anti-Two Block w/ Lockout

Boom Hoist Cylinder

System Pressure Gauge

360° Area of Operation

Continuous Rotation

Tilting Cab w/Heater & Windshield Cover

Removable Boom Rest

Engine Start/Stop

Operator's Service/Parts Manuals

Boom Length and Angle Indicators

Electronic Throttle

Free Swing

Hydraulic Rotation Drum Indicator

3-Section, Vane Pump

Bubble Level

Signal Horn

Diamond Plated Aluminum Decking

Audible Outrigger Motion Alarm

Turret, Rotation Bearing & Swing System -Mechanical Houselock

New Load Moment Indicator - Full Visual/Audio Capacity Alert w/Shutoff

ROC Solid outriggers; 4 Out-And-down outriggers, 22’ (6.71m) over-all spread.  Features a Hand Held Radio Operated Controller and includes capacities for  Intermediate 13'4" (4.05m) and Retracted 7'2" (2.18m) Spreads.

Outrigger  Monitoring System -Verification Only

Front Bumper Stabilizer - for Short lower frame configurations

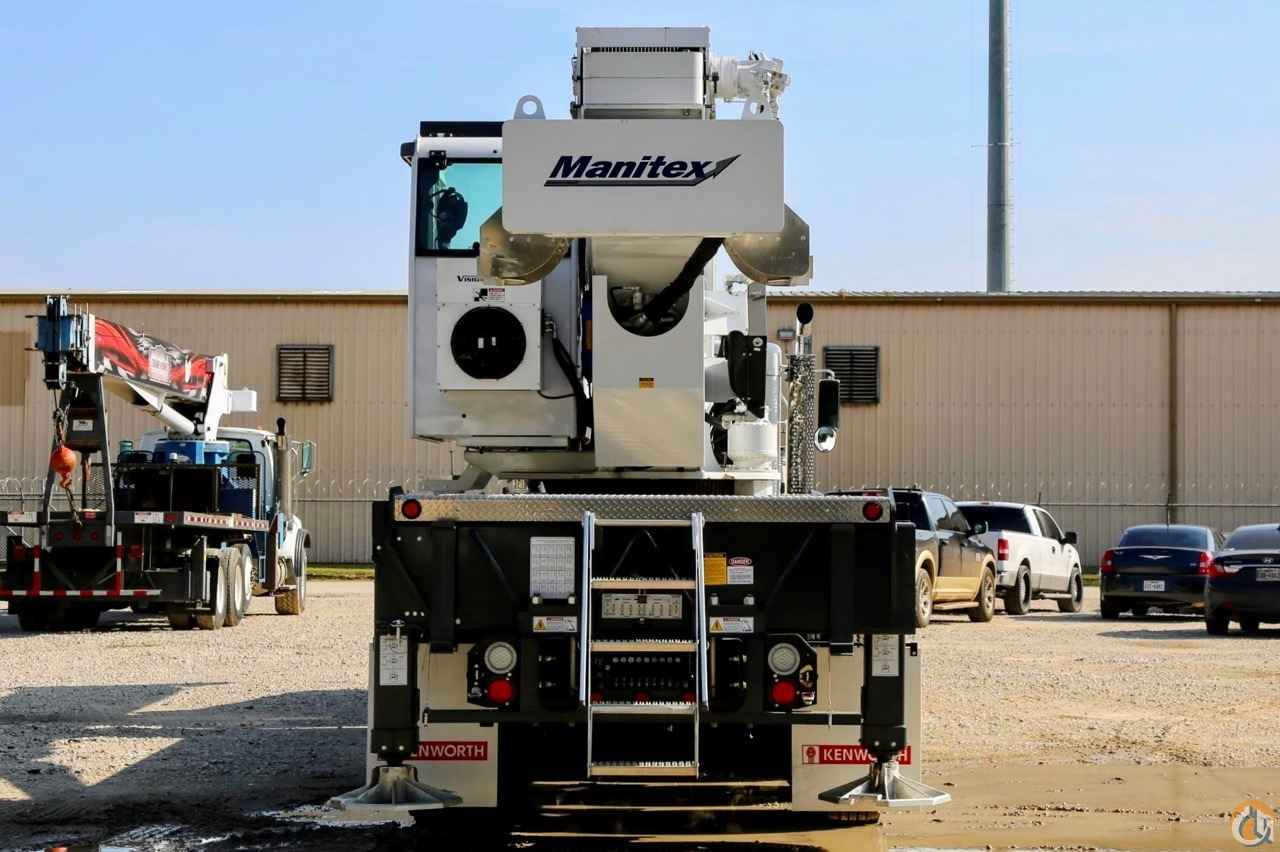

2 Retractable Ladders for Easy Access to Deck

Aluminum Step Ladder - Deck mounted, multi-position

Oil Cooler

INCLUDED ITEMS

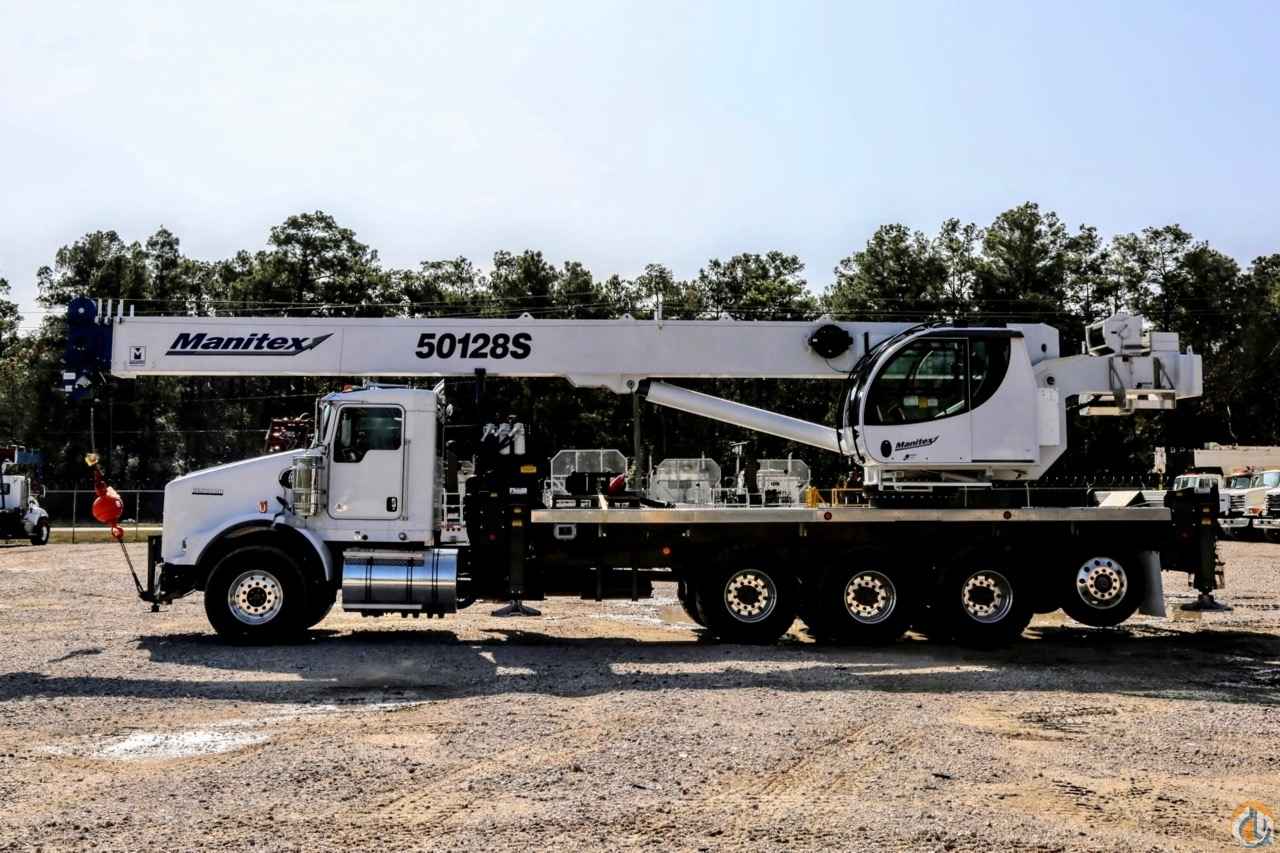

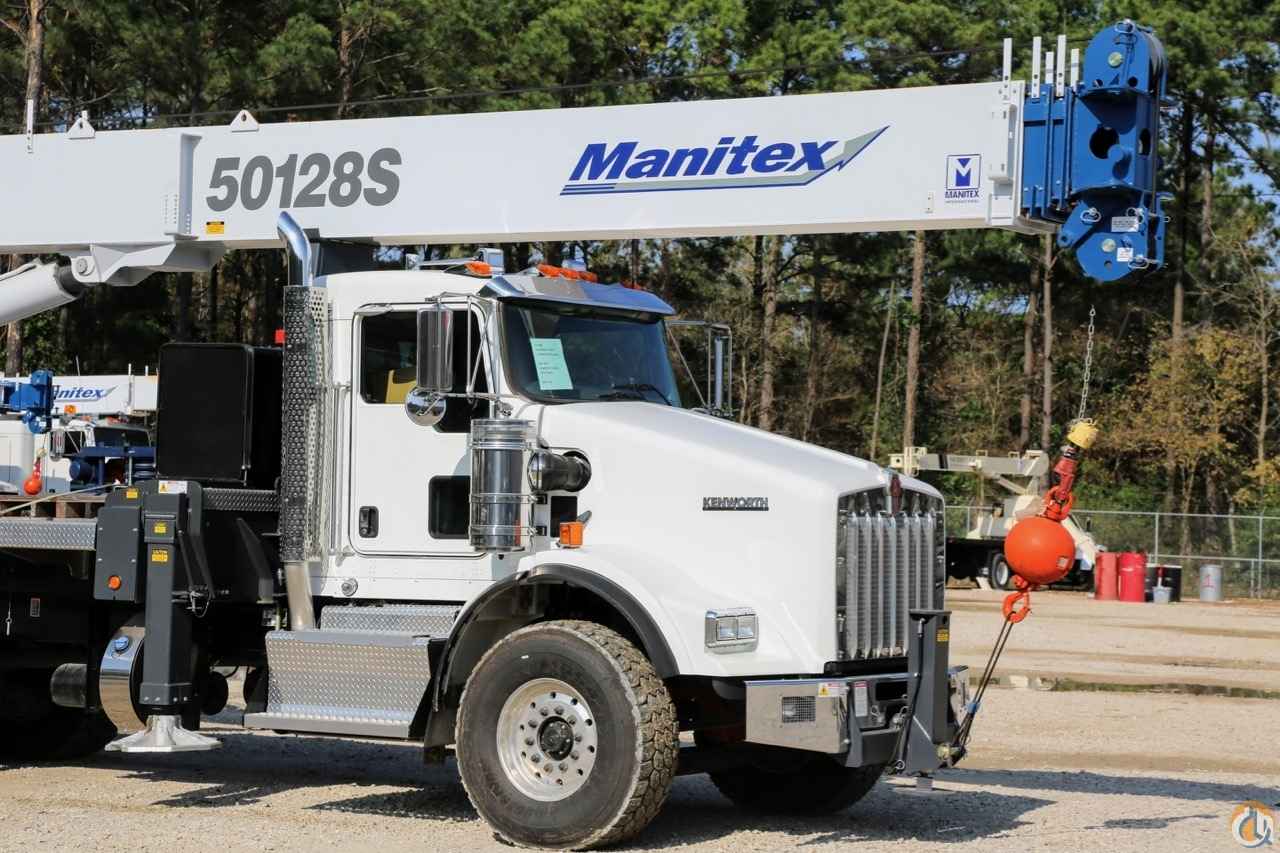

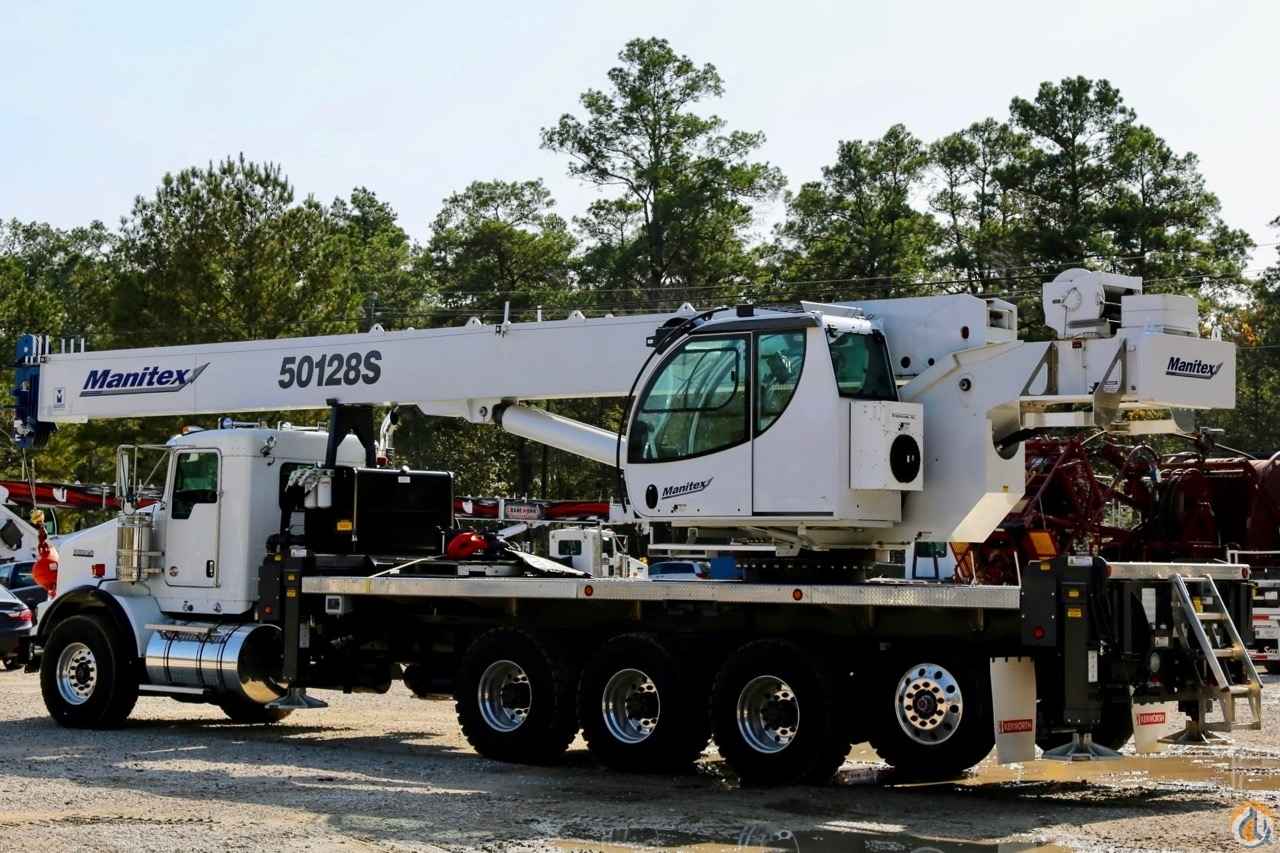

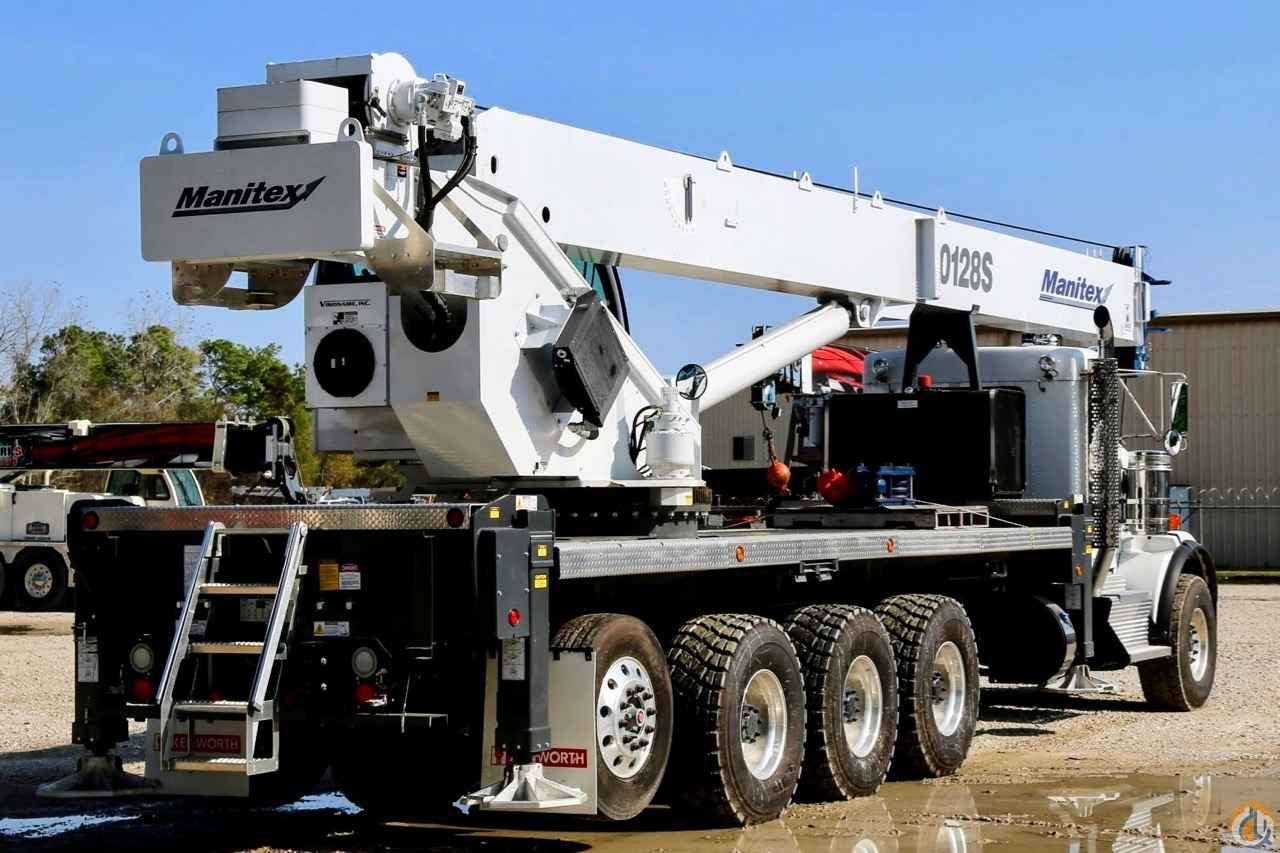

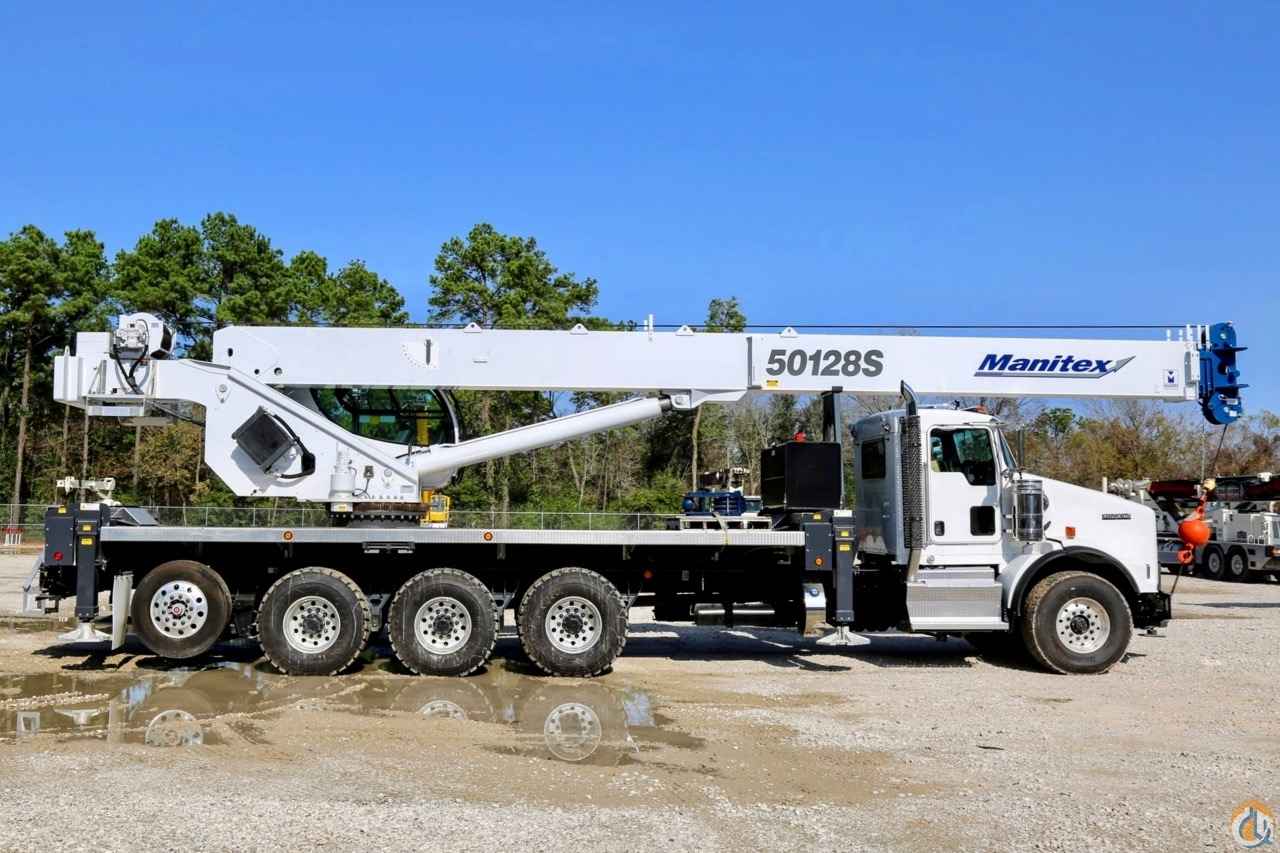

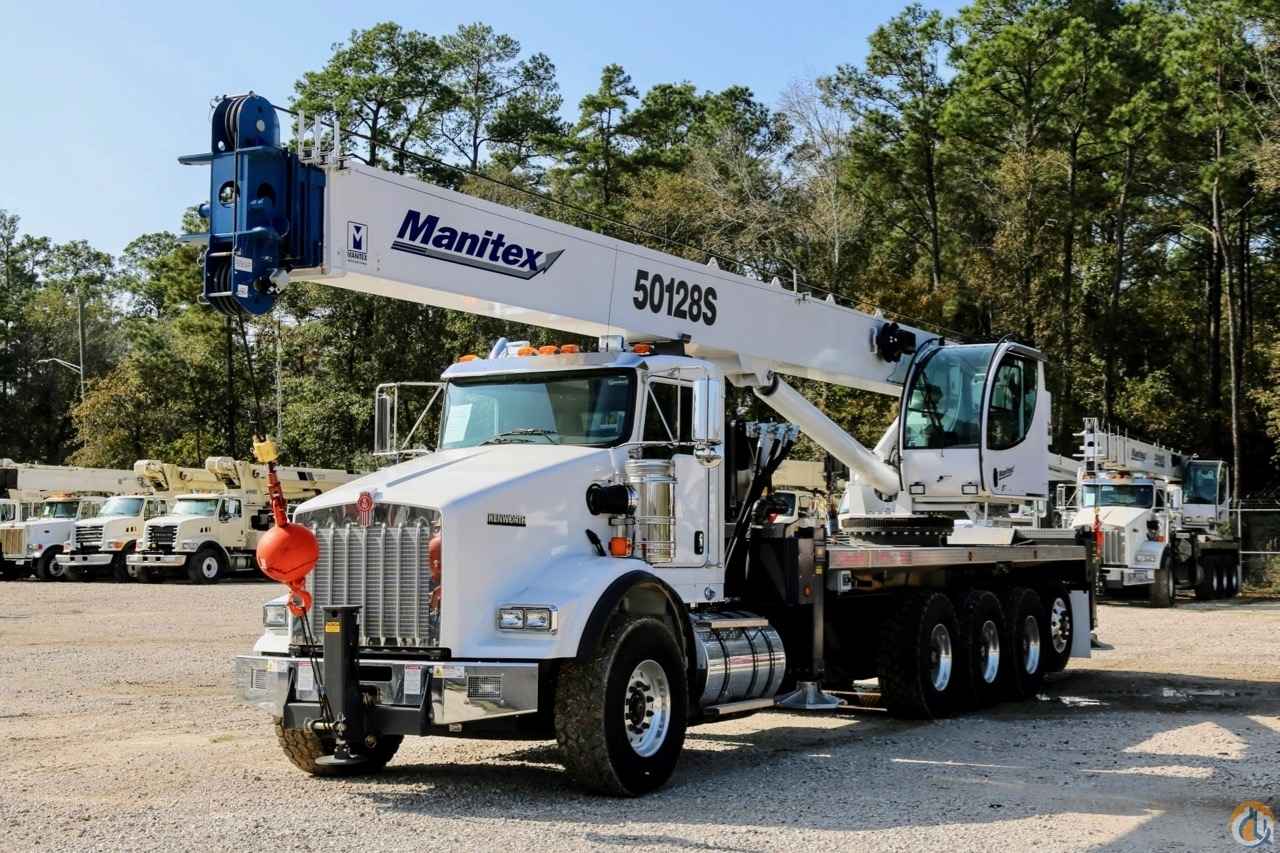

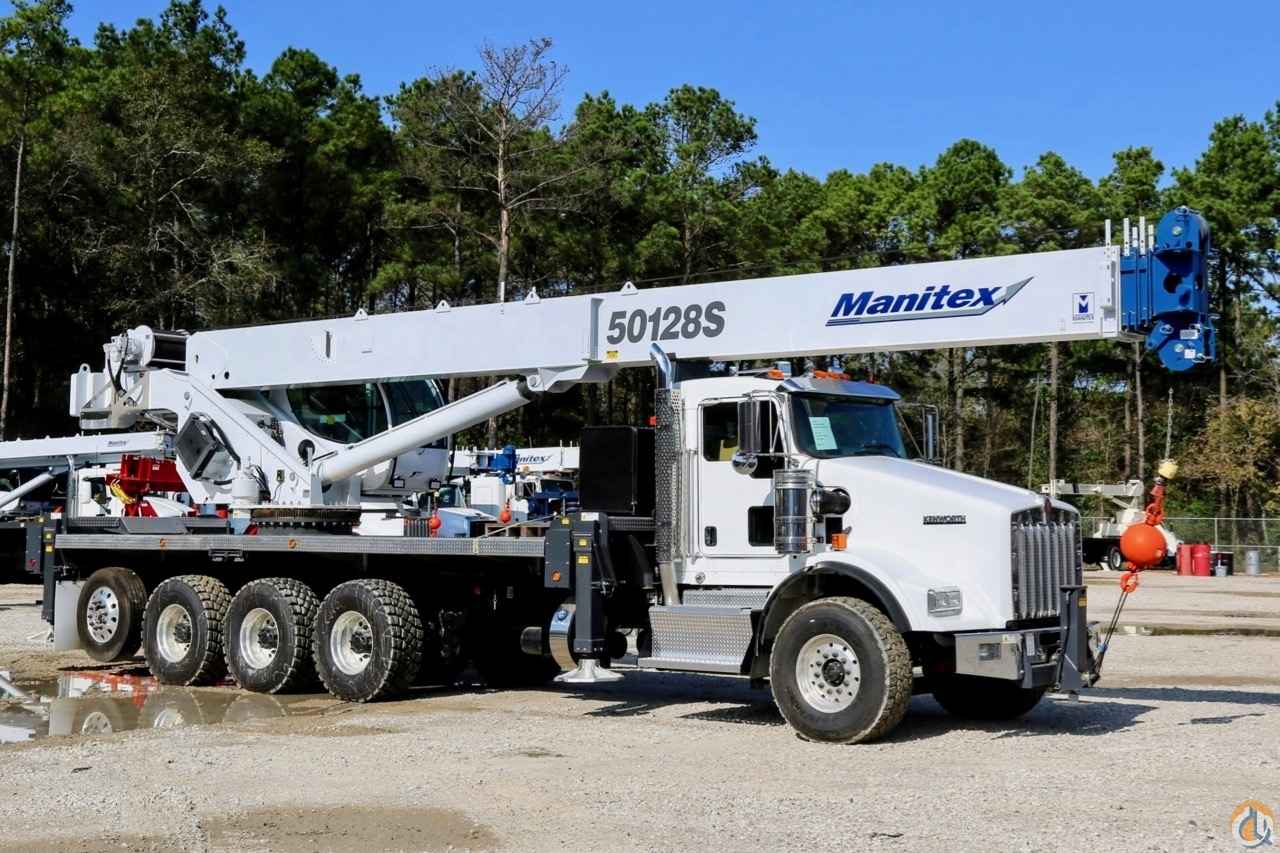

5004.01C,  50128S w/ 128’, 4 Section Boom

32' Retracted 49' Extended Tele Offset Jib Hard Wired ATB (G)  5096/50110/50128 Boom

Free Swing / No Free Swing Option w/ High Torque Swing drive

New Style Tilting Operator’s Cab with Heat & A/C

Standard Mount Installation

Front Bumper Stabilizer

Front Bumper Stabilizer mounting Bracket

35 Ton, 3 Sheave Hook Block for 1 – 7 Part Line

Truck Telemetry ( engine monitoring system )

Upper Hatch Guard

TRUCK

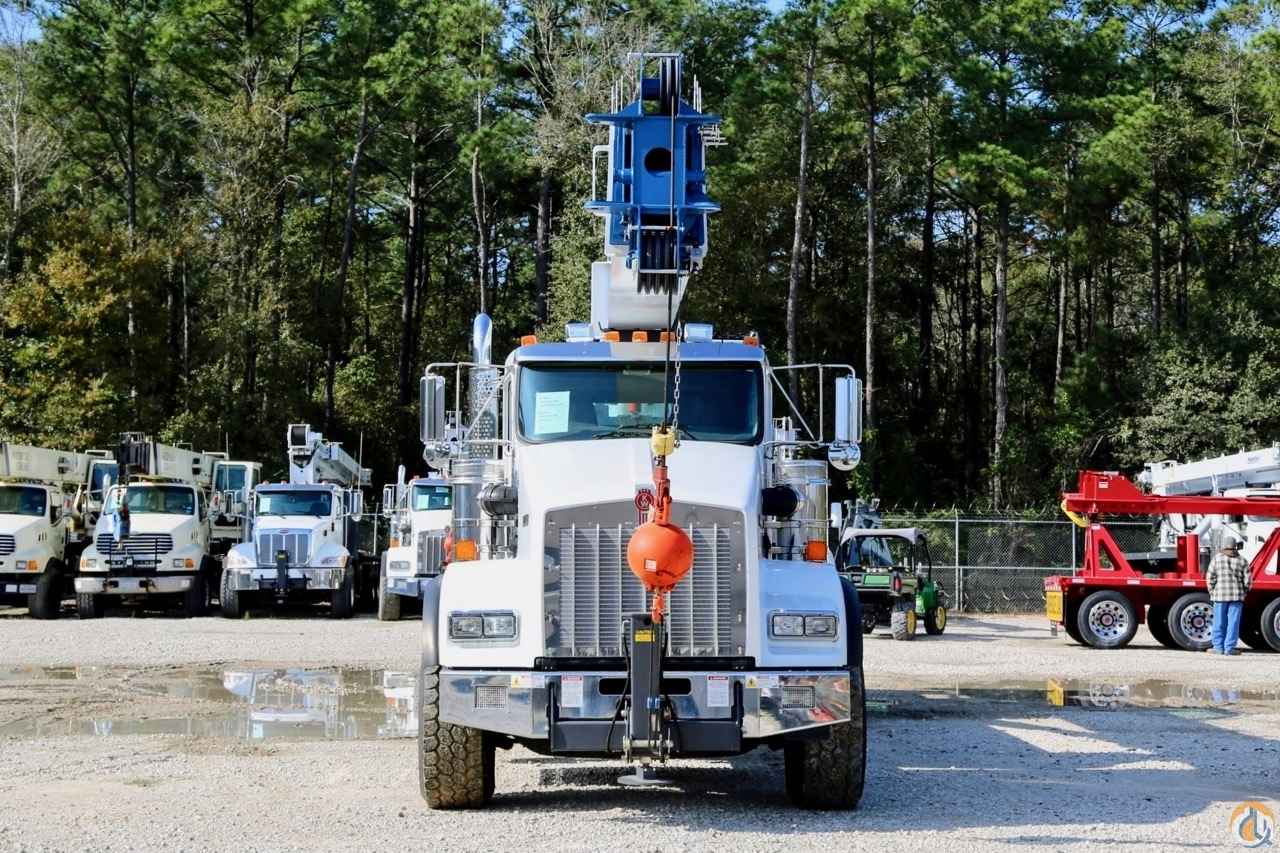

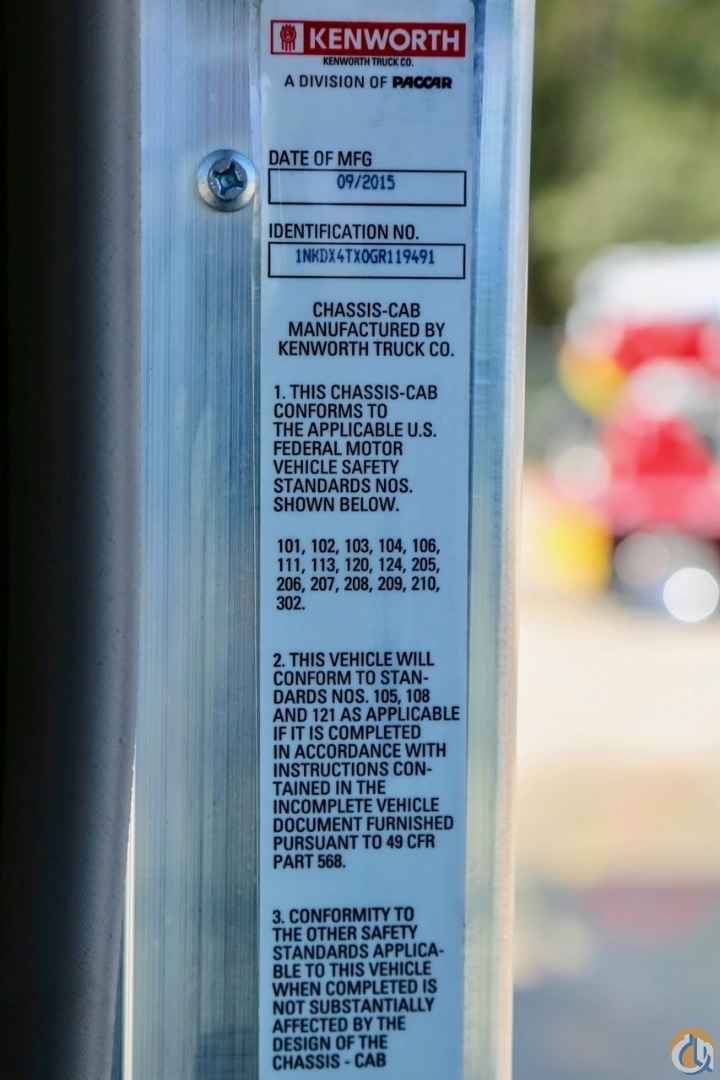

2018 Kenworth T-880 Daycab

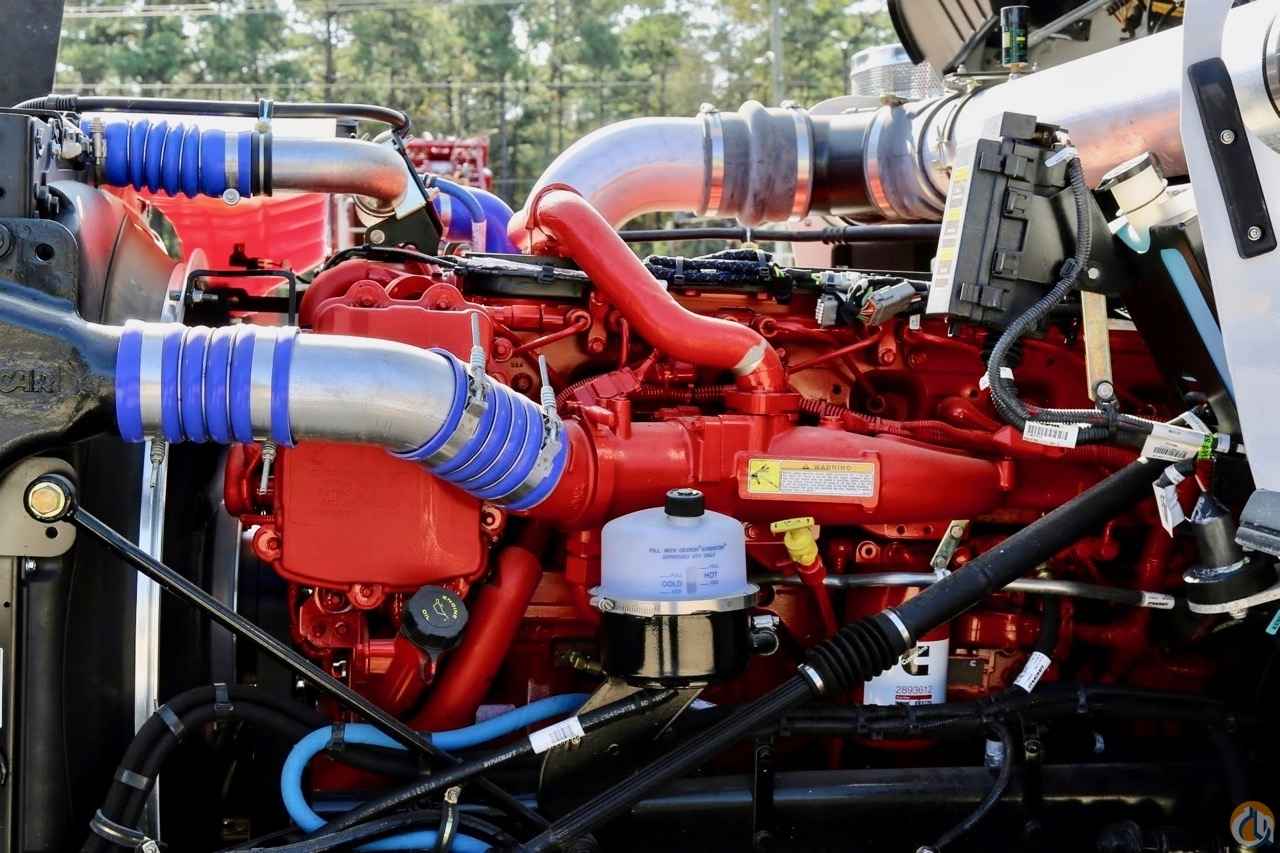

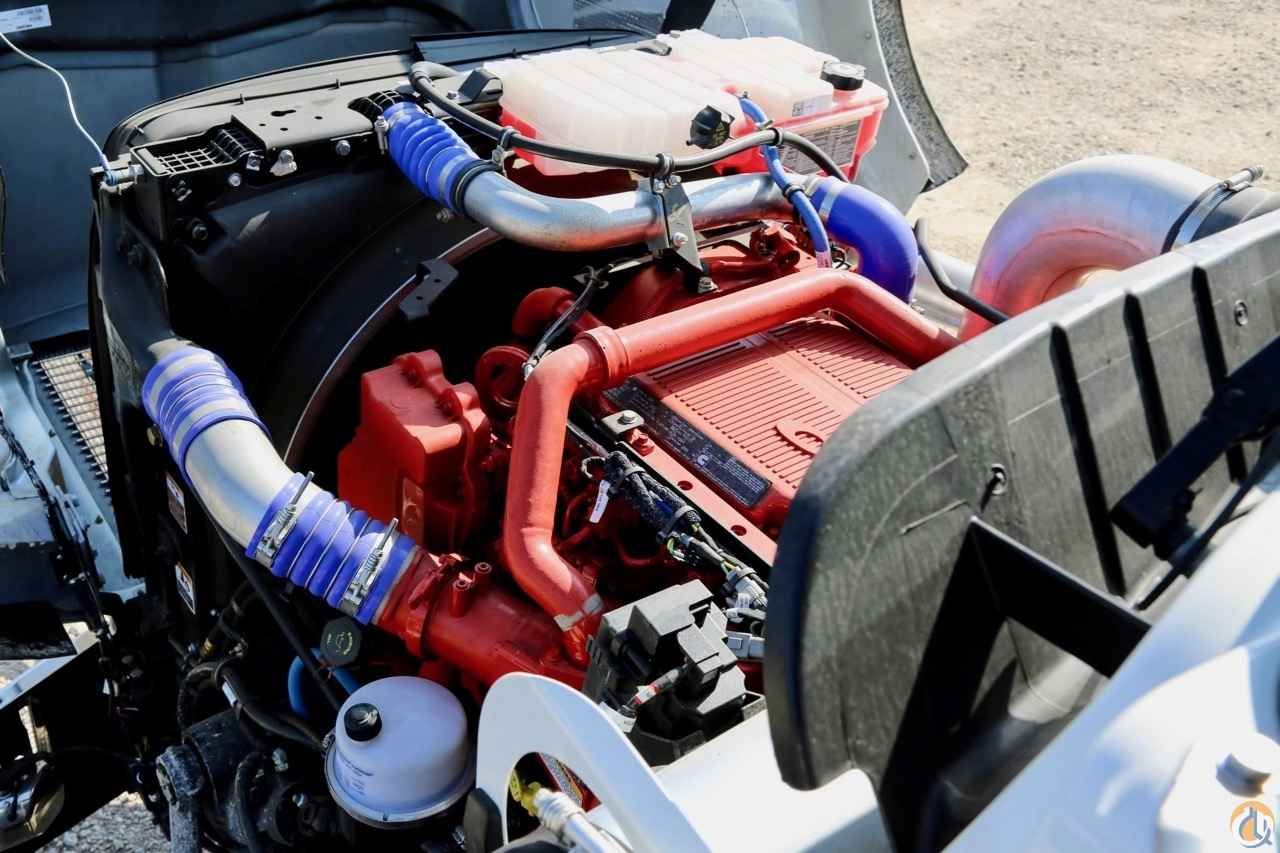

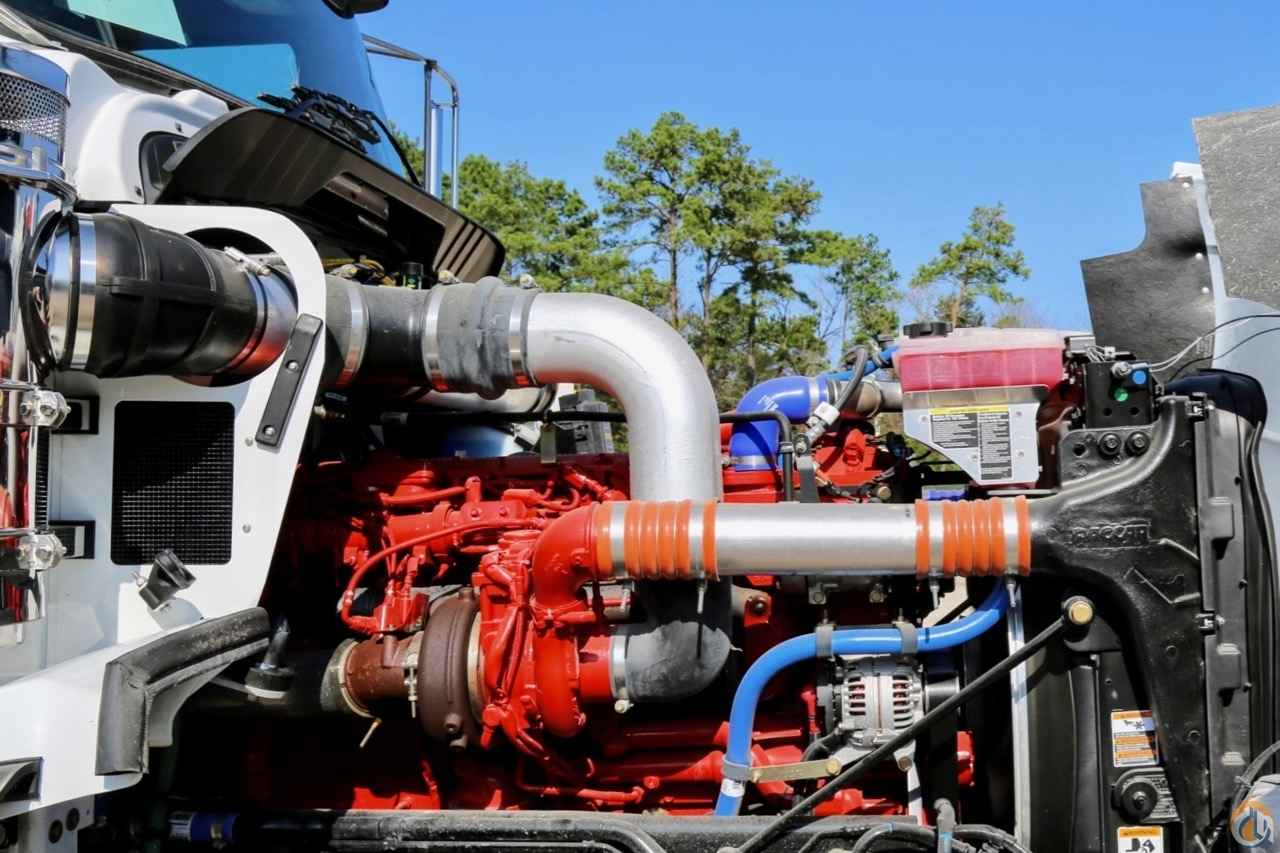

Cummins ISX15 500hp

Eaton FO16E318B Ultrashift automated manual 18sp. transmission

Dana Spicer D2200 front axle rated 22k

Dana Spicer T69-170 Tridem rear axle rated 69k

Neway ADZ369 vocational air suspension rated 69k

Watson Chalin non-steerable tag axle rated 23k

Diff Locks all Three Axles

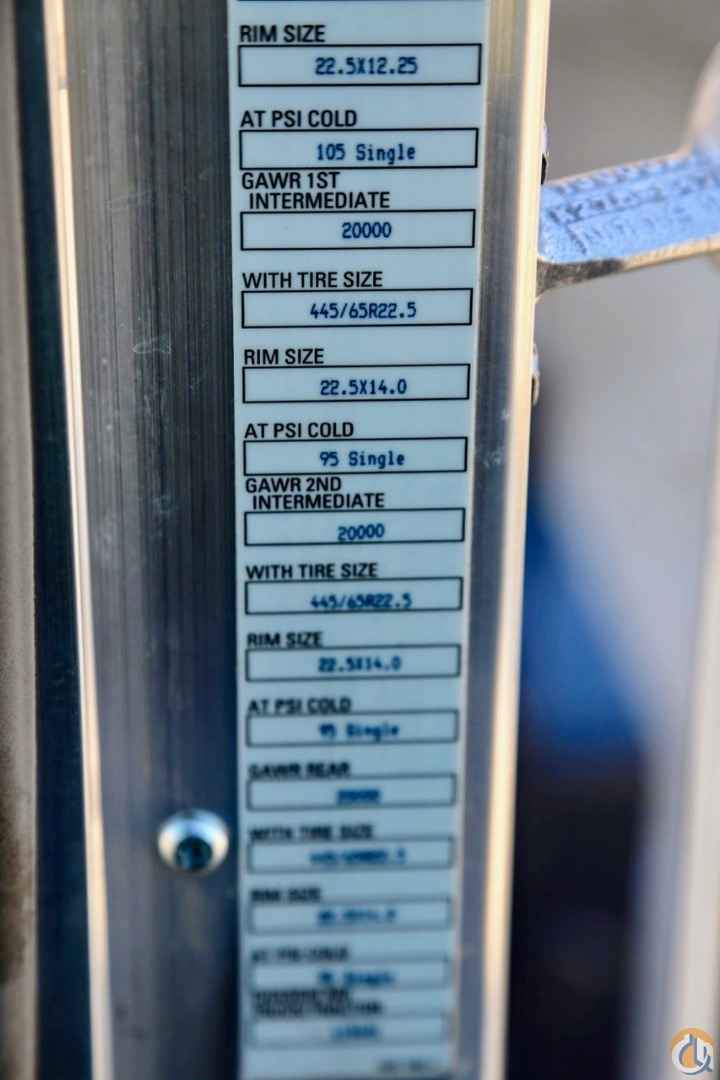

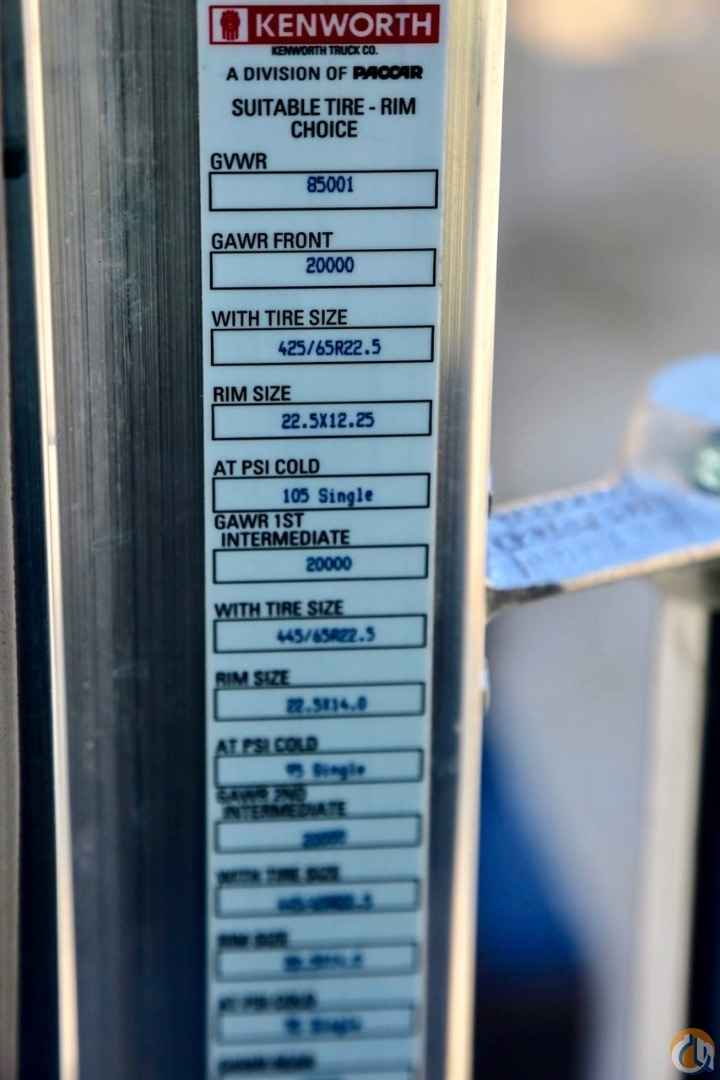

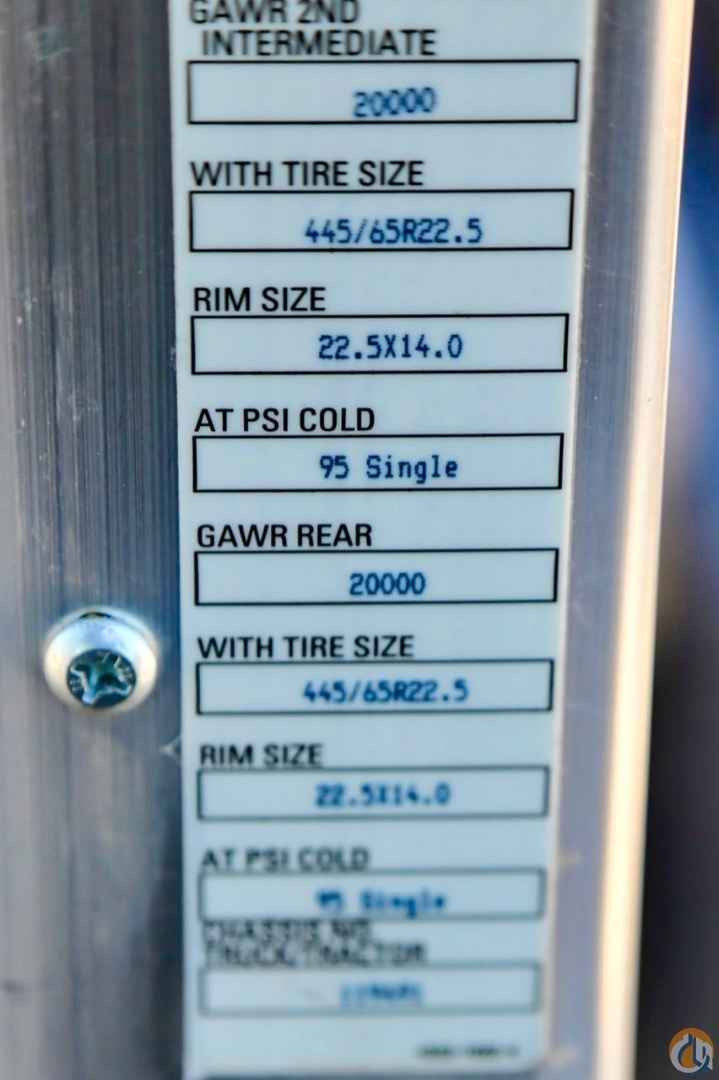

Front Tires: 445/65R 22.5 on alum wheels

Rear Tires: 445/65R 22.5 on alum wheels

295/75R22.5 tires on tag axle with alum wheels

Single 90 gal. fuel tank LH under cab

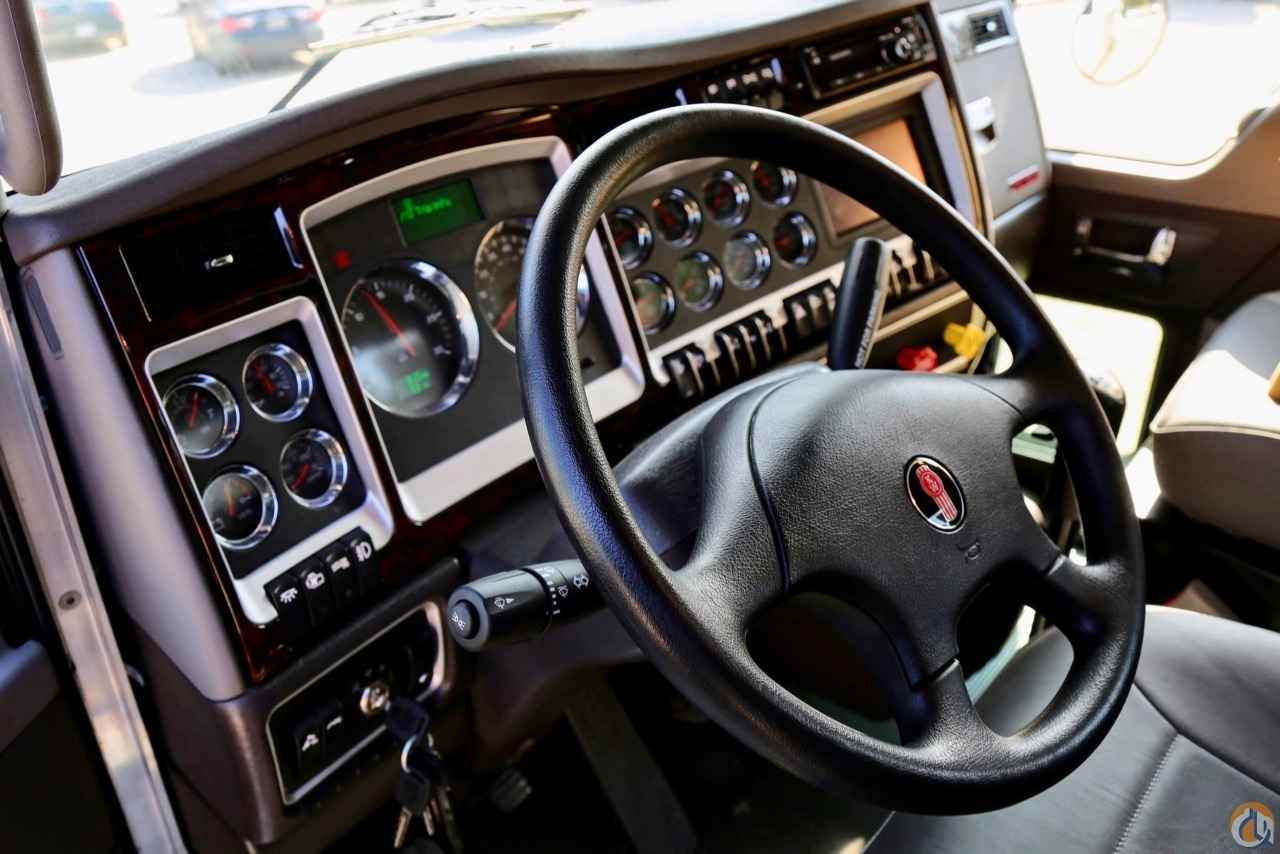

Diamond VIT interior w/ GPS & Sat. radio
