NEW TC SERIES 45 TON 207 TIP HEIGHT Crane for Sale in Milwaukee Wisconsin on CraneNetwork.com
Your Price:
Please call 877-387-9598 or
email the seller for current pricing
Equipment Specifications:
Year:
2019
Boom/Jib:
142 / 55
Capacity:
45.00
Condition:
New
Unit #:
100XX
Serial #:
237882
Hours:
Inquire
Location:
Milwaukee, Wisconsin, USA
Seller Contact:
Giuffre Bros. Cranes, Inc.
Daniel Lyrenmann
877-387-9598
877-321-3710 - Parts Dept (alt)
414-764-8180 (fax)
www.giuffre.com
6635 South 13th Street, Milwaukee, WI 53221, USA
Seller Notes:

COME VISIT US HERE IN MILWAUKEE, WI – OUR HEADQUARTER LOCATION IS CONVENIENTLY LOCATED JUST 5 MINUTES FROM THE AIRPORT!!

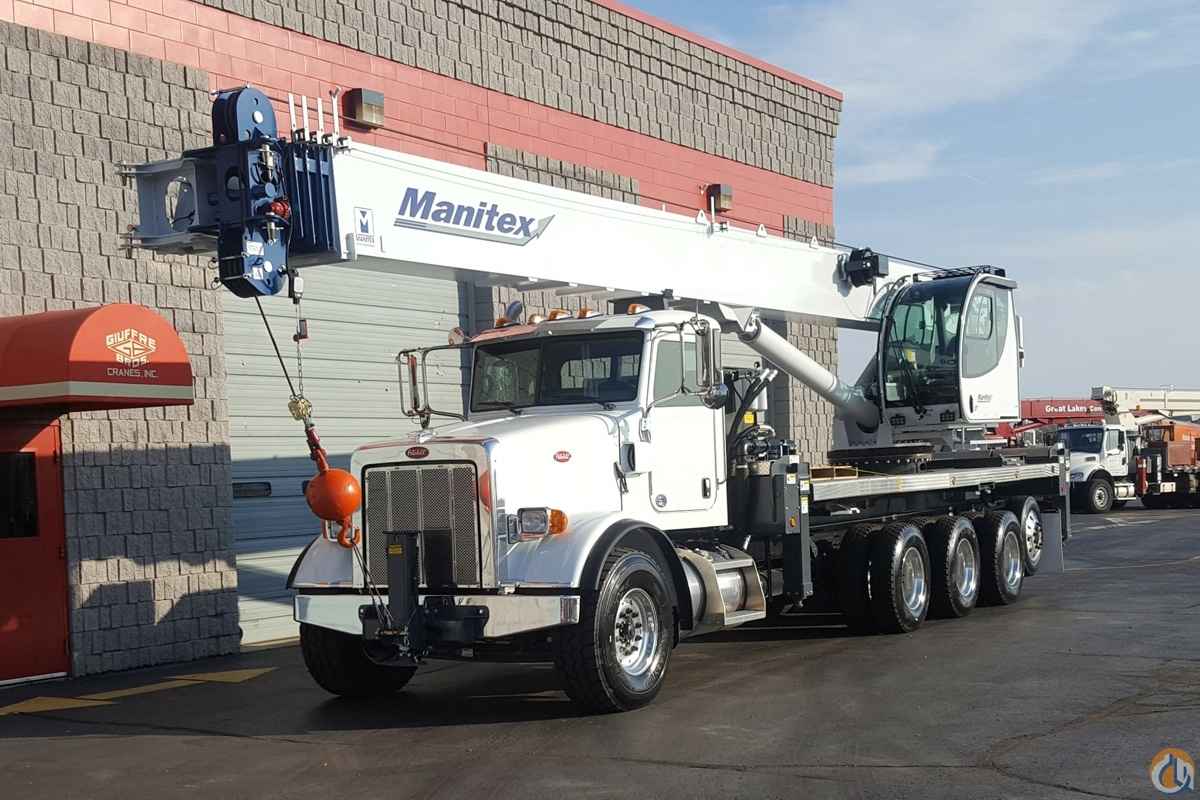

CRANE

MANITEX TC45142,

45 TON CAPACITY @ 6FT RADIUS,

142 FT 5-SECTION TELESCOPIC BOOM,

6-SHEAVE QUICK REEVE BOOM HEAD,

207 FT TIP HEIGHT WITH 55 FT JIB,

TILTING CAB WITH HEATER, AIR CONDITIONER UPPER CAB GUARD & WINDSHIELD COVER,

500' 5/8" ROTATION RESISTANT WIRE ROPE,

COMBINED FREE SWING/NO FREE SWING,

2-SPEED WINCH MAX LINE SPEED 453 FPM,

LMI SYSTEM W/ CRANE FUNCTION SHUT-OFFS FOR OVERLOAD PROTECTION WITH GRAPHIC

VISUAL DISPLAY MONITOR,

360 DEGREE CONTINUOUS ROTATION,

HARDWIRED ATB WITH LOCKOUT PROTECT,

4 HYDRAULIC OUT-&-DOWN OUTRIGGERS,

LOAD CHARTS FOR FULLY EXTENDED / INTERMEDIATE / RETRACTED OUTRIGGERS,

DIAMOND PLATED ALUMINUM DECKING,

PAINTED STD MANITEX COLORS,

ALL STANDARD EQUIPMENT,

STANDARD MANITEX FACTORY WARRANTY.



TRUCK

NEW 2019 PETERBILT MODEL 567,

500HP CUMMINS ISX12 TURBO-DIESEL ENGINE WITH JACOBS C-BRAKE,

102,500 LB G.V.W.R.,

20,000 LB FRONT STEER AXLE,

69,000 LB TRI-DEM REAR AXLE,

13,500 LB SELF-STEERING TAG AXLE,

DANA SPICER 20K FRONT AND T69 REAR AXLE SUSPENSION SYSTEM,

FULL STEEL INNER FRAME LINER,

AIR BRAKES W/ ANTI-LOCK BRAKING,

BENDIX SMART ATC TRACTION CONTROL,

AIR TRAC TRI-DRIVE 66K LBS WITH 2 DASH MOUNTED DUMP VALVES,

FULLER FO16E308LL-VCS 10-SPEED ULTRASHIFT PLUS TRANSMISSION,

1650 LB-FT TORQUE,

425-65R22.5 FRONT TIRES,

11R-22.5 16 PLY REAR TIRES,

ALUMINUM FRONT AND REAR WHEELS,

TRI-DRIVE DIFFERENTIAL LOCKING,

SHEPPARD M100 POWER STEERING,

3 OPTIMA BATTERIES 2700 CCA,

PACCAR 160 AMP ALTERNATOR,

PHILLIPS IMMERSION TYPE ENGINE BLOCK HEATER 110-120V,

PACCAR 12 VOLT STARTER,

26" ALUMINUM 110 GAL FUEL TANK (LH),

7 GAL D.E.F. TANK MOUNTED (RH),

PETERBILT HIGH BACK AIR RIDE DRIVER AND ULTRARIDE PASSENGER SEATS,

POWER LOCKS/WINDOWS BOTH SIDES,

24.5" CHROME AIR HORN W/ SHIELD,

DUAL 7X16 HEATED MIRRORS W/ DUAL 8" STAINLESS CONVEX MIRRORS,

CONCERTCLASS AUDIO SYSTEM W/ BT,

AM/FM/WB AUDIO W/ BT PHONE AND USB,

OUTSIDE STAINLESS STEEL SUN VISOR

FIRE EXTINGUISHER AND TRIANGLE KIT,

TINTED WINDOWS SIDES AND REAR,

BRIGHT BEZEL GAUGES,

PAINTED PETERBILT/DUPONT WHITE,

STD KENWORTH FACTORY WARRANTY.



WE TAKE TRADE-INS ON PURCHASES!!!



Please contact us at 1-877-321-3710 with any questions or inquiries







***************************************
