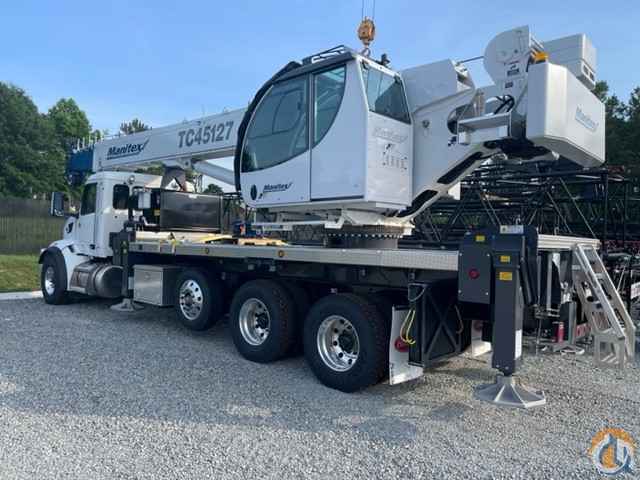

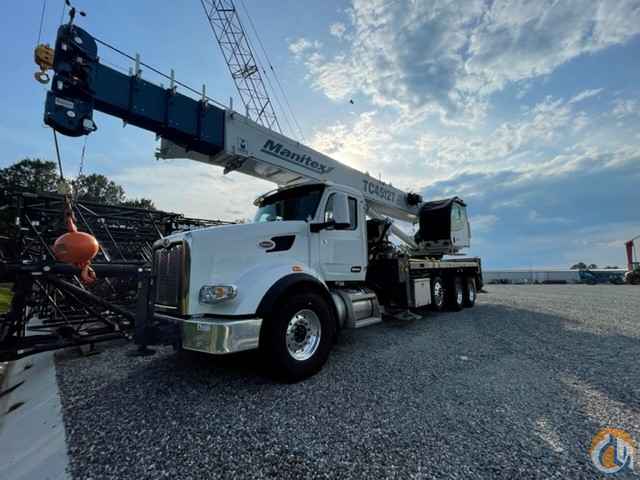

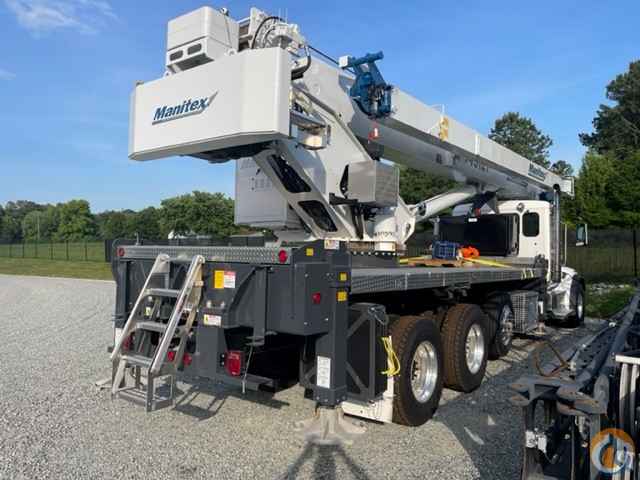

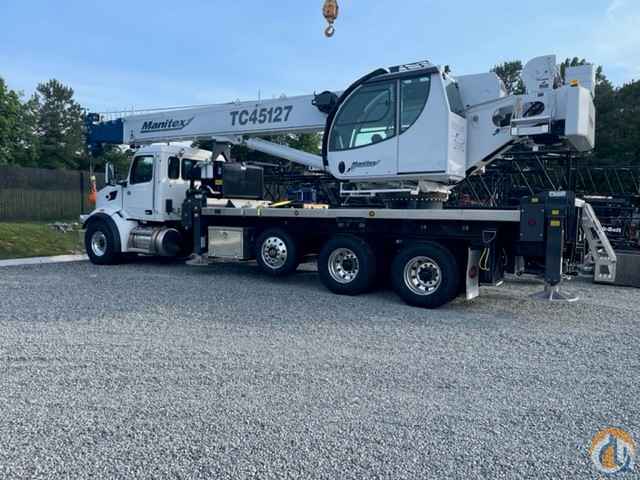

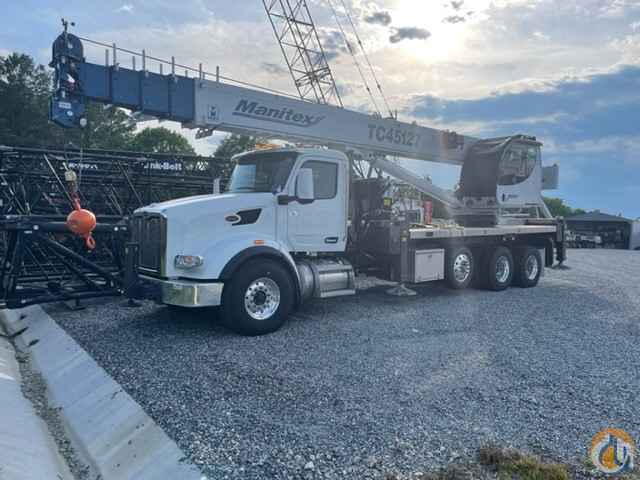

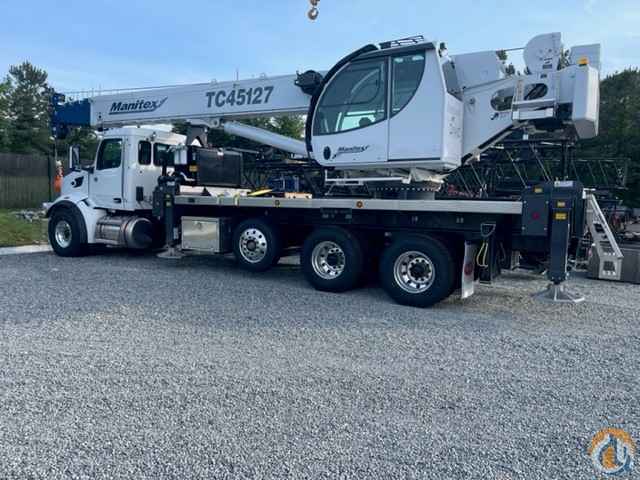

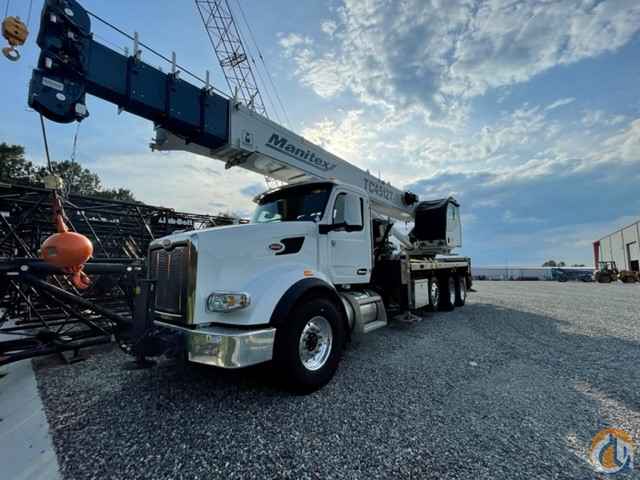

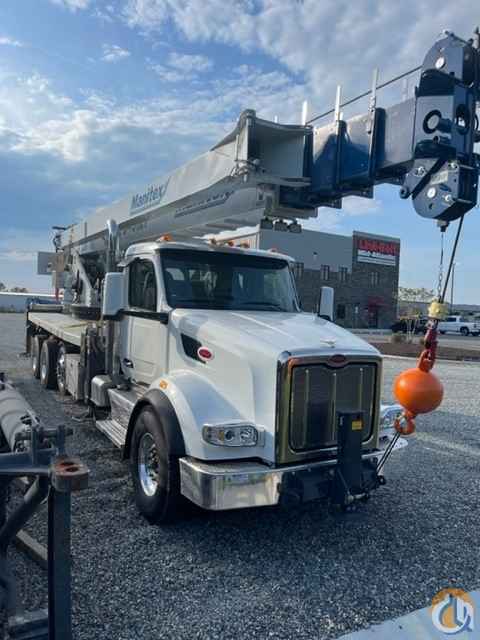

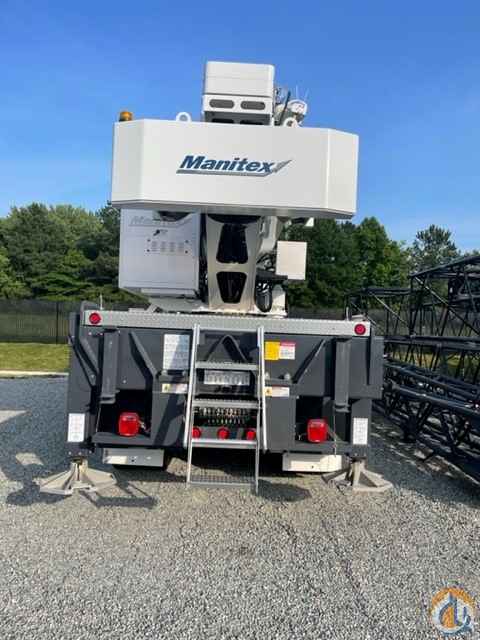

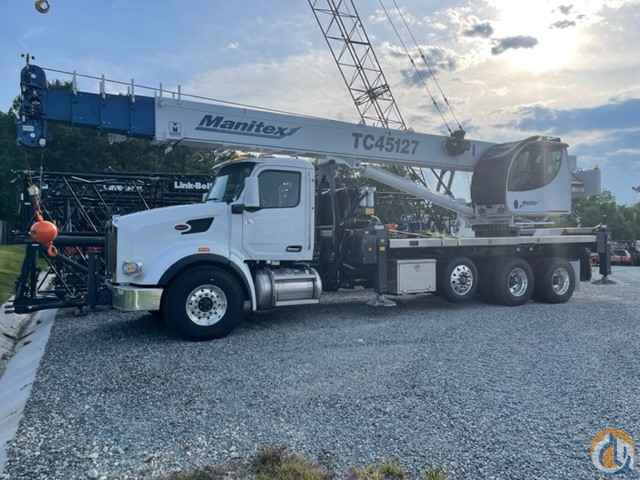

One—2022 MANITEX MODEL TC-45127

45 Ton Truck Mounted Crane equipped as follows:

CRANE STANDARD

5- section, 127’ Proportional Telescopic Main Boom

2 Speed Main Hoist, Grooved Drum, Rope Tensioner

500’ of 5/8” Rotation Resistant Wire Rope

Audible Outrigger Motion Alarm

155 Gallon Hydraulic Reservoir with suction strainer, valve

Outrigger Monitoring System for Verification Only

Turret, Rotation Bearing, & Hi- Torque Swing System

Load Moment Indicator w/ Audio/ Visual Capacity / Shut-off

4- Out & Down Outriggers 24’ Maximum Spread

Capacities for Intermediate 17’6”, and Retracted 7’3”

2- Retractable Ladders 1-Aluminum Easy Access Ladder

1-Variable Displacement Pump / 1Gear Pump CCW Rotation

Aluminum Decking

Hydraulic Oil Cooler

Dual Axis-Electric over Hydraulic Programmable Controls in Cab

Digital Bubble level 1 -Liquid Level at rear

Aluminum Outrigger Floats - 22” Diameter

Bubble Level

ROC Solid Radio Remote Outrigger Controls / Valve for FBS

Operators / Parts/ Service Manuals

Boom Length and Angle Indicators

EQUIPMENT

3-load

7-ton Ball

2- Upper Idler / 4 Lower Sheave Quick-Reeve Boom nose

Hard Wired Anti-two block with Lockout

Boom Hoist Cylinder

Intermediate Subframe with 102” Platform

360 degrees Area of Operation

Continuous Rotation

Full Vision Cab, Integrated Electric Heat, A/C, 20-degree tilt

Removable Boom Rest

3 Engine Start / Stop

Free Swing/ No Free Swing Select Feature

Radio Remote ready

Remote Winch Control for Main Winch

Third Wrap Limit

Engine Monitoring System

Thumb Operated Electronic Throttle

Signal Horn

Standard Counterweight is 4,050 lbs

Heated Operator Seat

INCLUDED CRANE OPTIONS:

92

30.5’ – 55’ 2 Piece Jib with Hardwired Anti- Two Block

35-ton Hookblock 1-7 Parts of line

Short Subframe 102” Wide Platform Option

2-Toolboxes Aluminum 48” x 24” x 24” Chassis Mount

5^th Front Center Stabilizer

Cab mounted Strobe light

Standard Mounting

Boom Lighting Package

BRADEN Main Winch- Piston Motor

5 Cribbing Plates

2 Cribbing Storage Racks

Video Camera (Winch)

Wind Speed indicator

Hot Shift PTO

Current Annual Certification

For more information, contact Robert Greene at (703) 975-8200 or via email at rgreene@linkbelt.com
