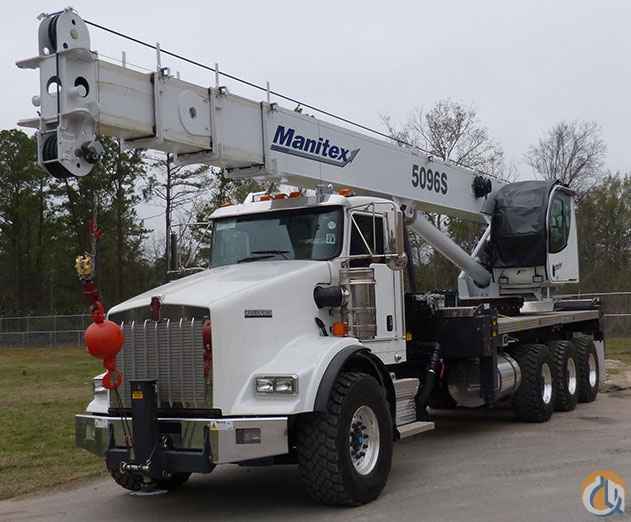

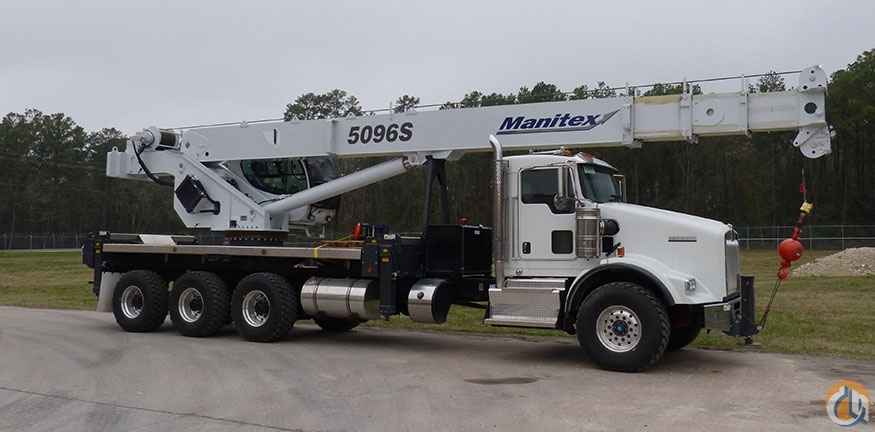

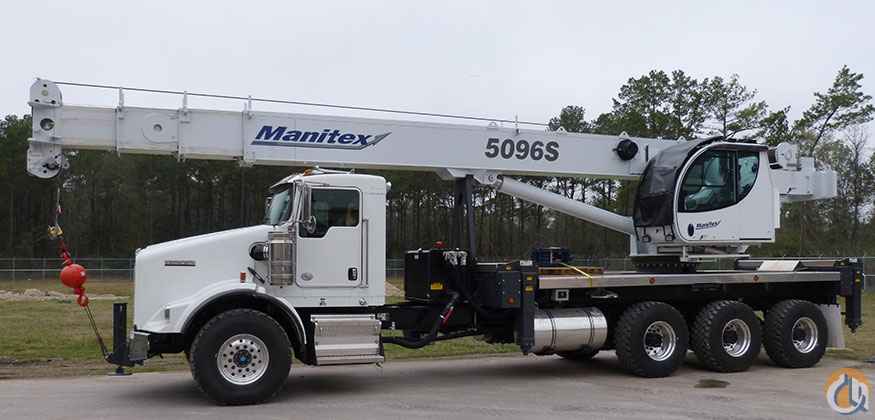

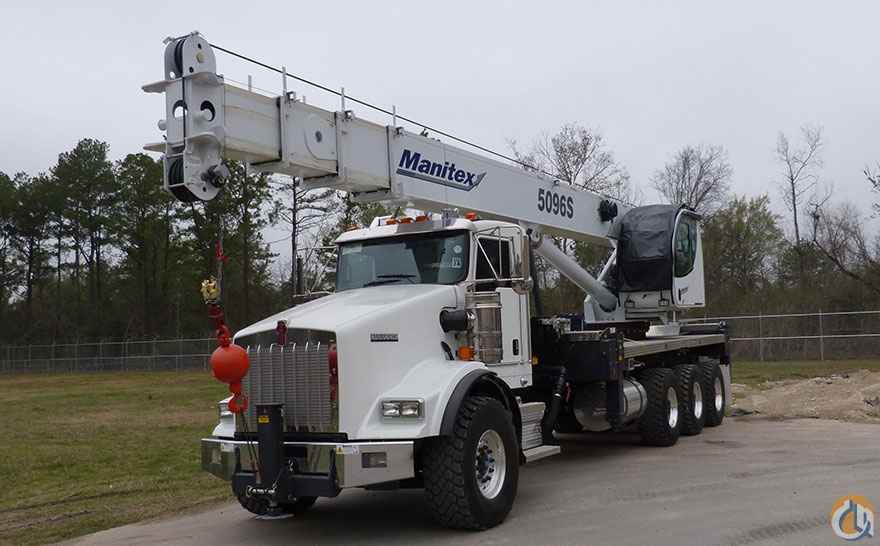

2014 Manitex 5096 S Boom Truck Crane
SOLD
Sales Dept.: 866-458-5915
Last Updated: 26 Jun 2017
Capacity: 50.00
Boom/Jib: 96
Condition: Excellent
Unit #: PO30255
Standard Features
2-speed Hoist w/ Grooved Drum Roller Tensioner 5 Ton (4.5 mt) Hook and Ball 4-Load Sheave Quick Reeve Boom Head Hard Wired Anti-Two Block w/ Lockout Boom Hoist Cylinder System Pressure Gauge 360° Area of Operation Continuous Rotation Tilting Cab w/Heater Removable Boom Rest Engine Start/Stop Operator's Service/Parts Manuals Boom Length and Angle Indicators Electronic Throttle No Free Swing (Free swing also available) Hydraulic Rotation Drum Indicator 3-Section, Vane Pump Bubble Level Signal Horn Diamond Plated Aluminum Decking Oil Cooler |
4 Section 96’ Telescopic Boom 400' (122m) or 500' (152m), 5/8" (16mm) Dia. Rotation Resistant Wire Rope Audible Outrigger Motion Alarm 115 Gal (435 L) or 150 Gal (568 L) Hyd Reservoir w/Suction Strainer & Ball Valve Turret, Rotation Bearing & Swing System -Mechanical Houselock New Load Moment Indicator - Full Visual/Audio Capacity Alert w/Shutoff ROCSolid outriggers; 4 Out-And-down outriggers, 22' (6.71m) over-all spread. Features a Hand Held Radio Operated Controller and includes capacities for Intermediate 13'4" (4.05m) and Retracted 7'2" (2.18m) Spreads. Outrigger Monitoring System -Verification Only Front Bumper Stabilizer - for Short lower frame configurations 2 Retractable Ladders for Easy Access to Deck Aluminum Step Ladder - Deck mounted, multi-position
|
Included Options
Standard Installation
Air conditioning for cab
Truck telemetry in cab
Windshield cover
Call Today! 1-866-458-5915
CraneWorks, LLC
www.Crane-Works.comContact: Sales Dept.
Phone: 866-458-5915
Fax: 713-491-9359
THIS LISTING HAS SOLD
Condition
Excellent
0 views this week
0 people have saved
Condition
Excellent
Standard Features
2-speed Hoist w/ Grooved Drum Roller Tensioner 5 Ton (4.5 mt) Hook and Ball 4-Load Sheave Quick Reeve Boom Head Hard Wired Anti-Two Block w/ Lockout Boom Hoist Cylinder System Pressure Gauge 360° Area of Operation Continuous Rotation Tilting Cab w/Heater Removable Boom Rest Engine Start/Stop Operator's Service/Parts Manuals Boom Length and Angle Indicators Electronic Throttle No Free Swing (Free swing also available) Hydraulic Rotation Drum Indicator 3-Section, Vane Pump Bubble Level Signal Horn Diamond Plated Aluminum Decking Oil Cooler |
4 Section 96’ Telescopic Boom 400' (122m) or 500' (152m), 5/8" (16mm) Dia. Rotation Resistant Wire Rope Audible Outrigger Motion Alarm 115 Gal (435 L) or 150 Gal (568 L) Hyd Reservoir w/Suction Strainer & Ball Valve Turret, Rotation Bearing & Swing System -Mechanical Houselock New Load Moment Indicator - Full Visual/Audio Capacity Alert w/Shutoff ROCSolid outriggers; 4 Out-And-down outriggers, 22' (6.71m) over-all spread. Features a Hand Held Radio Operated Controller and includes capacities for Intermediate 13'4" (4.05m) and Retracted 7'2" (2.18m) Spreads. Outrigger Monitoring System -Verification Only Front Bumper Stabilizer - for Short lower frame configurations 2 Retractable Ladders for Easy Access to Deck Aluminum Step Ladder - Deck mounted, multi-position
|
Included Options
Standard Installation
Air conditioning for cab
Truck telemetry in cab
Windshield cover
