Equipment Specifications:
Year:
2019
Boom/Jib:
Inquire
Capacity:
50.00
Condition:
New
Unit #:
174
Serial #:
257855
Hours:
5
Location:
Alberta, Canada
Seller Contact:
North West Crane
Sales, Parts & Service
780-980-2227
www.northwestcrane.com/
7015 Sparrow Drive, Leduc, AB T9E 7L1, Canada
Seller Notes:

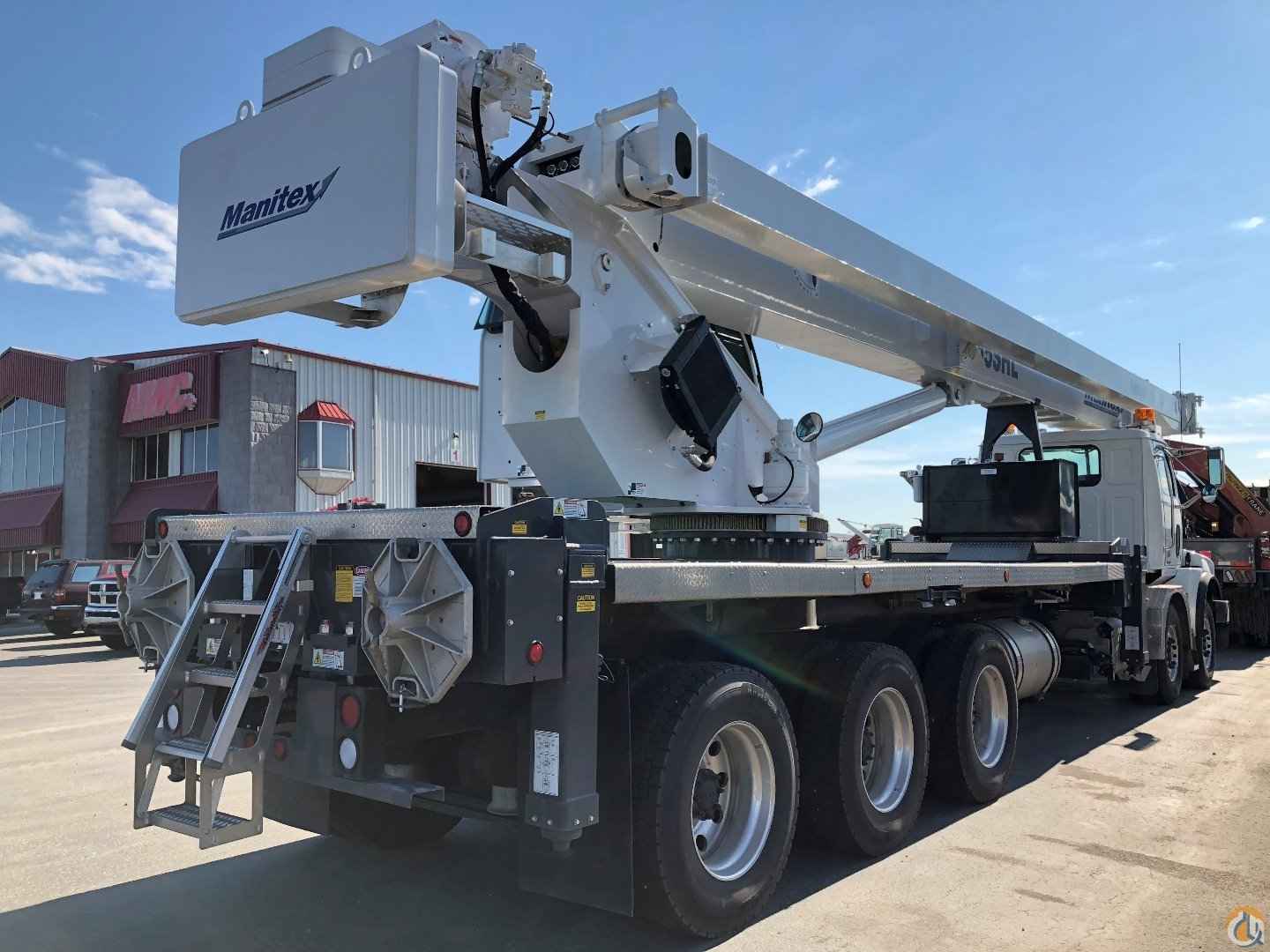

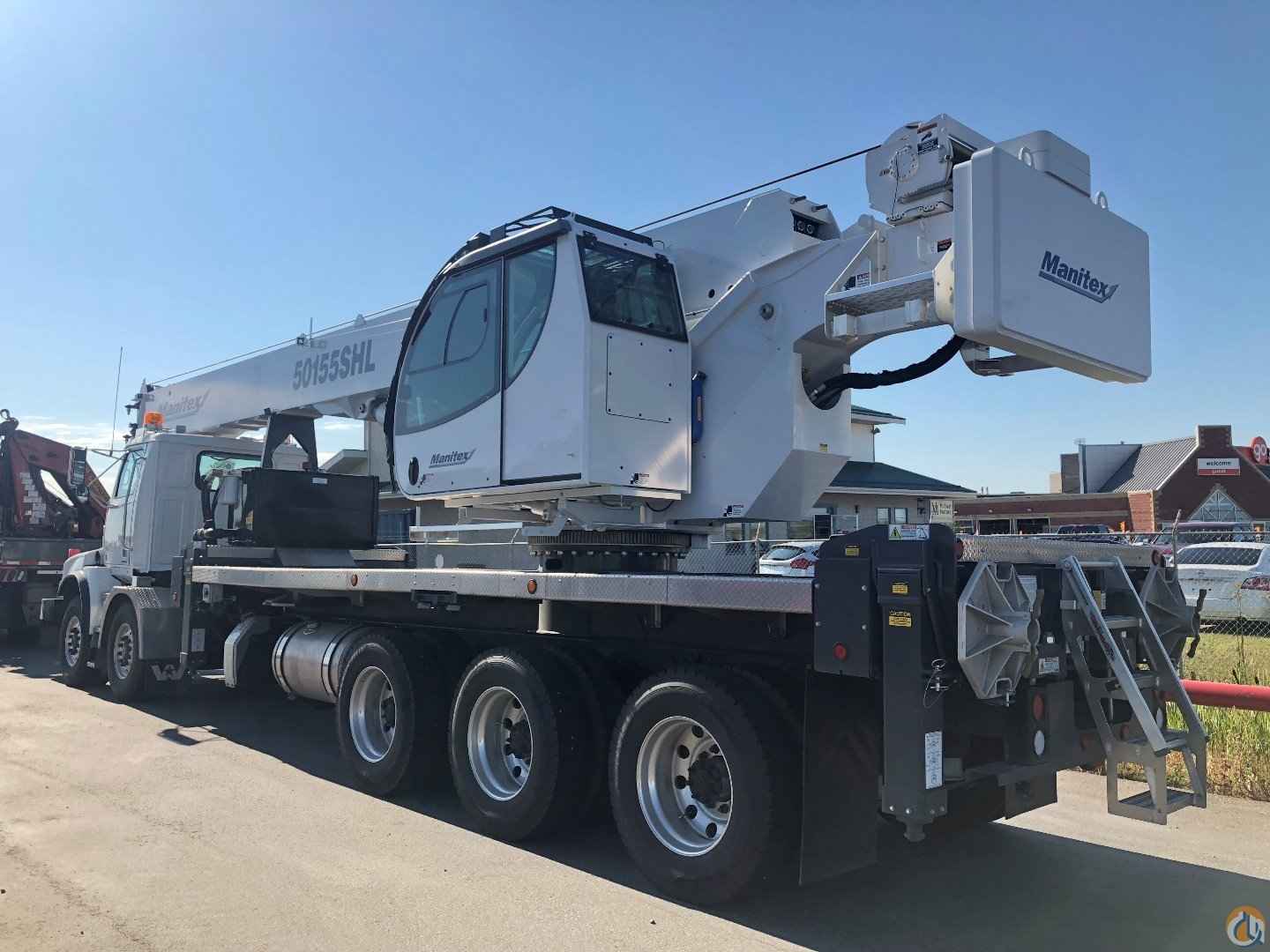

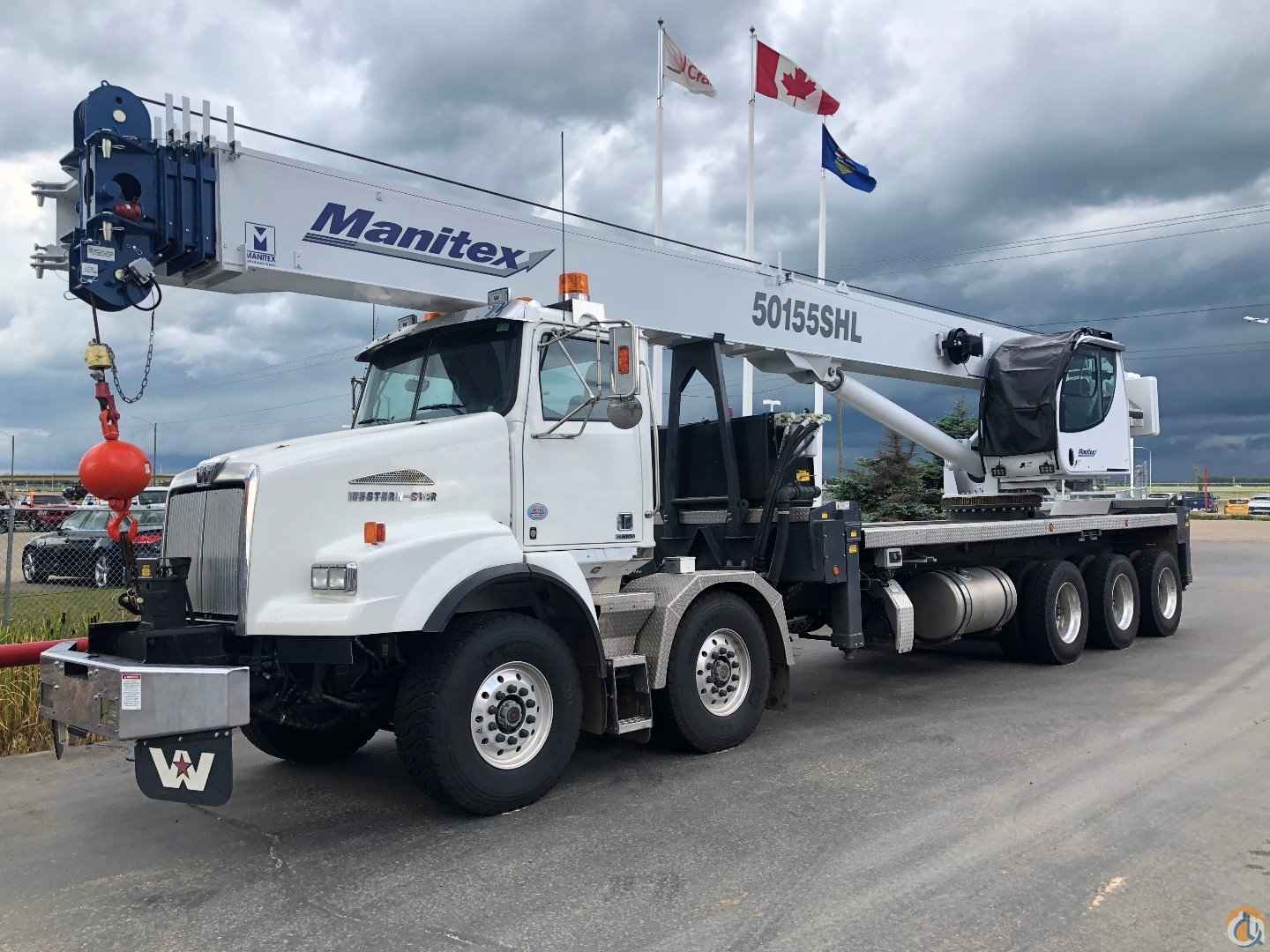

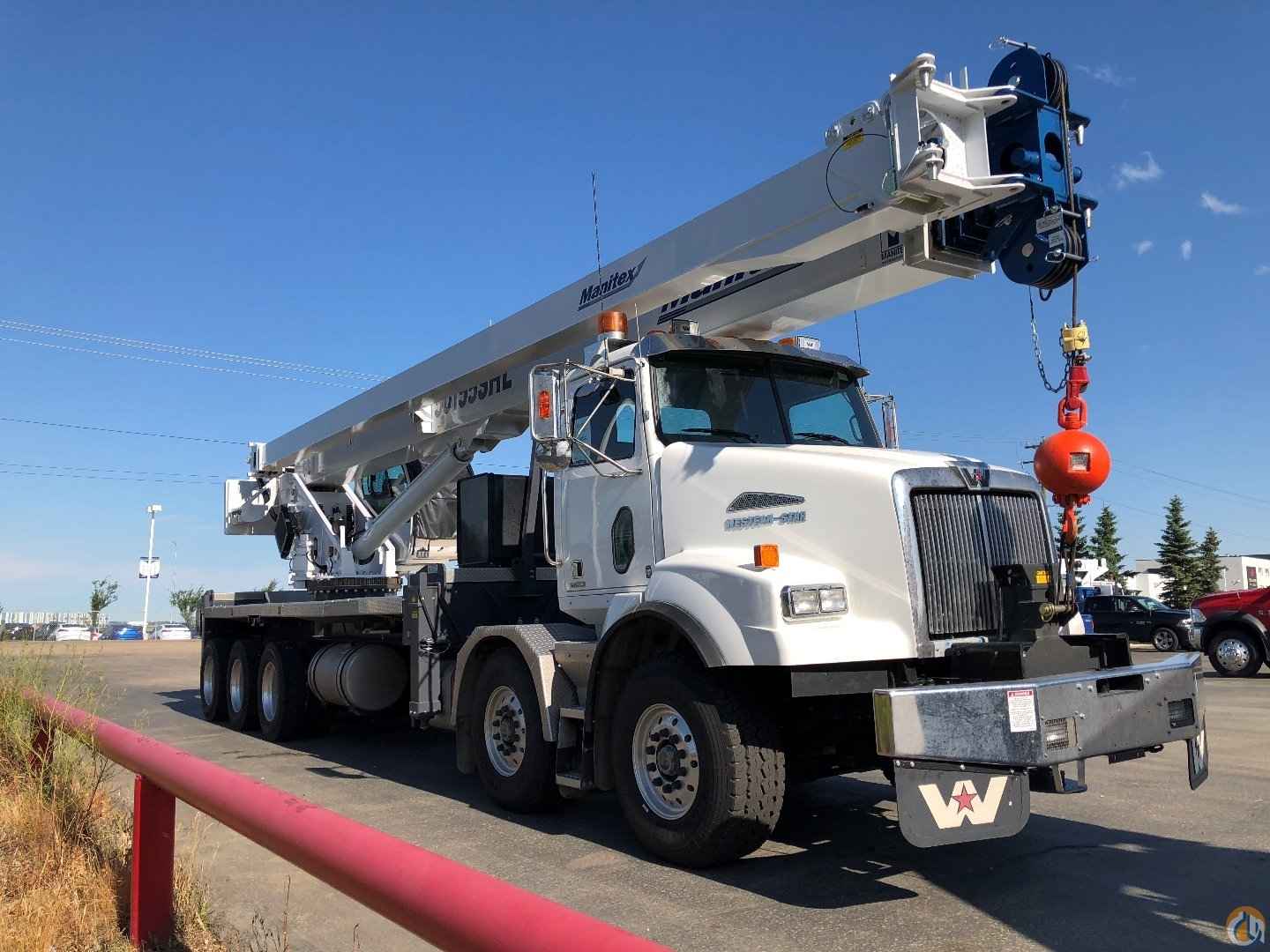

REDUCED $$ 2019 Kenworth T800 tandem tridem with Manitex 50155SHL

New Manitex 50155SHL stiff boom crane complete w/ the following:

• Maximum Lifting Capacity of 100,000 Pounds @ 6’ Radius
• Five-Section Telescopic Boom 38’6” to 155'
• 4-Load Sheave Quick-Reeve Boom Head
• Maximum Sheave Height of 165'
• SHL (Super Heavy Lift) Counterweight Package
• 360 Degree Area of Operation
• Continuous Rotation
• Non-Free Swing & Free Swing Functionality
• Fully Enclosed Tilting Cab w/ Diesel Heater, Engine Telematics & Video Camera.
• Fully Adjustable/Heated Operator Seat.
• Platform Includes Engine Stop/Start, Pressure Gauges & Signal Horn.
• Hydraulic Single Axis Lever Controls for Swing, Boom, Tele & Winch
• Foot Operated Electronic Throttle
• LMI System w/ Full Operator Display
• Hardwired Anti-Two Block w/ Lockout
• Two Speed Planetary Hoist w/ 400’of 5/8” Non-Rotational Wire Rope.
• Remote Winch Control (To hook/unhook ball/block on bumper)
• 7 Ton Hook & Ball
• 35 Ton Load Block (up to 6 part line operation)
• 115 Gallon Hydraulic Reservoir w/ Suction Strainer & Ball Valve
• Removable Boom Rest
• Front Bumper Stabilizer (enables the 360 degree load chart).
• 4 - Out & Down Outriggers – 22’ (6.71 m) Spread
• 4 – 22” Aluminum Float Pads.
• Reduced Load Charts w/ Fully Retracted & Mid-Span Outrigger Placement
• ROC Solid Radio Remote Outrigger Controls.
• 2-Retractable Ladders for Easy Access to Bed.
• 1-Aluminum Easy Access Maintenance Ladder.
• Oil Cooler in Return Lines Mounted on Side of Turret
• Factory Supplied Sub Frame
• Aluminum Walking Deck
• 3-SectionGear Pump for Swing (CW Rotation for Automatic Transmission)
• High Torque Swing Drive
• Operators Service / Parts Manuals
• Factory Installed onto Customer Supplied Chassis w/ Hot Shift PTO, All Hydraulic
Plumbing, Oil & Testing.


 NEW 2019 Western Star 4900SA Tandem Tri-Drive Chassis complete w/ the following:

• Detroit DD13 Engine 505 H.P. @ 1625 RPM; 1850 Lb Ft @ 975 RPM
• Jacobs Compression Brake
• 160 Amp Alternator w/ Remote Battery Volt Sense.
• Dual Air Intake through RH & LH sides w/ Donaldson air cleaner, firewall mounted.
• 19.0 CFM Air Compressor.
• RH mid-chassis mounted horizontal after treatment system assembly w/ horizontal tailpipe.
• Allison 4500 RDS Automatic Transmission.
• FL-941 40,000 lb. Capacity Tandem Front Axles.
• 40,000 lb. Flat Lead Tandem Front Suspension w/ Shocks.
• Sheppard M110 Power Steering
• RZ-69-166 Wide Track Tridem Rear Axles.
• Airliner 69,000 lb. Tridem Rear Suspension, 59” Spacing
• 4.56 Rear Axle Ratio
• 6-Way Rear Wheel Differential Lock-Up.
• Air and Electrical EOF w/ glad hands.
• Bridgestone M854 425/65R22.5 20 Ply Front Tires.
• Accuride 22.5” by 12.25” Aluminum Front Wheels.
• Michelin X Multi D 11R24.5 16 Ply Rear Tires.
• Alcoa 24.5” by 8.25” Aluminum Rear Wheels
• 11 5/8” by 3/8” Full Steel Frame w/ Full Steel Insert
• Dual - 100 Gallon US Fuel Tanks
• 109” BBC Conventional Daycab w/ stainless steel cab skirt.
• 102” OAW Bare Aluminum Front Fenders w/ 2-3/4 fender extensions.
• Heater plus Air Conditioning.
• Elite High Back Air Suspension Heated Drivers Seat w/ Armrests (Black Leather Cover)
• Passenger Seat w/ Battery Box Mounted Underneath.
• New Obsidian Black Vinyl Premium Interior
• AM/FM/Weatherband Stereo w/ Bluetooth, USB & Auxiliary Port.
• Cobra 29 WX ST Factory Installed CB Radio w/ Weatherband.
• Power Door Locks & Window Lifts.
• Dual Revolving Amber Beacons
• Stainless Steel Exterior Sun Visor
• Exterior color White, Interior Color Black.



Crane Brochures: 1 2 3
