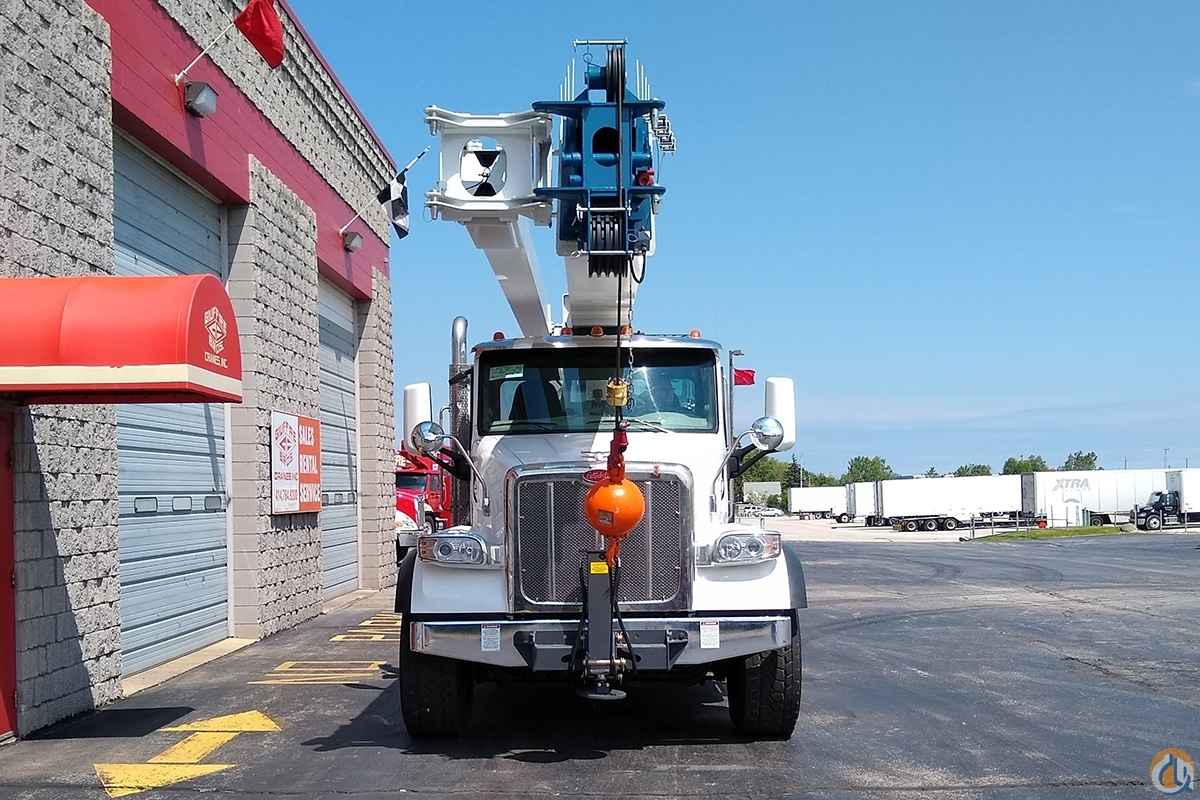

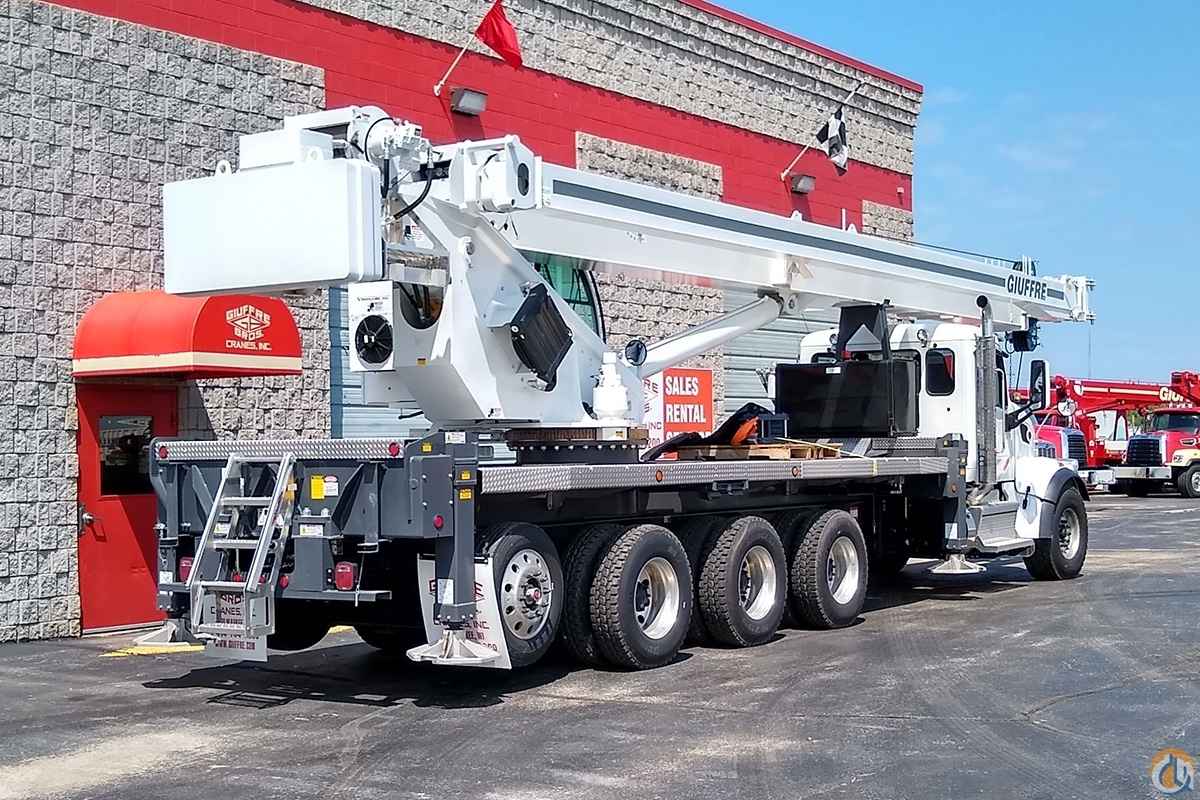

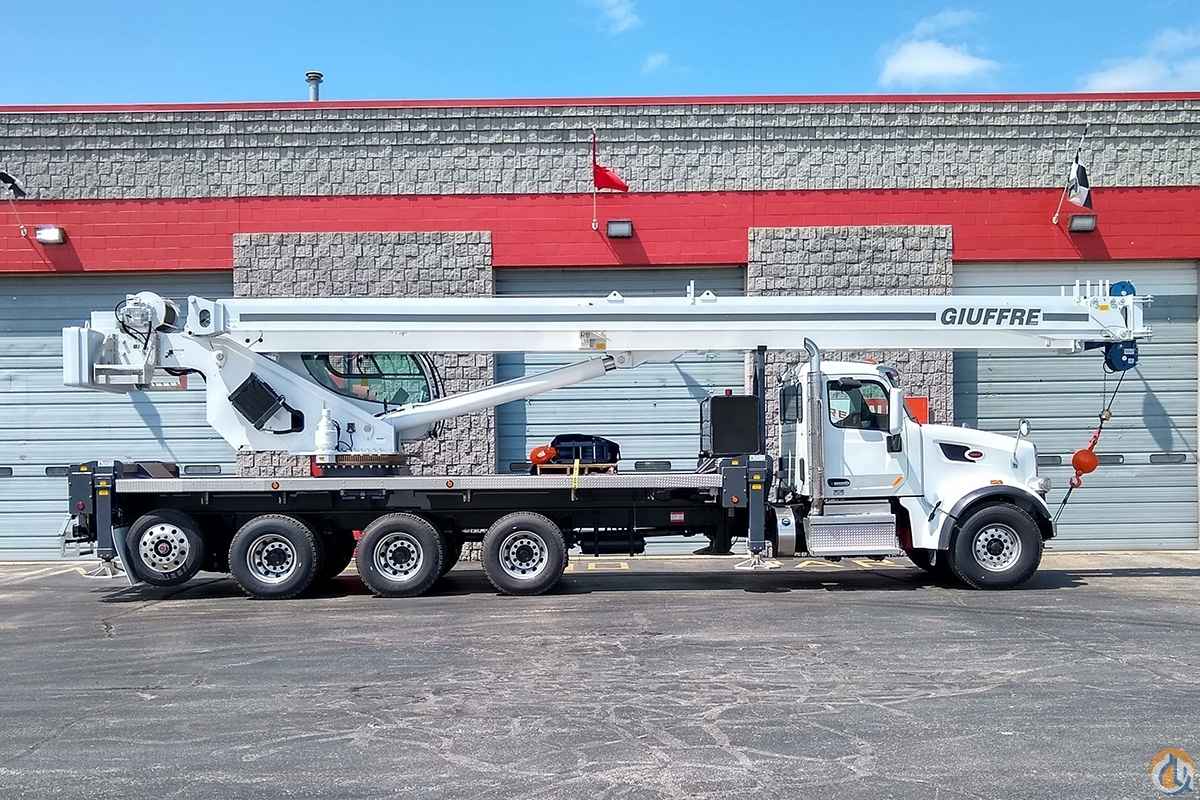

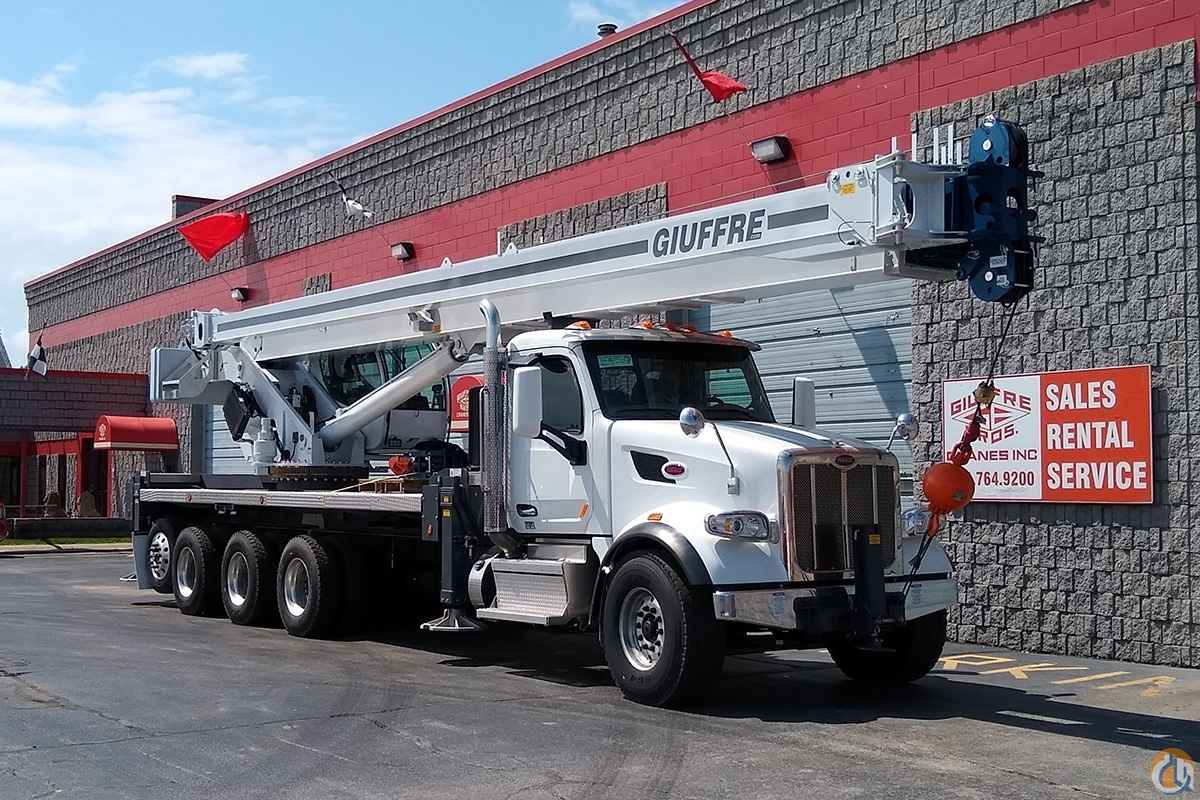

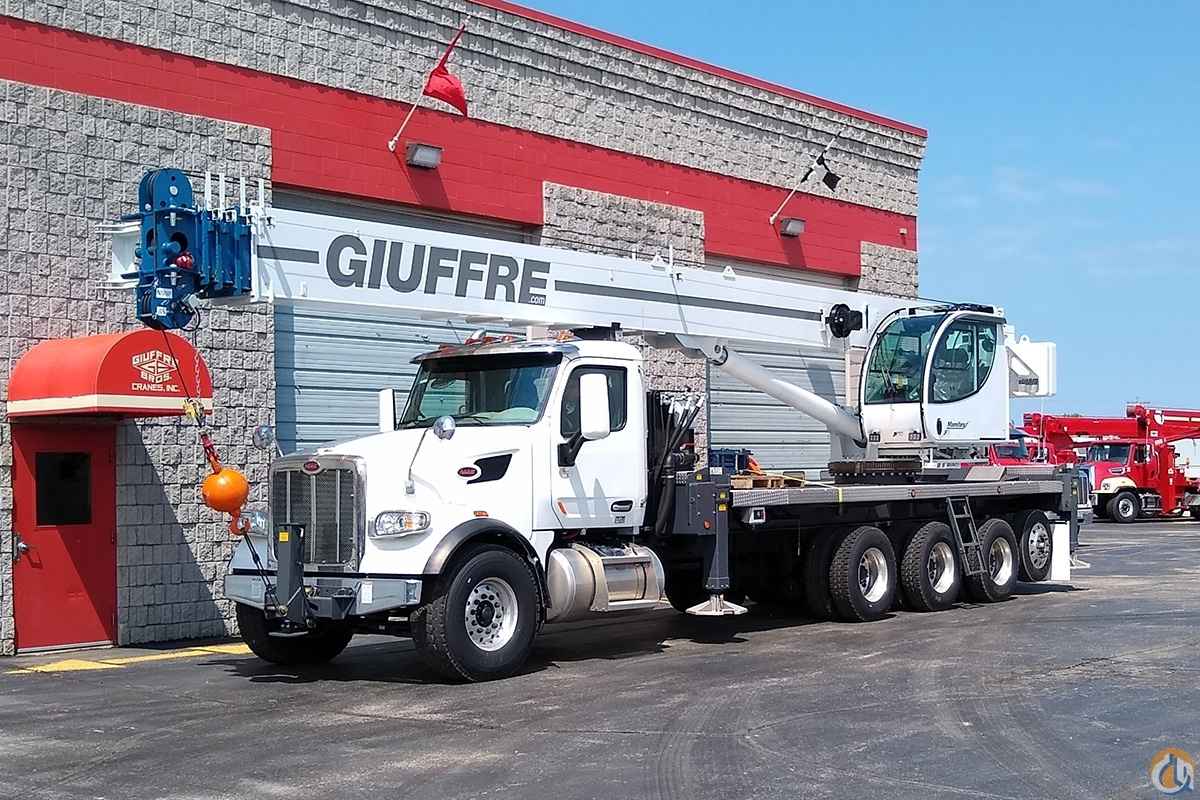

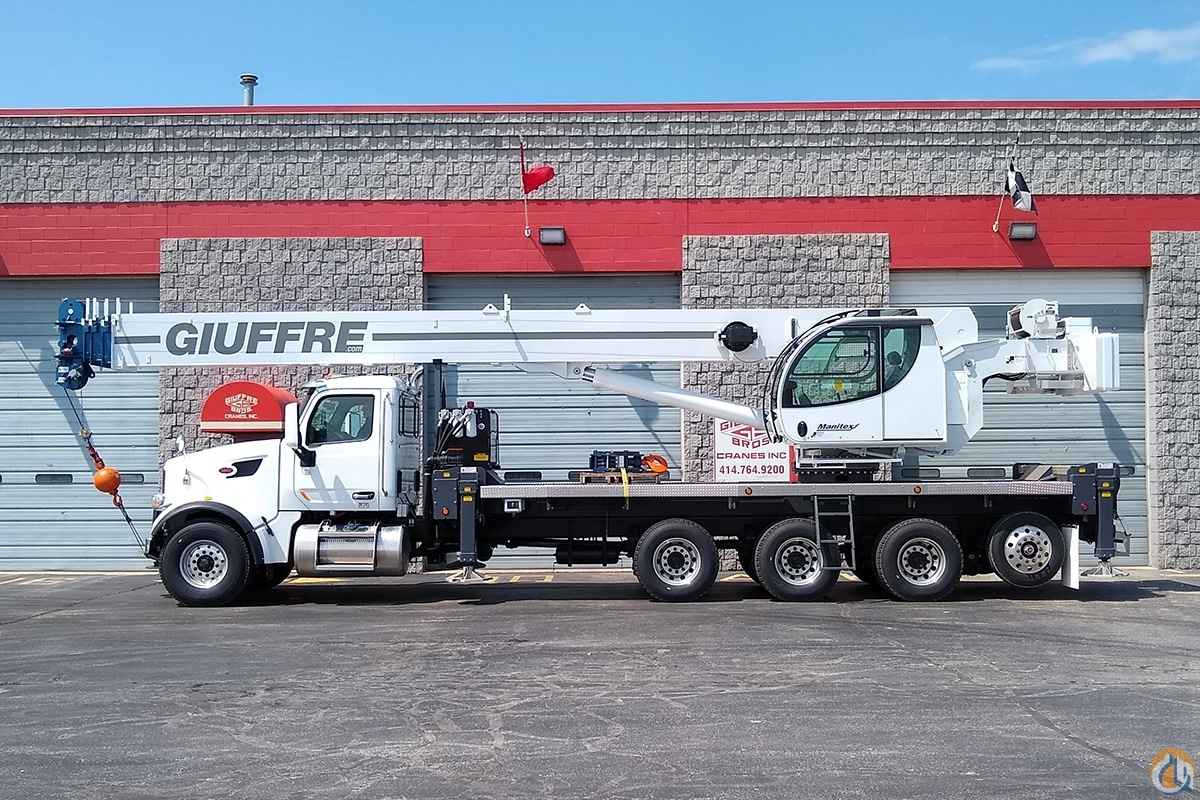

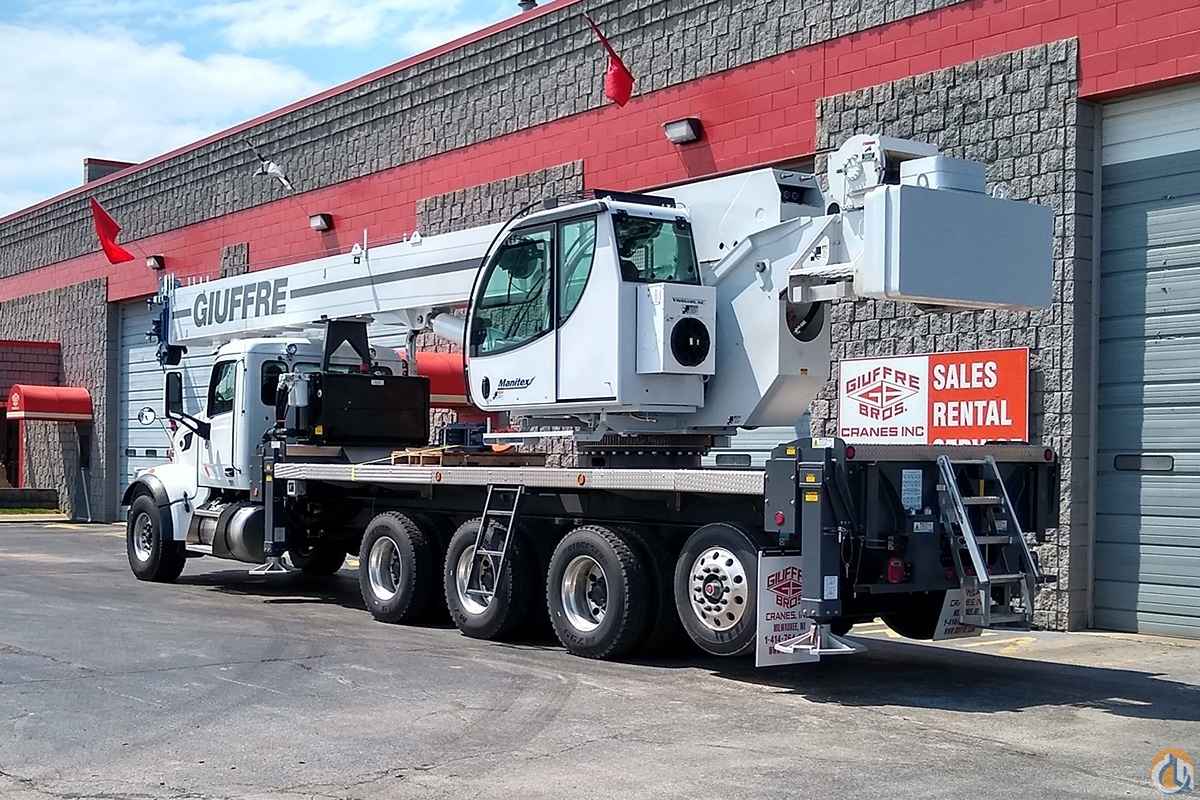

MANITEX SHL CRANE

MANITEX 50155SHL

50 TON CAPACITY CRANE

155 FT 5-SECTION TELESCOPIC BOOM

4-SHEAVE QUICK REEVE BOOM HEAD

204 FT TIP HEIGHT WITH 39 FT JIB

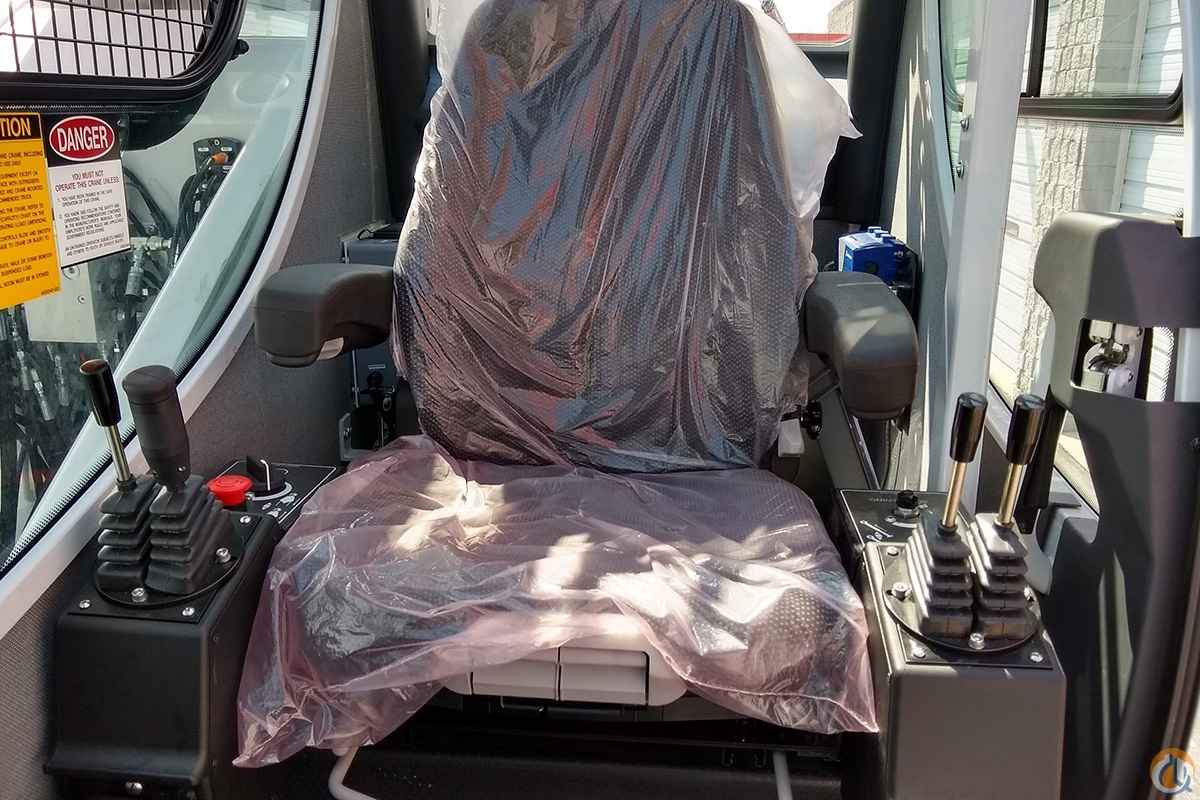

TILTING CAB WITH HEATER, AIR CONDITIONER

UPPER CAB GUARD & WINDSHIELD COVER

500' 5/8" ROTATION RESISTANT WIRE ROPE

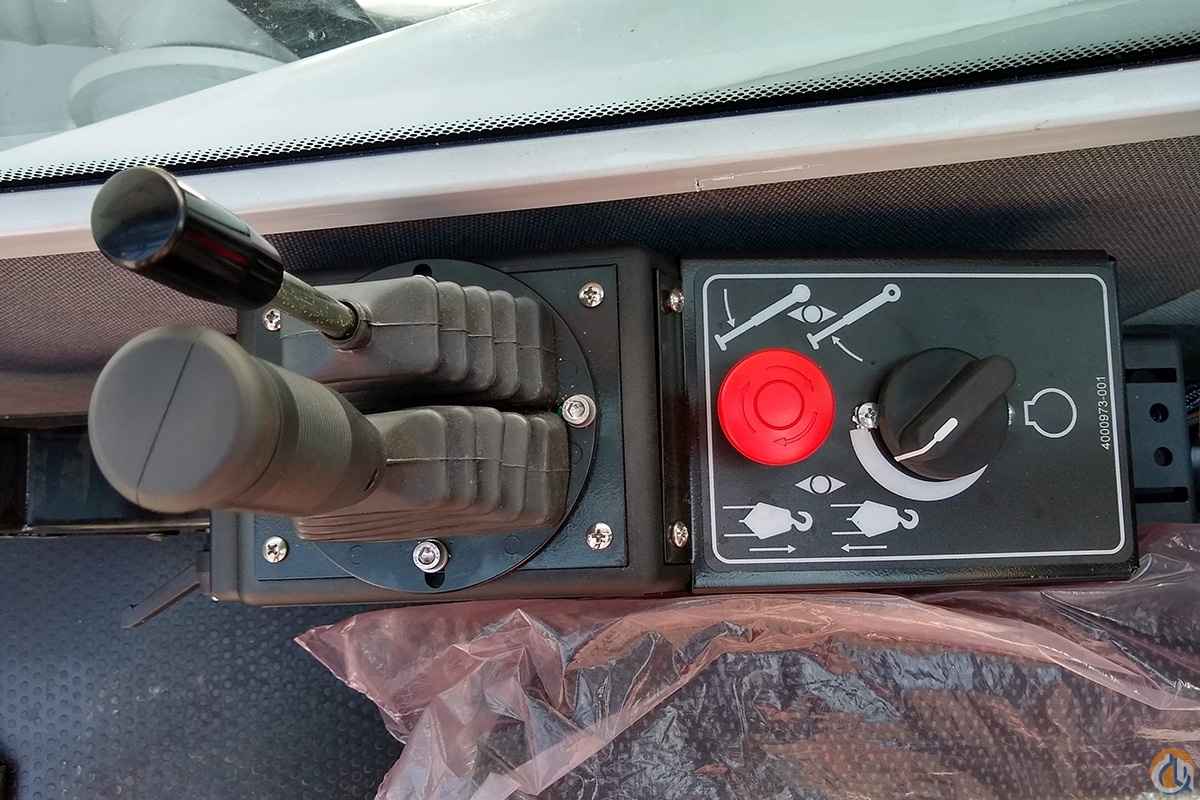

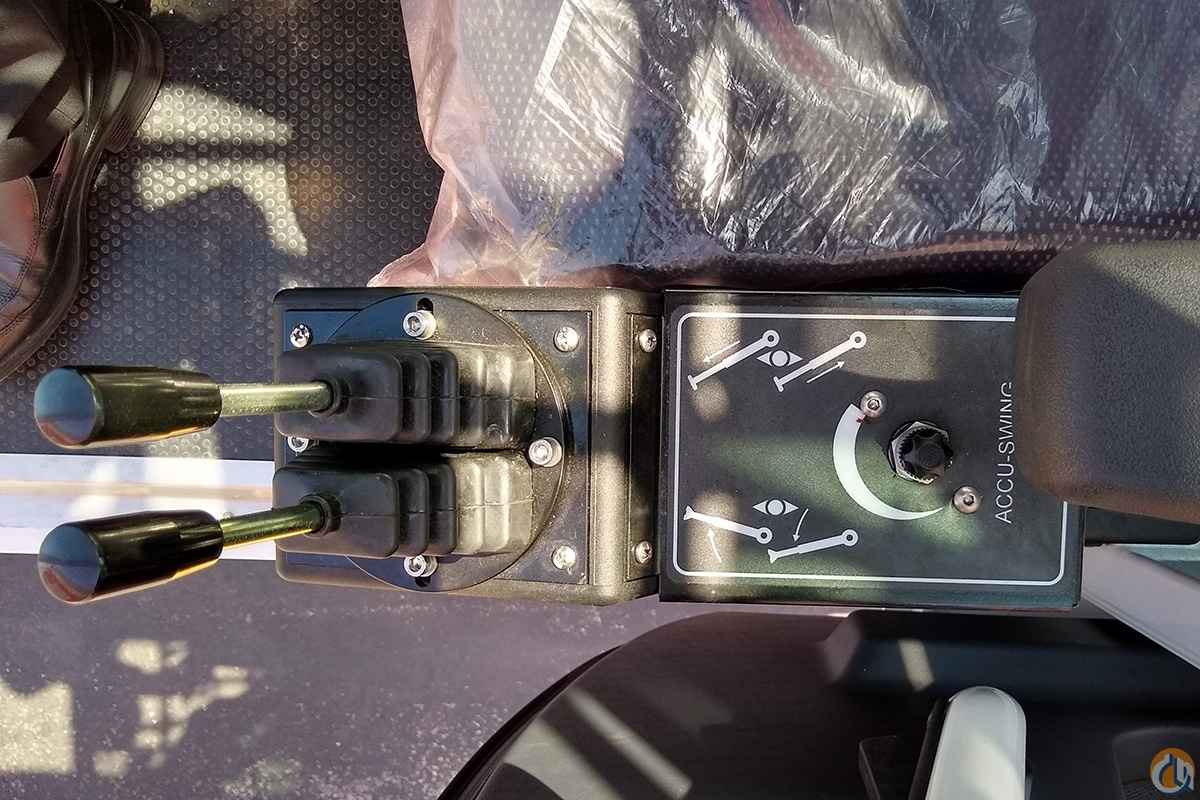

COMBINED FREE SWING/NO FREE SWING

2-SPEED WINCH MAX LINE SPEED 453 FPM

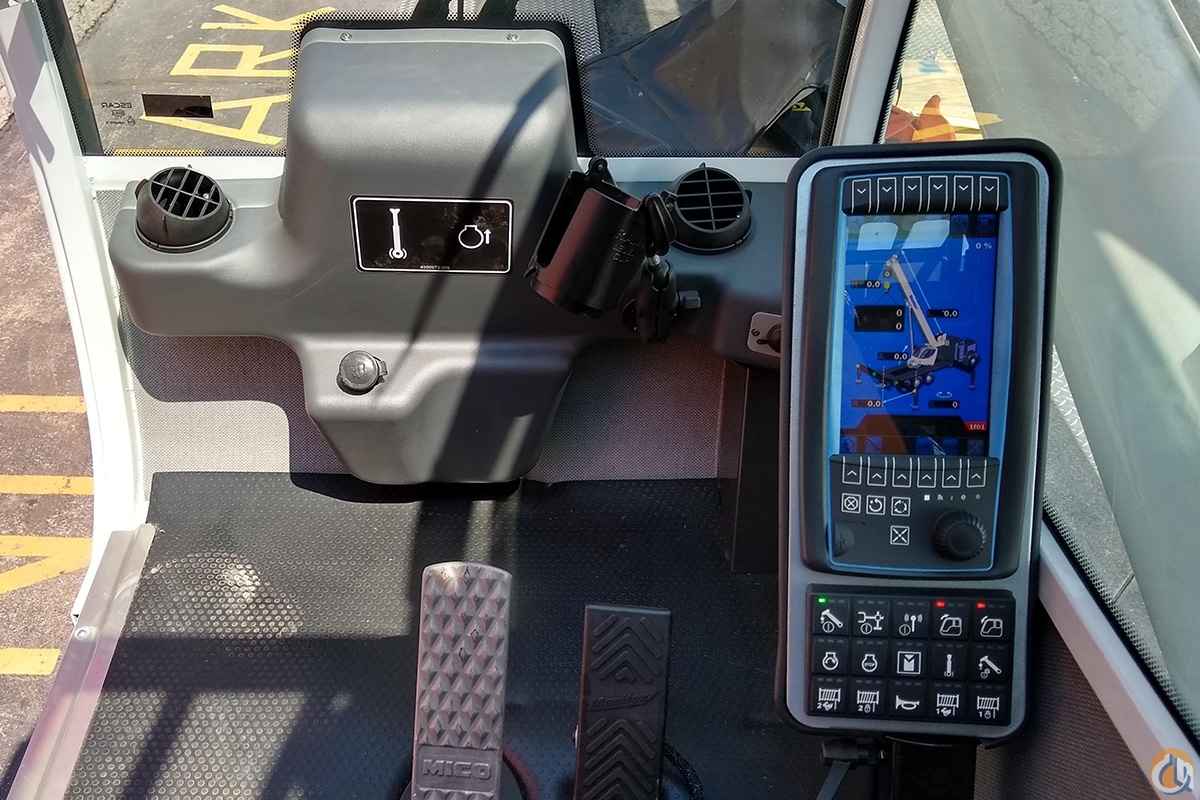

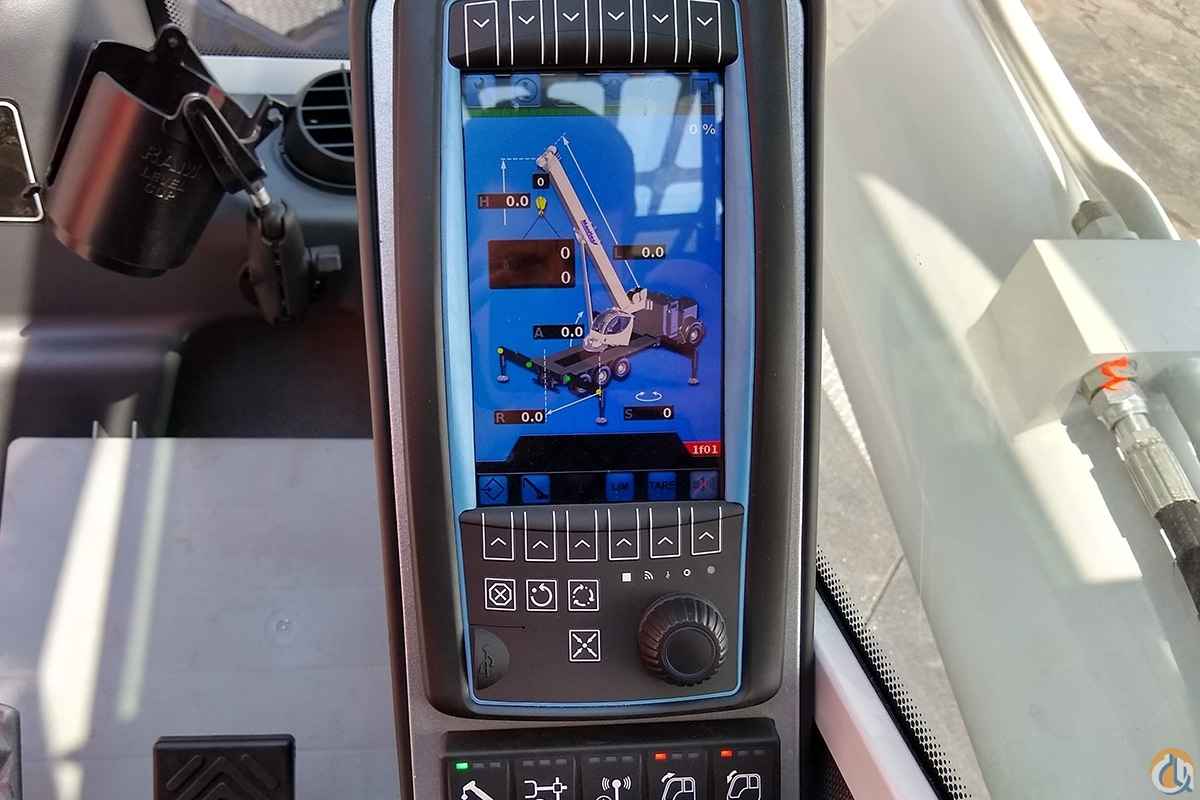

LMI SYSTEM W/ CRANE FUNCTION SHUT-

OFFS FOR OVERLOAD PROTECTION WITH

GRAPHIC VISUAL DISPLAY MONITOR

360 DEGREE CONTINUOUS ROTATION

HARDWIRED ATB WITH LOCKOUT PROTECT

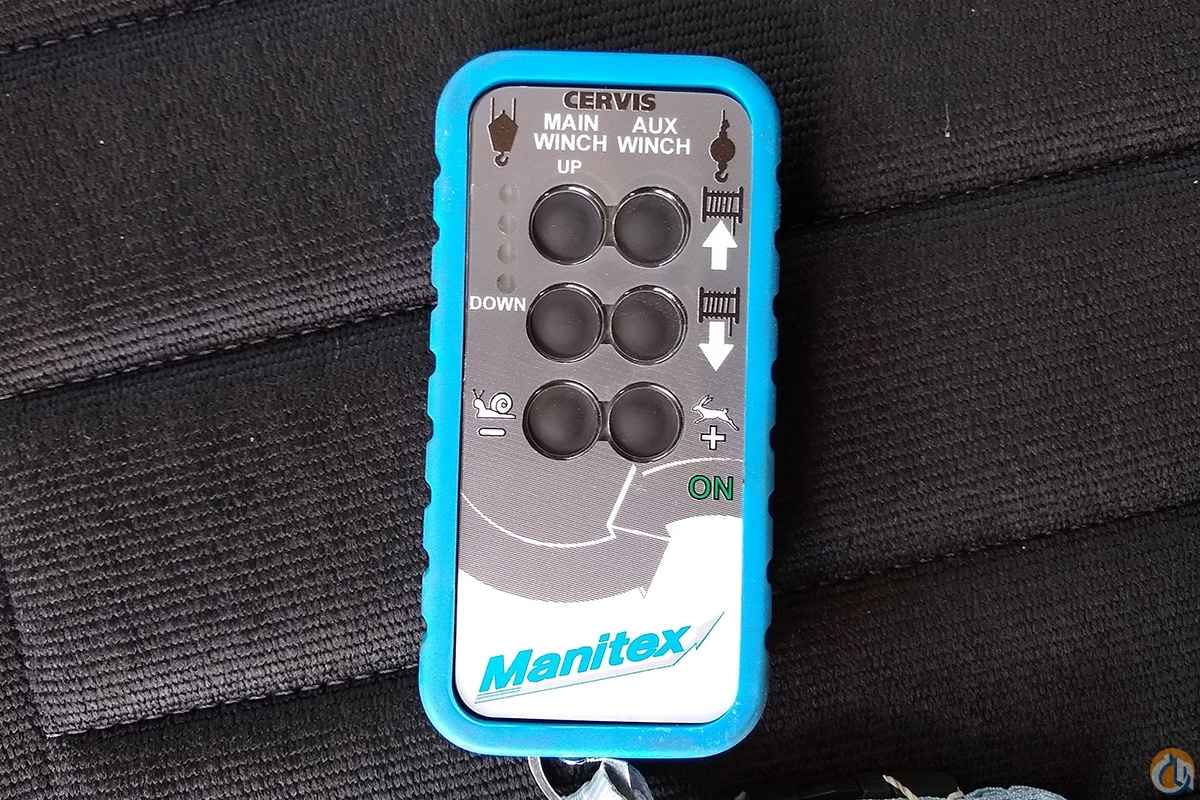

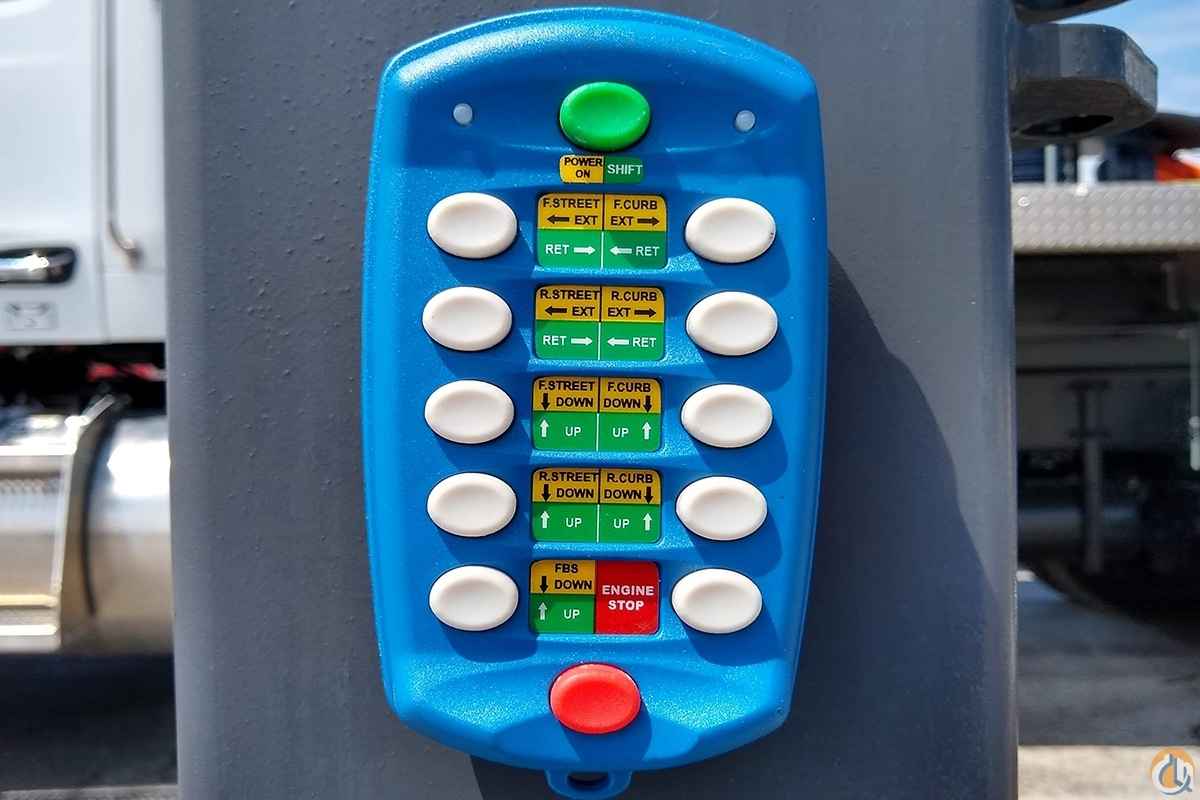

4 REMOTE CONTROLLED HYDRAULIC

OUT-&-DOWN OUTRIGGERS

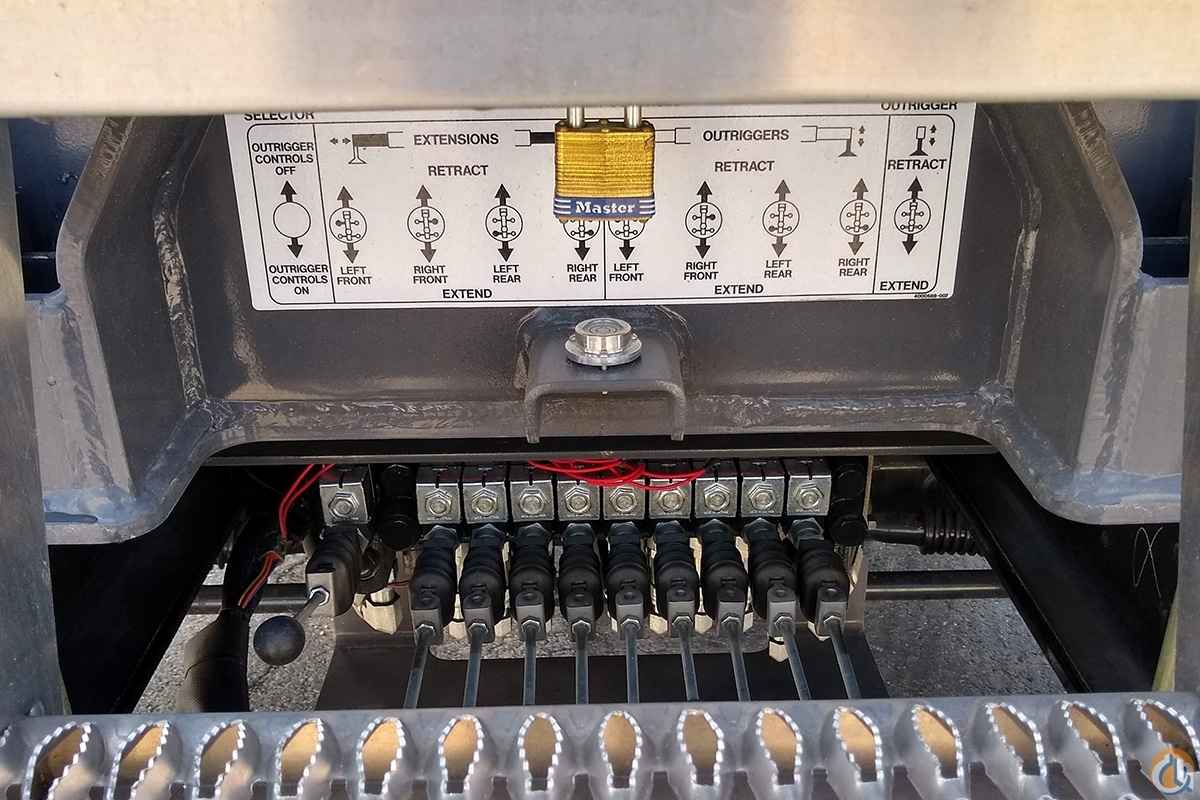

LOAD CHARTS FOR FULLY EXTENDED /

INTERMEDIATE / RETRACTED OUTRIGGERS

102" WIDE DIAMOND PLATED ALUM DECKING

PAINTED STD MANITEX COLORS

ALL STANDARD EQUIPMENT

STANDARD MANITEX FACTORY WARRANTY

NEW 2020 PETERBILT MODEL 567

500HP CUMMINS ISX12 TURBO-

DIESEL ENGINE WITH JACOBS C-BRAKE

86,000 LB G.C.W.

20,000 LB FRONT STEER AXLE

69,000 LB TRI-DEM REAR AXLE

13,500 LB SELF-STEERING TAG AXLE

TRI-DRIVE DIFFERENTIAL AND CONT TRAC

FULL LOCKING REAR AXLES

FULL STEEL INNER FRAME LINER

AIR BRAKES W/ ANTI-LOCK BRAKING

BENDIX SMART ATC TRACTION CONTROL

AIR TRAC TRI-DRIVE 66K LBS WITH

DASH MOUNTED DUMP VALVE

EATON RTO-16908LL 10-SPEED

MANUAL TRANSMISSION

1645 LB-FT TORQUE

425-65R22.5 FRONT TIRES

11R-22.5 16 PLY REAR TIRES

275/70R22.5 PUSHER/TAG TIRES

ALUMINUM FRONT AND REAR WHEELS

BENDIX AIR DRYER W/ HEATER

3 PACCAR BATTERIES 2775 CCA

PACCAR 200 AMP ALTERNATOR

IMMERSION TYPE ENGINE BLOCK HEATER

OIL PAN HEATER (120V)

PACCAR 12 VOLT STARTER

26" ALUMINUM 110 GAL FUEL TANK (LH)

7 GAL D.E.F. TANK MOUNTED (RH)

CAB AIR SUSPENSION

4.10 REAR AXLE RATIO / 70MPH MAX SPD

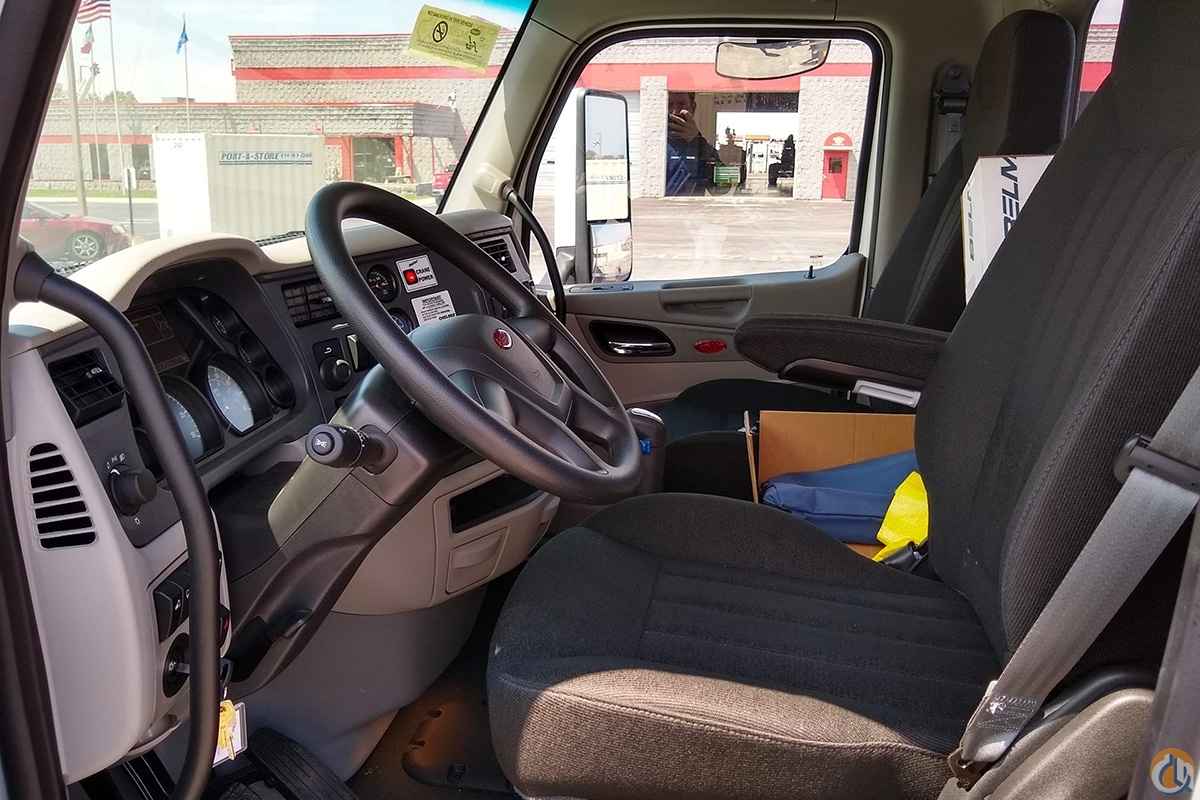

PETERBILT HIGH BACK AIR RIDE DRIVER

AND ULTRARIDE PASSENGER SEATS

POWER LOCKS/WINDOWS BOTH SIDES

24.5" CHROME AIR HORN W/ SHIELD

DUAL 7X16 HEATED MIRRORS W/ DUAL

8" STAINLESS CONVEX MIRRORS

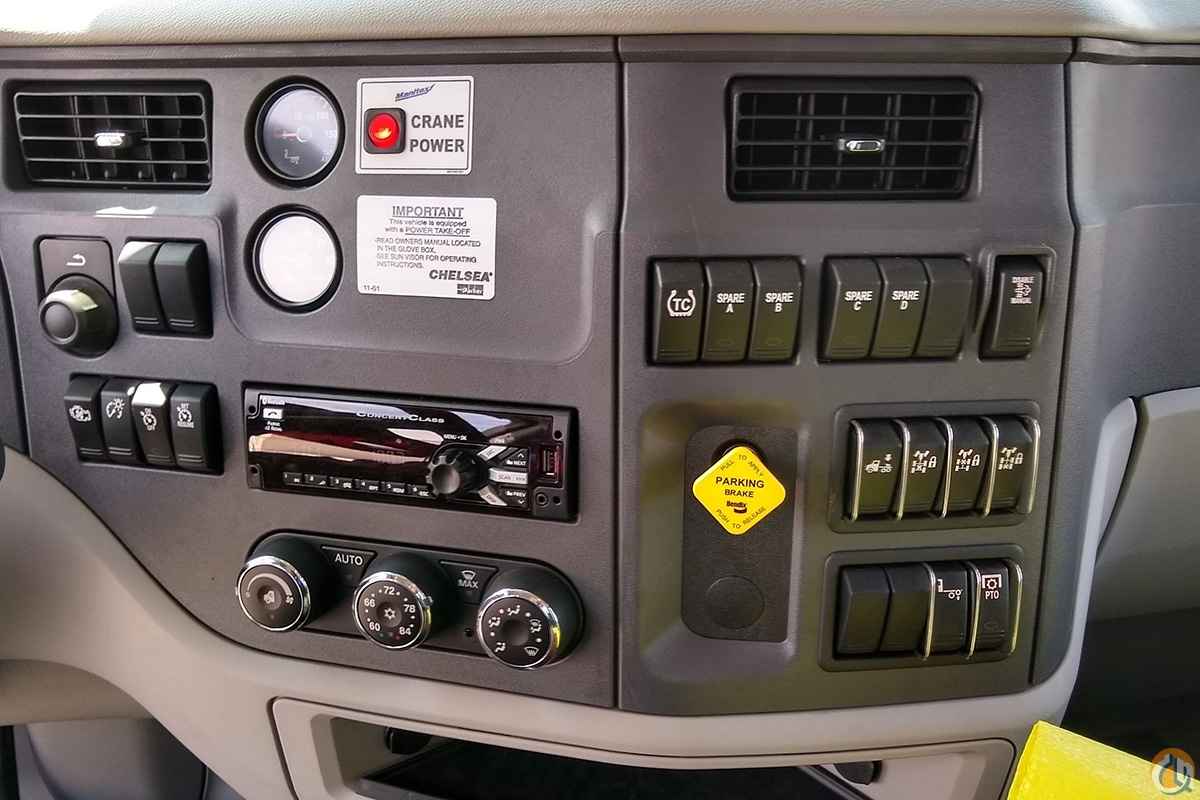

CONCERTCLASS AUDIO SYSTEM W/ BT

AM/FM/WB AUDIO W/ BT PHONE AND USB

OUTSIDE STAINLESS STEEL SUN VISOR

FIRE EXTINGUISHER AND TRIANGLE KIT

TINTED WINDOWS SIDES AND REAR

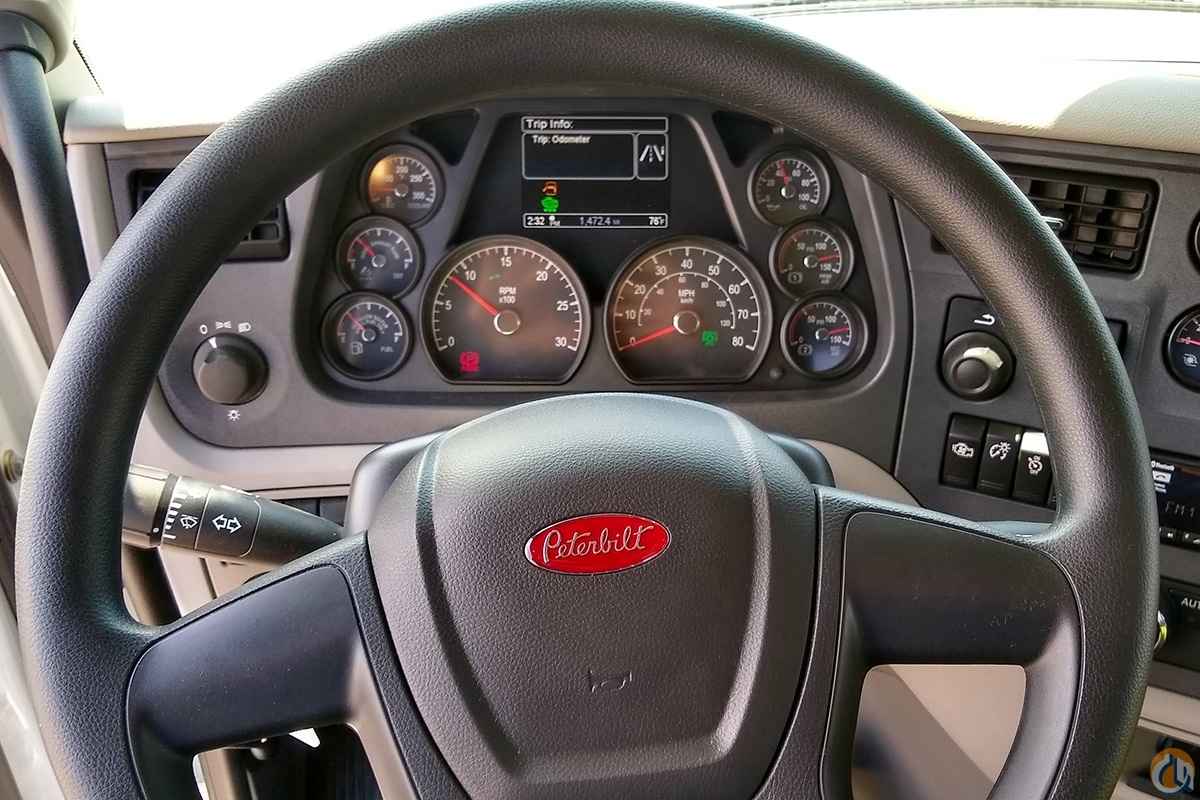

BRIGHT BEZEL FULL GAUGE PACKAGE

PAINTED PETERBILT WHITE (L0006)

STD PETERBILT FACTORY WARRANTY
