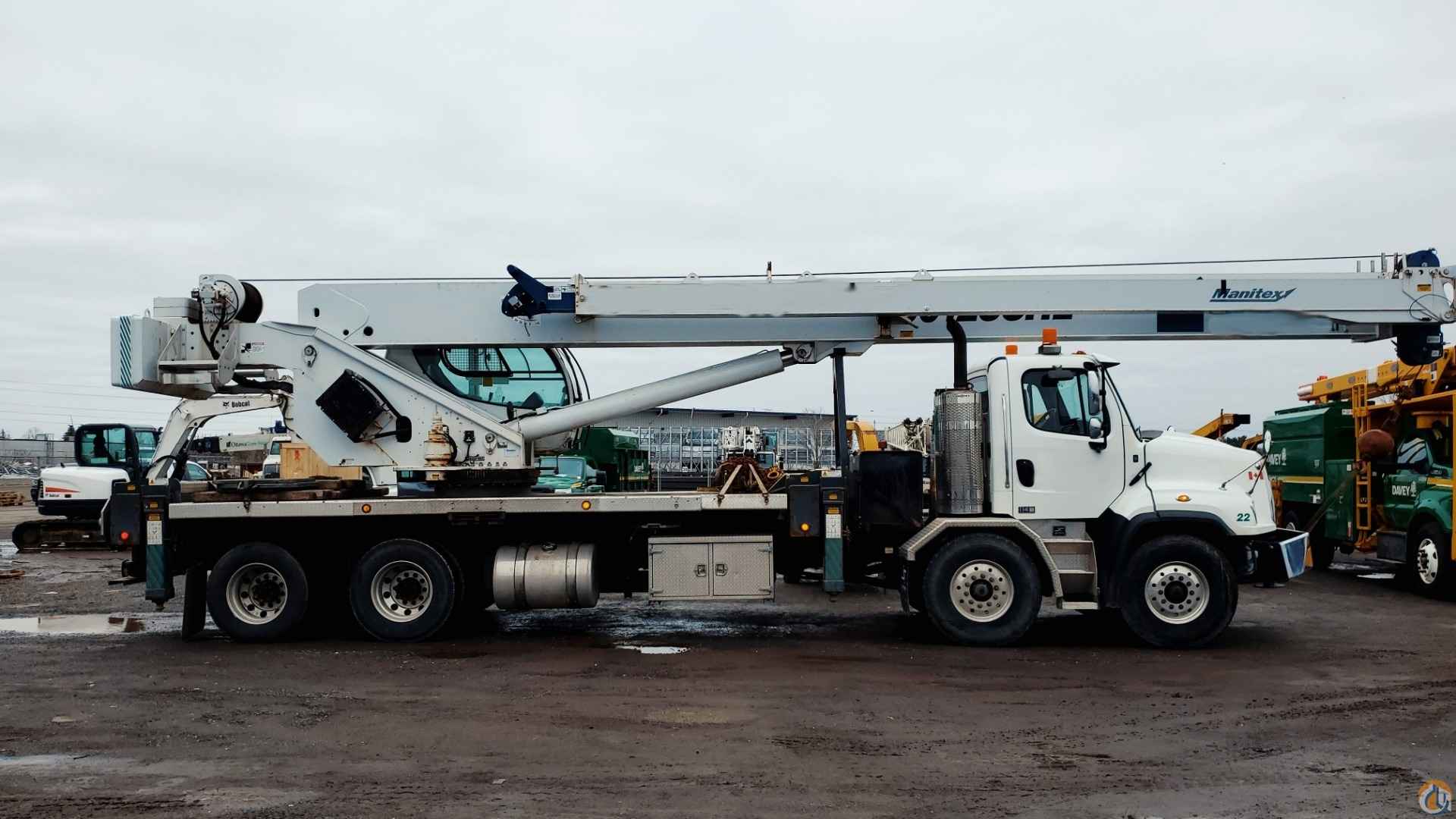

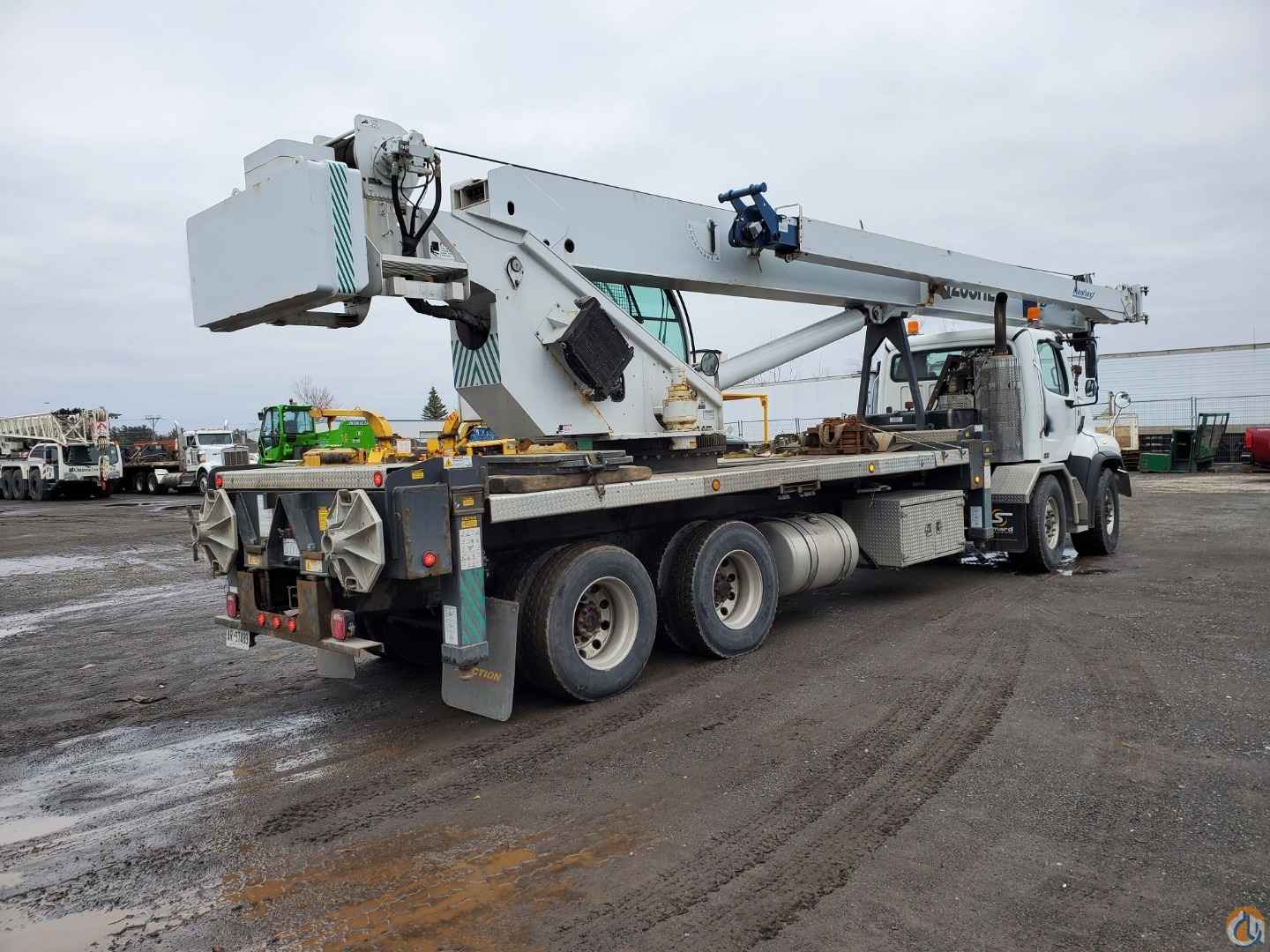

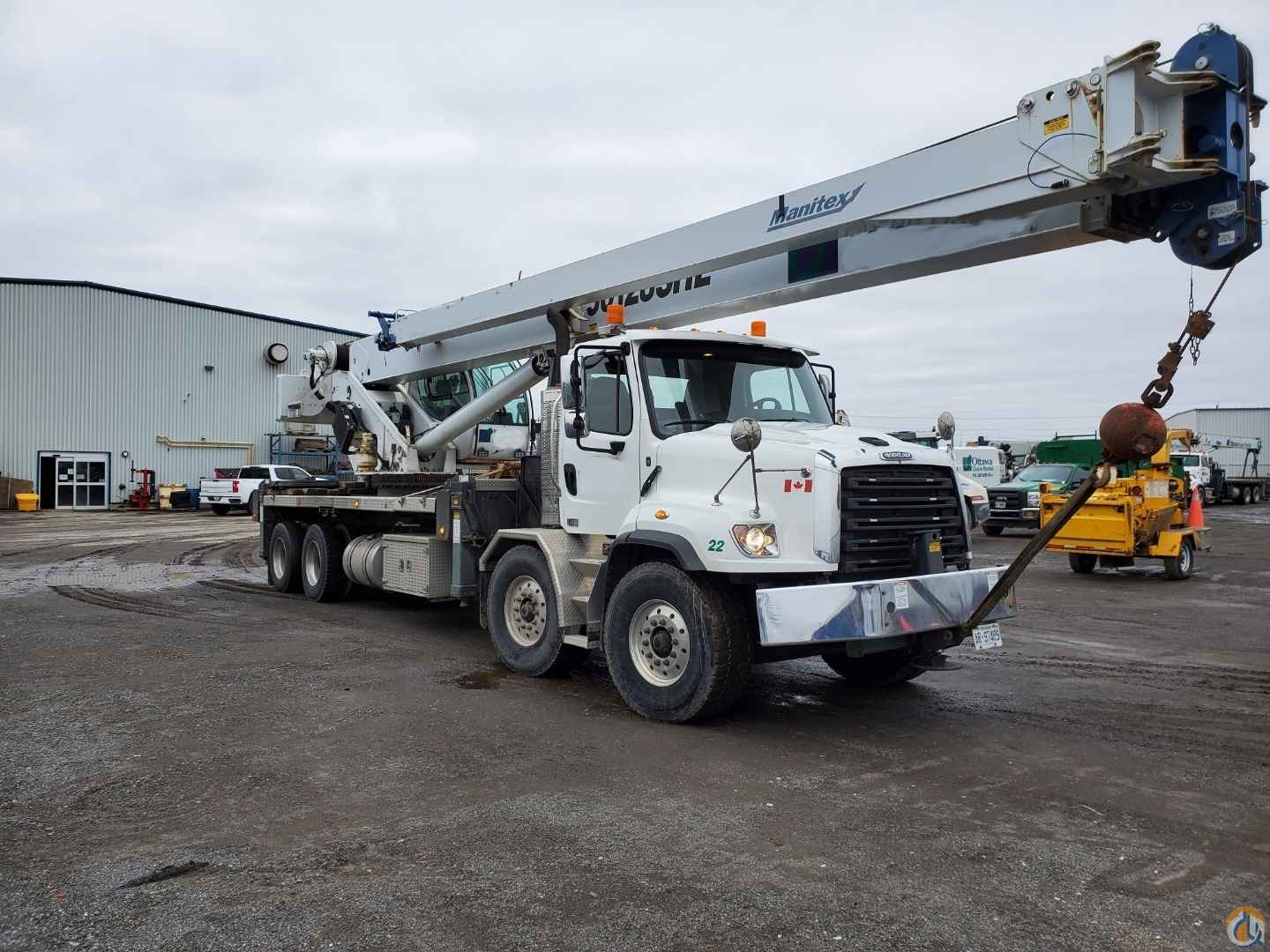

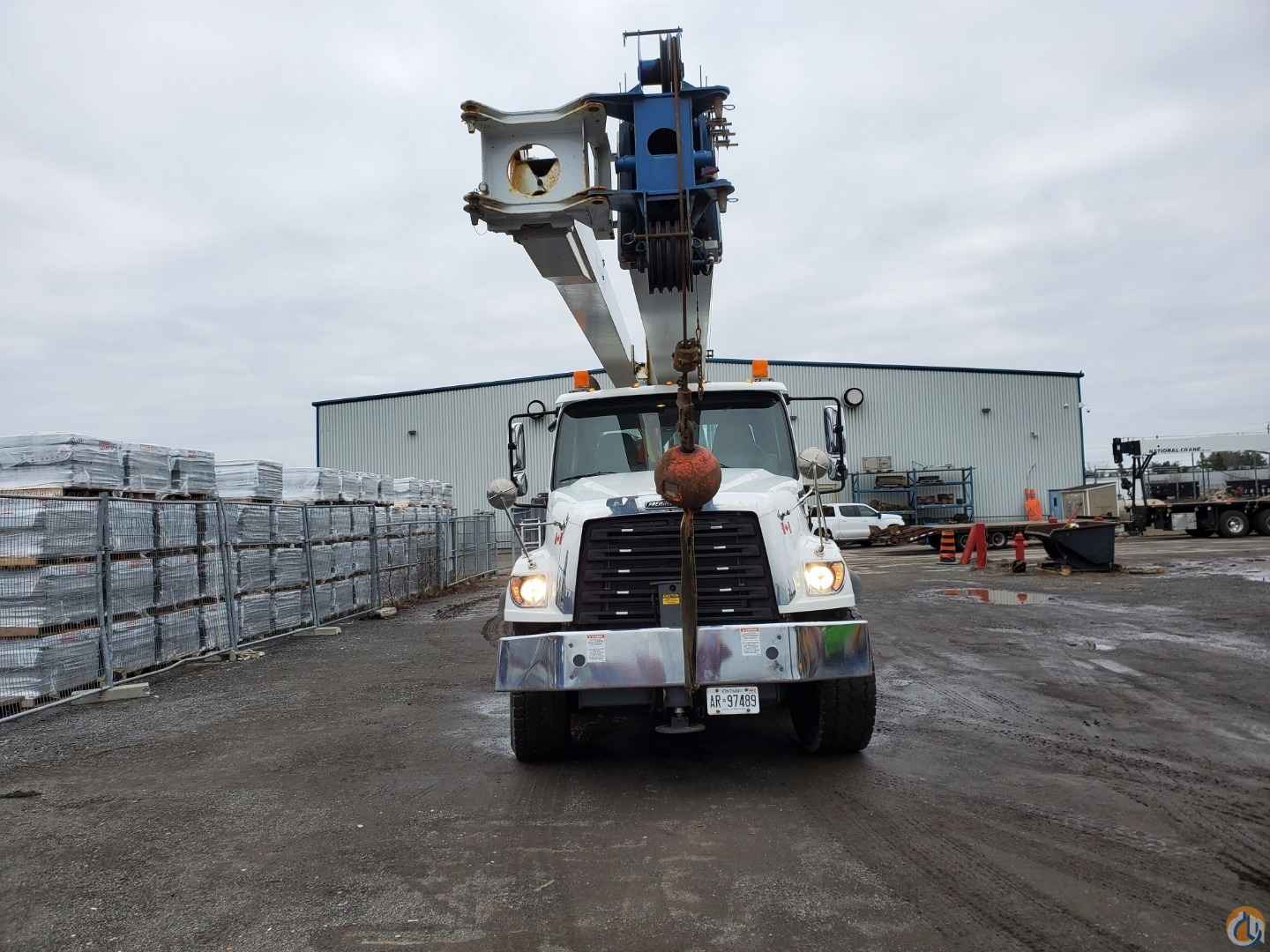

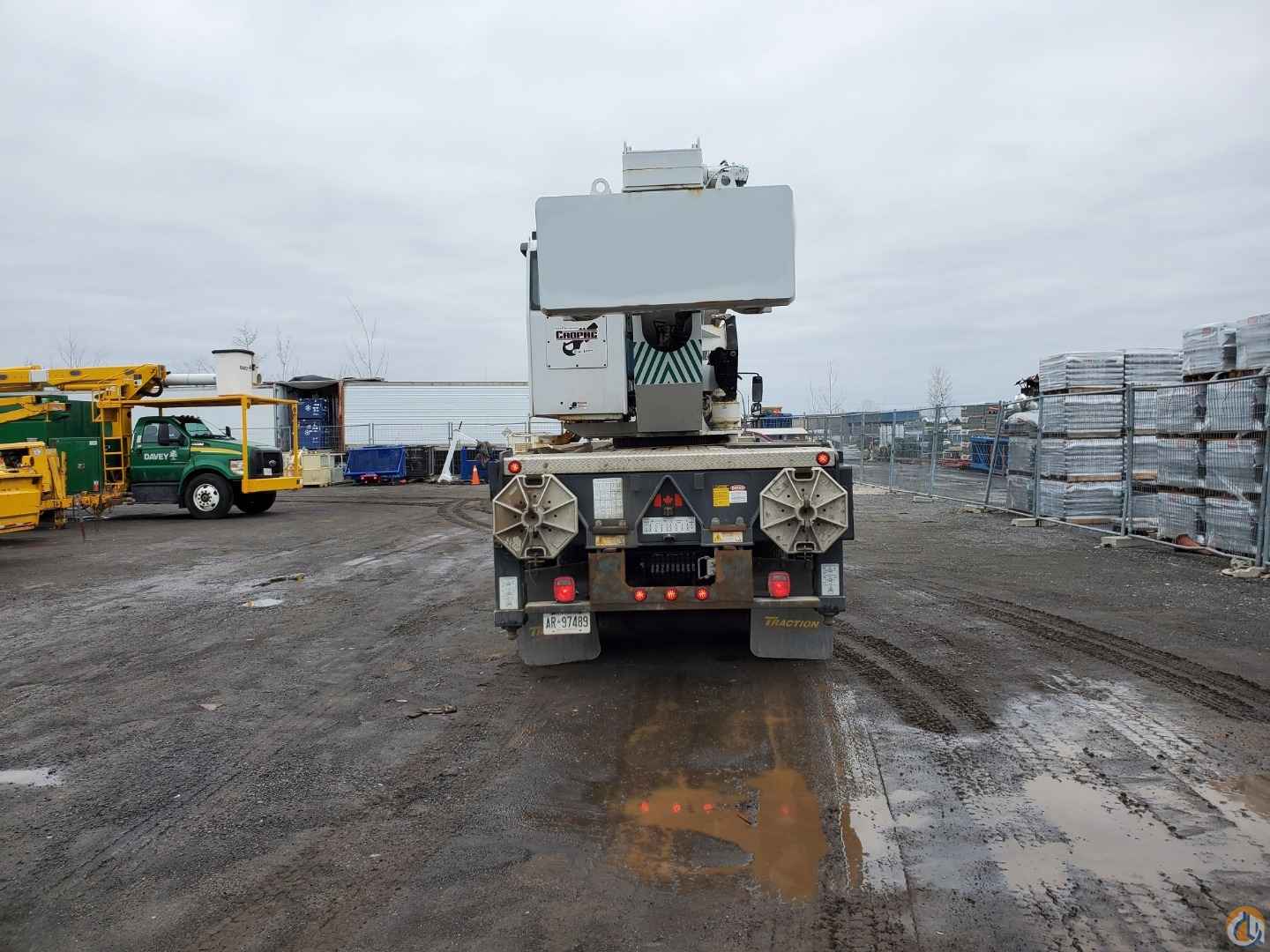

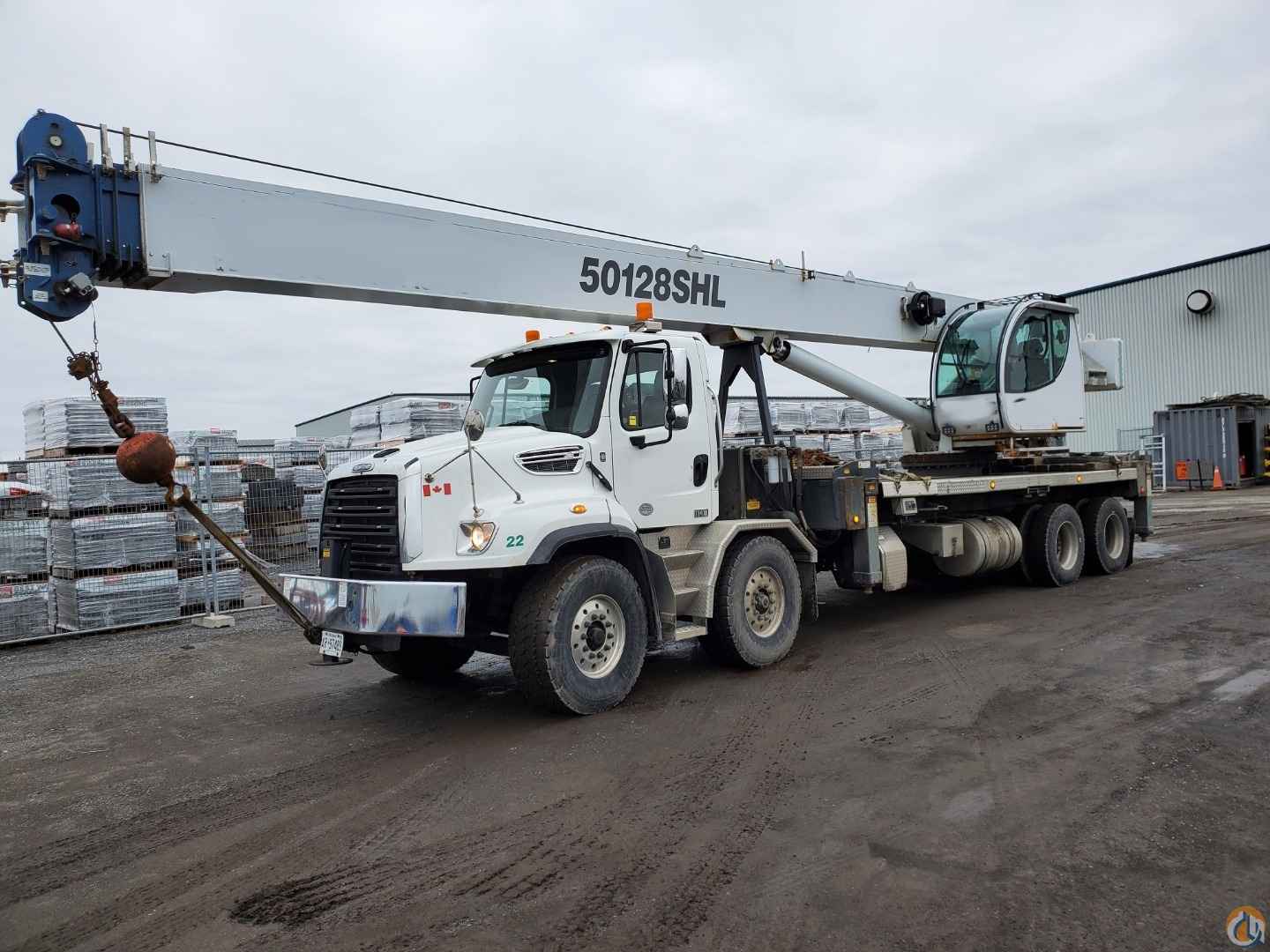

2017 Manitex 50128 SHL Boom Truck Crane (Sold)

• 50 ton capacity swing cab

• 128’ four section full powered main boom

• Two piece 32’ – 49’ jib with offsets

• 2-speed Hoist w/ Grooved Drum

• Rotation Resistant Wire Rope ⅝” diameter

• Hydraulic Rotation Drum Indicator

• 5 Ton (4.5 mt) Hook and Ball

• 35 Ton three sheave quick reeve hook block, 4-Load Sheave Quick Reeve Boom Head

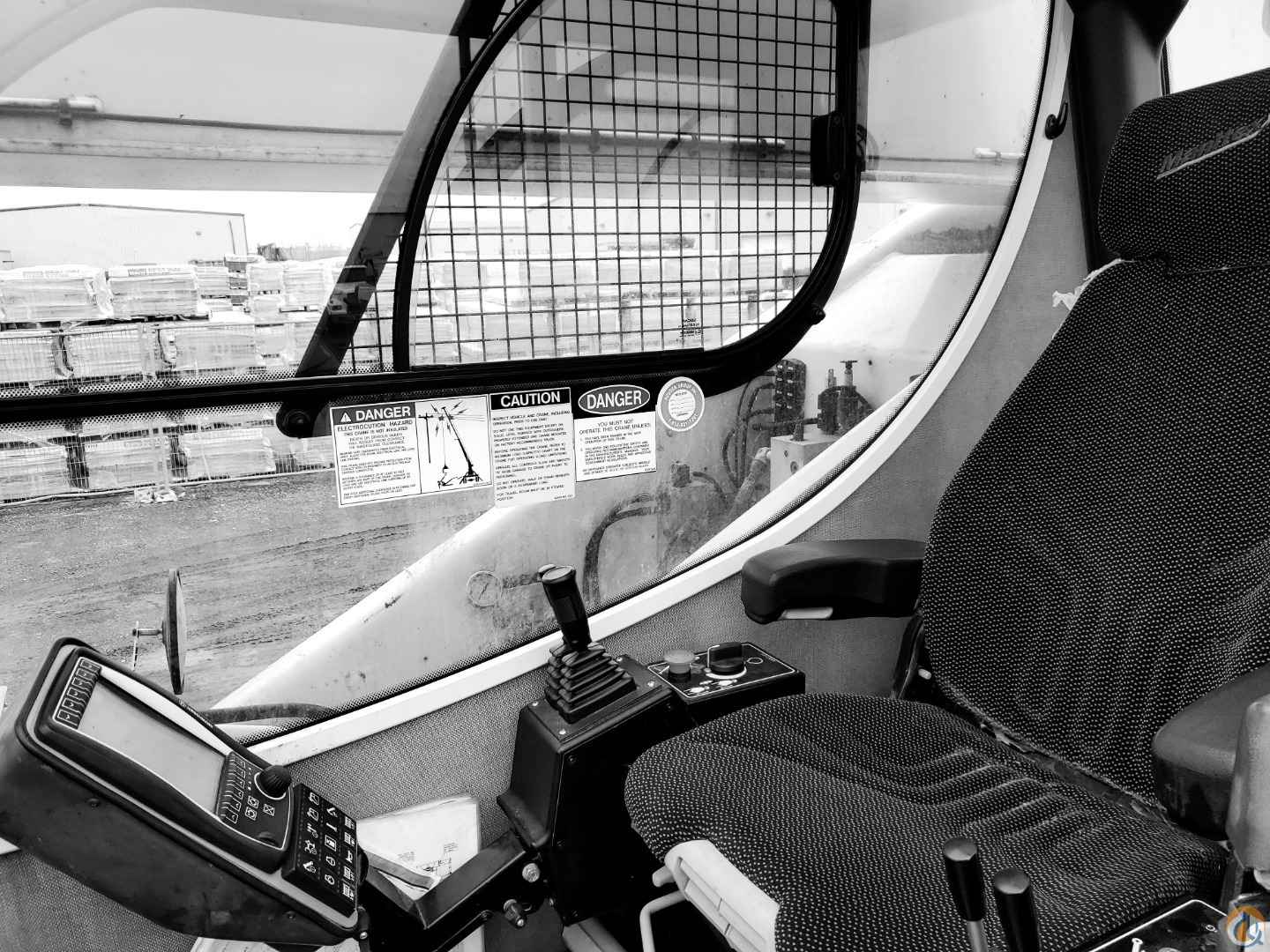

• Deluxe operators cab with 20 degree tilt

• Pilot Controls, diesel heater

• Heated fully adjustable seat

• Engine Monitoring System - Display in upper cab

• Full LMI with with all function visual and audible alerts with cutouts

• Hard Wired Anti-Two Block w/ Lockout

• Engine Start/Stop, Electronic Throttle

• Combined free swing and non free swing function

• Hydraulic Oil Cooler

• 4 Out-And-down outriggers, 22' over-all spread, with mid span and fully retracted.

• Front outrigger 360° Area of Operation, Continuous Rotation

• Radio hand held remote outrigger controller.

• Aluminum Step Ladder Diamond Plated Aluminum Decking

5325 hours

Mounted on a 2017 Freightliner 114SD - Tandem Tandem

DD13 12.8L 450 HP engine

EATON FULLER FO-16E318B-MXP ULTRASHIFT PLUS TRANSMISSION

• 40,000 Lbs. tandem front Axle

• 46,000 lbs. tandem rear axle - air ride suspension

• Dual 80 gallon tanks

• 71,395 km
