50 ton capacity swing cab
128’ four section full powered main boom
Two piece 32’ – 49’ jib with offsets
2-speed Hoist w/ Grooved Drum
Rotation Resistant Wire Rope ⅝” diameter
Hydraulic Rotation Drum Indicator
5 Ton (4.5 mt) Hook and Ball
Deluxe operators cab with 20 degree tilt
Pilot Controls, diesel heater
Heated fully adjustable seat
Engine Monitoring System - Display in upper cab
Full LMI with with all function visual and audible alerts with cutouts
Hard Wired Anti-Two Block w/ Lockout
Engine Start/Stop, Electronic Throttle
Free Swing, Oil Cooler
4 Out-And-down outriggers, 22' over-all spread, with mid span and fully retracted.
Front outrigger 360° Area of Operation, Continuous Rotation
Radio hand held remote outrigger controller.
Aluminum Step Ladder Diamond Plated Aluminum Decking
Chassis Mounted Aluminum Toolbox

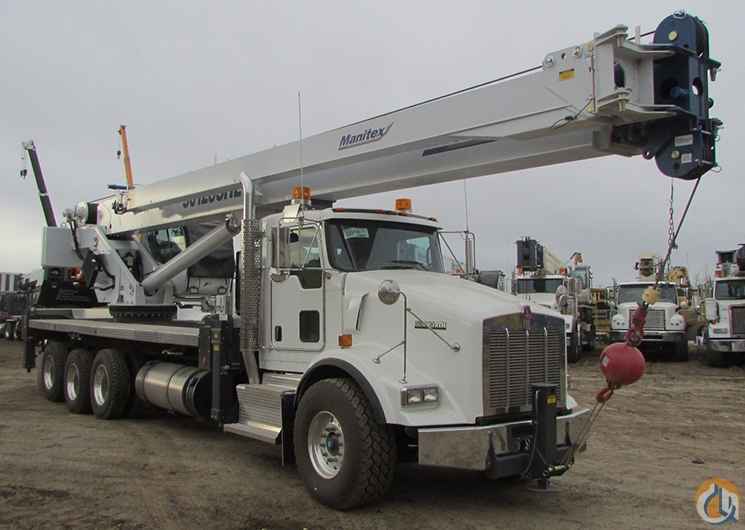

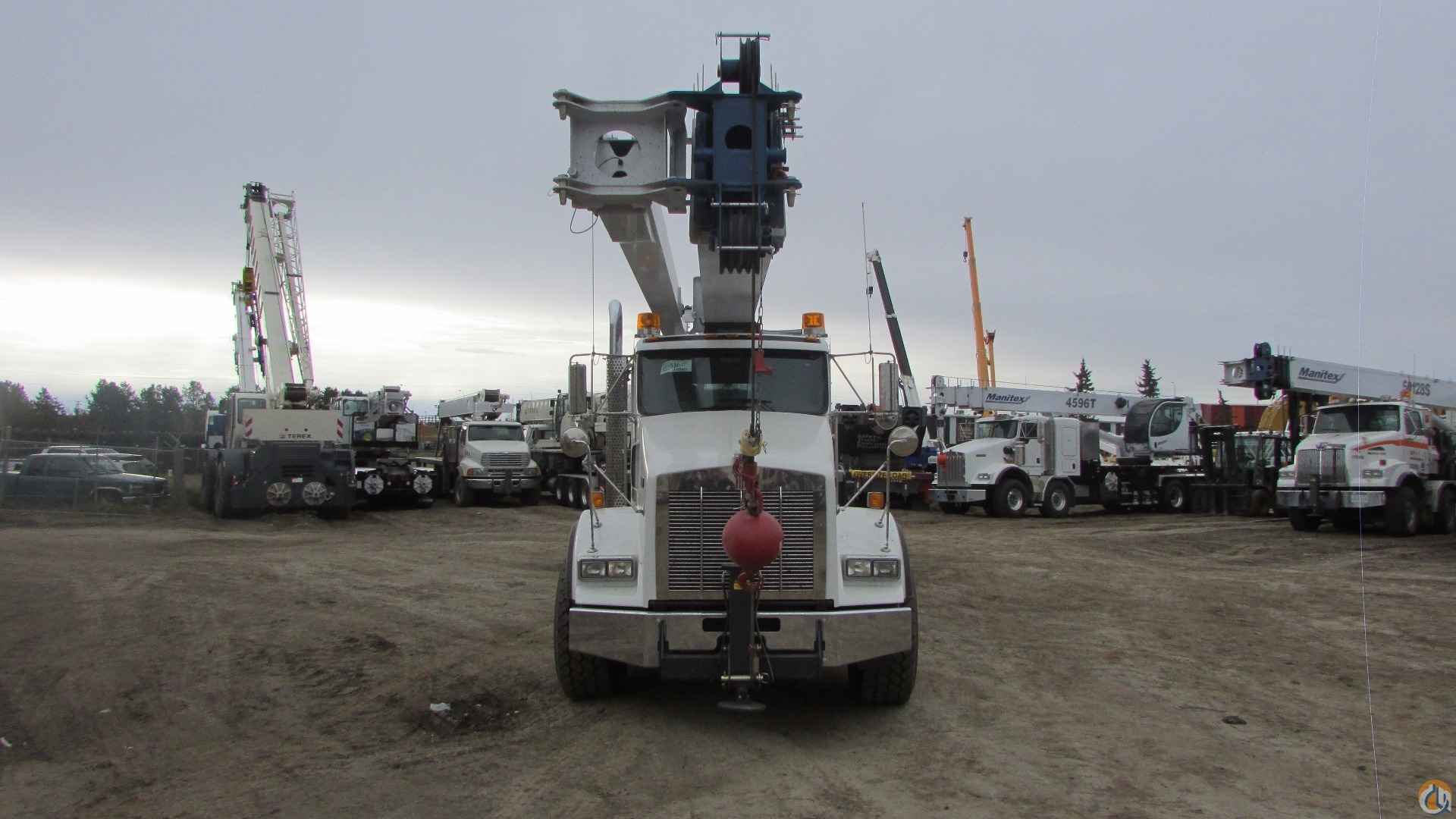

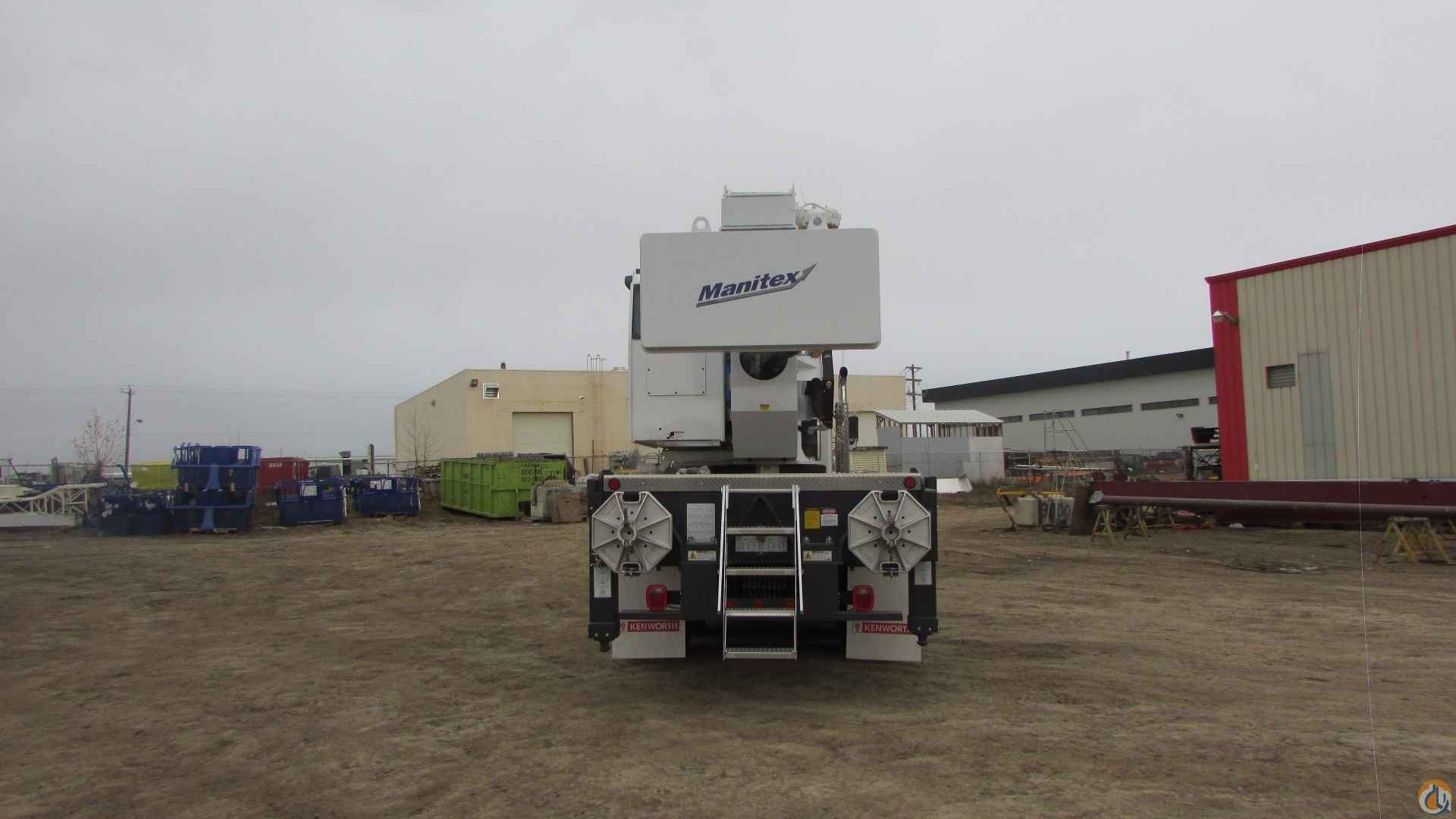

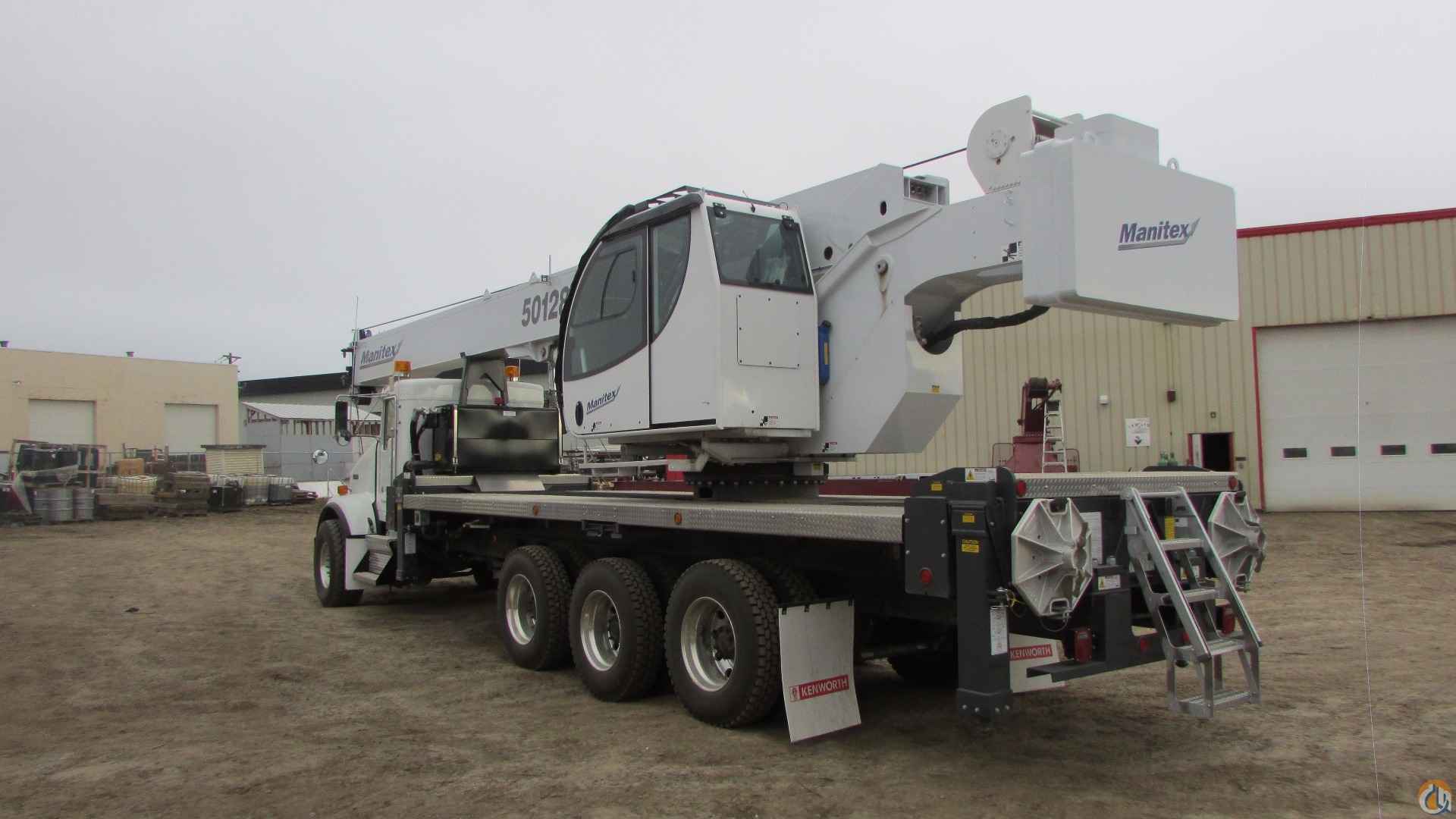

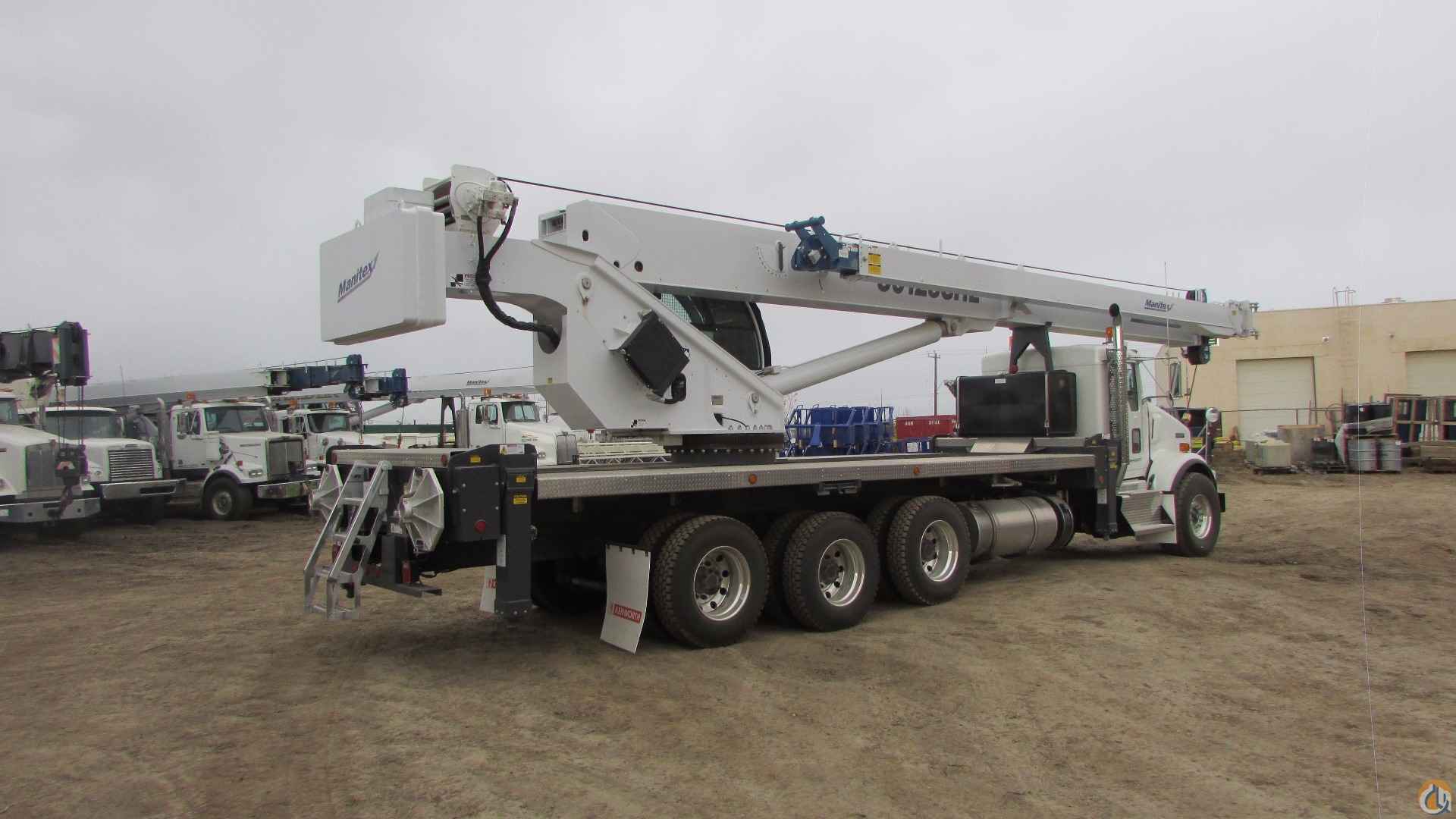

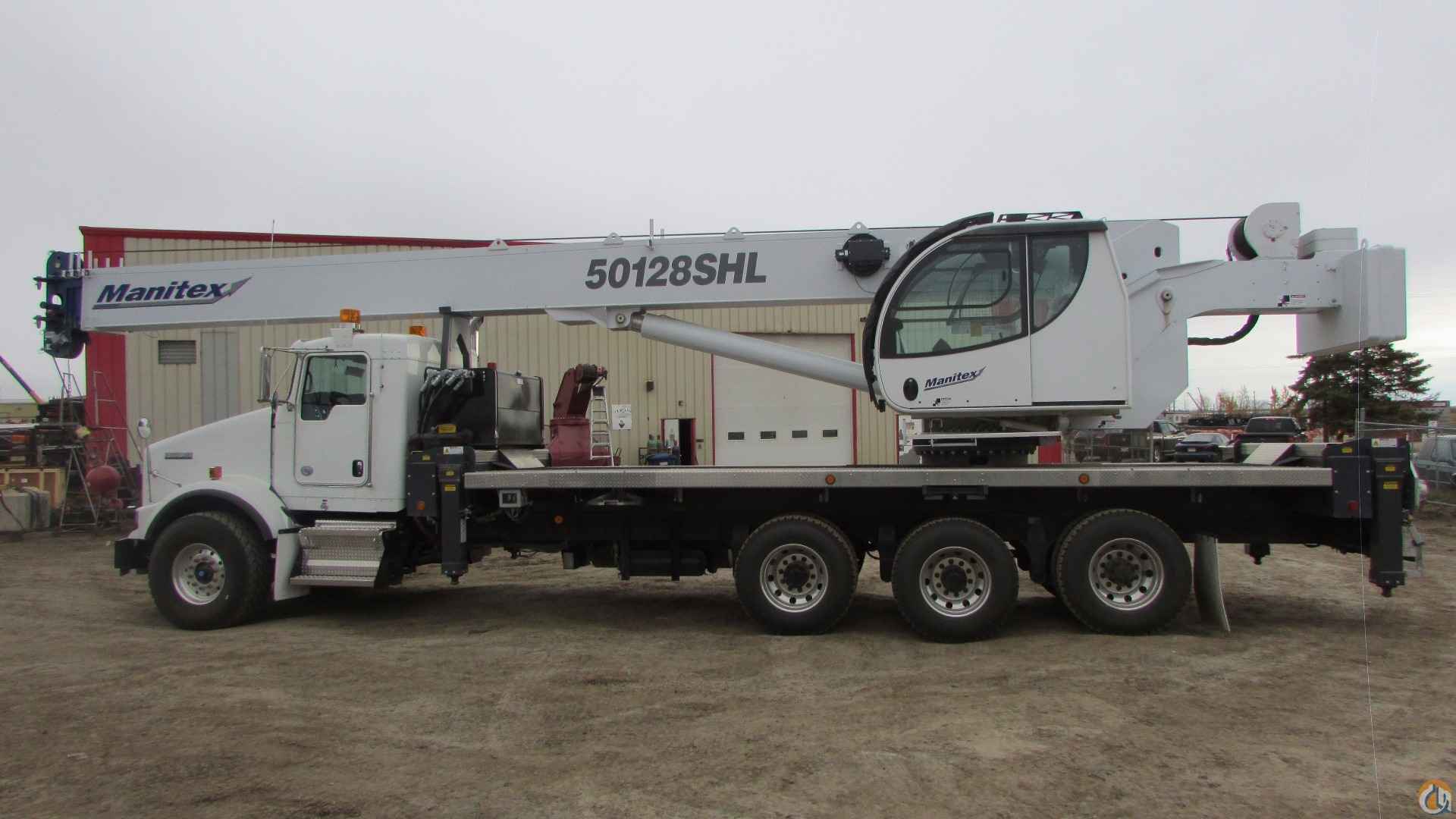

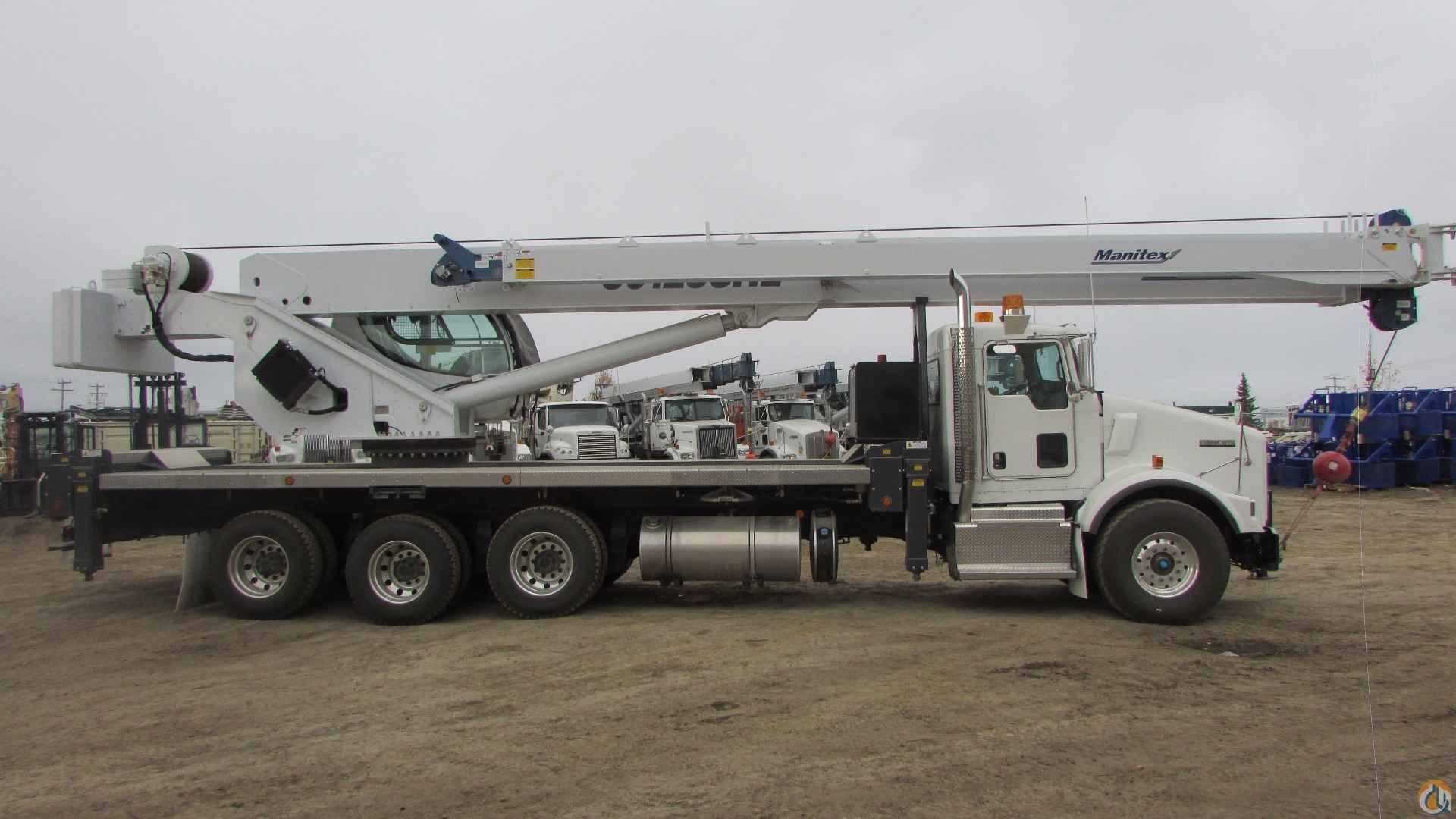

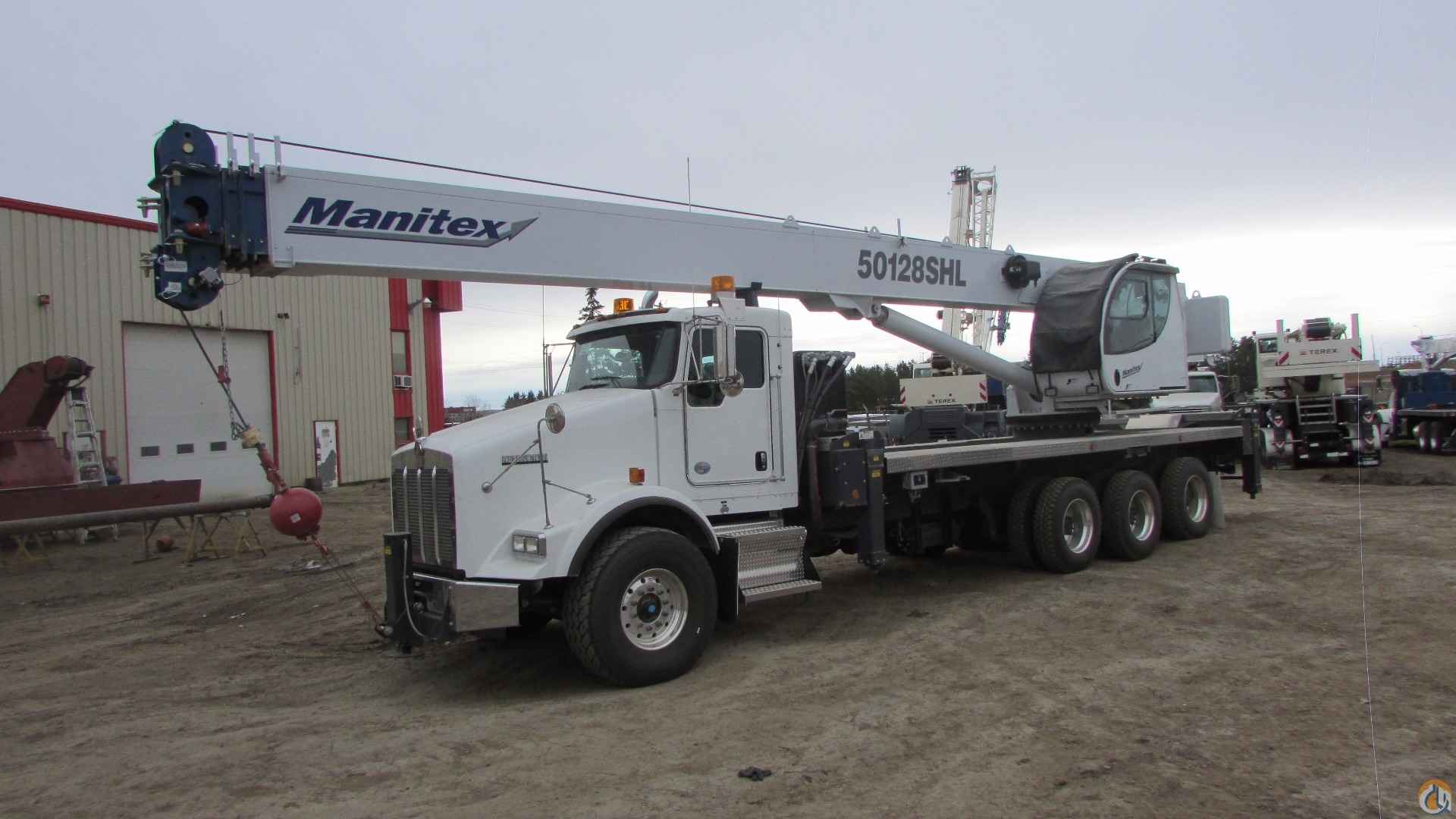

Mounted on a Used 2015 Kenworth T800 Tri-Drive
20,000 lbs. front Axle, 58,000 lbs. tridem Rear
Paccar MX-13 455 HP Engine
Eaton fuller RTLO-16918A transmission
125 gallon fuel tank
445 65R22.5 front tires, 11R22.5 Rear tires
Approx Miles 5730
