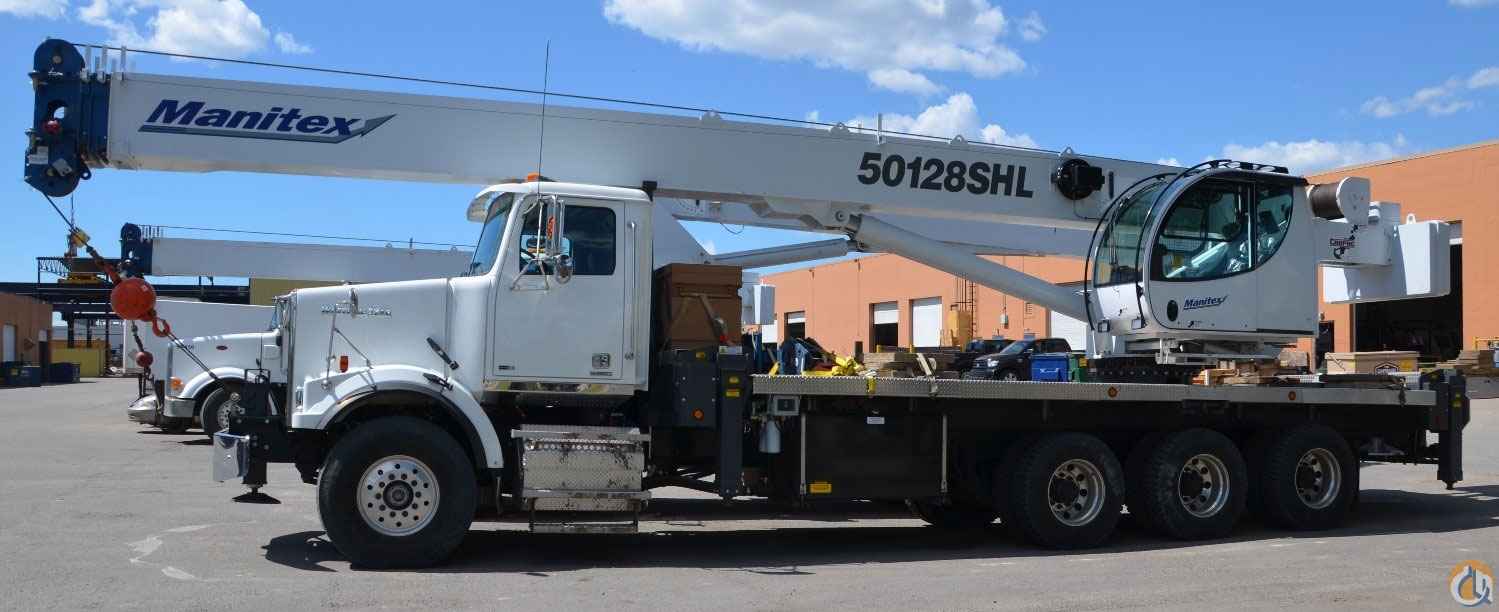

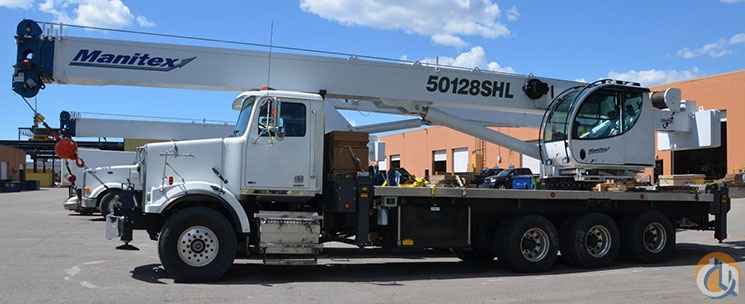

2013 Manitex Model 50128SHL
50 ton capacity swing cab
128’ four section full powered main boom
Two piece 32’ – 49’ jib with offsets
2-speed Hoist w/ Grooved Drum
Rotation Resistant Wire Rope ⅝” diameter
Hydraulic Rotation Drum Indicator
5 Ton (4.5 Metric Ton) Hook and Ball
35 Ton three sheave quick reeve hook block, 4-Load Sheave Quick Reeve Boom Head
Deluxe operators cab with 20 degree tilt & weather cover
Pilot Controls, diesel heater
Heated fully adjustable seat
Engine Monitoring System - Display in upper cab
Full LMI with all function visual and audible alerts with cutouts
Hard Wired Anti-Two Block w/Lockout
Engine Start/Stop, Electronic Throttle
Free Swing, Oil Cooler
4 Out-And-down outriggers, 22' over-all spread, with mid span and fully retracted w/hand held remote outrigger controller.
Front outrigger 360° Area of Operation, Continuous Rotation
Aluminum Step Ladder
Diamond Plated Aluminum Decking
Excellent condition
Crane is mounted on a:
2013 Western Star 4800 tri-drive, Air-Ride, DD13-450 HP engine, 13-speed transmission, 125 gallon fuel tank
Only 15656 Km and 1294 hrs on truck.
